JBD BMS Smart BMS supports 6S 7S 8S 9S 10S 11S 12S 13S 14S 15S 16S 17S 18S 19S 20S 21S 21S batteries, with 3 NTCs and built-in BT for electric motorcycles, small four-wheelers car, etc.

Product Introduction:

1. Applicable Battery Type:3.2v Lifepo4/3.7v Li-ion Battery.

2. Size in:130*65*10mm

3.Automatically identify battery strings for:
Li-ion(6-21S)/LifePo4(6-22S)

3. Balance current in:100-160mA,

4. Continuous current in 40A 50A 80A，peak current in 120-300A for a second.

5. Discharge switch:optional(If need add discharge switch,please contact customer service).

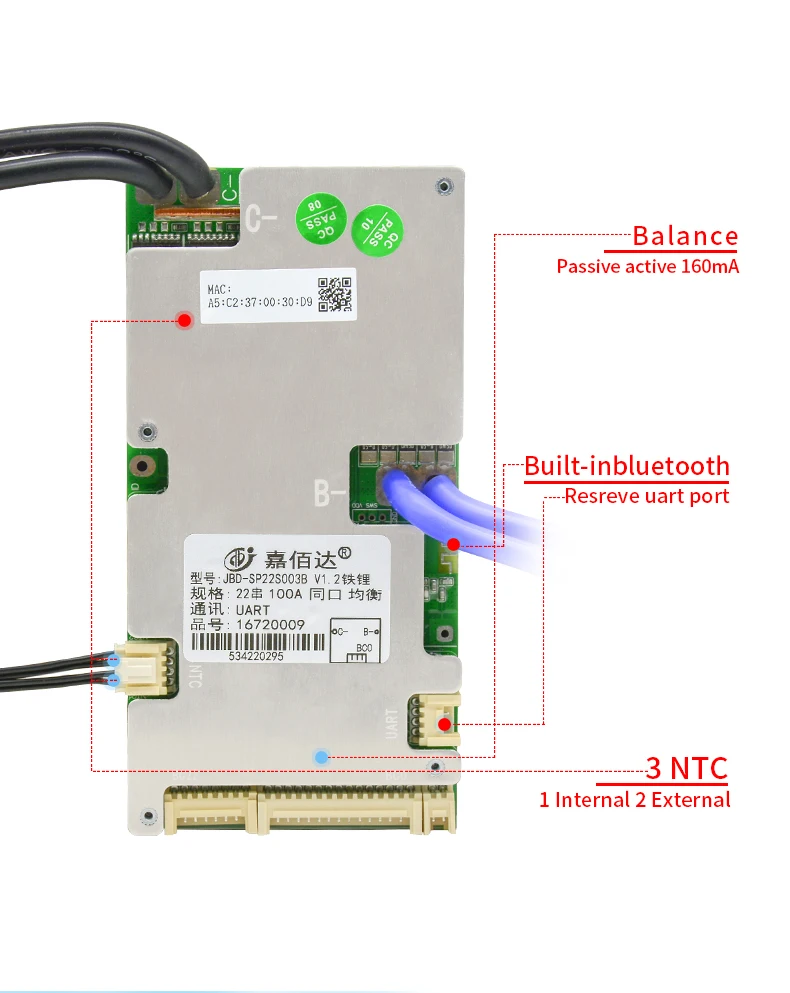

6. Temperature Sensor:3NTC (1pc Internal, 2pcs External).

7. Balance Function:Same port with balance.

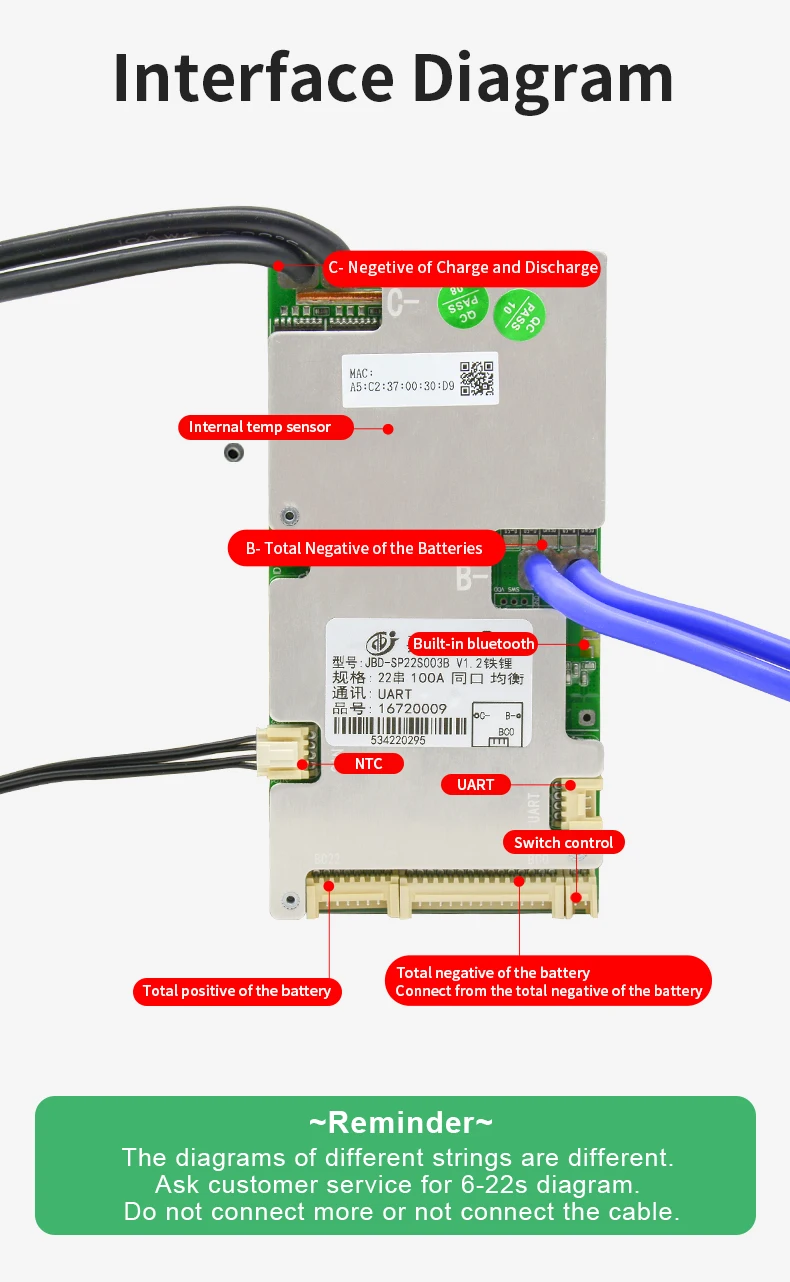

8.Wiring diagram: Please contact customer service

9. Package Included:
BMS with built-in BT & Balance Wires.

Function Introduction:

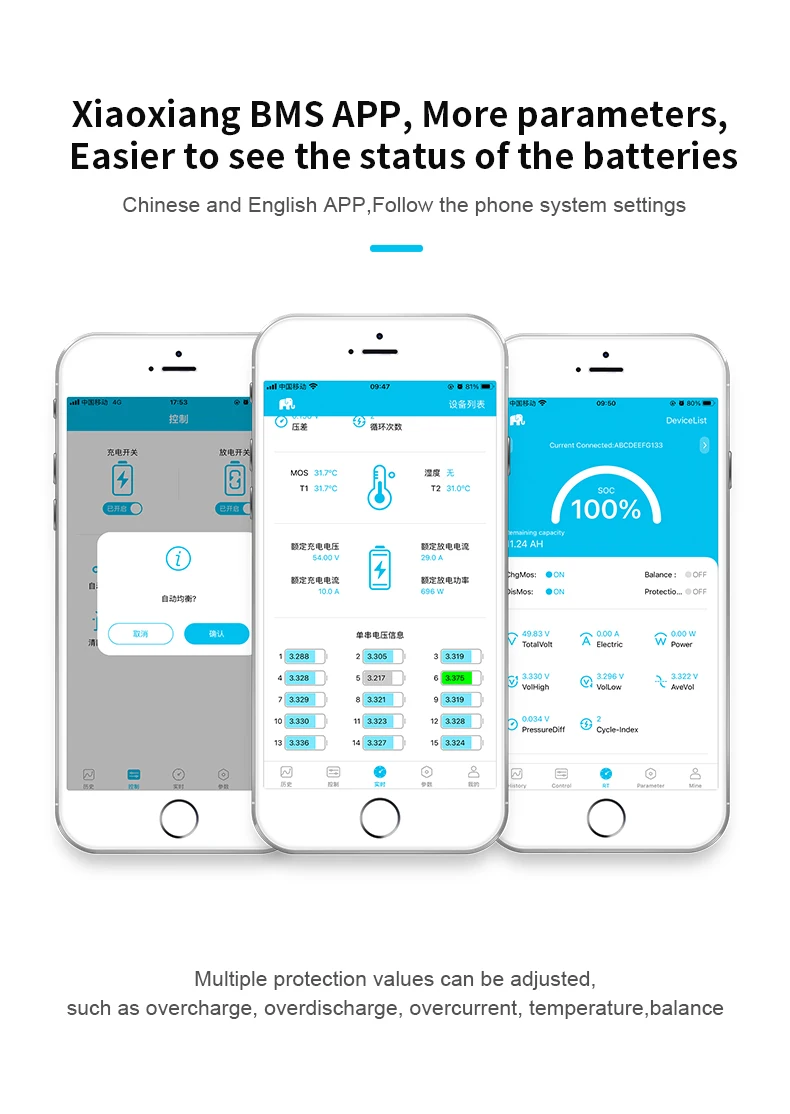

(1)BT-APP in Phone (xiaoxiangElectric App)

Support Both IOS version and Android version, can monitor and change the parameters within the specified range.

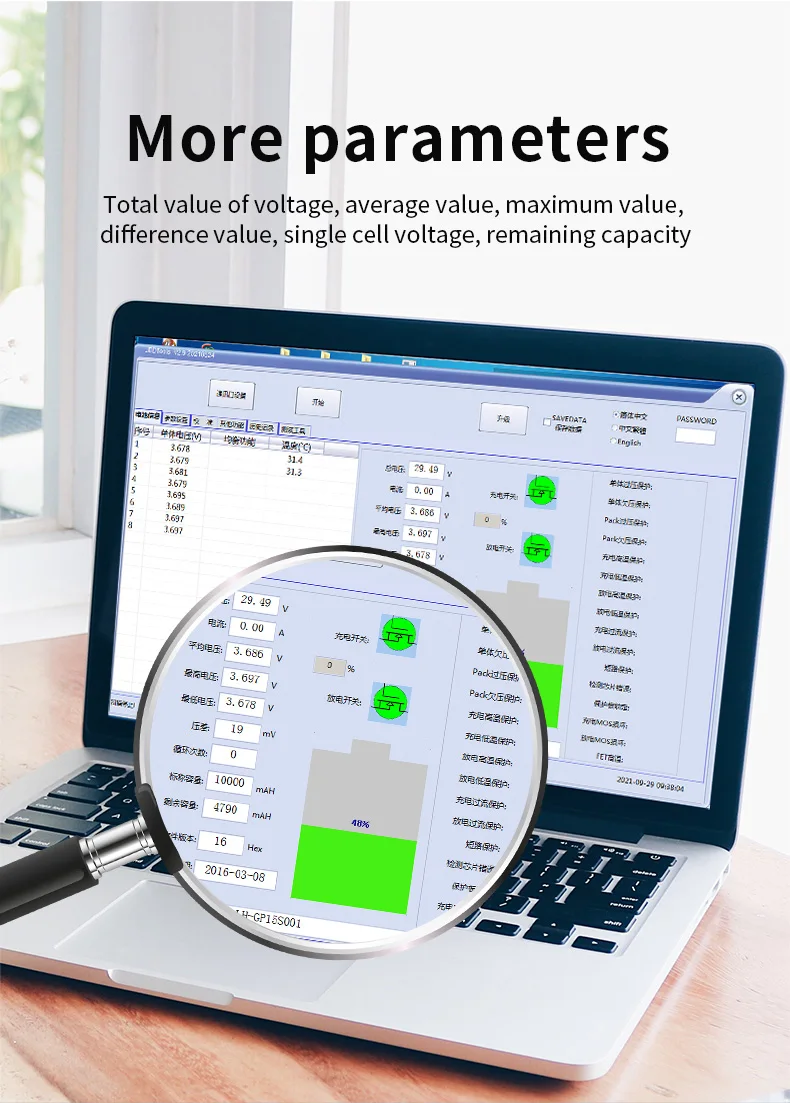

(2)UART-PC Tool Box Aceesssory

Monitor and Set parameters, ask for service for PC Tool Software and PC tool Manual.

(3)UART LCD Displayer

Can monitor parameters on LCD displayer.

Attention:

(1) All smart bms has BT and UART function.

(2)All UART communication can be converted to Canbus communication if needed, only need to buy an UART To CAN converter module separately.

(3)If the Switch Function is needed, pls contact customer service.
