Description:
Brand new.
Made of Marine Grade 316 Stainless Steel, very tough and resistant to corrosion.
A special bit key to remove the screws on the back wall of coffee machines.

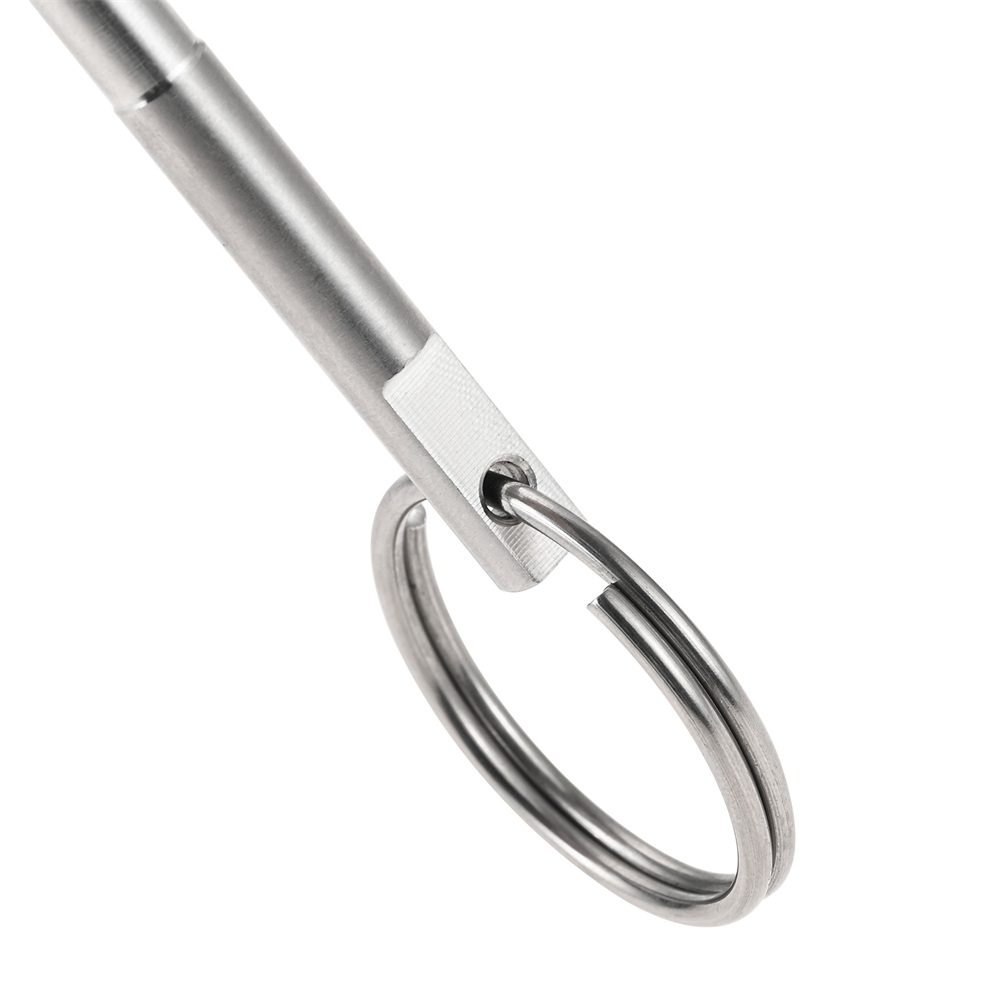

The key ring moves freely and immediately applicable or can easily be removed so that you can use a regular driver handle for access in the tightest places.
Traditionally the screws are obvious and appear as black "rivets". However, on many of the more recent models Jura has hidden the screws which makes it less obvious how to disassemble the machines. You may find this additional info helpful:
J-series, Z-series, and X5: There are two hidden security screws behind the Jura logo in the back.
Turn the logo an eight of a turn clockwise (Z-series/X5) or counter-clockwise (J-series) to release it and you will find the screws.
ENA-series: These machines are secured with a locking mechanism. There is a security screw behind the Jura logo in the back. Turn the logo to counter-clockwise release it and you will find the screw. Remove the screw and then push the gray plate upwards to release the locking mechanism in the back. Likewise, there's another oval head screw in the front that will be visible
when you pull out the tray. The locking mechanism in the front needs to be pulled down (in contrast to the one in the rear that moves upwards)
Fit for Jura, Capresso, Krups, Franke, AEG ,Orchestro, Siciliana, Toscana, and all Nespresso machines
The bit will fit the proprietary oval head security screws in the following machines:
Jura-Capresso: A1, A5, A7, A9, C5, C50, C55, C65, C70, C75, C9, C90, D6, E5, E8, E9, E10, E25,E30, E40, E45, E50, E55, E6, E60, E65, E70, E74, E75, E80, E85, ENA3, ENA4, ENA5, ENA7,ENA9, ENA Micro 1, ENA Micro 5, ENA Micro 8, ENA Micro 9, ENA Micro 90, ENA Micro Easy, F5,F50, F60, F70, F90, F7, F9, F900, Giga 5, Giga X3, Giga X7, Giga X8, Giga X9, XF50, XF70, S50,S55, S70, S75, S85, S90, S95, S7, S8, S9, J5, J6, J9, Z5*, Z6*, Z7*, Z8*, Z9*, X5*, X6*, X7,X9, X30, X70, X90, X95, Ultra, Cappuccinatore, M30, Scala, Scala Vario, Evolution, 201, 300,401, 500, 601, 801, 2000, 3000, 4000, 5000, 6000
Capresso: C1000, C1300, C1500, C2000, C3000
AEG Cafamosa: CF 80, CF 81, CF 85, CF 90, CF95, CF 100, CF 120, CF 200, CF 300, CF 400,CF 500
Krups: Orchestro, Siciliana, Toscana, and all Nespresso machines.
Franke: Saphira
In short, it will fit all Jura-machines. We don't know of any Jura machine that it does not fit. As for other brands, please check list above or contact us.
Please beware that the tool does not fit the 5.8x4.8mm oval head bolts found in Krups drip coffee makers.
Specifications:
Color:Silver.
Material:316 Stainless Steel

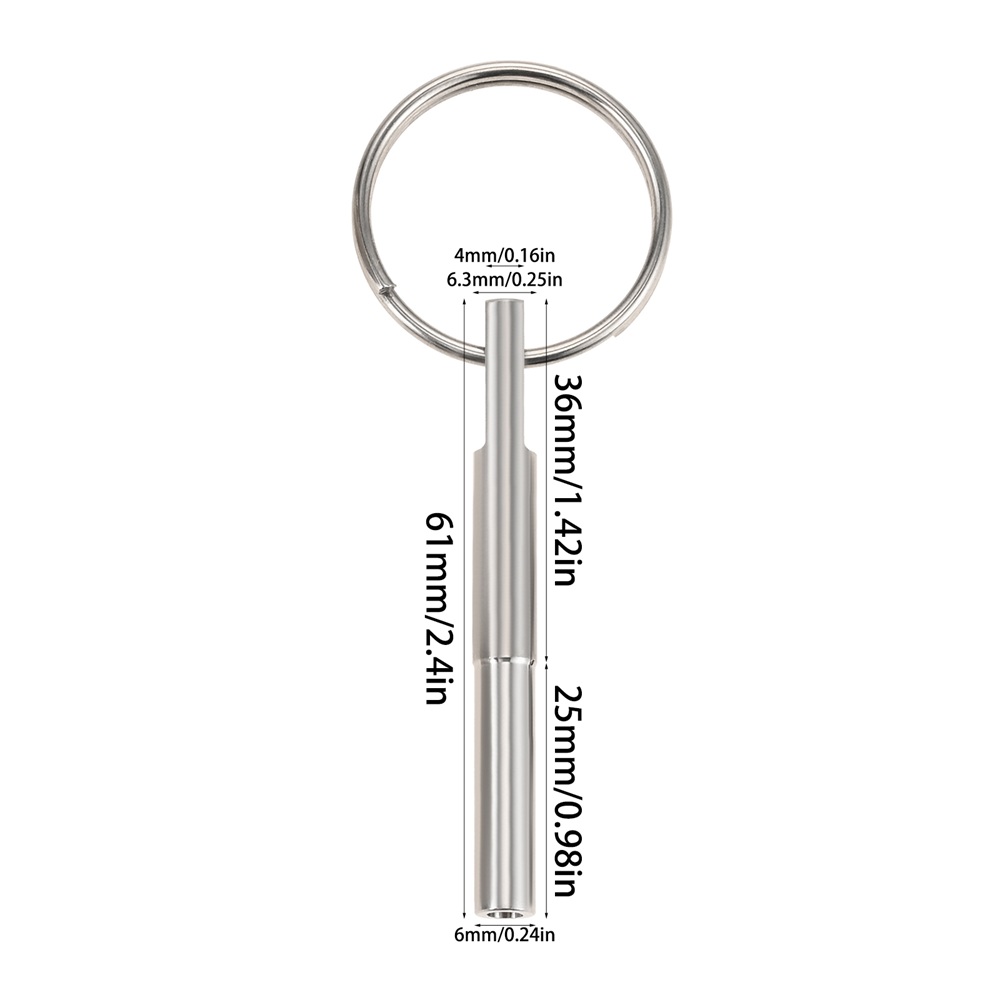

Size: approx.61mm/2.4in
Package List:
1 Set Repair Tool Key
Note:
Please allow 0.5mm/0.02in error due to manual measurement. pls make sure you do not mind before you bid.
The real Colour of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
