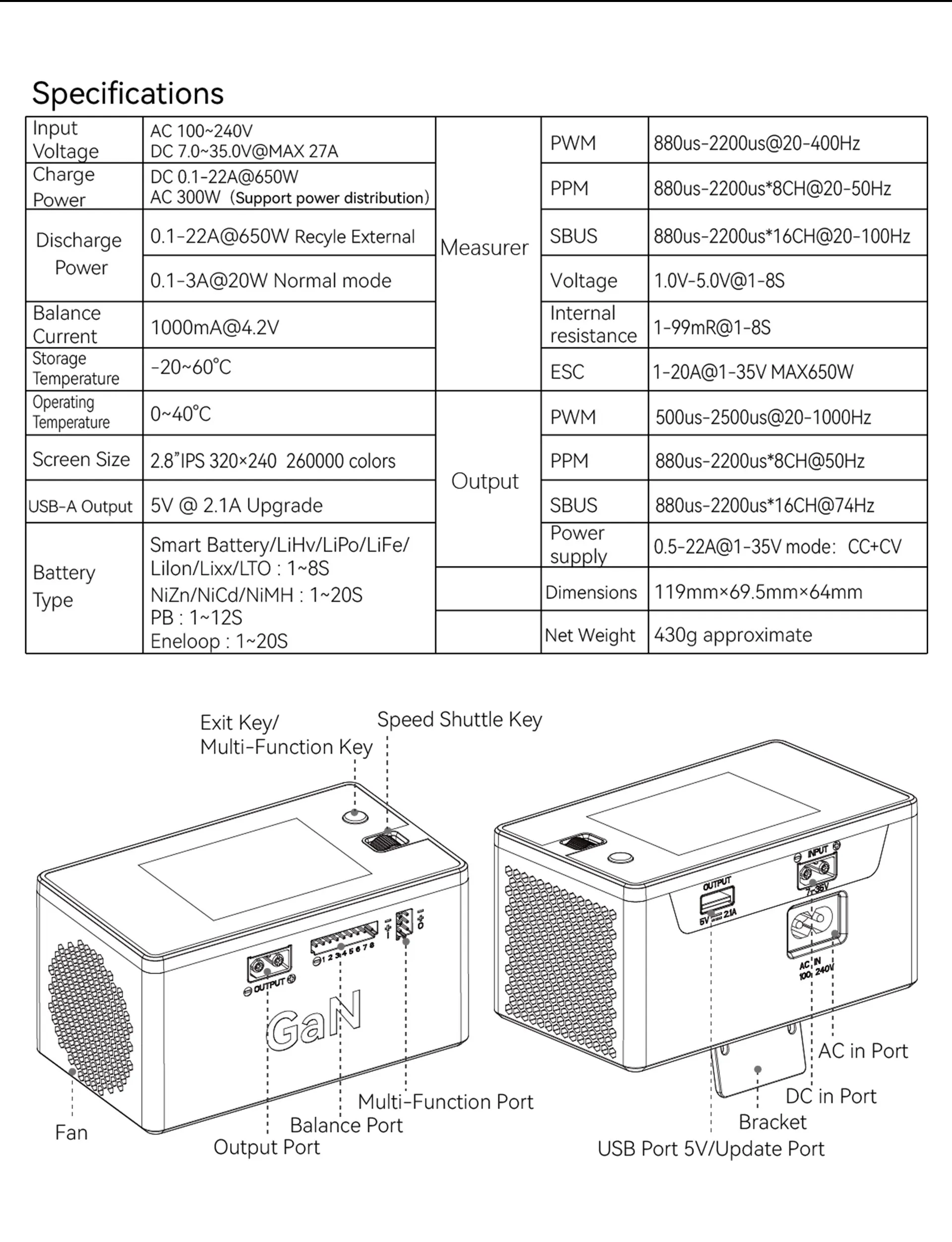

Specifications

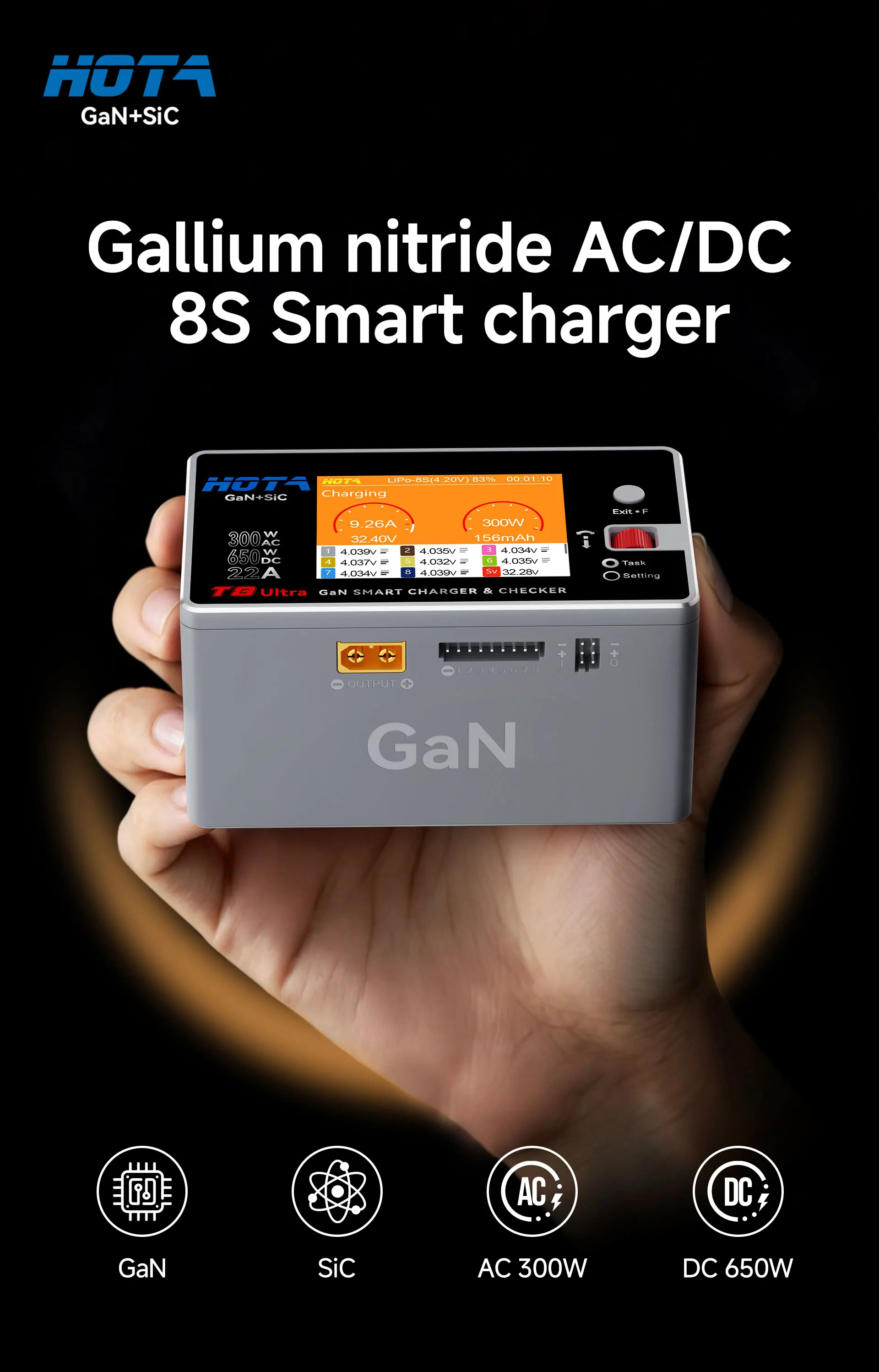

Input Voltage：AC 100~240V  DC 7.0~35.0V@MAX 27A

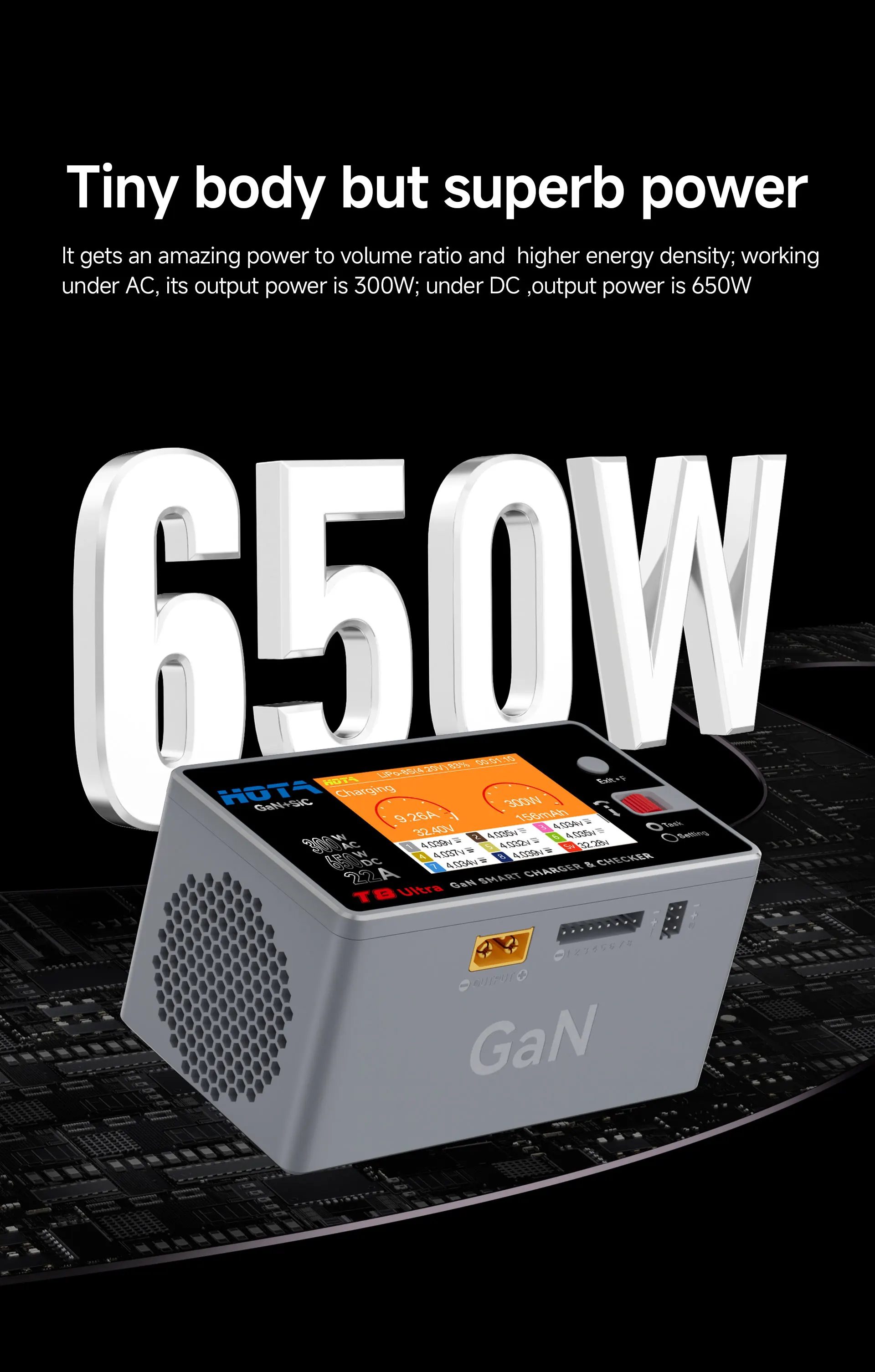

Charge Power: DC 0.1-22A@650W  AC300W (Support power distribution)
Discharge Power: 0.1-22A@650WRecyle External
0.1-3A@20W Normal mode
Balance Current: 1000mA@4.2V
Storage Temperature: -20~60℃
OperatingTemperature: 0~40℃

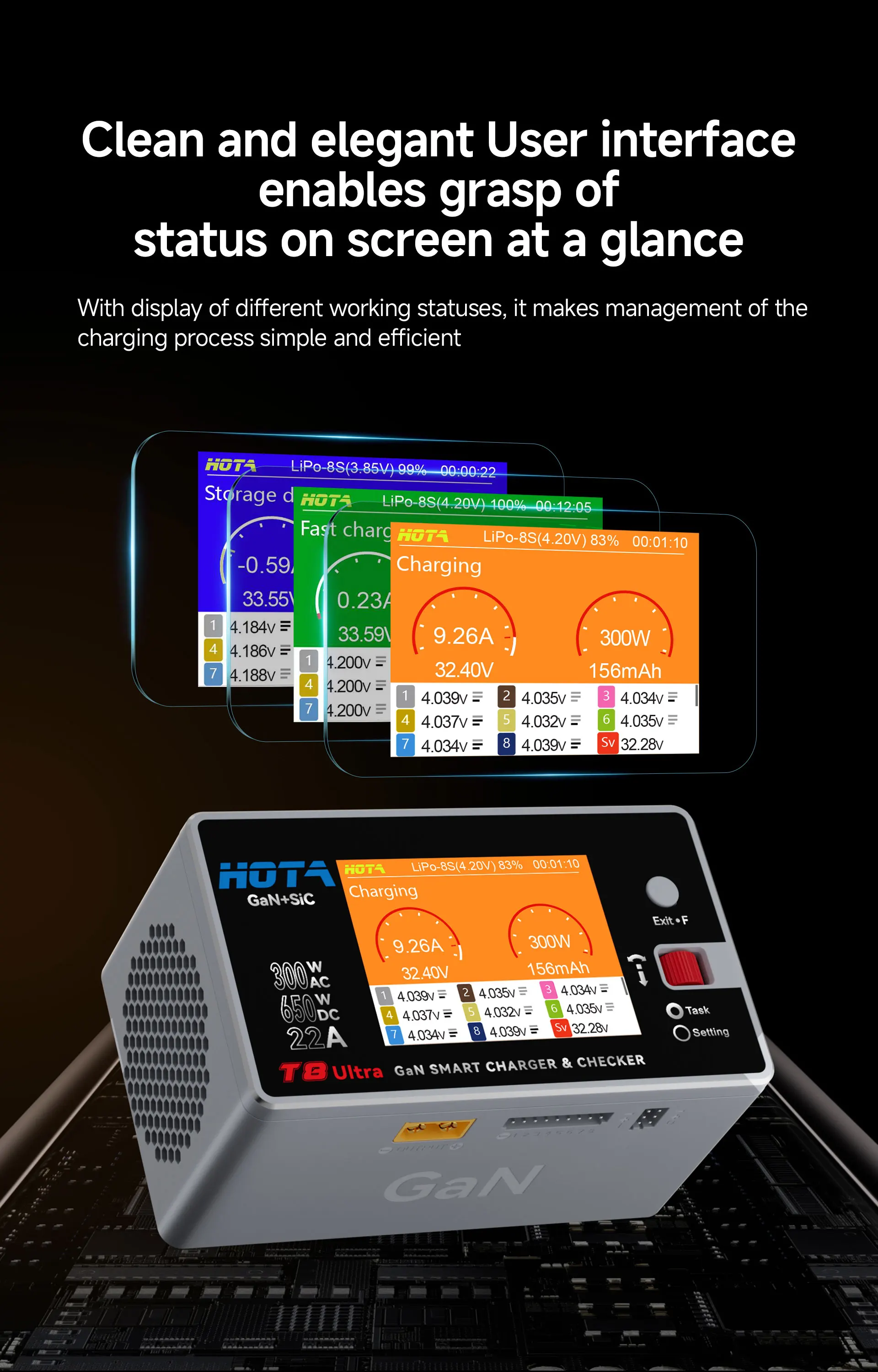

Screen Size: 2.8”IPS 320x240 260000 colors
USB-A Output: 5V @ 2.1A Upgrade

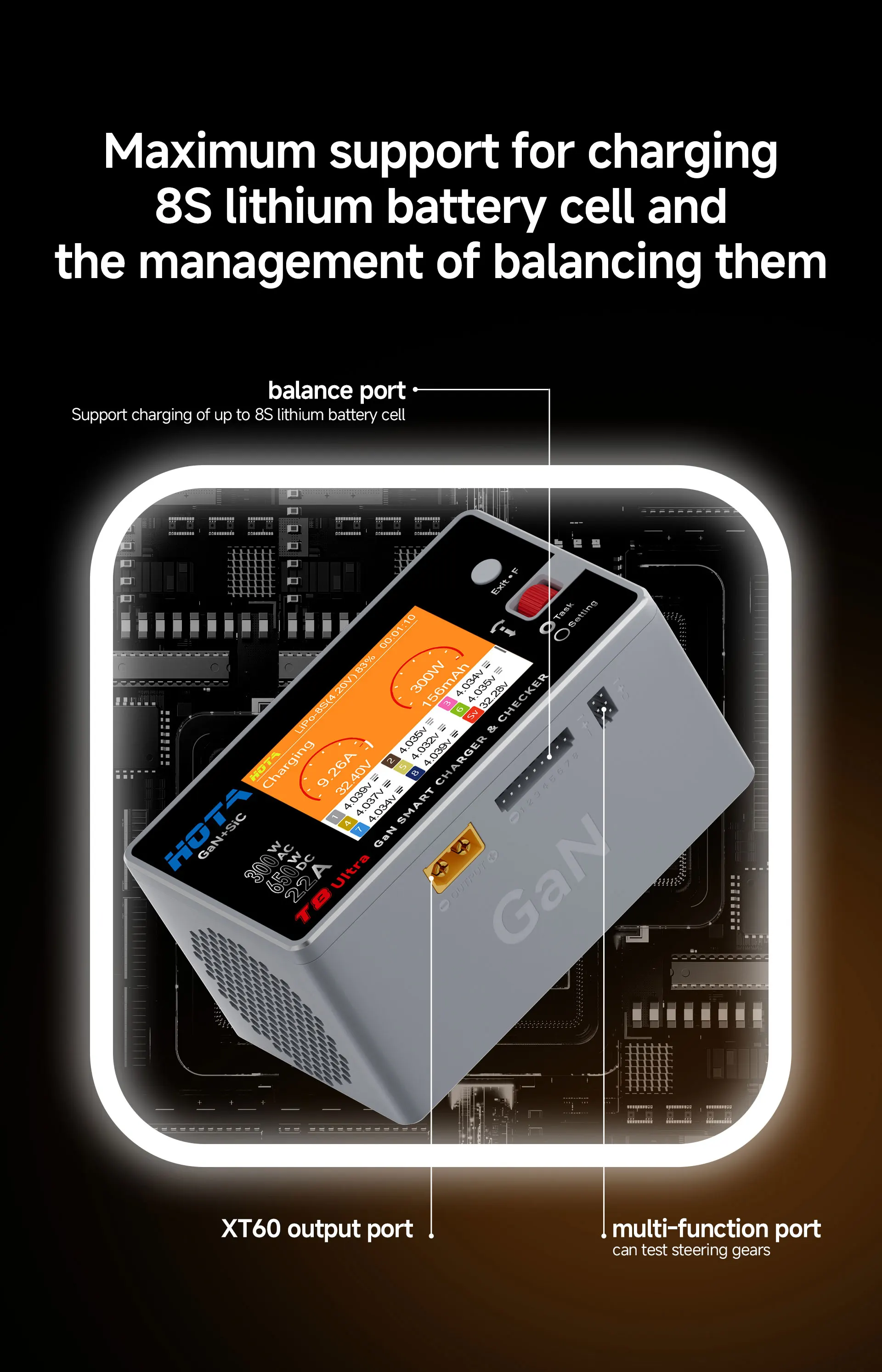

Battery Type: Battery/LiHv/LiPo/LiFe/Lilon/Lixx/LTO:1~8S
NiZn/NiCd/NiMH:1~20S  PB:1~12S  Eneloop:1~20S

Measurer
PWM：880us-2200us@20-400Hz
PPM：880us-2200us*8CH@20-50Hz
SBUS：880us-2200us*16CH@20-100Hz
Voltage：1.0V-5.0V@1-8S
Internal resistance：1-99mR@1-8S
ESC：1-20A@1-35V MAX650W
Output
PWM：500us-2500us@20-1000Hz
PPM: 880us-2200us*8CH@50Hz
SBUS:880us-2200us*16CH@74Hz
Power Supply: 0.5-22A@1-35Vmode:CC+CV

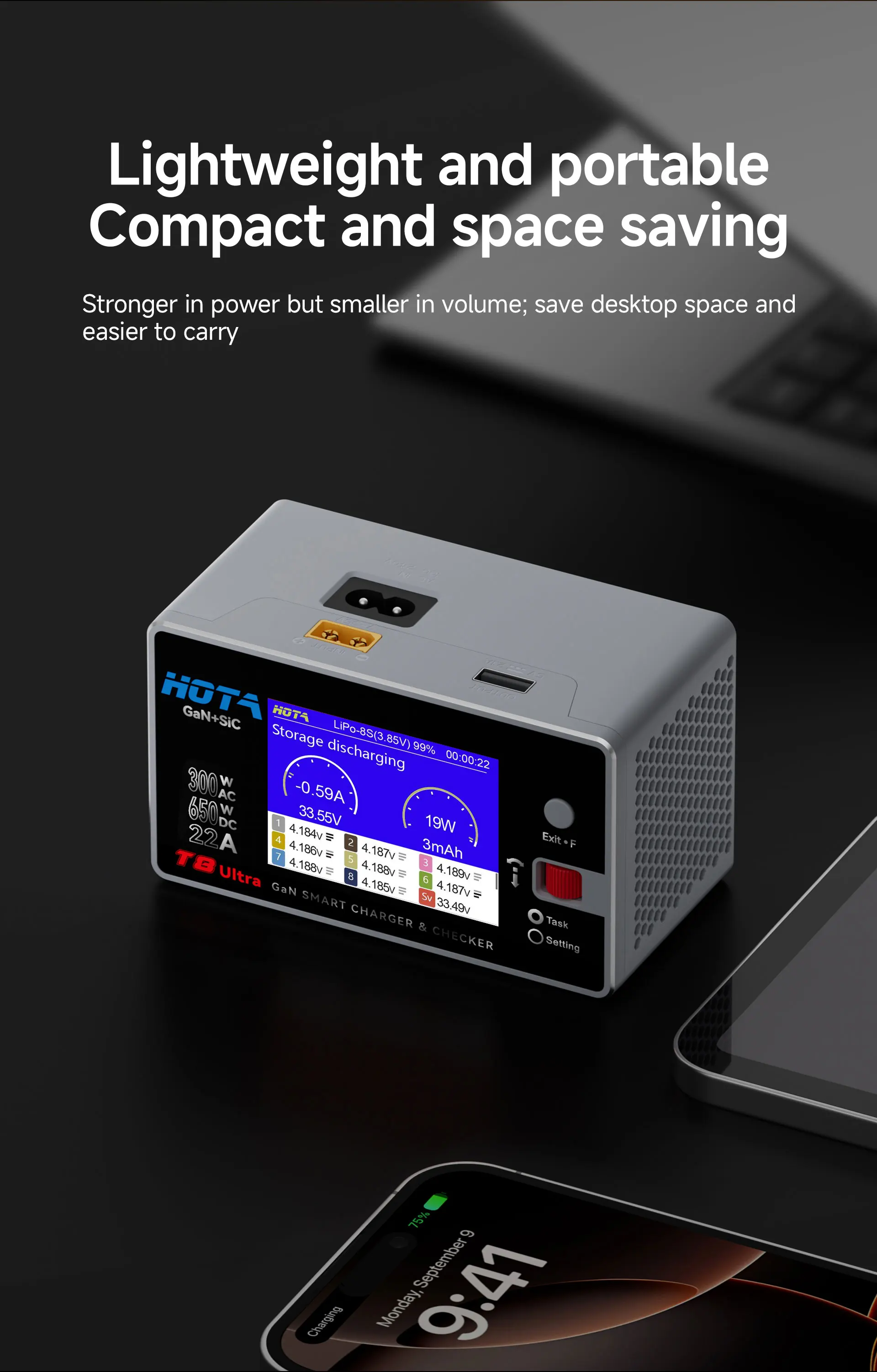

Dimensions:119mmx69.5mmx64mm
Net Weight:430g approximate
