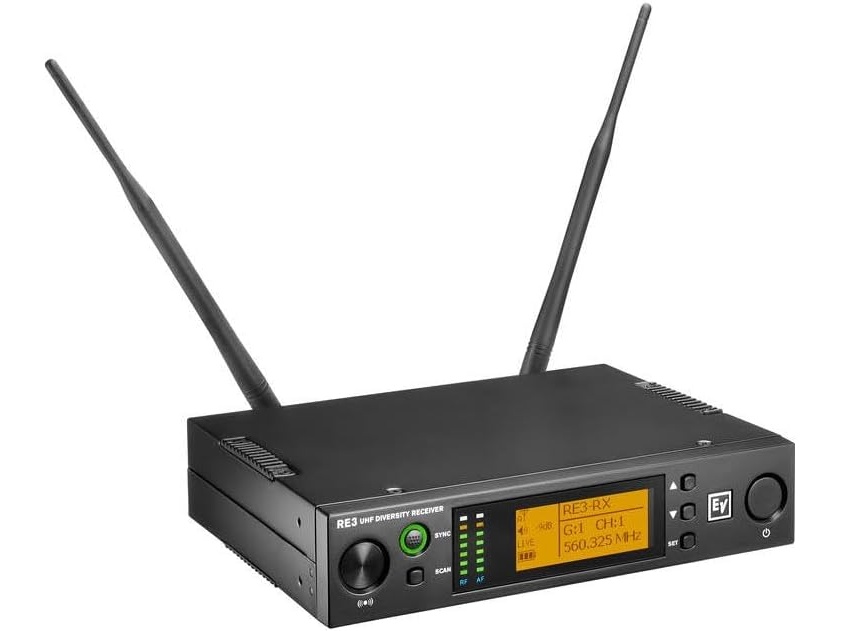

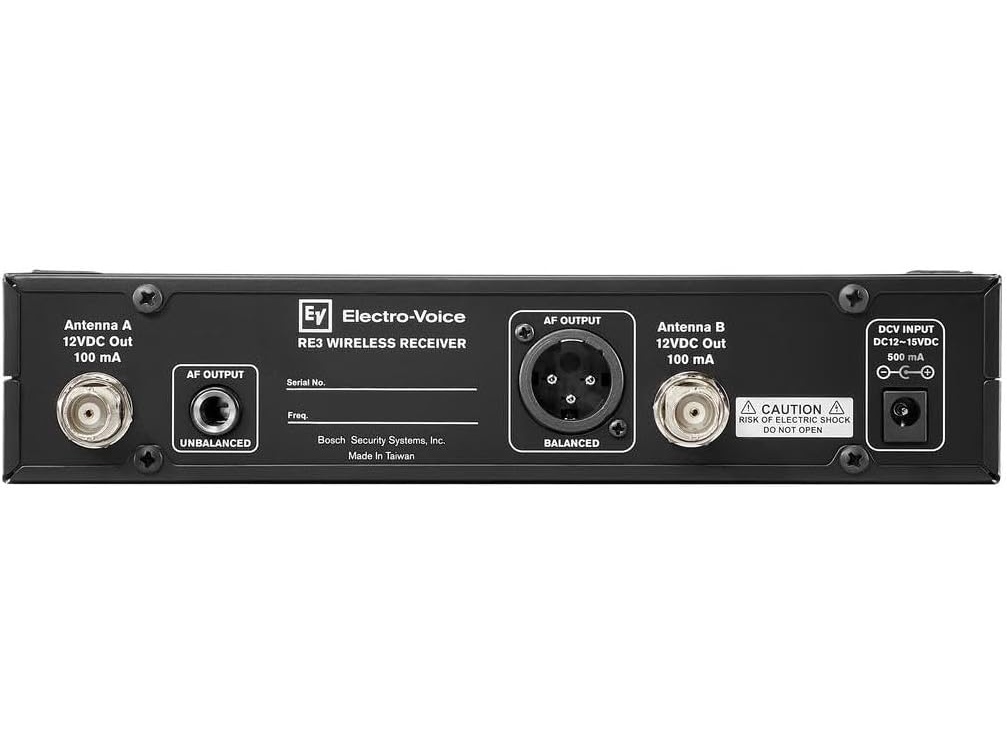

The RE3-RX-5H is a half-rack UHF wireless diversity receiver designed to deliver reliable RF reception and clean audio output. It provides clear frequency scanning and wireless synchronization to compatible RE3 transmitters. The unit is intended as the control center of an RE3 wireless set and supports broad tuning in band-specific ranges. The receiver features dual-antenna diversity reception which reduces signal dropouts by selecting the strongest signal path in real time. It offers frequency scanning, ultrasonic sync, and full transmitter control settings that can be mirrored to a paired transmitter. The front-panel LCD provides clear readout of group, channel, frequency, and RF/AF levels. Technically the receiver uses PLL frequency oscillation and supports a carrier range listed for the series with a 36 MHz tuning bandwidth band-dependent. It delivers better than 100 dB(A) signal-to-noise ratio and THD below 0.6% at 1 kHz. Receiving sensitivity is specified at -81 dBm for -12 dB SINAD and the audio frequency response varies by transmitter type. Connectivity includes a balanced XLR output and an unbalanced 1/4 in TRS output, plus detachable 1/2-wave antennas on BNC connectors and antenna booster power. Output levels are provided in line and mic references and output impedances are specified for balanced and unbalanced configurations. Control functions cover power, scan, group/channel selection, squelch, TX parameters and display settings. Typical applications include live sound reinforcement, broadcast ENG/OB, corporate presentations, and houses of worship where compact rack space and dependable wireless audio are required. The half-rack footprint and robust control set make it suitable for multi-channel systems when coordinated via frequency scanning. Its sync and scan features simplify multi-unit setup and management. Installation is straightforward with standard half-rack mounting, detachable antennas, and DC 12-15 V power input. The chassis finish is a durable black polyurethane paint and the receiver weighs approximately 2.71 lbs net. The combination of diversity reception, clear LCD feedback, and wireless TX sync provides an efficient solution for professional wireless audio deployments. Specifications: | Frequency Oscillation Mode | Phase-locked loop (PLL) | | Carrier Frequency Range | 470 - 865 MHz (tuning bandwidth is band-dependent) | | Sync Frequency | Ultrasonic 40 kHz | | Diversity | Antenna diversity | | Bandwidth | 36MHz | | Signal/Noise Ratio | >100dB(A) | | Total Harmonic Distortion (Thd) | <0.6% at 1kHz | | Receiving Sensitivity | -81dBm for -12dB SINAD | | Frequency Response | 63Hz~16kHz±2dB (BPT), 51Hz~16kHz±2dB (HHT) | | Antenna Type | Detachable 1/2 wave with BNC connector | | Antenna Booster Power | DC12 - 15V/100mA | | Function Display By | LCD | | Contents Of Display | Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status, output level attenuation, AF indication, RF indication, key lock indicator | | Control Functions | Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset | | Sync Data Options | Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display | | Audio Frequency Output Level | Ref ±22.5kHz Dev at 1kHz Tone | | 1/4 (6.3mm) Phone Jack | -10dBV | | XLR Jack | -4dBV (Line), -24dBV (MIC) | | Audio Frequency Output Impedance | 240Ω (unbalanced), 1400Ω (balanced) | | Squelch and noise muting | Noise muting, tone code locking | | Output Ports | 1 x balanced XLRM jack, 1 x unbalanced 1/4 TS (6.3mm) jack | | Power Supply | DC12~15V/500mA | | Finish | Black polyurethane paint | | Width | 8.27 inch (210mm) | | Height (with feet attached) | 1.85 inch (47mm) | | Height (without feet attached) | 1.73 inch (44mm) | | Depth (including antenna jack) | 6.89 inch (175mm) | | Depth (not including antenna jack) | 6.1 inch (155mm) | | Net Weight | 2.71 lbs (1.23 kg) | | Gross Weight | 3.28 lbs (1.49 kg) |
|
