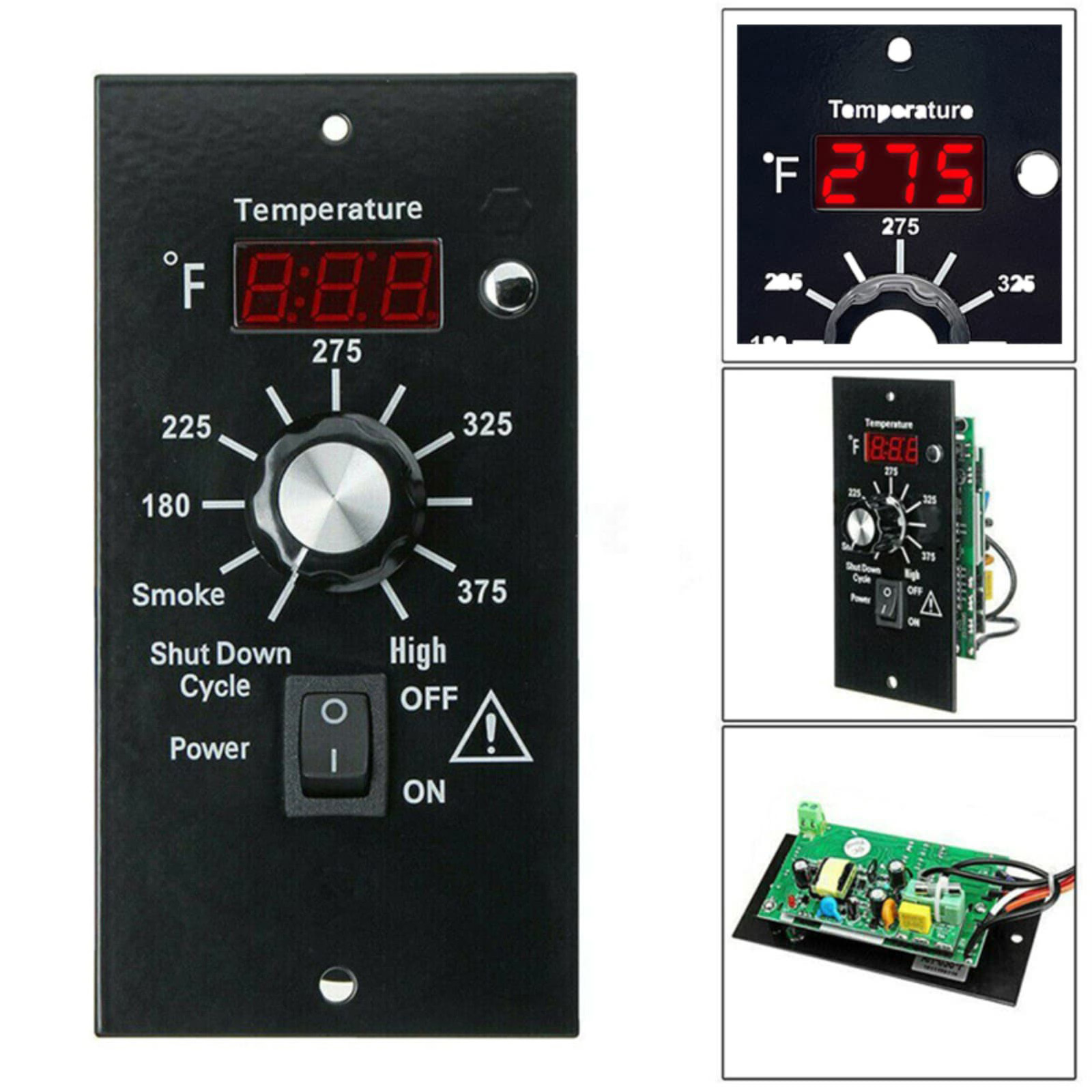

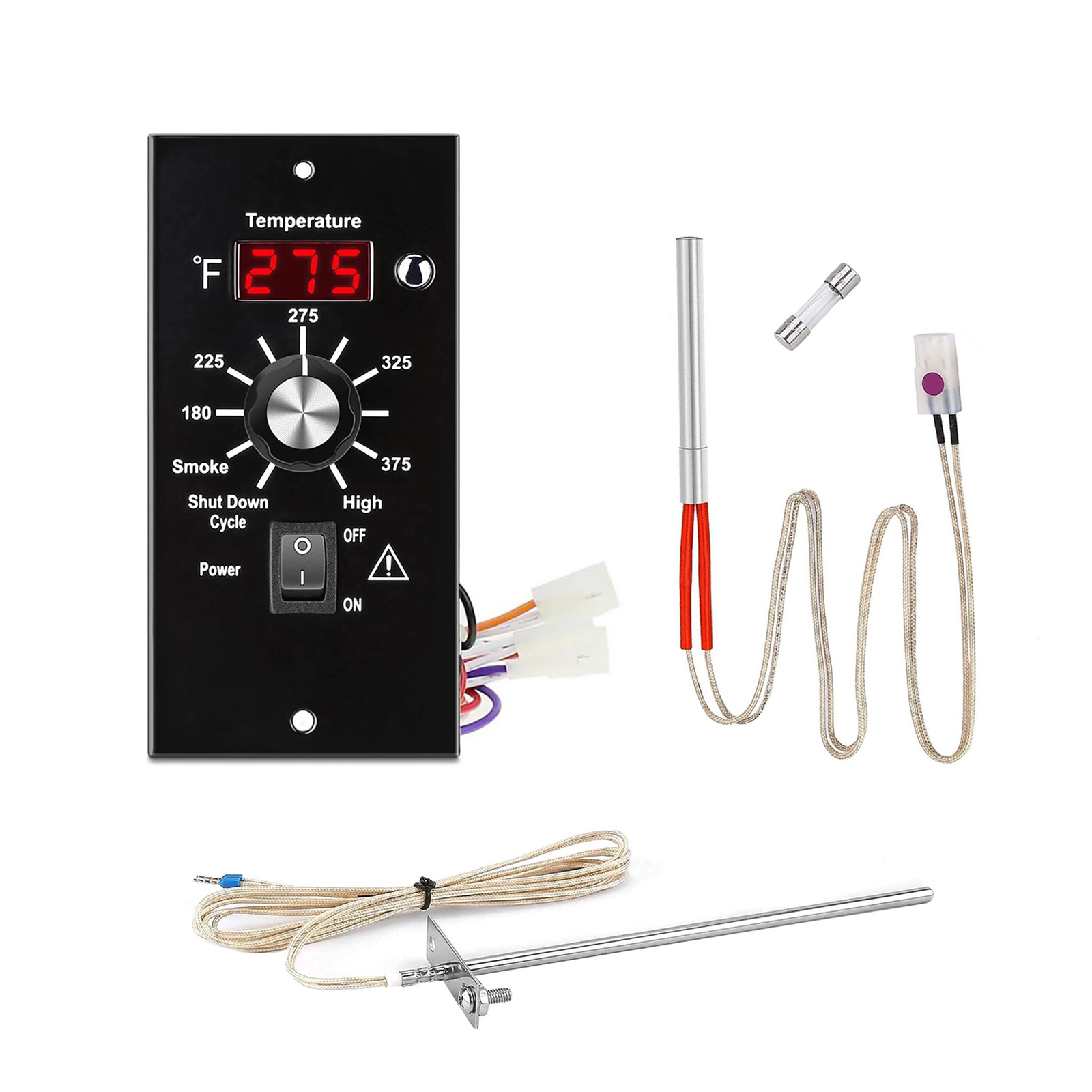

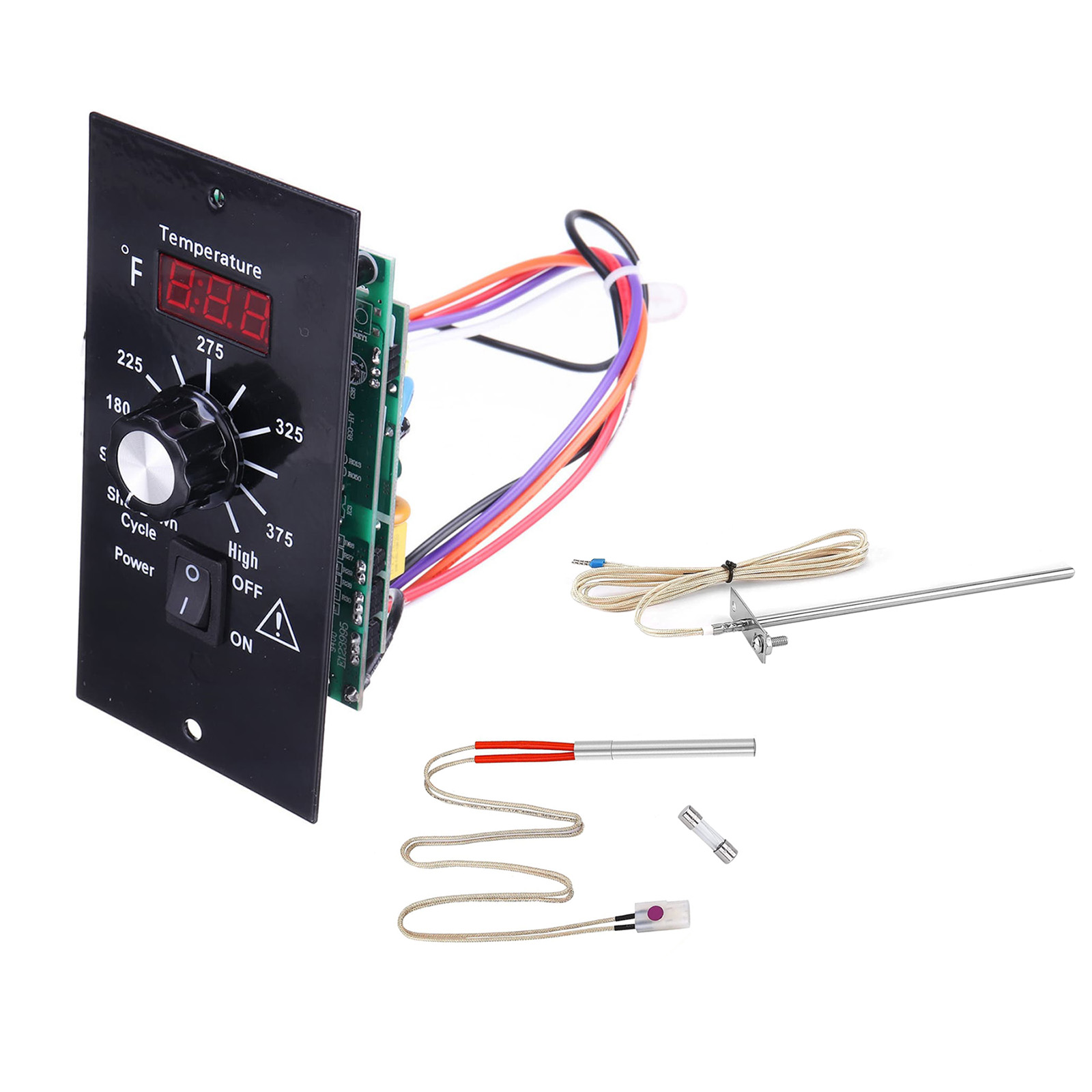

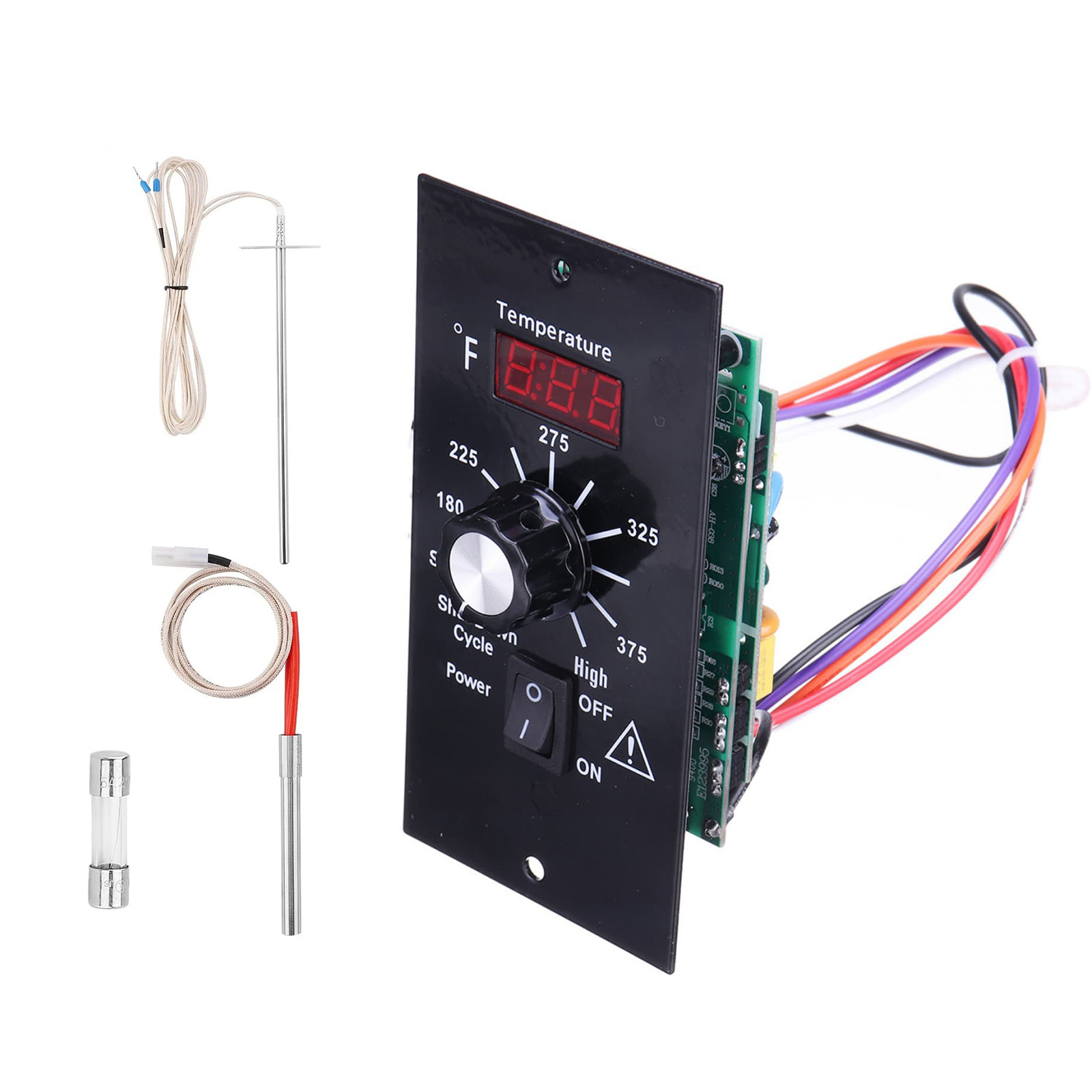

Digital Control Panel Set for Traeger Wood Pellet Grill Thermostat Kit Part
Features:
Easy installation: Plug-in connectors & Plug and play.

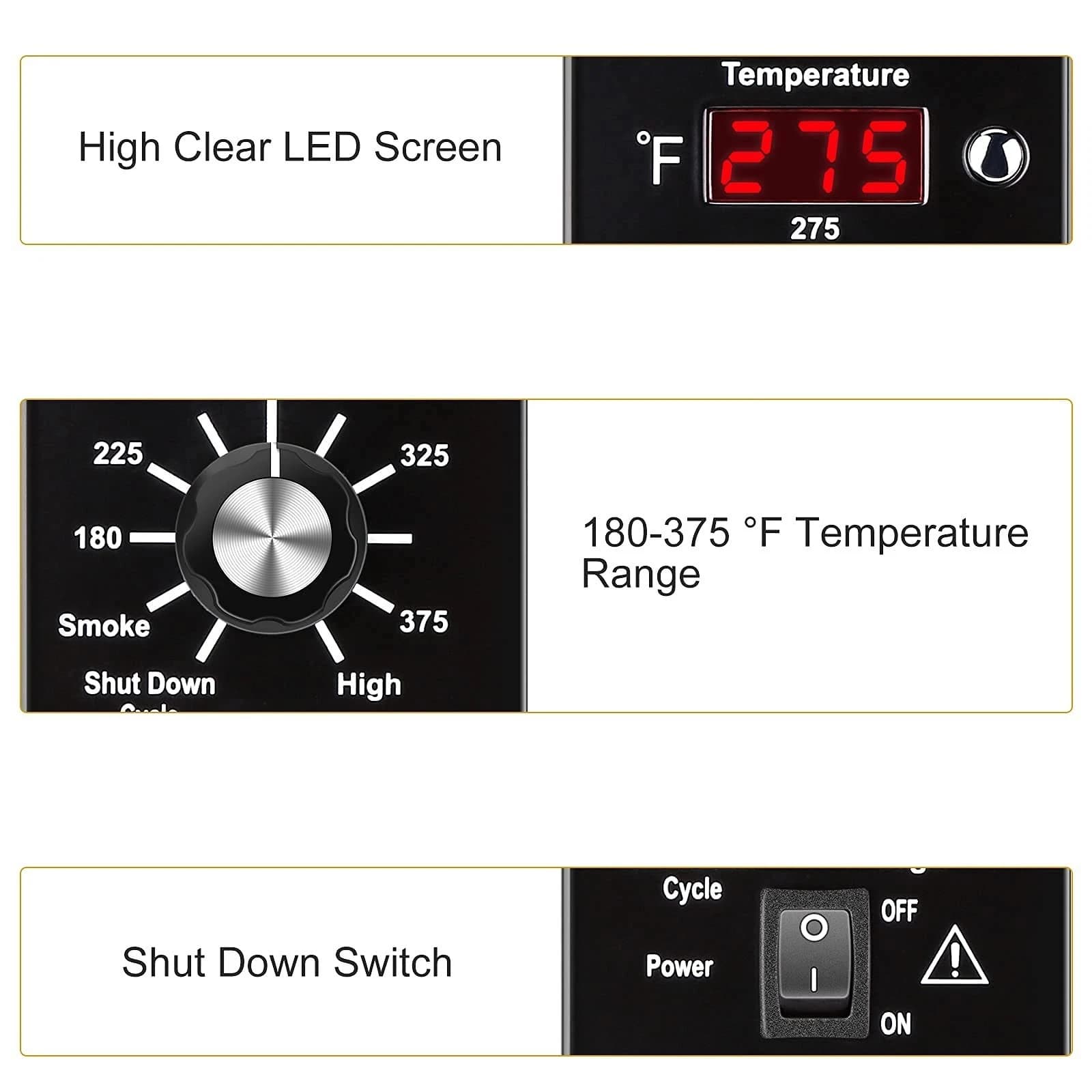

Eight cooking Temperature settings: from 180 -375℉.
Clear and bright LCD Display shows exact cooking temperature.
Equipped with safety device and automatic cooling function to ensure safety.
Specifications:

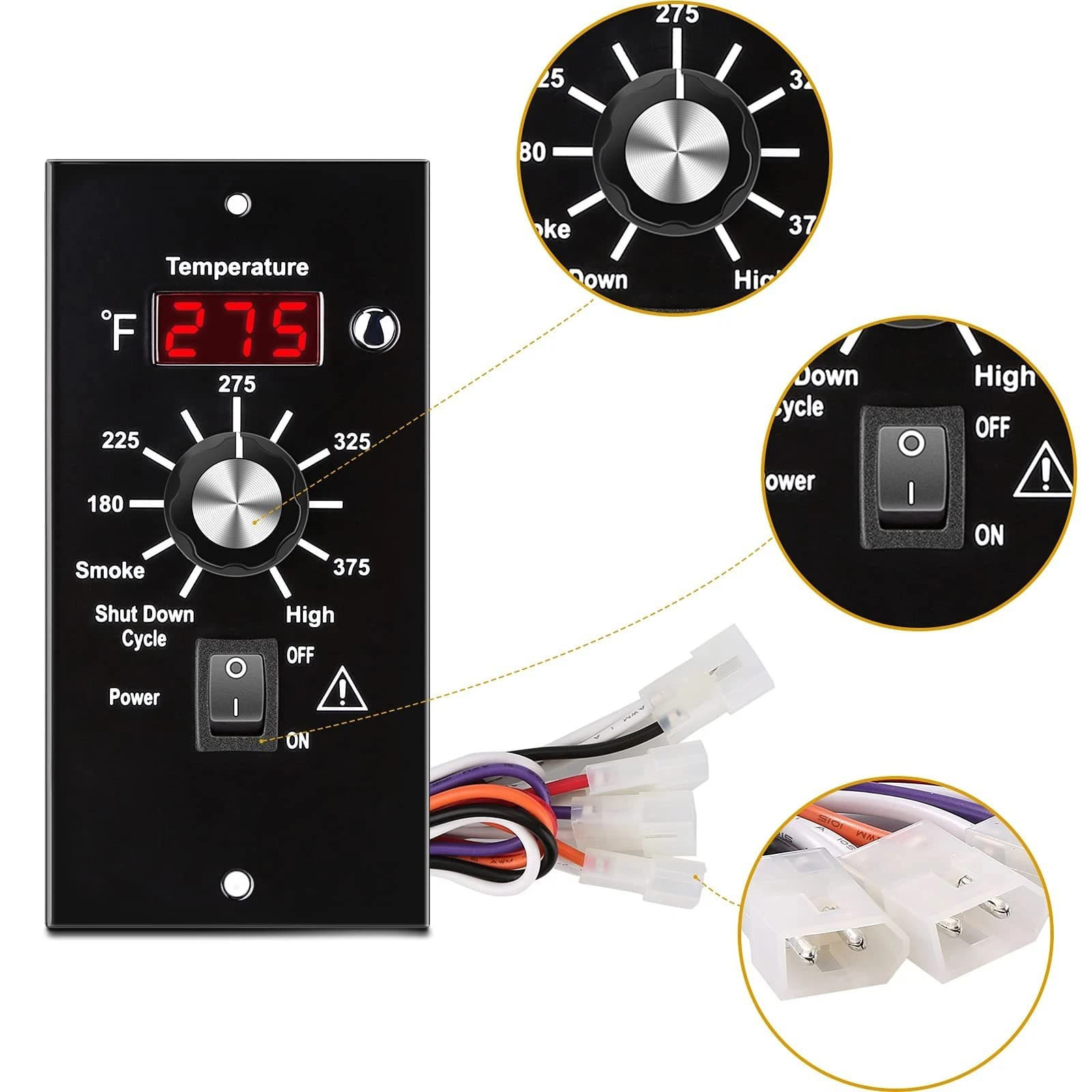

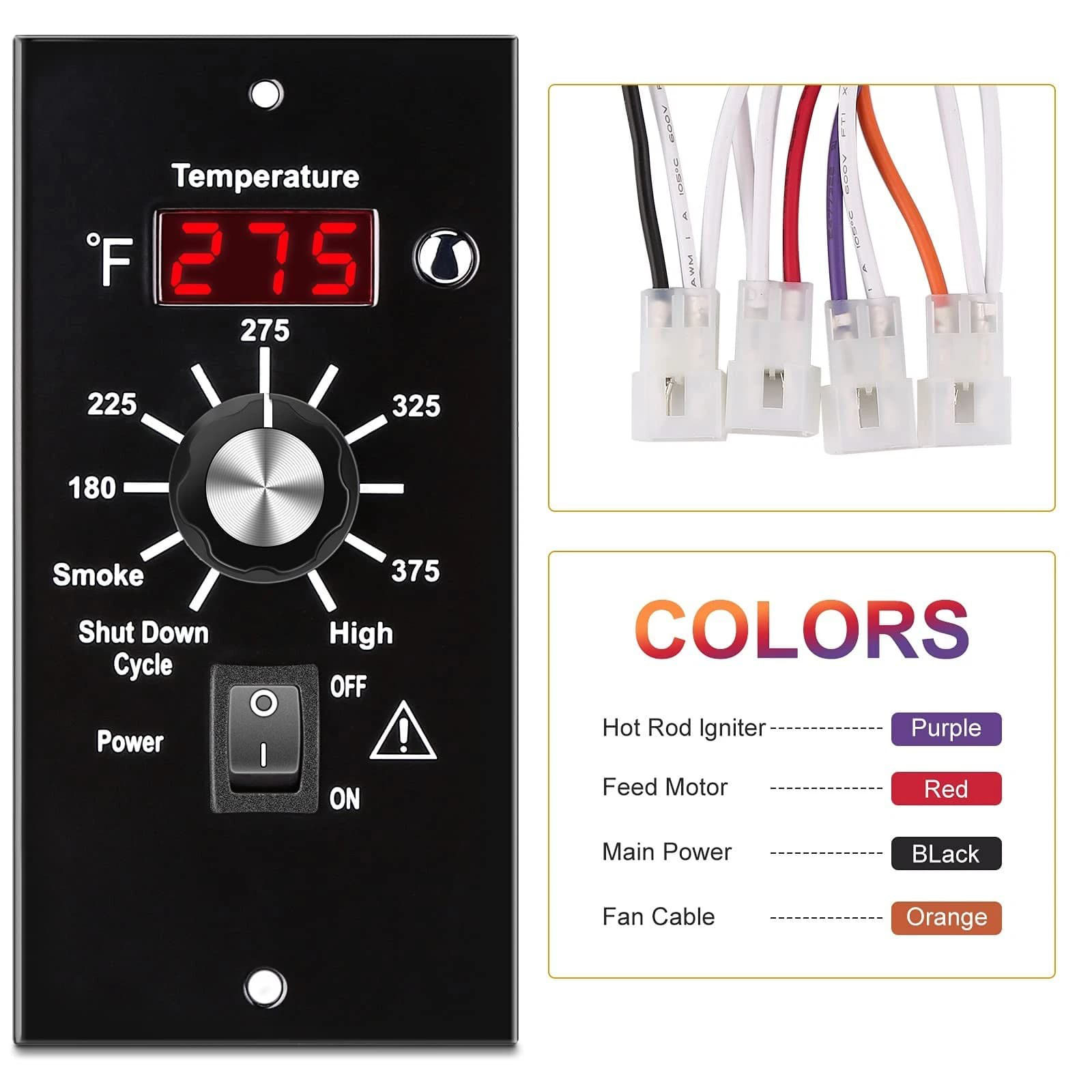

Wire:
Purple: Hot Rod Igniter
Red: Feed Motor
BLack: Main Power
Orange: Fan Cable

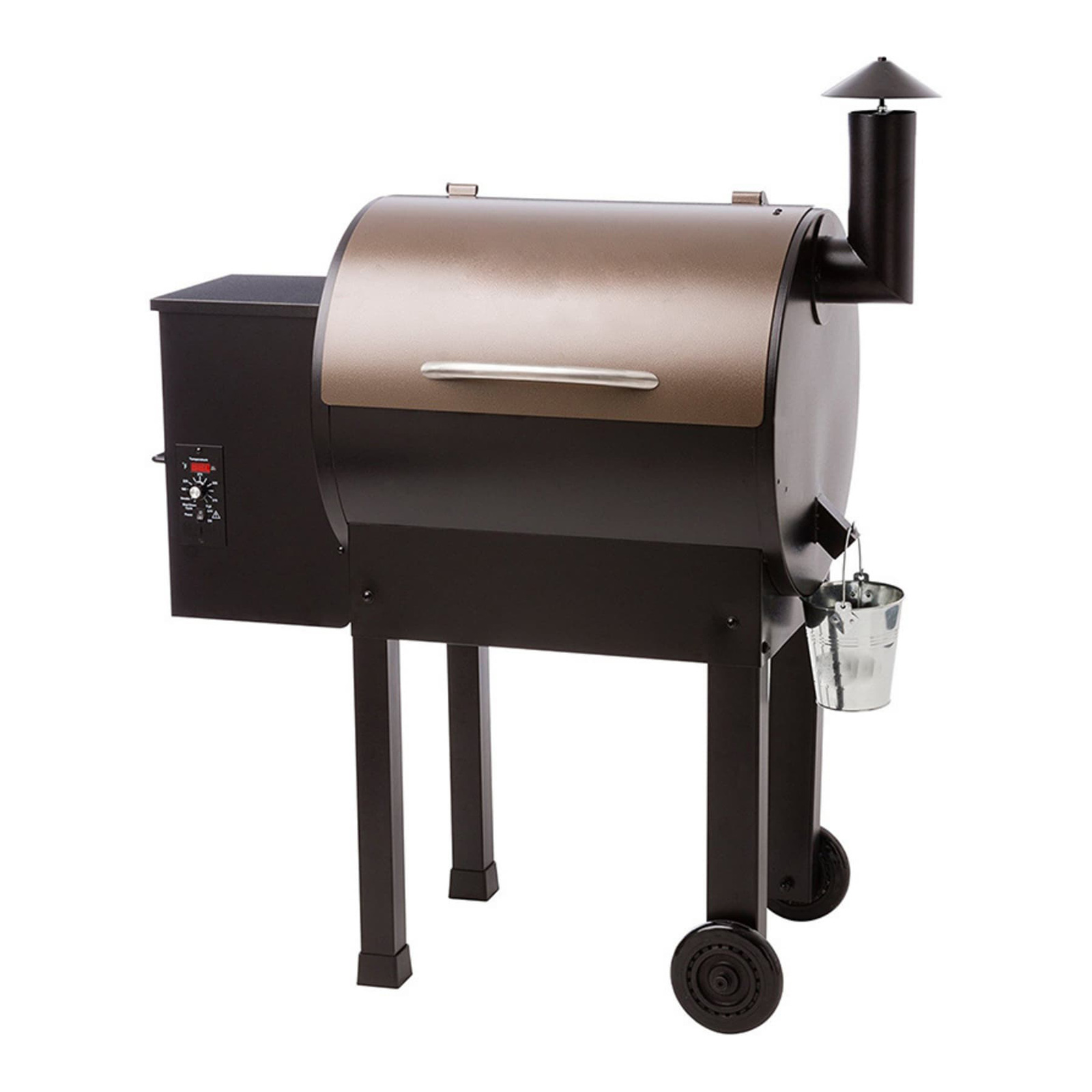

Fit: Replacement For All for Traeger wood pellet grill models (except PTG)
Usage:
Unscrew the old panel. Unscrew the bottom screws of the hopper(front and back). Cut all the ties binding the wires. Unplug all the wires. Remove the old panels.

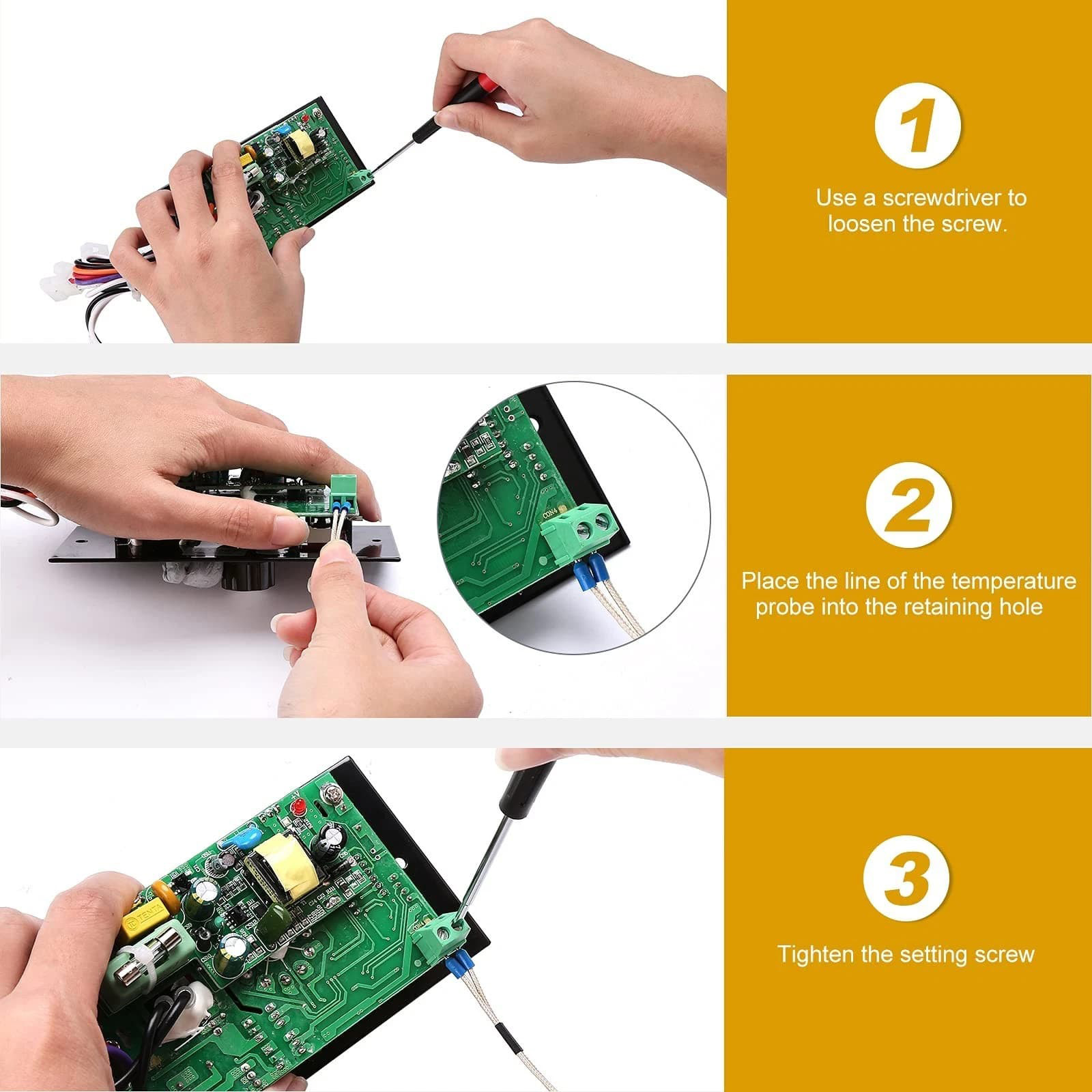

Feed the RTD wires through the holes on the left side of the grill into the bottom of the hopper and into the hole where the panel is supposed to be attached and screw RTD wires to the green terminal block.

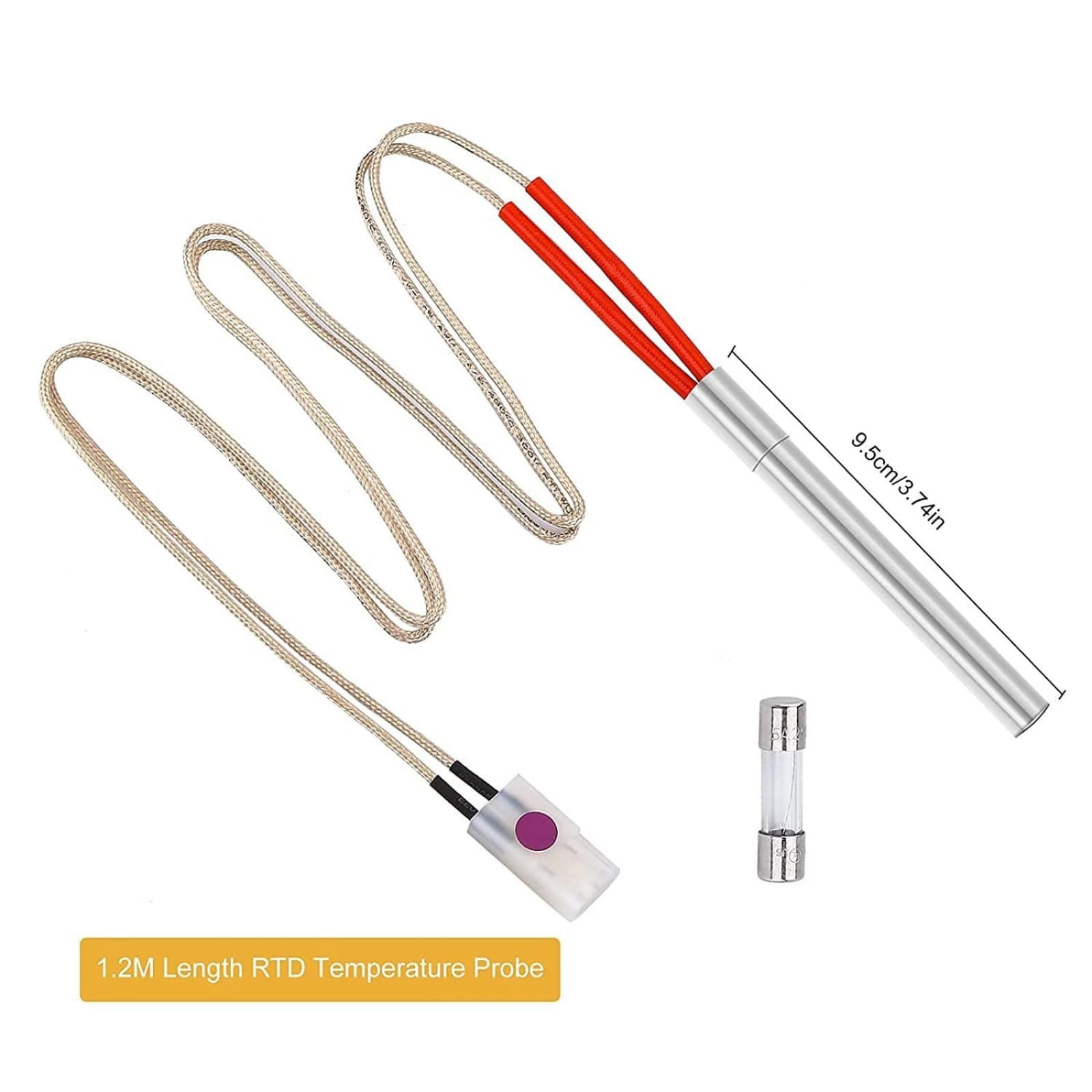

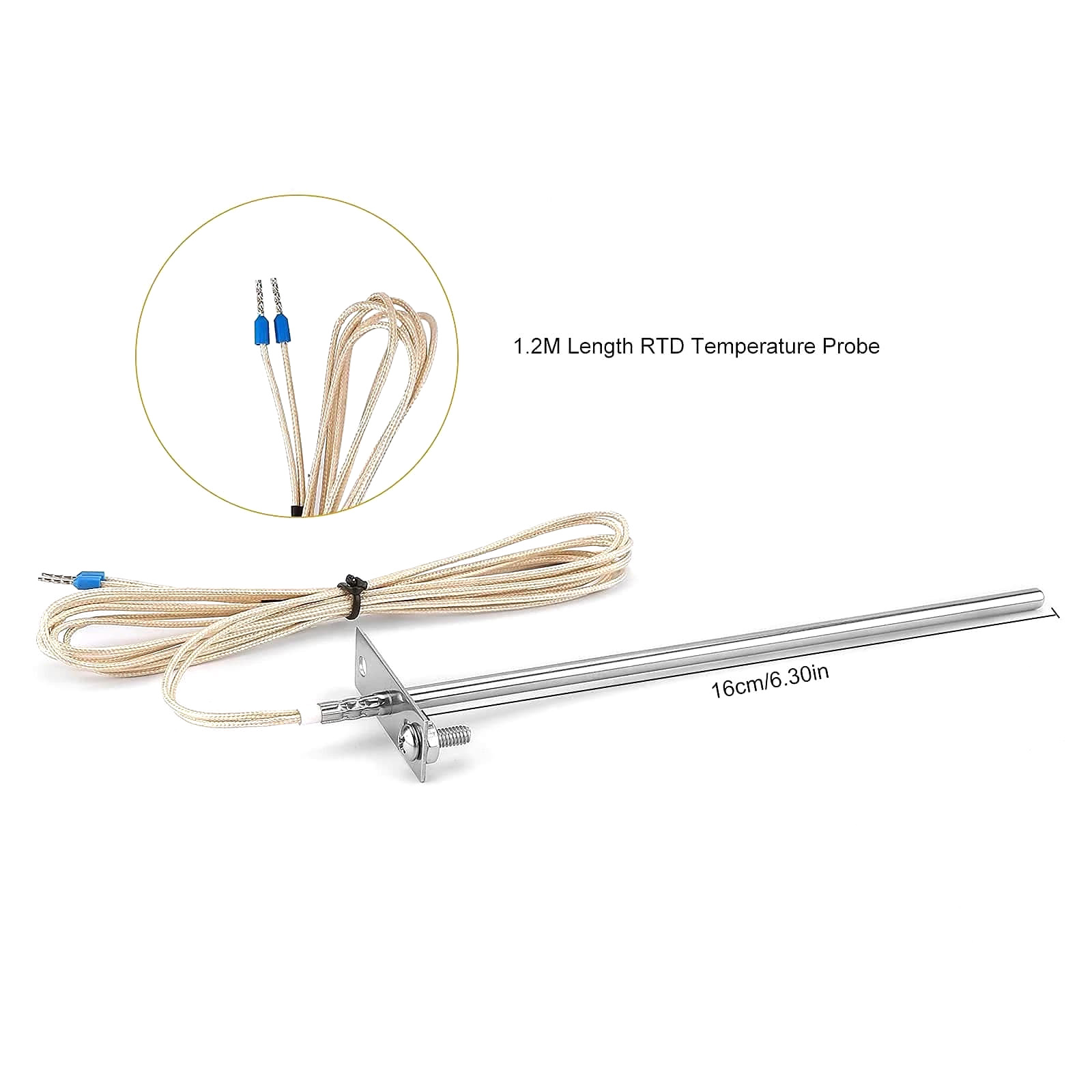

Install the RTD (Temperature Sensor ROD) located inside of the grill.
Plug all the wires into it proper cable connections.
Use zip ties tie to bundle loose cords.
Screw on the bottom grate.
Screw and tighten the new digital control.
Package Include:

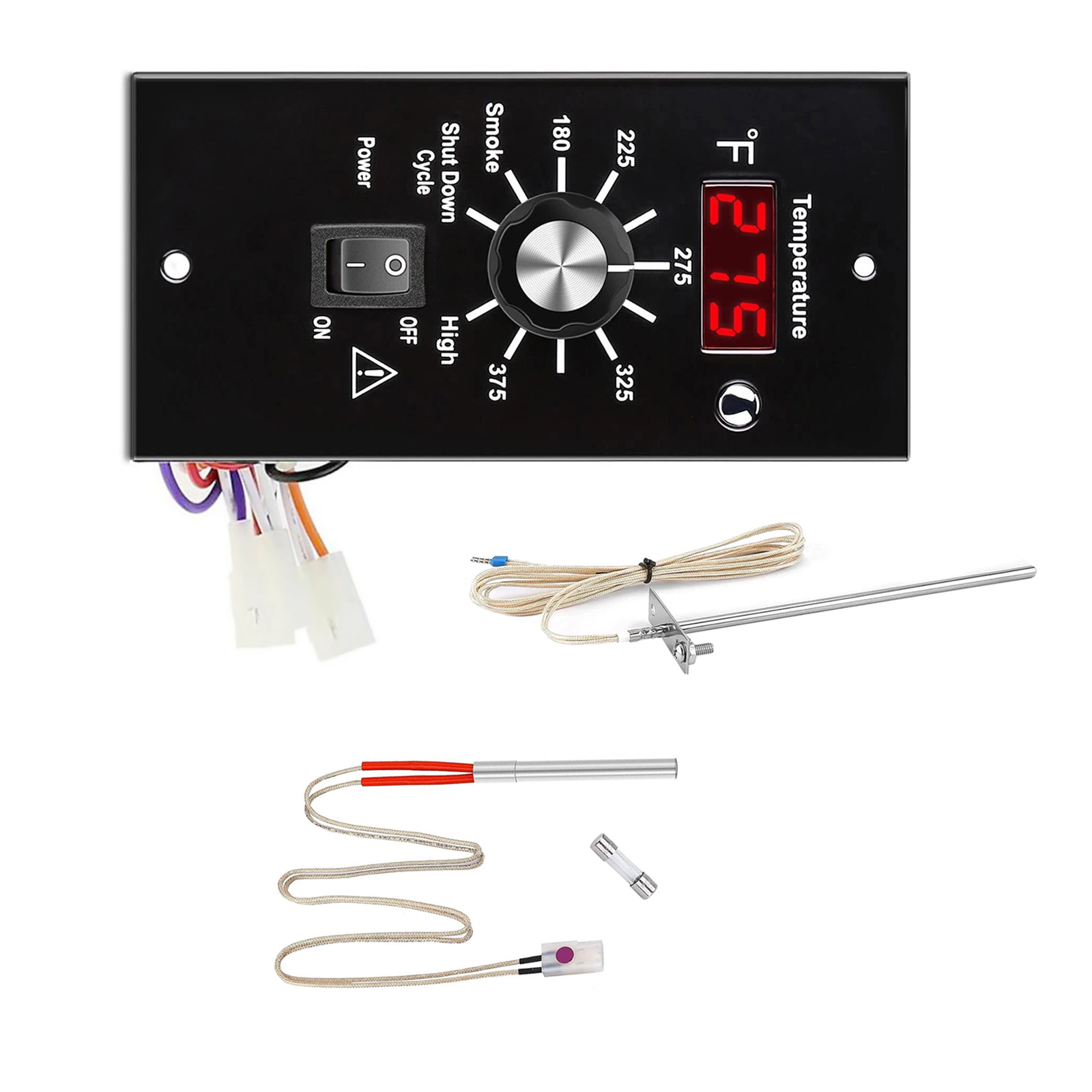

1 x Digital Thermostat Controller Kit
