Description

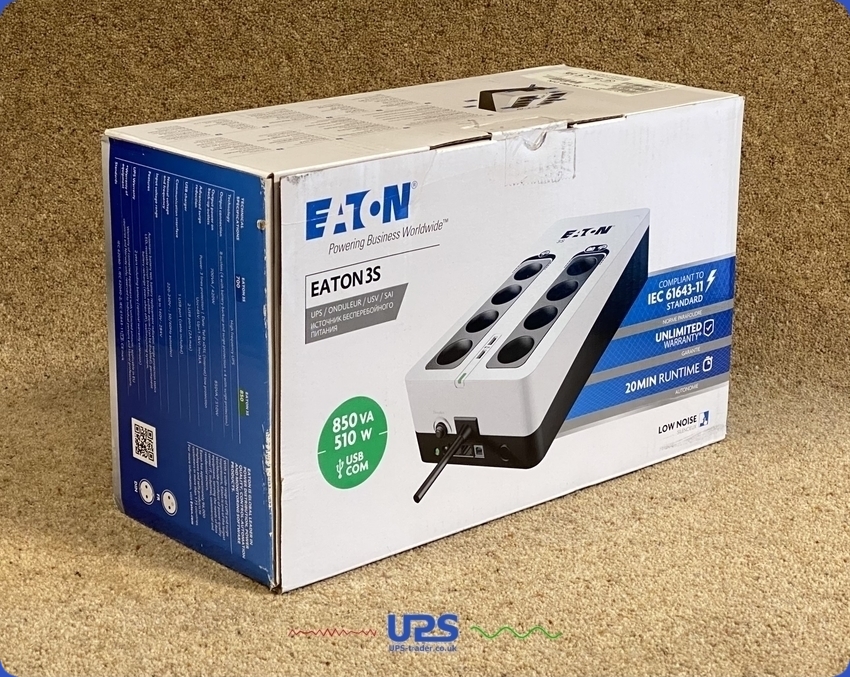

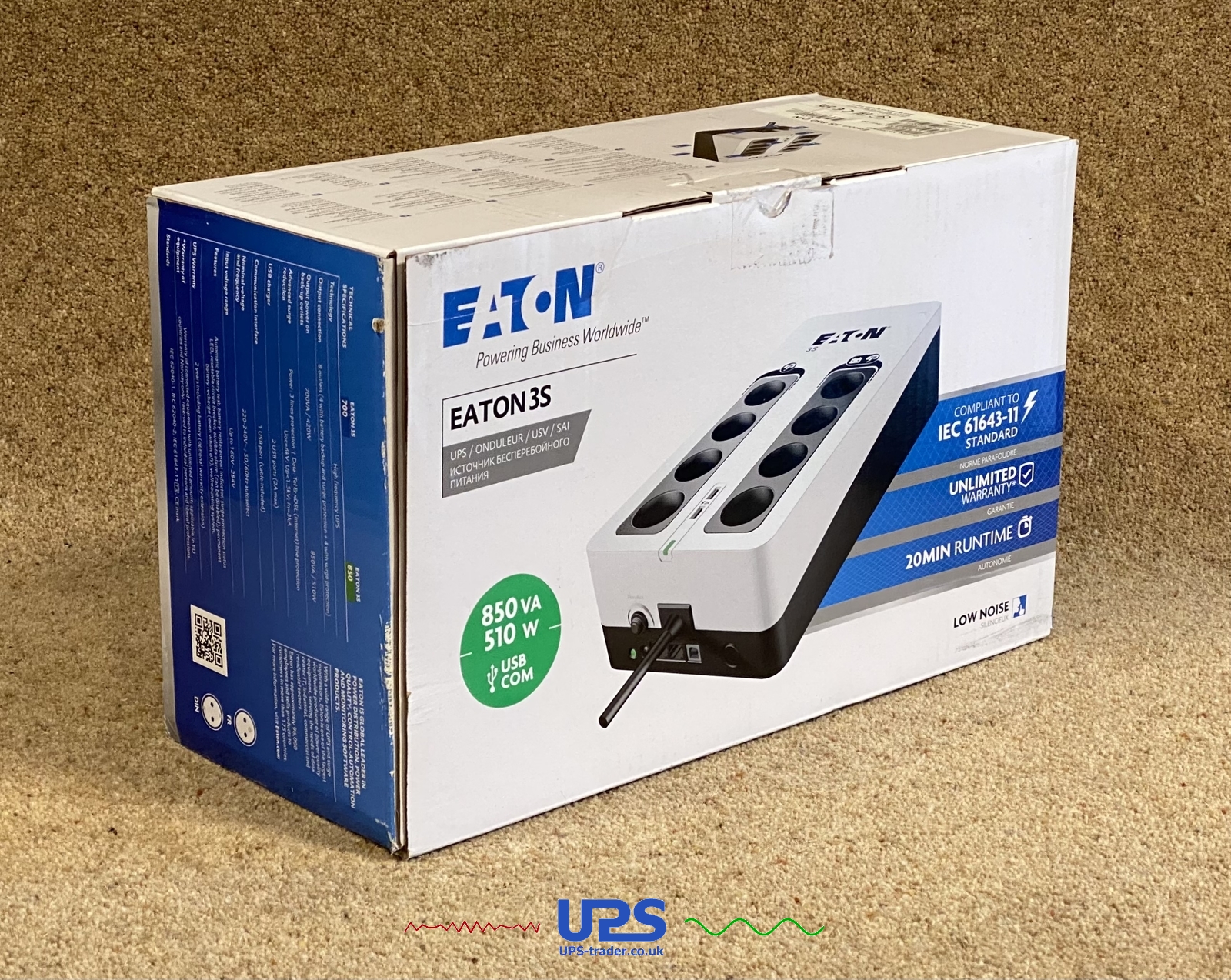

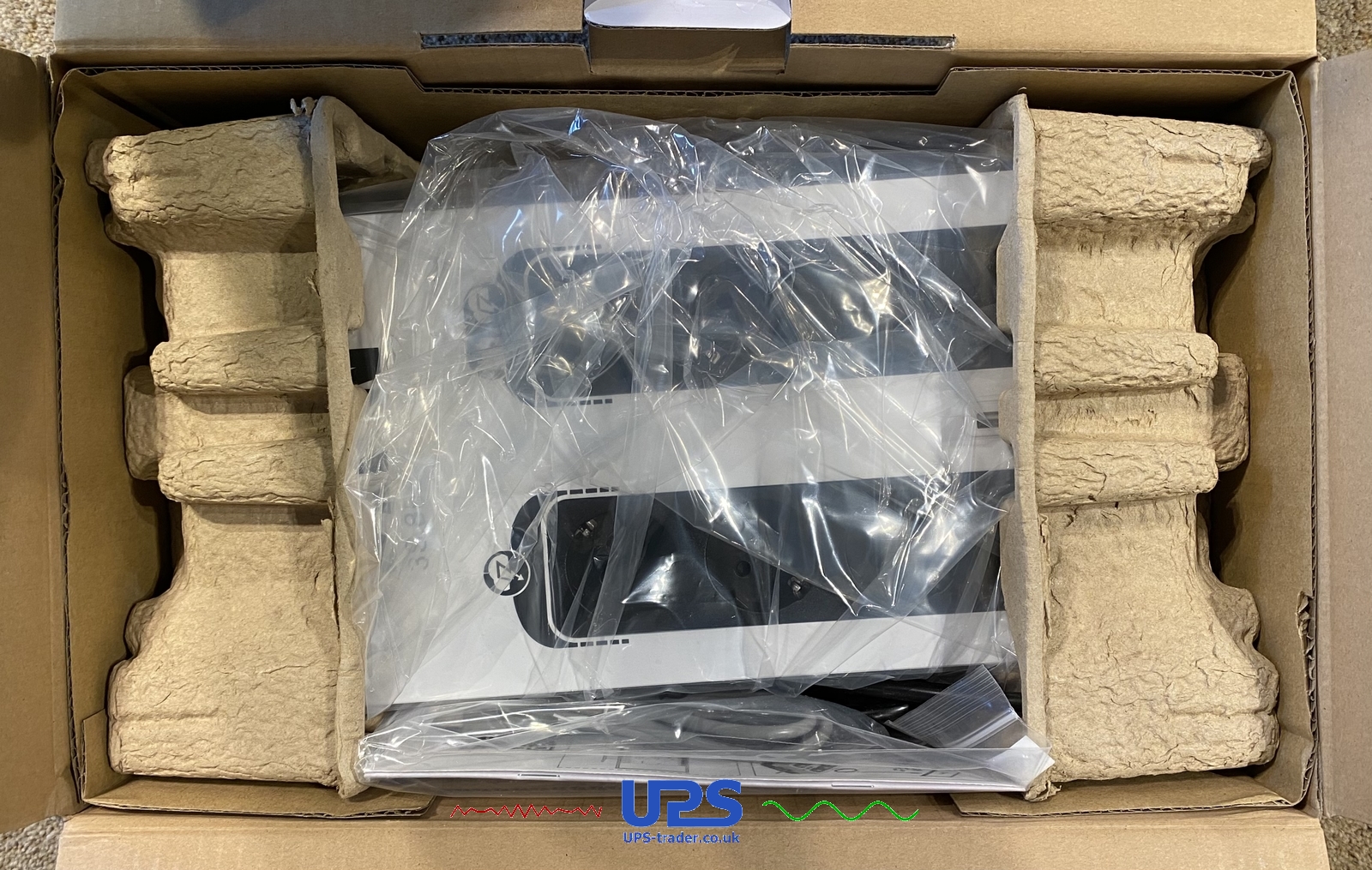

This Eaton Gen 2 3S 850 DIN UPS is new and unused in its original box.
Brand new batteries have been installed, and the unit has been thoroughly tested by our technicians.
This UPS is ready to install on delivery and carries our 12-month RTB warranty.
Please note this unit has Schuko euro mains input plug and output sockets - widely used throughout the EU, but not in the UK.
Our products are comprehensively tested by UPS experts and are fully working. They are second user, and will have cosmetic signs of previous use.
The grading is A-Grade which we class as as good as you can get without having new. We touch up or re-spray cases as needed. We have been supplying UPS since 2002 and are the respected leader in the field, with the most used stock in Europe. Our experience reduces the occurrence of problems, and the availability of resources and stock we hold means we have the ability to quickly resolve issues when they do arise.
We set our same day dispatch times on eBay as a guide. This is a broad stroke estimation, as our items are of varying complexity. While simple orders can be packed and shipped quickly, large units or volume quantities may roll over to being dispatched the following working day. You can contact us if you need to be sure of when we can send an order and we can make a plan.
All of our consignments are sent fully insured on a 24 hour service with our carriers. We cover all problems that occur in transit. We can ship to the EU (transit time varies) and have experience packing and shipping to overseas destinations. The EU shipping costs are estimated and can be subject to surcharge. Large UPS may be palletised or shipped with the UPS in one box, and the cells in another. We have the packing materials to make sure that there are few problems in transit. Our warehouse is based in the UK.
When we process the order, we issue a dispatch notification via email. This will have a PDF invoice attached, and detail which courier we have shipped with, along with the tracking number and any pertinent information & guidance.
Specification
GENERAL SPECIFICATIONS
Product Name
Eaton 3S Gen2 UPS
Catalog Number
3S850D
UPC
743172101778
Product Length/Depth
83.5 mm
Product Height
170 mm
Product Width
335 mm
Product Weight
4.2 kg
Compliances
CE Marked
Certifications
EAC
IEC/EN 62040-2
CE
IEC/EN 62040-1
ADDITIONAL INFORMATION
Auto shutdown function
Yes
Color
Black/White
Construction type
Free standing model
Efficiency at max. load
98
Package contents
USB cable
Quickstart guide
Safety instructions
Phase (input)
1
Phase (output)
1
Rack mounting kit
No
Surge protection
Yes
COMMUNICATION
Communication
USB port (HID compliant)
Ethernet interface
No
Expansion slots
No
Includes network card
No
Potential free switch contact
No
Software compatibility
Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
Type of interface
USB
User interface
LEDs
BATTERY SPECIFICATIONS
Battery management
Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
Battery quantity
1
Battery rating
12 V / 9 Ah
Battery replacement
User replaceable
Battery type
Sealed, lead-acid
Extended battery capability
No
ELECTRICAL INPUT
Input connection
Other
Input cord length
1.5 m
Input frequency range
46-70 Hz
Input nominal voltage
230V default (220/230/240V)
Input voltage range
184-264 V (adjustable to 161-284 V)
Nominal frequency
50/60 Hz
ELECTRICAL OUTPUT
Feed type
1
Output nominal voltage
230V default (220/230/240V)
Output power factor
0.6
Output voltage range
184-264 V (adjustable to 161-284 V)
Receptacle
(4) Schuko, (4) Schuko surge only
Topology
Offline
VA rating
850 VA
Voltage
230V
Voltage distortion output (linear load) - max
0
Wattage
510W
ENVIRONMENTAL
Altitude
2000 m
Noise level
<25 dB at 1 meter
Relative humidity
0-85% non-condensing
|
|
