DESCRIPTION


Features:

* Constructed from high-quality, pressure-resistant materials, offering excellent sealing performance. The joints are tightly sealed and leak-free, capable of withstanding high-pressure hydraulic conditions, effectively hydraulic oil leakage. Suitable for the complex operating environments of tractors, it boasts high durability.

* The 1/2-inch body size with standard threads ensures smooth insertion and removal with a firm fit. Disassembly is convenient and requires no additional tools, significantly improving the efficiency of hydraulic line inspection and maintenance on tractors, saving operation time.

* Built-in dustproof protection design prevents dust and impurities from entering the joint, avoiding pipe blockage and seal damage, extending the joint's service life. Suitable for complex environments such as outdoor fields and agricultural machinery operations.

* Robust and wear-resistant, structure withstands hydraulic oil and harsh outdoor environments. It is not easily deformed or damaged under long-term, high-frequency use, meeting the high-intensity hydraulic transmission requirements of tractors.

* Focused on quick hydraulic line connections, it offers convenient operation and stable transmission. Suitable for tractor hydraulic system maintenance and line replacement, it is widely used in agricultural cultivation and field operations, practical and reliable.


Specifications:

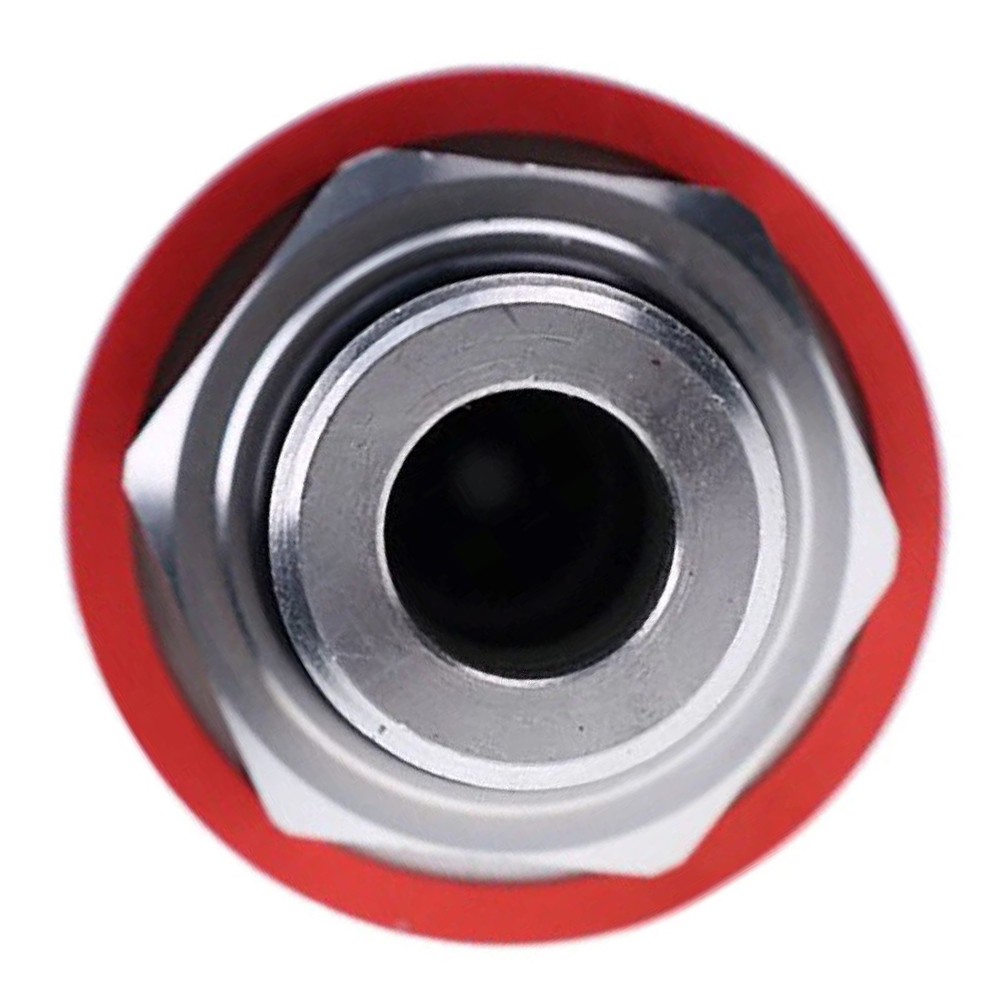

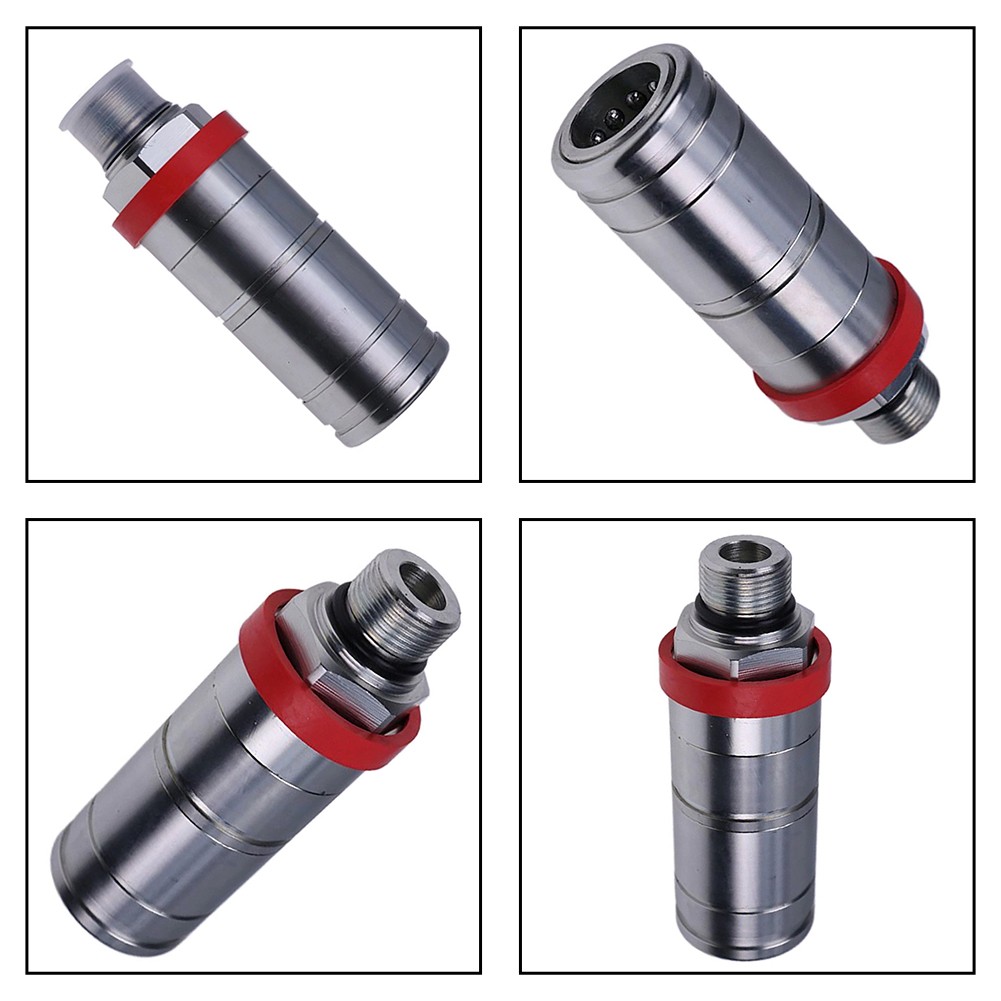

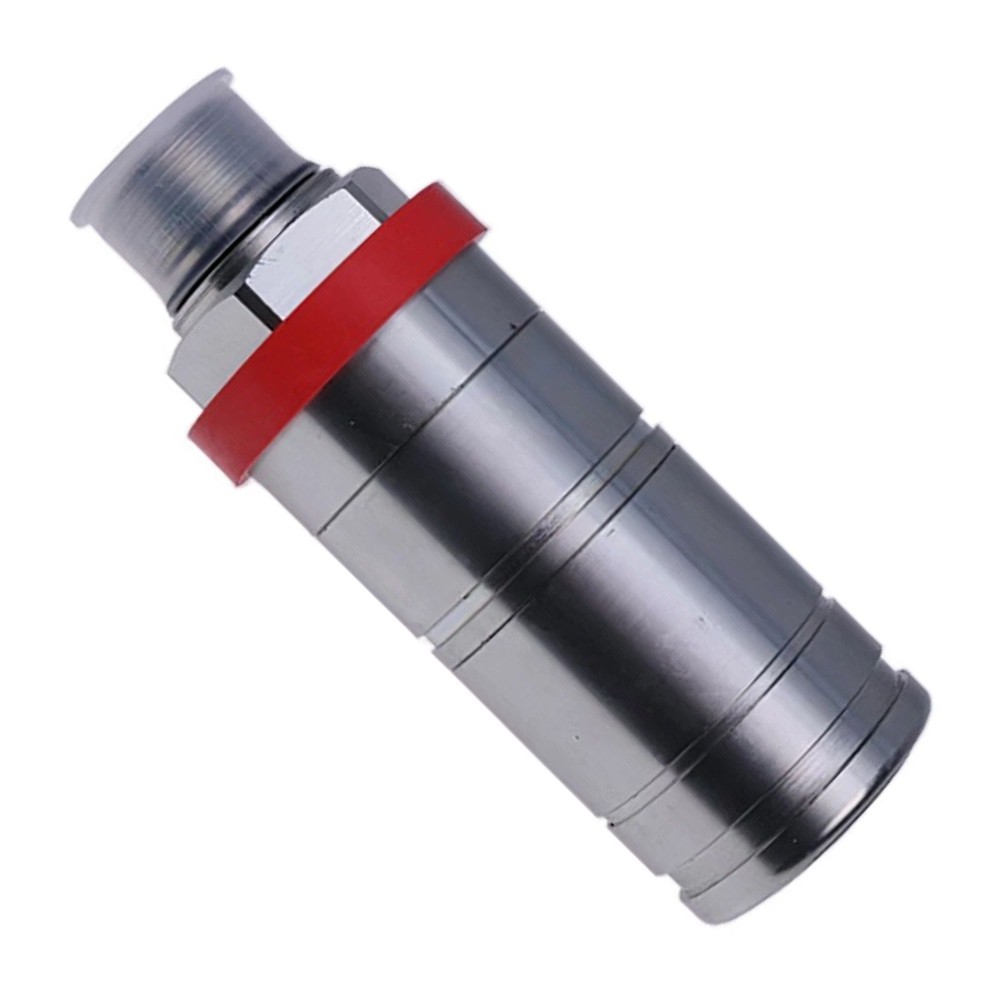

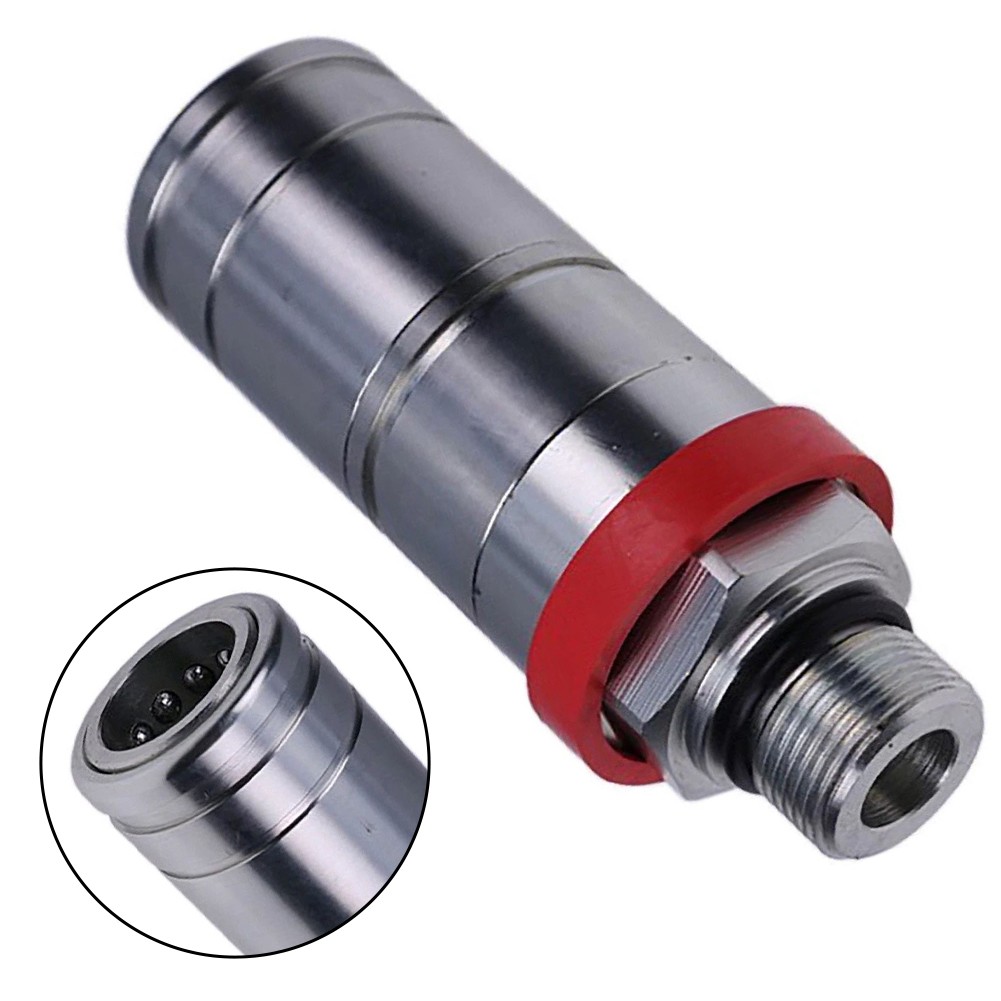

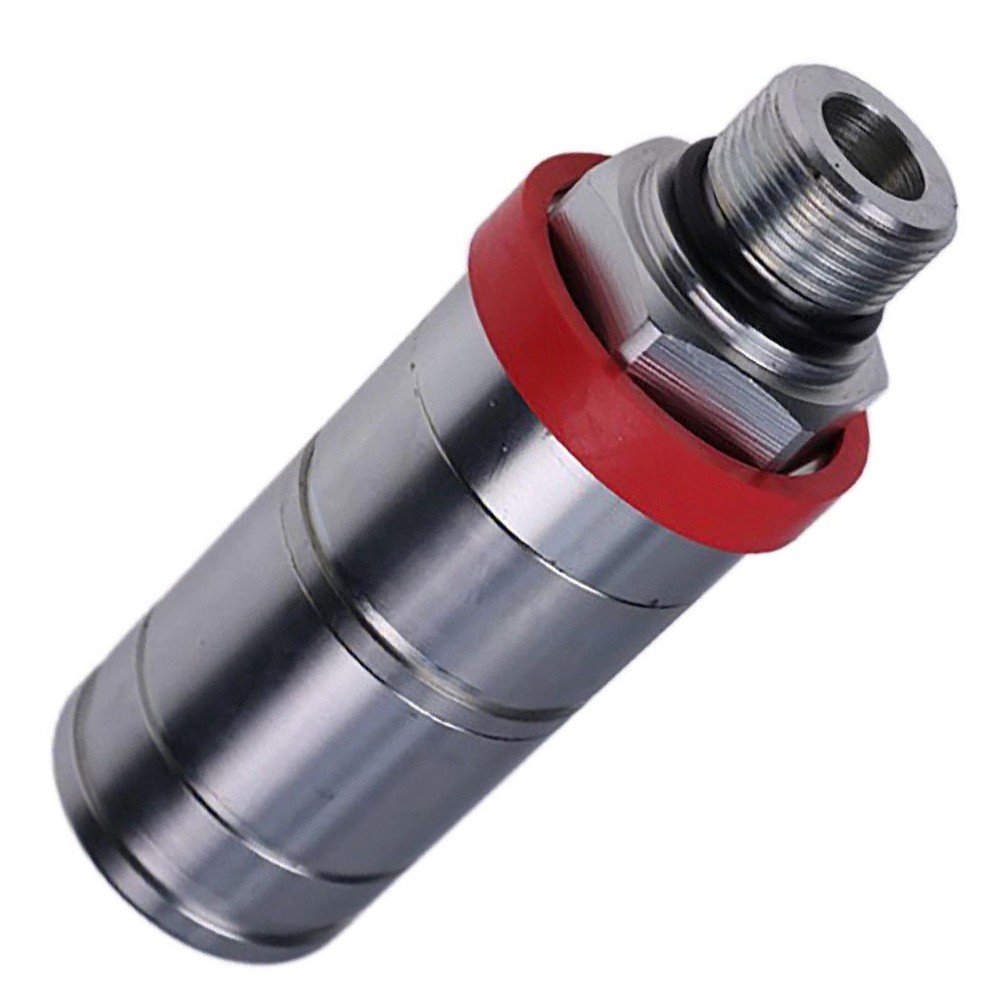

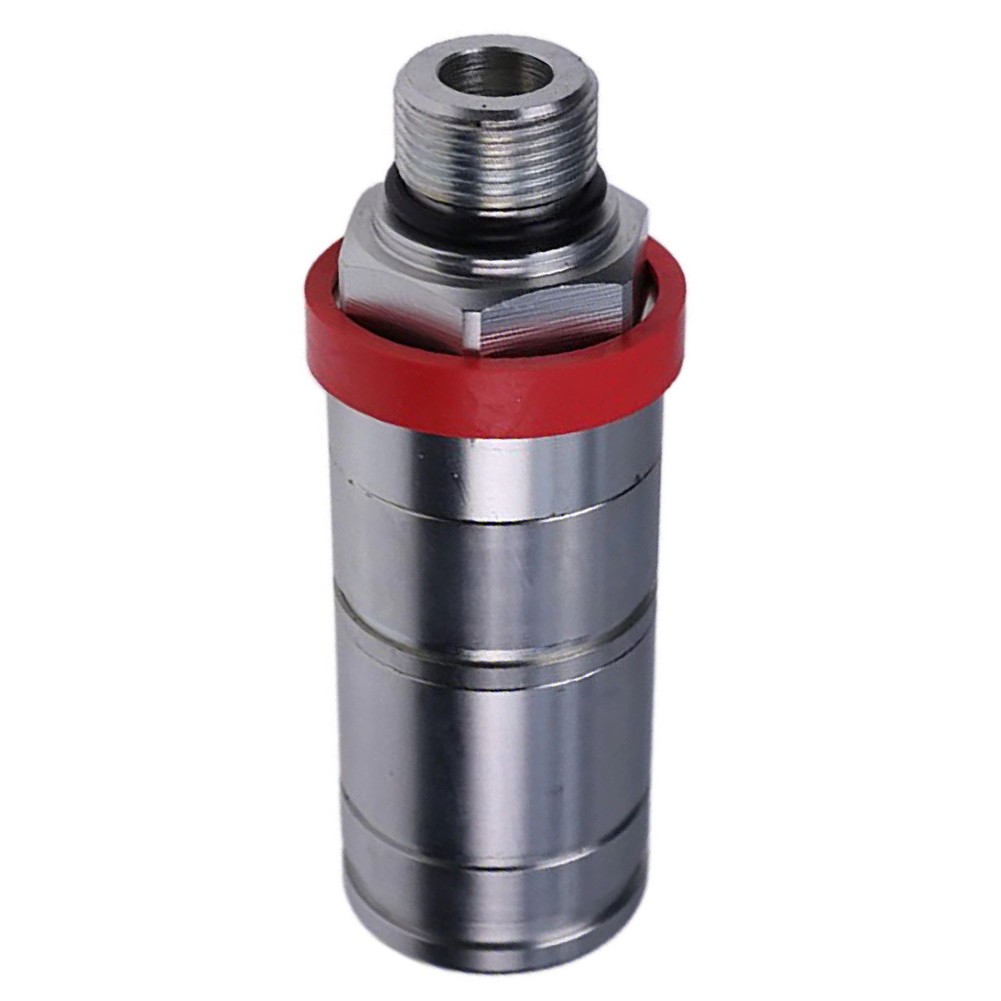

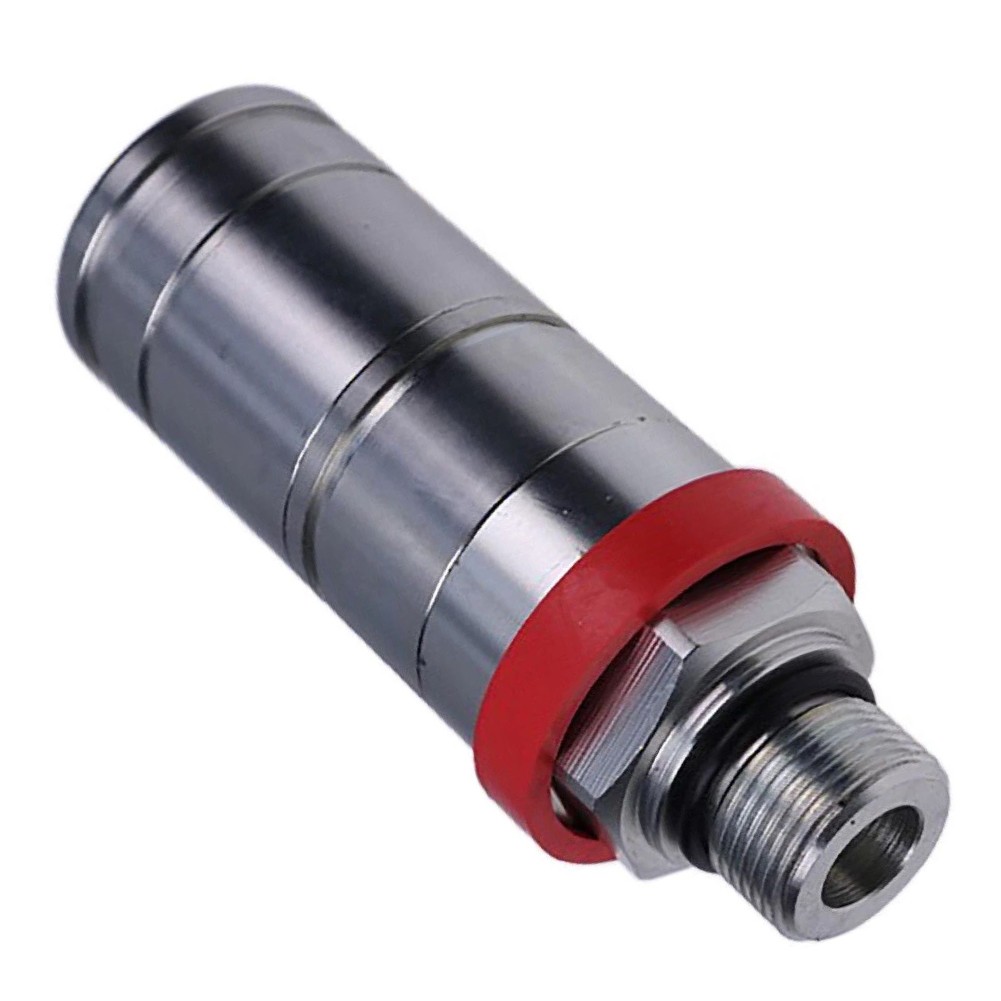

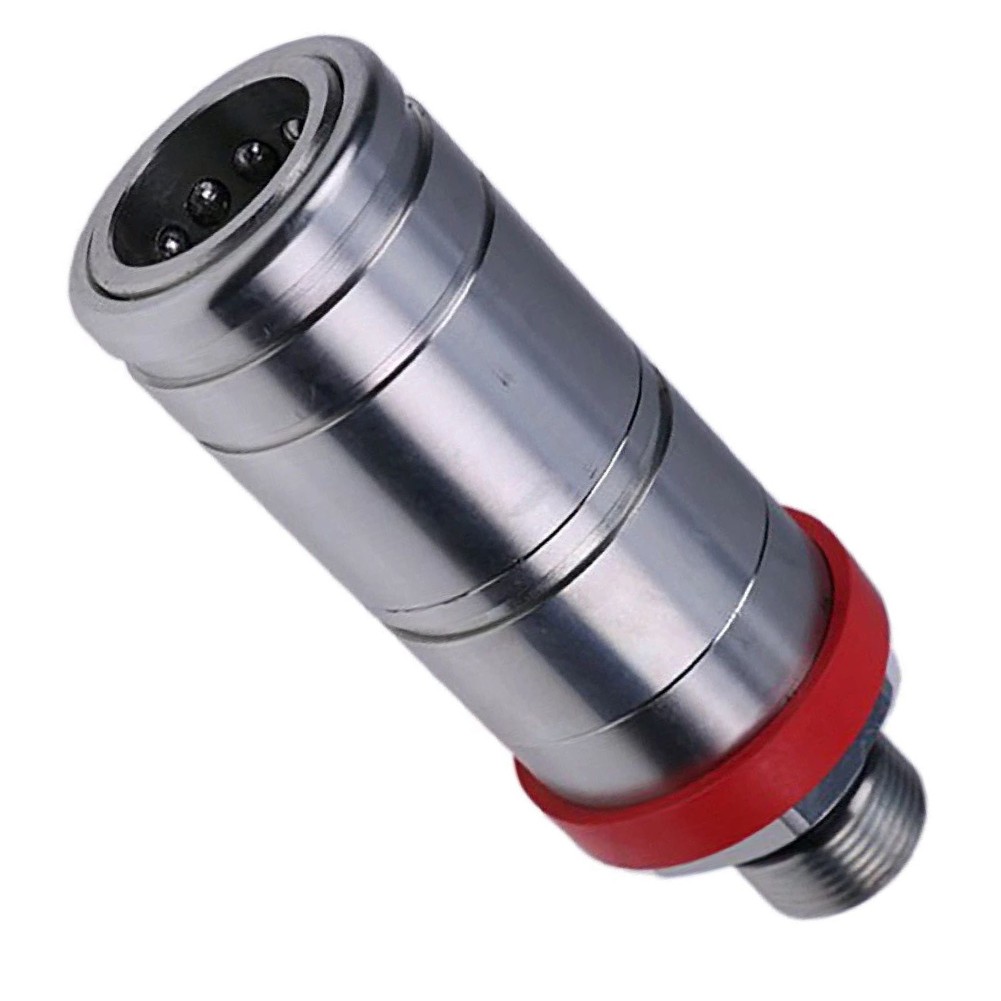

Part Name: Hydraulic Quick Coupling

Model: 5179558

Material: Metal

Color: Silver Body

Size: 1/2" (NW12) Replacement: for Parker: RSD-501-22MM-L103-F

Thread: M22 x 1.5 External Thread

Type: ISO 7241A, Internal Thread Core Type

Applicable Models: (as follows)

For Case for IH Tractors For Farmall 65C, for Farmall 75C, for Farmall 85C, for Farmall 95C, JX1060C, JX1070C, JX1070N, JX1075C, JX1075N, JX1085C, JX1095C, JX1095N, Maxxum 100, Maxxum 110, Maxxum 115, Maxxum 125, MXU115, MXU130 tractors.

For T4020, T4020V, T4030, T4030F, T4030V, T4040, T4040F, T4050, T4050F, T4050V, T6010, T6020, T6030, T6050, TN55, TN55D, TN60A, TN60DA, TN60SA, TN60VA, TN65, TN65D, TN65F, TN65S, TN65V, TN70, TN70A, TN70D, TN70DA, TN70F, TN70S, TN70SA, TN70VA, TN75, TN75A, TN75D, TN75DA, TN75F, TN75FA TN75S, TN75SA, TN75V, TN75VA, TN80F, TN85A, TN85DA, TN85FA, TN90F, TN95A, TN95DA, TN95F, TN95FA, TN95VA, TS110A, TS115A, TS130A


Package Contents:

1 x Hydraulic Quick Coupling


Note：

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2.Please allow slight manual measurement deviation for the data.
