48-72V 1500W 45A eBike Colorful LCD Display

Features of Display
Suitable for low temperature, max -20℃
High contrast 3.2inch IPS colorful matrix screen
Ergonomic external button design, easy to operate
Speed Display: AVG SPEED,MAX SPEED, SPEED(Real-Time)
Kilometer/Mile: can be set according to customers' behaviour
Smart battery indicator: provide a reliable battery indicator
9-Level Assistant: 3-Level/5-Level/9-Level Optional
Mileage Indicator: Odometer/Trip distance/Clock/Riding time
Power Indicator: real time power indicator, digital or analog
Erro Code Indicator
Software upgraded: Software can be upgraded through UART

Features of Controller
Voltage/Limit Current/Speed and so on can be set through LCD
Rated Voltage: 48-72V
Max Current: 45A

Advantage:
1. Programmable Sine Wave Controller which support big current and smart match with each motor through self-learning, works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control, give you best pedal experience

2. Motor torque ripple is reduced to minimum through FOC, more smooth and comfortable

3. Universal Input Voltage Range: 48V/60V/72V

4. Work with or without display

5. Parameter setting via Mobile Phone App or Computer

6. All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection

7. Multi functions: Smart match with different motor, 5-speed level for throttle and PAS, Speed limit, reverse, anti-thief, Regenerative Braking, Electric Braking, Keyless start and etc.

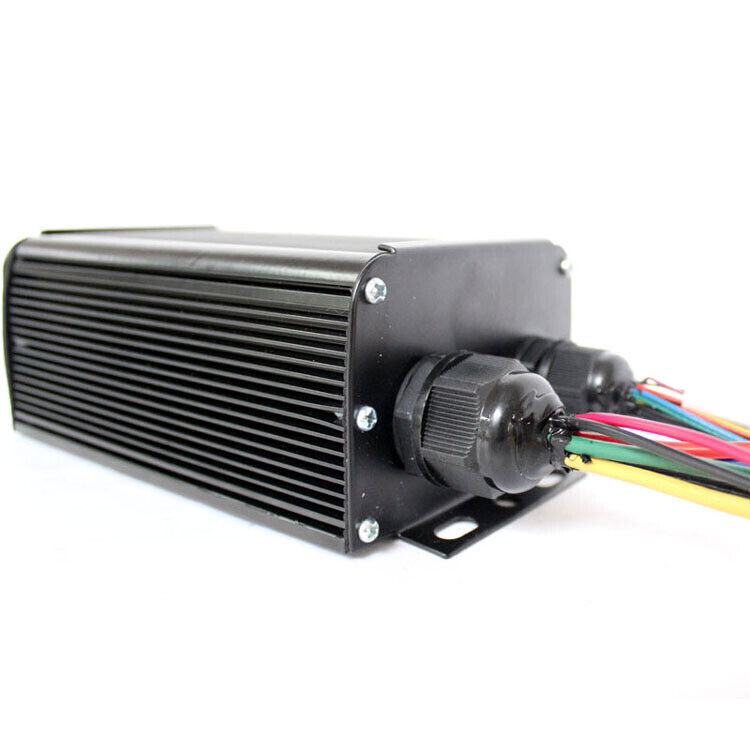

8. Best heat sinking with thicker Heat sink Aluminium Plate

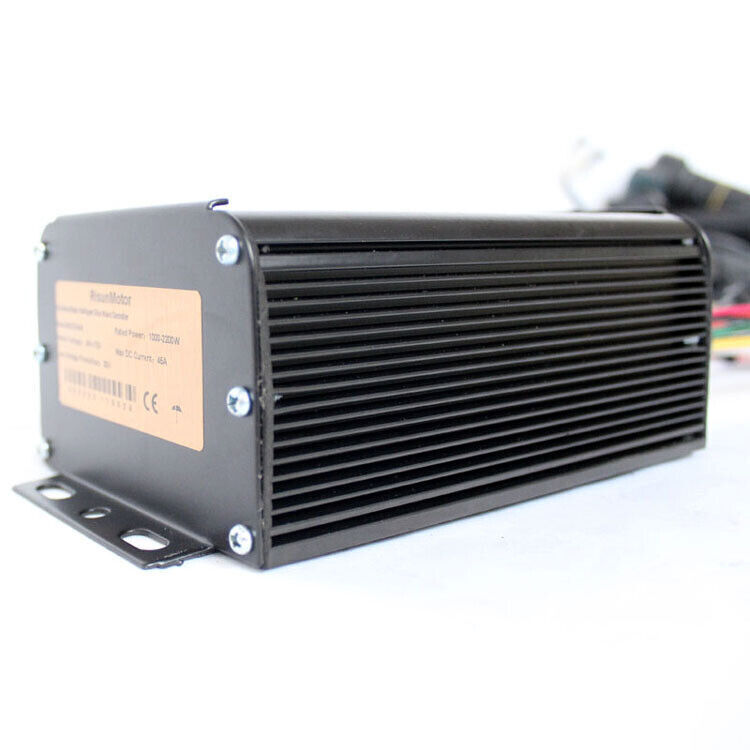

9. Anodized Aluminium Controller Case against scratch


Technical Data:

General Specification:

1. Power supply: 48V/60V/72V, MAX DC current: 45A

2. Rated Power: 48V 1500W/ 60V 1800W/ 72V 2200W

3. Peak Power: 48V 2000W/ 60V 2500W/ 72V 3000W

4. Low Voltage Protection: 40V/50V/60V

5. Brake: Low Voltage Brake

6. Alarm: Low Voltage Alarm

7. Rotor Position Detecting Method: Hall sensor

8. Mobile phone App or computer software can communicate with the controller to modify parameter

9. Size: 34*21*12cm

10. Net Weight: 1.8 kgs

11. Waterproof Grade: IP65



RisunMotor programmable sine-wave motor controller works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control. Our designed friendly interface of the programmable motor controller makes you set the parameters, conduct the tests and obtain the diagnostic info easily and quickly.

1. FOC-180° sinusoidal drive controller applied to BLDCM or PMSM.

2. It takes only 2-3 minutes for the motor to be well matched on its best electronic angle at the first time.

3. The motor torque ripple will be reduced to the minimum, so as to ensure electric vehicle to run without any noise and vibration, smoothly, and comfortably.

4. The precise current ring can provide accurate torque input to meet the requirement of large torque output during vehicle starting and climbing.

5. The controller enjoys high efficiency due to space vector converter control algorithm which can effectively reduce the temperature rise of controller and extend battery life mileage

6. Built-in various protection: locked-rotor protection, over-current protection, overload protection, over-temperature protection, speed protection, over-voltage protection, under-voltage protection and so on, effectively ensuring the safety of electronic control system and vehicle.

7. System status and fault intelligent management system can effectively monitor the current system operating mode external input state, the case of system failure, and the LED flashes at the same time to facilitate the diagnosis and maintenance.

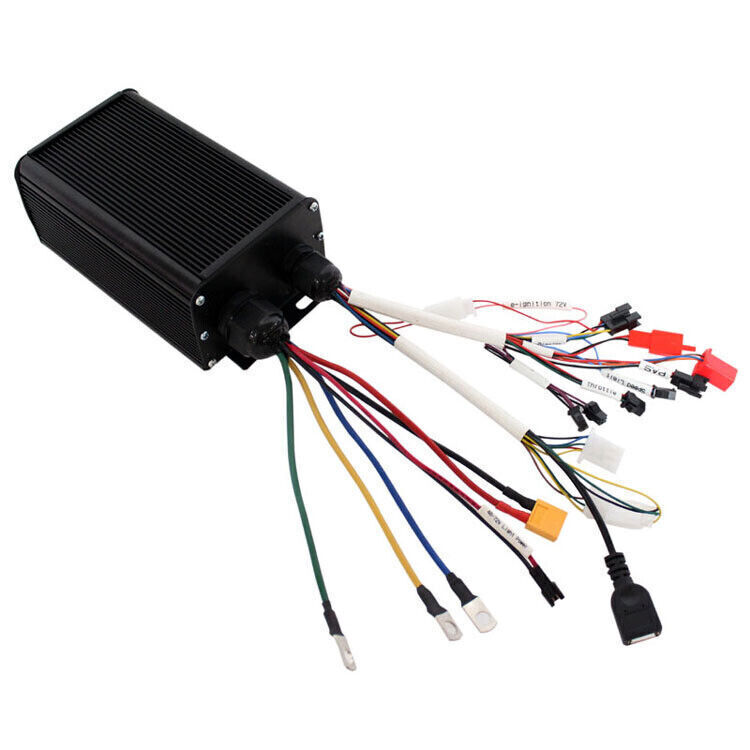

8. Multi peripheral interfaces: reverse, cruise, anti-theft electronic brake, etc.

9. Parameter modifications and settings are available through Mobile phone via Bluetooth or computer via USB data cable

10.CAN BUS is optional to communicate with body instrument and BMS

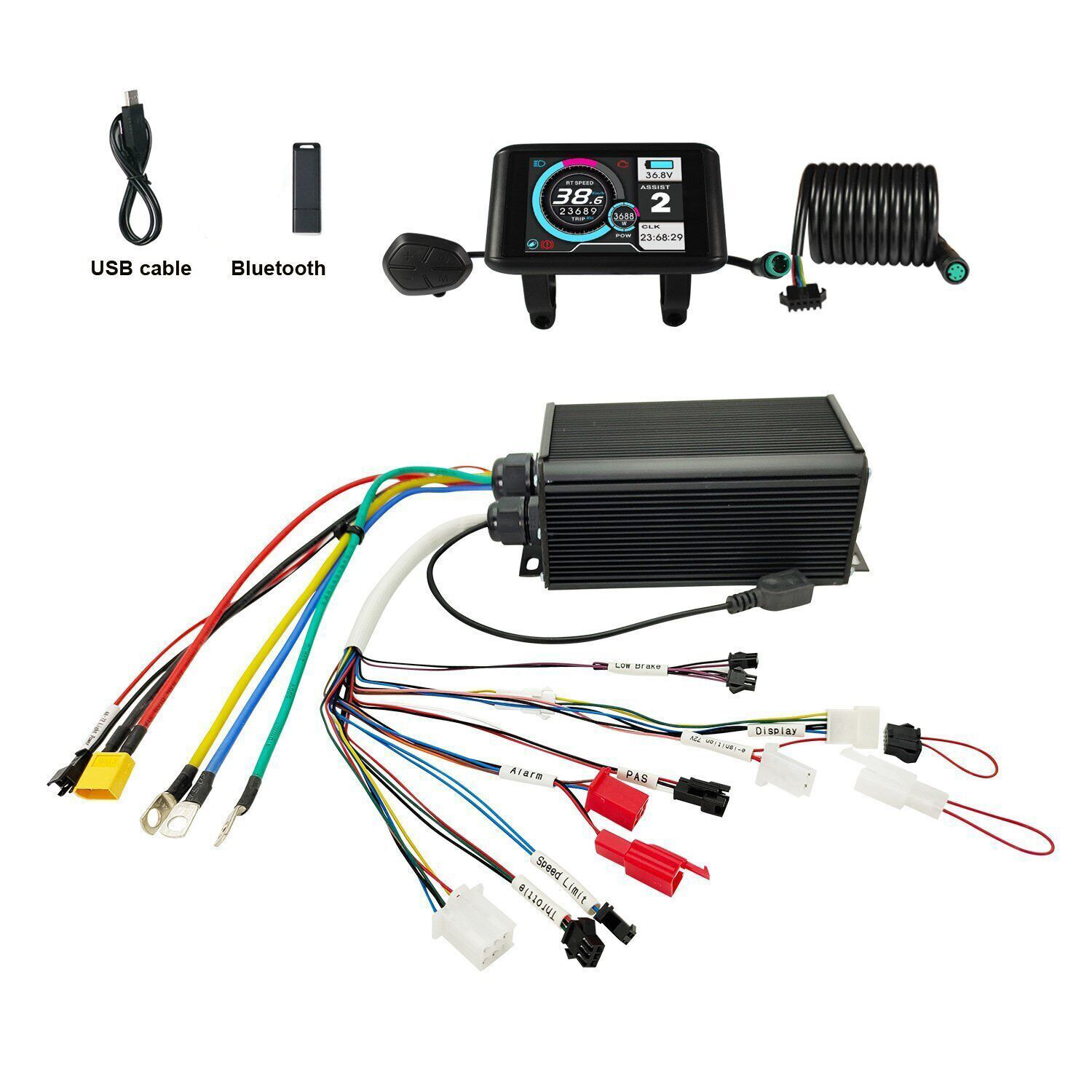

Package includes:

1*45A intelligent programming regenerative sine wave controller

+ UKC1 color screen
