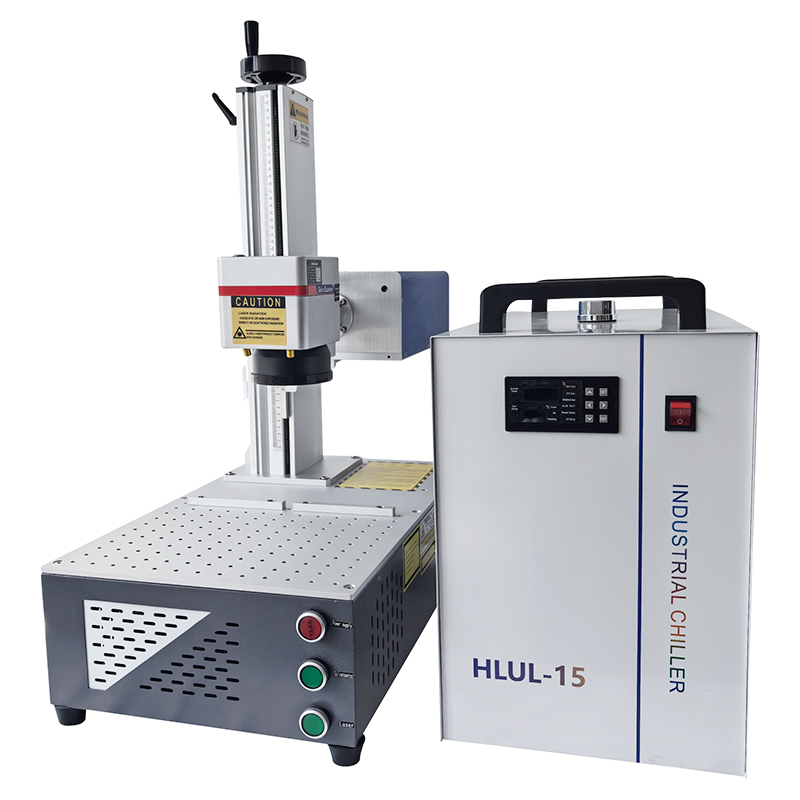

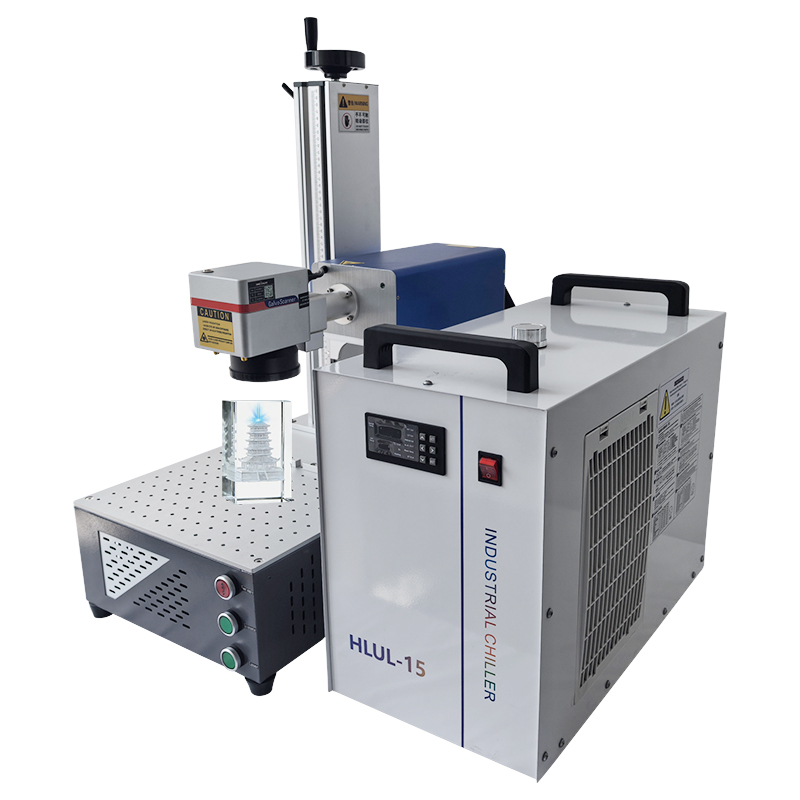

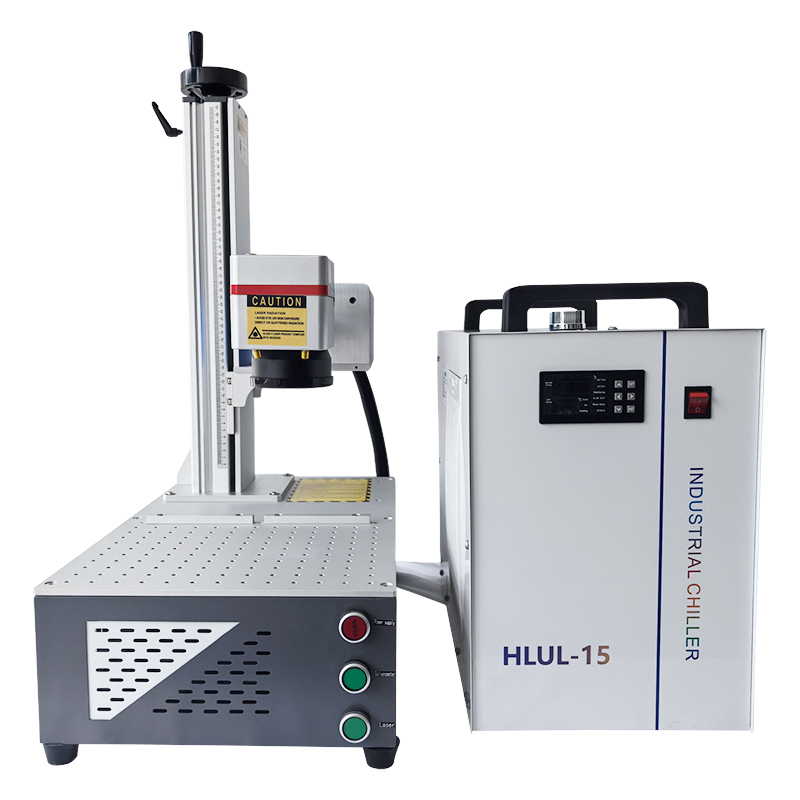

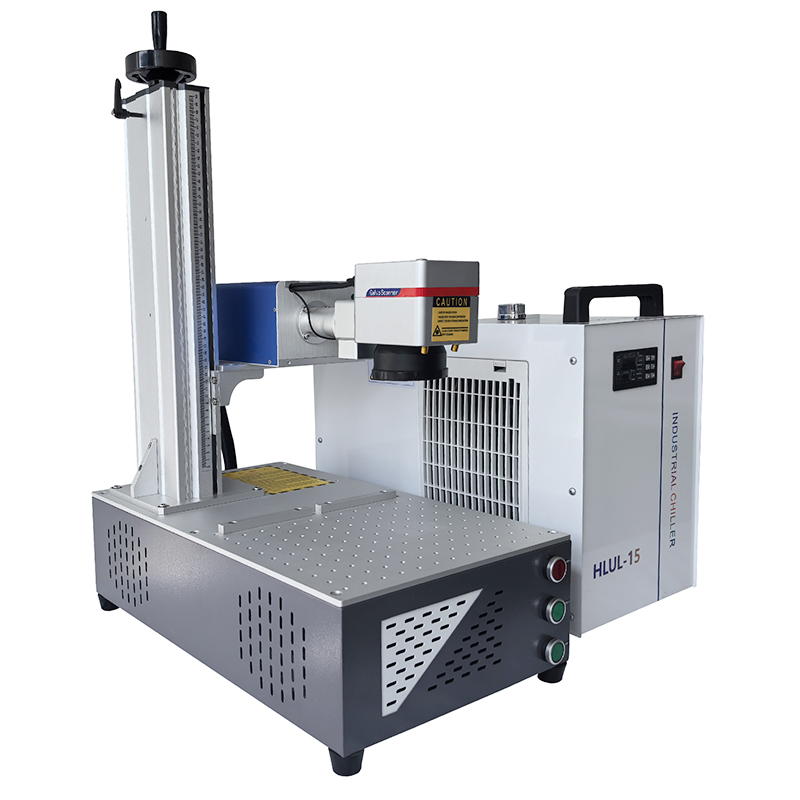

335-10W UV Fiber Laser PVC 3D Engraver Marking Machine Chiller FDA CE
not suitble for skin
Machine with CE and FDA certificate safety and high quality
1. Fiber Optic Laser|Laser Marking Machine|High Integration & Peak Power: Laser's high integration, high peak power fiber laser offers precision carving for crystals and glass.
2. Versatile Material Compatibility:This machine is suitable for marking on a variety of materials including metal, non-metal, and transparent materials.
3. Advanced Cooling System:Equipped with a special UV marking machine cool chiller, the LY 3D ensures efficient and long-lasting operation.
4. High Precision Engraving:Features a 70*70mm engraving area and a 0.1mm minimum character size for detailed and intricate work.
5. User-Friendly Operation:With dynamic/static engraving modes and auto focus, the Laser is designed for ease of use.
6. With 5 years warranty, professional technician service 24 hours online.
| Model | GD10 |
| Laser power | UV 10 W SEAL-355 |
| Working Area | 175*175 mm |
| Cooling Mode | water chiller CW-15 |
| Laser Wavelength | 355nm |
| Response Time | 0.5 ms |
| Frequency of pulse | 0-4000 KHz |
| Marking Depth | 0.1-1 mm |
| Marking Speed | 15000mm/s |
| Marking Lines | 1-10 lines |
| Laser module life | >100000hours |
| Minimum Character | 0.15 mm |
| Repeatability Accuracy | ±0.001 mm |
| Resolution Ratio | 0.01 mm |
| Marking Content | Text, pattern, date, bar code, etc |
| Operation System | Microsoft Windows 2000/7/8/10 |
| Control Software | EZCAD Control Software |
| Graphic Format Supported | BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
| Unit Power | 1.2 KW |
| Operation Temperature | 5°C-40°C |
| Beam diameter | M2 < 1.2 |
| Dimensions(L*W*H) | 80 x 60 x 50 cm |
| Power supply requirements | 110 V/220 V |
| Warranty | 5 YEARS |

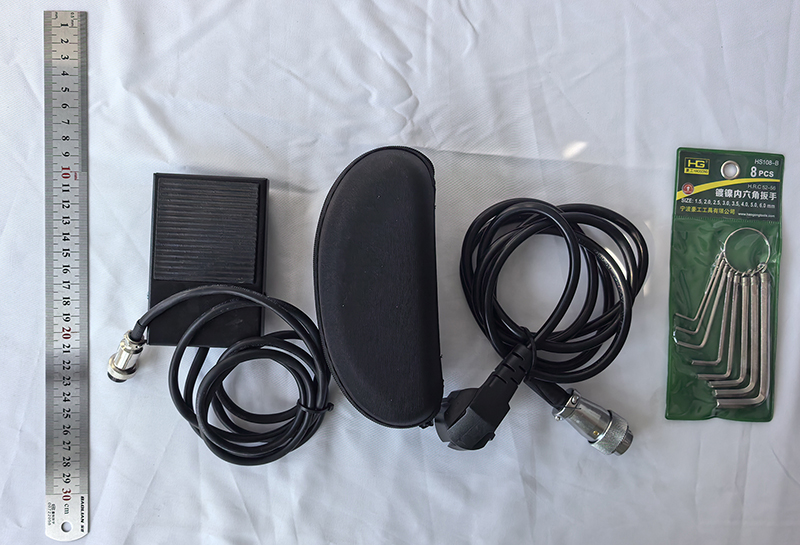

1. Foot switch
2. Hexagon wrench
3. Laser protect glasses
4. Ground wire
5. Ruler
6. U-Disk
1. 80mm rotary axis 500USD
2. 50mm rotary axis 600USD
3. 3D working table 500USD
1. DHL, FEDEX, TNT door to door shipping is 500USD. About 3- 15 days can be delivery.
2. Once the machine was be delivery, you need to clear the custom and charge custom fee. Contact us first, without custom fee.
1. The machine warranty is five years, once the machine parts was bad, we will send you a new one free.
2. We support one year change a new one machine free.
3. 24 hours technician online service, Technician team in MS, CA USA, 24 hours service.
4. If you have any questions, please feel free to contact us at any time.
