4K 120M HDMI Extender Cascade Connection over Cat5e/6 RJ45 Cable HDMI Splitter F
4K 120M HDMI Extender over Cat5e6 RJ45 Ethernet Cable Support Cascade Connection HDMI Splitter Extension Video Audio Transmitter
Specifications:
Extended distance: transmission up to 120M (CAT5E/6)
Input video signal: 5Volts p-p(TTL)
Video resolution support: Up to 3840 X 2160/30HZ backward compatible.
Support audio format: DTS/Dolby/LPCM
Support video format: 4K/1080P/720P and so on.
Maximum bandwidth transmission: 340MHz
Maximum transfer rate: 3 x 3.4Gbps
Input cable length: ≤15M AWG26 HDMI standard cable
Output cable length: ≤15M AWG26 HDMI standard cable
Maximum operating current: TX: 350mA; RX: 200mA

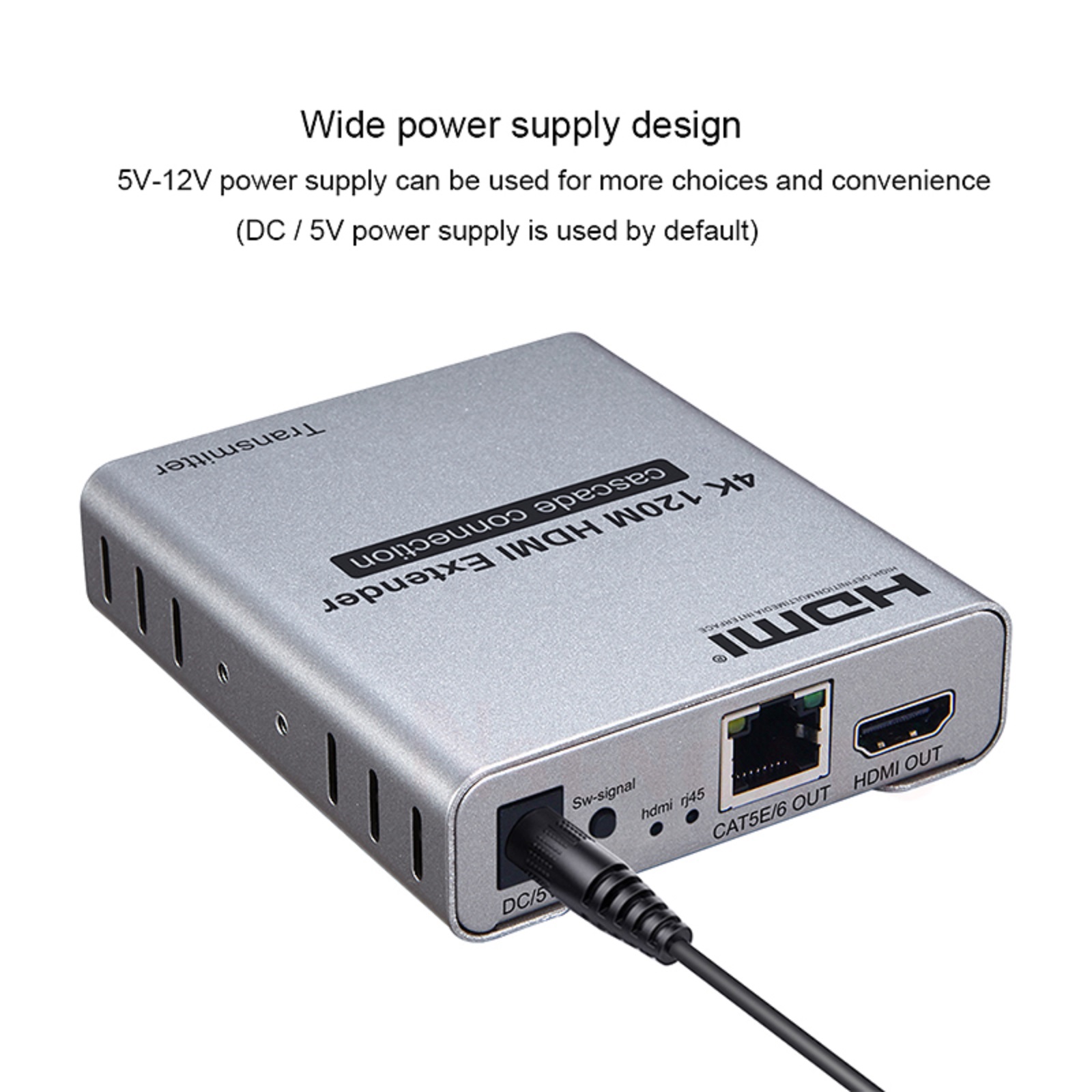

Power supply: DC5V / 1A;
Operating temperature range: -10∽+45°C
Size: 94x84x24mm
Features:

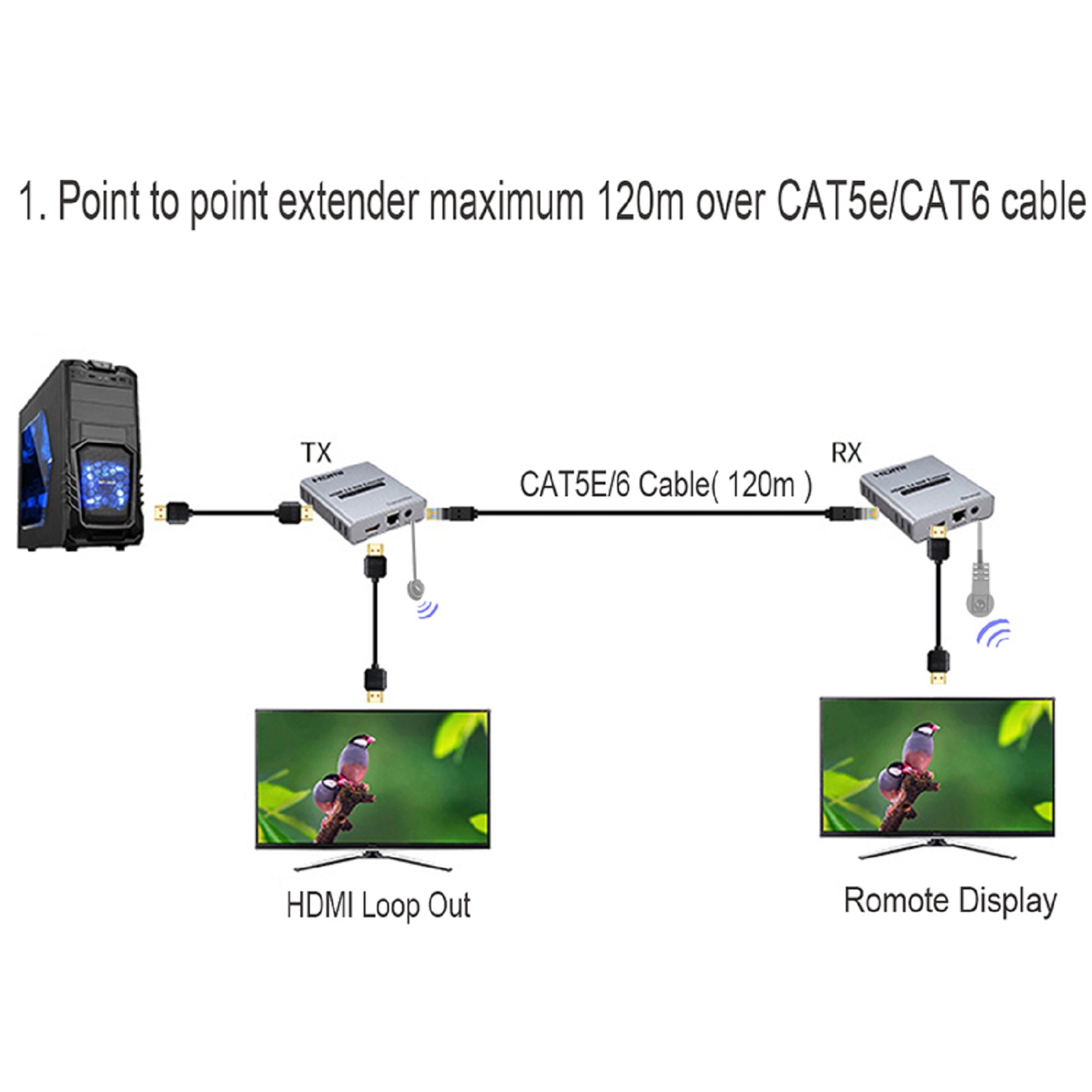

1. 120M long distance transmission

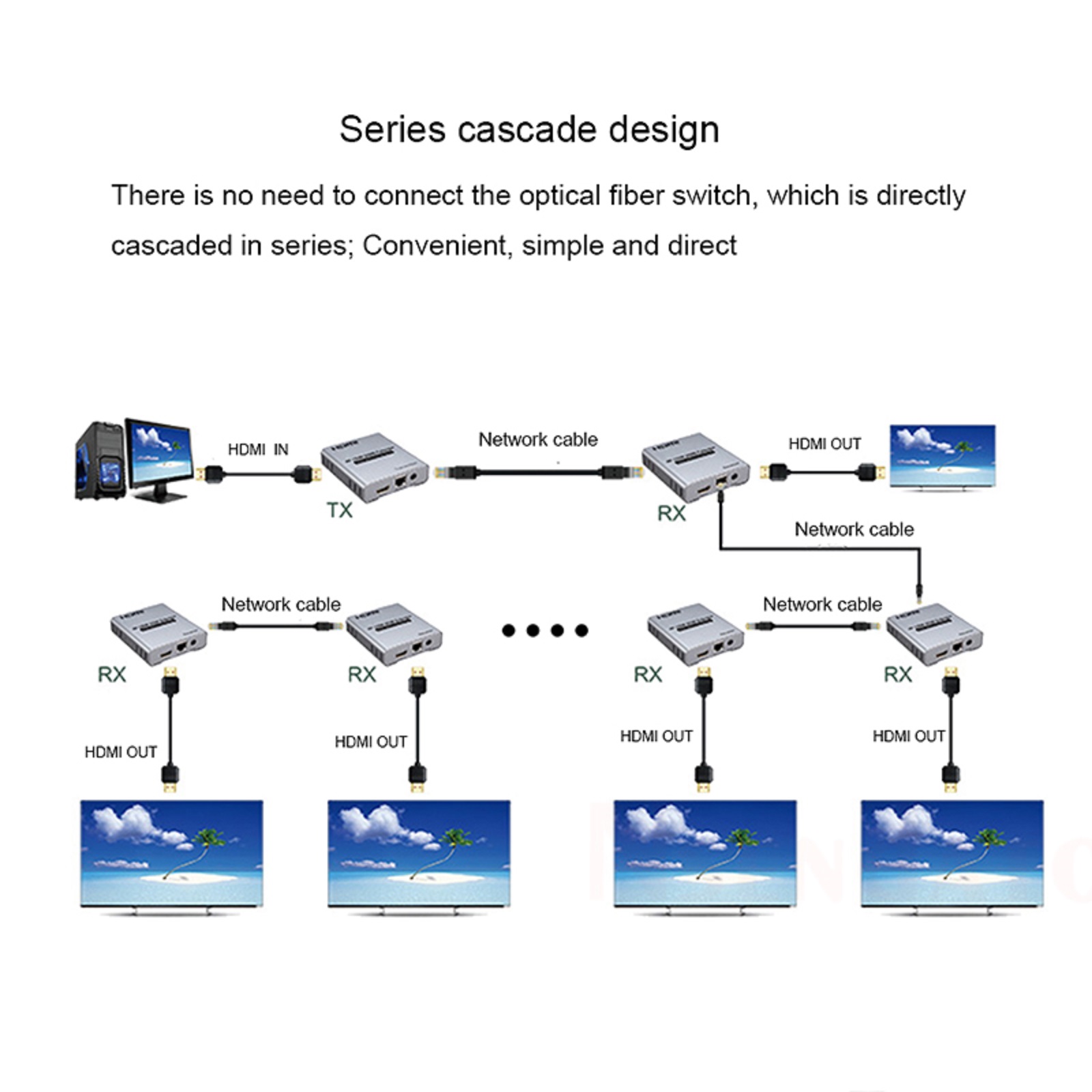

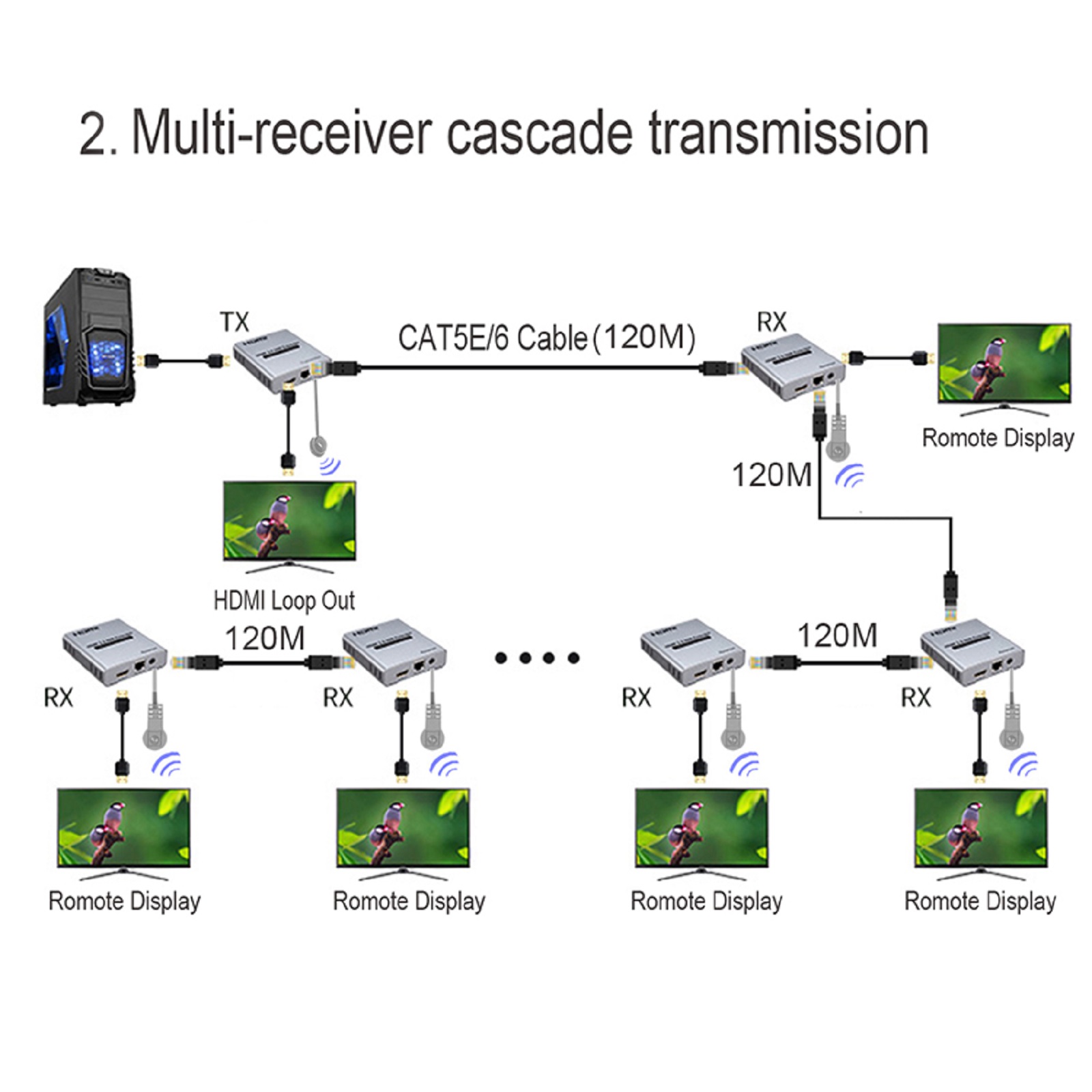

2. Multi-receive cascading transmission
3. Low power consumption, low temperature and high safety.
4. Support 4K@30HZ HDMI1.4 or below.
5. HDMI extender over IP is used in audio-visual conference, command and control center, ticketing platform, home theater, multi-media teaching, conference system and so on.
6. This integrated cable extender replaces the HDMI cable with a CAT5e or CAT6 cable (recommended). It can transmit HDMI1.4 4K@30Hz HDM1.3 1080P I for 120 meters,
The purpose of the extender is to use low-cost wires. To achieve long-distance signal transmission.

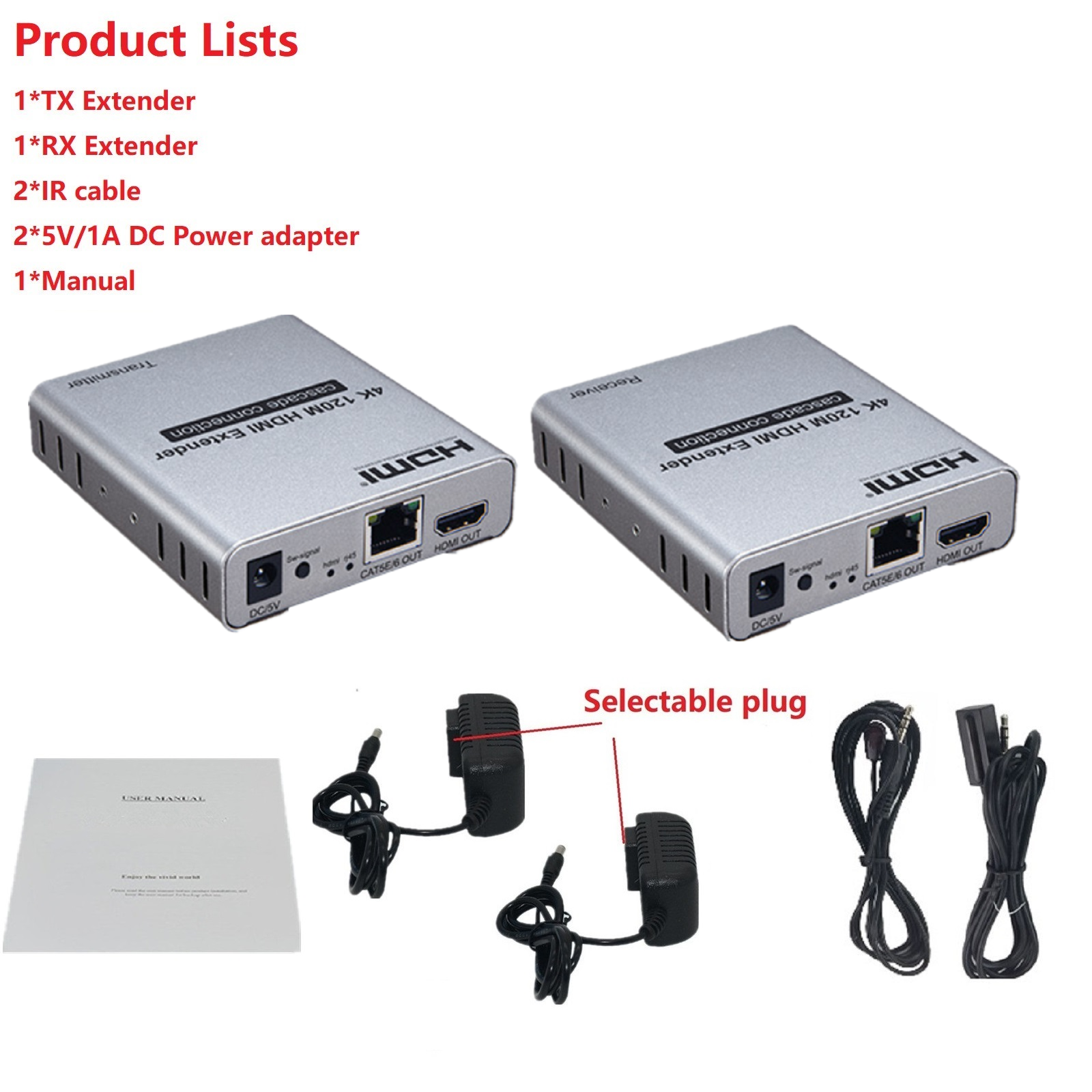

Package lists:

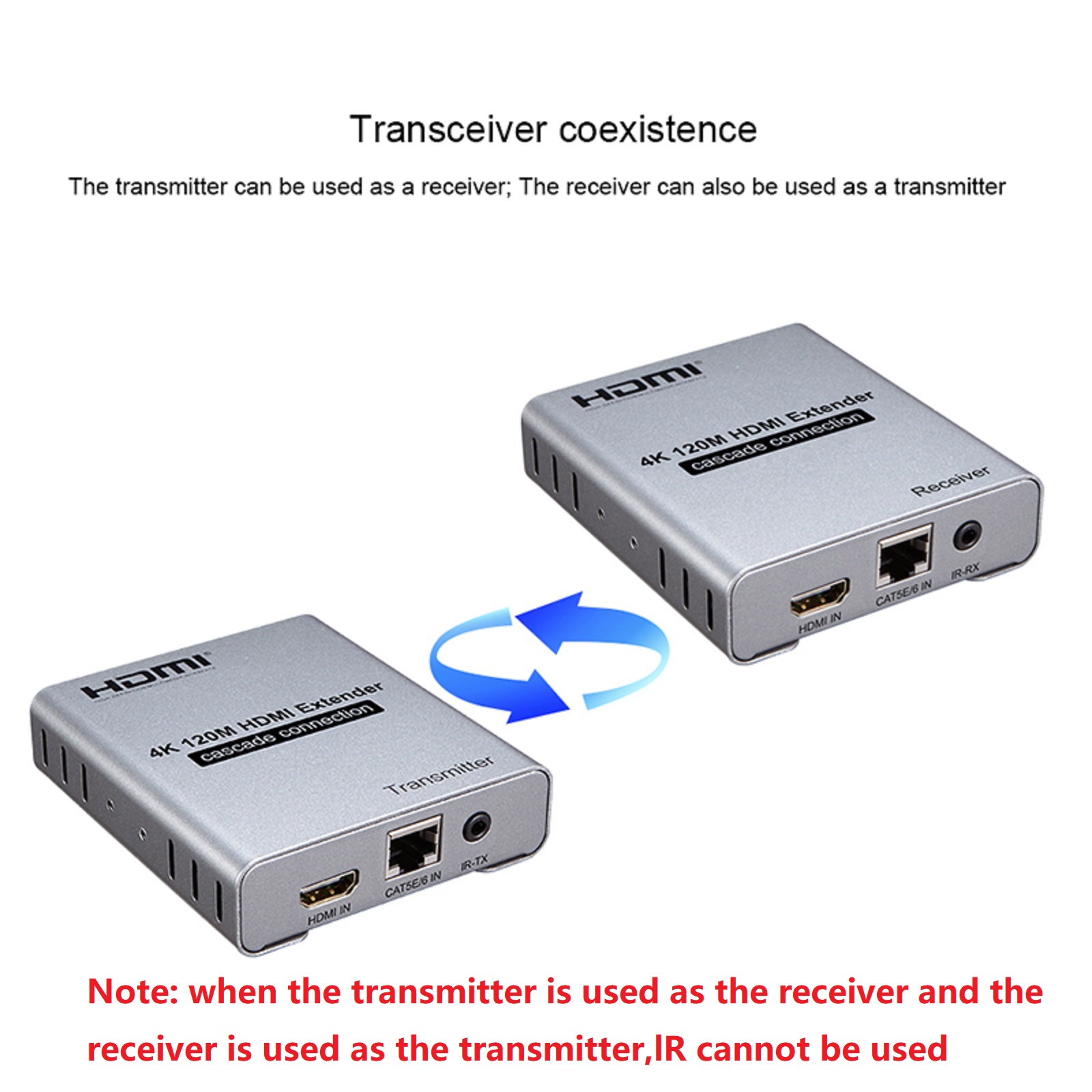

1* TX Extender
1* RX Extender
1* IR-RX cable
1* IR-TX cable
2* 5V/1A Selectable Power adapter
1* Manual
