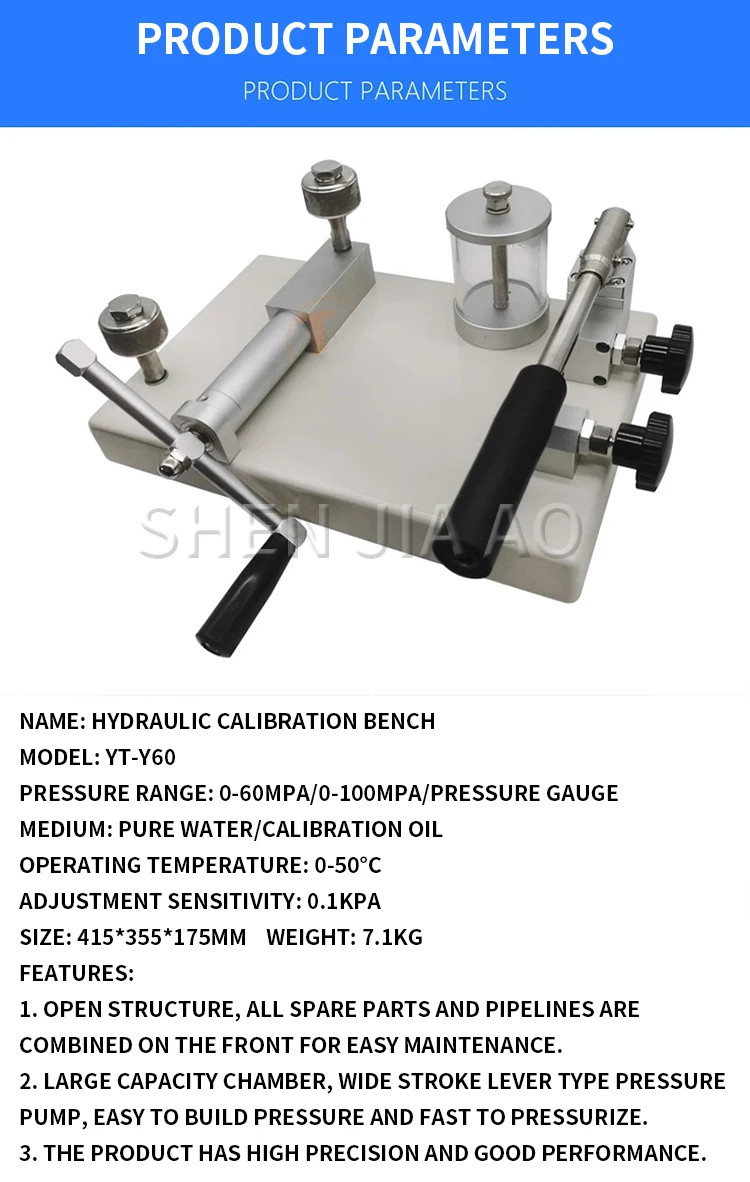

Name: Hydraulic Calibration Bench
Model: YT-Y60
Pressure range: 0-60MPa/0-100MPa/pressure gauge
Medium: pure water/calibration oil
Operating temperature: 0-50°C
Adjustment sensitivity: 0.1KPa
Size: 415*355*175MM
Weight: 7.1KG
Features:

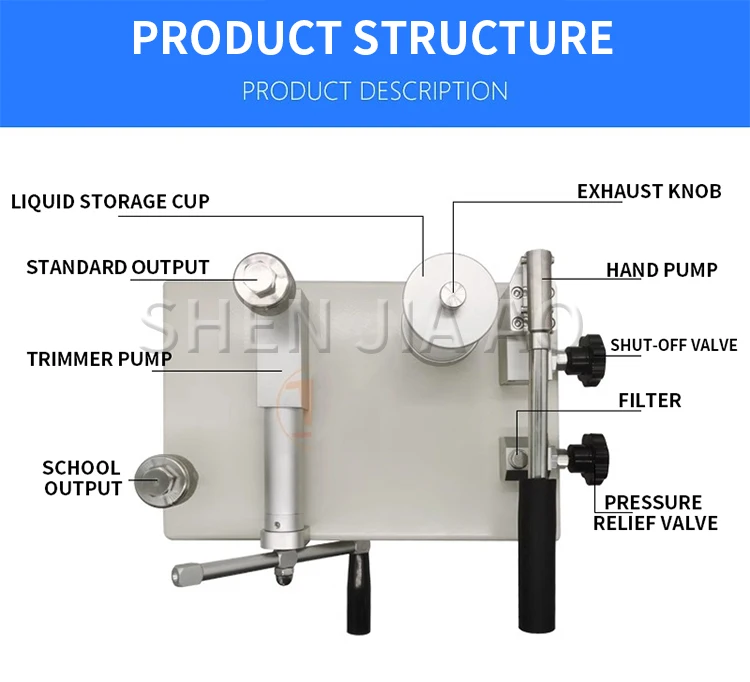

1. Open structure, all spare parts and pipelines are combined on the front for easy maintenance.
2. Large capacity chamber, wide stroke lever type pressure pump, easy to build pressure and fast to pressurize.
3. The product has high precision and good performance.

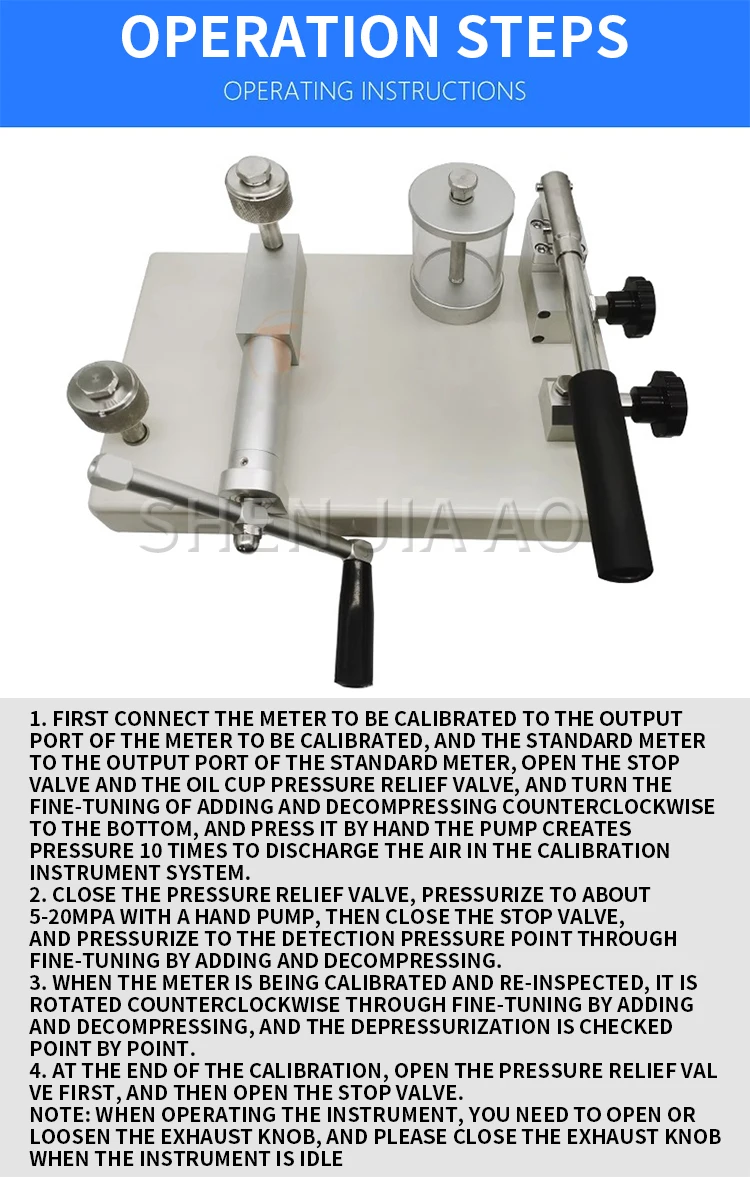

Operation steps:

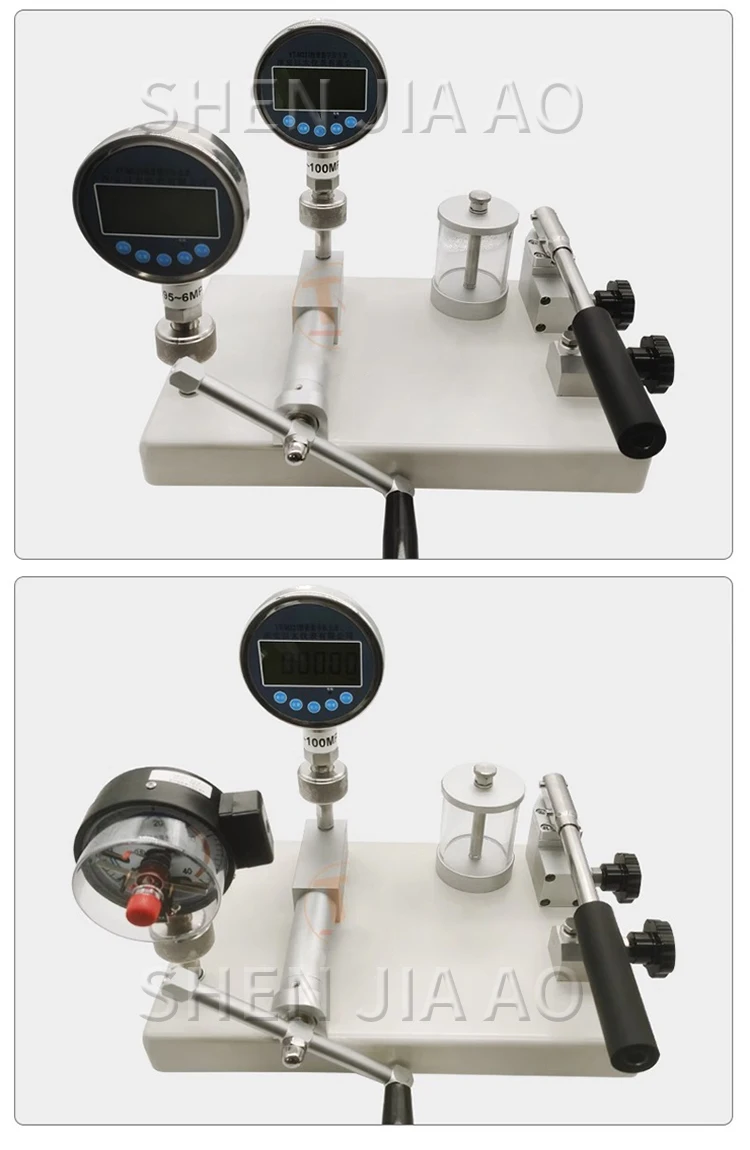

1. First connect the meter to be calibrated to the output port of the meter to be calibrated, and the standard meter to the output port of the standard meter, open the stop valve and the oil cup pressure relief valve, and turn the fine-tuning of adding and decompressing counterclockwise to the bottom, and press it by hand The pump creates pressure 10 times to discharge the air in the calibration instrument system.
2. Close the pressure relief valve, pressurize to about 5-20MPa with a hand pump, then close the stop valve, and pressurize to the detection pressure point through fine-tuning by adding and decompressing.
3. When the meter is being calibrated and re-inspected, it is rotated counterclockwise through fine-tuning by adding and decompressing, and the depressurization is checked point by point.
4. At the end of the calibration, open the pressure relief valve first, and then open the stop valve.
Note: When operating the instrument, you need to open or loosen the exhaust knob, and please close the exhaust knob when the instrument is idle
