Features for Dental LED Curing Lamp
1. Rechargeable lithium battery
Battery Model: 18650 3.7V, capacity: 2200mAh, The battery has overvoltage,
overcurrent and short circuit protection.
2. Power adapter (charger)
Enter: 100-240V～ 50/60Hz 0.4A Max.
Output: 5V

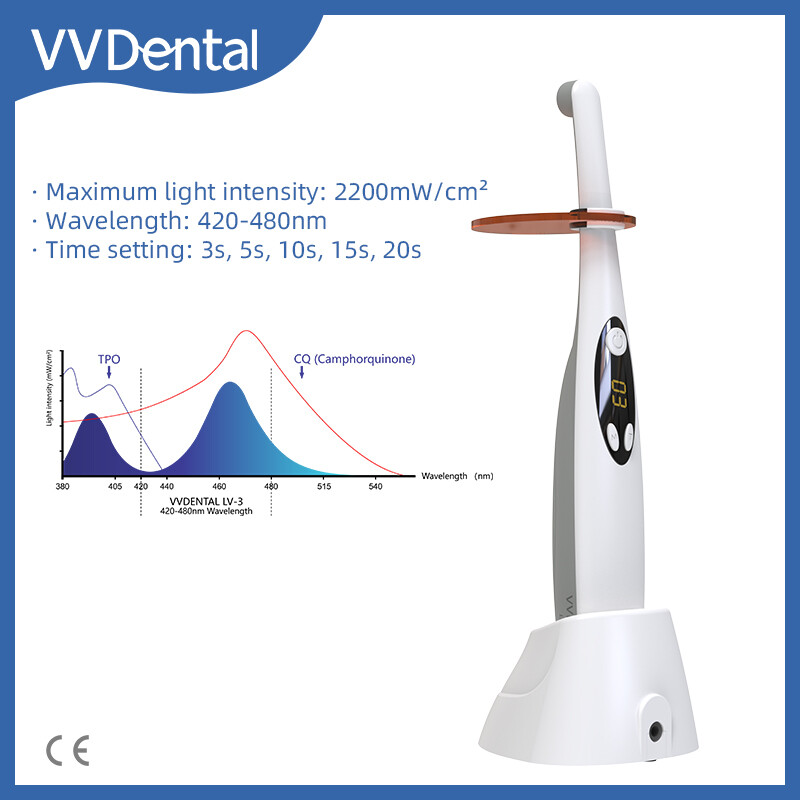

3. LED lamp performance
4. Wavelength: 385nm～515nm
5. Typical peak wavelength of LED light for curing light: 465±5nm and 400±5nm
6. Category: I Class
7. Automatic emission limit (AEL): 3.9×10-3J
8. Inspection method: When the LED light is lit during correct operation, it indicates the lamp is in good condition.
9. Commonly used dental resin materials in clinic can match the wavelength
of this light curing machine, such as 3M, Dentsply and other resins.
10. The light curing machine standard requires that the irradiance in the wavelength range of 385nm to 515nm (blue light) should be no less than 250mW/cm2
11. The diameter of the light-emitting end face of the light-guiding element is 10.5mm, Optical effective area: 86mm2
12. Irradiance tolerance range: ±10%
13.Light intensity：3200mw/cm2
Usage Environment:
14. Ambient temperature: +5℃～+40℃
15. Relative humidity: 30%～75%
16. Atmospheric pressure: 70kPa～106kPa
17. Equipment safety classification
18. Classification by type of protection against electric shock: Class II equipment with internal power supply
19. Classification by degree of protection against electric shock: Type B
applied part
20. Classification by degree of protection against liquid ingress: General
equipment (IPX0), not waterproof.
21. Classification by operating mode: Intermittent operation
22. Classification of safety level when used in the presence of flammable
anesthetic gas mixed with air or flammable anesthetic gas mixed with oxygen or
nitrous oxide: Equipment that cannot be used in the presence of flammable
anesthetic gas mixed with air or flammable anesthetic gas mixed with oxygen or
nitrous oxide.
![]()
