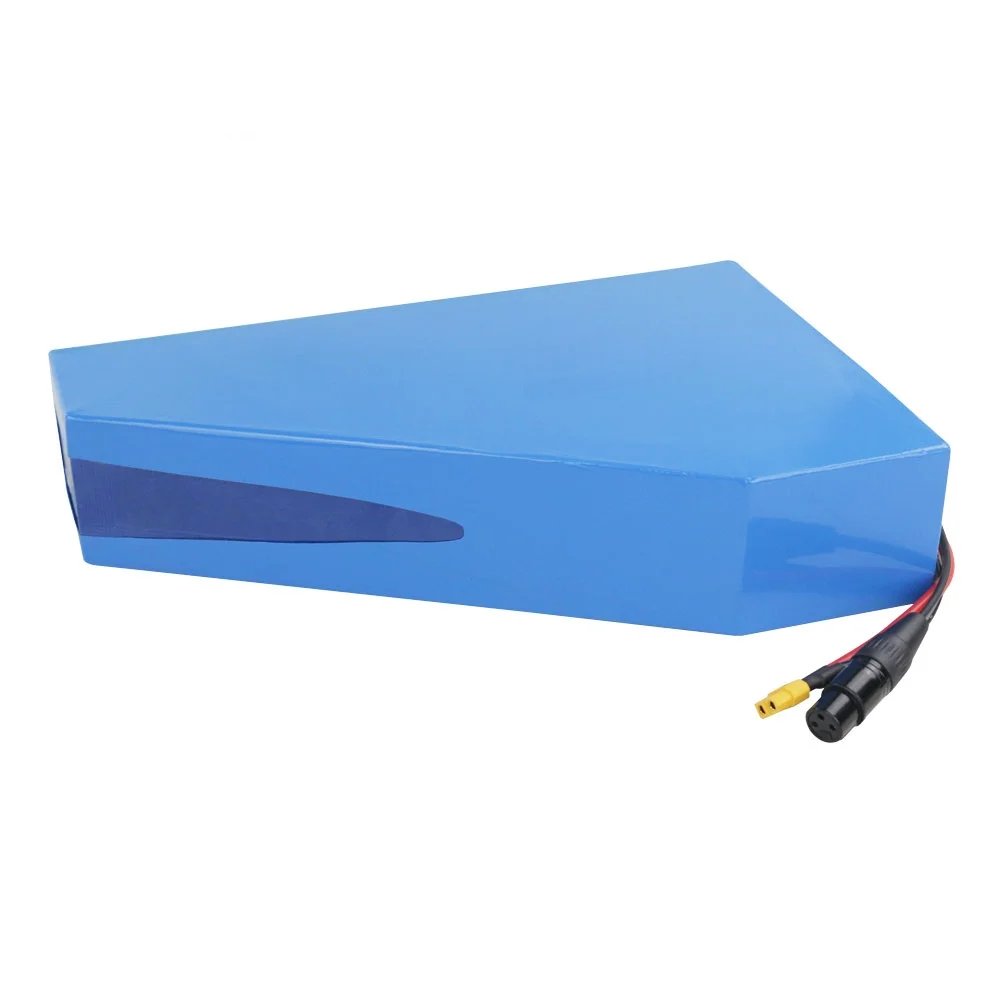

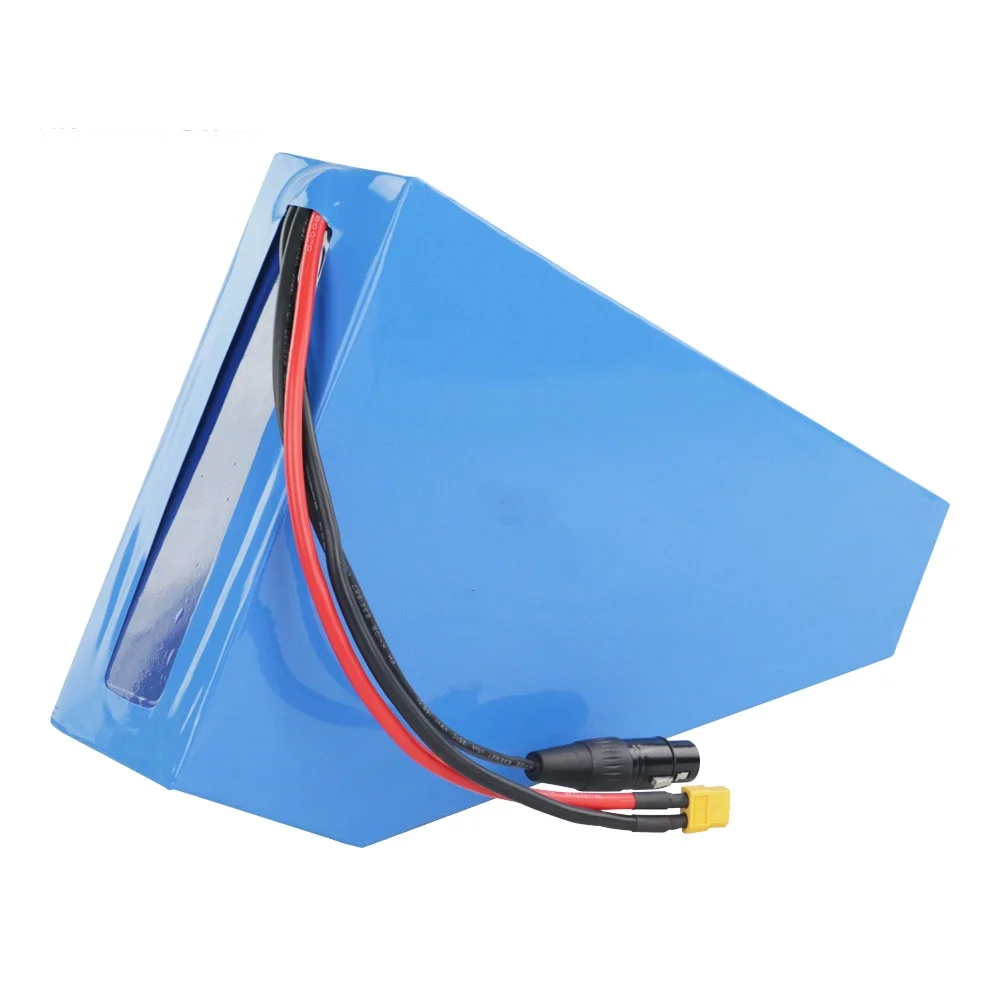

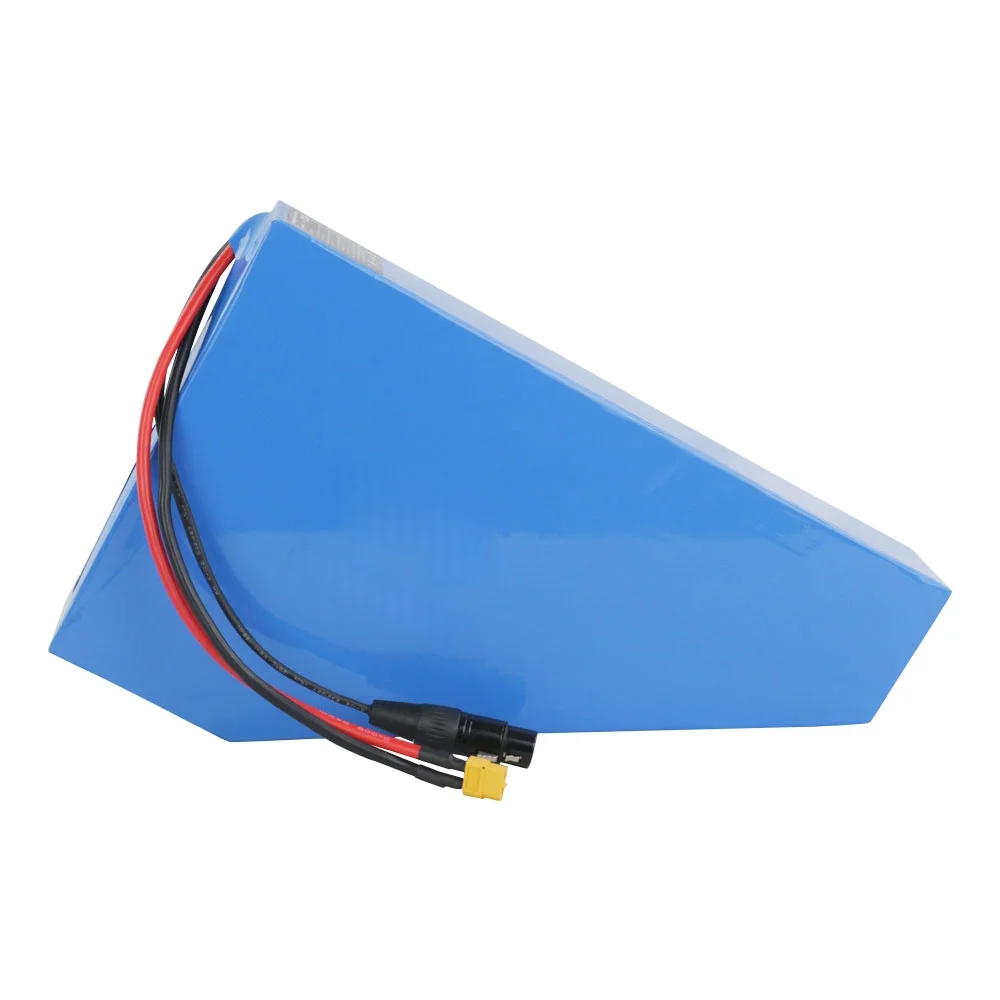

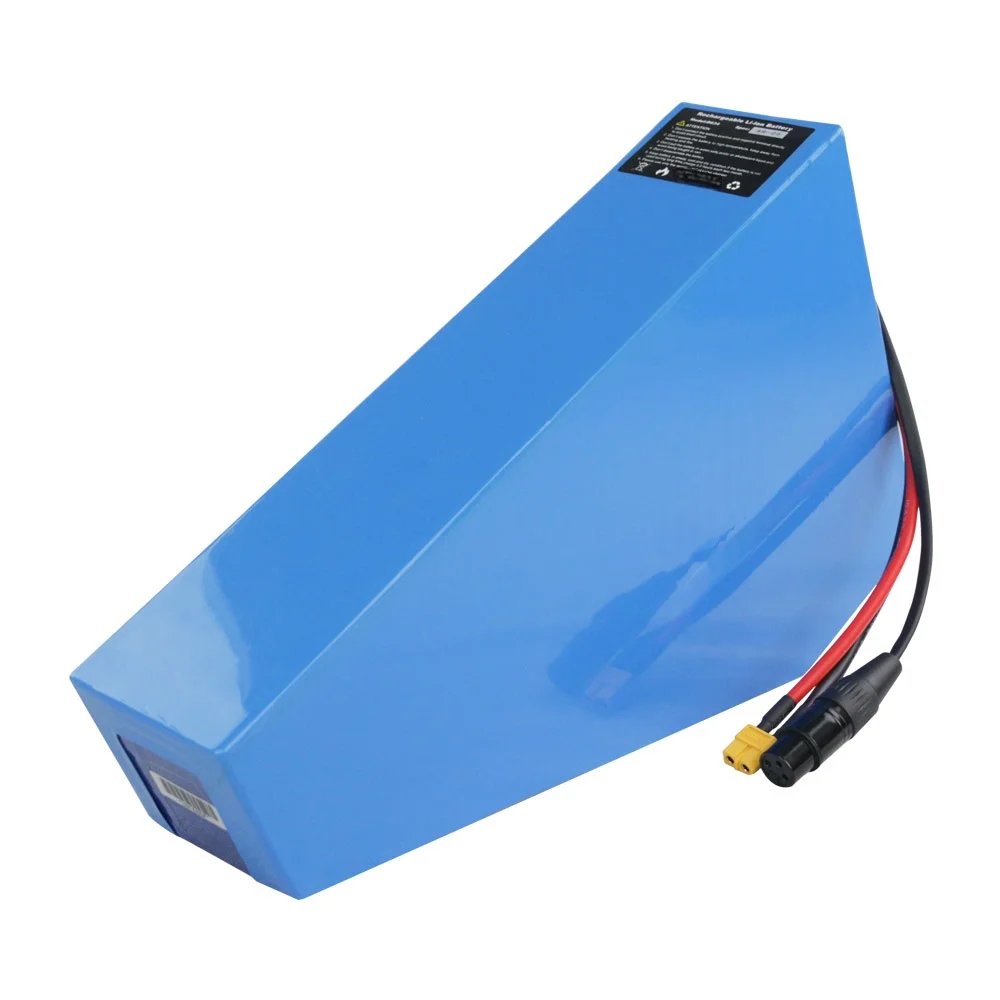

72V 25AH 125-220A Most Powerful Triangle Lithium Battery 5C discharge rate Battery with 6A Charger
5C Big Discharge Rate
Very good low temperature discharge ability till -20 degrees
Parts included:

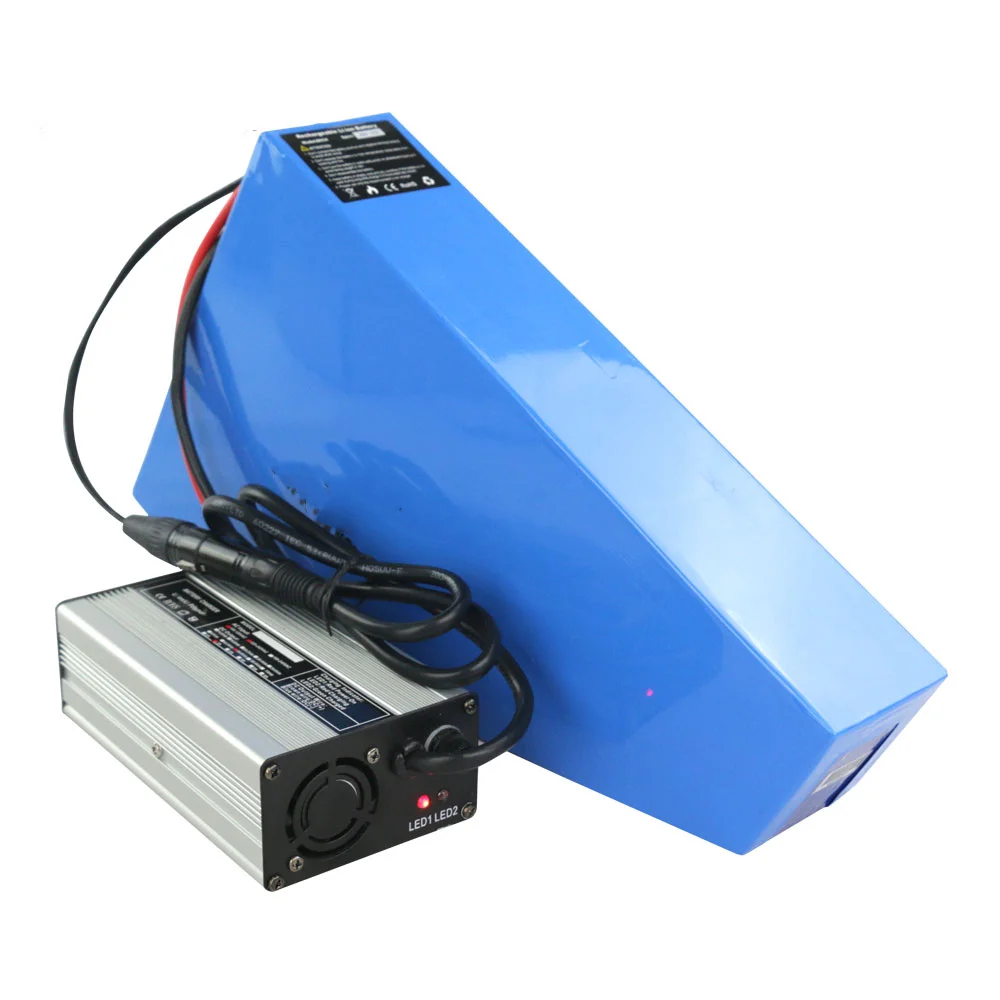

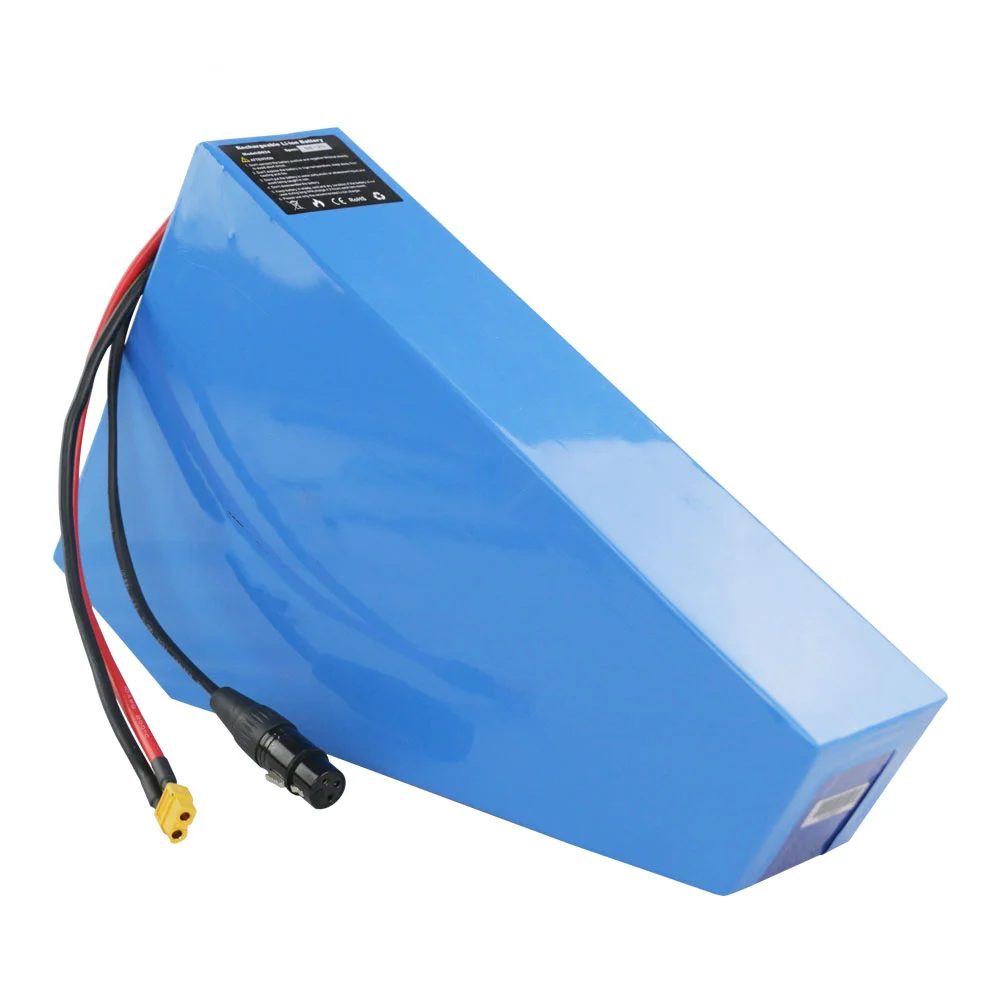

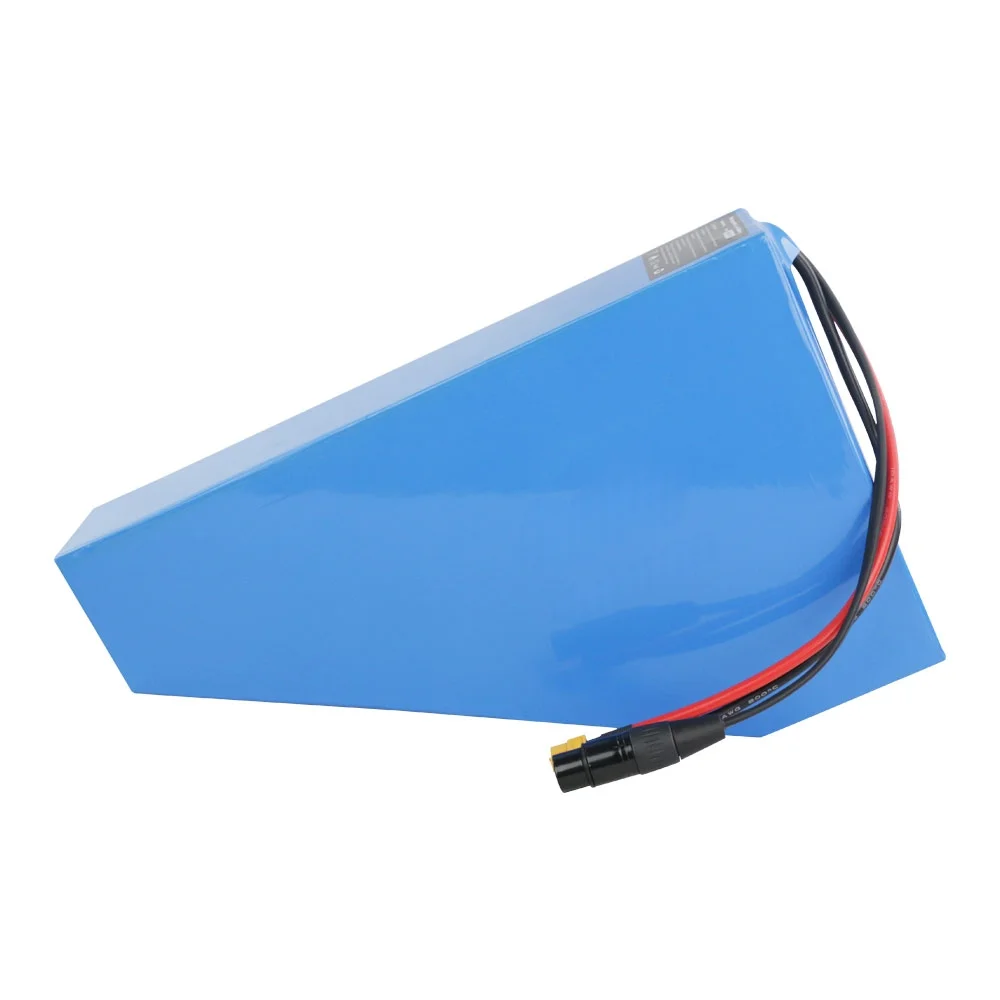

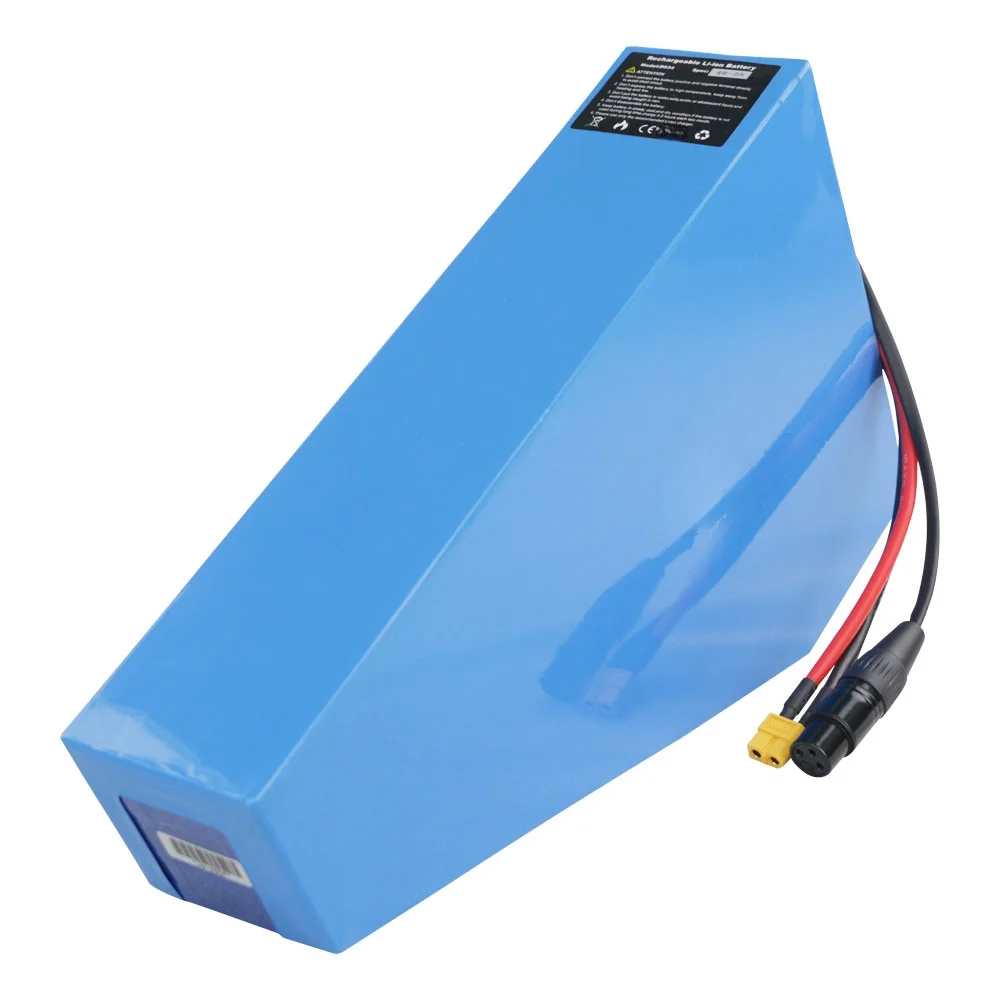

1.72V 25AH Triangle Battery with XT90 Female Discharge Plug and Linko Female Charge Plug

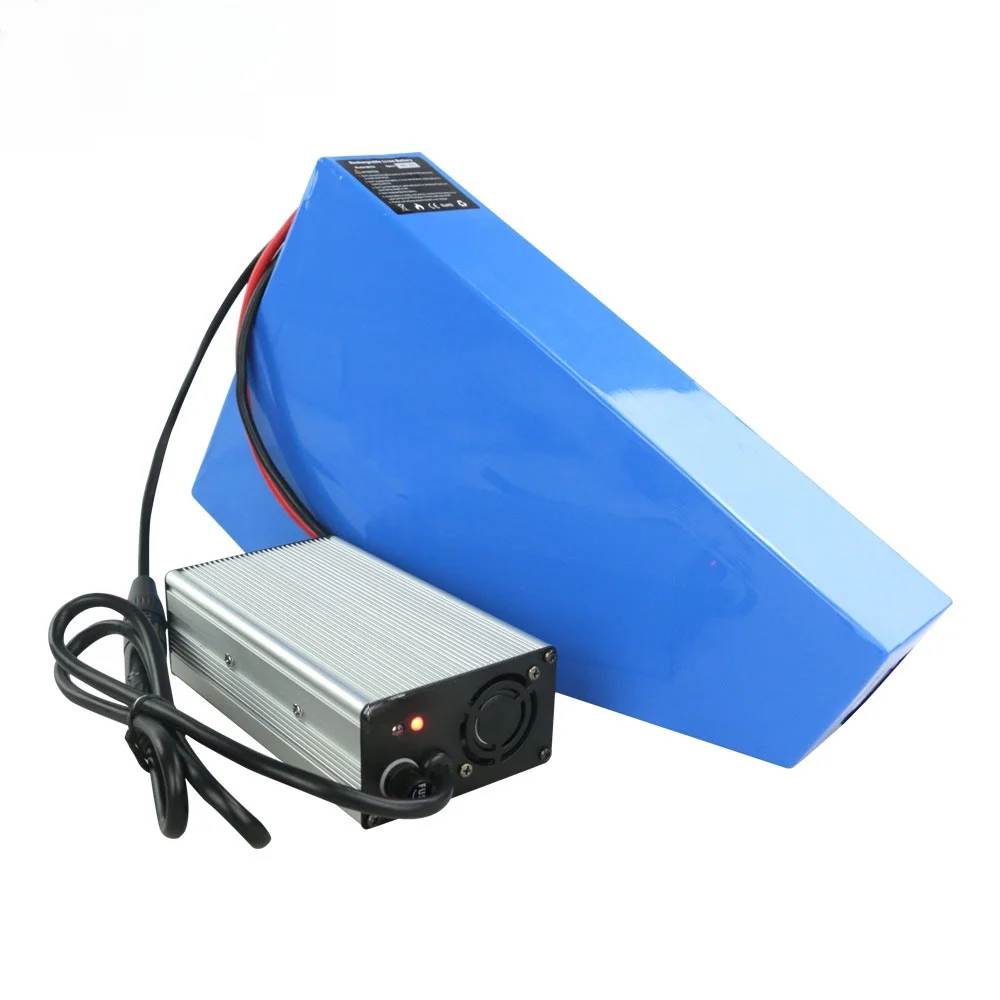

2.84V 6A battery Charger with Linko Male Plug
QS8 Male Plug, Linko Male Plug, Linko Male Socket

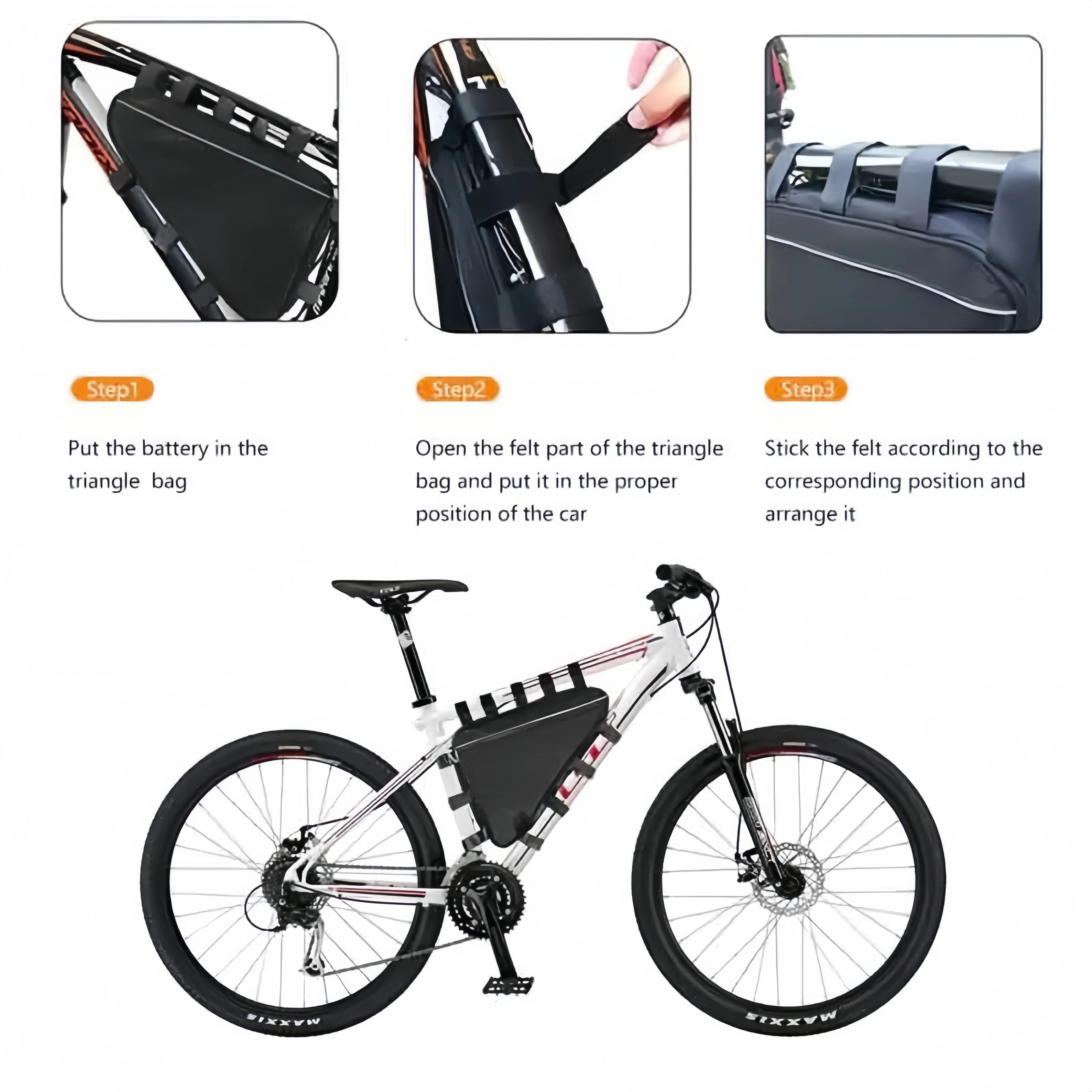

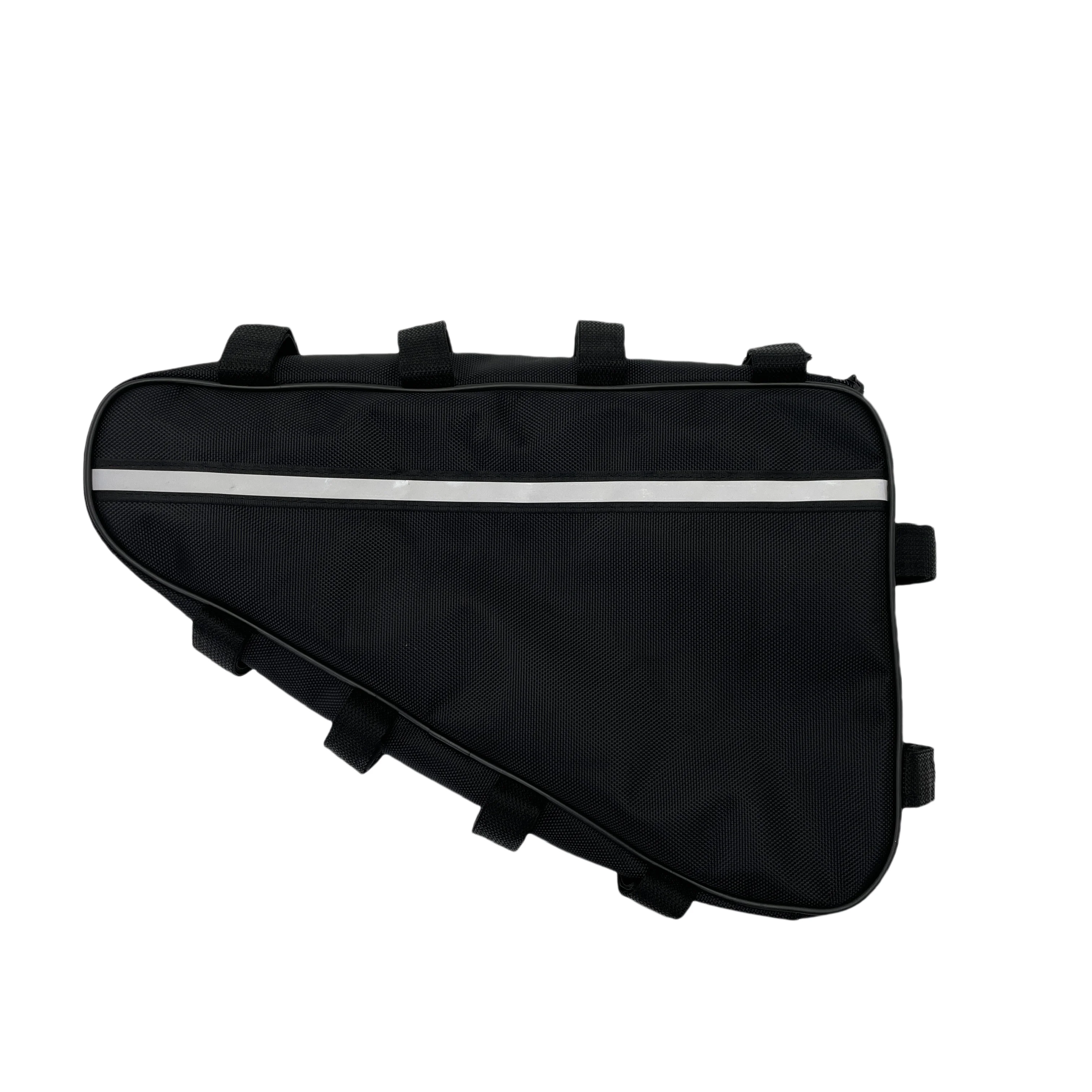

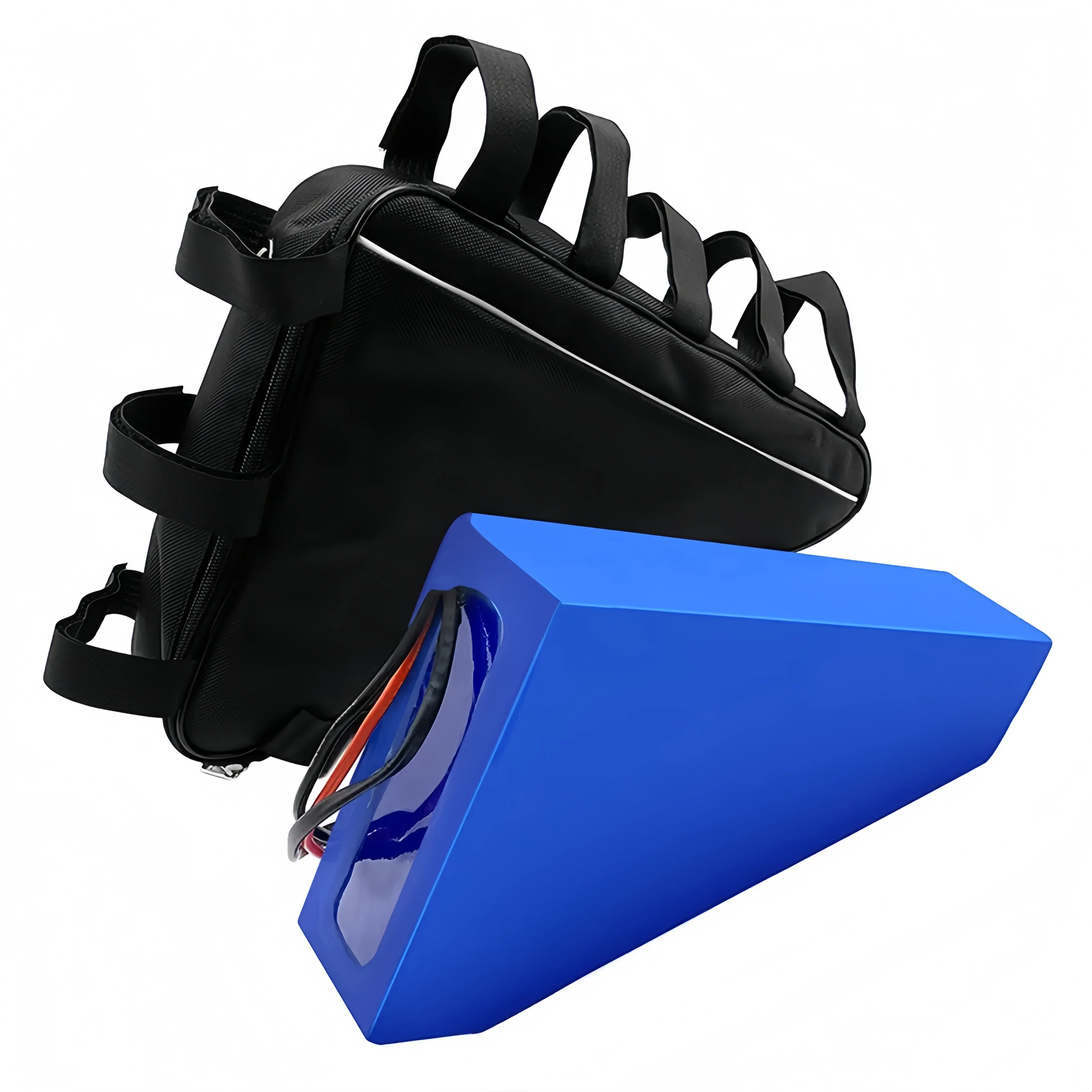

3.Triangle Battery Bag
125A-225A intelligent BMS board, support BlueTH and mobile phone APP parameter setting, battery status monitoring
Specification:
Battery Model: 72V 25AH Triangle Lithium Battery
Nominal Capacity (AH): 25Ah
Nominal Voltage (V): 72V
Source Resistance (mΩ）: <15
Cell Specification: 3.7V 5000mAH 5C Powerful Samsung INR21700-50S Cell
Cell Combination: 20-series, 5-parallels
Cell Size: 21700 Cylinder Cell
Diameter: 21mm, Height: 70mm
Cell Quantity (parallel*series): 100pcs
Discharge Cutoff Voltage (V): 60 +/- 1V
Charge Cutoff Voltage (V): 84V
Rated Discharge Current (A): 25A
Maximum Continuous Discharge Current (A): 125A
Maximum Peak Discharge Current (A): 225A
Maximum Continuous Charge Current (A): 12A
Charge Mode: CC/CV
Standard Charge Current (A): 6A
Charge Time under Standard Charge Current (Hours):5h
Charge Temperature Range: 0 - 60 ℃
Discharge Temperature Range: -20 - 60 ℃
Battery Size: please see picture
Charging Cycles: > 1000 cycling times
Battery Net Weight: 9.2kgs
Battery Gross Weight(include charger,bag and packing): 12kgs
Battery Application: For less than 72V 7200W Motor and Controller (72V 100A)
