Specification:
-
100% brand new, Never been tried or installed
- Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish
- Brazed core technology to guarantee optimum performance and dependability
- All AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable
- Billet Aluminum CNC machined fill neck rugged and durable
- CNC machined cap with Engraved craftsmanship, anodized treatment.
- Carefully crafted to exceptional OE standards for precise fit.
-
Professional Installation is Highly Recommended
-
Installation Instruction is NOT Included

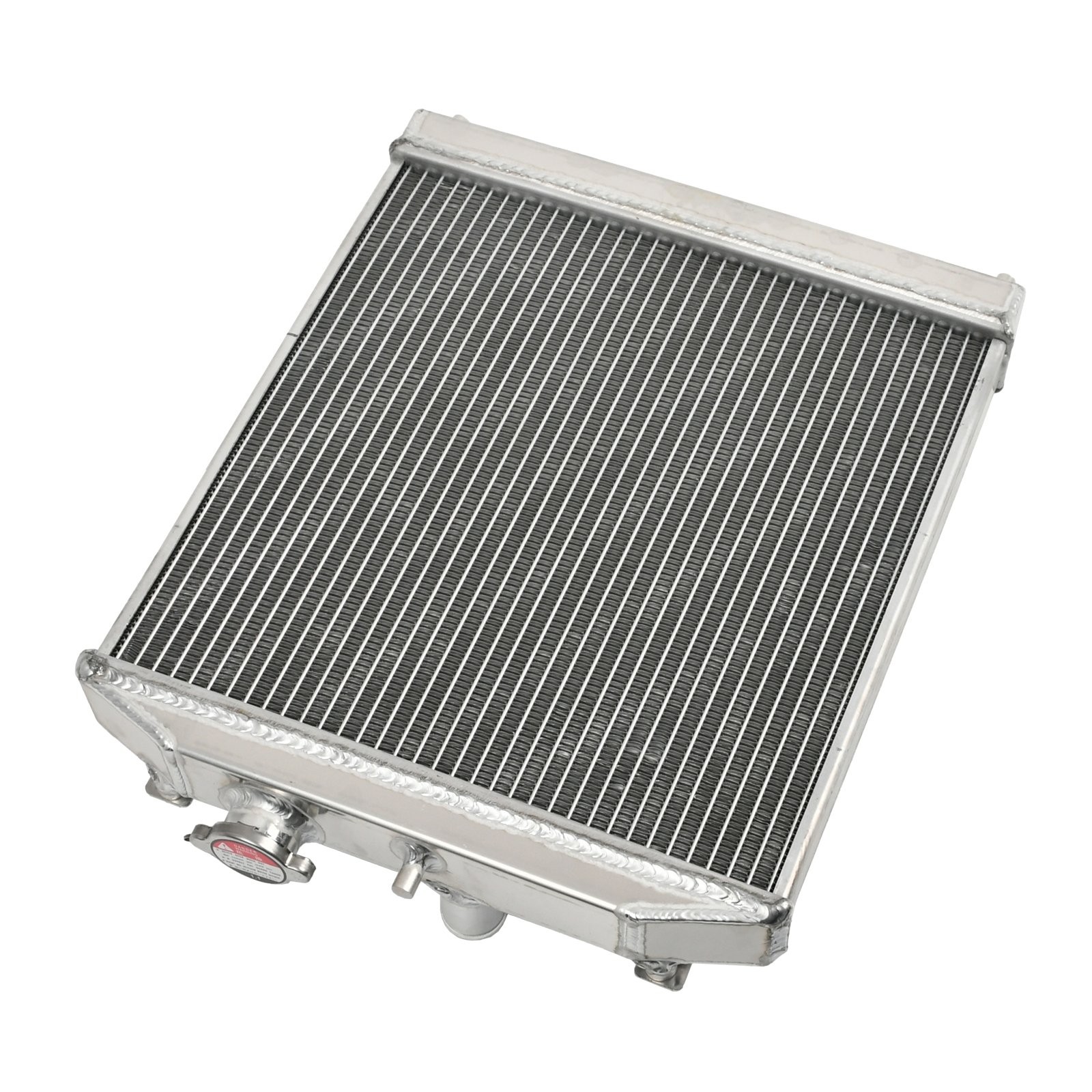

- Radiator:
- Row Count: 3 Row
- Down Flow Or Cross Flow Type: Downflow
- Overall Size: 466 x 368mm (18.35" x 14.49")
- Core Size: 350 x 358mm (13.78" x 14.09")
- Inlet/Outlet: 1.25" / 1.25"
- Made of High Quality Full AA5052 Aluminum Construction
- Stronger and Higher Capacity for Coolant than Stock Units
- Improves Cooling by 35% to 45% Temperature
- Direct Bolt-On OE Fitment or Replacement
- Shroud and Fans:
- The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine.
- The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine.
- With excellent operating temperature management, allowable levels of engine temperature are stabilized.
- Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
- Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently. Make your engine bay perfect!
- S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
- Blade Material: Plastic
- 12V, 80W
- Number of Blades: 10 S-Type blade
- Amp Draw: ≤7.5 amps
- Fan Diameter (in): 12.050"
- Thickness (in): 2.36"
- Maximum Fan CFM: 800 CFM
- Maximum Fan RPM: 2000±10% RPM
- Includes the Mounting Tabs for an Easy Zip Tie Installation
- Thermostat Relay Kit:
- Universal fit for any automotive vehicle and electric fan.
- Activates by grounding electric fans at preset temperature.
- 180'F turn-on temperature, 165'F turn-off temperature.
- RED + connect directly to battery.
- WHITE wire to ignition switch power source.
- BLACK goes to thermos switch.
- BLUE wire goes to the Fans.
- This set up will run Fans & pull air in through radiator.
Fitment:
-
Fit for 1992-2000 Honda Civic
-
Fit for 1993-1997 Honda Del Sol
-
Fit for 1994-2001 Acura Integra (Half Size Radiator Mod Only)
Packing Includes:
- 1 x Aluminum Radiator
- 1 x Aluminum Shroud
- 1 x 12" Fans
- 1 x Thermostat Relay Kit
- As the pictures show
| Item Specifics | |
|---|---|
| Brand | fastracingo |
| Type | Radiator & Shroud & Fan & Relay |
| Material | Aluminum |
| Fitment Type | Performance/Custom |
| Row Count | 3 Row |
| Number of Blades | 10 S-Type blades |
| Color | Silver |
| Maximum Fan CFM | 800 CFM |
| Fan Thickness | 2.36" |
| Overall Dimensions | 466 x 368mm (18.35" x 14.49") |
| Mounting Style | Bolt-On |
| Maximum Fan RPM | 2000±10% RPM |
| Transmission Oil Cooler / TOC | Yes |
| Style | Downflow Radiator |
| Inlet Diameter | 1 1/4 in. |
| Outlet Diameter | 1 1/4 in. |
| Features | 100% Leak Tested, Durability Tested |
| Fan Power | 12V, 80W |
| Fan Diameter | 12 in |
| Transmission | AT/MT |
| Placement on Vehicle | Engine Compartment |
| Fitment 1 | 1992-2000 Honda Civic |
| Fitment 2 | 1993-1997 Honda Civic Del Sol |
| Fitment 3 | 1994-2001 Acura Integra (Half Size Radiator Mod Only) |
| Engine Oil Cooler / EOC | No |
| Core Dimensions | 350 x 358mm (13.78" x 14.09") |
