Features:
1. Smart Testing: The handheld optical power meter is controlled by a single chip microprocessor and is mainly used for measuring the power of continuous optical .

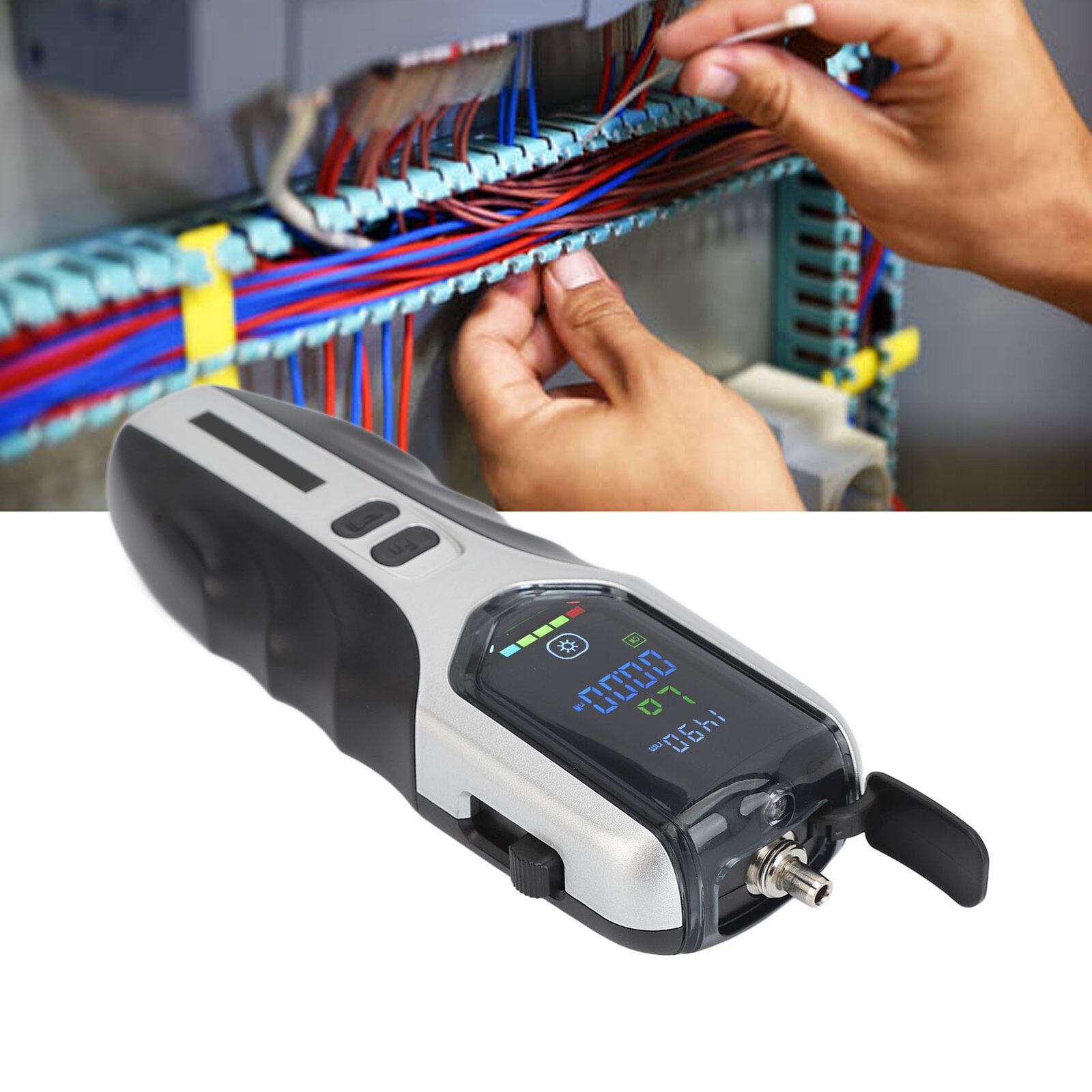

2. Wide in Utility: Widely used in various fields such as fiber optic construction and maintenance, fiber optic communication, fiber optic sensing, and optical CAT.

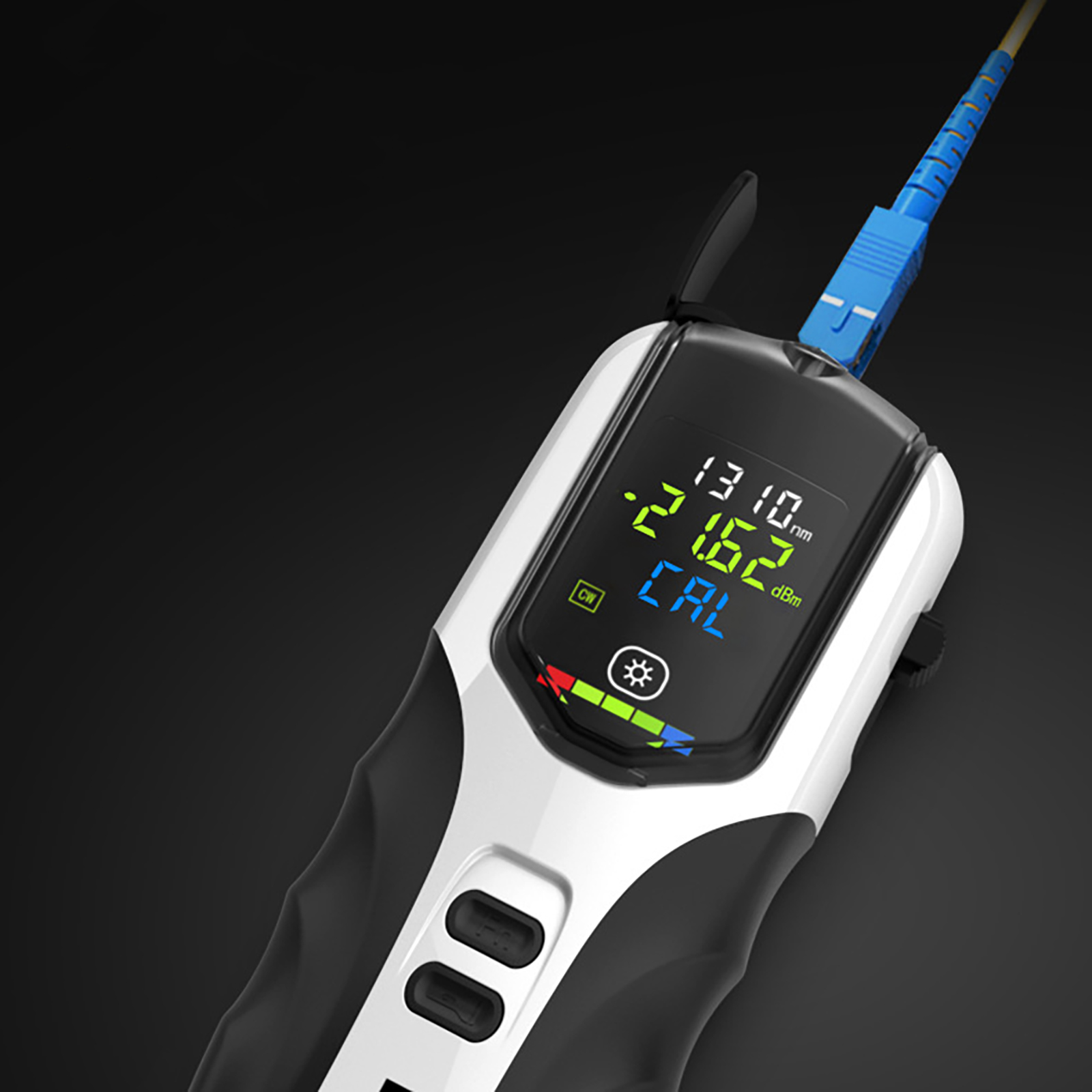

3. Various Function: This machine adopts a built in detector, which can provide good . It has a compact appearance, automatic shutdown function, wavelength memory function, manual calibration, fiber optic work recognition, and a wide testing range.

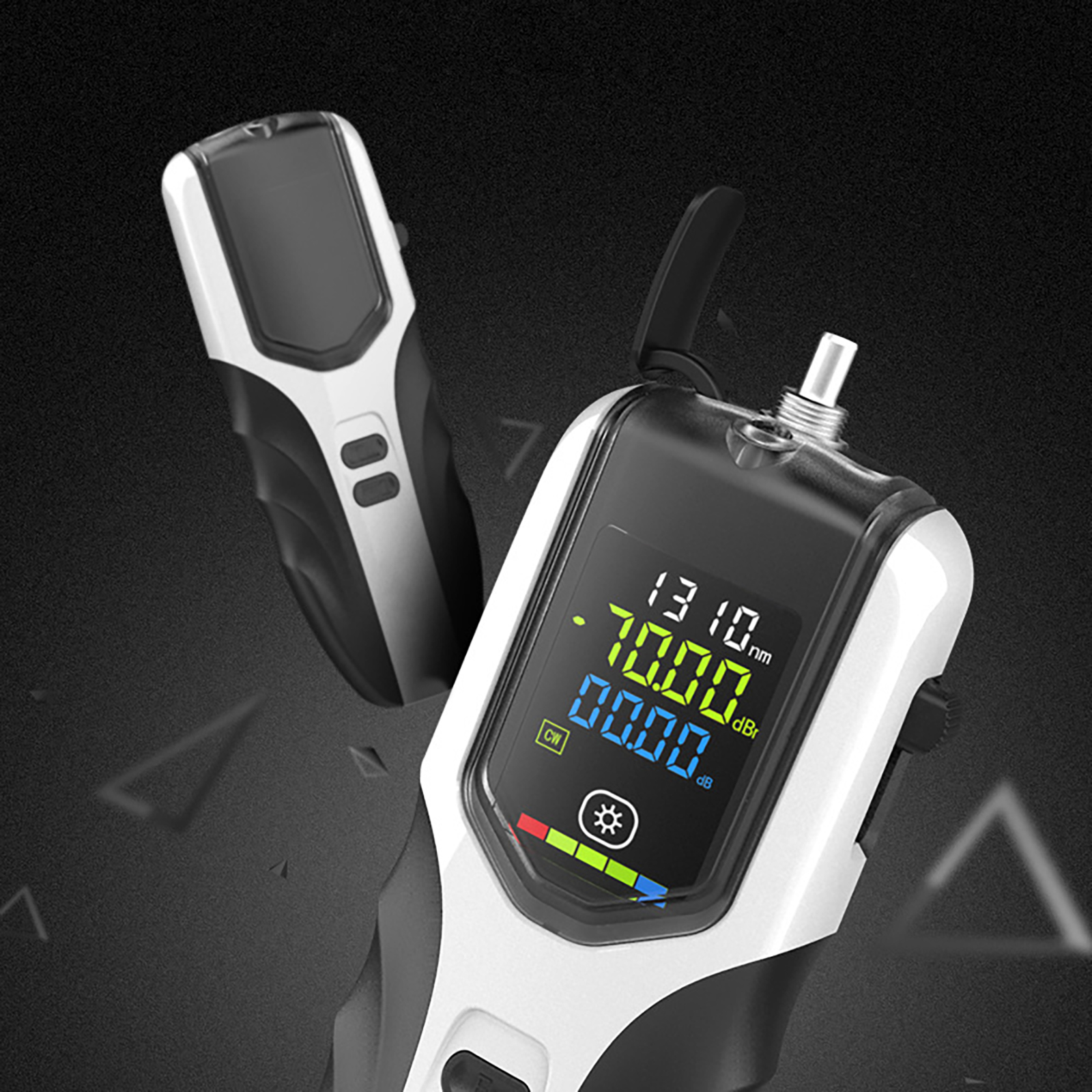

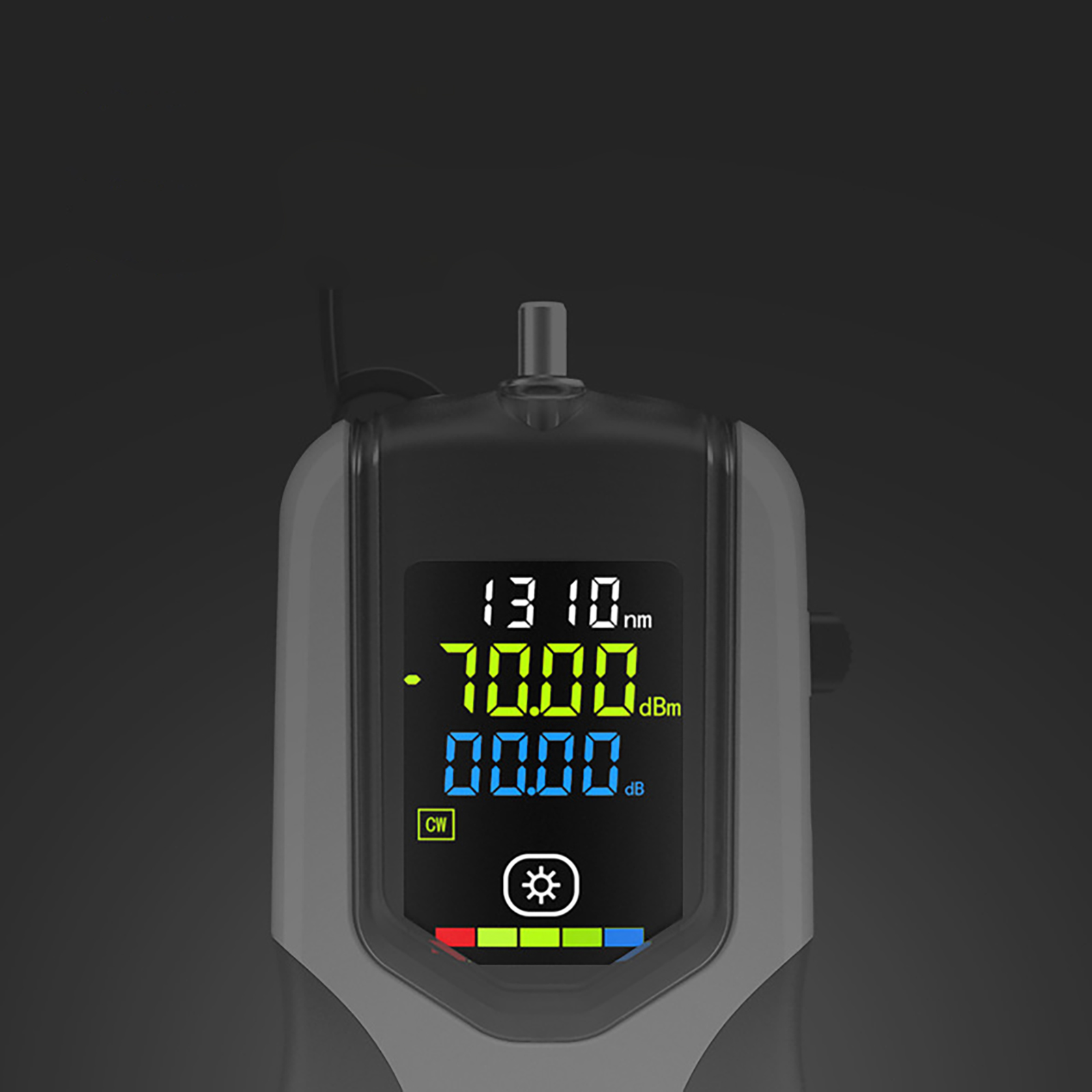

4. Reliable Working: Support automatic frequency recognition function, and automatically display the corresponding frequency upon receiving the fiber frequency. Support multi band high accuracy light attenuation testing. Color LCD screen display.

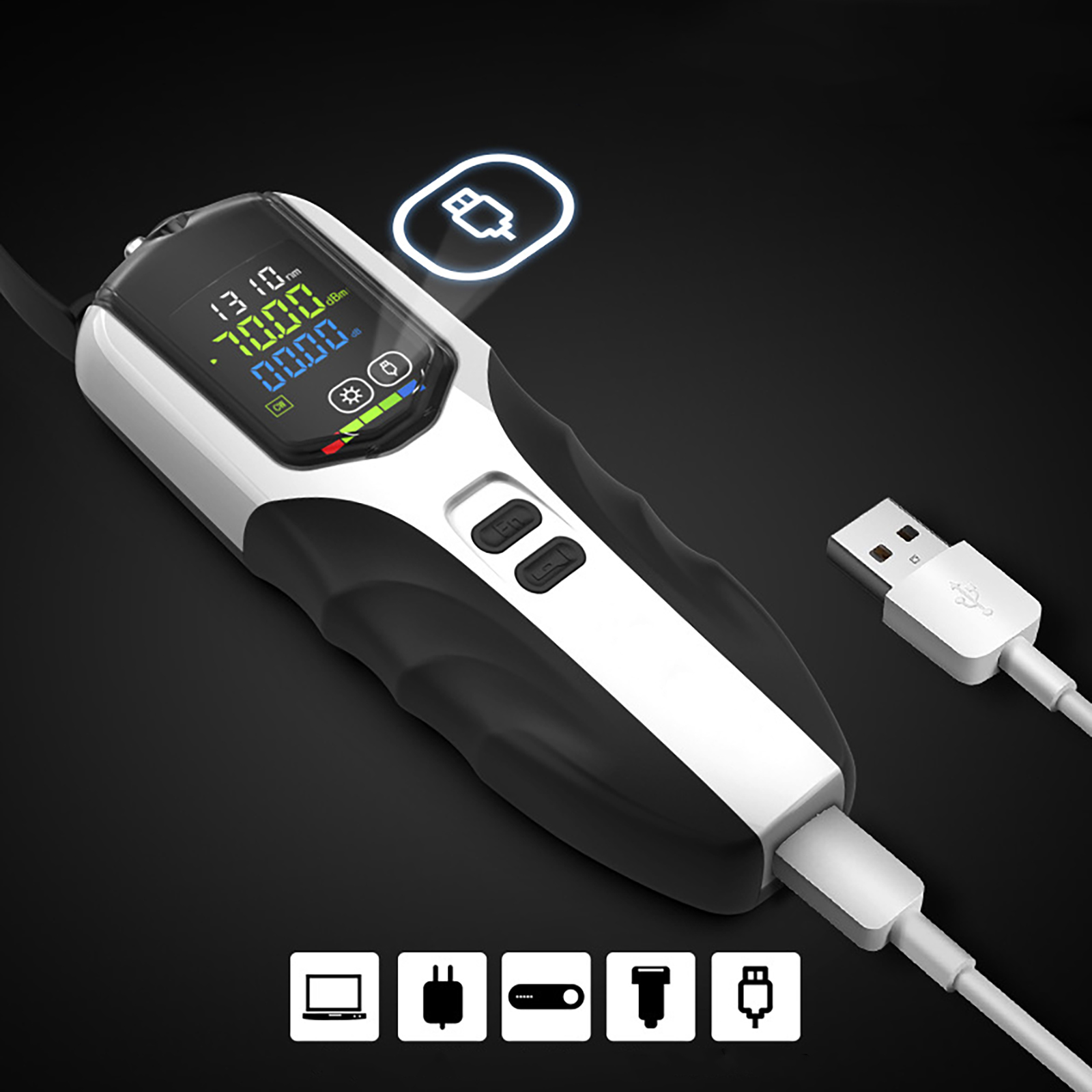

5. Built in Battery: Large capacity lithium battery for longer battery life. The battery level is displayed in real time with 5 bars, and the remaining power is clear at a glance. You can use a mobile phone charging adapter and mobile power supply to the device's battery life.
Specifications:
Item Type: Optical Power Meter
Measurement Range: -50~+26dBm
Wavelength Range: 800~1625

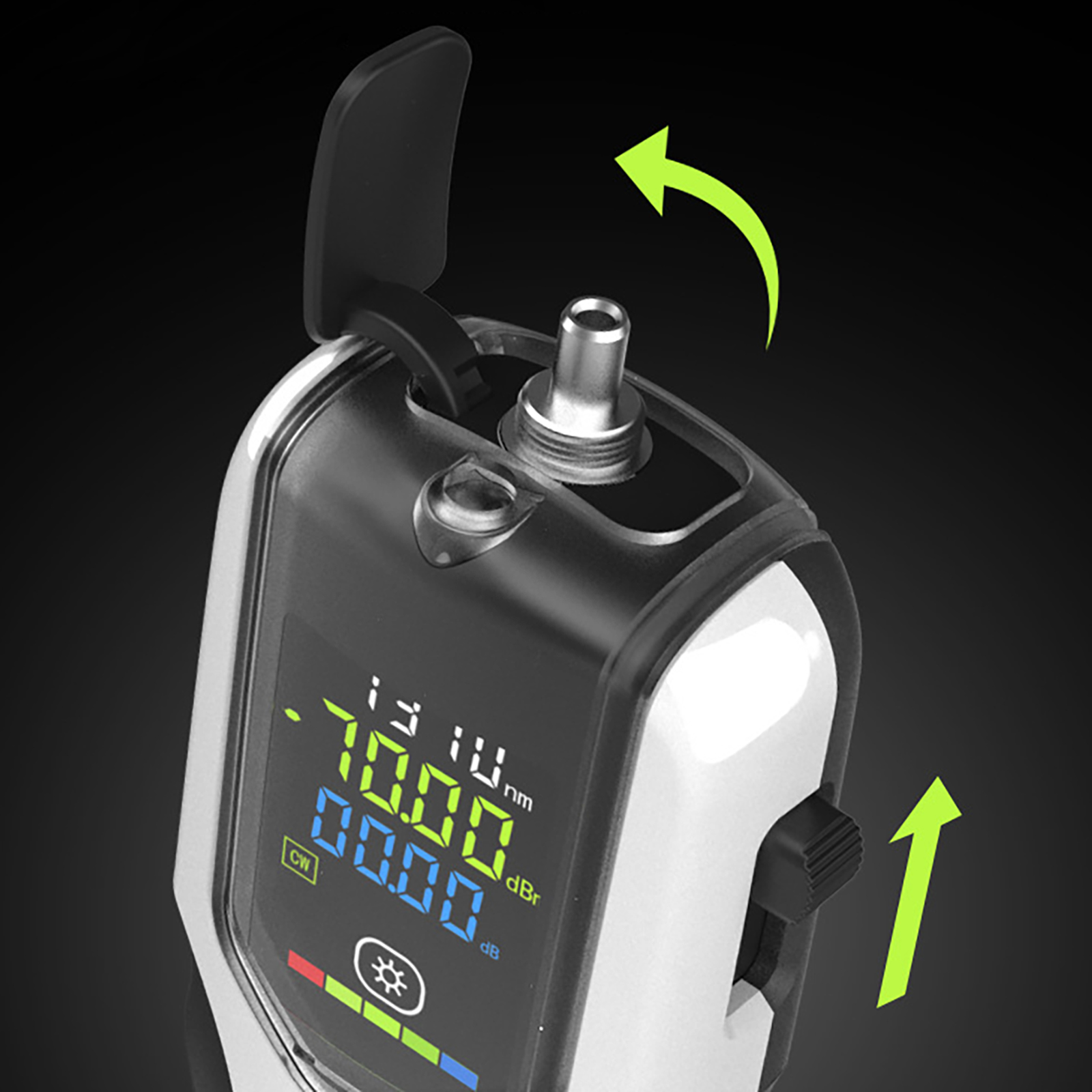

Interface Type: 2.5mm universal adapter.
Probe Type: InGaAs
Detection Area: 300um
Uncertainty: ± 5%

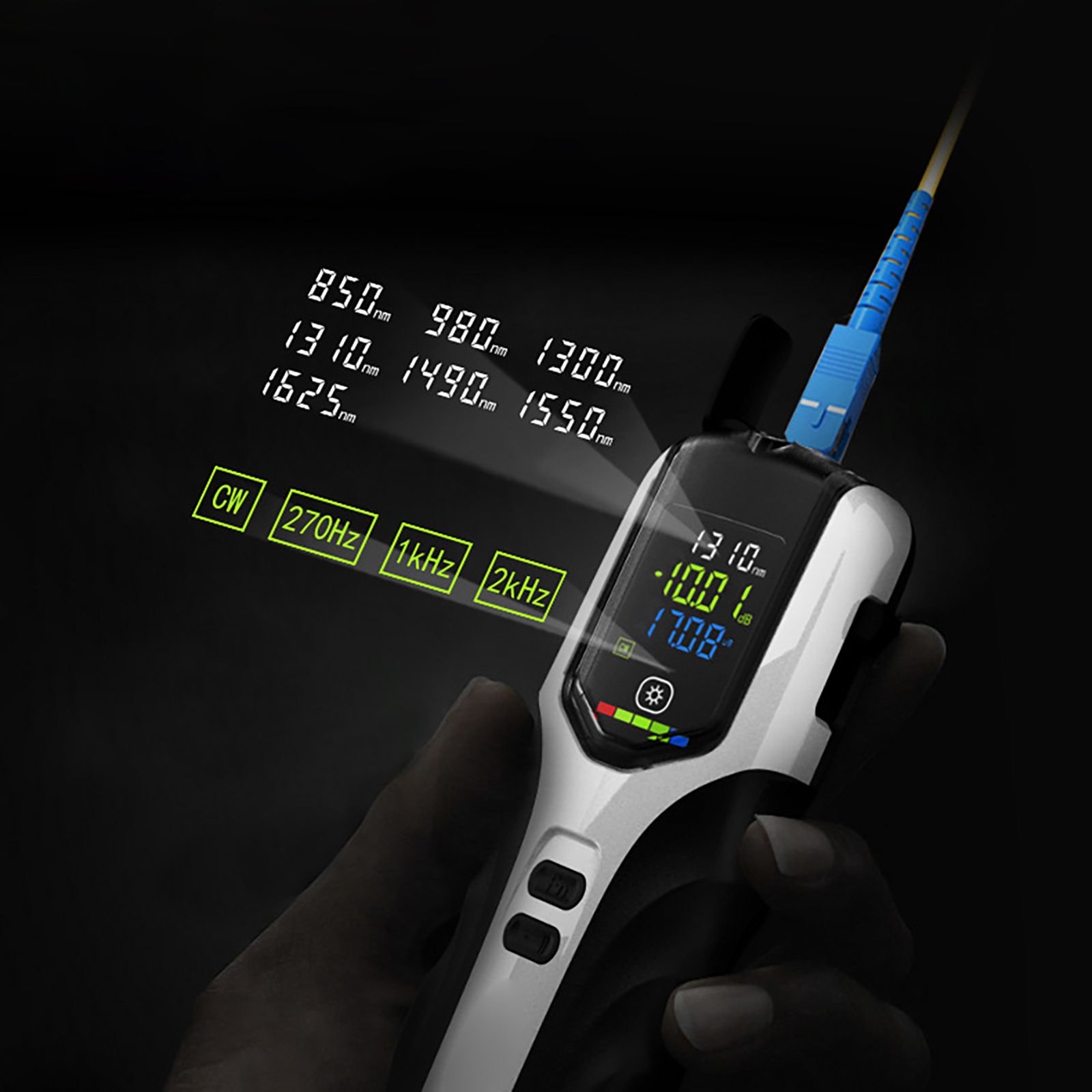

Standard Wavelengths: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
Linear Display Resolution: 0.1%
Logarithmic Display Resolution: 0.01dBm
Working Temperature: -20~+60 ℃
Storage Temperature: -25~+70 ℃
Drop Height: ≤ 2m
Static Current: ≤ 2uA
Working Current: ≤ 35mA
Charging Current: 300mA
Charging Time: ≤ 3h

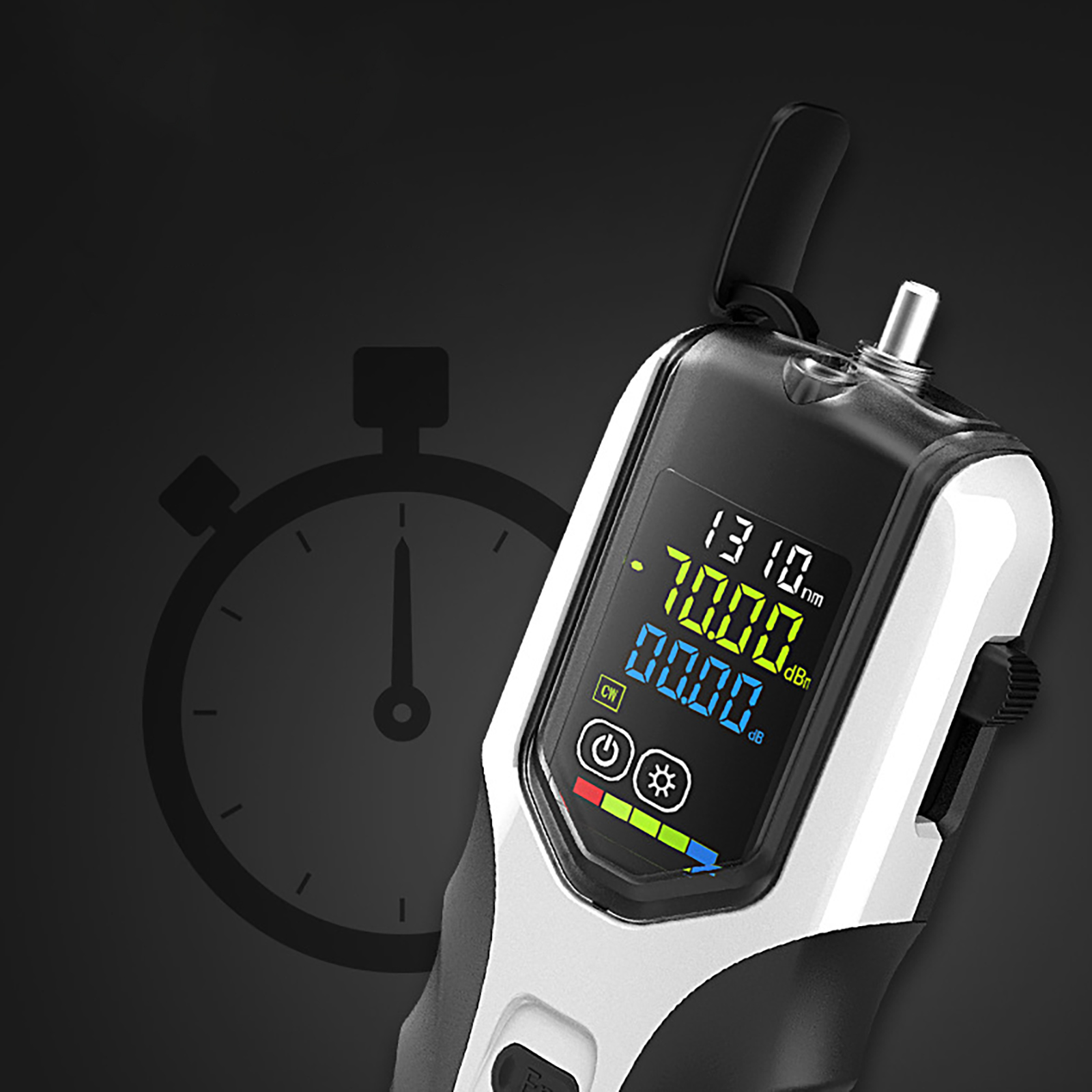

Automatic Shutdown Time: 10min
Range Time: ≥ 13h
Standby Time: ≥ 3 Days
Power Supply: Lithium battery or USB external power supply.
Battery: 1 x rechargeable lithium battery, 400mAh.

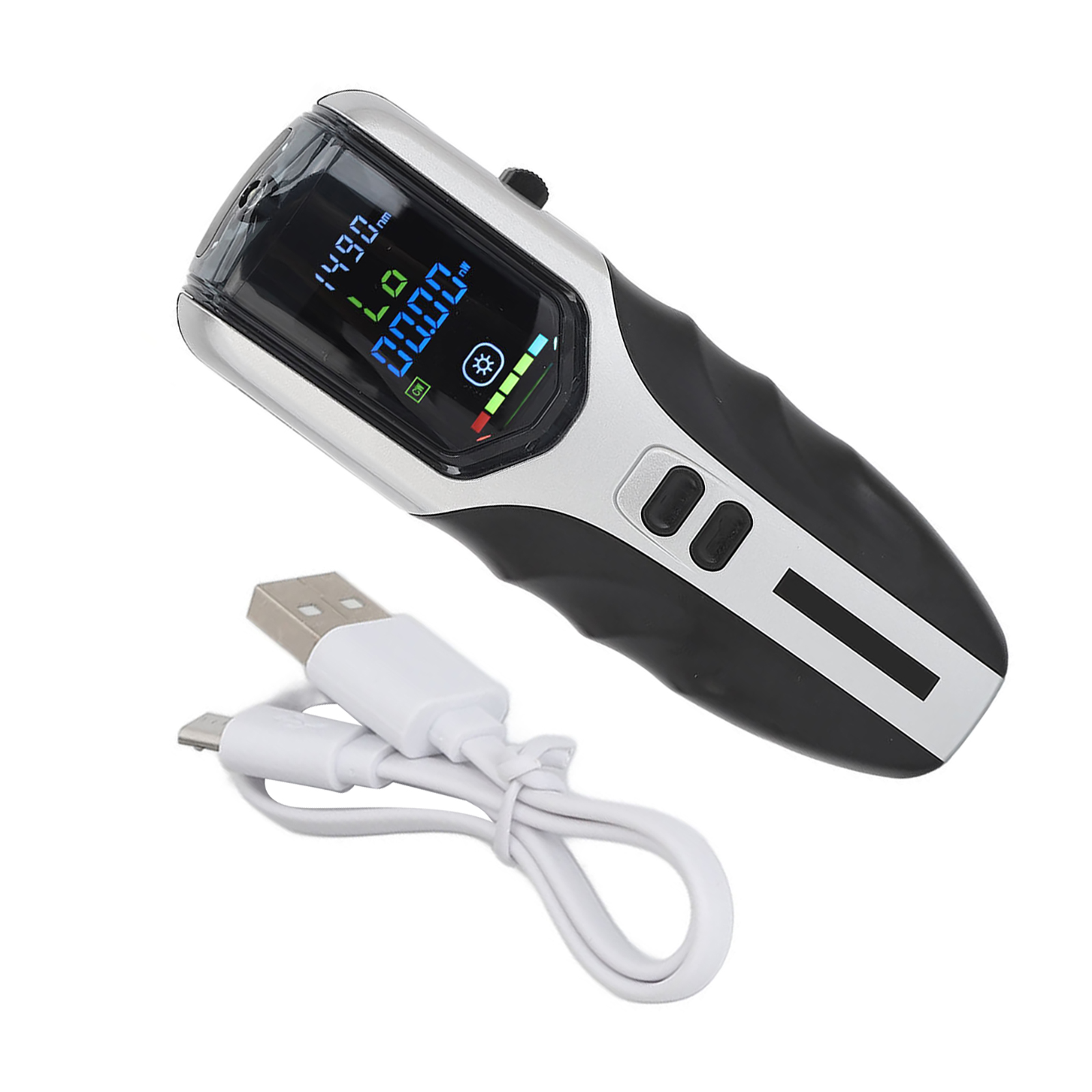

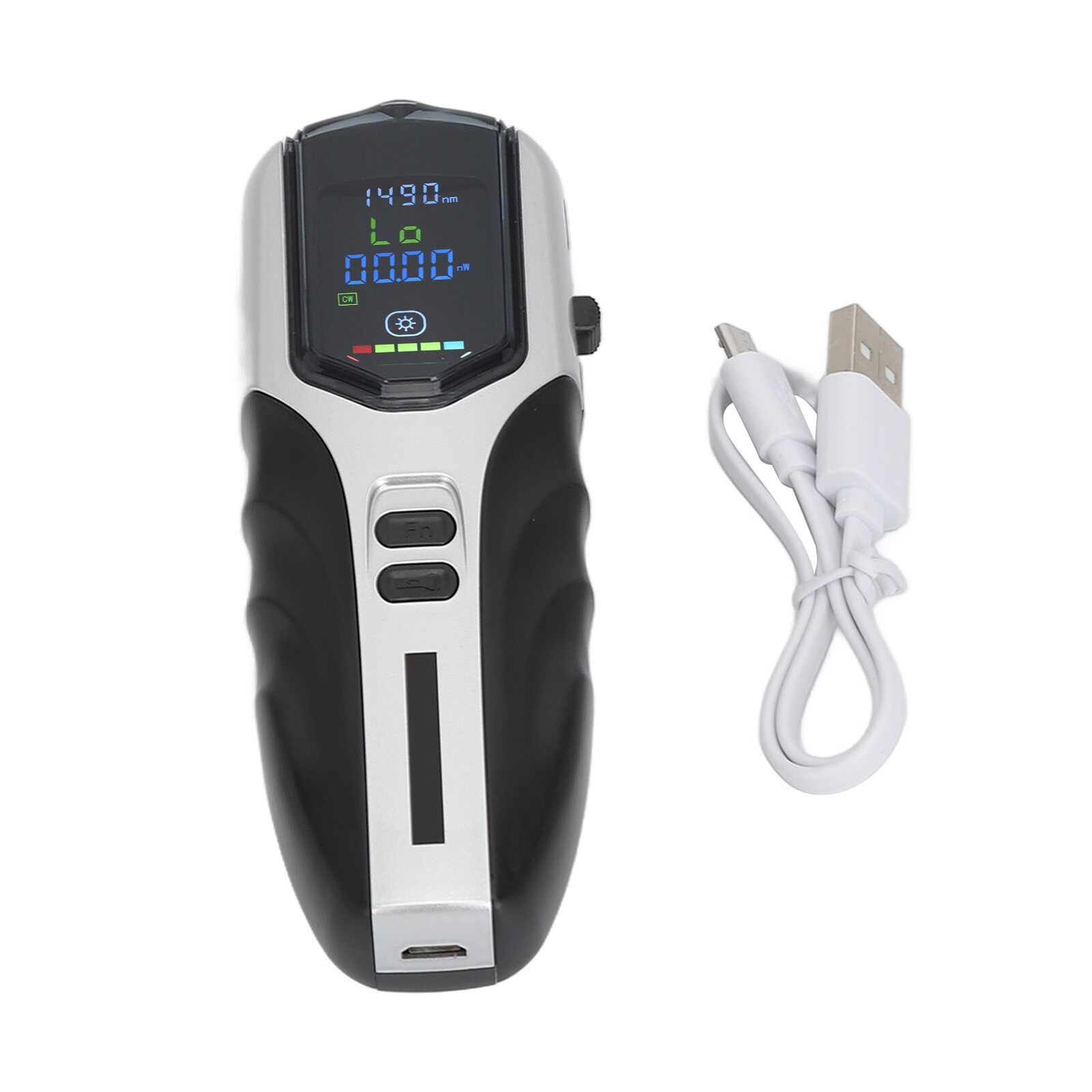

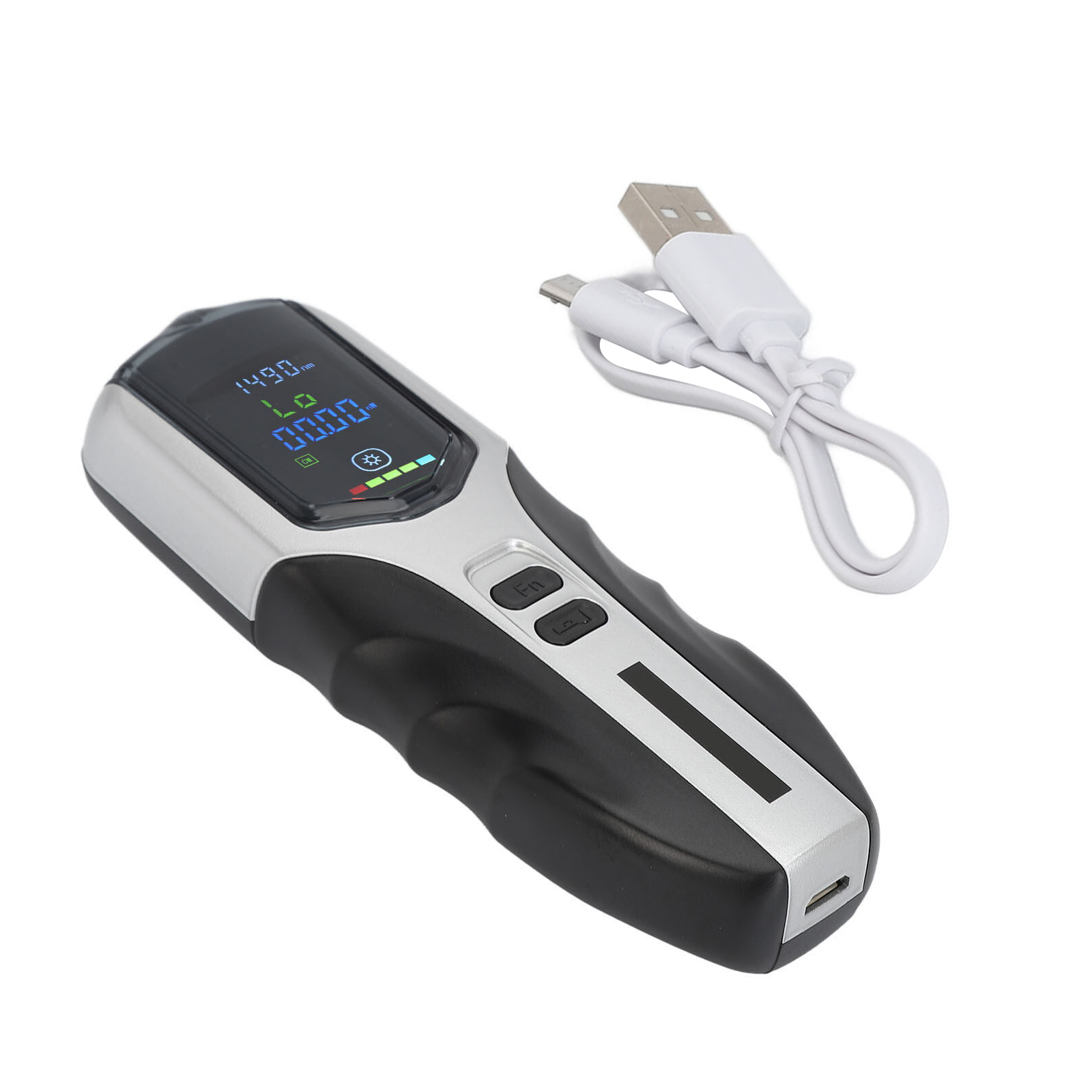

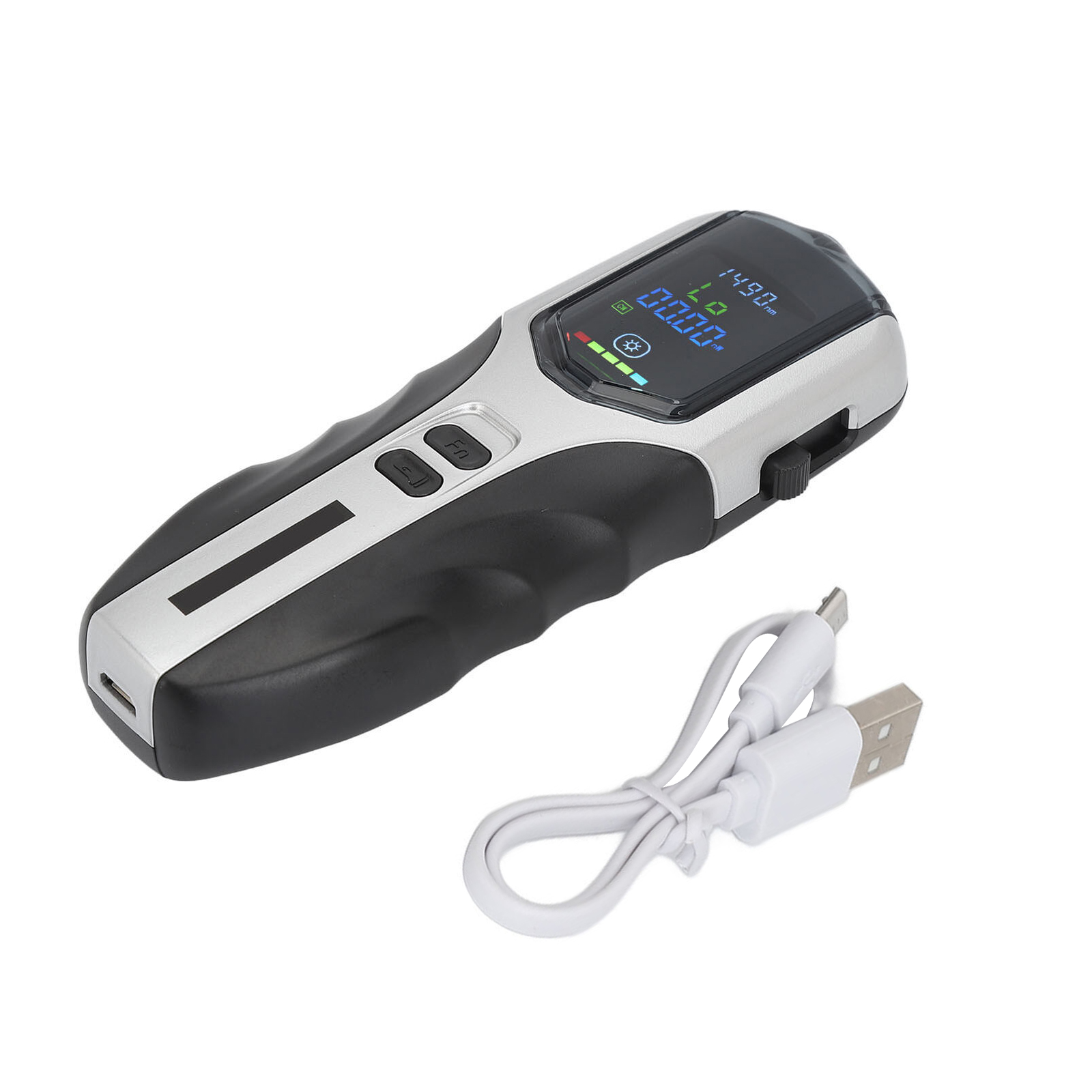

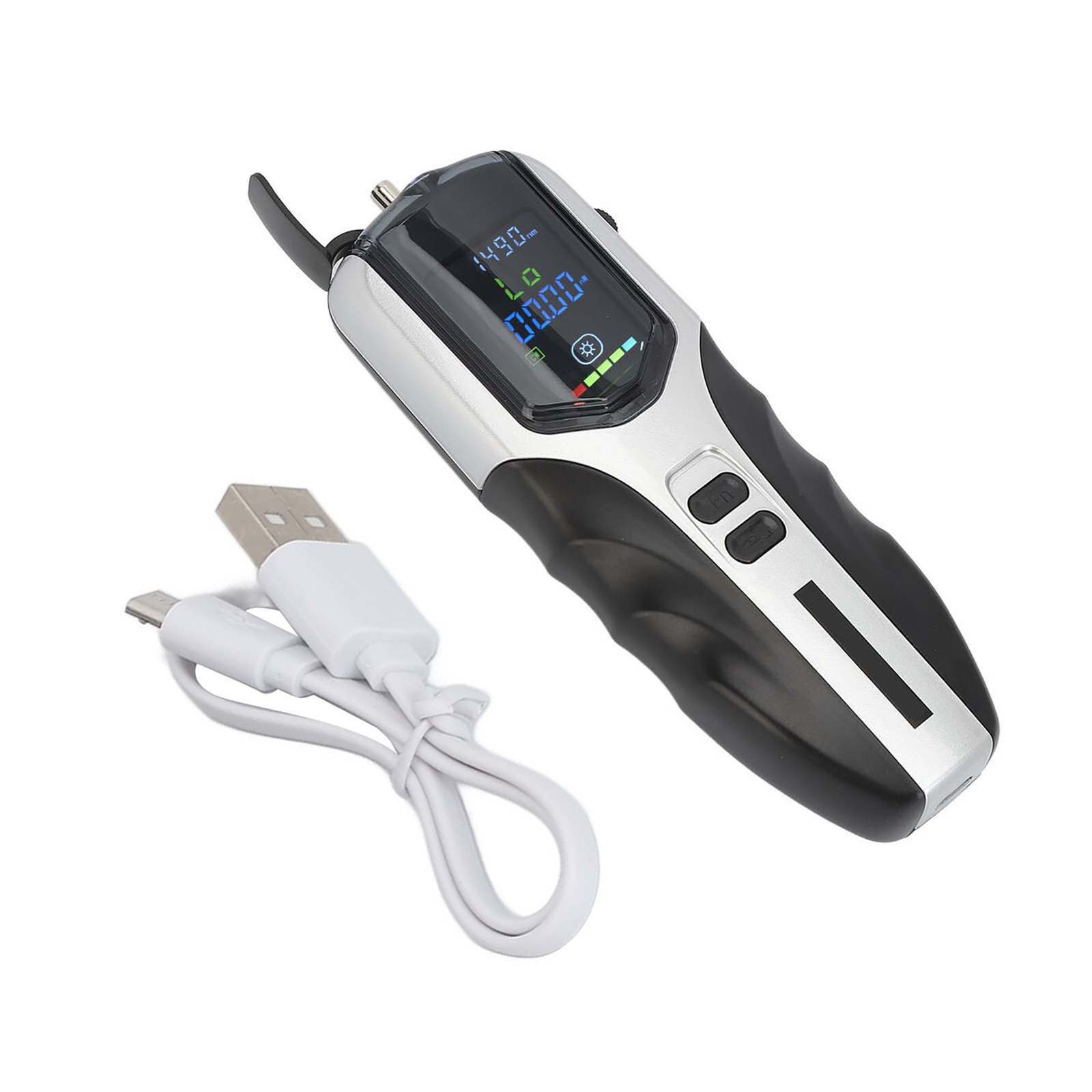

Package includes:
1 x Optical Power Meter
1 x USB Cable
