9IMOD IDF-17 inch FPV Frame 760MM FPV Frame 8S Lipo 10kg Max Load Capacity 2.0mm Carbon Fiber With Tripod For FPV Racing Drone Frame
Features:
1. 17 inch FPV Frame-The frame is really solid and well balanced, perfect balance between performance and durability.

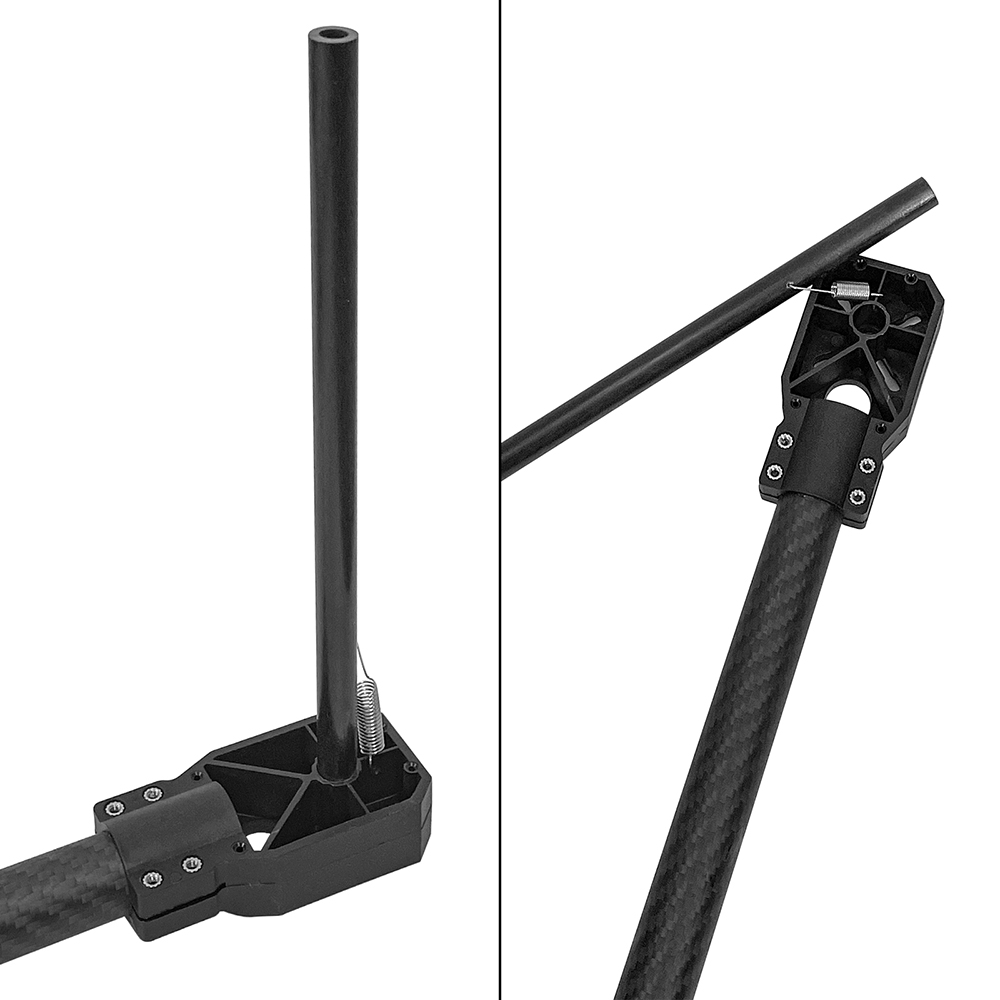

2. New FPV Racing Drone-Made of high-quality Carbon Fiber,Comes with a tripod, can fly outdoors or indoors in a large space.
3. Easy to assemble, suitable for both beginners and experienced players.

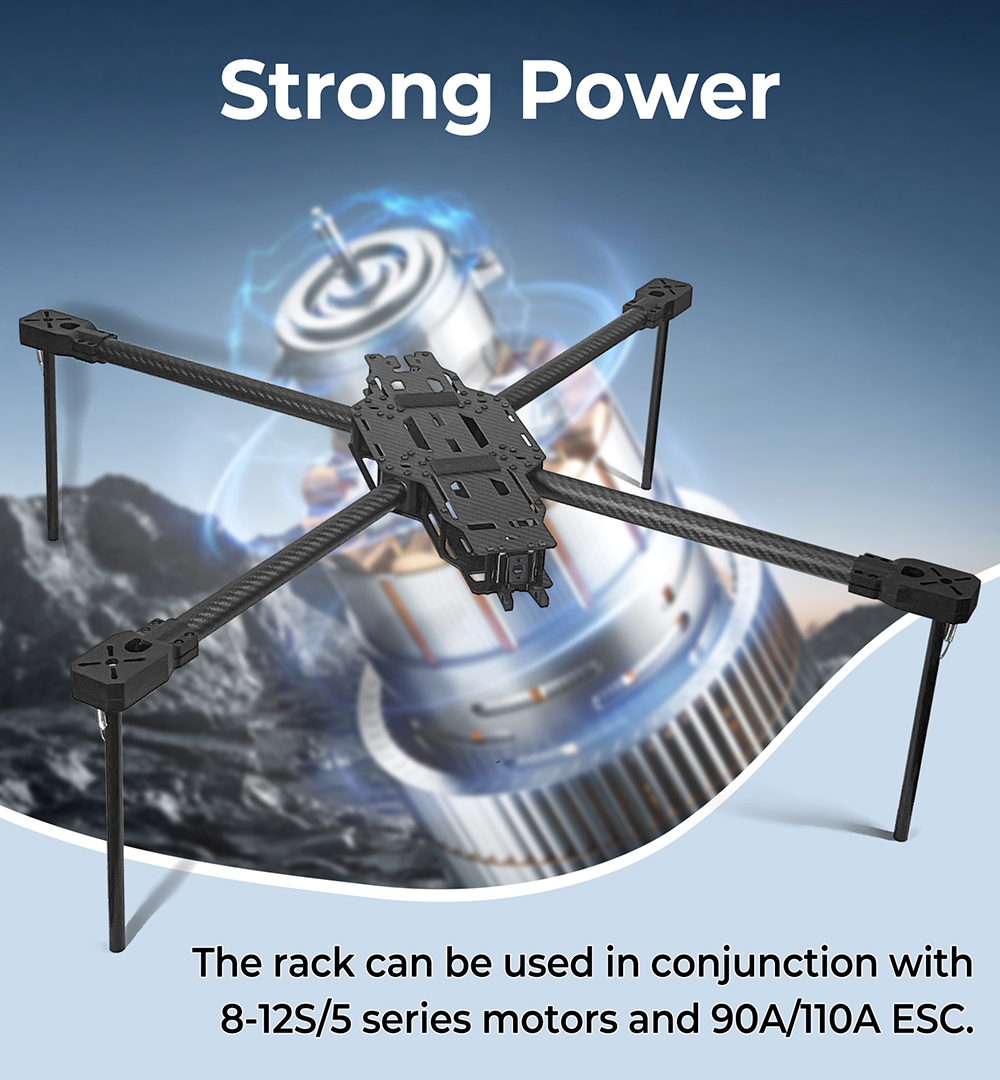

4. The rack can be used in conjunction with 8-12S/5 series motors and 90A/110A ESC.
5. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment.
Description:

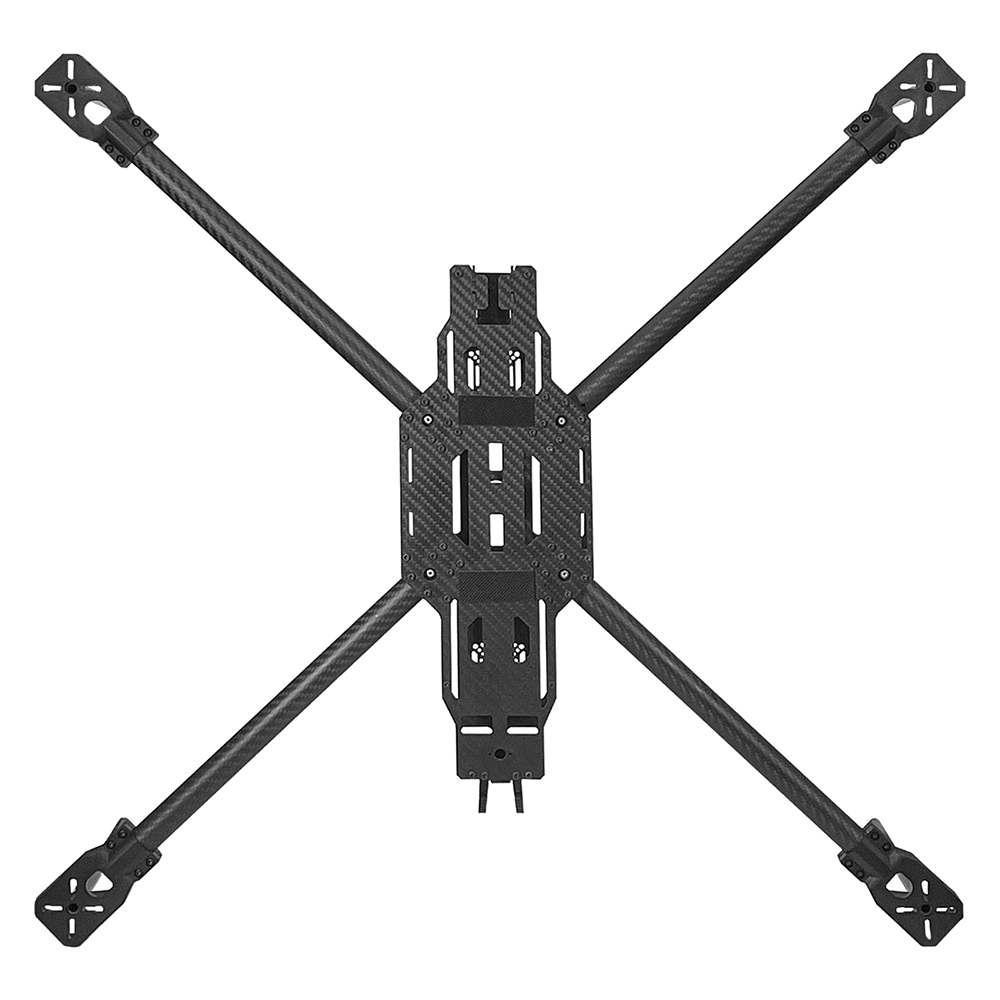

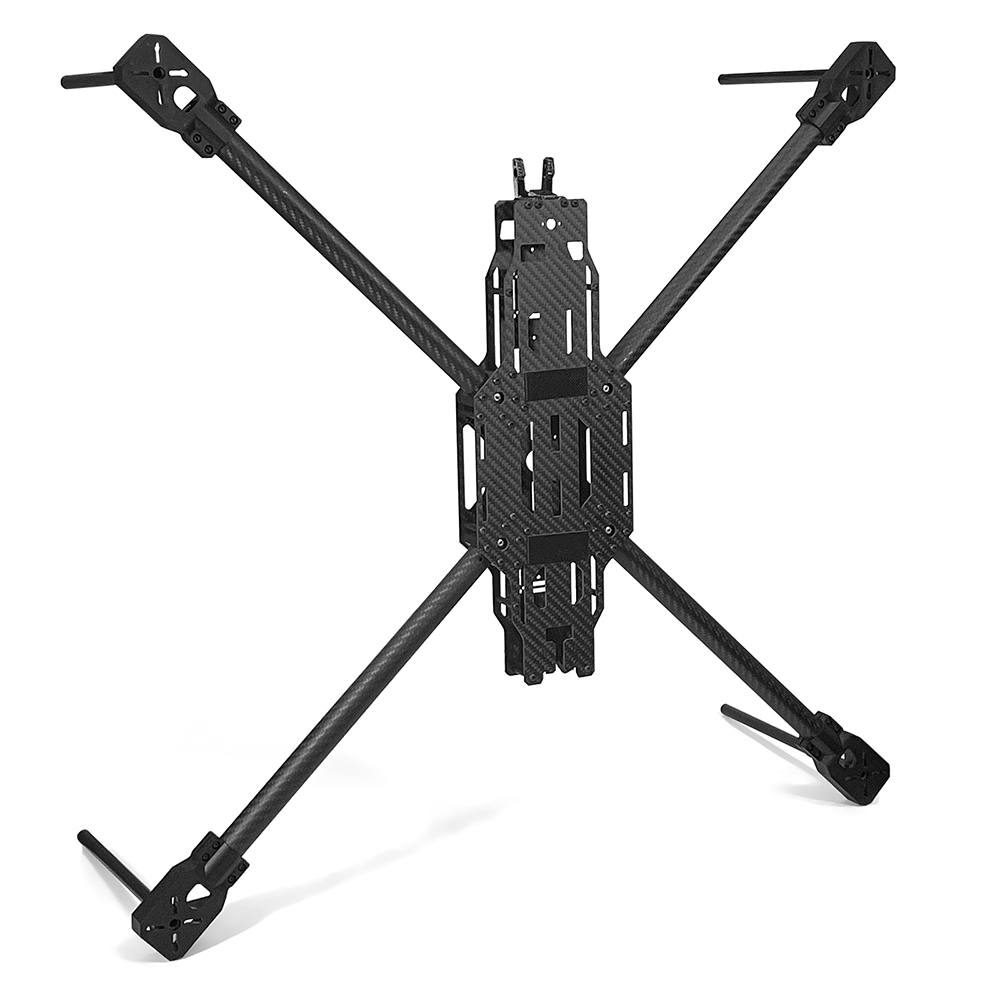

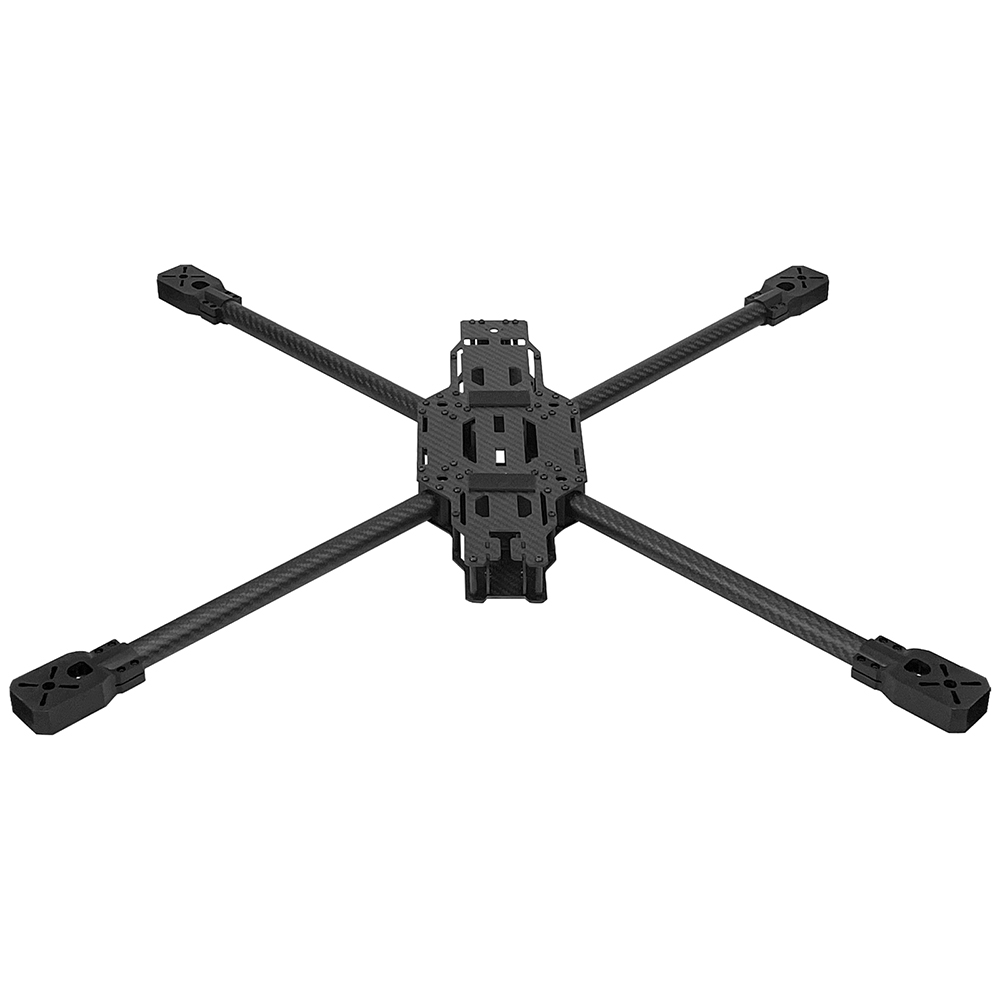

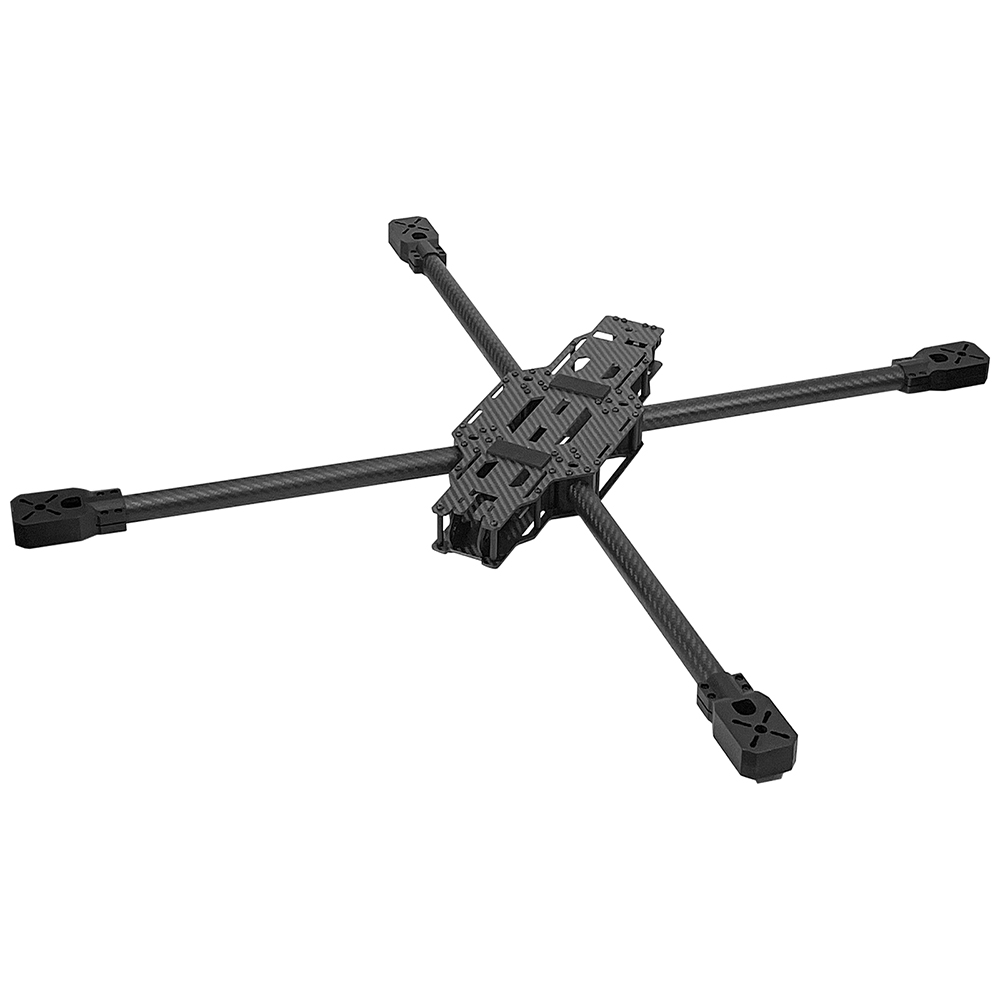

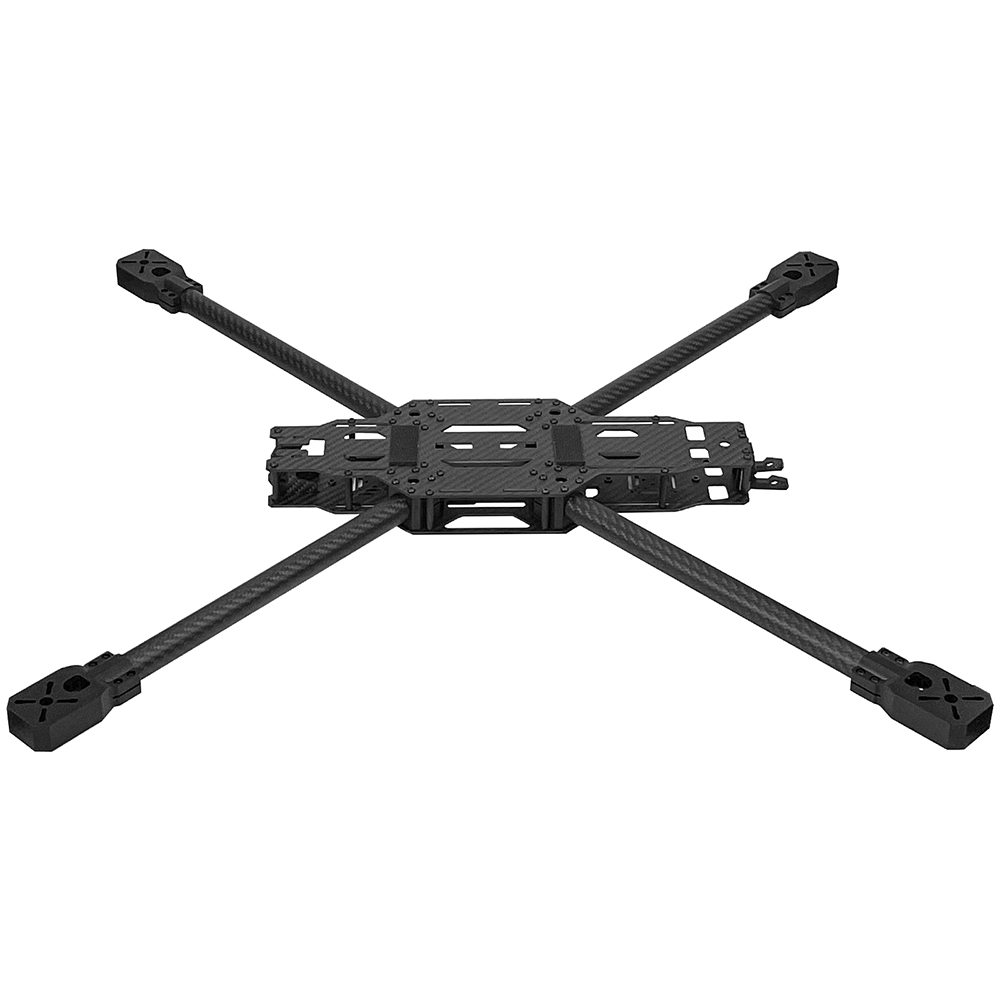

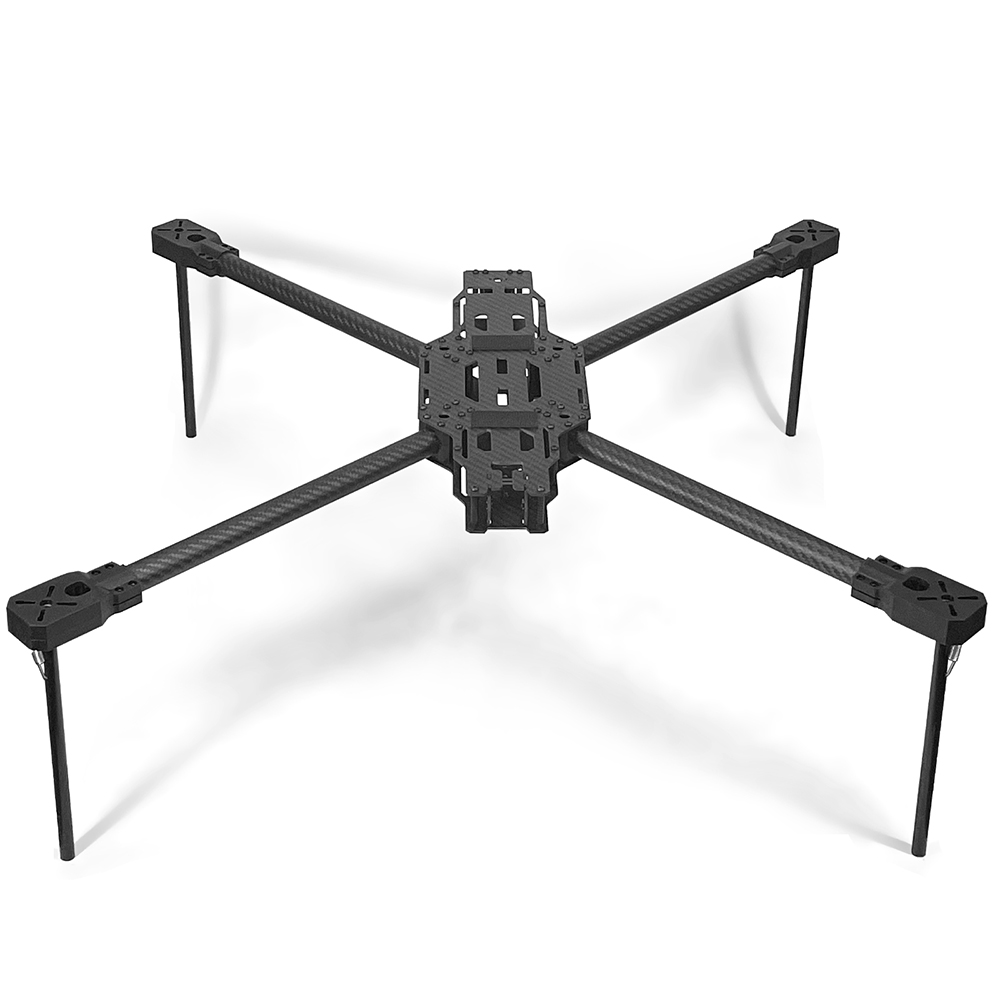

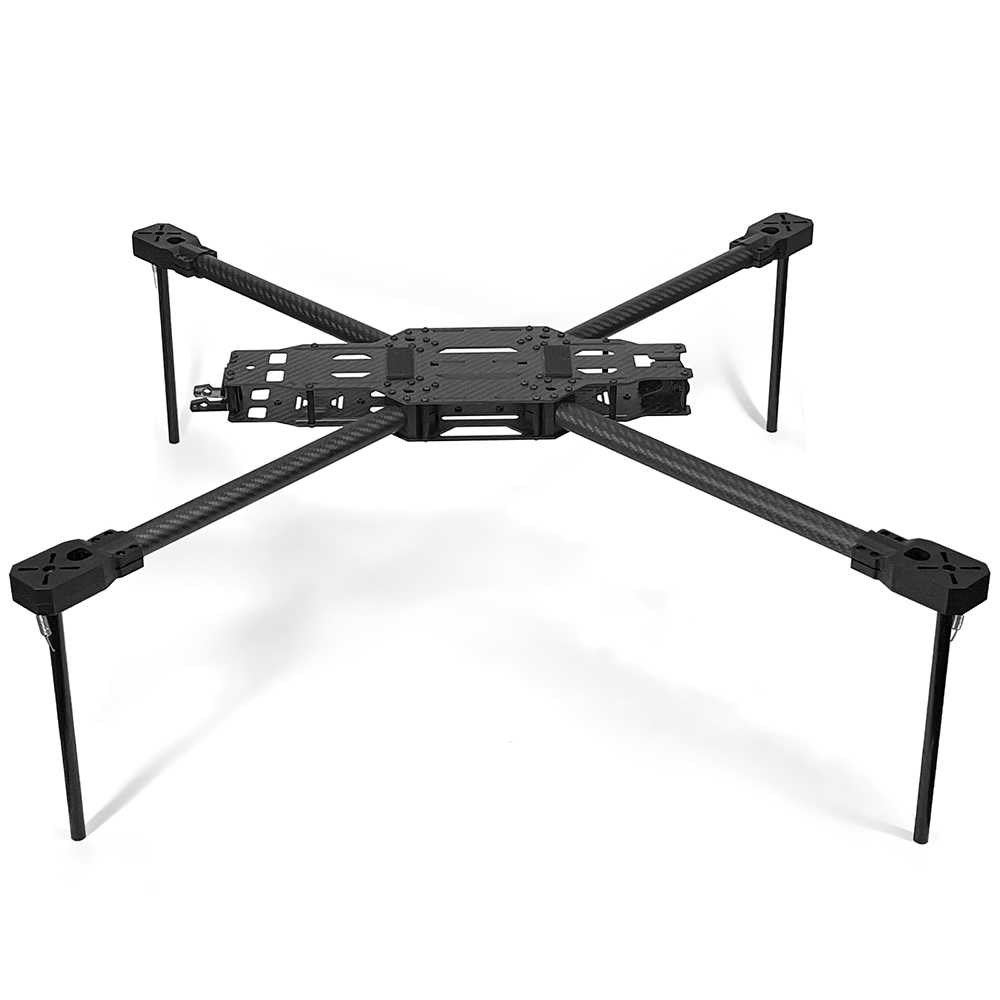

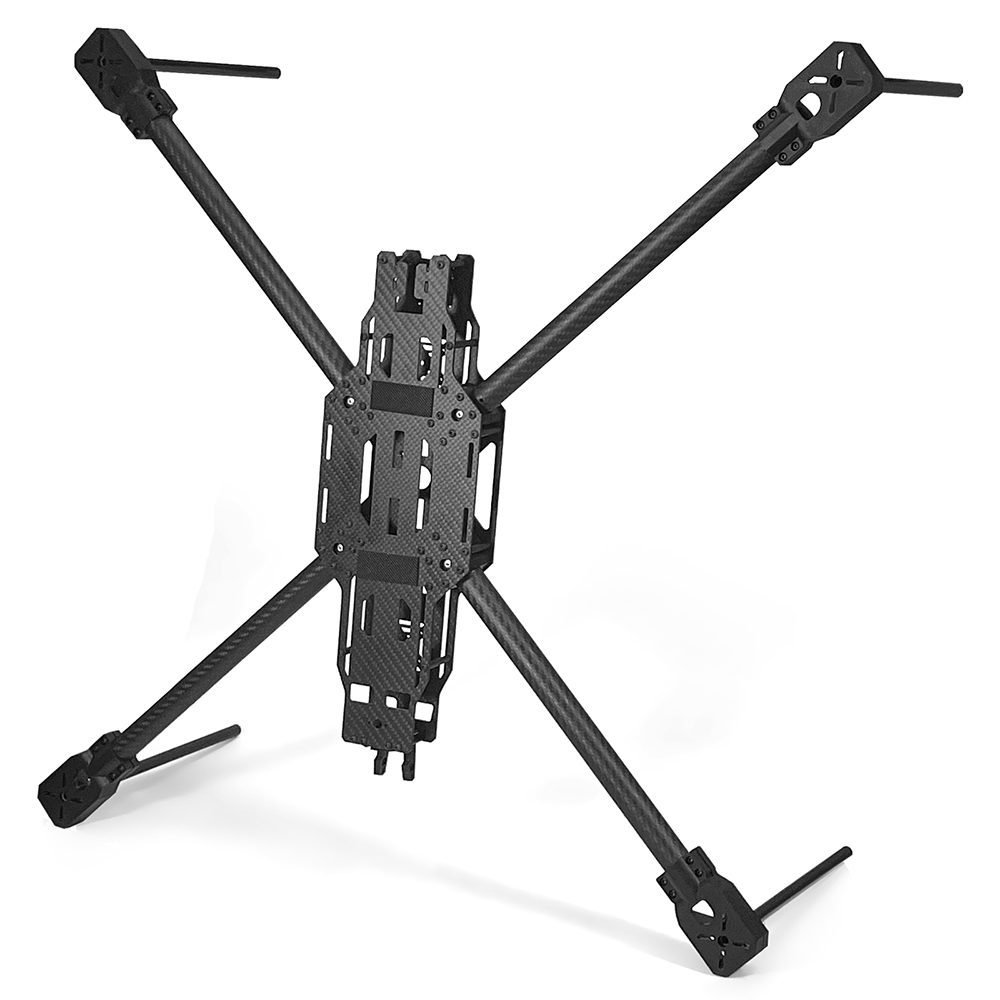

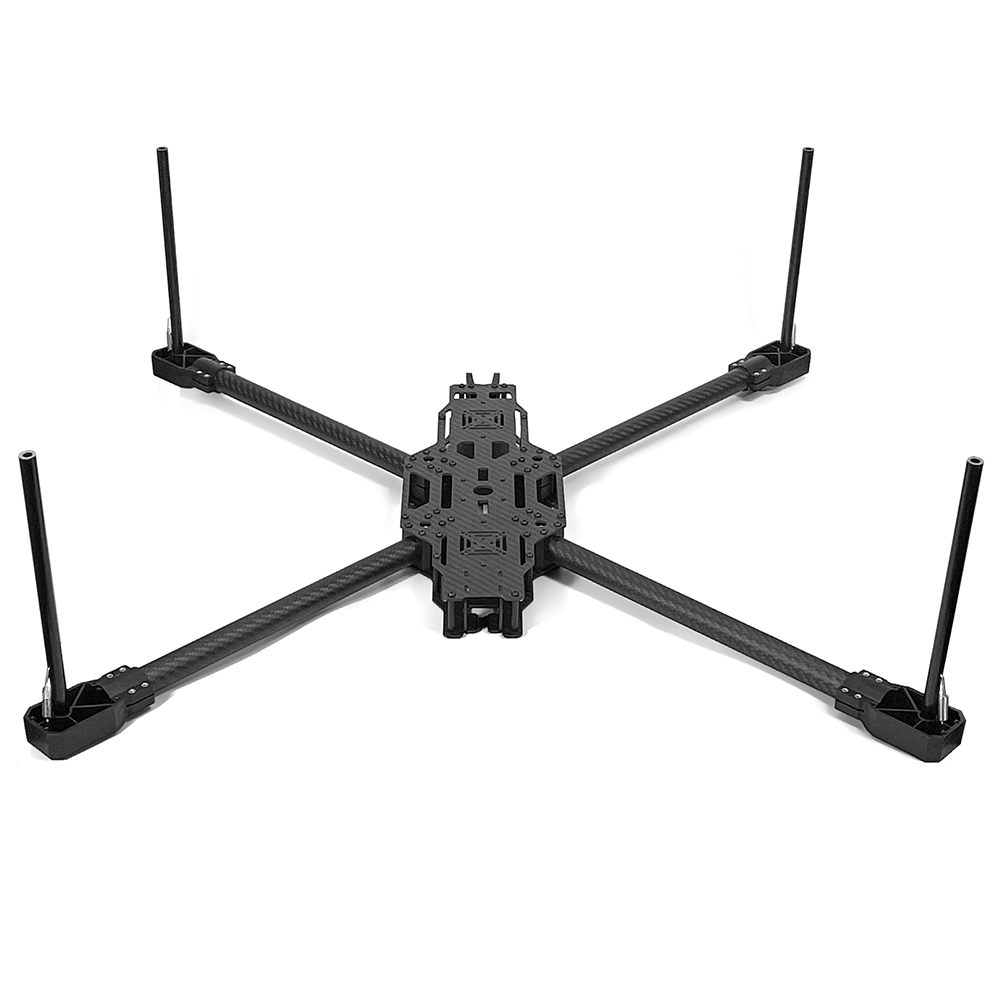

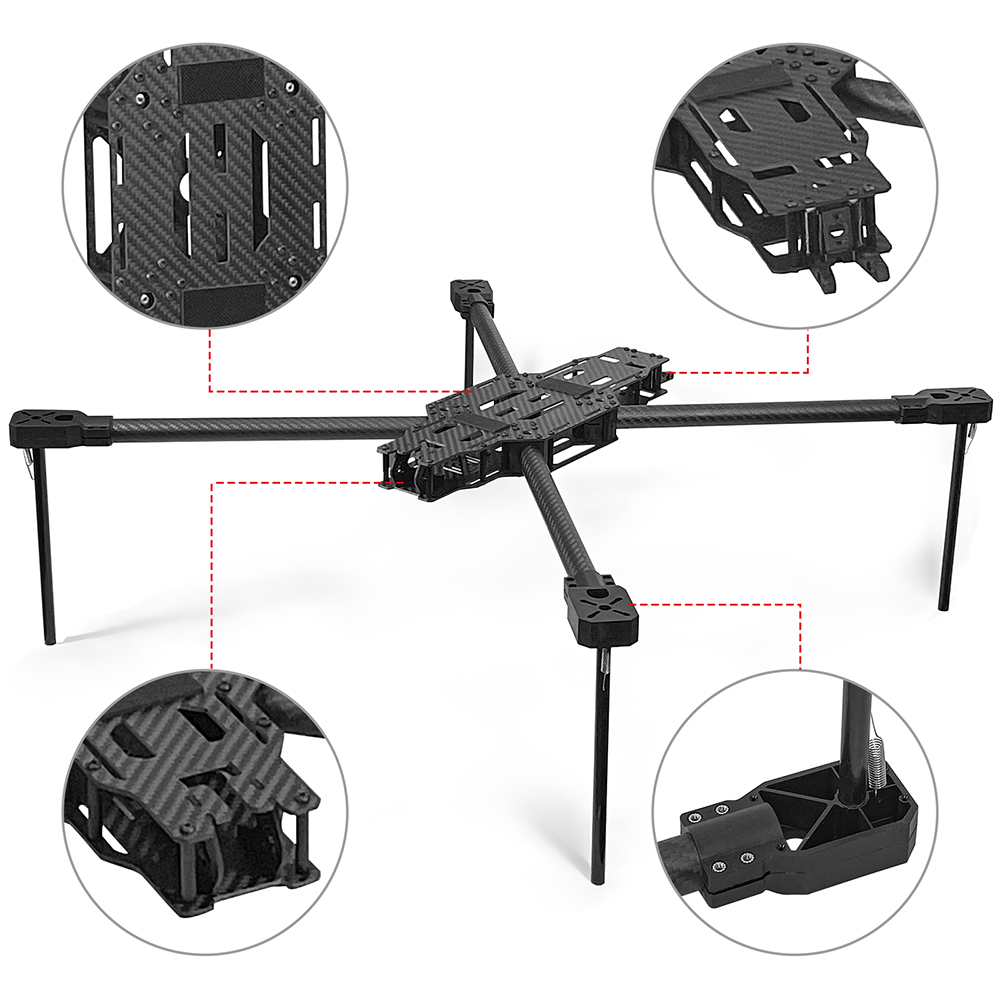

IDF-17 inch 760MM wheelbase FPV frame,be made of 2.0mm carbon fiber, with tripod,high-precision processing, strong and durable structure,for RC FPV racing drone.

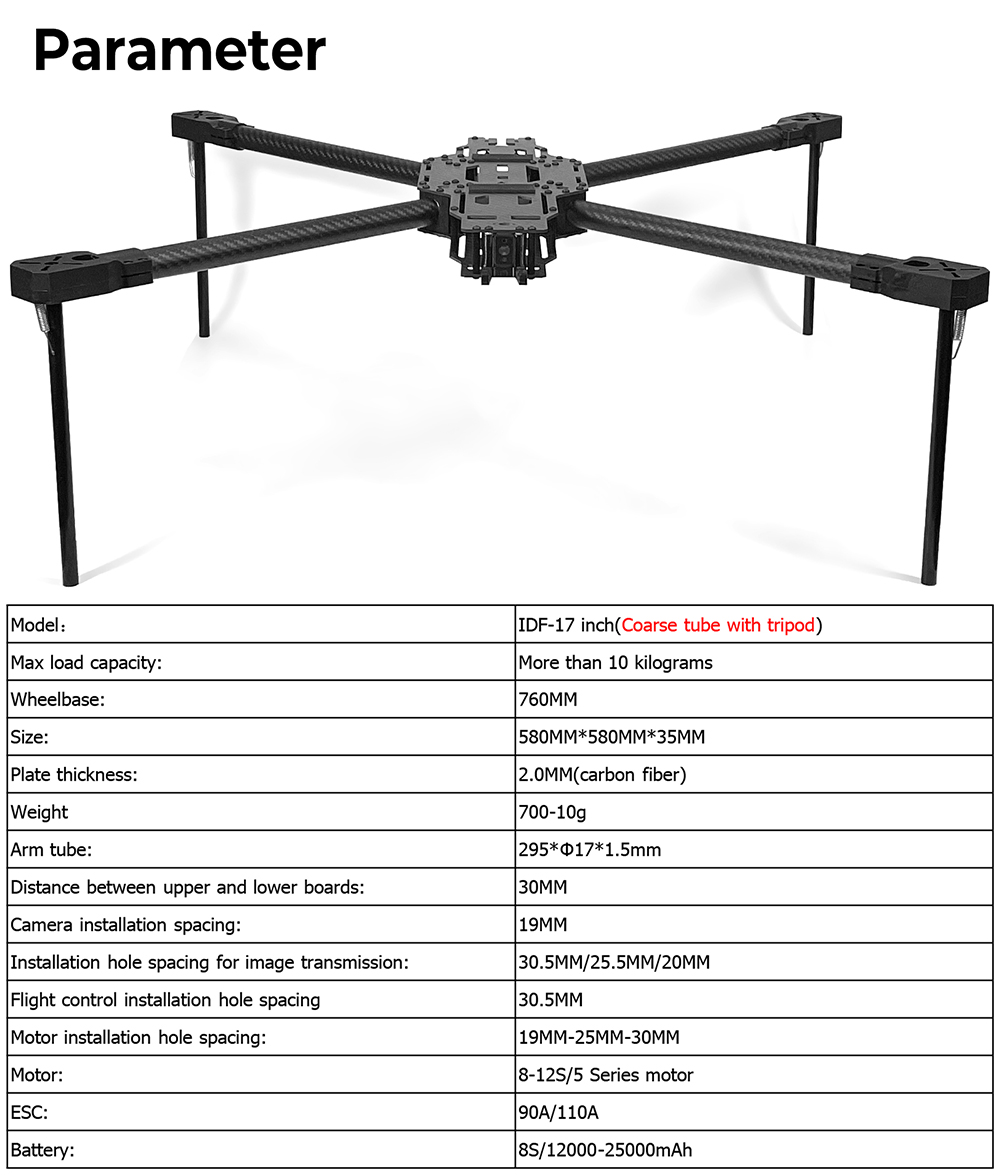

Specifications:

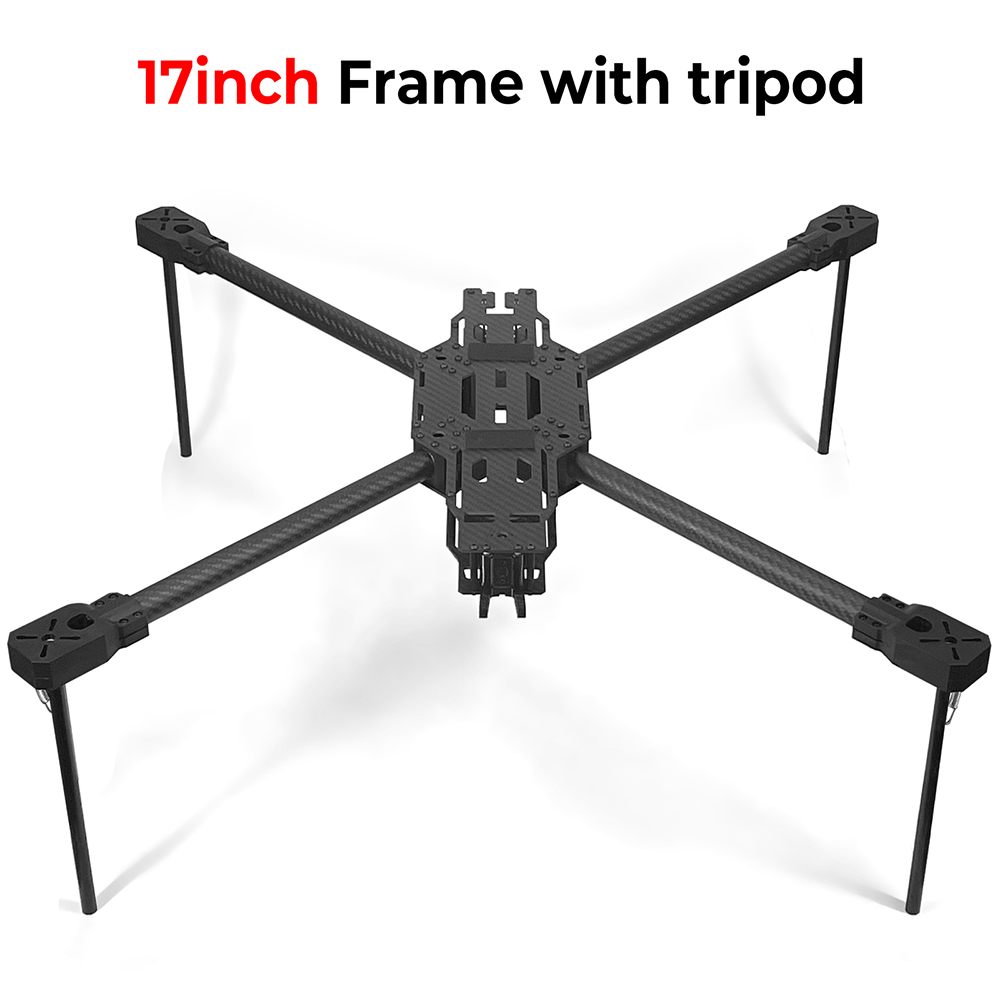

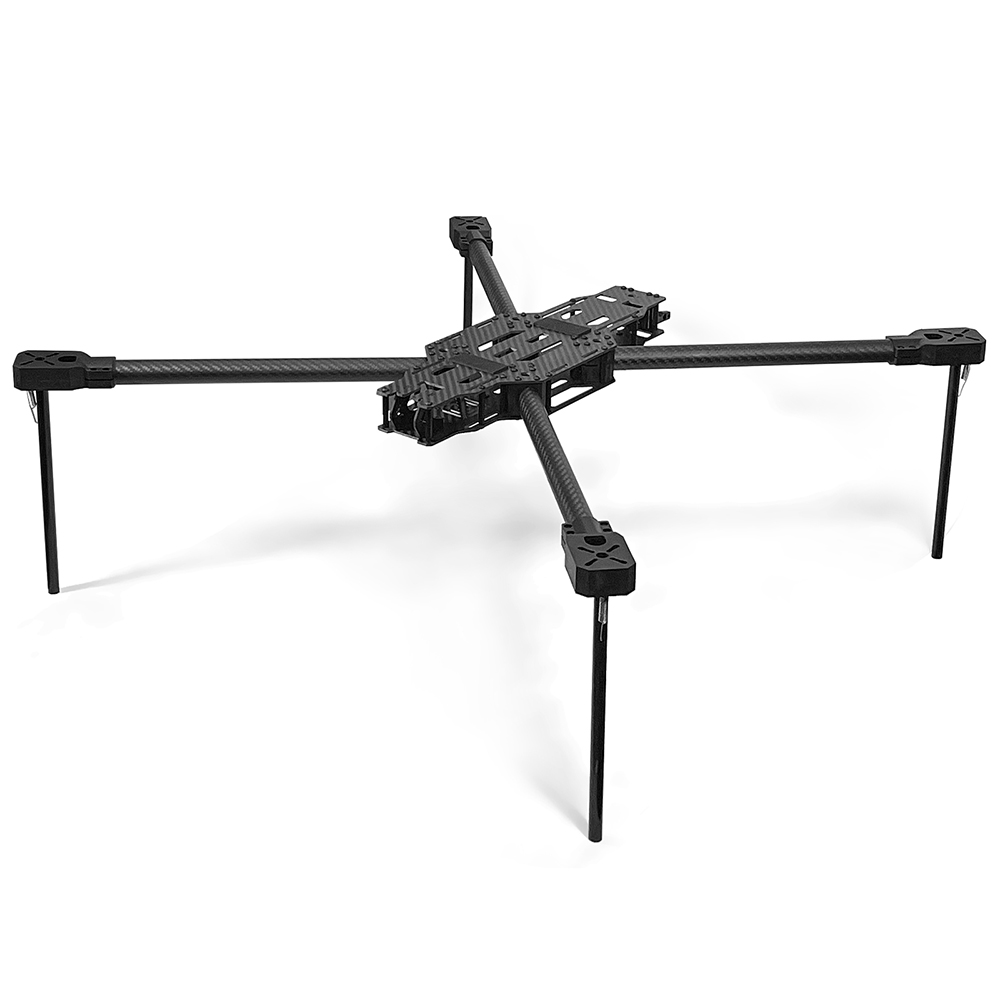

Model: IDF-17 inch(Coarse tube with tripod)
Max load capacity: More than 10kg

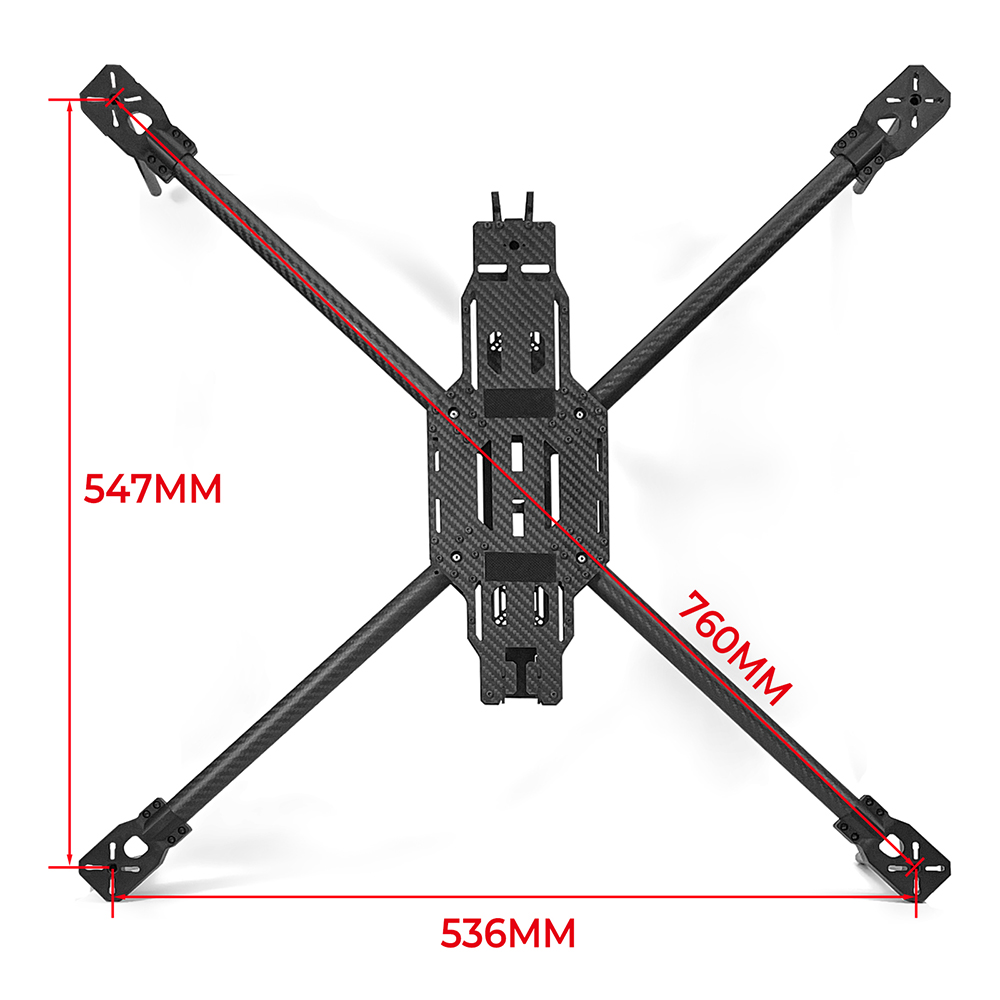

Wheelbase: 760MM
Size: 580MM*580MM*35MM

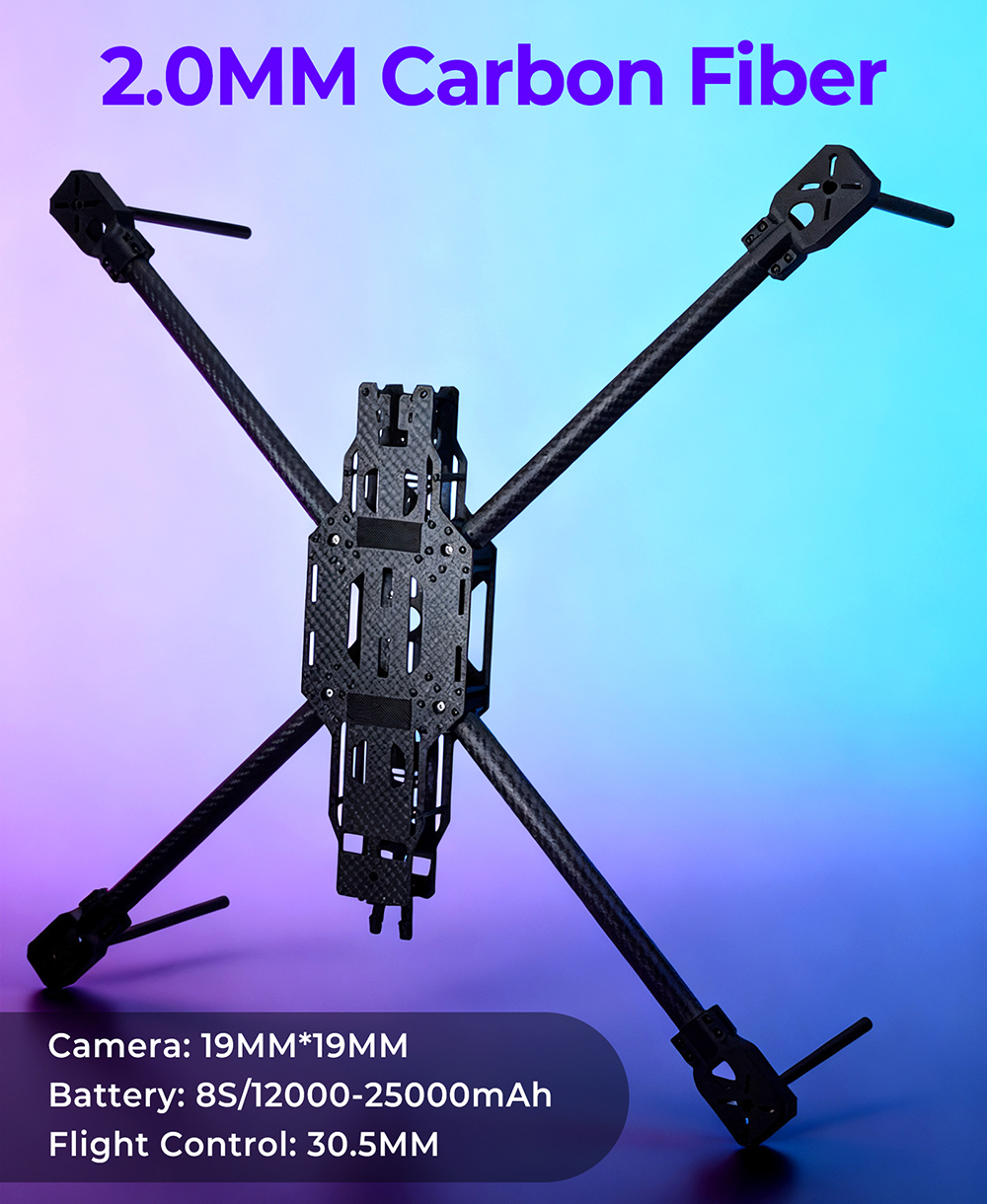

Plate thickness: 2.0MM(carbon fiber)
Weight:700-10g
Arm tube: 295*Ф17*1.5mm
Distance between upper and lower boards: 30MM
Camera installation spacing: 19MM
Installation hole spacing for image transmission: 30.5MM/25.5MM/20MM
Flight control installation hole spacing: 30.5MM
Motor installation hole spacing: 19MM-25MM-30MM
Motor: 8-12S/5 Series motor
ESC: 90A/110A
Battery: 8S/12000-25000mAh
Package contents:
1* IDF-17 inch FPV Frame
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm
deviation.Thanks!
