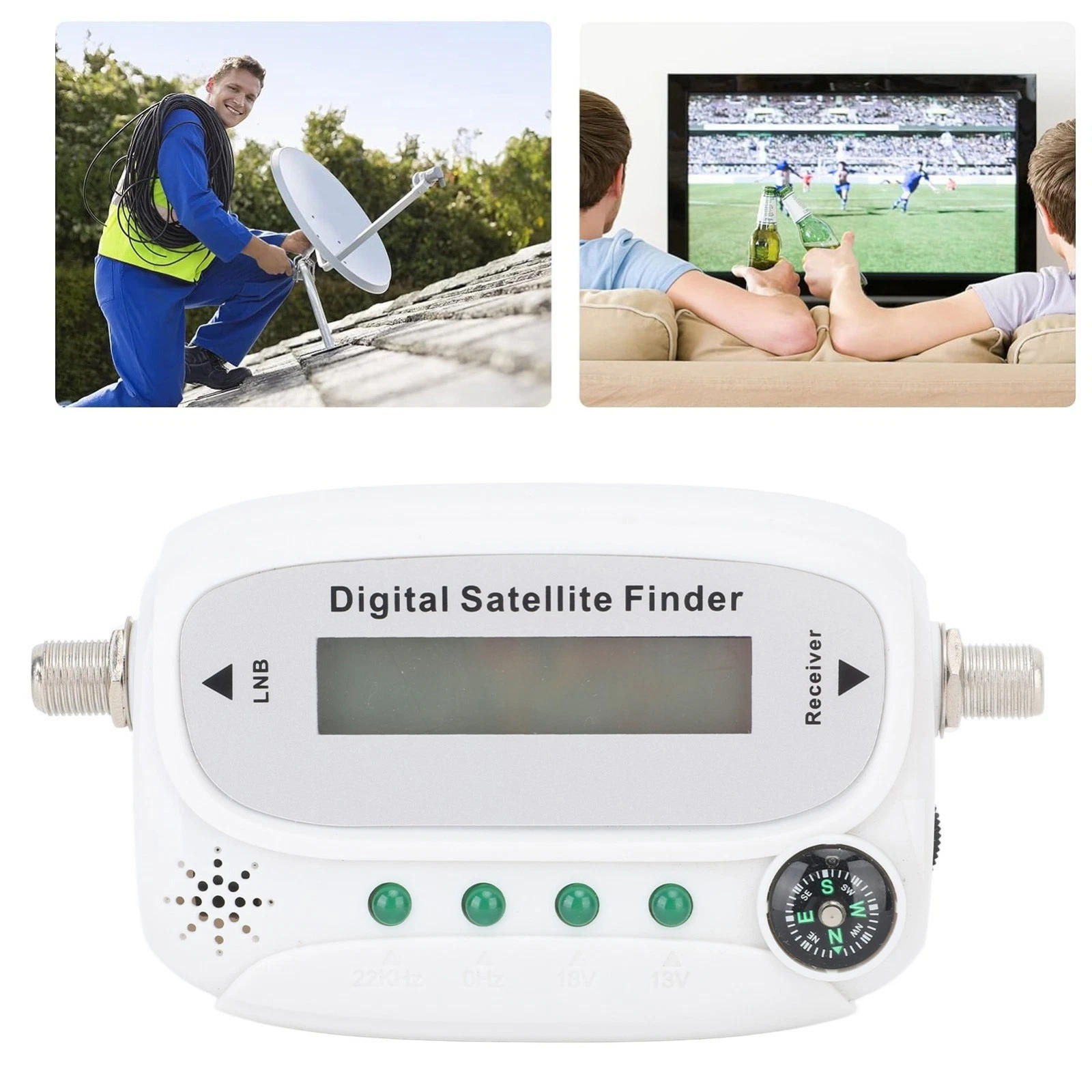

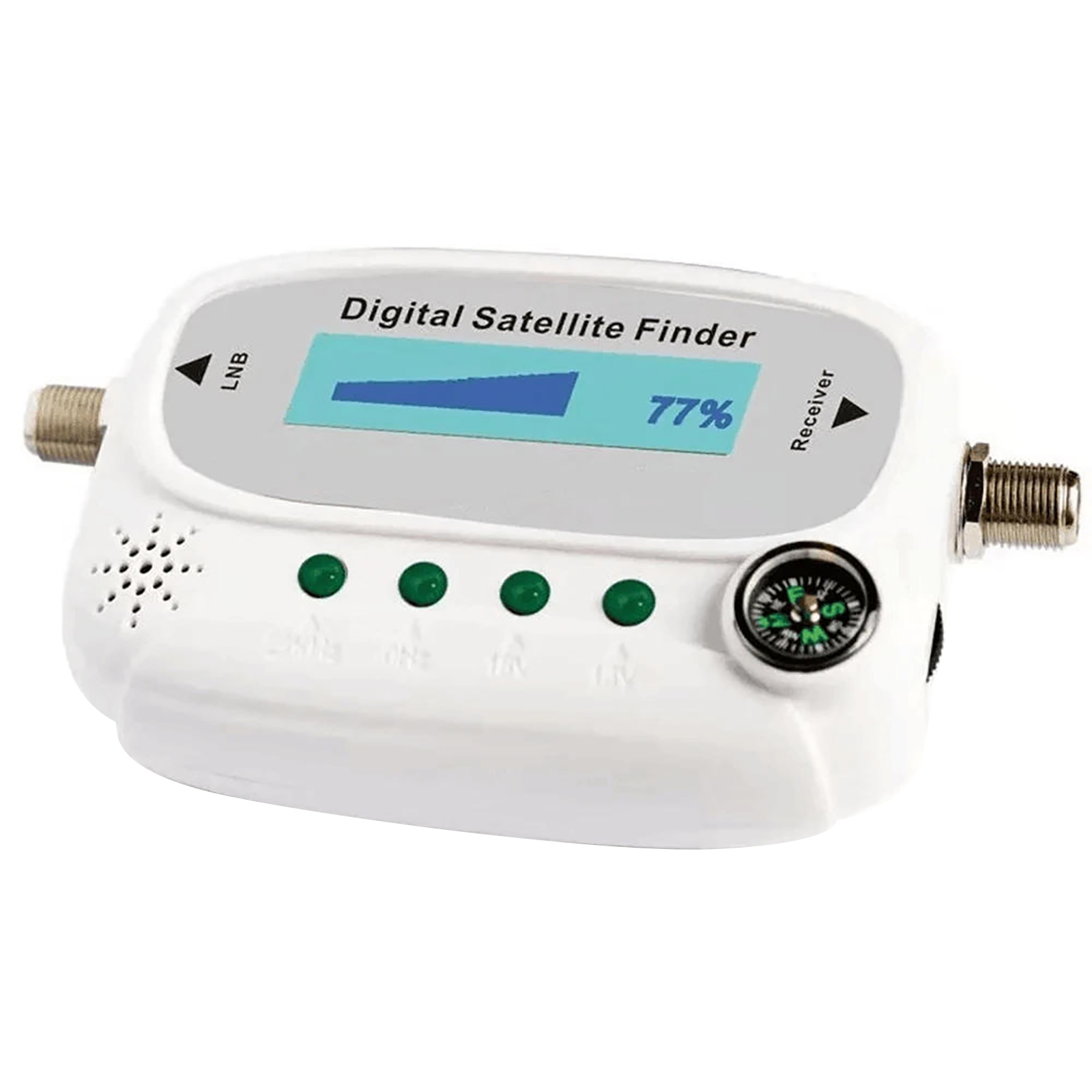

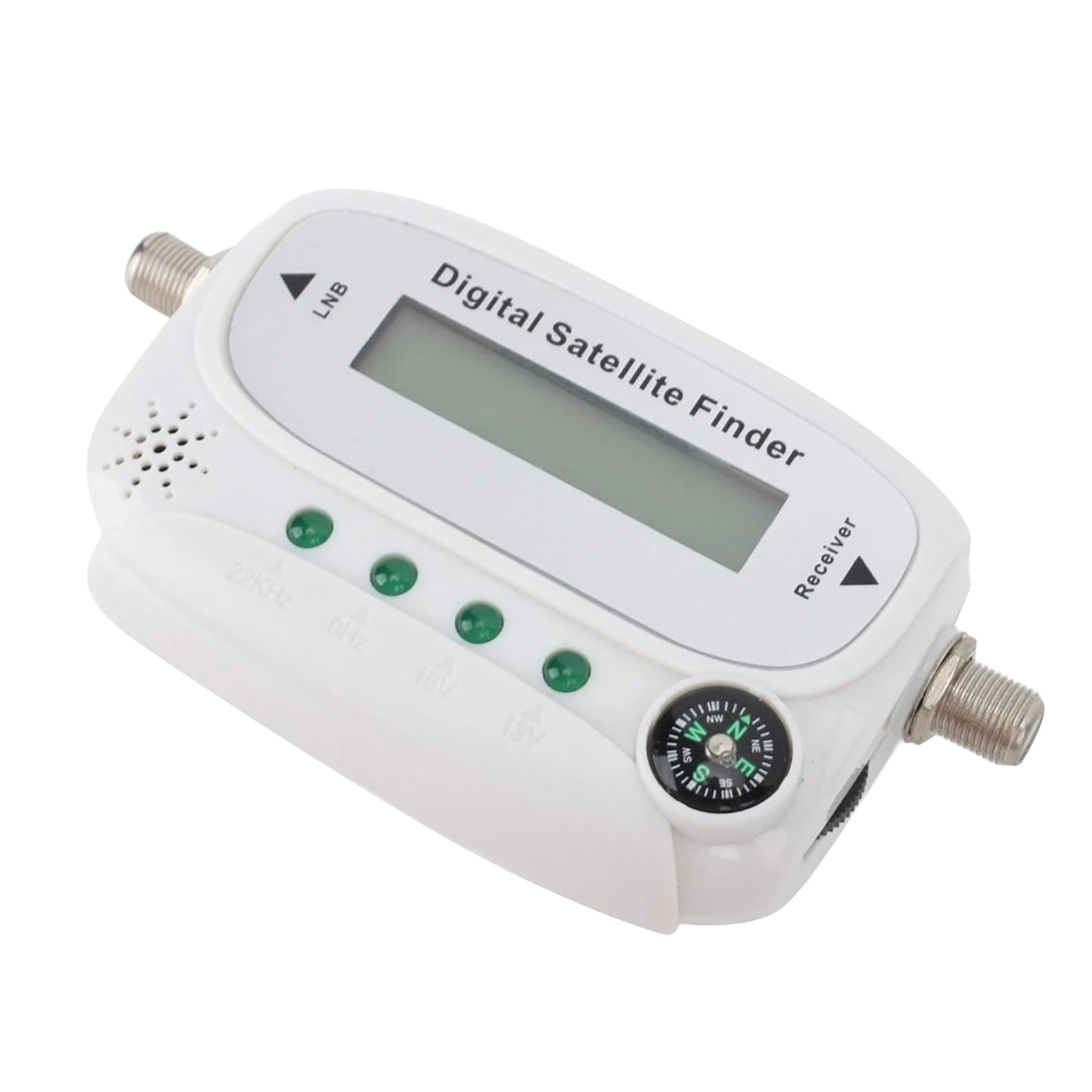

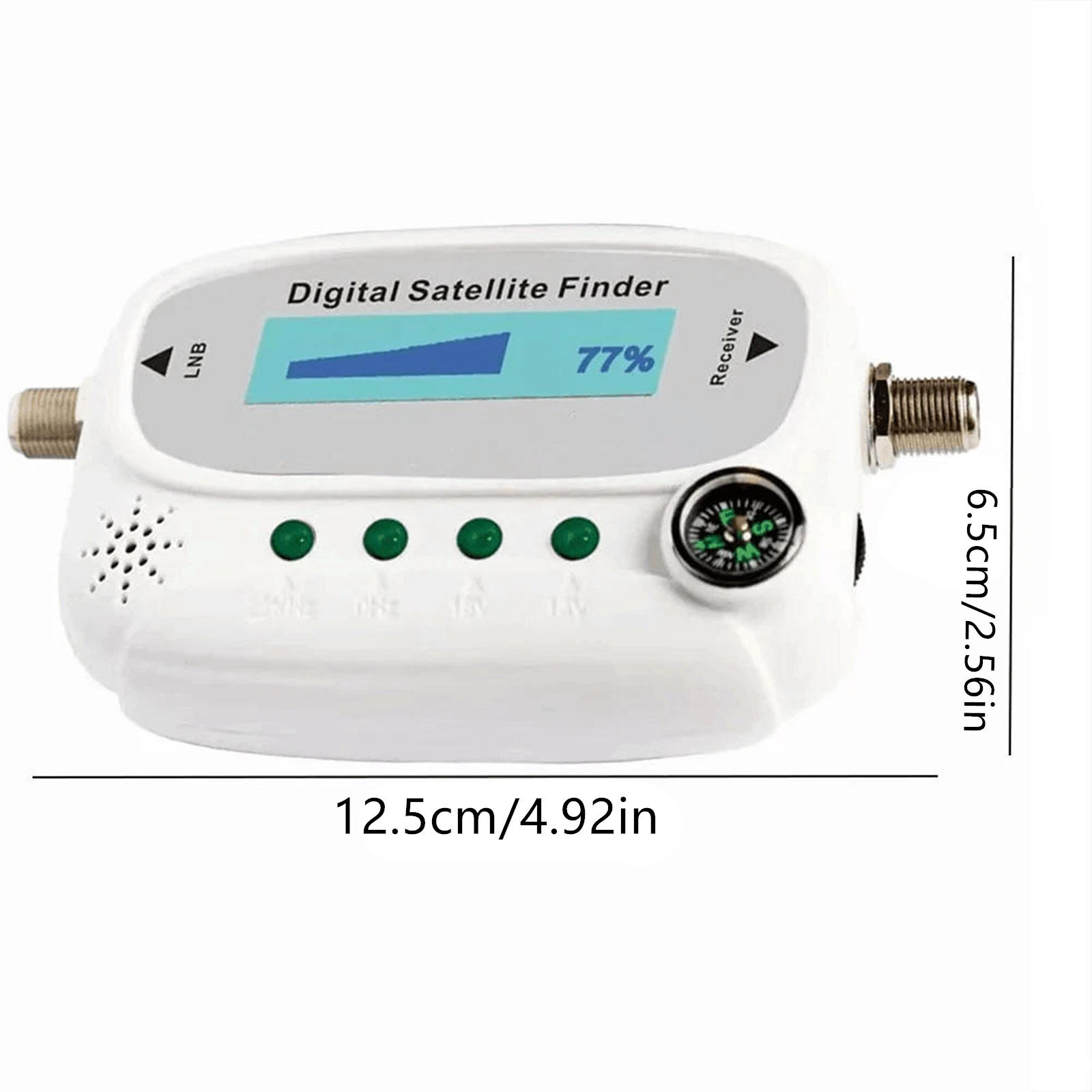

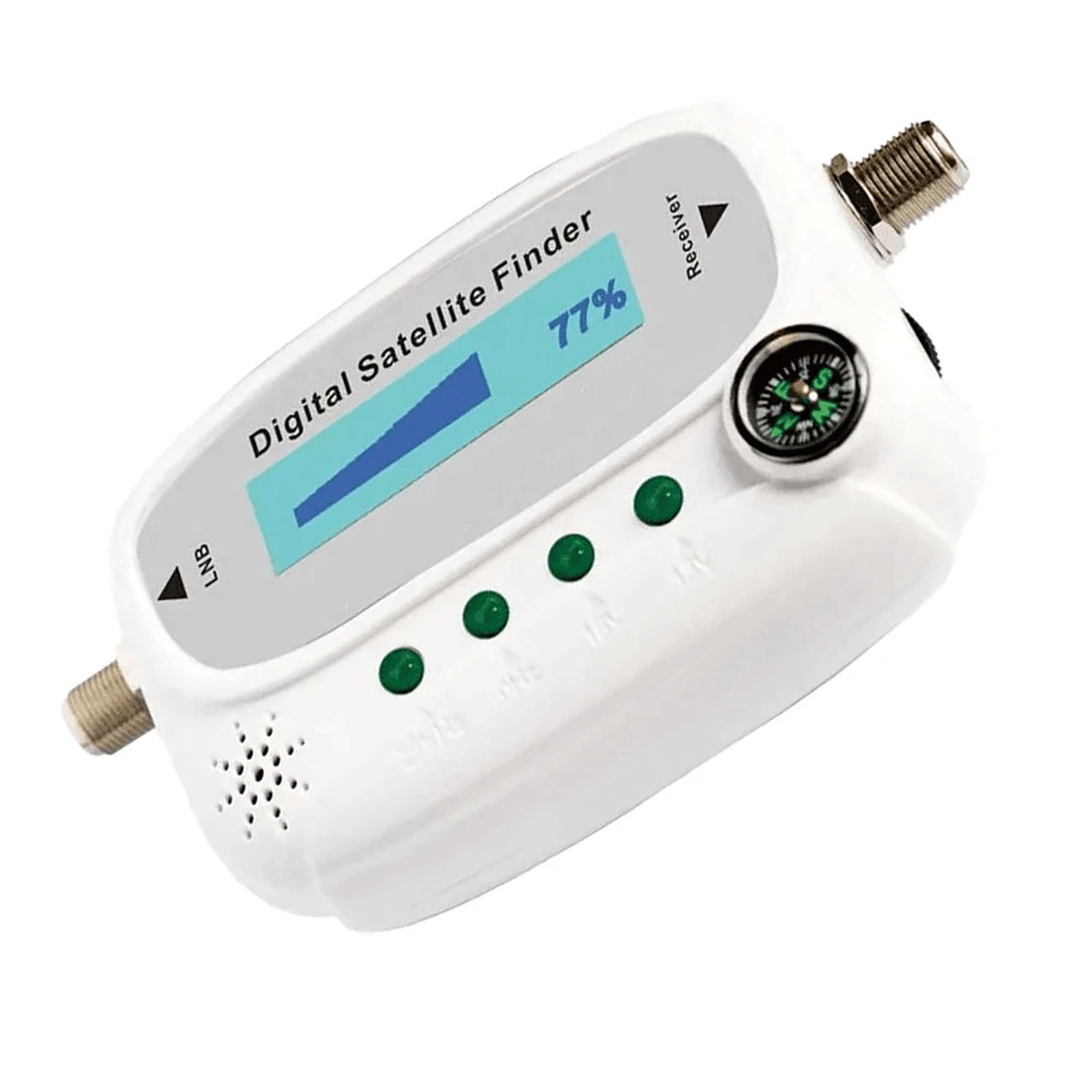

Digital Satellite Finder Strength Meter with LED Display Buzzer and 4 LED Lights
Features:

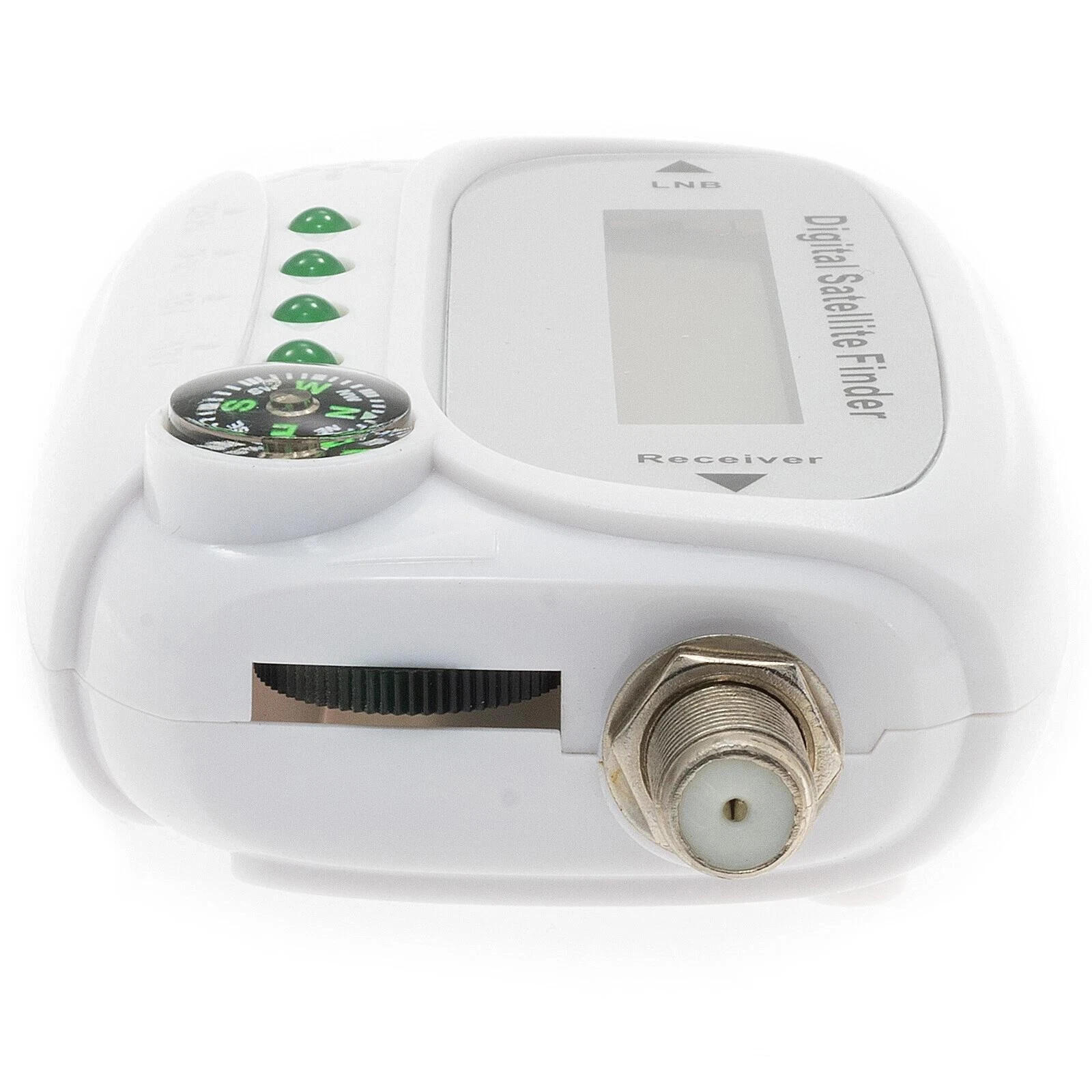

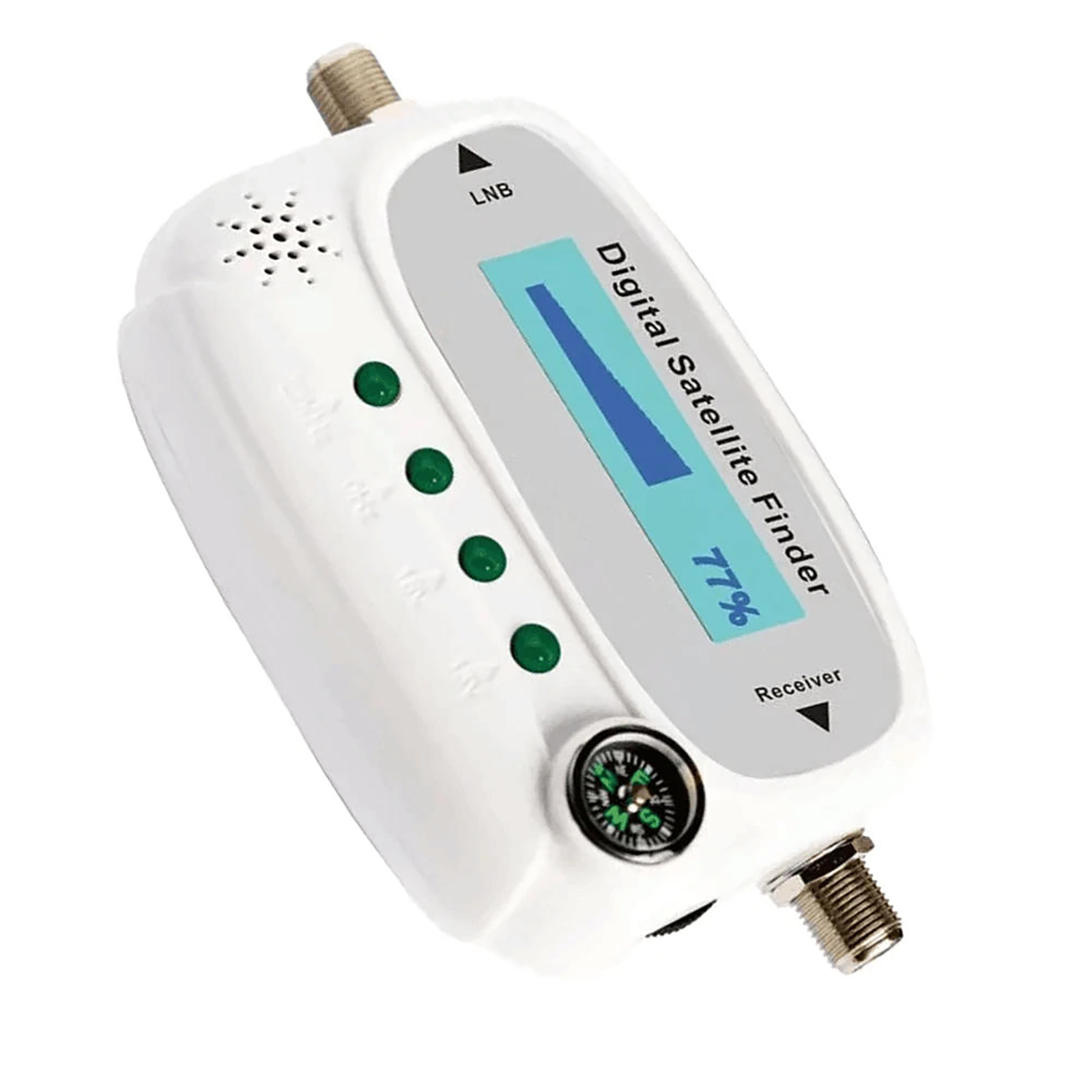

Set the LCD screen readings in 10%-20% by adjusting the level control found in the side of the satellite finder. (Turning the knob clockwise will increase the reading.)

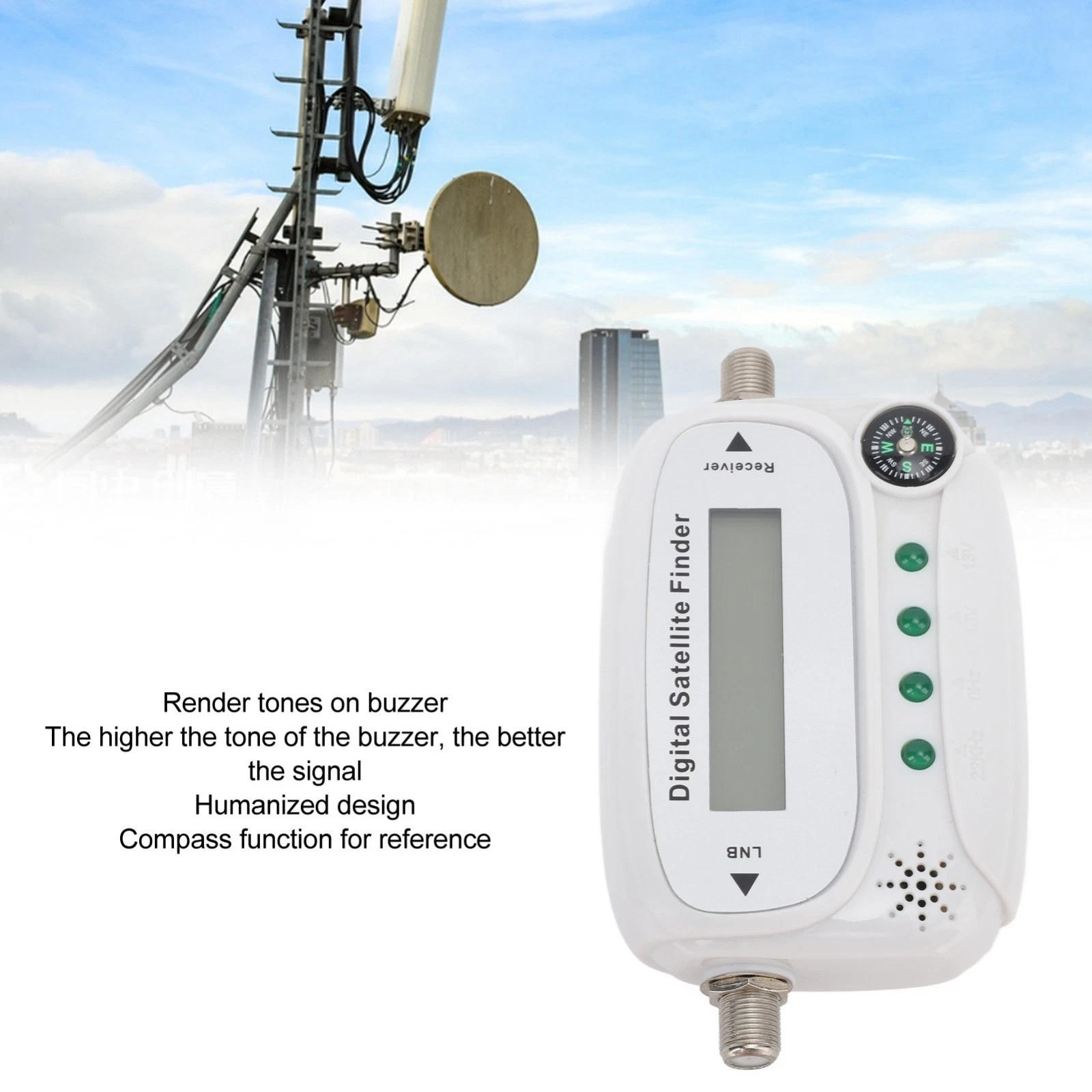

Peak the signal by slowly moving the azimuth and elevation of your dish. If the satellite finder's reading becomes full scale adjusting the level control knob to reduce the reading to around 50%. (Turning the knob counterclockwise will decrease the reading.) continue to move the dish until you have the highest possible LCD reading and the highest possible buzzer pitch frequency.

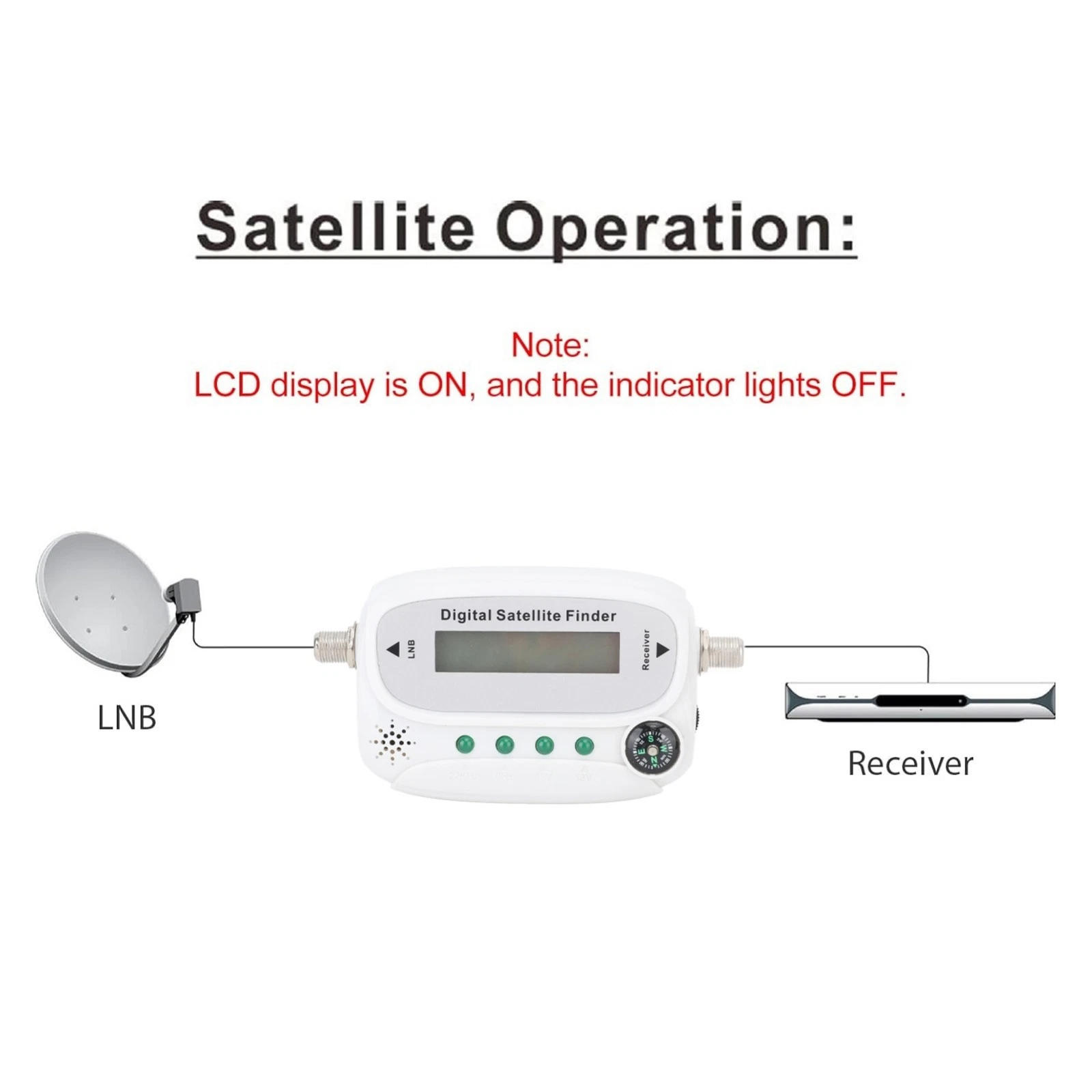

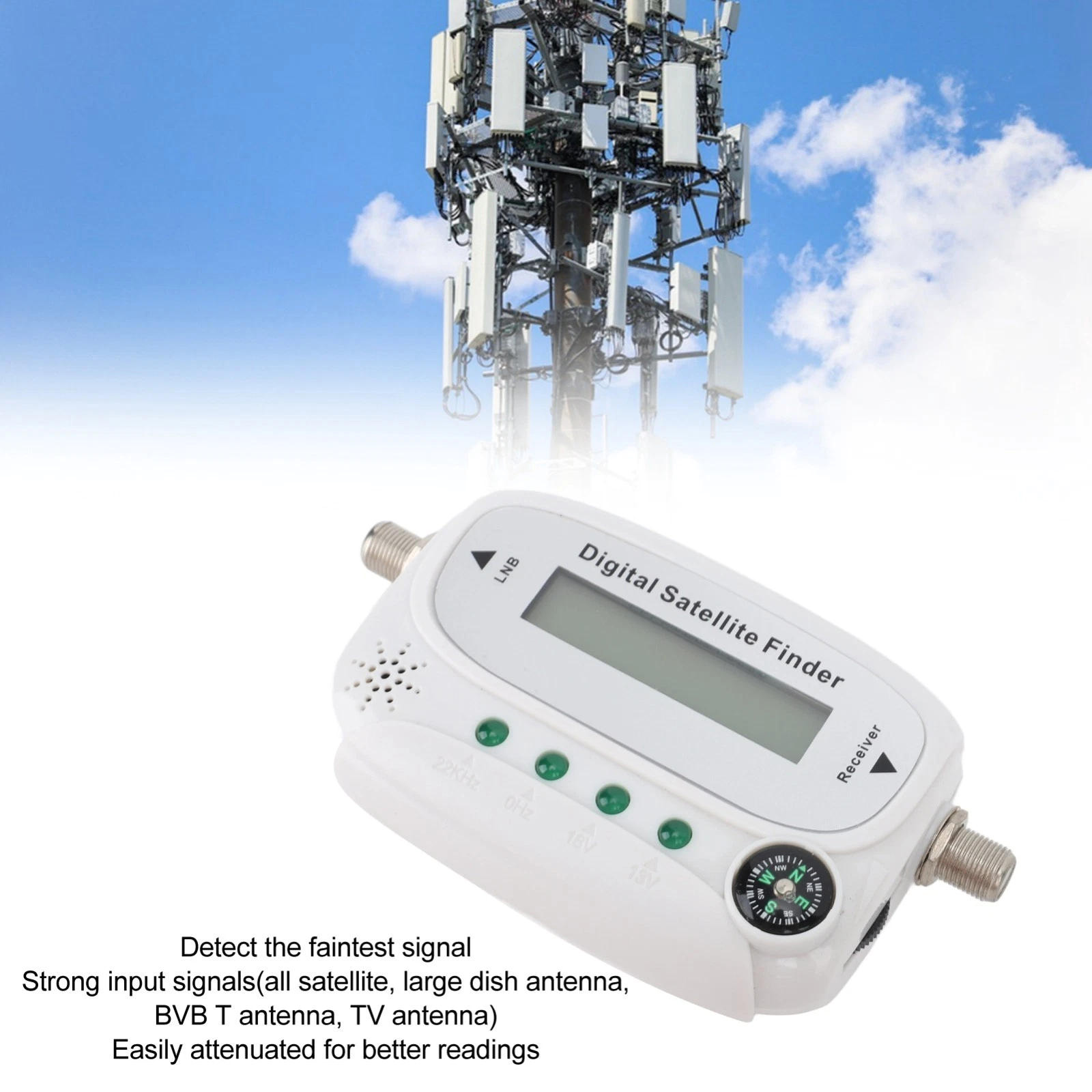

When using a LNB with gain higher than 60dB inserts a 5dB attenuator between the LNB/LNBF and the satellite finder.

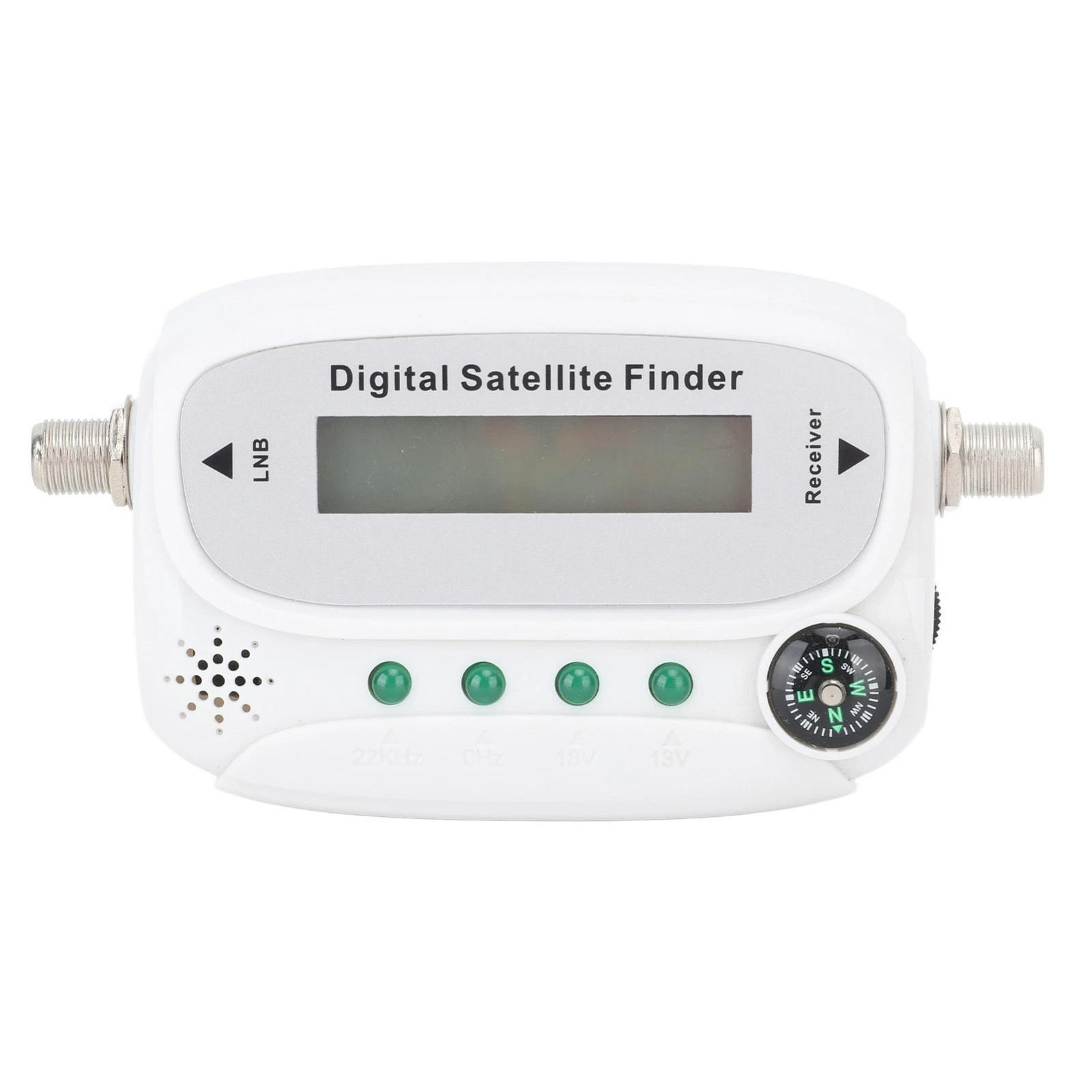

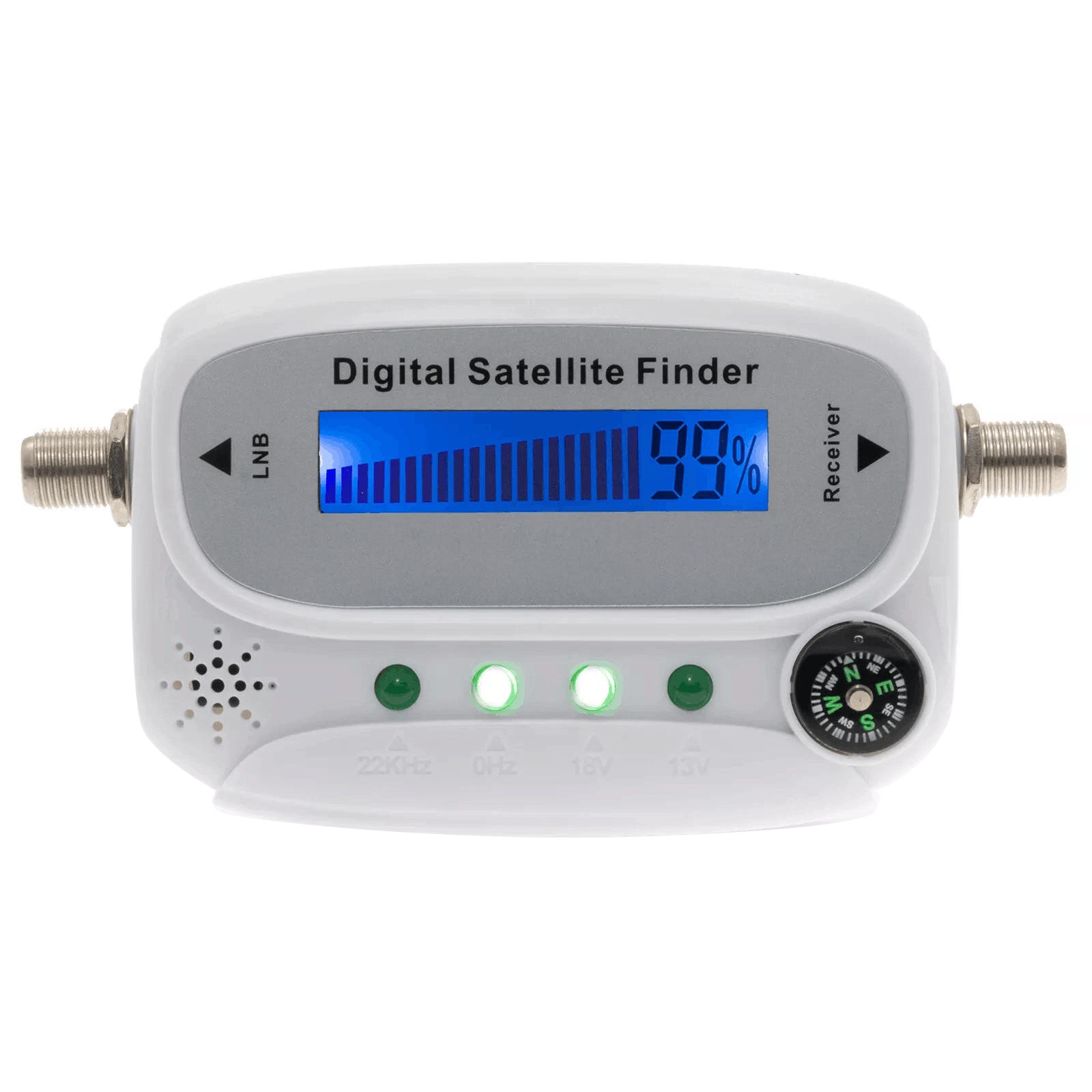

The satellite finder has optional 4 LED on the front panel indicating 0Hz, 22kHz, 13V, 18V.
Specifications:

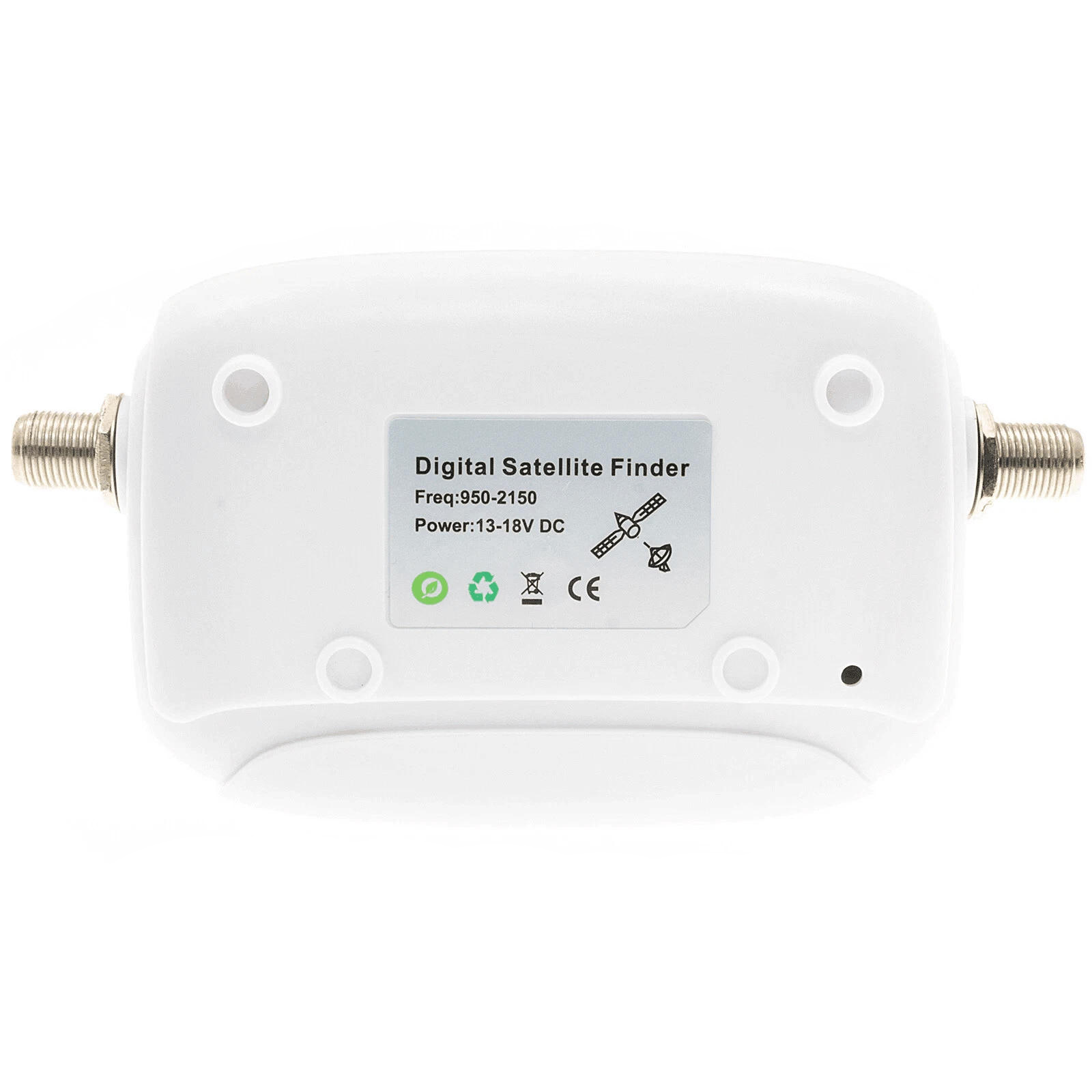

Frequency Range: 950-2150MHZ
Impedance: 75Ω
Gain: ≥ 7dB
Power Supply: 13-18V DC
Operating Temperature: 0～40℃
Package include:
1 x Satellite Finder
