Features:
1. Thunderstorm Protection Induction: Protect Equipment Safety, Prevent Induced Thunderstorm Surges, Protect Equipment And Reduce Thunderstorm Strikes.

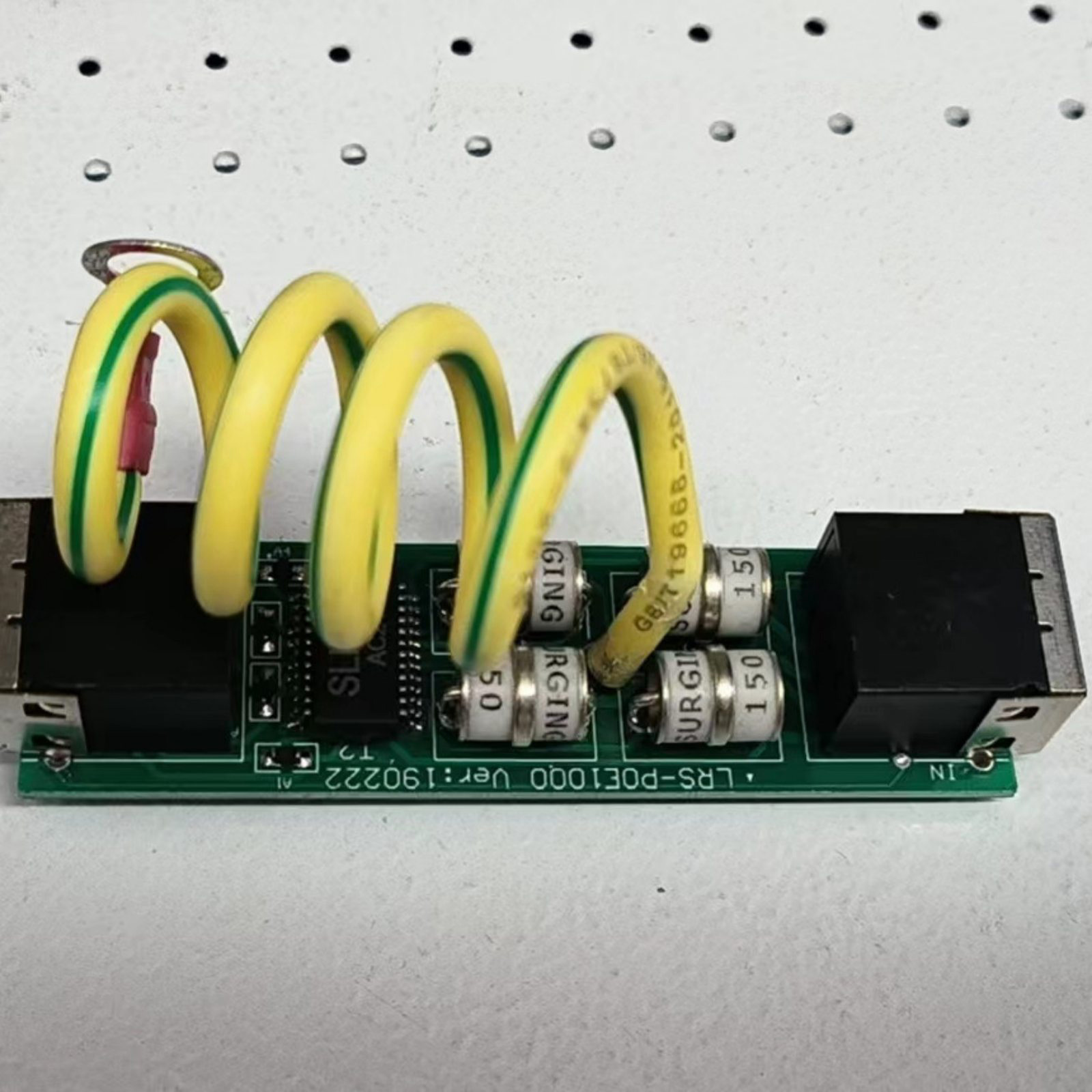

2. Nanosecond Response Speed: Built-In Fast Semiconductor Protection Device, Quick Response. When The Protected Equipment Is Overloaded With Voltage And Current, The Discharge Components Will Automatically Conduct Grounding In Nanoseconds And Leak To The Ground.
3. POE Wide Voltage Design: Support Voltage DC48-57V
4. Multi-Stage Protection: Large Circulation Capacity, The Limiting Voltage Is Extremely Low, Low Insertion Loss And Longer Distance
5. Advanced Production Technology, Beautiful Appearance, Easy Installation

Specifications:

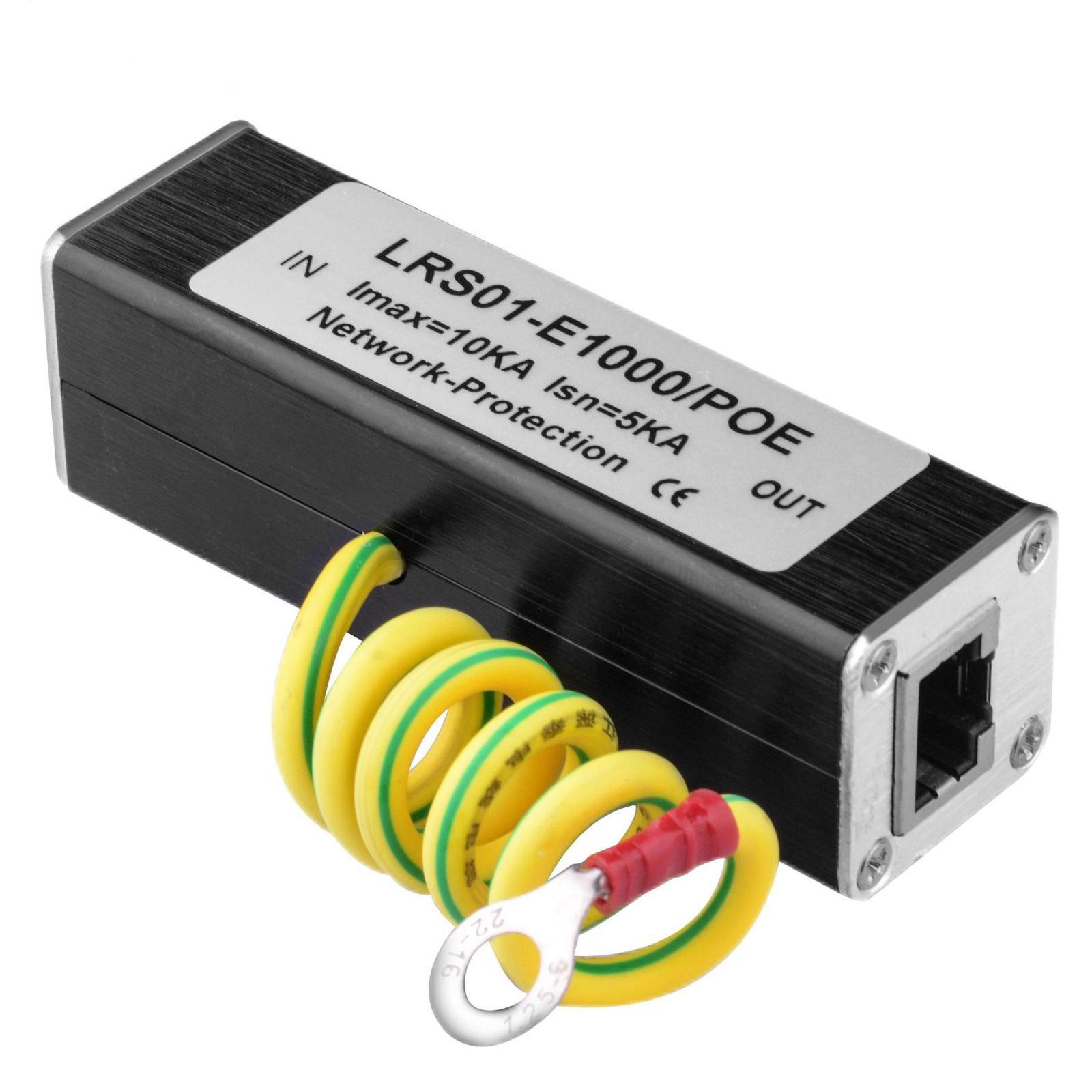

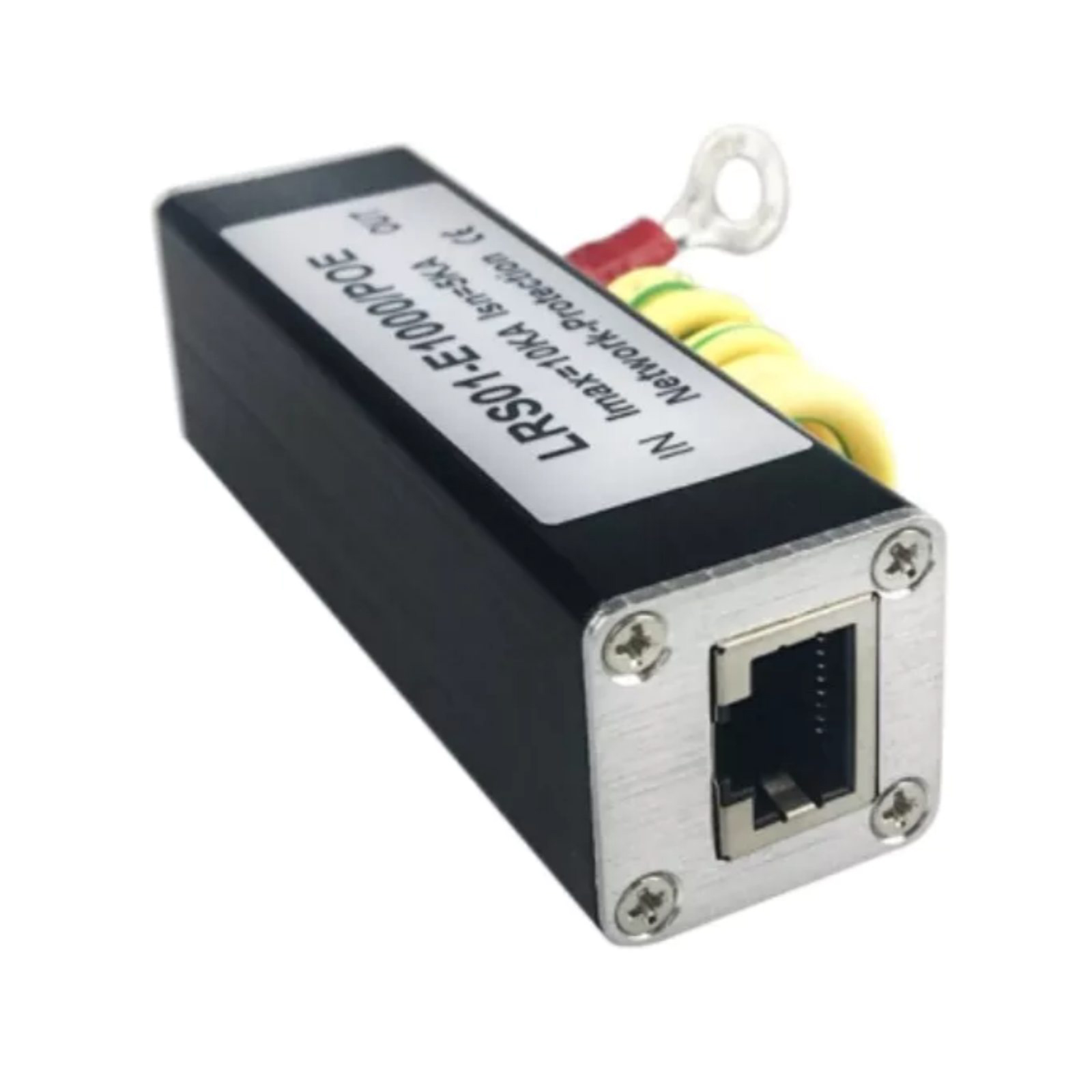

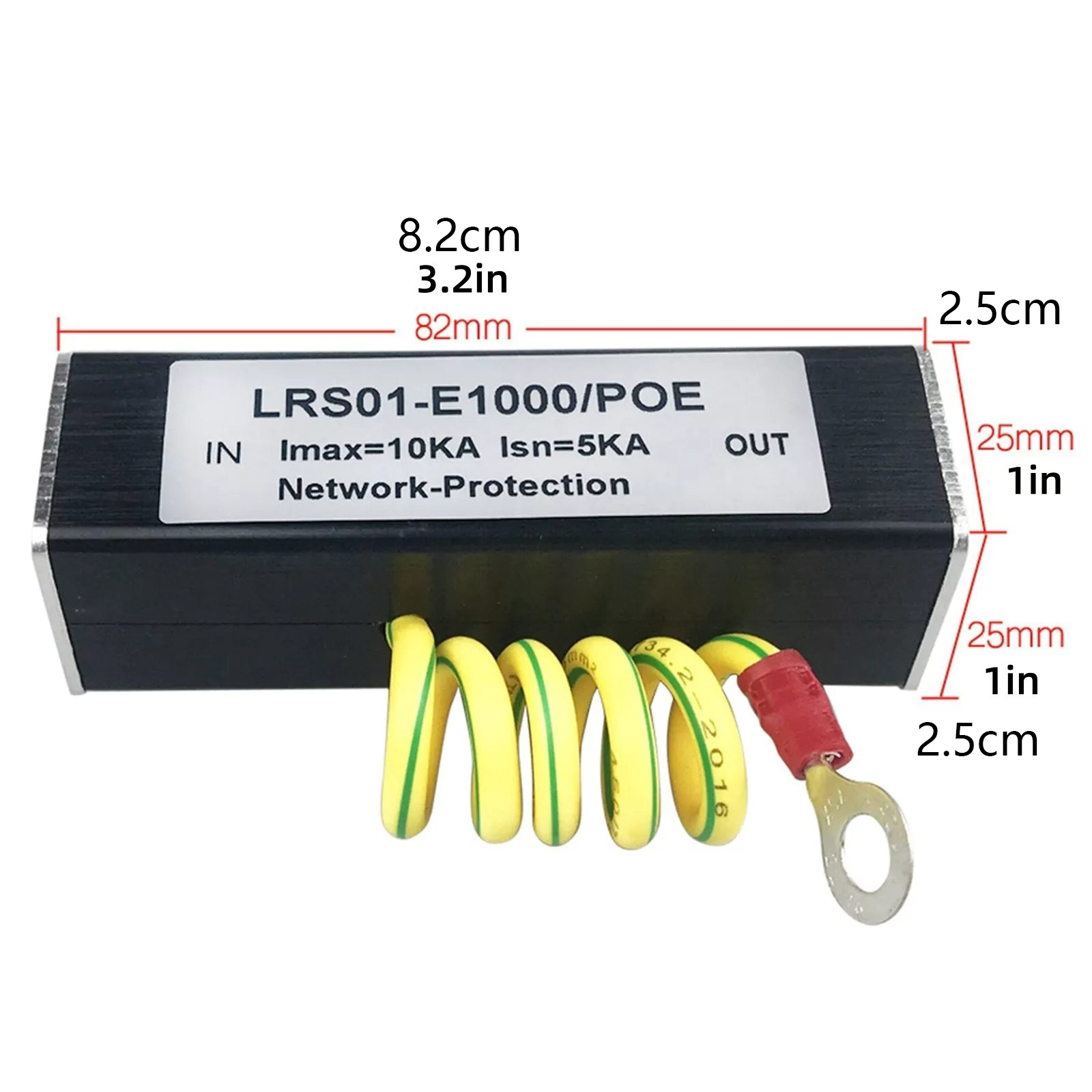

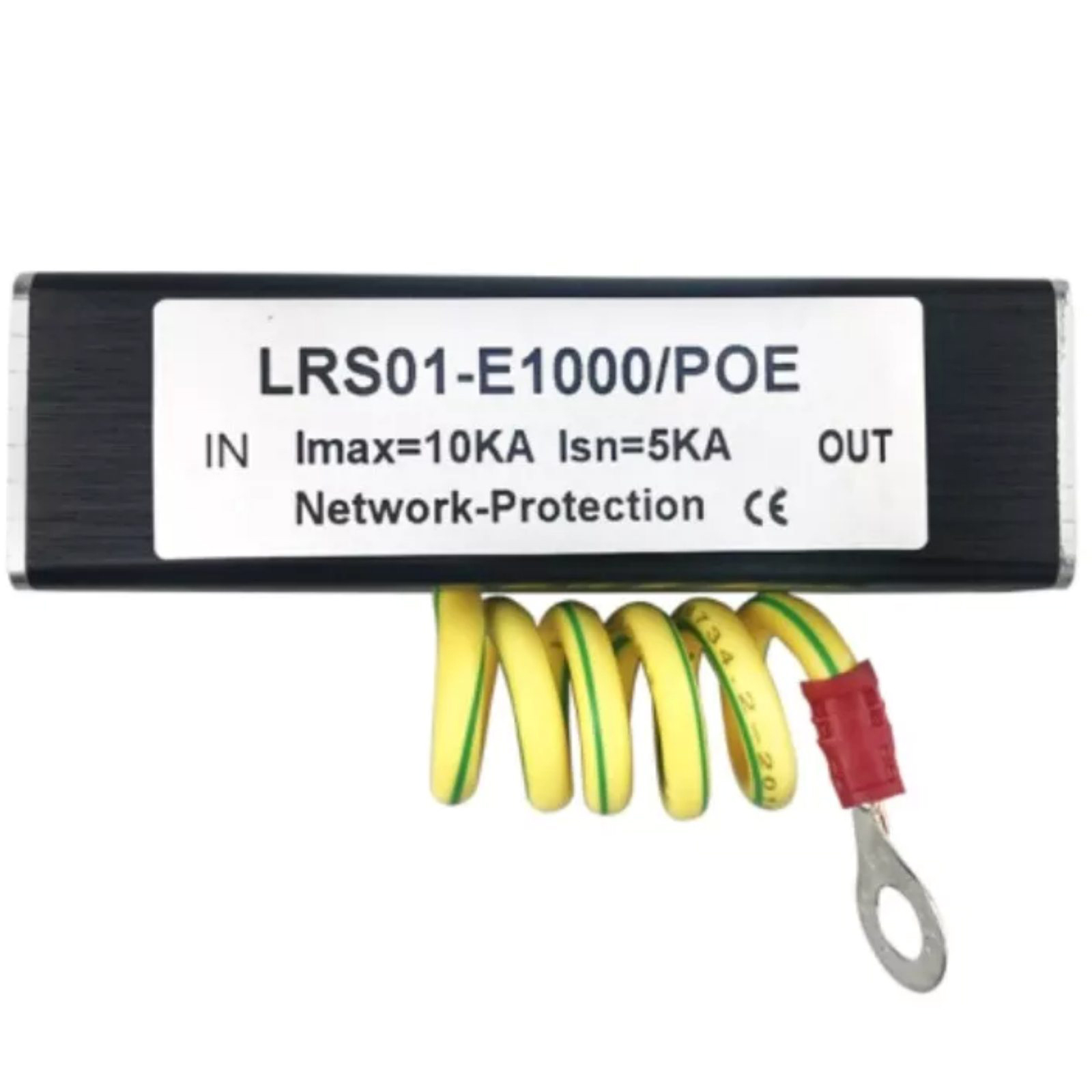

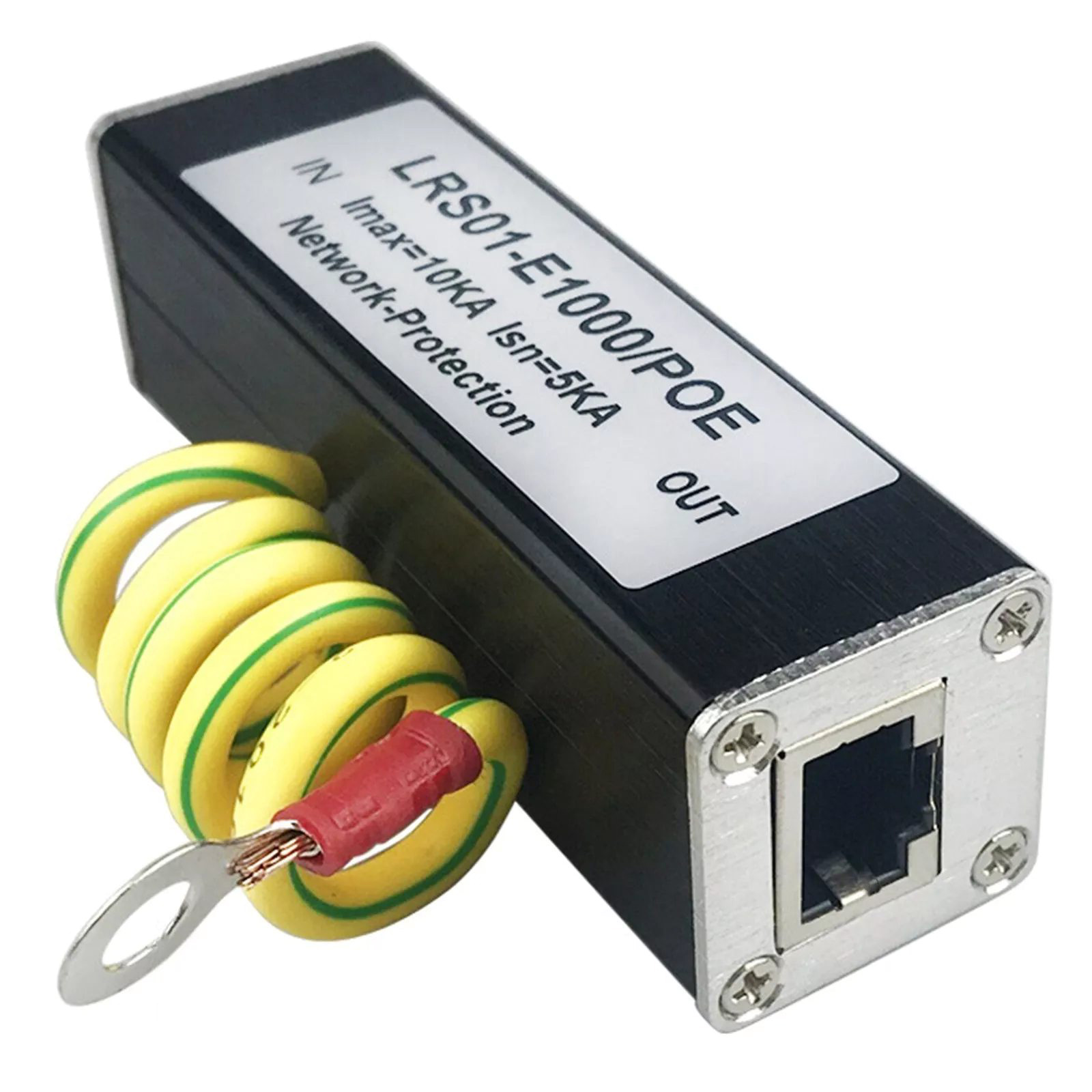

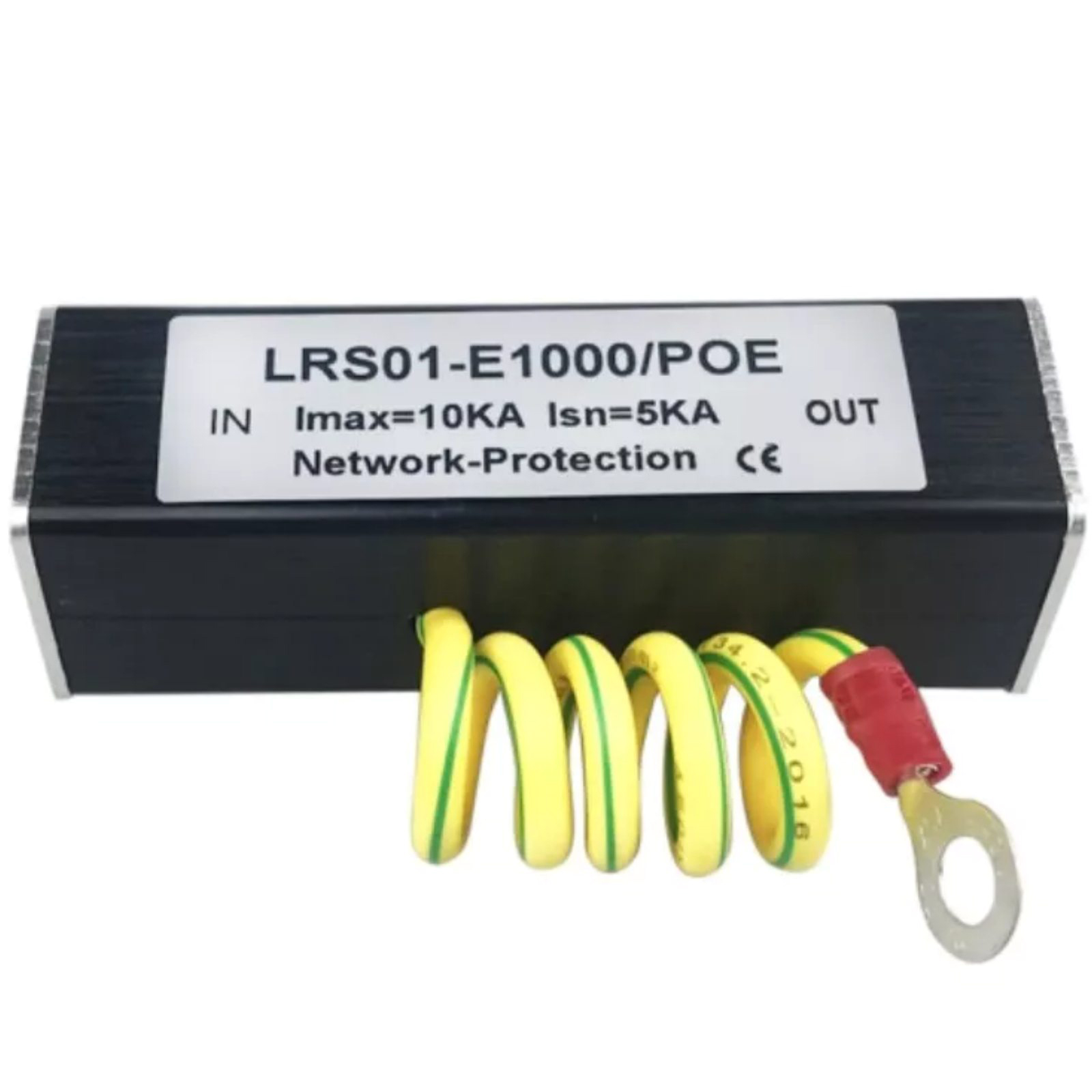

Name: Gigabit POE Surge Protector Device
Condition: Brand New
Transmission Rate: 1000mbps
Material: Aluminum Alloy
Color: Shown As Picture
Input/Output Voltage: 48-57V

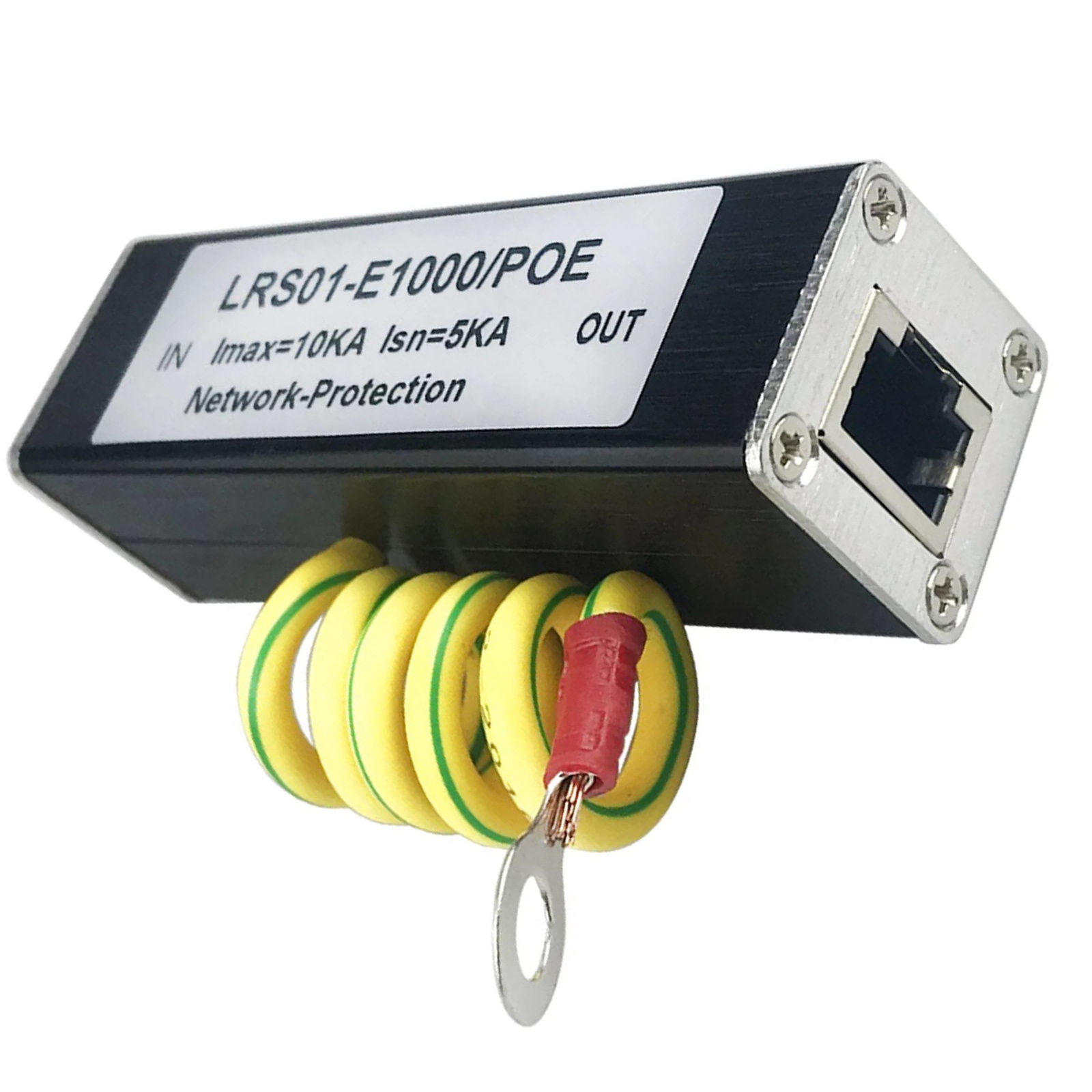

Nominal Discharge Current: 5KA
Maximum Discharge Current: 10KA
Insertion Loss: ≤ 0.3db
Response Time: ≤ 0.5ns
Interface Type: RJ45
Working Temperature: -40°C~80°C
Working Humidity: ＜95%
Protected Object: POE Network Switch, POE Camera, Terminal Device With POE Power Supply Function

Installation And Wiring:
1. The POE Surge Protector Device Can Be Installed In Lpz0-1 Zone Or Directly Connected In Series At The Front End Of The Protected Equipment (Or System). The Closer It Is To The Protected Equipment (Or System) During Installation, The Better.

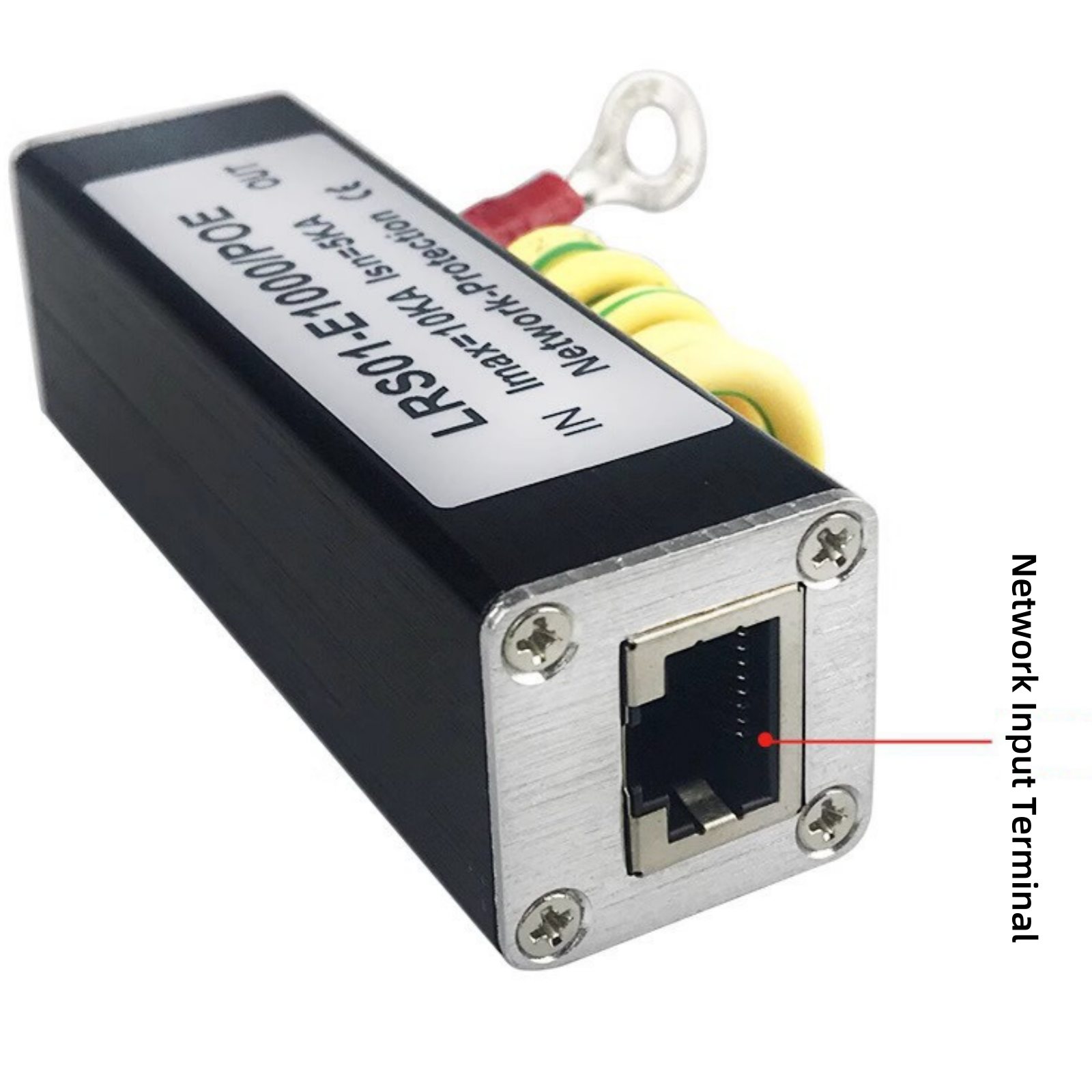

2. The Input Terminal (In) Of The Surge Protector Is Connected To The Signal Line, And The Output Terminal (Out) Is Connected To The Protected Equipment And Cannot Be Reversed
3. The PE Wire Of The Surge Protector Must Be Strictly Connected To The Equipotential Of The Surge Protector System, Otherwise It Will Affect The Working Performance.
4. This Product Does Not Require Special Maintenance And Should Be Installed As Close To The Device End As Possible; When There Is Suspicion Of A Malfunction In The Working System, The Surge Protector Can Be Removed And Checked Again. If It Returns To Its Original State Before Use And Returns To Normal, The Surge Protector Should Be Replaced.

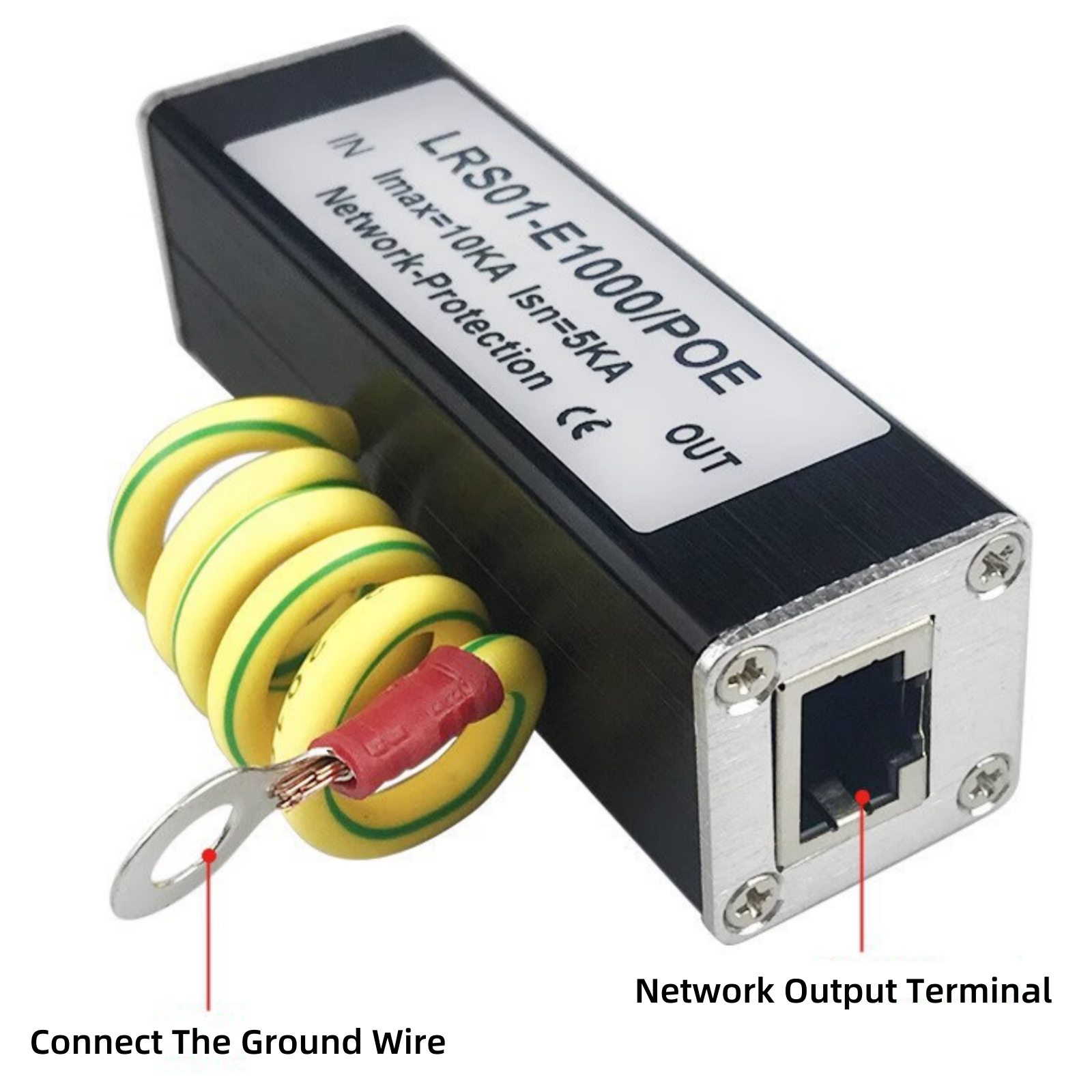

5. Connect The Surge Protector To The Shortest Possible Wire For Grounding. The Grounding Of The Surge Protector Adopts Terminal Grounding Method, And The Grounding Wire Must Be Connected To The Surge Protector Ground Wire (Or The Shell Of The Protected Equipment). The Shielding Wire Of The Signal Can Be Directly Connected To The Grounding Terminal.
6. The Surge Protector Does Not Require Long-Term Maintenance When Installed Under Conditions That Do Not Exceed The Requirements, Only Routine System Maintenance Is Required; If There Is A Problem With Signal Transmission During Use And The Signal Transmission Returns To Normal After Replacing The Surge Protector, It Indicates That The Surge Protector Has Been Damaged And Needs To Be Repaired Or Replaced.

Package List:
1* Gigabit POE Network Thunderstorm Protection Device
