2PC Engine Radiator Cooling Fan Assembly for 2012-2015 Honda Civic 2013-2015 Acura ILX HO3115158 HO3115159

Features:

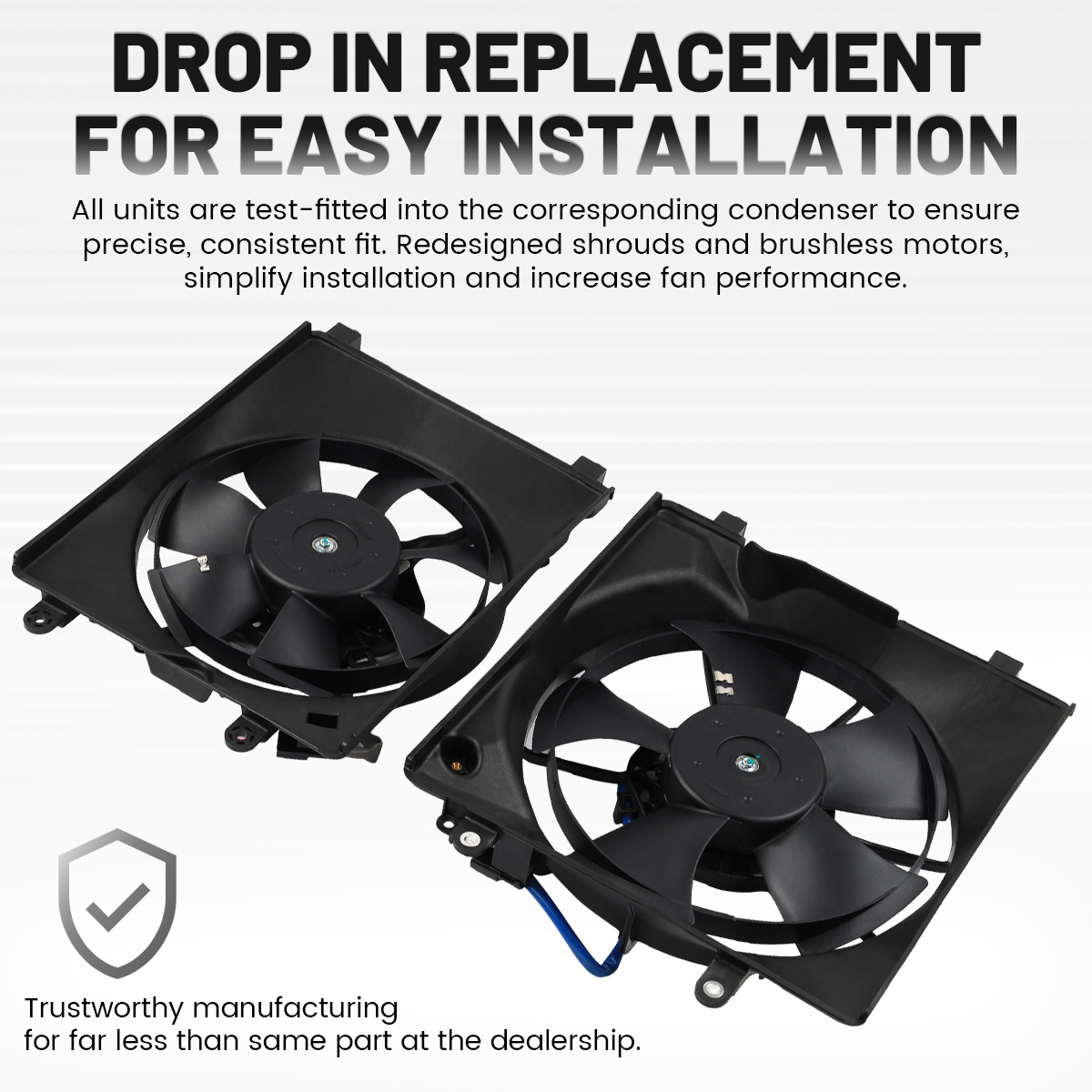

1.Drop in replacement for easy installation.All units are test-fitted into the corresponding condenser to ensure precise, consistent fit. Redesigned shrouds and brushless motors, simplify installation and increase fan performance.

2.Ideal replacement.This engine cooling fan assembly was precision-engineered to match the fit and performance of the stock radiator fan assembly on specific vehicles.

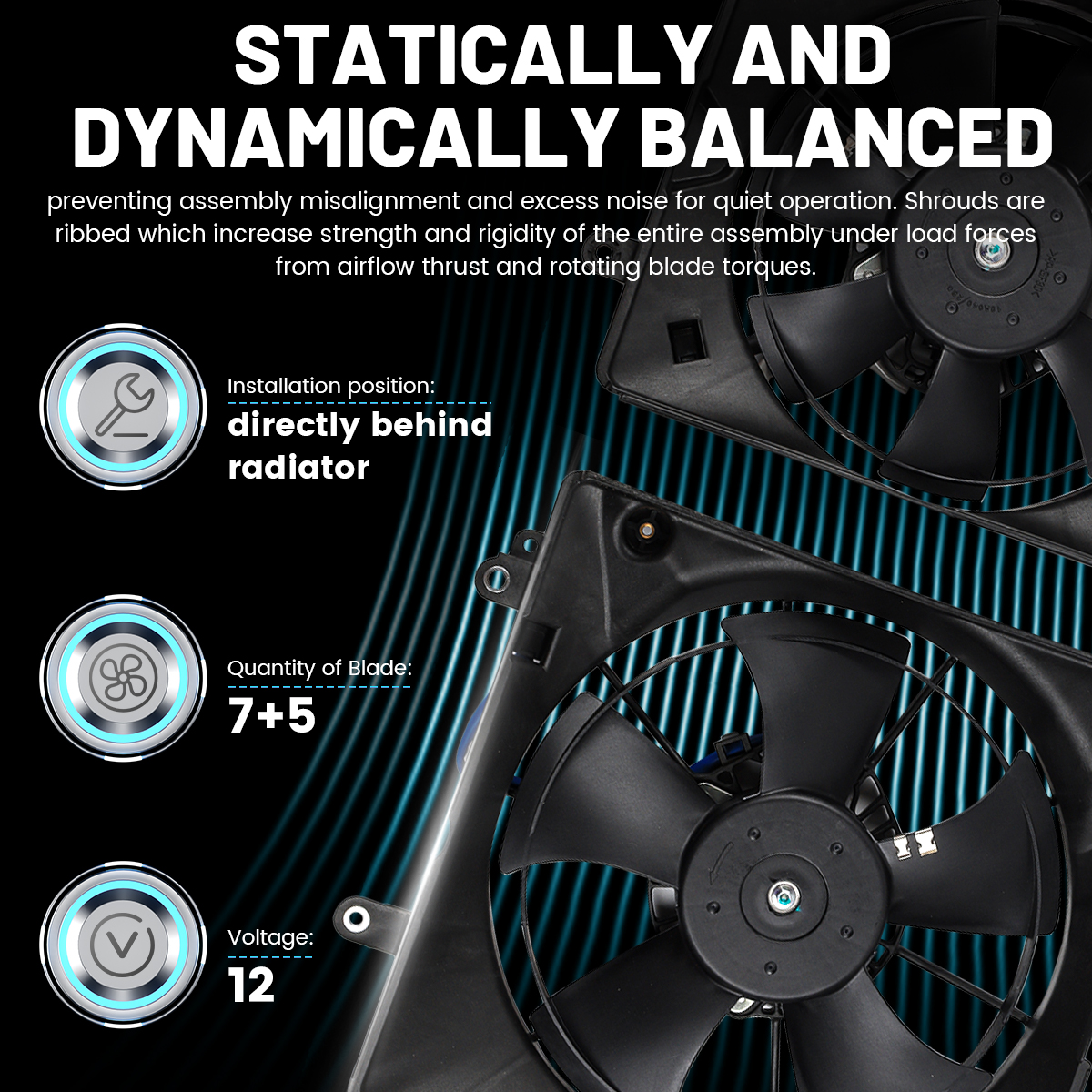

3.Statically and dynamically balanced preventing assembly misalignment and excess noise for quiet operation.Shrouds are ribbed which increase strength and rigidity of the entire assembly under load forces from airflow thrust and rotating blade torques.

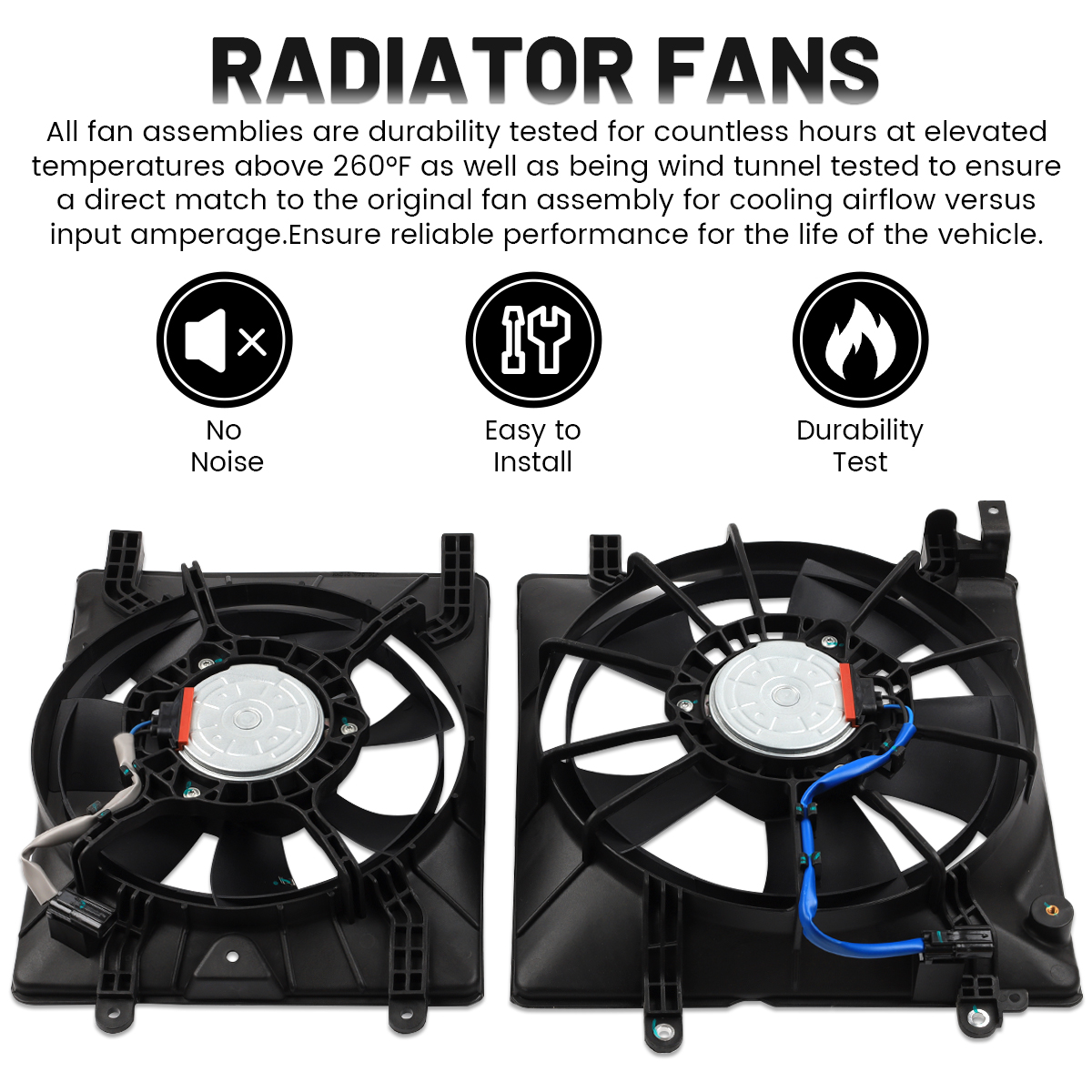

4.All fan assemblies are durability tested for countless hours at elevated temperatures above 260°F as well as being wind tunnel tested to ensure a direct match to the original fan assembly for cooling airflow versus input amperage.Ensure reliable performance for the life of the vehicle.

5.Trustworthy manufacturing for far less than same part at the dealership.

Specifications:

Material:Plastic

Color:Black

Installation position:directly behind radiator

Quantity of Blade:7+5

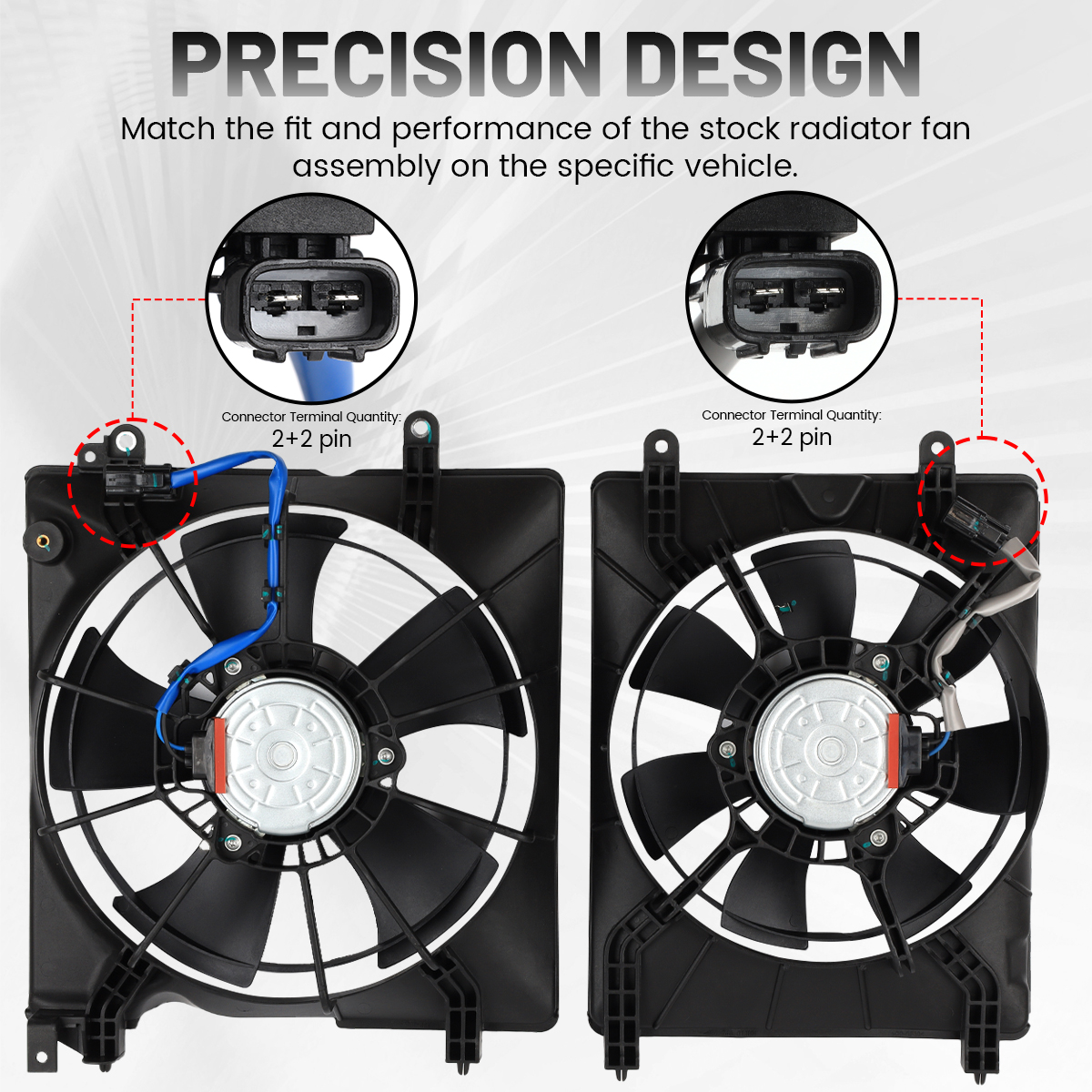

Connector Terminal Quantity:2+2 pin

Voltage:12

Fitment Type:Direct Replacement

Part Numbers:

HO3115158, 19015R1AA01, 19015R1AA01PFM, 19015R1AA02, 19015R70A01, 19020R1AA01, 19020RSAG01, 19030R1AA01, 19030R1AA02, HD065418000, HD60036A, 601350, 621480, 621-480

HO3115159, 19030RSJE01, 38611R1AA01, 38615R1AA01, 38615R1AA01PFM, HD065415000, HD61036A, 611350, 38611R1AA02, 38615R1AA02, 621490, 621-490

Fitment:

For 2012-2015 Honda Civic 1.5L/ 1.8L/ 2.4L

For 2013-2015 Acura ILX 1.5L/ 2.0L/ 2.4L

Package Contents:

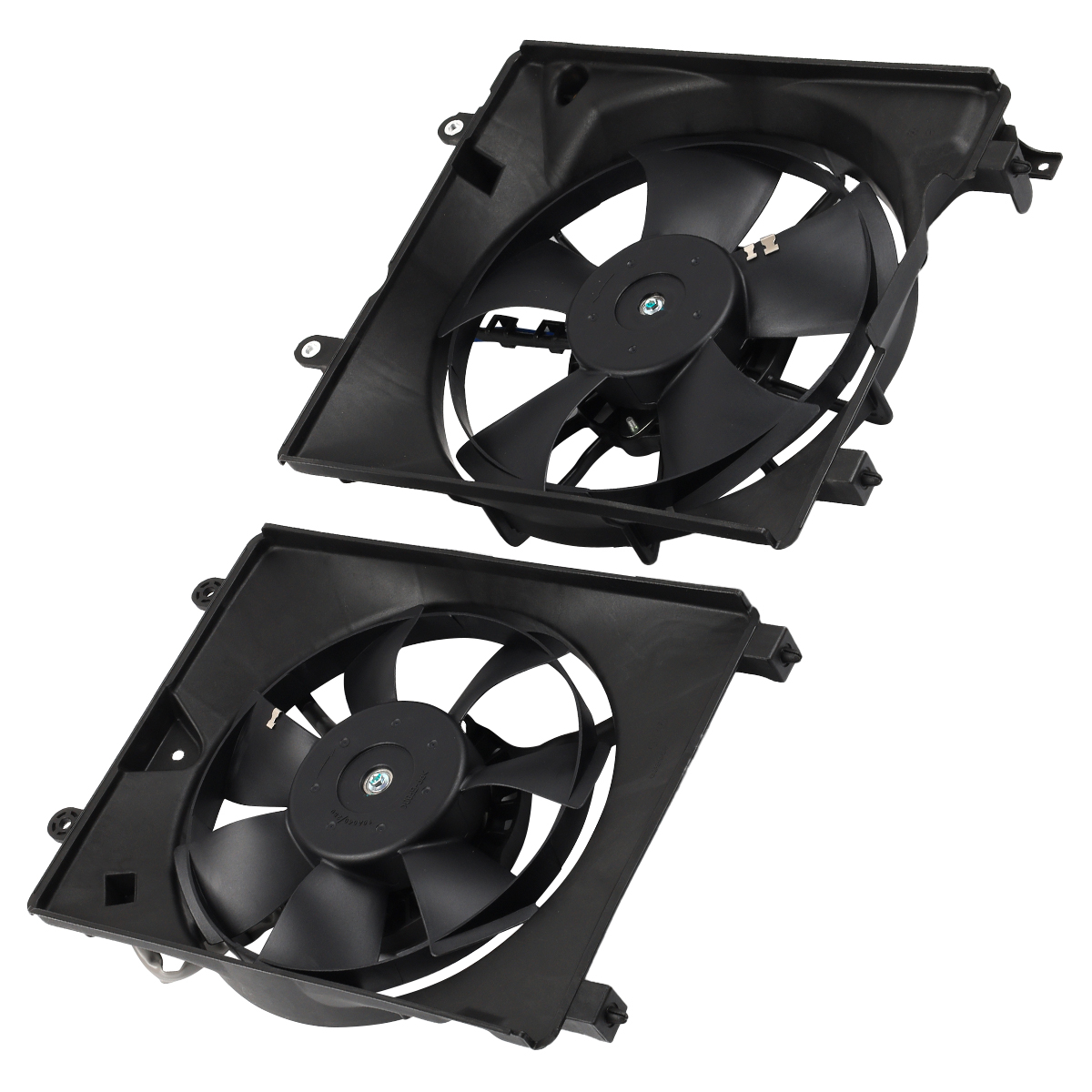

2× Radiator Cooling Fan(as shown in the picture)

Attention:

The radiator cooling fan is an integral part of your car that is responsible for cooling the radiator of your car. The radiator cooling fan does this by either pulling or pushing air into the radiator keeping the radiator temperatures within the safe levels. A damaged radiator cooling fan is a determining factor in preventing your car from overheating. Below are the materials that you need along with the instructions on how to replace a radiator cooling fan.

Step 1: Locate the Radiator Cooling Fan

Locating the radiator cooling fan is the first step in replacing it. Turn off your car and allow it to cool off. Open the hood of your car and you will be able to see the radiator that is located at the back of the grill at the front portion of your engine compartment. The radiator cooling fan is attached at the back of the radiator through a mounting frame. Under the engine and the radiator is a sticking cylinder that is encased in a small casing. That is the radiator cooling fan motor that you may need to change or repair other than the radiator cooling fan itself.

Step 2: Disconnect the Power Supply

On the fan motor is an electric cable running towards the engine. Find the connector of the wires from your engine and from your radiator fan motor and disconnect it. Using two masking tapes with different colors, note the connection of the wires so that you will not have a hard time reconnecting the wires later.

Step 3: Remove the Fan Housing

Using a crescent wrench, remove the four screws located at each corner of the fan housing. Remove the fasteners at the sides of the fan housing as well.  A radiator cooling fan housing is relatively large and you may need to remove all the obstructions like hoses and wirings so that you can extract the fan housing off your car hood. Hold the housing firmly and lift it off your engine compartment. Be careful in removing the fan housing to avoid damaging it. Place the fan housing on a clutter-free working table.

Step 4: Remove the Radiator Cooling Fan and the Fan Motor

The fan blade is either pinned or screwed to a shaft. With a screwdriver, loosen the fan blade and slide if off its shaft. You may need to remove a keeper that prevents the fan blades from moving up in the shaft up and down. As to the fan motor itself, remove it from the fan housing using a screwdriver.

Step 5: Attach the Replacement  Radiator Cooling Fan and Fan Motor

Install the new fan motor into the fan housing. Slide your replacement radiator cooling fan into the shaft, insert the keeper and secure the new cooling fan and keeper into place. Return the fan housing back into its proper place and secure the screws and the fasteners. Reattach the hoses and wires you removed in step 3. Connect the fan motor into the car electrical system using the electrical tape guide you made in step 2.

Note:

You may notice that the Cooling fan needs diagnostics by the following signs:

1. the engine is overheating.

2. the fan sensor is functioning incorrectly.

3. the engine loses power at higher RPM.

4. "Check Engine" flashing on the dashboard.

Please Carefully Check Whether the OE Number And Picture are What You Need Before Buying. If You are Not Sure Whether It Fits, Please Write to us. If There are Any Problems, Communication by Letter Will be More Effective.

No Instruction Included, professional installation is highly recommended.
