Specification:
Model: Regular version Multi-language version
Suitable battery type: lithium polymer
Charging time: 10
Dimension: L98*W68*H35
Power cord length: 1.2m
Number of charging slots: 6 slots
Plug standard: European standard

Input voltage:7.0-28.0V @MAX 30A
Battery type: Lipo LiHV LiFe Lion @1-6S
NiMh @1-16S Pb @1-10S
Balancing Current:800mA @2-6S
Balancing Accuracy:< 0.005V
Voltage range:0.2-5.0V @1-6S
Internal Resistance:1-100mR @1-6S
Charging Power: 500W @MAX 25A SYNC
250W @MAX 15A *2 ASYC
Discharge power: 500W @MAX 15A Recycle
12W @MAX 3A Nomal
USB: 2.1A @5.0V Upgrade@USB3.0

Product size: 98*68*35 mm
Product weight: 220g
Package size: 108*80*46 mm
Package weight: 300g

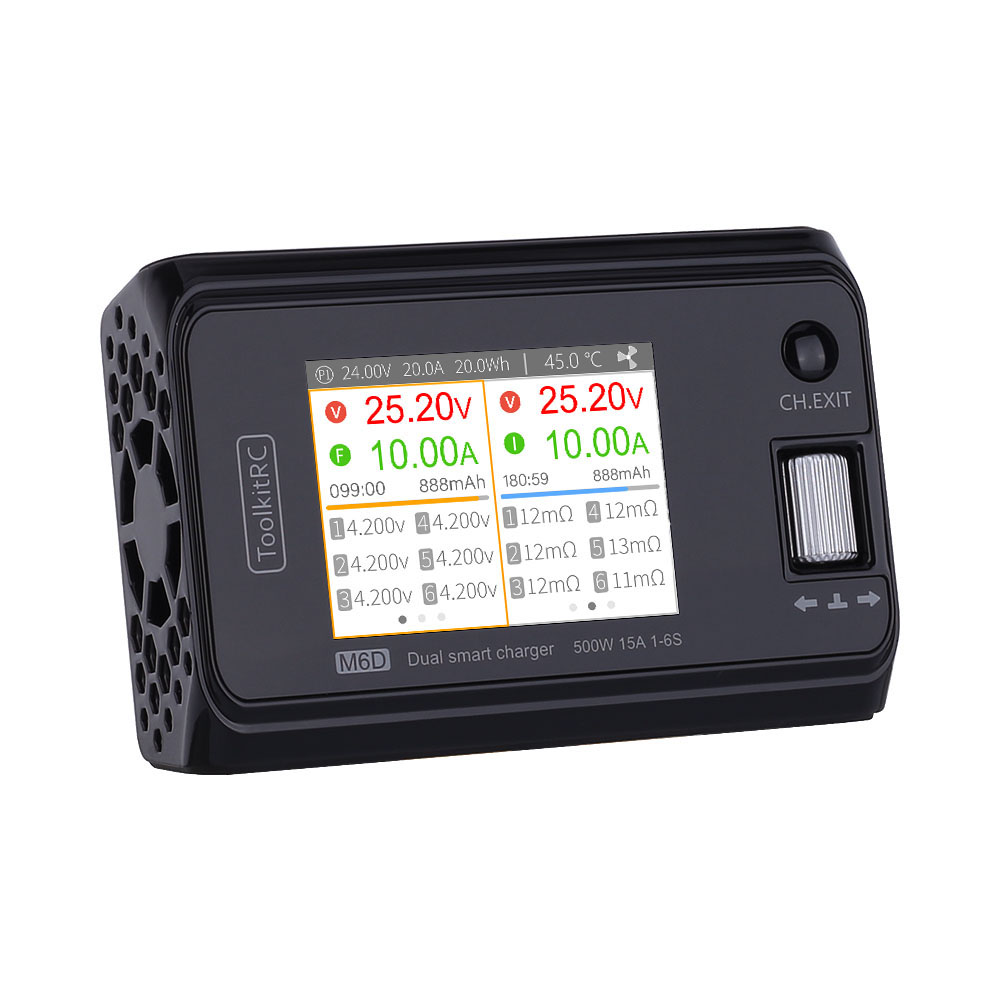

LCD Display: IPS 2.4inch LCD 320*240 pixel


Features:
Protection: overcharge protection/overcurrent protection/temperature protection/overprotection/short circuit protection/overdischarge protection
Indicator status: screen display, incremental display when charging, full display when fully charged
Characteristic function: measuring battery voltage, battery internal resistance, lithium battery balance management

The charger supports two discharge modes: 1) Normal discharge mode, discharging through internal thermal consumption, supporting a maximum of 3.0A@12W discharge. 2) Recycling discharge mode, when the input is a battery power source, the power will be recycled to the input battery through this function, supporting a maximum of 15.0A@250W discharge. 3) Recycling discharge mode, when the input is a battery power source, the power will be recycled to the input battery through this function, supporting a maximum of 15.0A@250W discharge.


Product Overview:

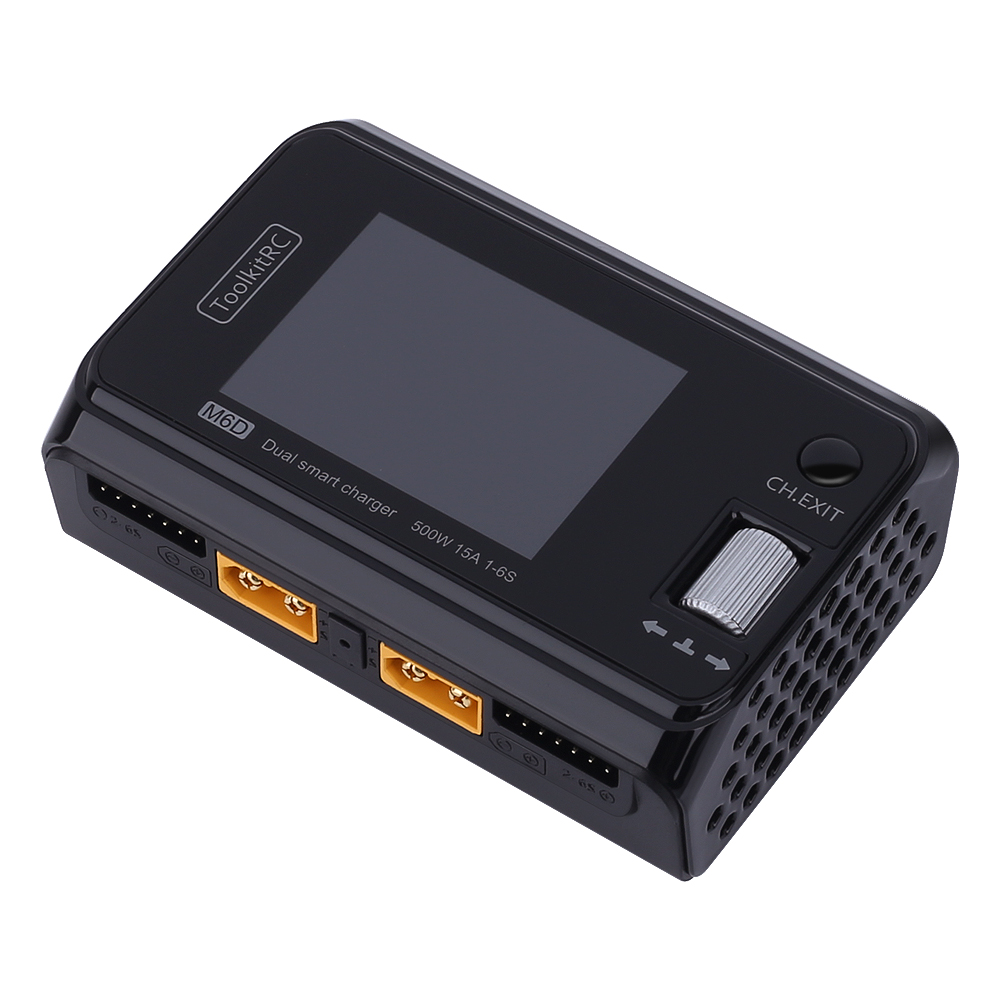

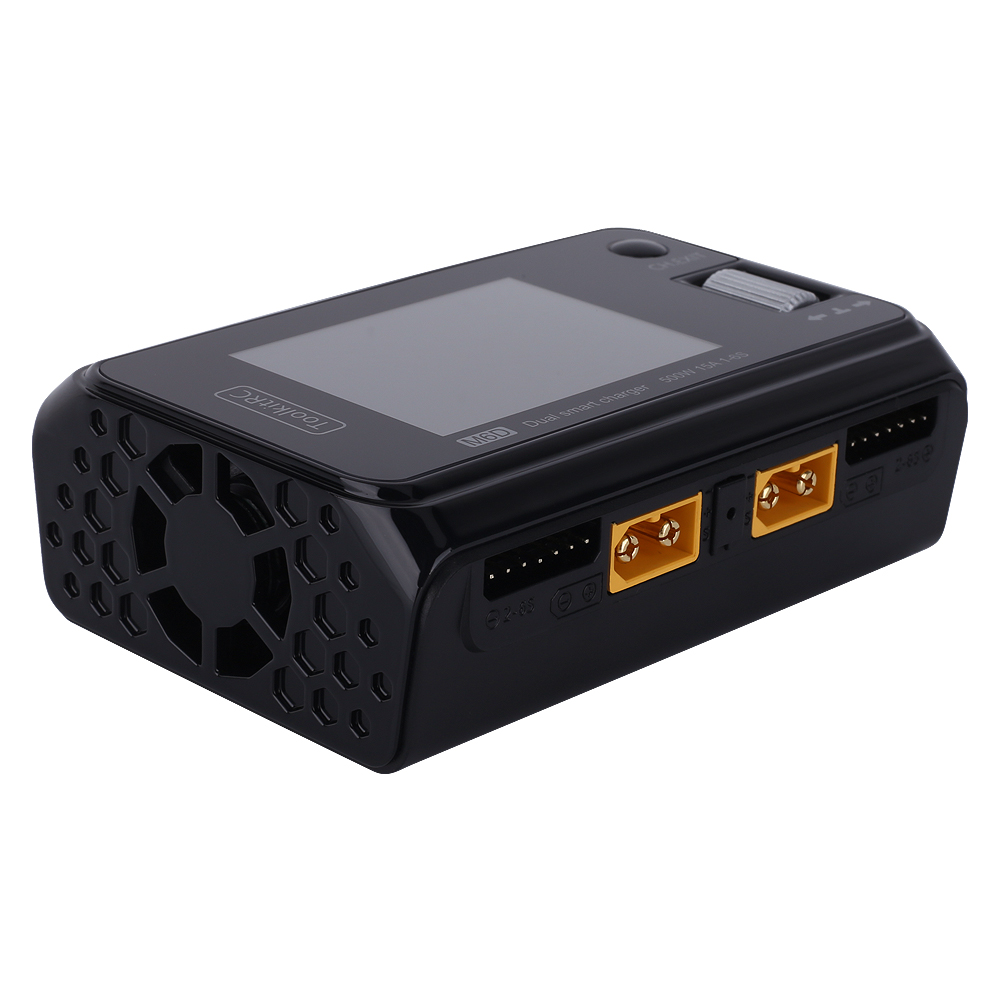

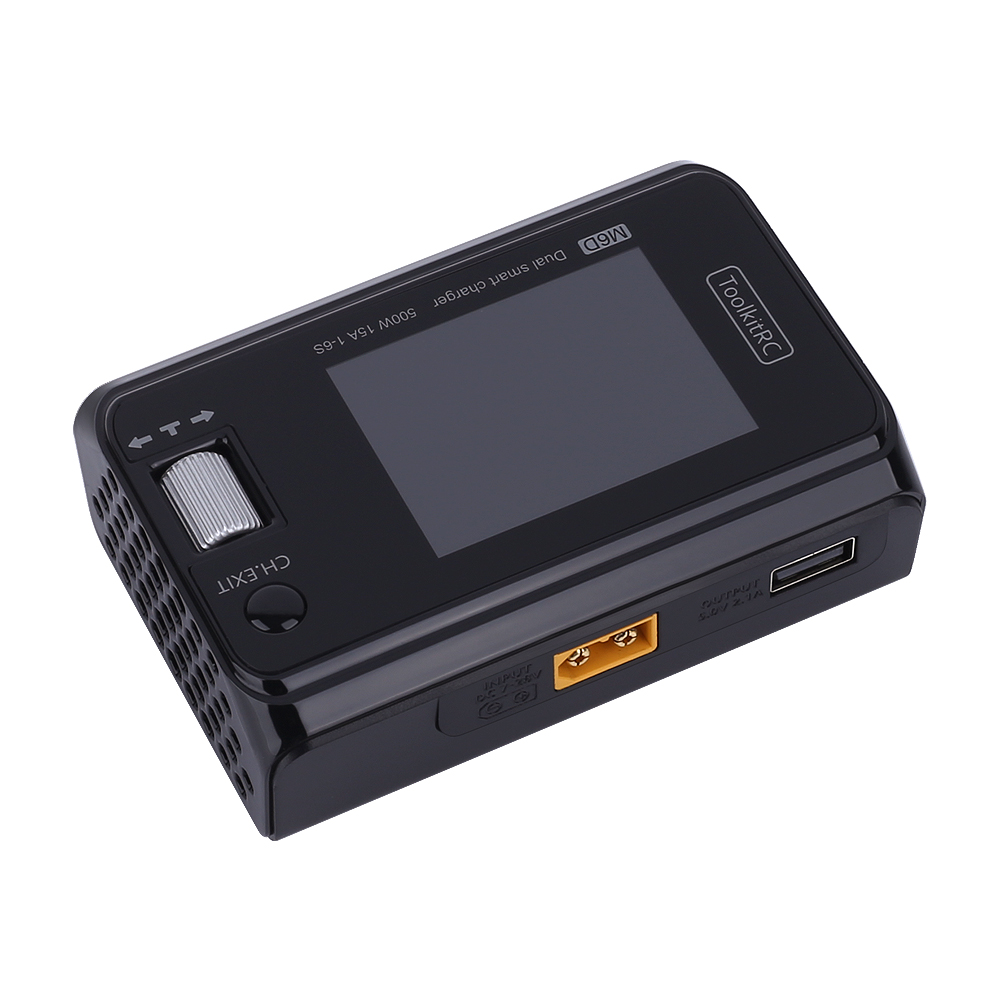

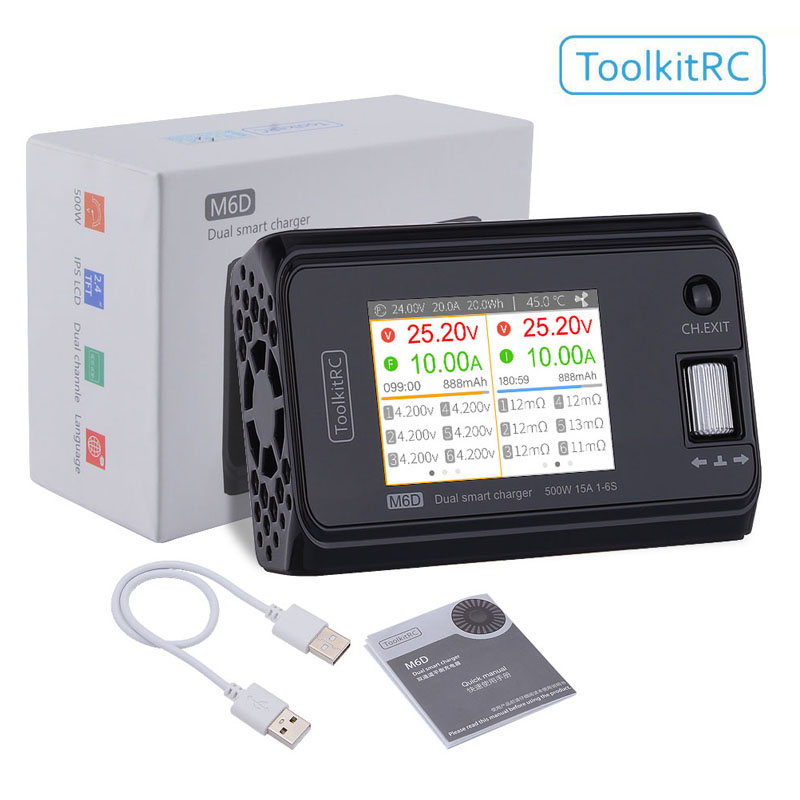

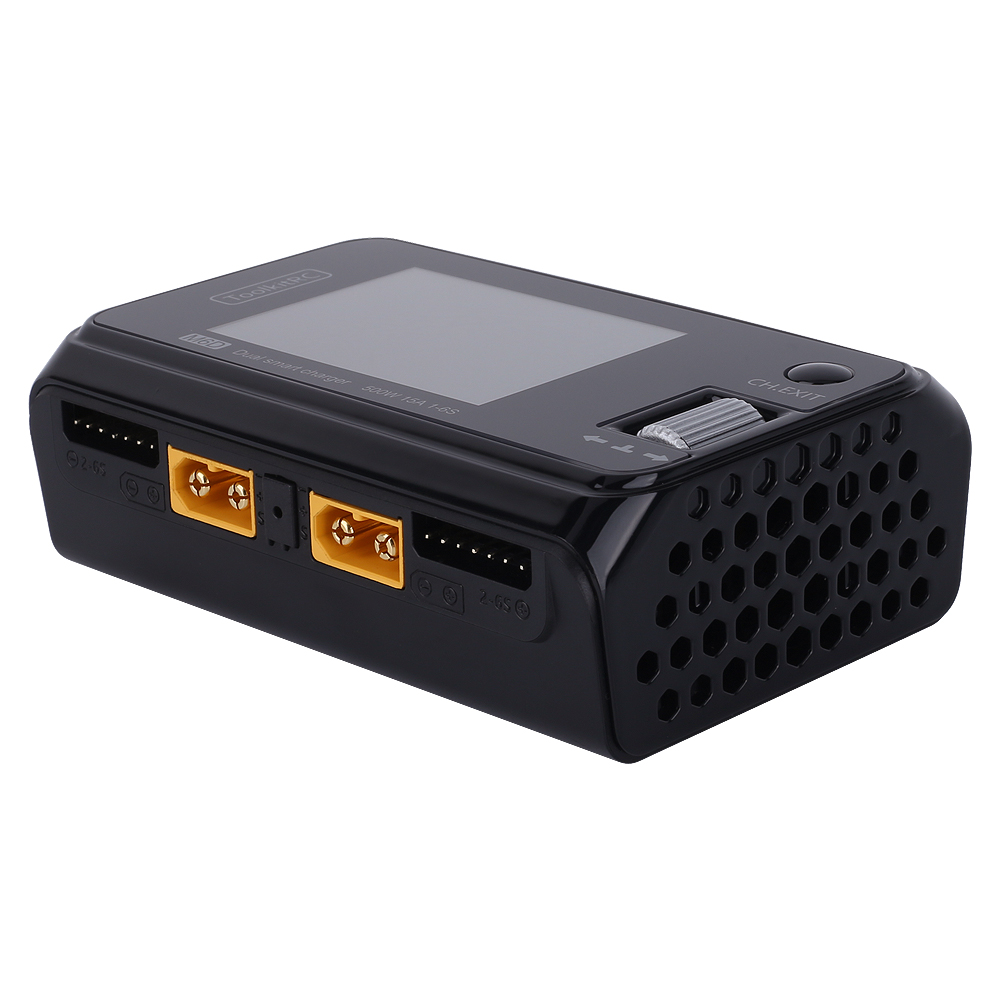

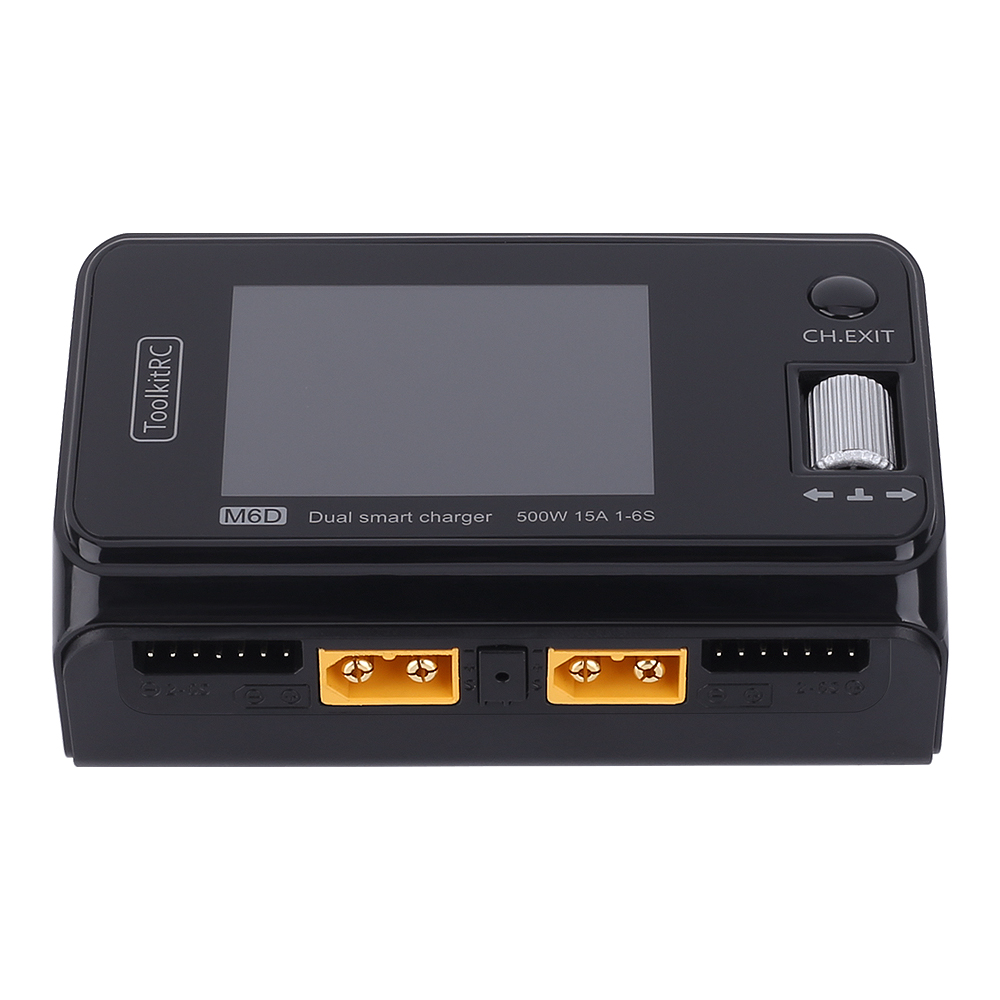

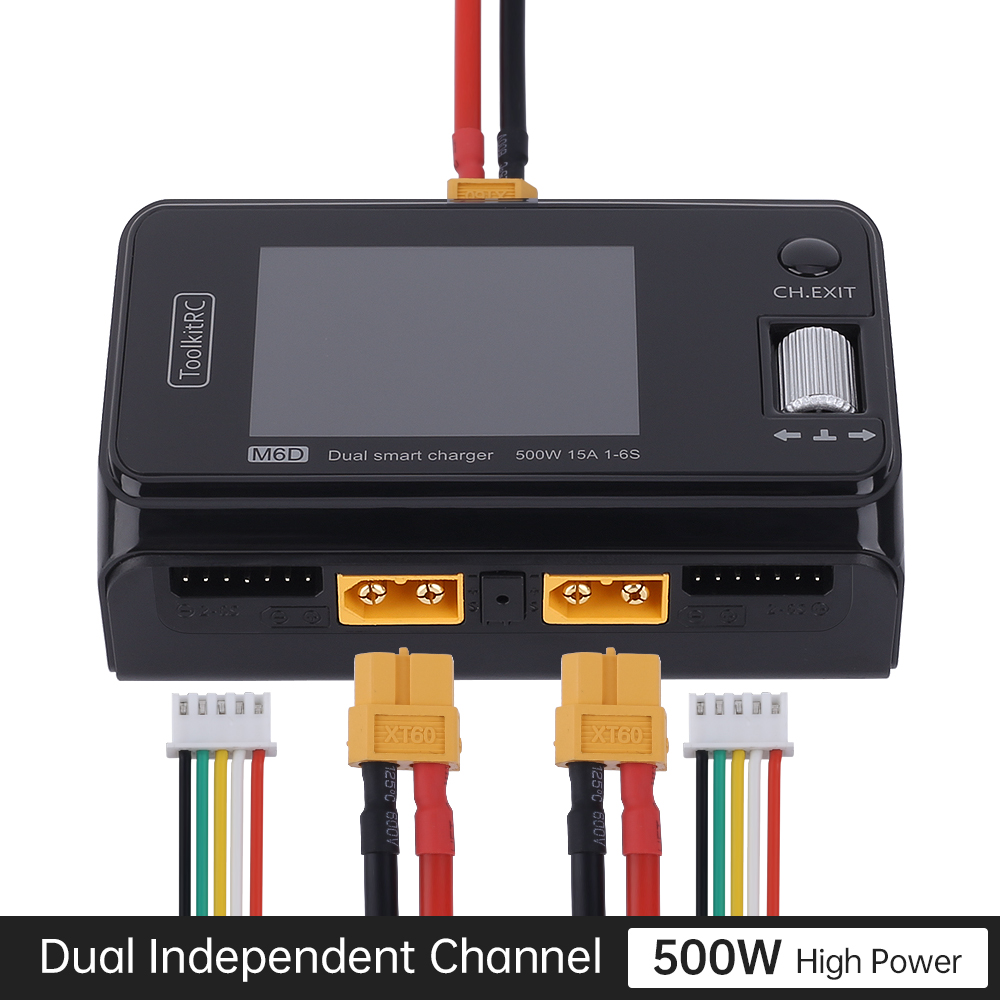

M6D is a dual-channel balanced charger product. Small size, high power density, revolutionary design, charging accuracy can be as low as 5mV.
It can charge, discharge and balance LiPo, LiHV, LiFe Lion 1-6S, NiMh 1-16S, PB 1-10S batteries.

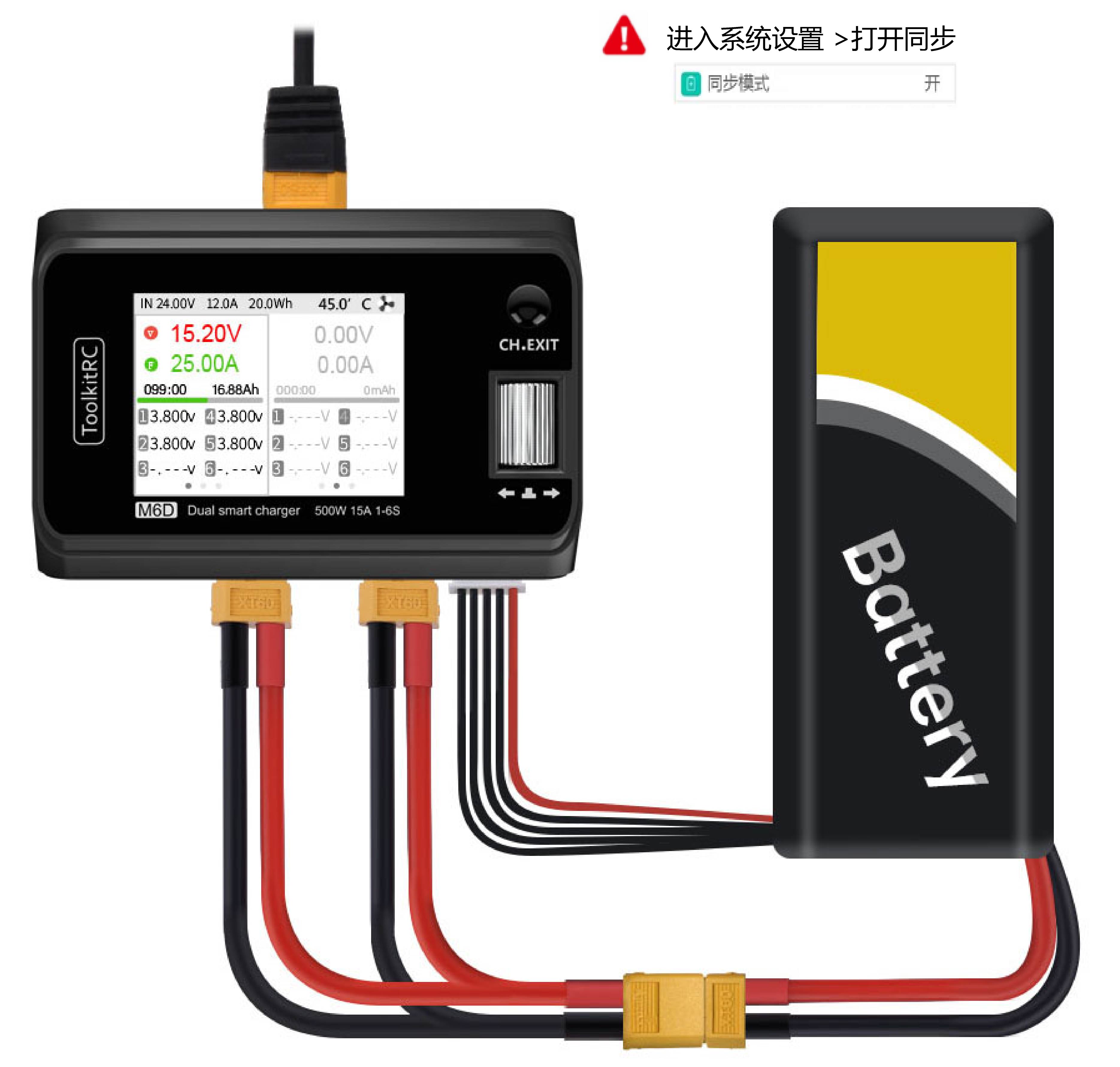

Charge current: Synchronous mode max 25A @MAX50Ow
Asynchronous mode max. 15A @MA×250W
Discharge current: Recycle mode max 15A @250W *2
Normal mode max. 3A @12W *2
Li-ion battery cut-off voltage can be set (TVC function)
Measurable battery voltage, battery internal resistance, lithium battery balance management
Constant current and constant voltage source output, customizable 1-28V constant voltage, 1-15A constant current can be adapted to mainstream drone batteries, automatic activation and charging.

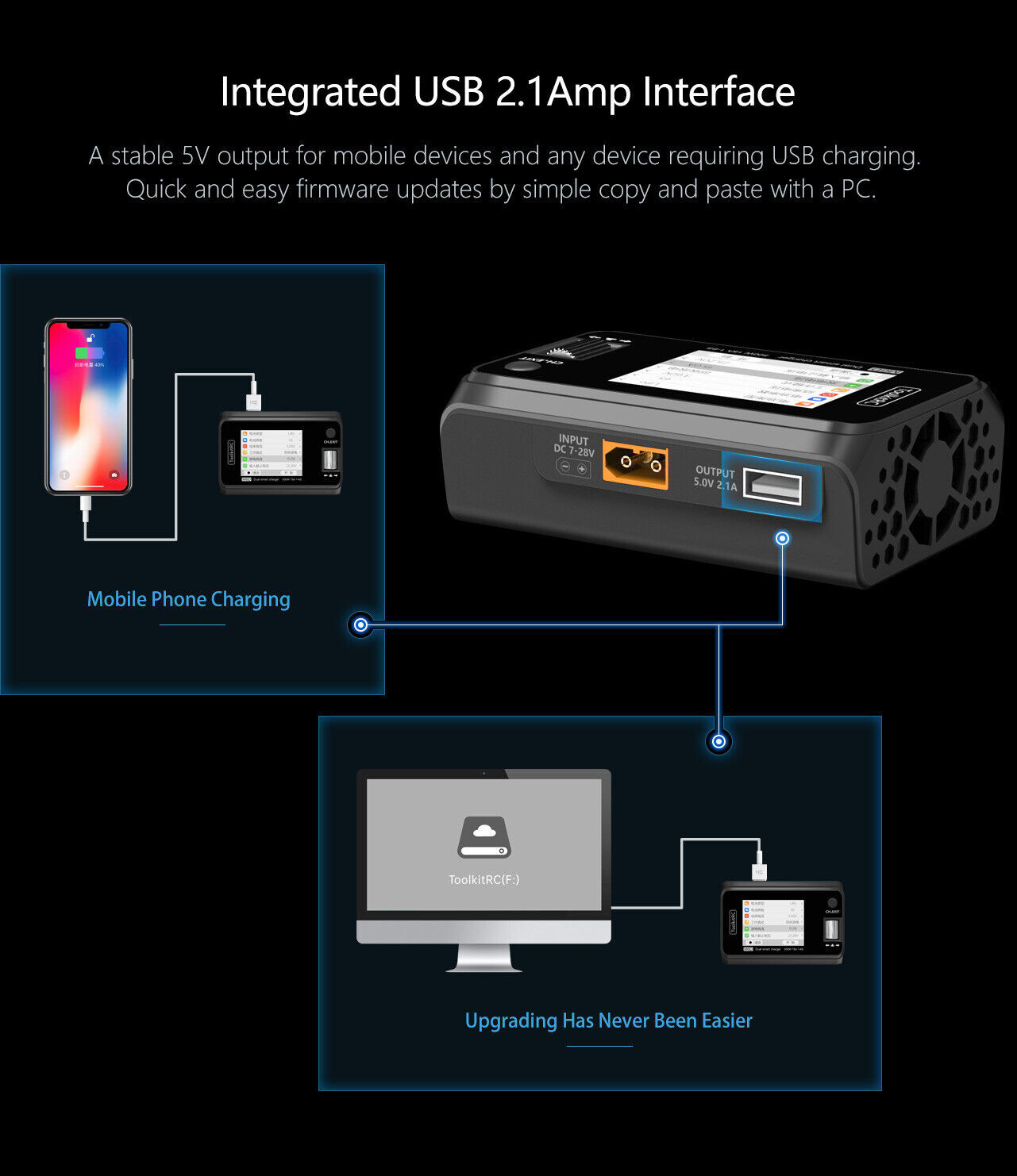

Multi-language system, can arbitrarily upgrade the required language USB 2.1A@5.0V output, rechargeable mobile devices.
The device is simulated as a U disk, copy the upgrade file to realize the product firmware upgrade
