Description:

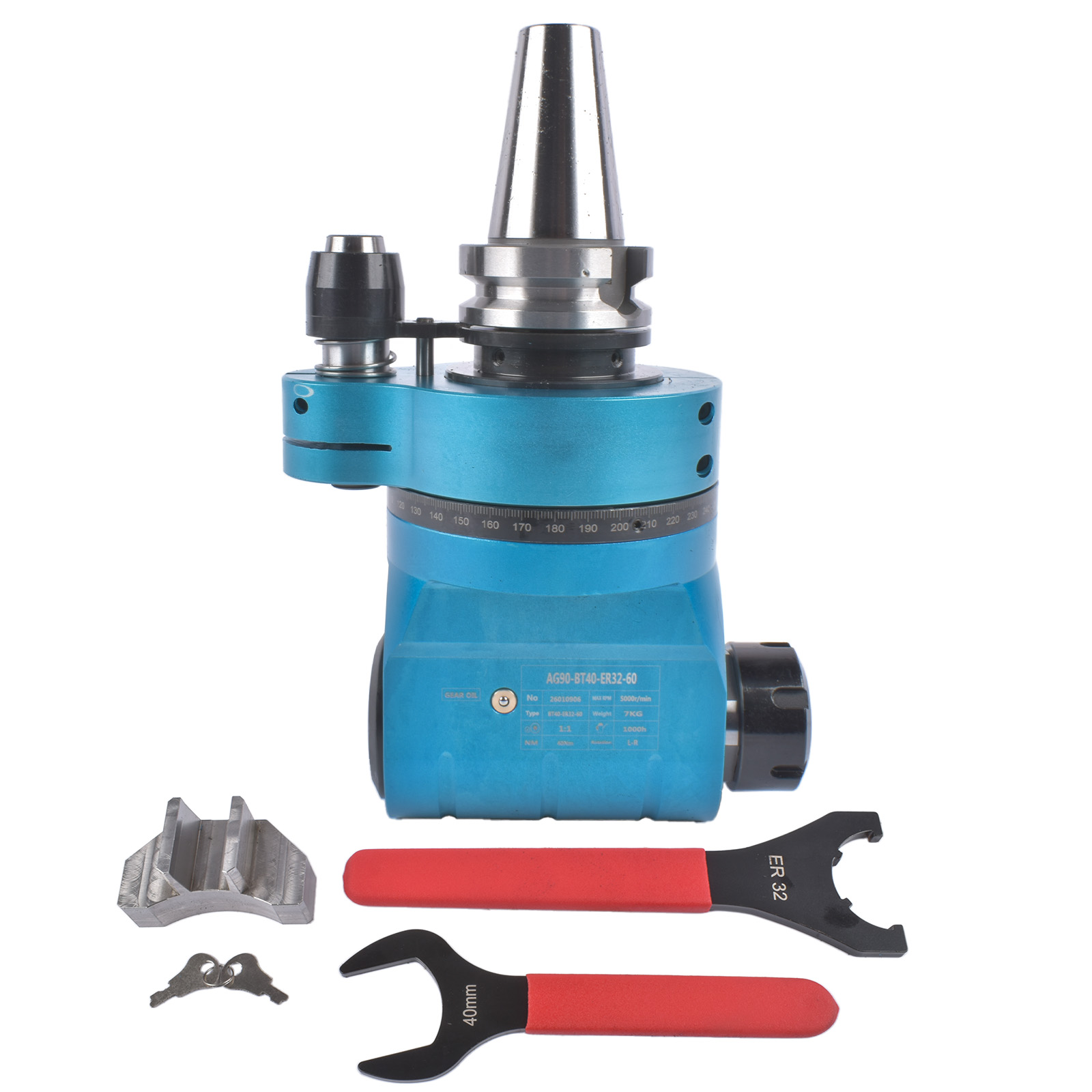

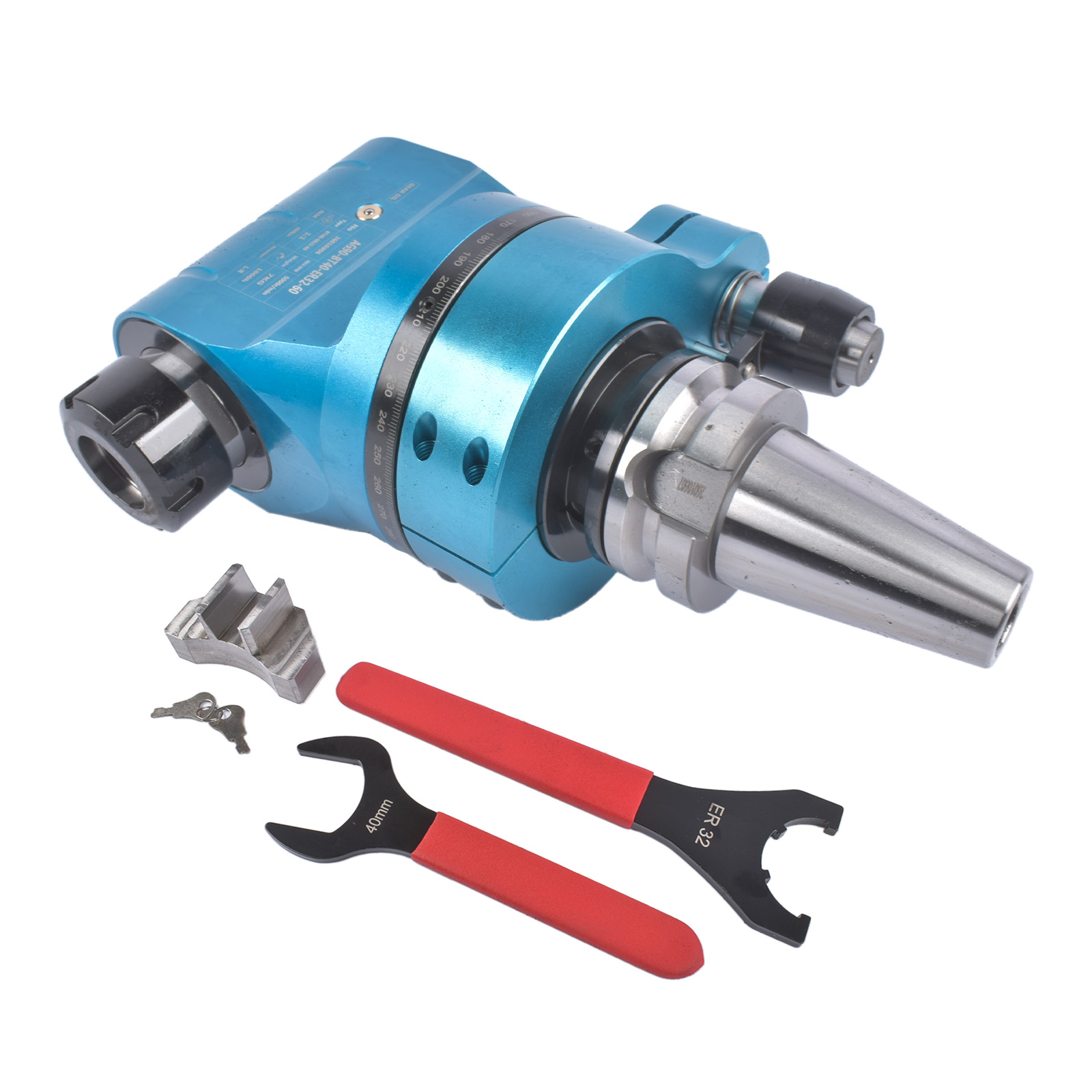

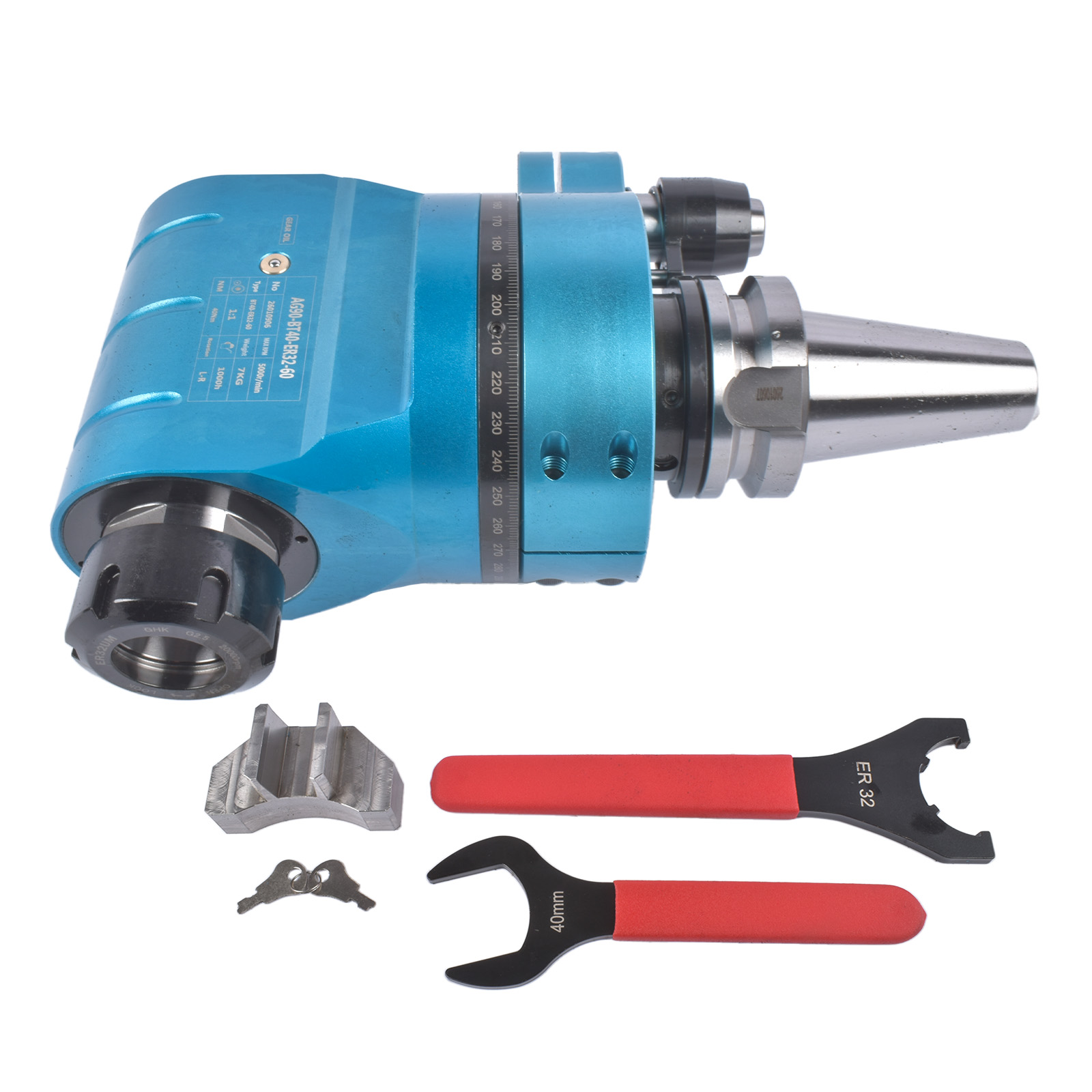

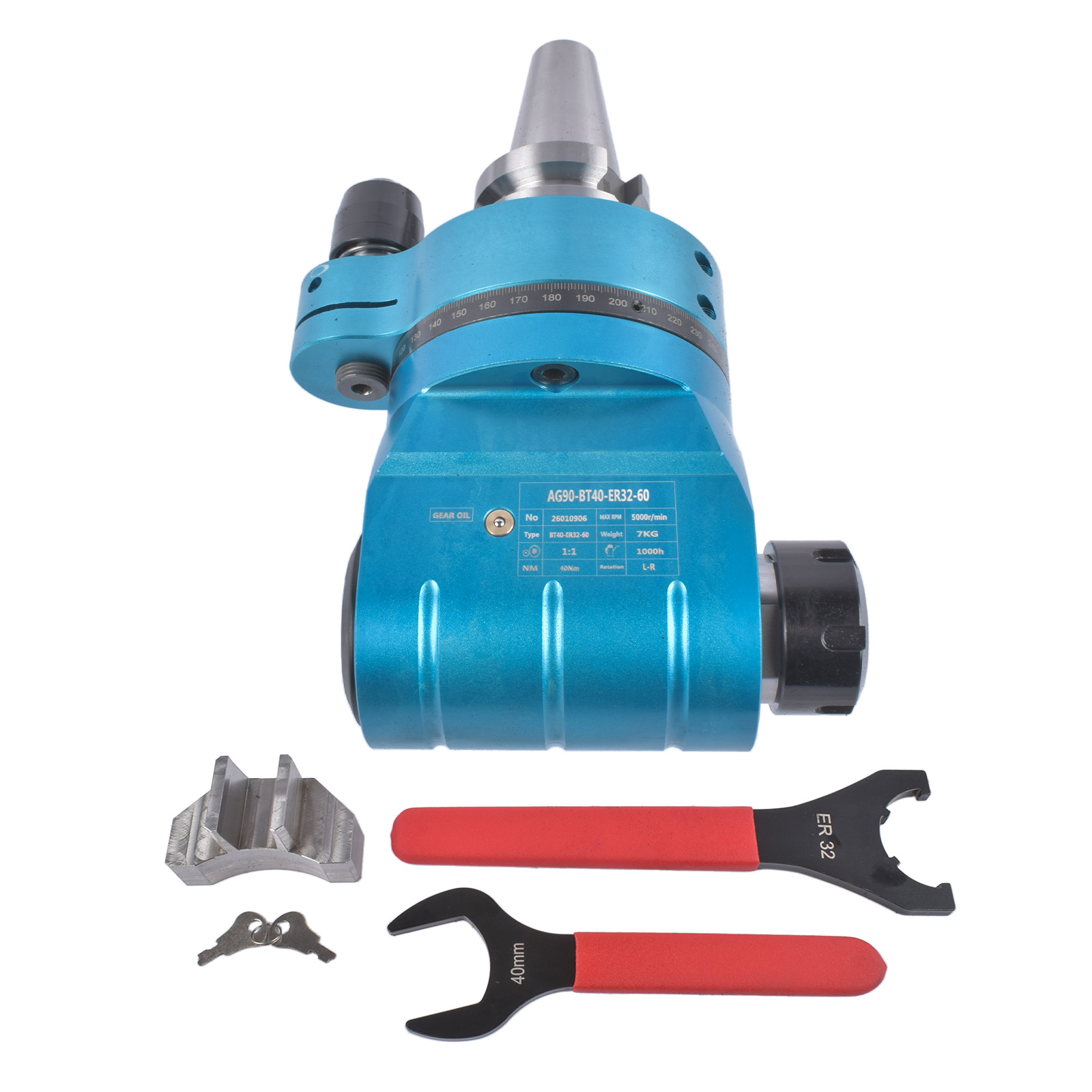

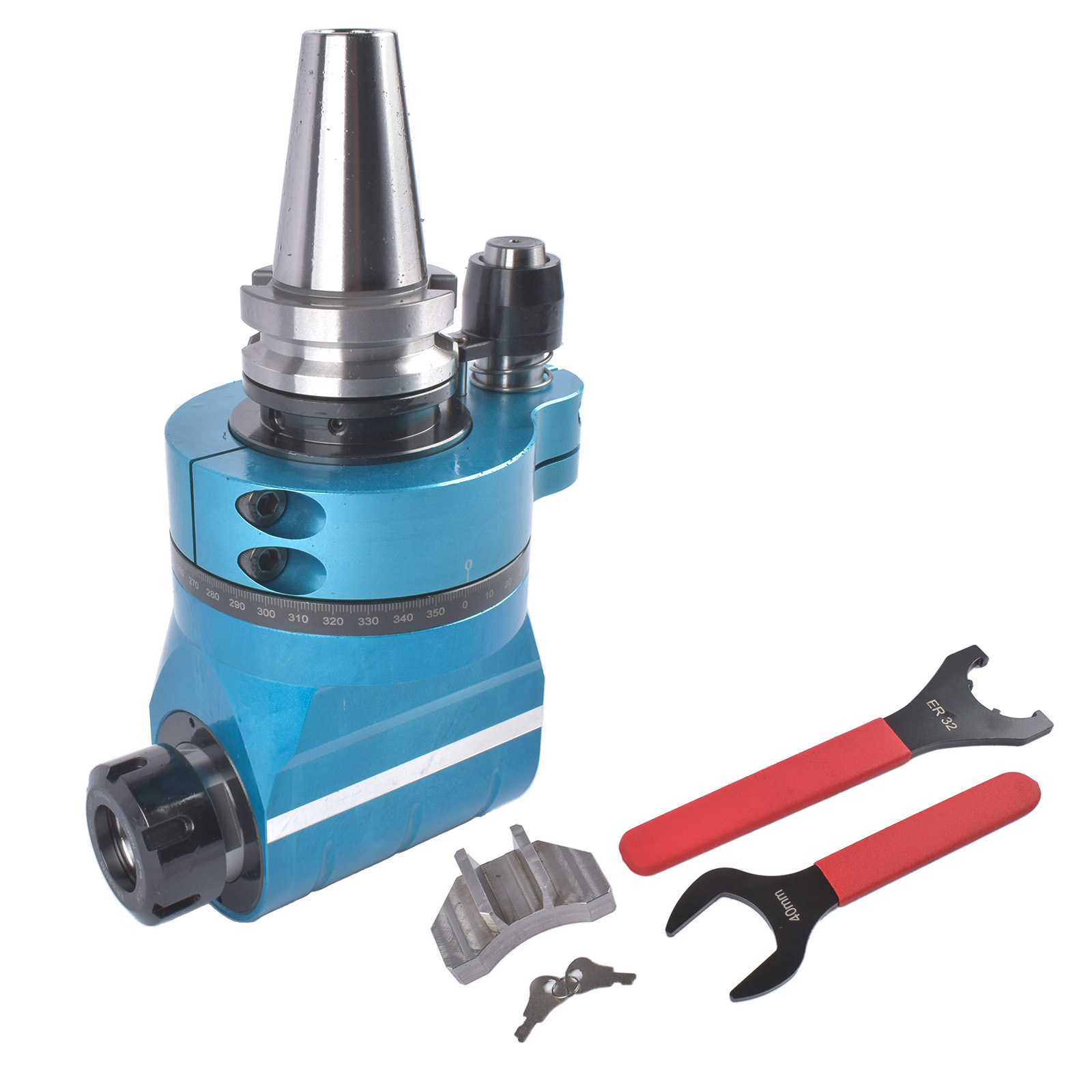

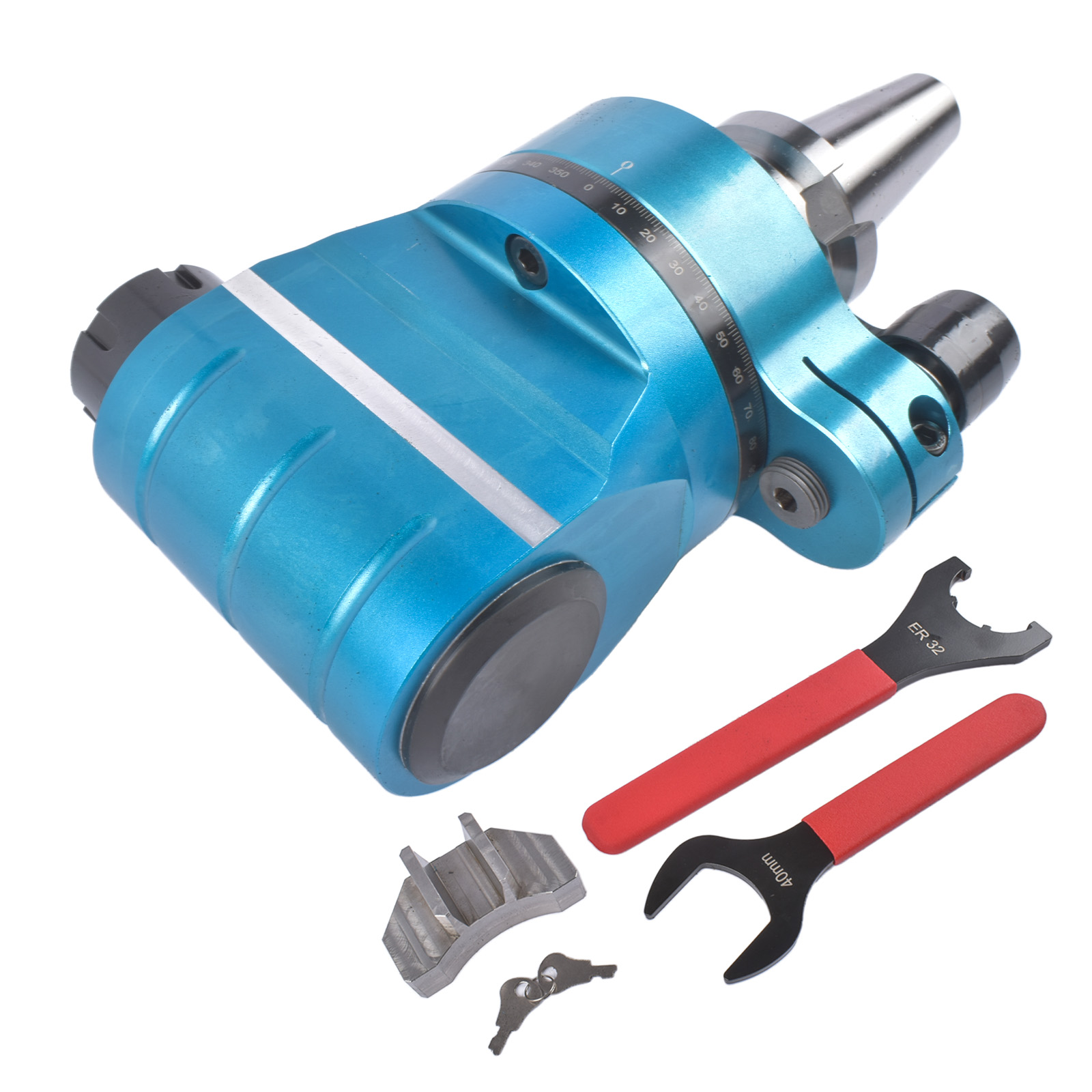

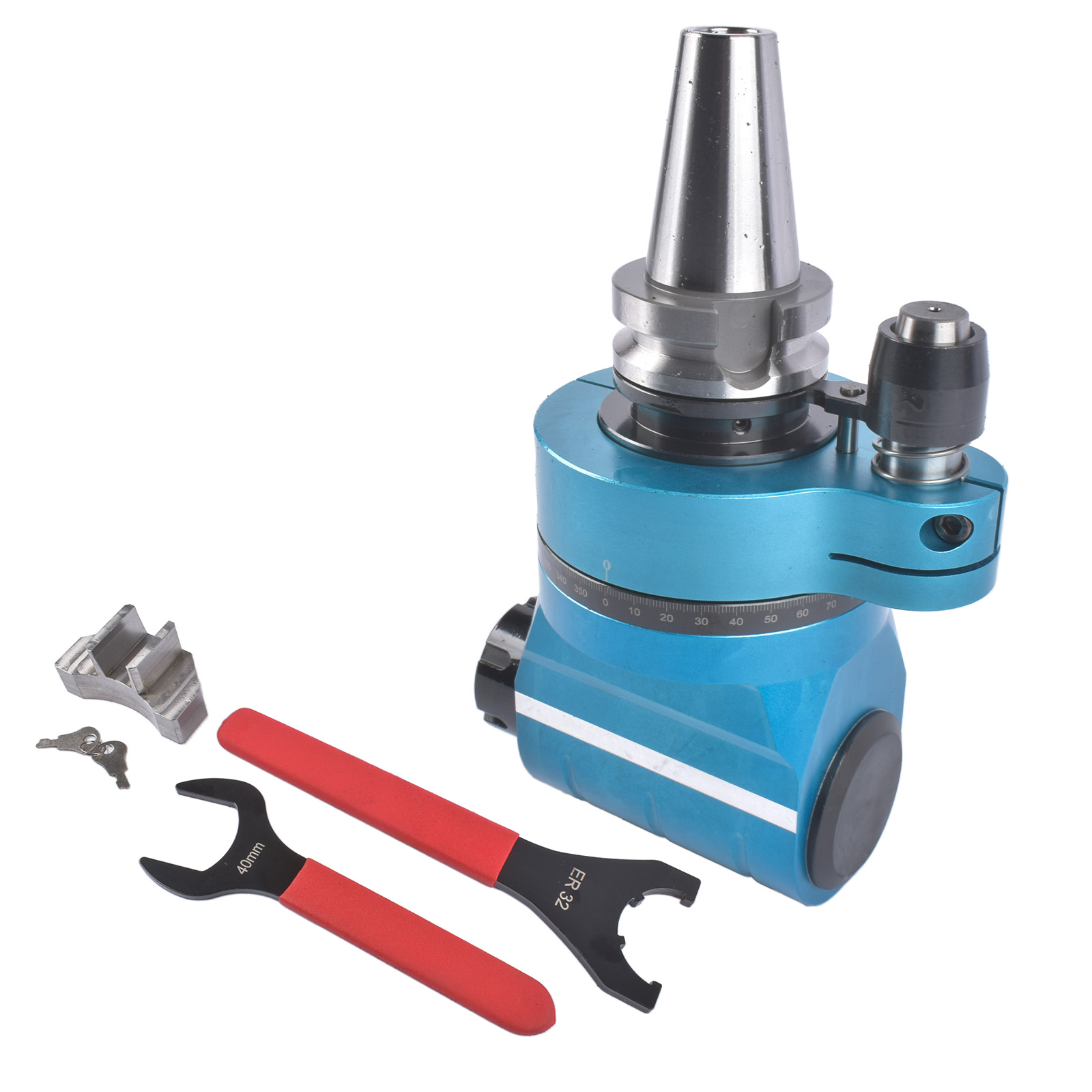

Angle head is a kind of machine tool accessory, the machine tool installed with the angle head can rotate the center line of the tool and the spindle rotation center line at an angle to process the workpiece. The use of angle head, without changing the structure of the machine tool can increase its processing range and adaptability, so that some of the traditional methods difficult to complete the processing can be achieved, and can reduce the workpiece repeated clamping, improve processing accuracy and efficiency. It is widely used in various fields of machining, such as aviation, automobile, mold and die.

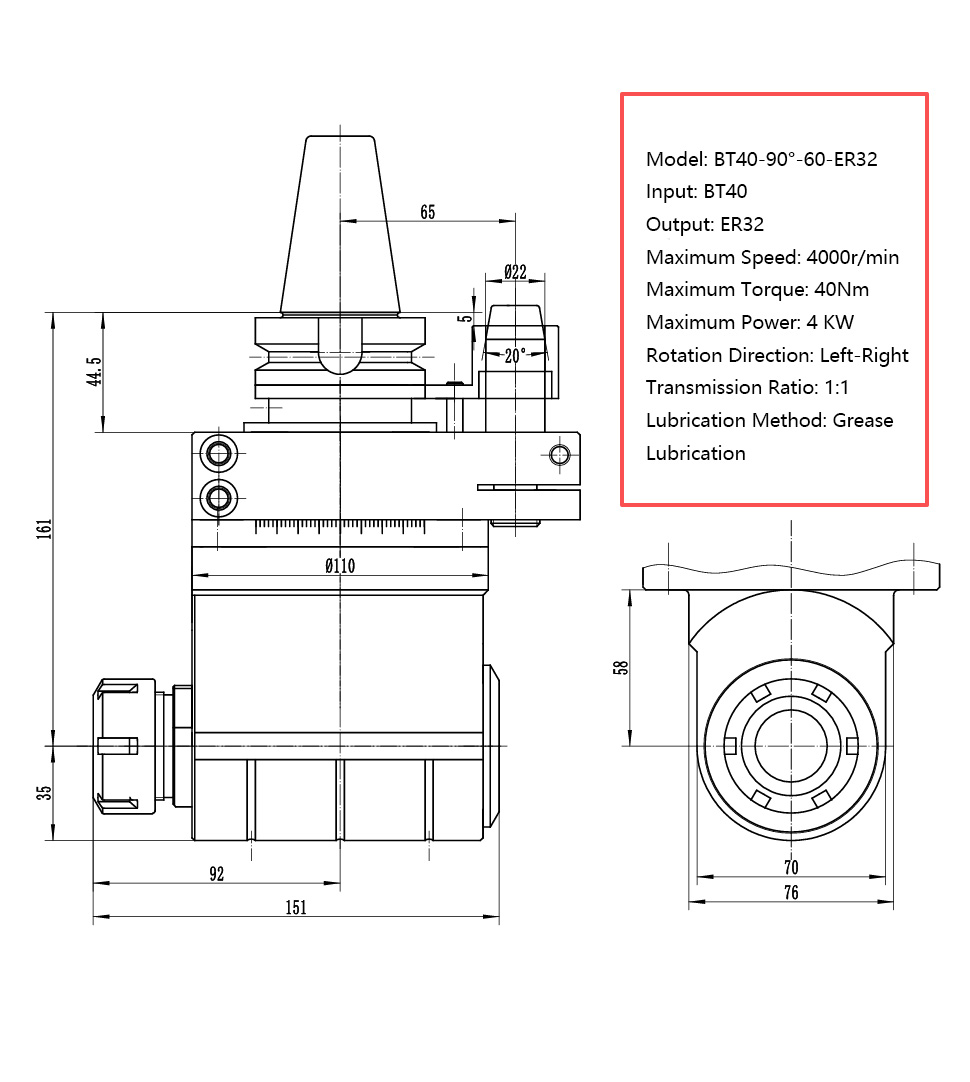

Specifications:

Model: BT40-90°-60-ER32

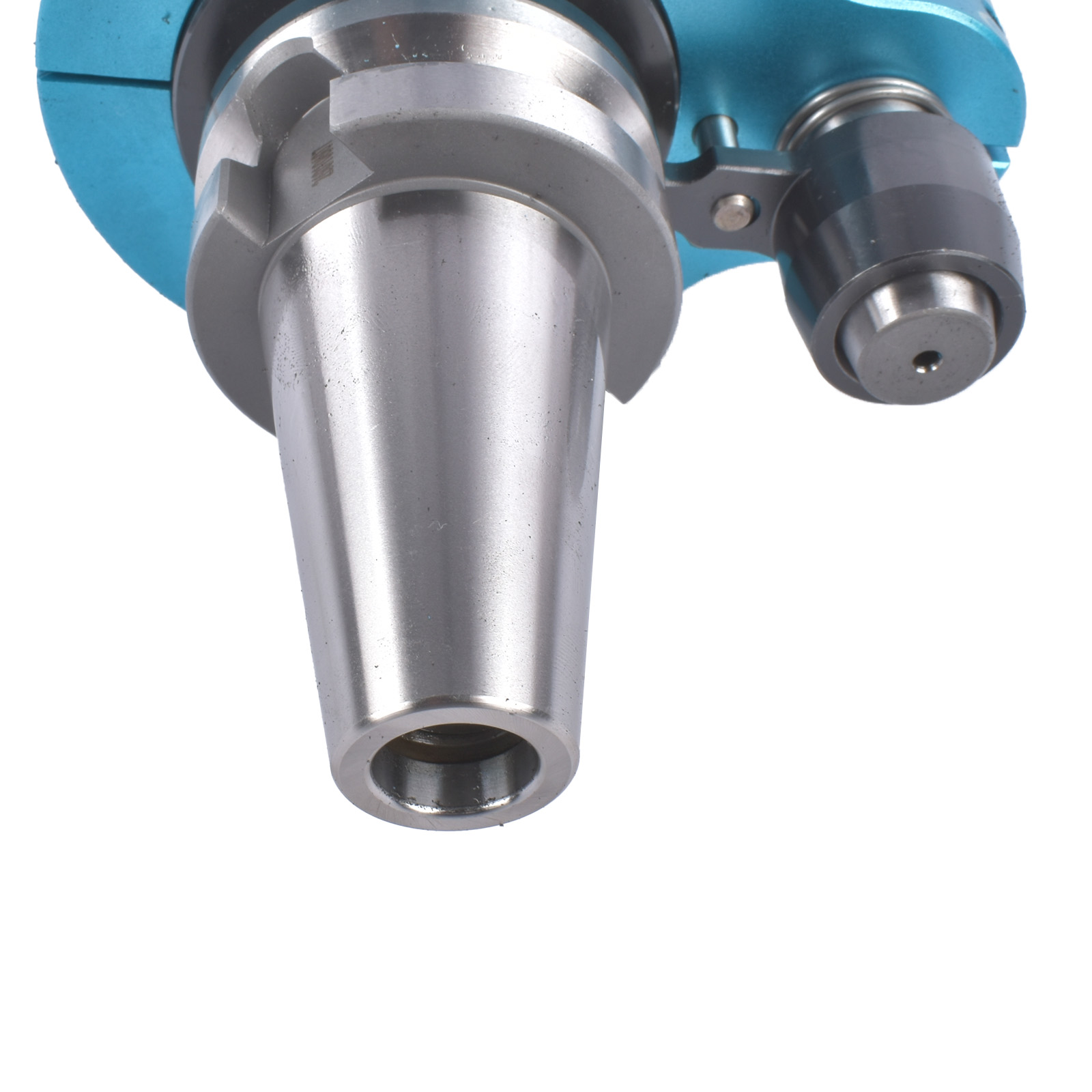

Input: BT40

Output: ER32

Maximum Clamping: φ20mm

Maximum Torque: 40Nm

Maximum Speed: 4000r/min

Transmission Ratio: 1:1

Installation Method: Fixed Support

Lubrication Method: Grease Lubrication

Material: Aviation Aluminum + 40Cr

OE Number:

BT40-90°-60-ER32
