Features:

• 1.【Easy Installation Auto】Equipped with buckle, easy to install in all kinds of electrical engineering, as long as you have a 13mm*19mm hole.

• 2.【10000 Times ON-OFF Operating Life】Made of high quality polyamide eP(Nylon PA66) , this sturdy mini boat rocker switch is born for anti-corrosion,anti-acid and high resistant with brass terminals.

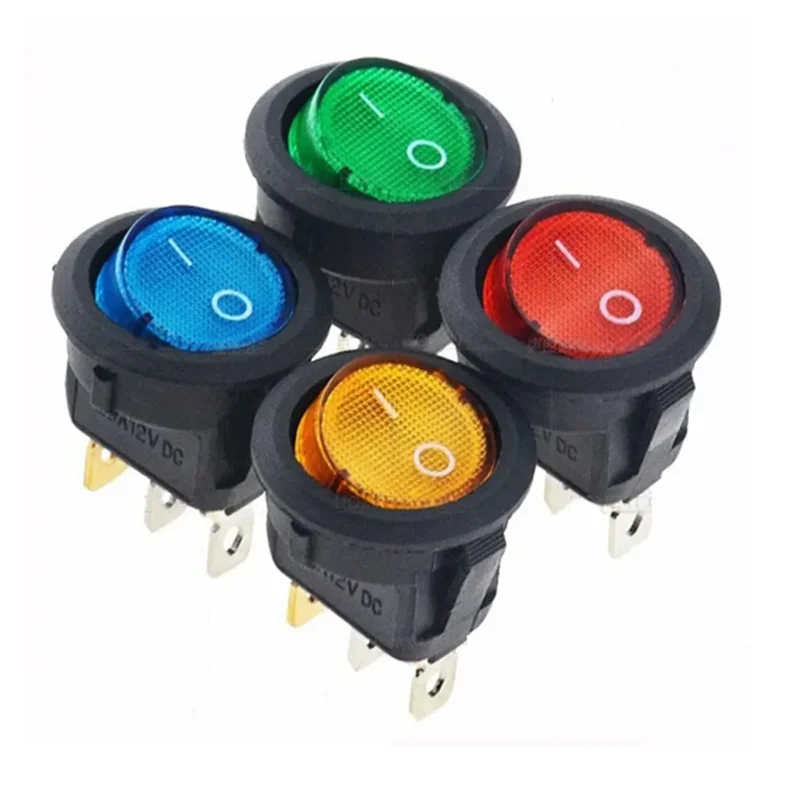

• 3.【Common Type】8Pcs SPST, ON-OFF, 3 Pins, Red/Blue/Green/Yellow each 2pcs

• 4.【Voltage】AC 250V/6A ; 125V/10A.

• 5. using rocker switch size】size: 23x28.5mm/ 0.9 "x 1.12" mounting hole size: 19mm/ 0.75 "(diameter)

Specification:

• Mainly used in water dispenser, treadmill, speaker, battery car, motorcycle, TV, coffee pot, row plug, massage machine, etc.

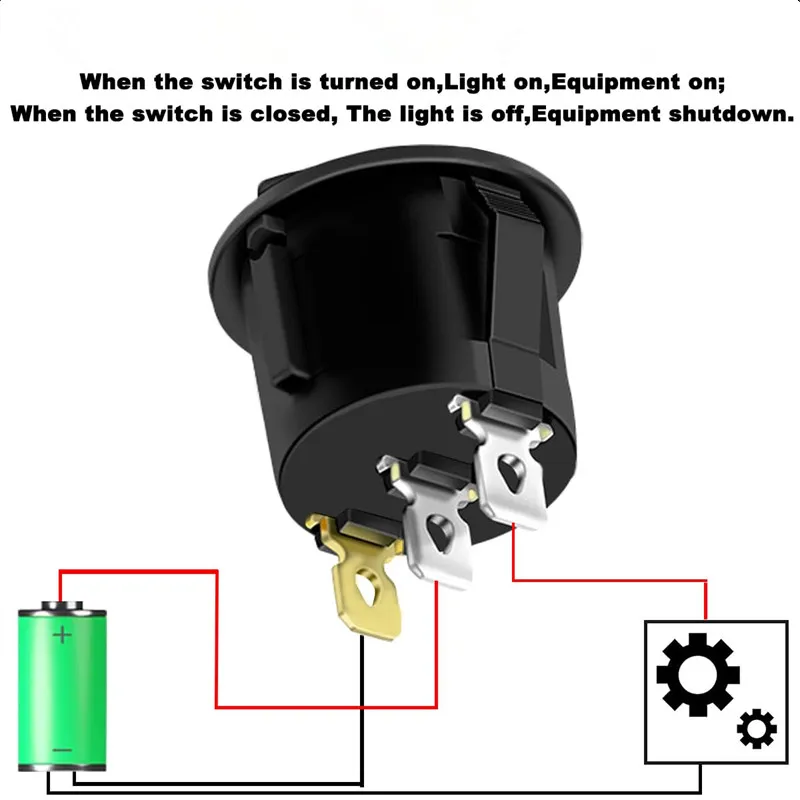

• SPST on-off control and 3 terminals.

• Color: black/red LED

• Material: Plastic + Copper

• Performance parameters

• Pannel Hole Diameter: 19mm/0.75"

• Electrical Ratings 10A/125VAC；6A/250VAC

• Electrical Life 10,000 cycles typical

• Contact Resistance <50 mΩ initial

• Dielectric Strength 1500Vrms min

• Insulation Resistance > 100MΩ min

• Operating Temperature -25°C to 85°C

• Storage Temperature -25°C to 85°C

Package included:

• 8Pcs SPST, ON-OFF, 3 Pins, Red/Blue/Green/Yellow each 2pcs
