B2 Audio 15" 400W RMS 4-Ohm DVC Woofer + 4-Ohm Compression Horn Hybrid Speakers

B2 Audio RAGE CXP 15" 400W RMS 4-Ohm DVC Woofer + 4-Ohm Compression Horn Hybrid Speakers

This Listing Includes:

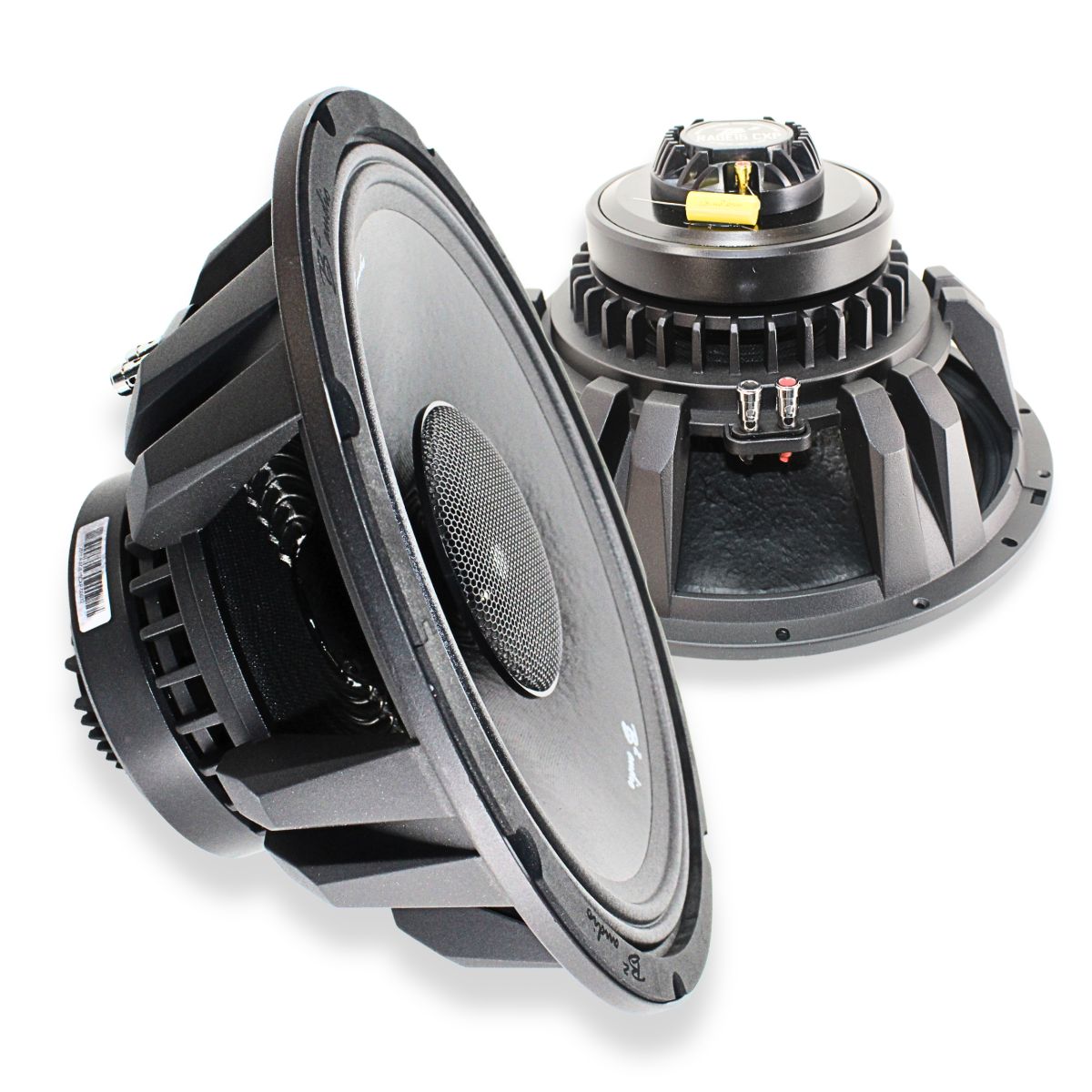

• (2) B2 Audio RAGE15CXP 15" Full-Range Hybrid Speakers

The B2 Audio RAGE15CXP is a full-range hybrid pro audio speaker designed to deliver powerful midbass, aggressive midrange output, and clear high-frequency projection in high-output car audio systems. Unlike typical coaxial speakers, the RAGE15CXP combines a dedicated 15" midrange woofer with a compression driver, giving you the punch of a pro audio mid and the clarity of a horn driver in one speaker.

Each speaker features a large 2.5" aluminum voice coil on the midwoofer and a 1.75" aluminum voice coil in the compression driver, allowing the speaker to handle 400 watts RMS while maintaining clarity at high volume levels.

Because the midwoofer and compression driver are separate components, the RAGE15CXP can be bi-amped. This allows installers to power the woofer and compression driver separately for greater tuning flexibility and system control. For simple installations, each speaker also includes a capacitor designed to block low frequencies from reaching the compression driver.

With 92 dB sensitivity and a wide frequency response up to 18 kHz, the RAGE15CXP delivers strong midbass, aggressive mids, and crisp highs that cut through heavy bass systems. The large 15" cone provides additional output and impact, making this speaker ideal for pro audio door builds, demo vehicles, wall builds, and high-output daily driver systems.

Features

• Hybrid 2-Way Design - Pro audio midwoofer + compression driver


• 400W RMS / 800W MAX per speaker


• 2.5" Aluminum Midwoofer Voice Coil


• 1.75" Aluminum Compression Driver Coil


• 92 dB Sensitivity


• Wide 50 Hz - 18 kHz Frequency Response


• 4 Ohm Impedance


• Designed for high-output front stages & extreme builds

Specifications:

• Model: RAGE15CXP


• Speaker Size: 15"


• Impedance: 4 Ohms


• Resonance (natural) Frequency: 25.8 Hz


• RMS Power: 400 Watts


• Peak Power: 800 Watts


• Frequency Response: 25 Hz - 18,000 Hz


• Sensitivity: 92 dB


• Voice Coil Diameter: 2.5"/ 63.5mm


• Tweeter Voice Coil Diameter: 1.75" / 44mm


• Voice Coil Material: Aluminum


• Magnet Weight: 60 oz

T/S PARAMETERS:

• Fs: 25.8 Hz


• Vas: 275 L


• Re: 1.7 Ohm


• Qms: 2.23


• Qes: 0.4878


• Qts: 0.4004


• BL: 8.9 T/m


• Mms: 140 g


• Xmax: 5 mm


• Sd (cm): 855 cm­­­


• Le (1k Hz): 0.7 mH


• Efficiency: 0.93%


• EBP: 52.89

Dimensions:

• Overall Diameter: 15.4" (393 mm)


• Bolt Circle Diameter: 14.9" (380 mm)


• Baffle Cutout Diameter: 14.2" (360 mm)


• Mounting Depth: 7.4" (188 mm)


• Overall Depth: 8.25" (209 mm)


• Net Weight (Pair): 15.21 lbs

Direct Replacement for RAGE15CXP Compression Driver:

Use B2-RAGE8CXP-RC as the correct replacement diaphragm for restoring clear, powerful highs and full performance.

Product Details

Brand	B2 Audio
Color	Black
Size	10 Inches
Style	Hybrid Coaxial Speaker
Manufacturer	B2 Audio
Mpn	B2-RAGE15CXP
