Description:
100% brand new

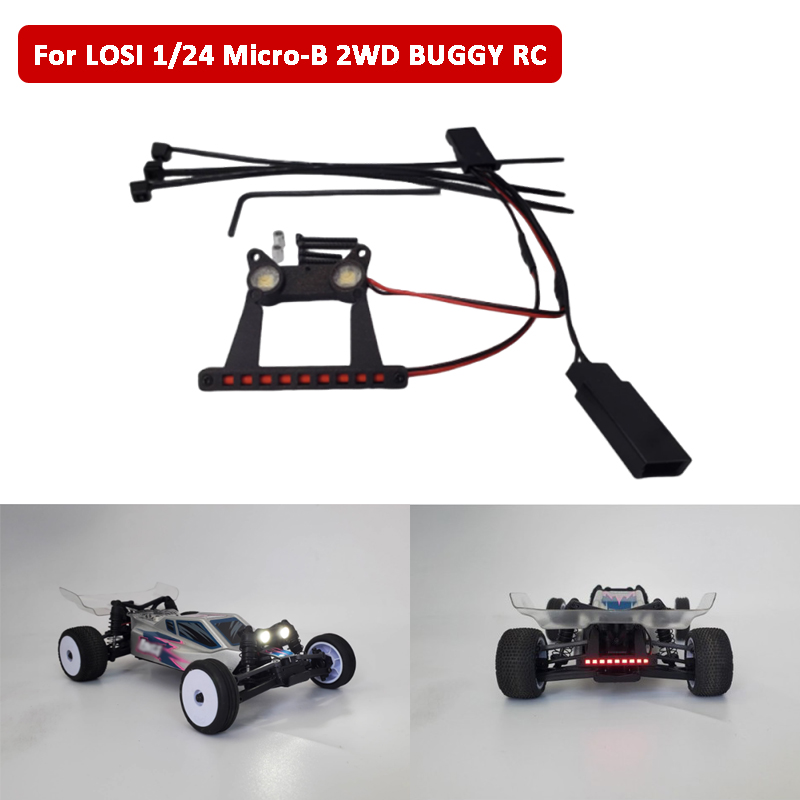

Name: Front and rear light assembly
Material: Nylon
Colour: Black
Compatible models: For LOSI 1/24 Micro-B 2WD BUGGY RC
Features:
1. Constructed from nylon material for a robust and durable housing.

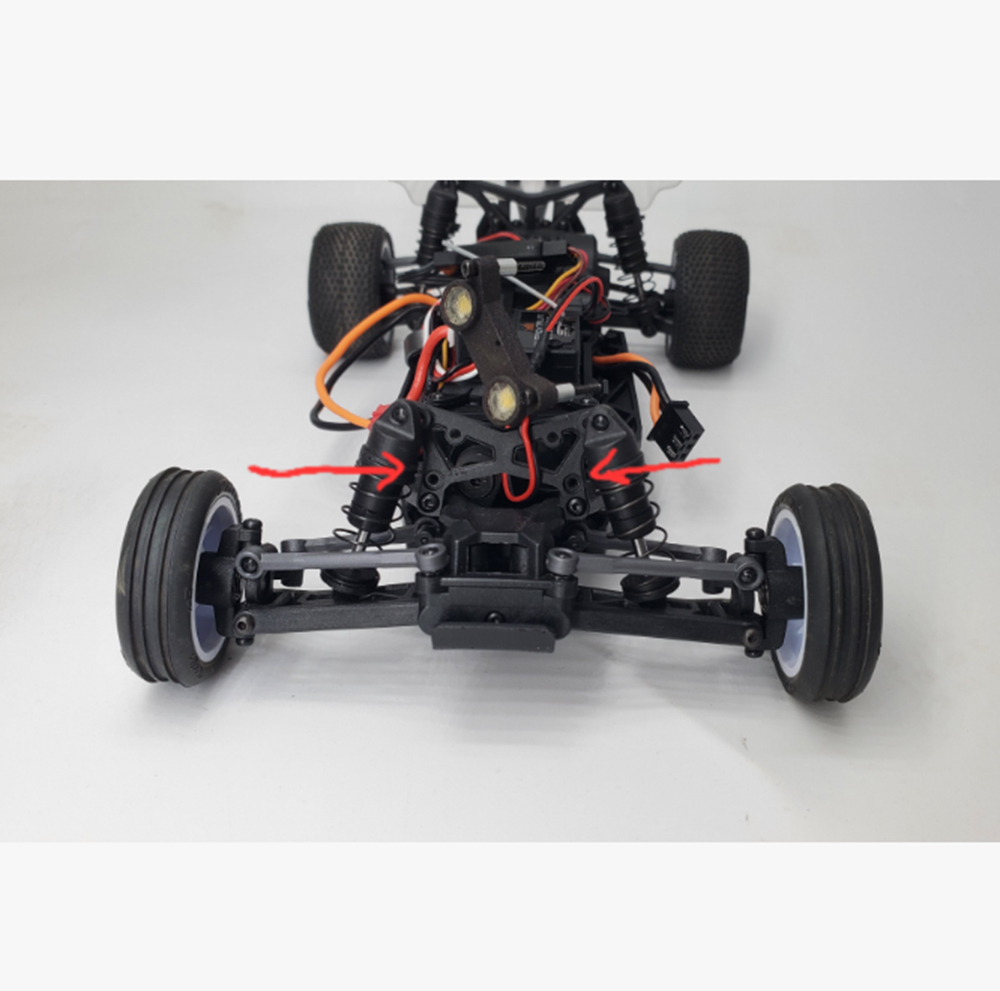

2. Installation method: Refer to detail image 2. Remove the front suspension mount fixing screws indicated by the red arrow.
3. Pass the front light through the centre of the suspension mount. Replace the two lower suspension mount screws. Thread the supplied 1.4×12mm screws through the front light's mounting holes. Insert the silver aluminium washers (included in the accessory pack) onto the protruding screw ends. Secure the front light to the suspension mount using the longer screws through the two mounting holes.

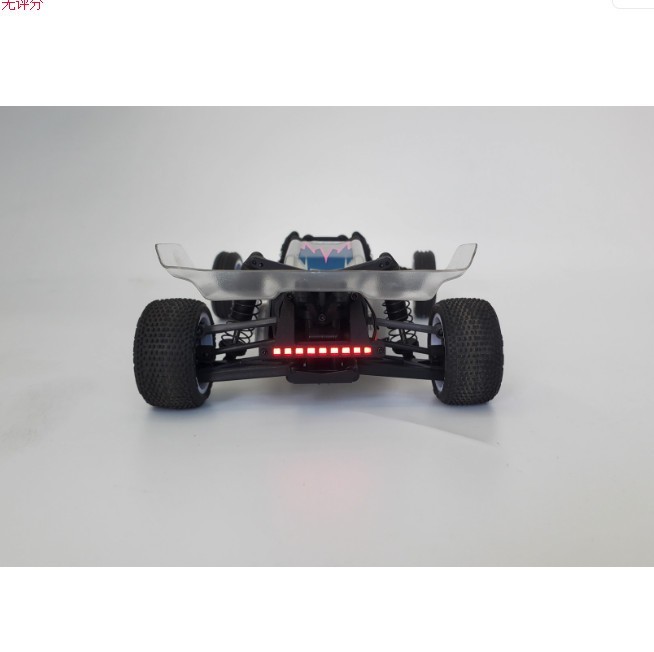

4. Rear light installation: Remove the two screws beneath the rear spoiler. Secure the rear light bracket using the two 1.4×8 screws supplied with the lights into the positions vacated by the removed screws. For wiring, simply unplug the factory servo connector and plug it into the female socket on the light assembly. Then plug the male connector from the light assembly into the female socket previously occupied by the servo.

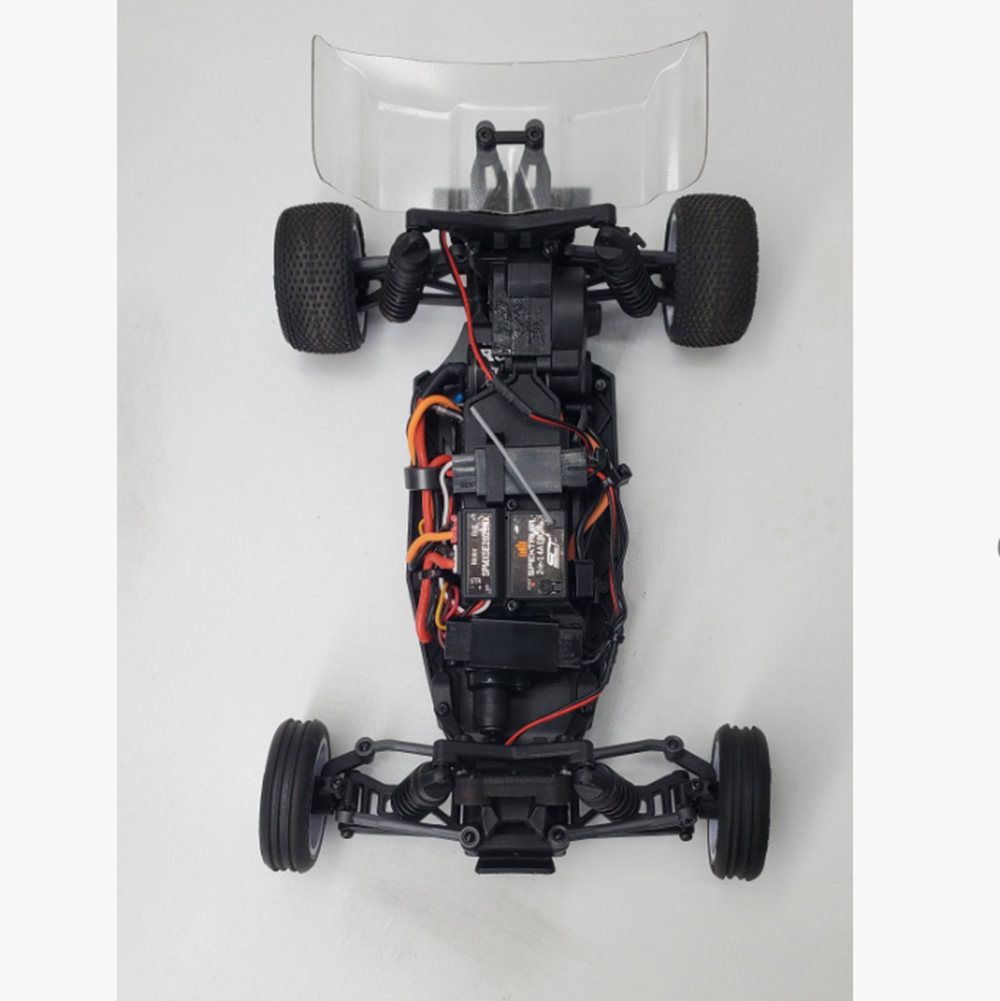

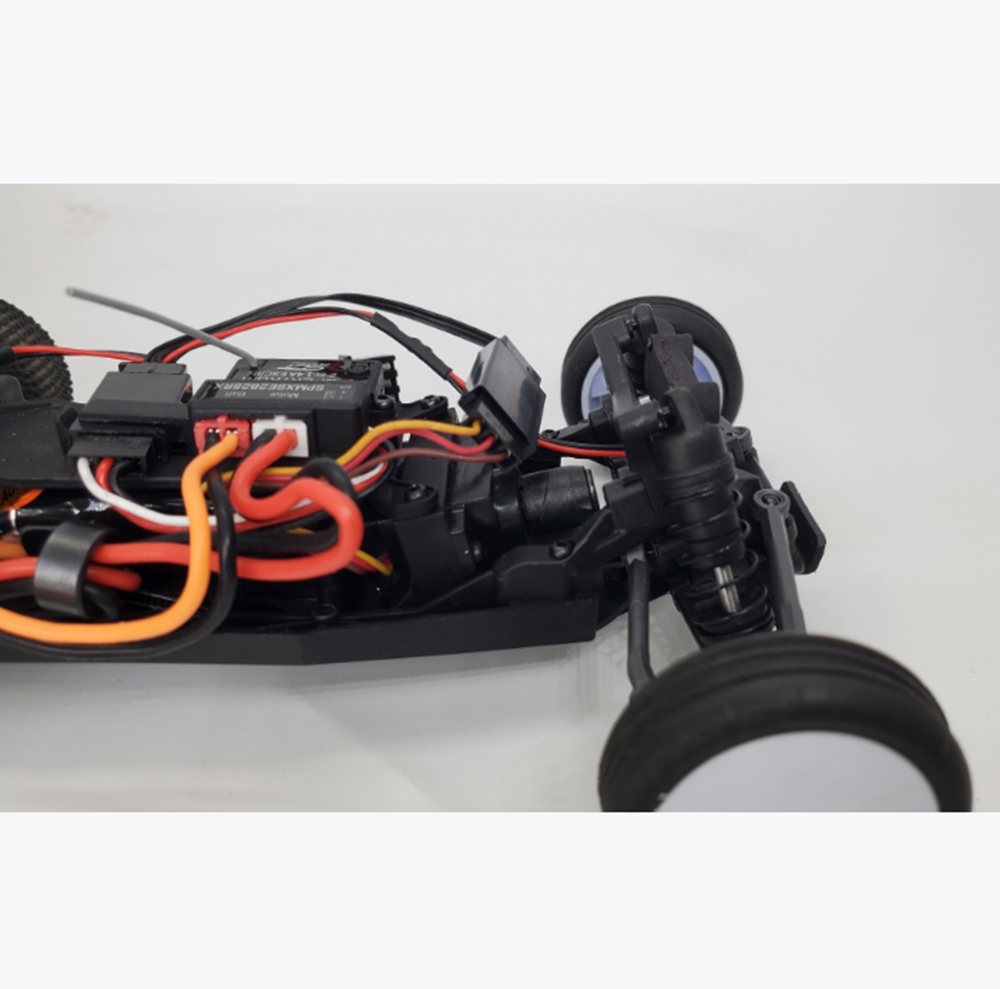

5. Power on to test lighting functionality. Due to confined interior space, meticulous wiring is essential. Refer to Detailed Diagram 5 for overall vehicle wiring layout. While the factory servo connector's fixed female position remains unchanged, relocate the lighting assembly's female connector forward. Disconnect the motor wires, route the lighting cables underneath, then reconnect the motor plug. Subsequently, secure the light assembly's female connector with cable ties or double-sided tape. Wherever possible, fix any wiring that does not require frequent movement to prevent clutter, as disorganised wiring may prevent the body shell from fitting correctly.
Checklist:

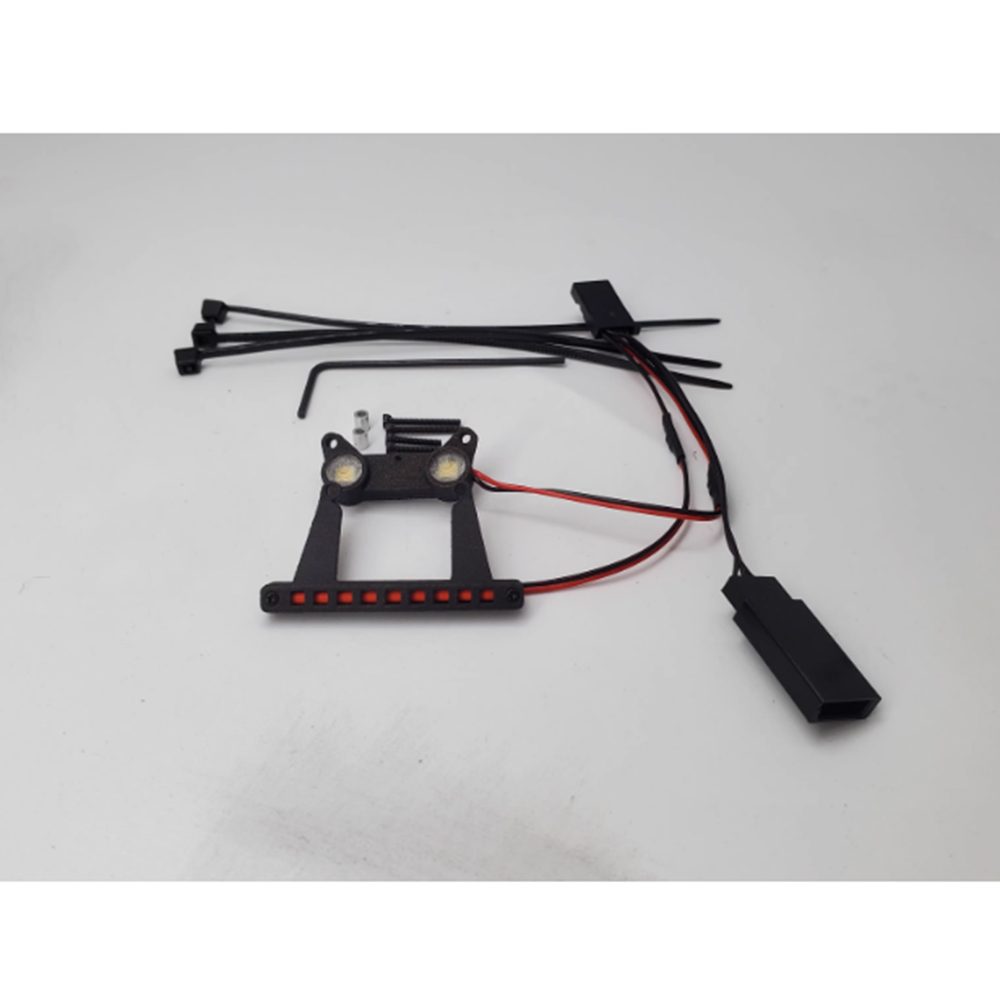

One set of front and rear light assemblies
