High precision
Reverse connection protection

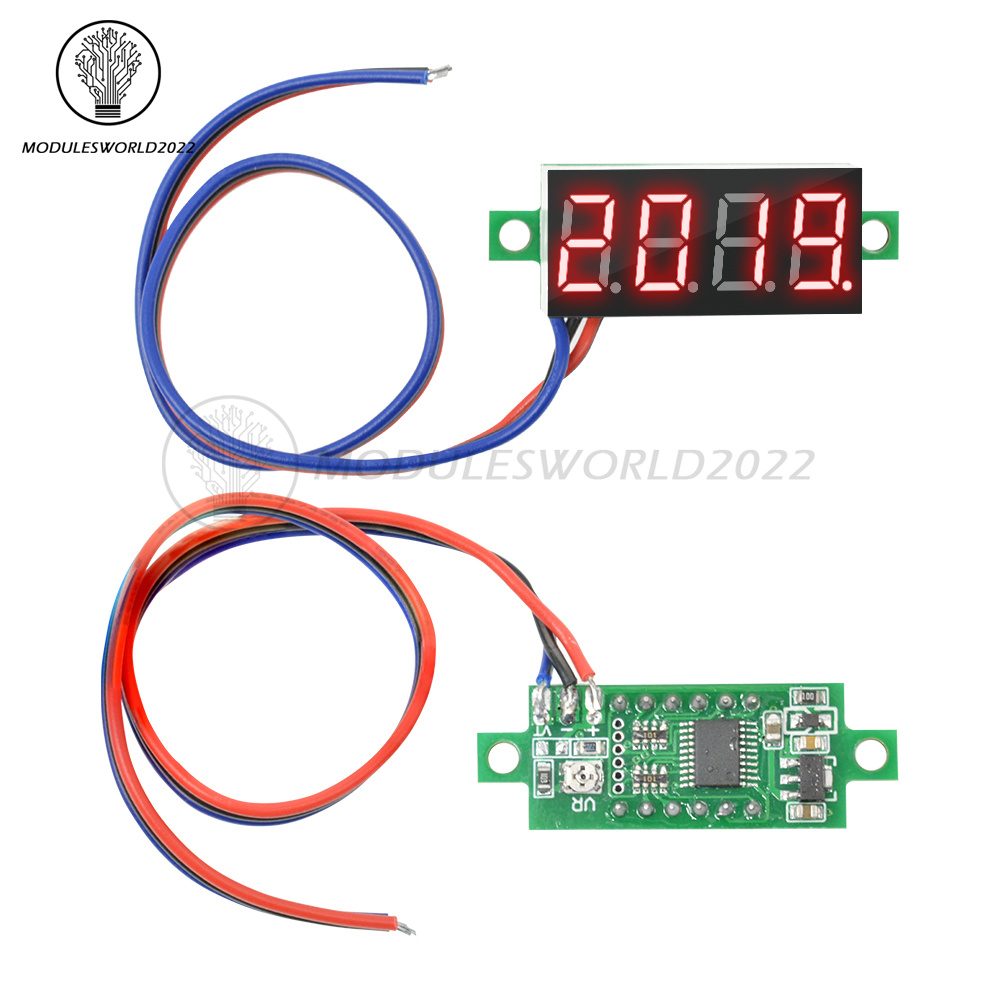

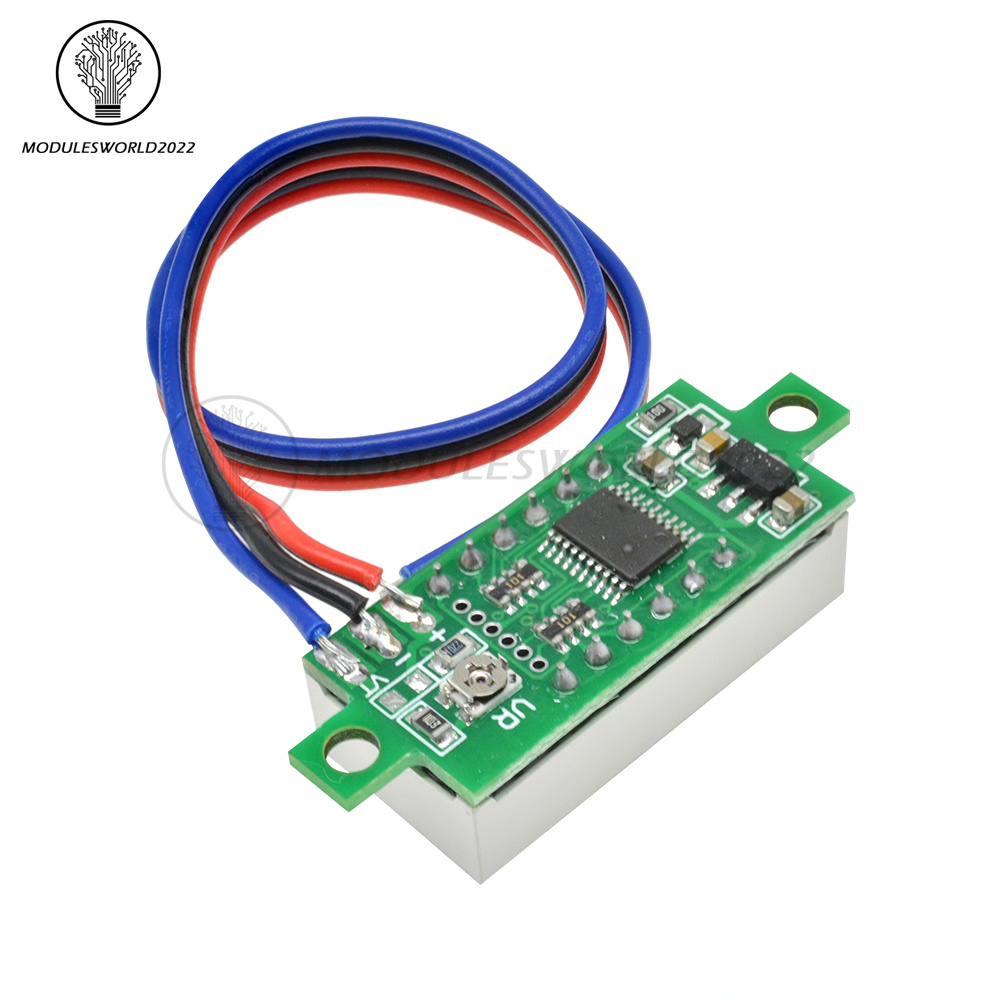

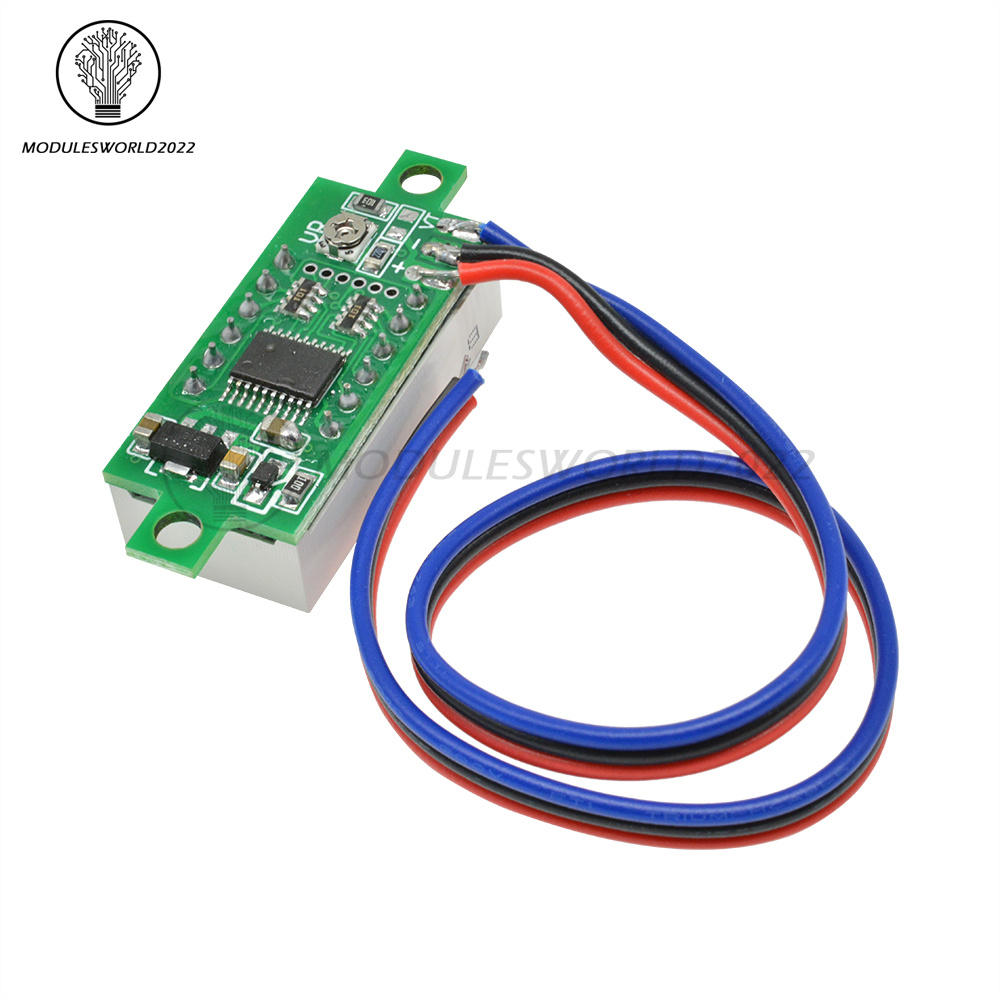

In degree of adjustable resistance resistance -Turn clockwise for low voltage, it can work directly in 5 V, 9 V, 12 V, 24 V.
Three-wire connection, but you can also change three lines for 2-wire connection.
Specific:
Operating voltage: 4.0-30 V (Board 5-12 V)
Voltage Detection: 0-100 V
Operating current: ≤20 mA
Detection rate: 3 times / s
Install hole: 29mm
Measurement accuracy: ± 3%

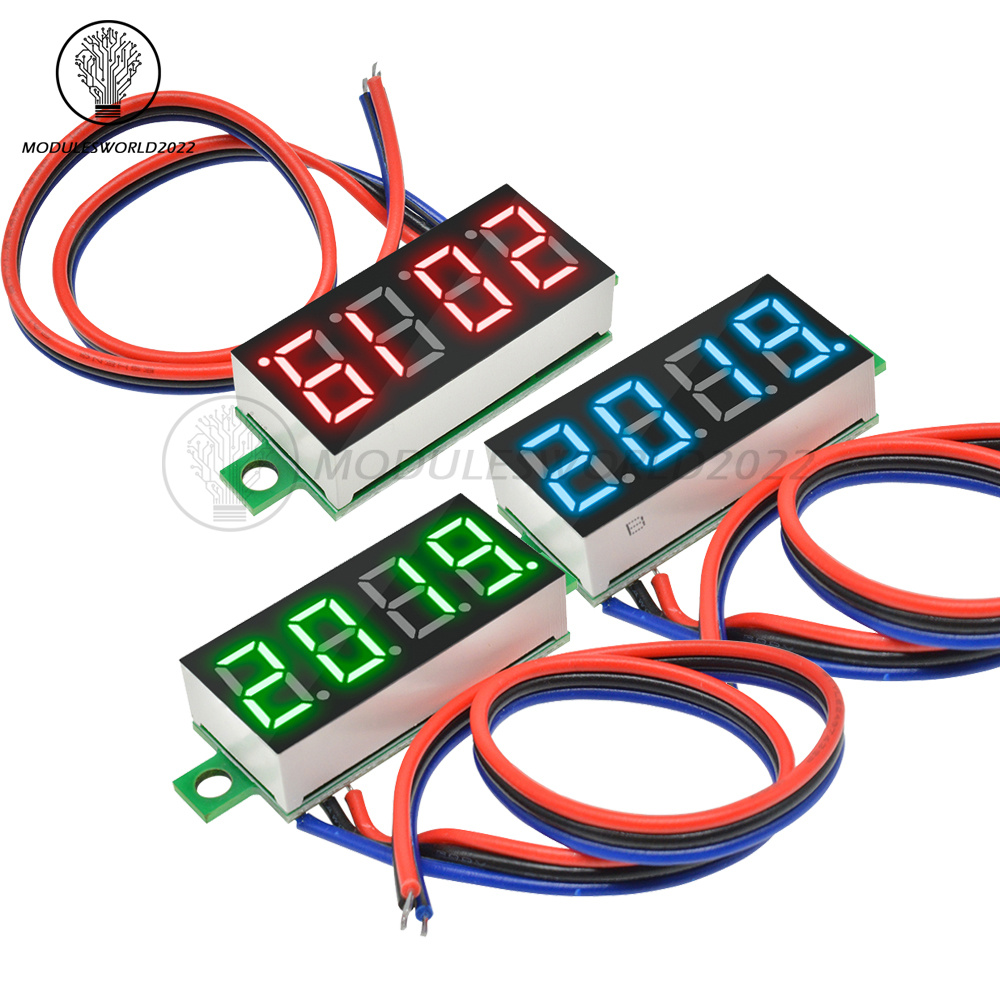

LED color: Blue, Green, Red, (Optional)
The minimum operating voltage: + 4 V
The maximum operating voltage: + 30 V
Operating temperature: -10-65 ℃
Operating humidity: 10 ~ 80% (Non-condensing)
Working pressure: 80 ~ 106kpa
Dimensions: 40.53 × 14.43 × 10.68 mm
Lead definition:
Red-positive work power
Black common negative
Blue-positive power test
Items Included:

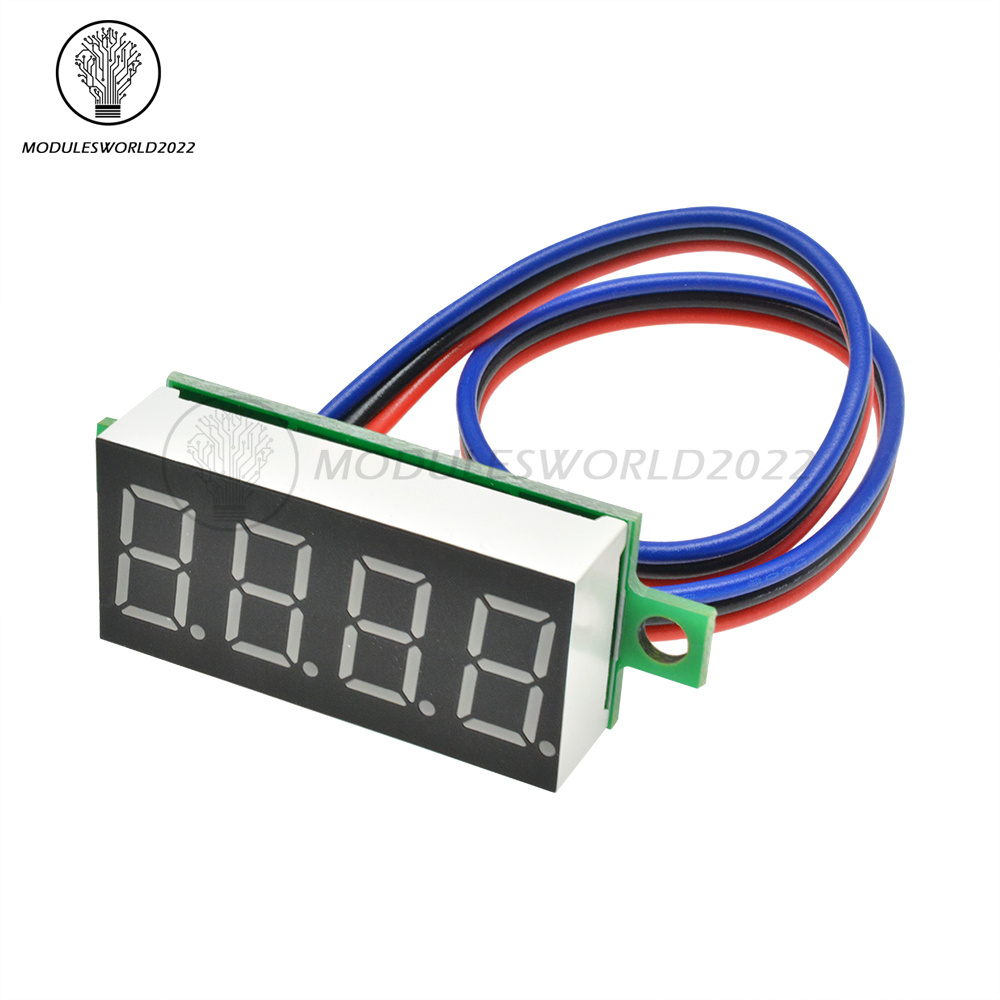

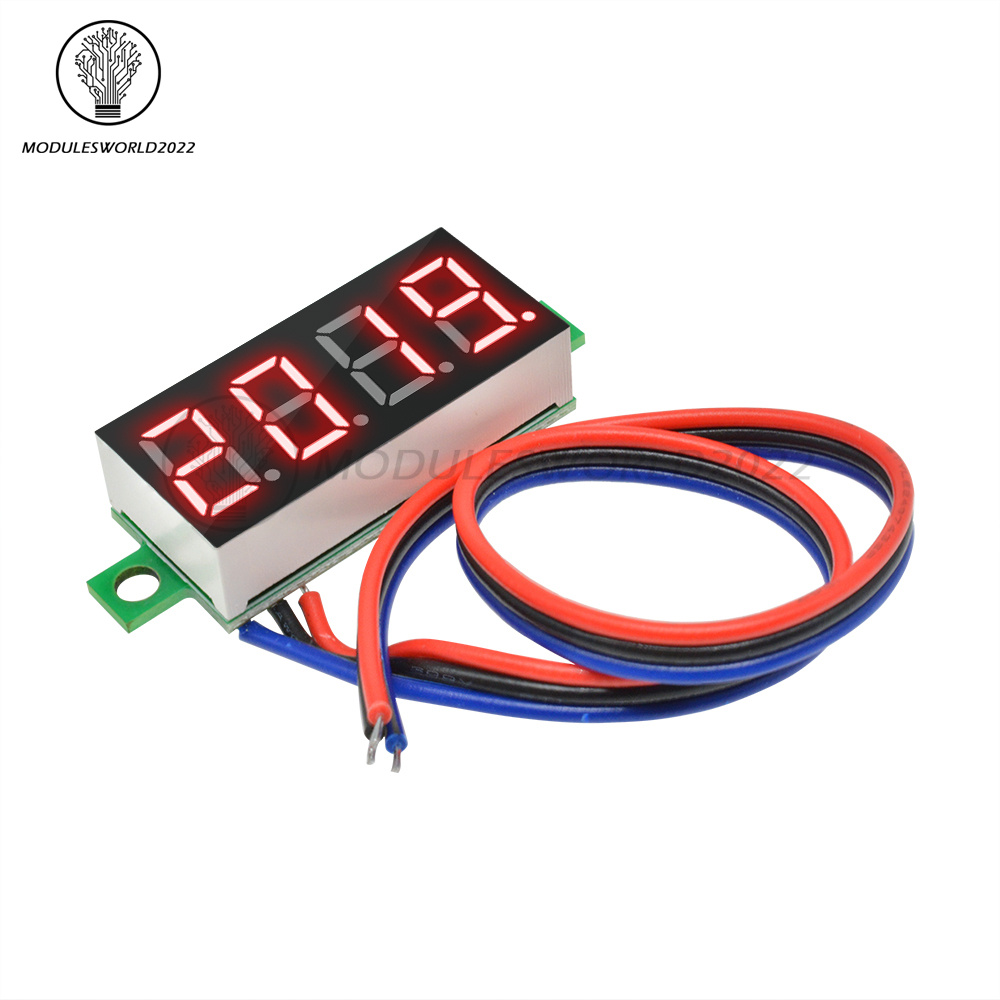

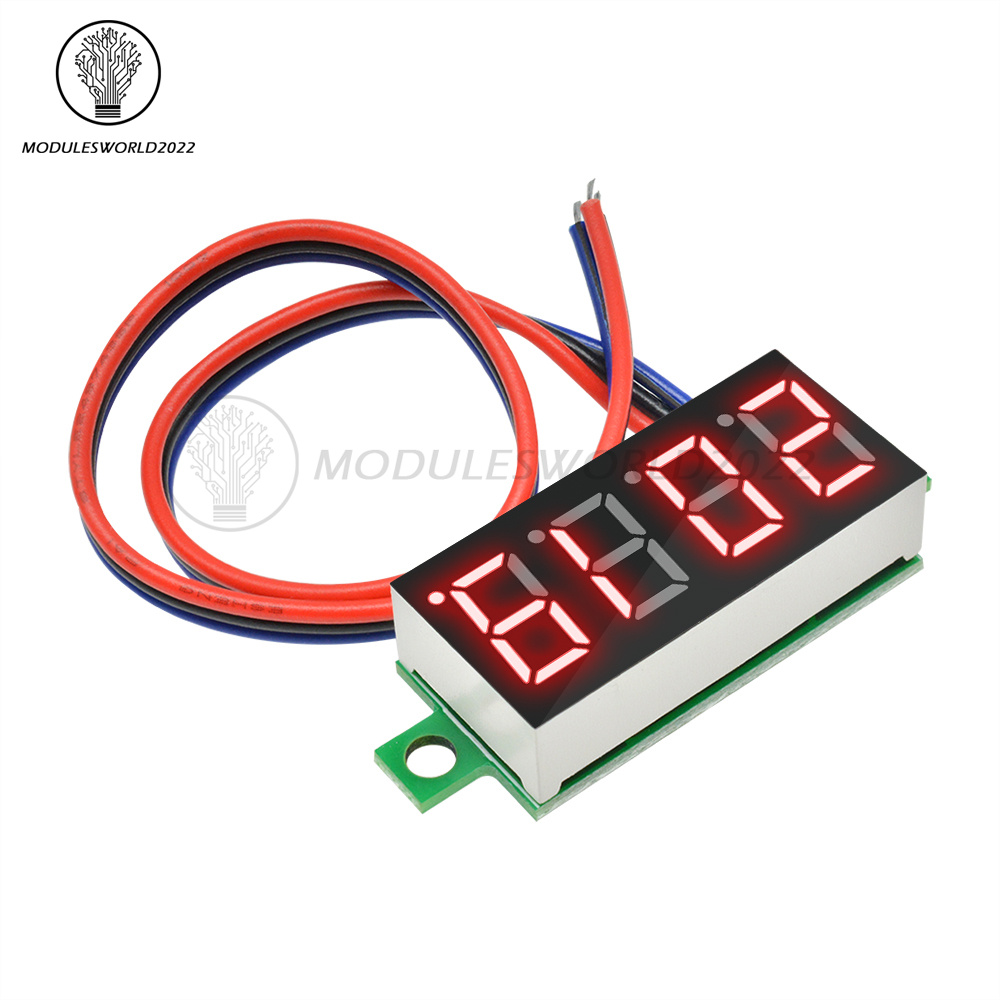

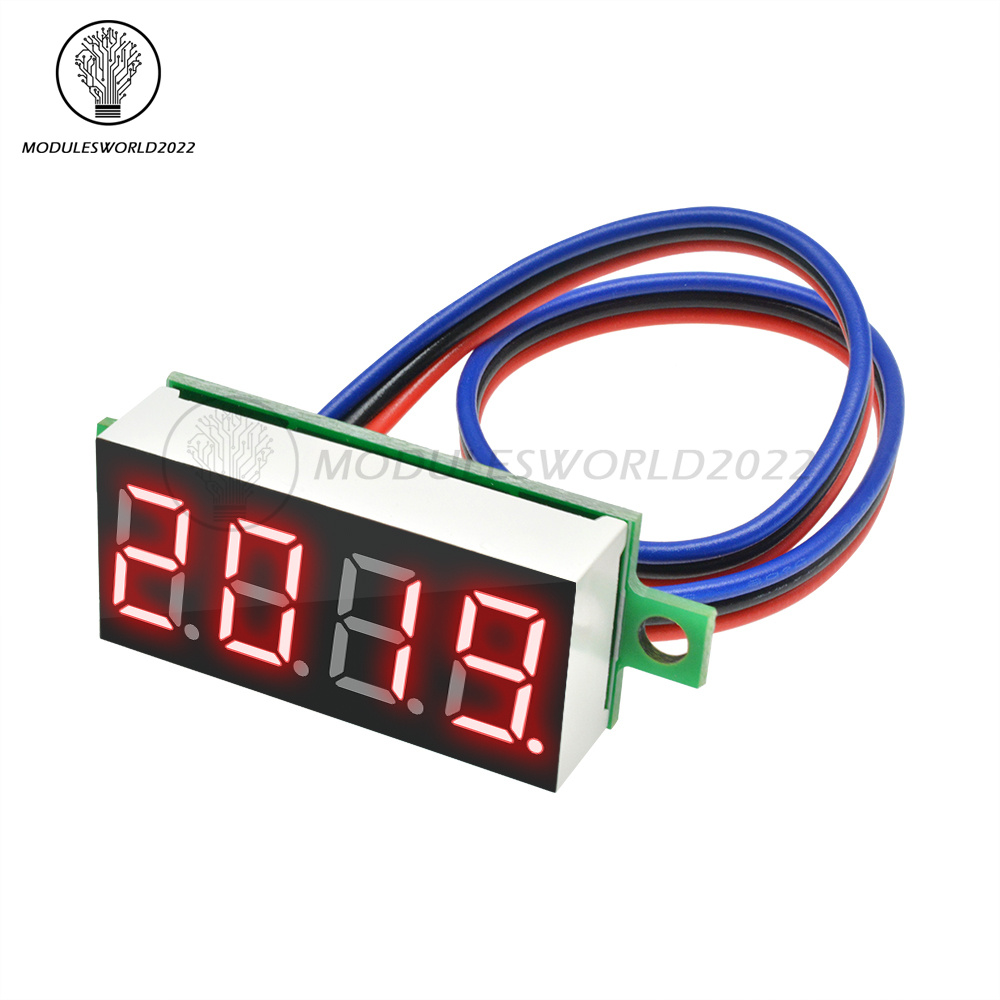

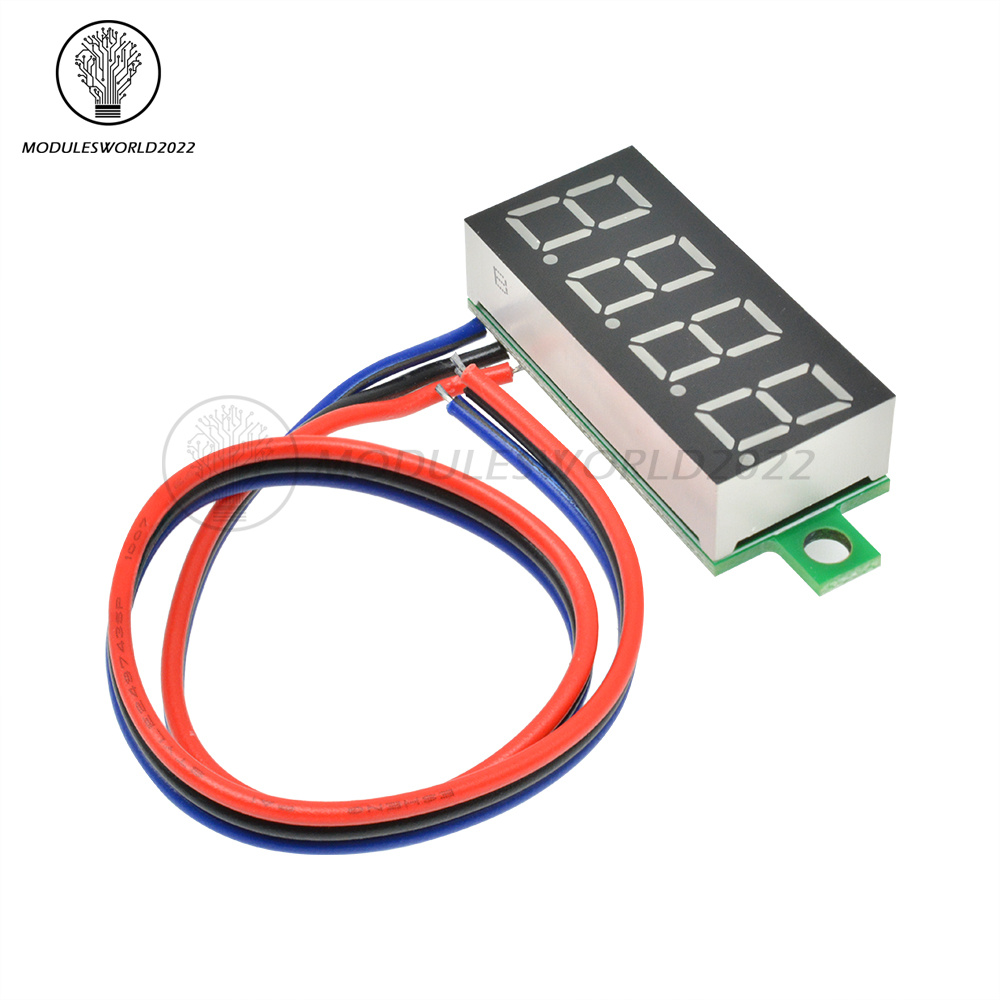

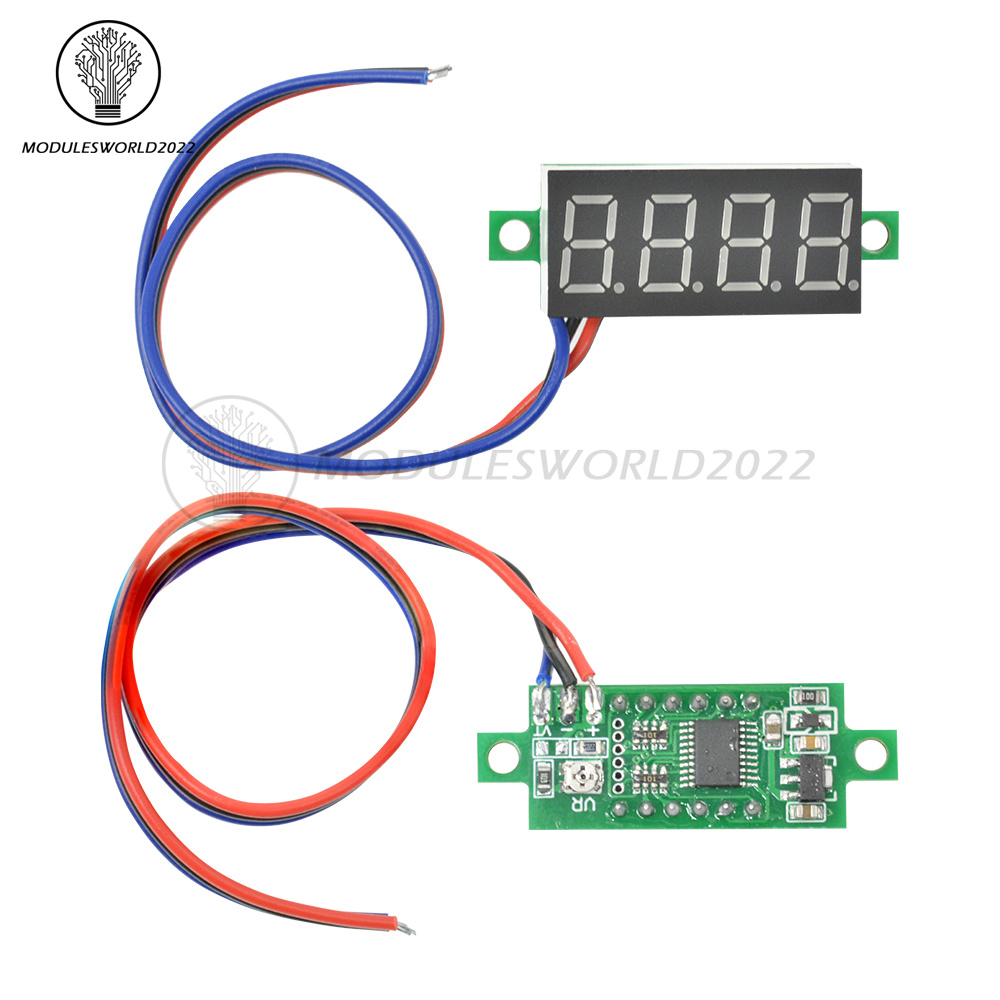

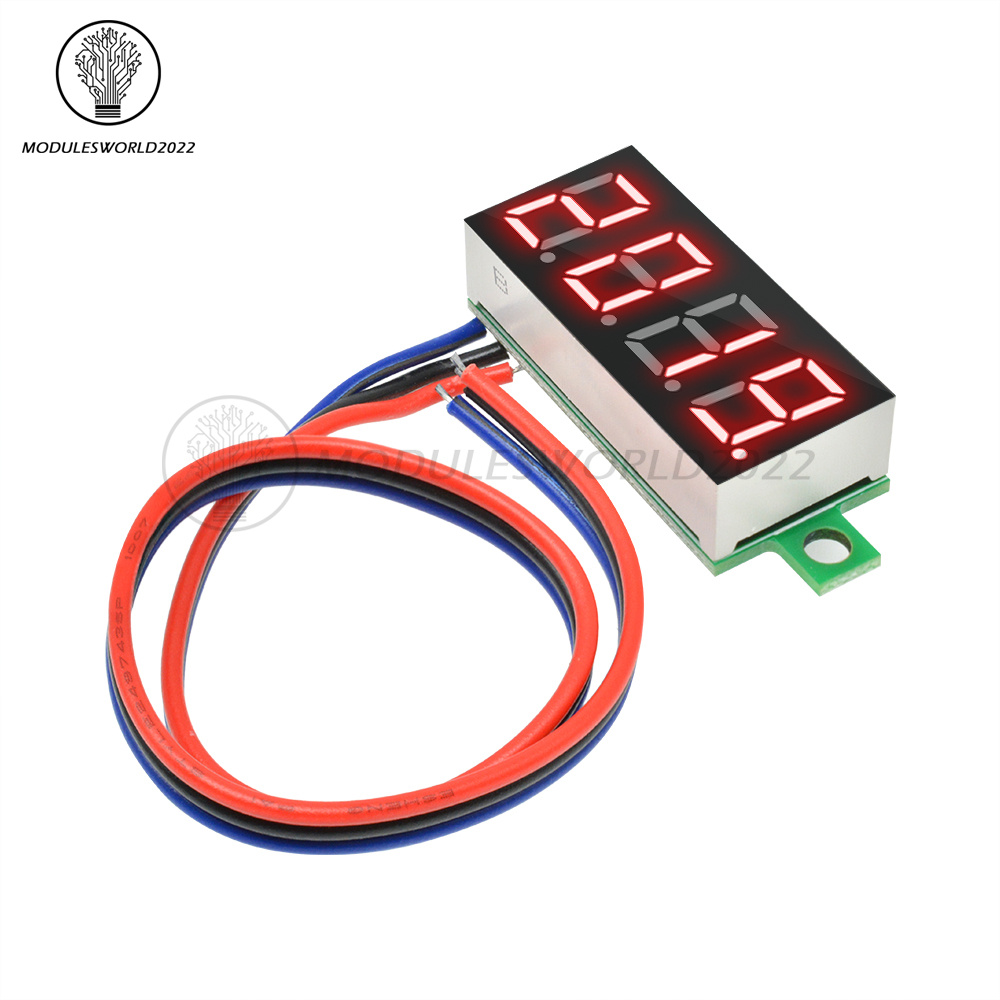

1 * 4 digits LED Display Voltmeter
Copyright©2018 datacaciques
Store Categories
Product View
Details
High precision
Reverse connection protection
In degree of adjustable resistance resistance -Turn clockwise for low voltage, it can work directly in 5 V, 9 V, 12 V, 24 V.
Three-wire connection, but you can also change three lines for 2-wire connection.
Specific:
Operating voltage: 4.0-30 V (Board 5-12 V)
Voltage Detection: 0-100 V
Operating current: ≤20 mA
Detection rate: 3 times / s
Install hole: 29mm
Measurement accuracy: ± 3%
LED color: Blue, Green, Red, (Optional)
The minimum operating voltage: + 4 V
The maximum operating voltage: + 30 V
Operating temperature: -10-65 ℃
Operating humidity: 10 ~ 80% (Non-condensing)
Working pressure: 80 ~ 106kpa
Dimensions: 40.53 × 14.43 × 10.68 mm
Lead definition:
Red-positive work power
Black common negative
Blue-positive power test
Items Included:
1 * 4 digits LED Display Voltmeter
We will arrange shipping for you within 24 Hours after payment cleared except the holidays.
-We ship items to Worldwide. Thank you!
-we will ship out the order in 1-2 business days after payment cleared .Since it is international shipping ,delivery time is about 15--28 business days to arrive to most countries.
We accept PayPal payment ONLY, and must be received within 5 days from the date of purchase.
2. It is easy and safe for you to pay by credit cards, debit cards, bank transfers and PayPal account balances.
3.Buyers are responsible for import duties,custom fees and taxes, if any, please check your country.
1.We believe our items are so outstanding. We are convinced you will be happy with your Purchase.
2. If you do not satisfy with our items. Please simply return to us within 30 Days in original condition. Just pay for the returned postage. Then we can issue full refund or resend the item to you after the returned item arrived at our warehouse.
