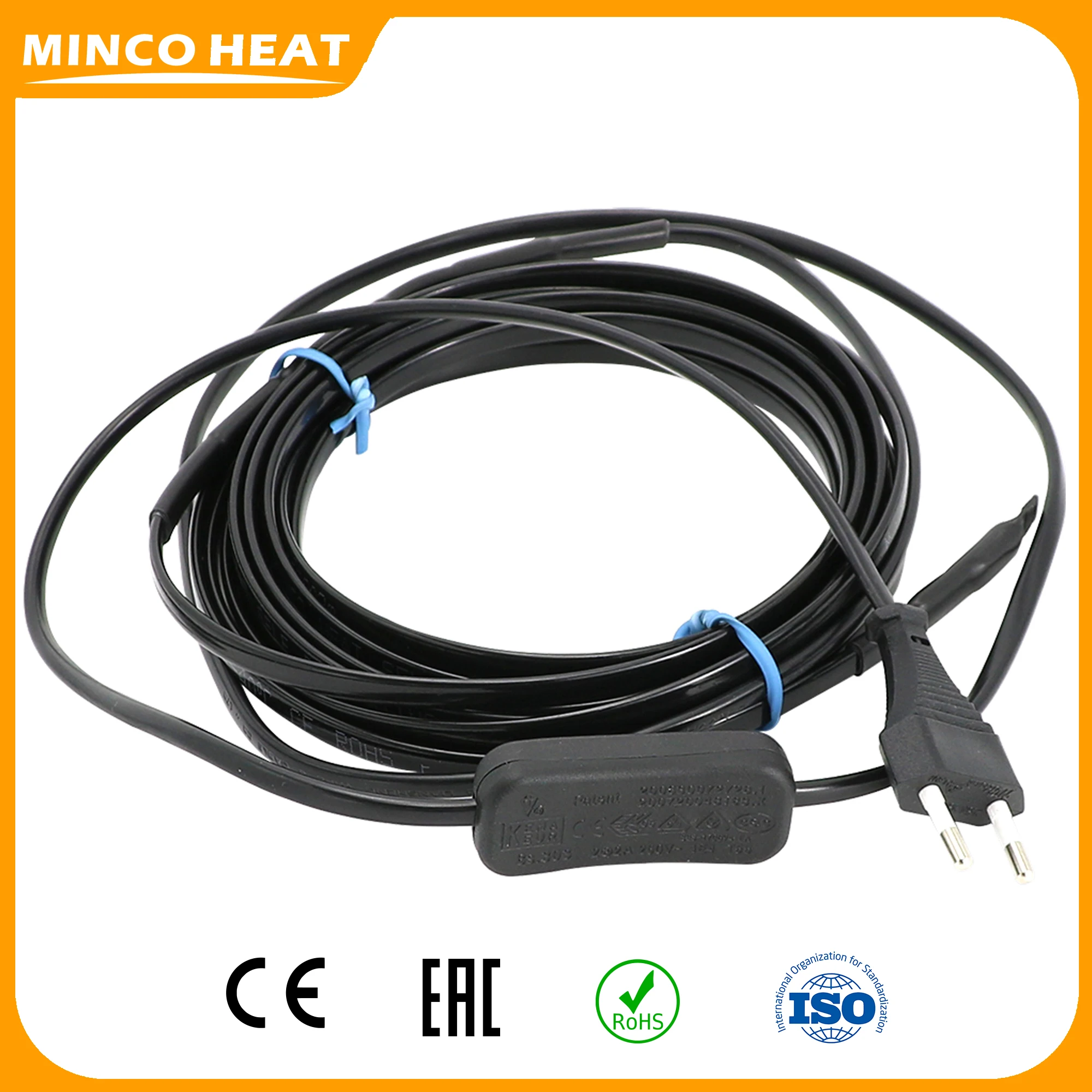

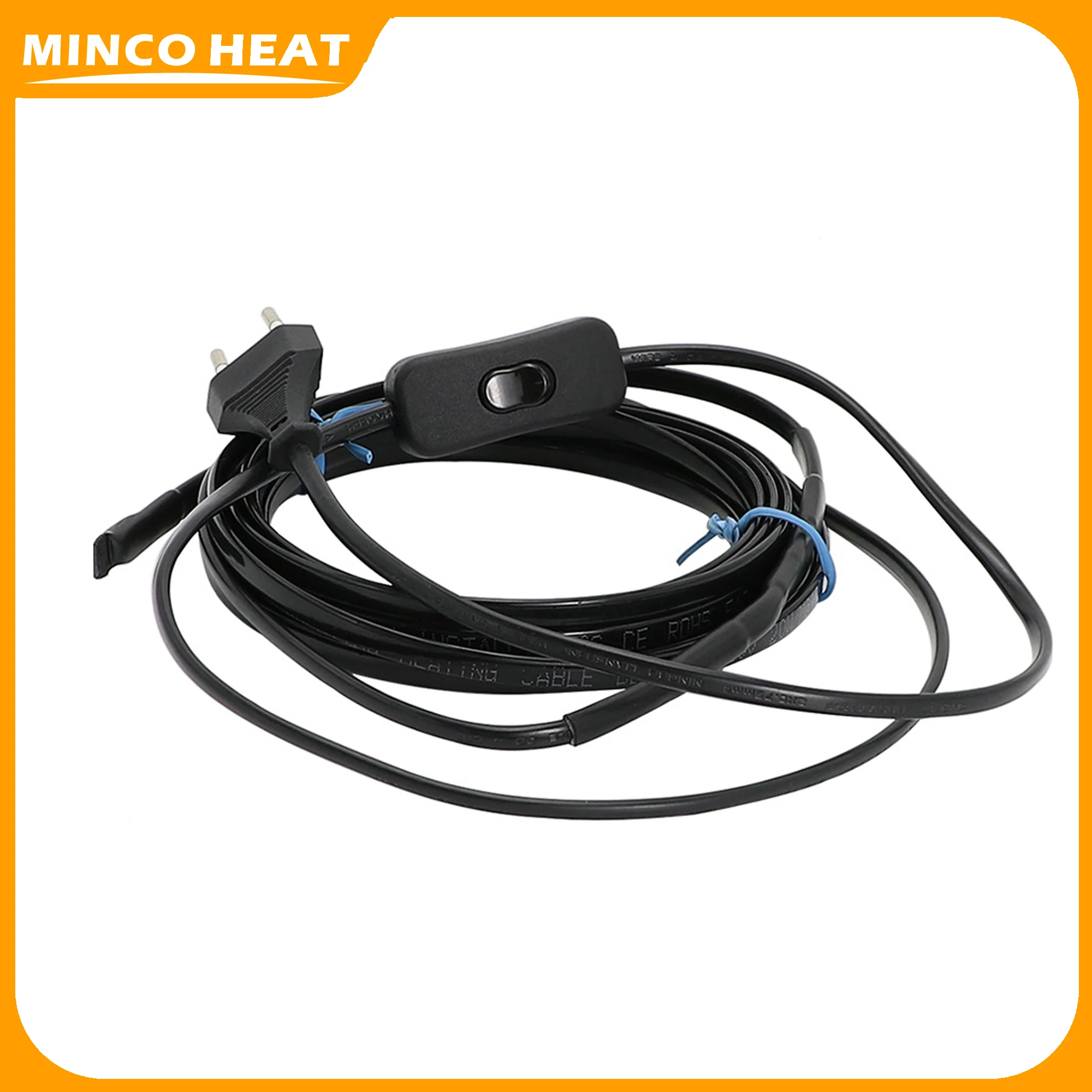

Minco Heat Self Regulating Heating Cable 20W/m AC220~240V, 50/60Hz With Switch EU Plug for Water pipe Freeze Protection

exit_to_app Minco Heat Self Regulating Heating Cable 20W/m AC220~240V, 50/60Hz With Switch EU Plug for Water pipe Freeze Protection

Description:

The self-regulating heating cable developed by Minco is widely used in fire protection, petroleum,chemical industry, iron and steel, electric power and so on to keep pipes, tanks warm and prevent frostbite, roof and gutter snow melting.

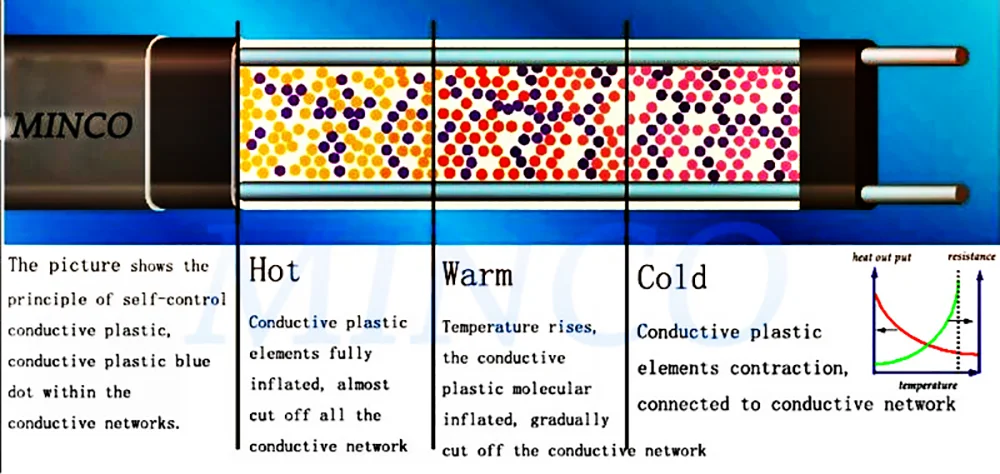

There is a uniform core strip of PTC material between the two parallel metal busbars. When the two busbars at one end of the cable are connected to the power source, current flows laterally from one busbar through the PTC material layer to the other busbar. The PTC layer is a resistance heating body that is continuously connected in parallel between the busbars to convert electrical energy into heat. The core strip resistance increases with temperature, reaching about 65 degrees, the resistance is so large that it almost blocks the current, and the core strip temperature reaches the high limit and no longer rises but automatically limits the temperature. The self-limiting temperature heating belt has uniform temperature, does not overheat , saves electric energy, and has a rapid heating temperature. It can be arbitrarily cut and used within the longest use length of the electric heating belt, and can be overlapped and crossed.

Specifications:

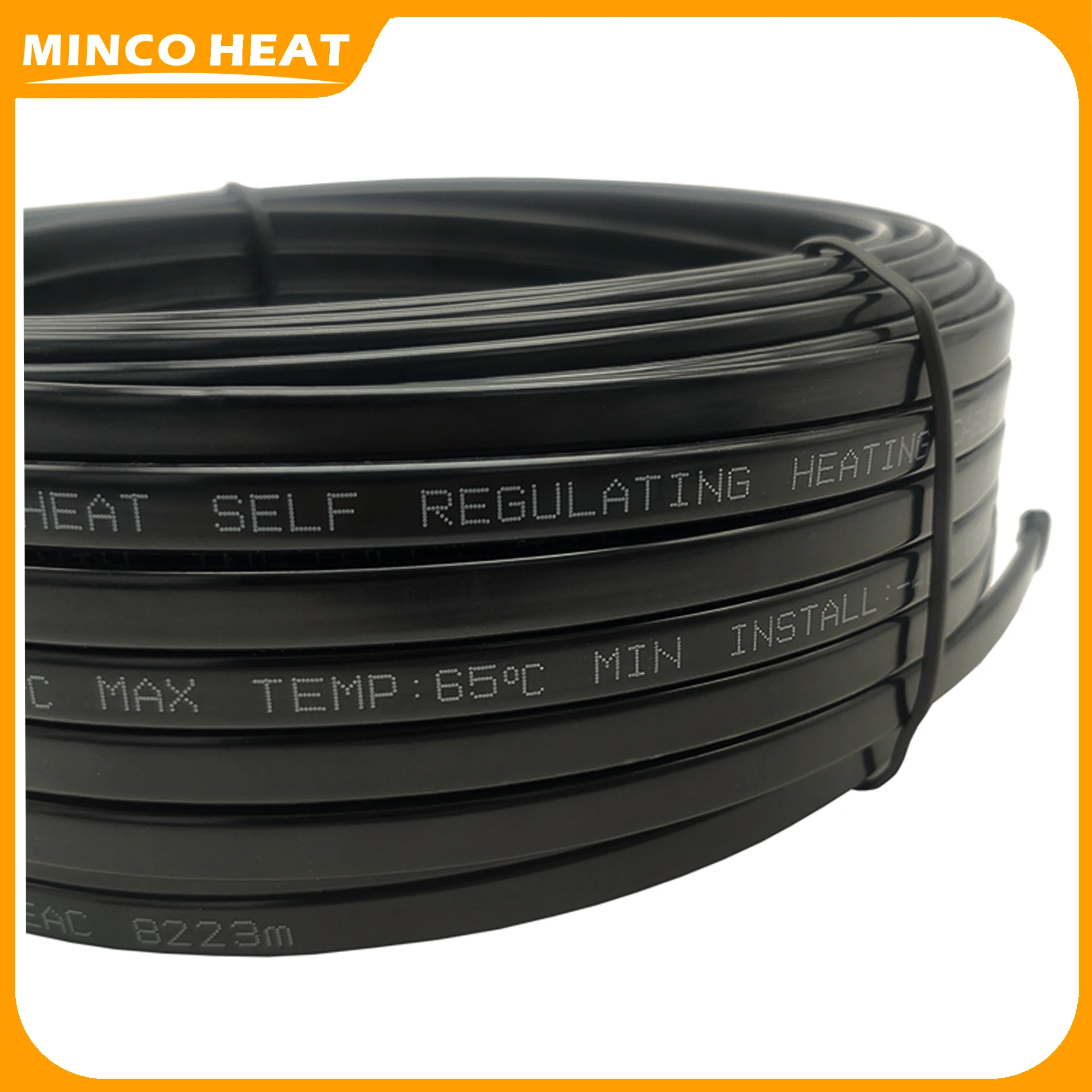

Product name: water pipe heating cable/self regulating heat trace cable
Voltage: 220V 230V 240V
Power: 20w/m @10 Celsius
Length of power cord: 1.5 meter
Max working temperature: 60 Celsius
Min installation temperature: -40 Celsius
Start-up current: less than 0.6 A/m
Min. bend radius: @20C:25.4mm @-30C:35.0mm

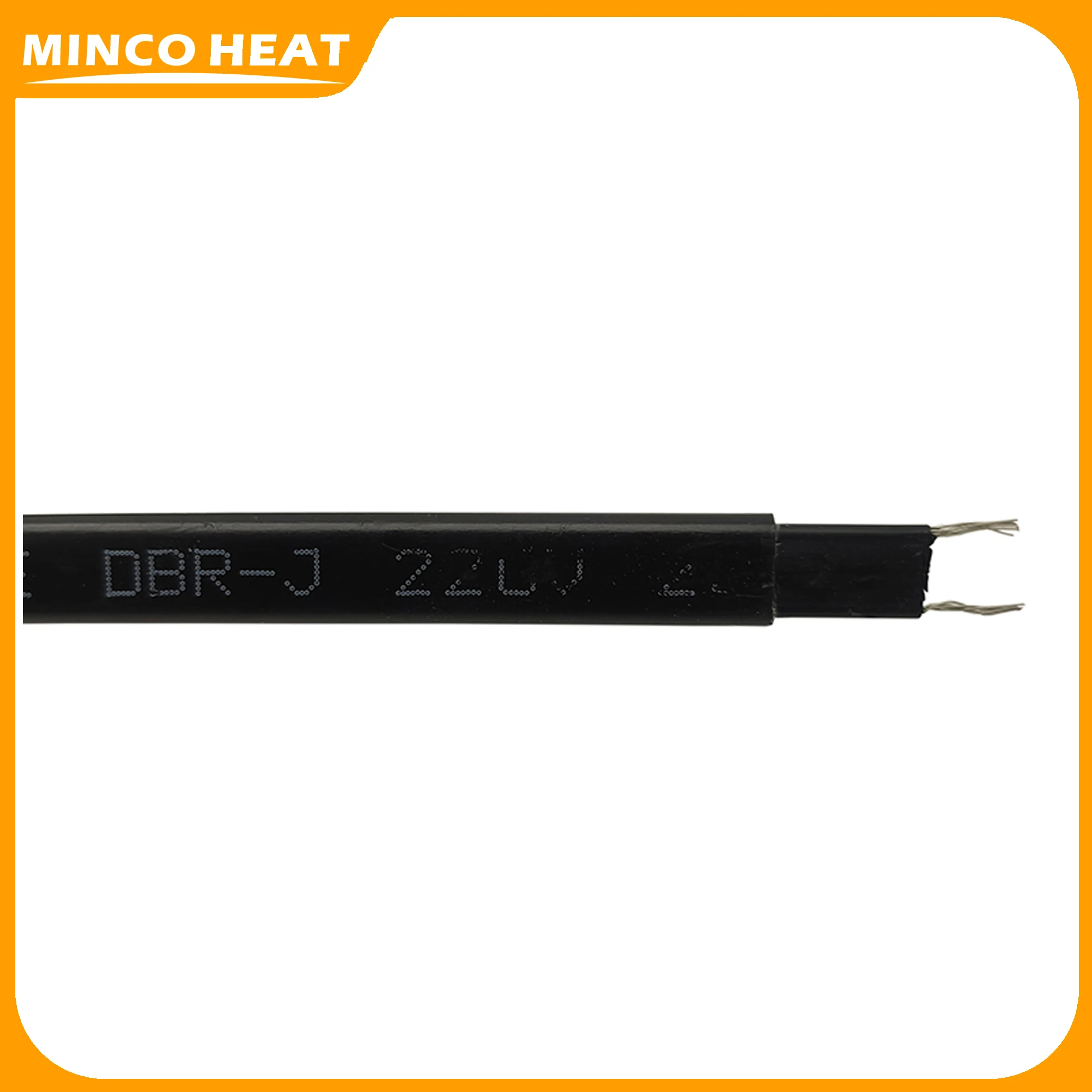

Cable Structure:

1. Pure copper conductor
2. PTC heating element
3. PE insulation

Advantages:

1.The cable is designed for house water pipe and solar upper water pipe freeze protection requirement in winter, to maintain the water in pipes above 0 centigrade, and do not need a controller.
2.The cable is very easy to install, suit for metal and plastic water pipes.
3.We use the pure copper as the conductor, and the PE jacket, it's durable, UV resist, better than PVC jacket.

Package Including:

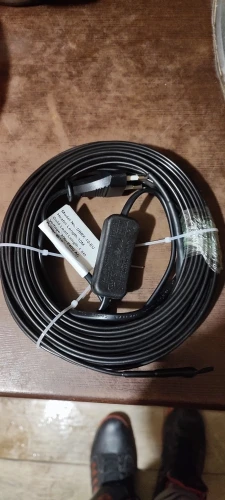

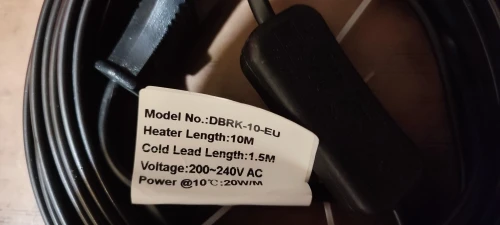

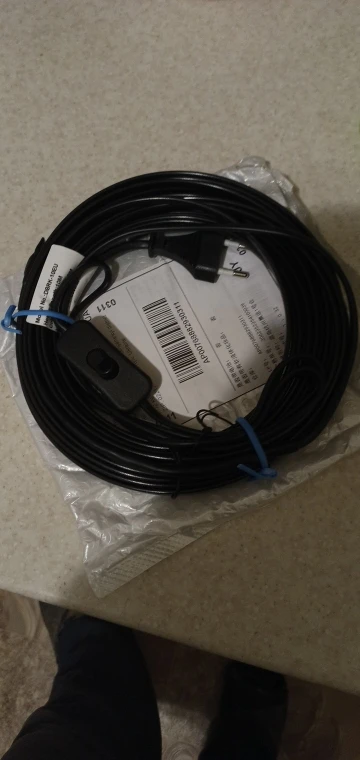

1 x DBRK heating cable with EU-plug( Length optional)

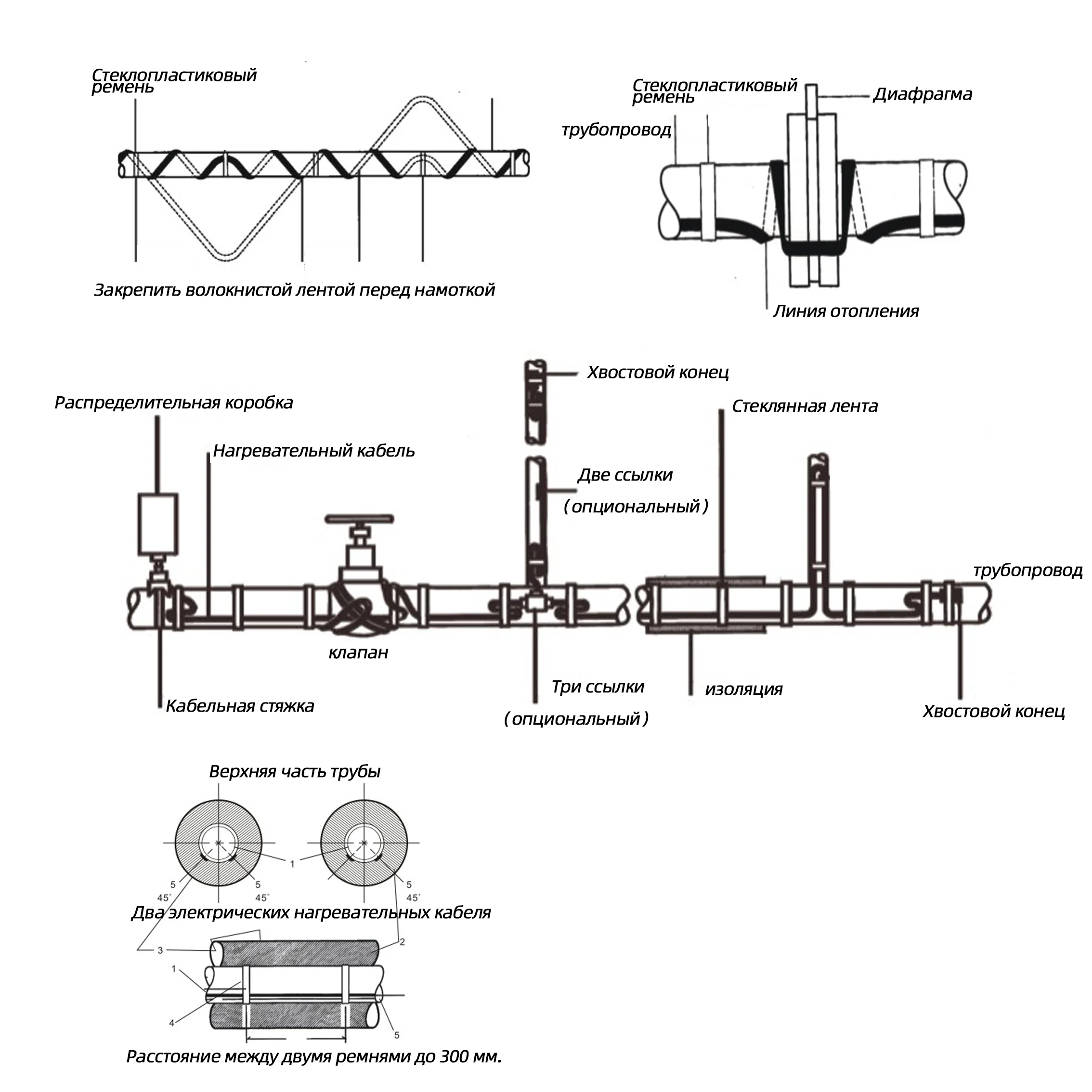

Installation:

1. Wrap the heating cable on water pipes or fastening straight on pipes, both are ok. Put the whole cable on the pipes and fasten it every 30~60cm with thermal tape or aluminum tape.
2. Suggest to wrap a layer of rubber insulation on the pipe, enhance efficiency of the heating cable and save energy, also can protect the heating cables.
3. Plug into 220~240V. The heat trace system is finished.
