7 Spline Tuner Lug Nuts
[32] Black M14x1.5 Acorn Lug Nuts for 96-27 Chevrolet Express 3500 Express 2500
![[32] Black M14x1.5 Acorn Lug Nuts for 96-27 Chevrolet Express 3500 Express 2500](https://img.topmorrowusa.com/products/32x-black-cone-seat-closed-end-7-spline-drive-lug-nuts-51mm-tall/32x-black-cone-seat-closed-end-7-spline-drive-lug-nuts-51mm-tall-main.jpg?v=26082100&t=qNPY66nwldPgdc57Fmgs8Q)
Numbers, not adjectives.
Every dimension your wheel cares about ? measured, verified, documented.

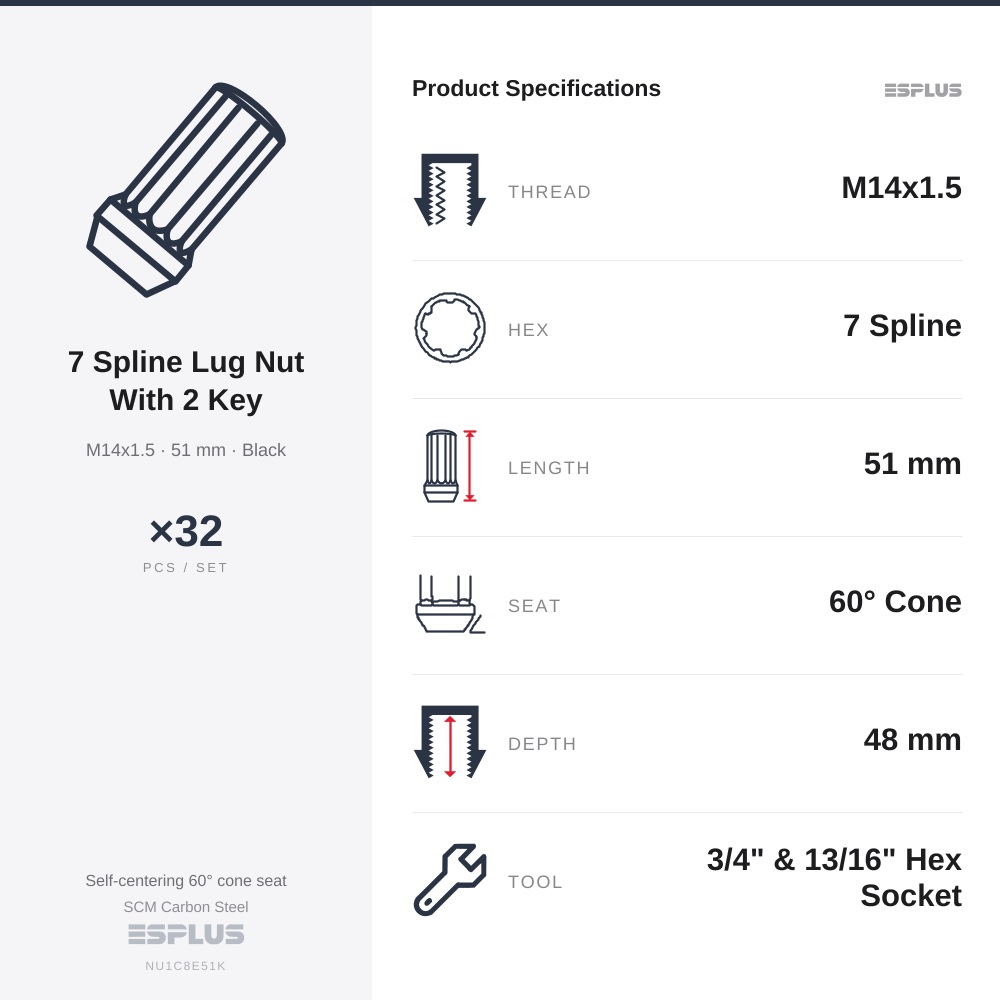

M14x1.5 Acorn 7 Spline Lug Nut
Fits your car.
Verified, not guessed.
7-spline tuner lug nuts with a 60 degree cone (tapered) seat for aftermarket, steel and dually wheels, 51 mm tall for deep lug wells; match the cone seat of your original nuts.
United States
2 FeaturedChevrolet
GMC
Not sure? Message us ? we verify your exact year & model before you buy.
A closer look at the product.
Finish, geometry, and packaging — from every angle. Tap a thumbnail to view.
Some fitment details only your vehicle can tell you.
The vehicle list above confirms your year, make and model. The points below are not part of that list — they depend on the wheels and hardware currently on your vehicle. Please verify them before ordering.
Performance you can torque down.
7-Spline Drive Doubles As A Deterrent
An ordinary hex socket cannot grip the fine, closely-spaced splines - the nuts turn only with the included spline socket. A theft deterrent, not a guarantee against theft.
Extra-Tall 51 mm Body, 48 mm Thread Depth
The 48 mm thread run keeps full stud engagement in deep lug wells on trucks, steel and dually wheels.
One For The Garage, One For The Glove Box
One for the garage, one for the glove box - each drives with a common 3/4 in or 13/16 in hex socket and a torque wrench.

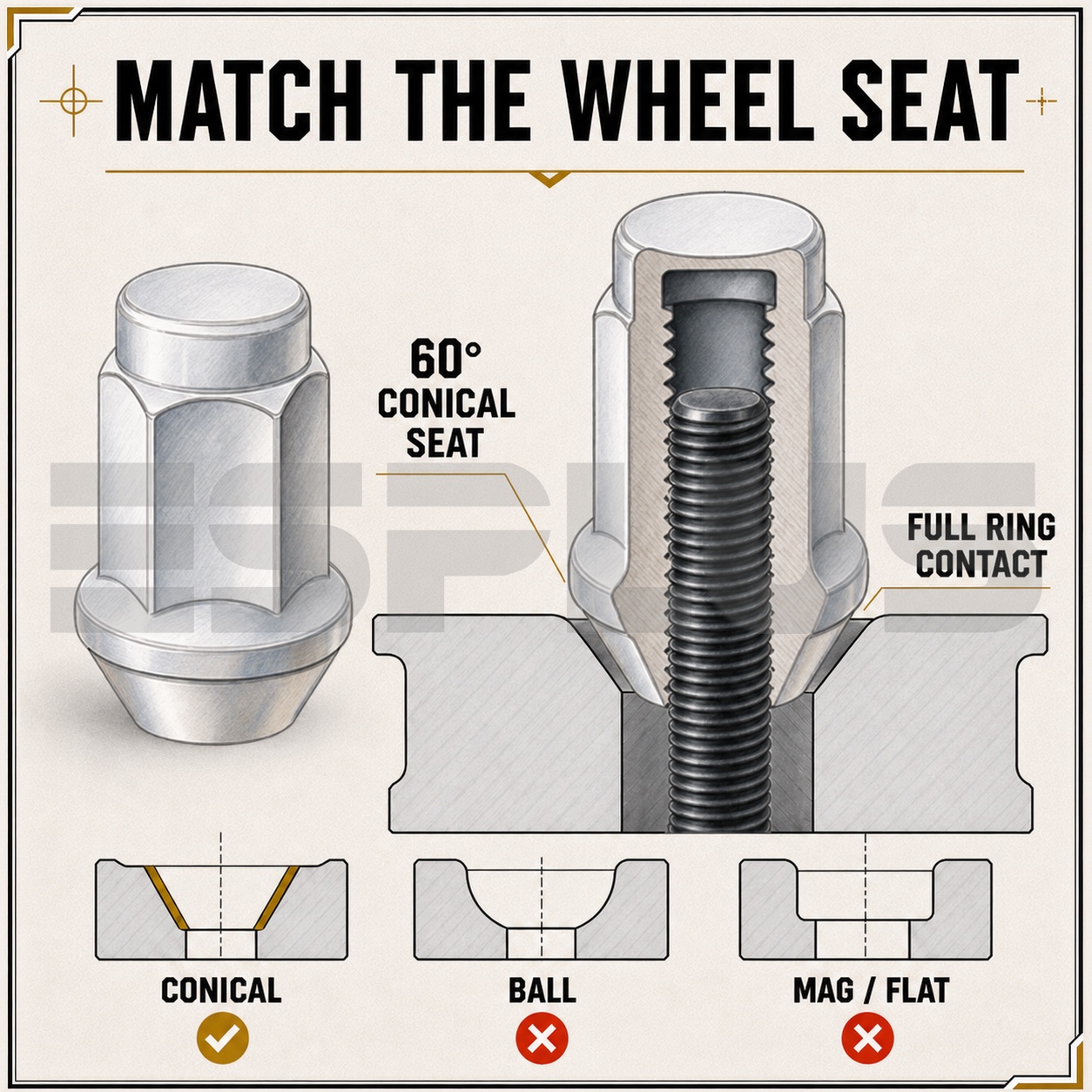

60 Degree Cone Seat Centers The Wheel
The tapered (cone) face self-centers each nut in the lug hole - the seat style most aftermarket and steel wheels take.
Full-Coverage 23 mm Flange
The 23 mm (0.9 in) flange shoulders over the lug hole for full seat contact and a finished look on open-spoke wheels.
SCM Carbon Steel Body
Solid SCM Carbon Steel stands up to dually torque loads and seasonal swaps without rounding at the splines.
3 steps to torque.
Follow the sequence below ? fitment is everything, so read Step 1 carefully.

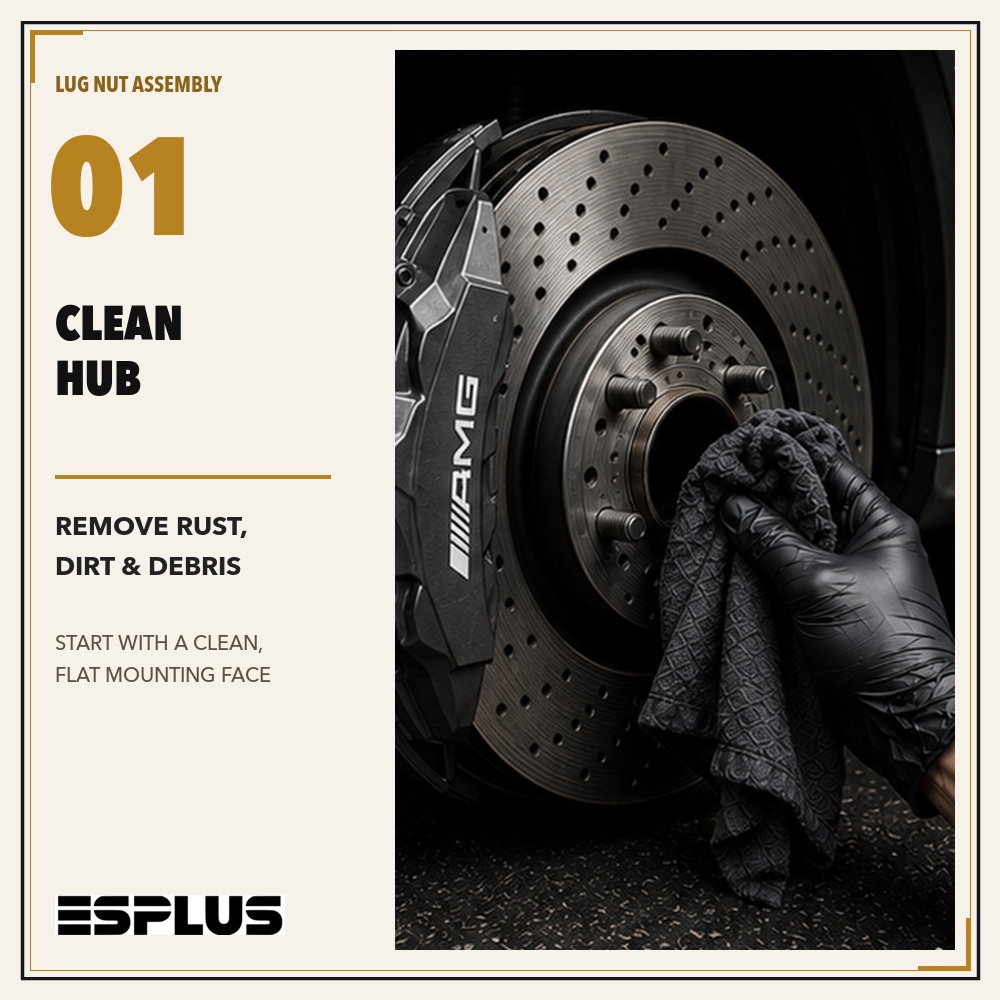

Fit The Spline Socket

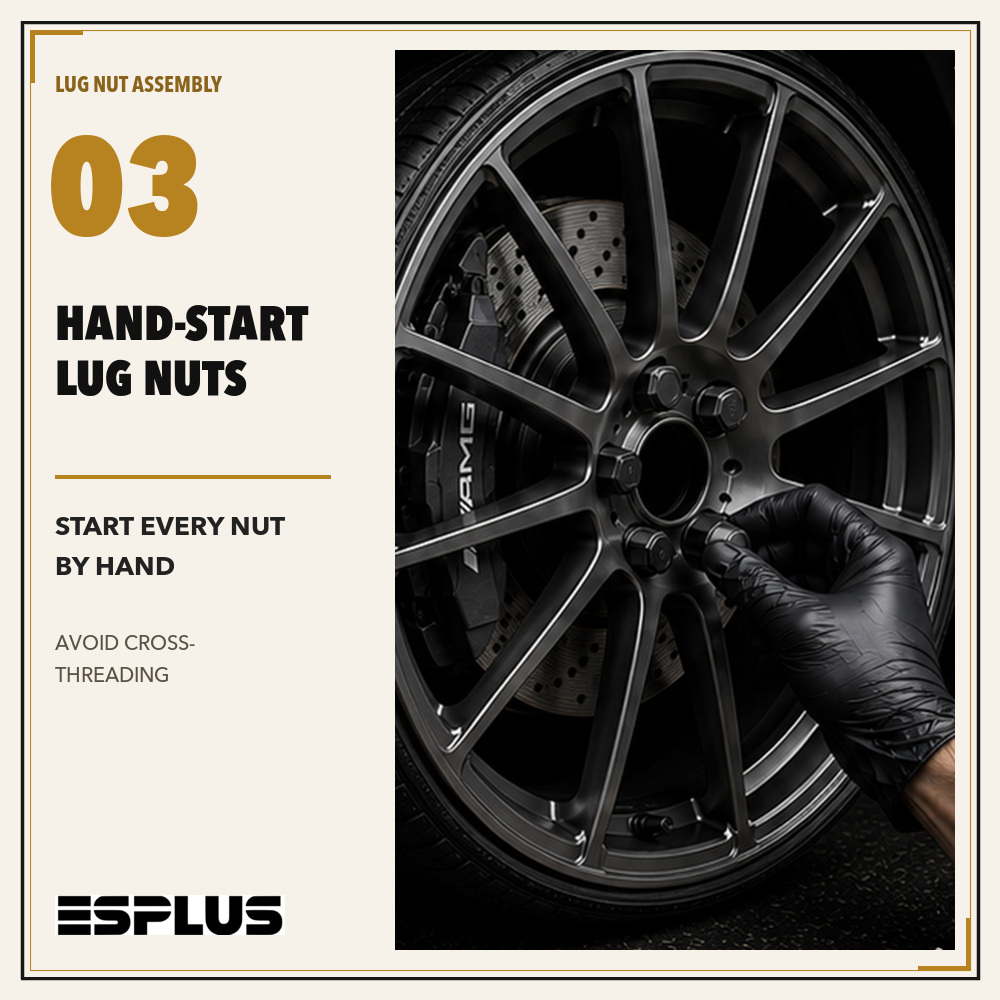

Seat a spline socket fully over the nut's splines, then hand-start each nut on a clean stud several turns before any tool touches it.

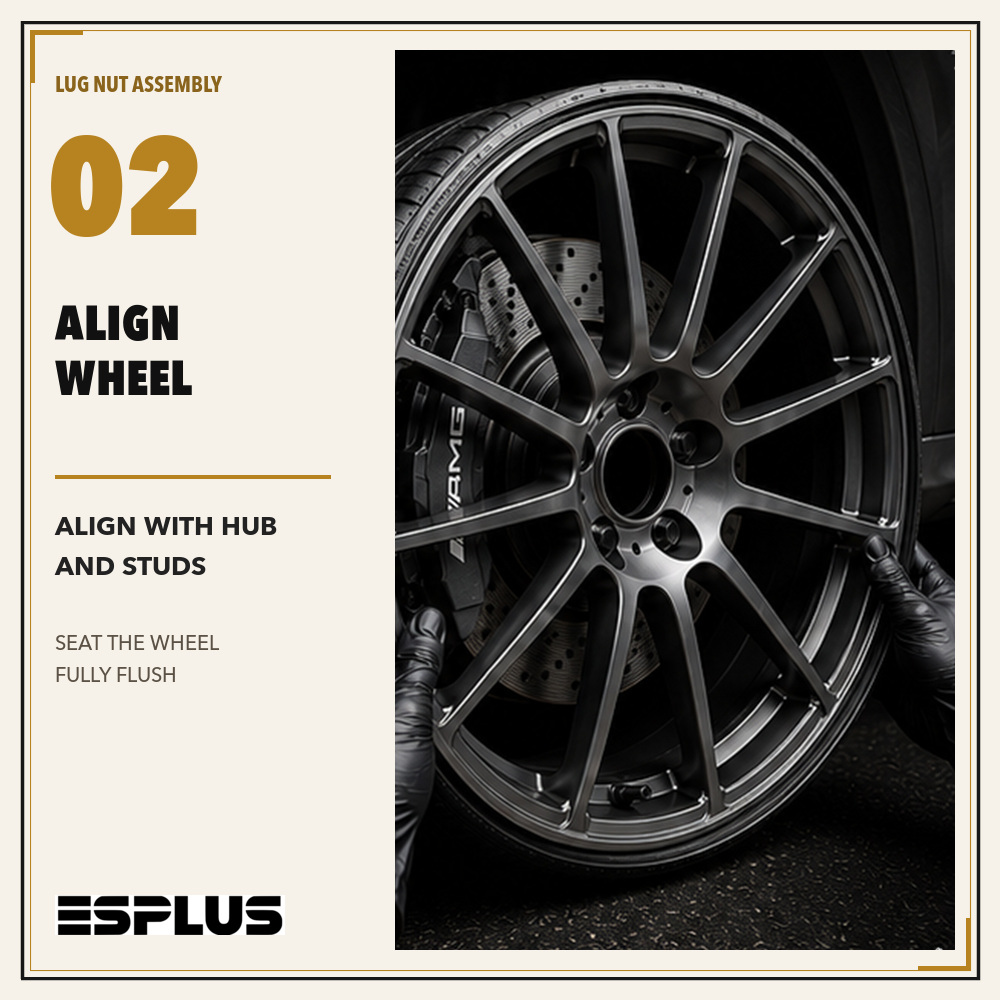

Snug In A Star Pattern
With the wheel hanging level, snug all fasteners in a star (crisscross) pattern so the cone seats center the wheel evenly on the studs.

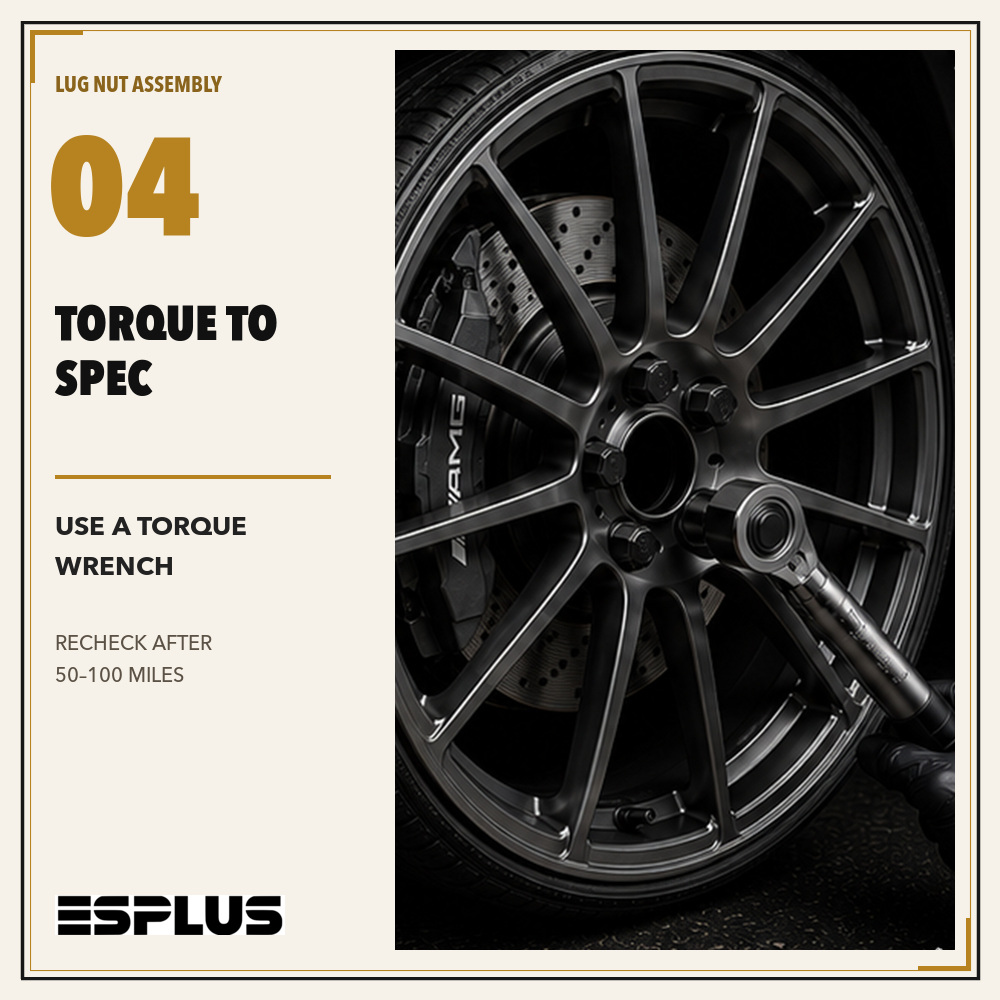

Torque To Vehicle Spec
Torque each nut to your vehicle's wheel fastener spec with the spline socket on a torque wrench, then recheck after the first drive. Stow one socket in the glove box.
Important Fitment Notice
- seat: wheel needs a 60 degree cone face

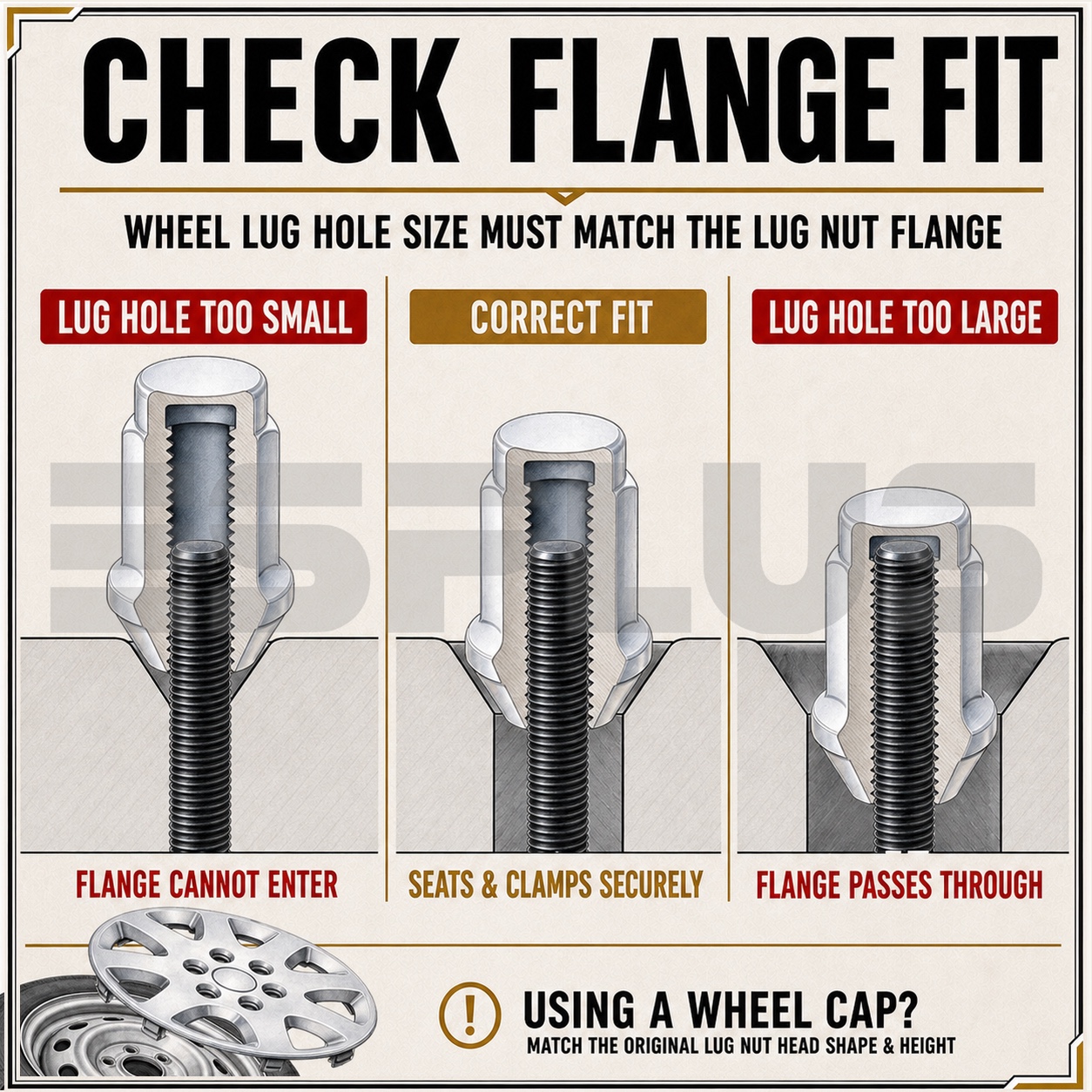

- nut waist must clear the lug hole
- stud must not exceed the 48 mm thread depth
- compare size with an original nut
- spline socket and torque wrench only - an impact gun rounds the drive; a rounded nut has to be drilled out of the wheel
- sockets cannot be replaced by code - keep one in the glove box
- lost sockets = replace the set
- Dually: 32 fasteners across four hubs - order by total count
eBay's compatibility list matches by vehicle only. The wheel-side facts above — seat geometry, hole clearance, installed depth and usable thread engagement — still need your own check. Message us through eBay before ordering if anything is unclear.
