Without Tire and tube

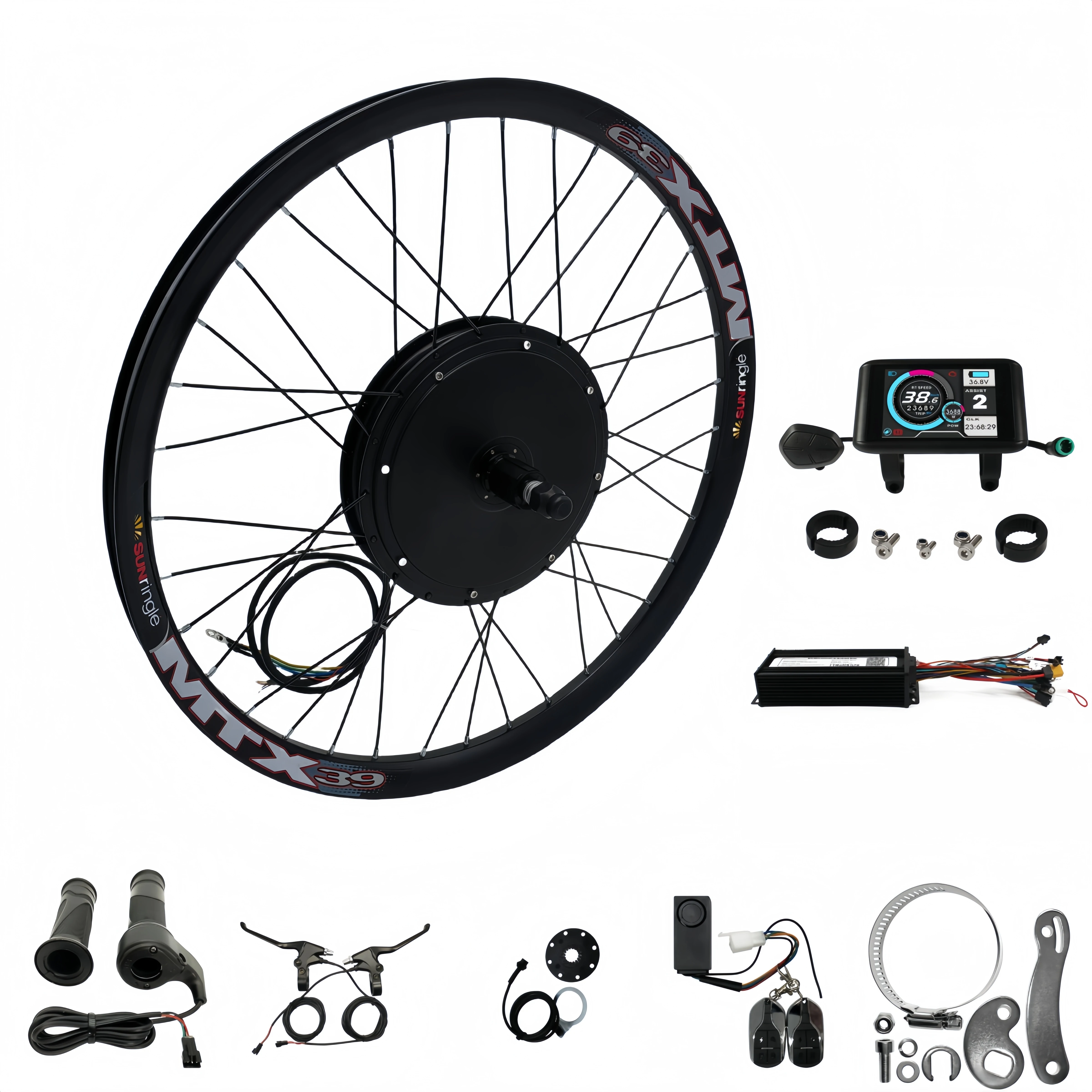

Parts Including in this kit:

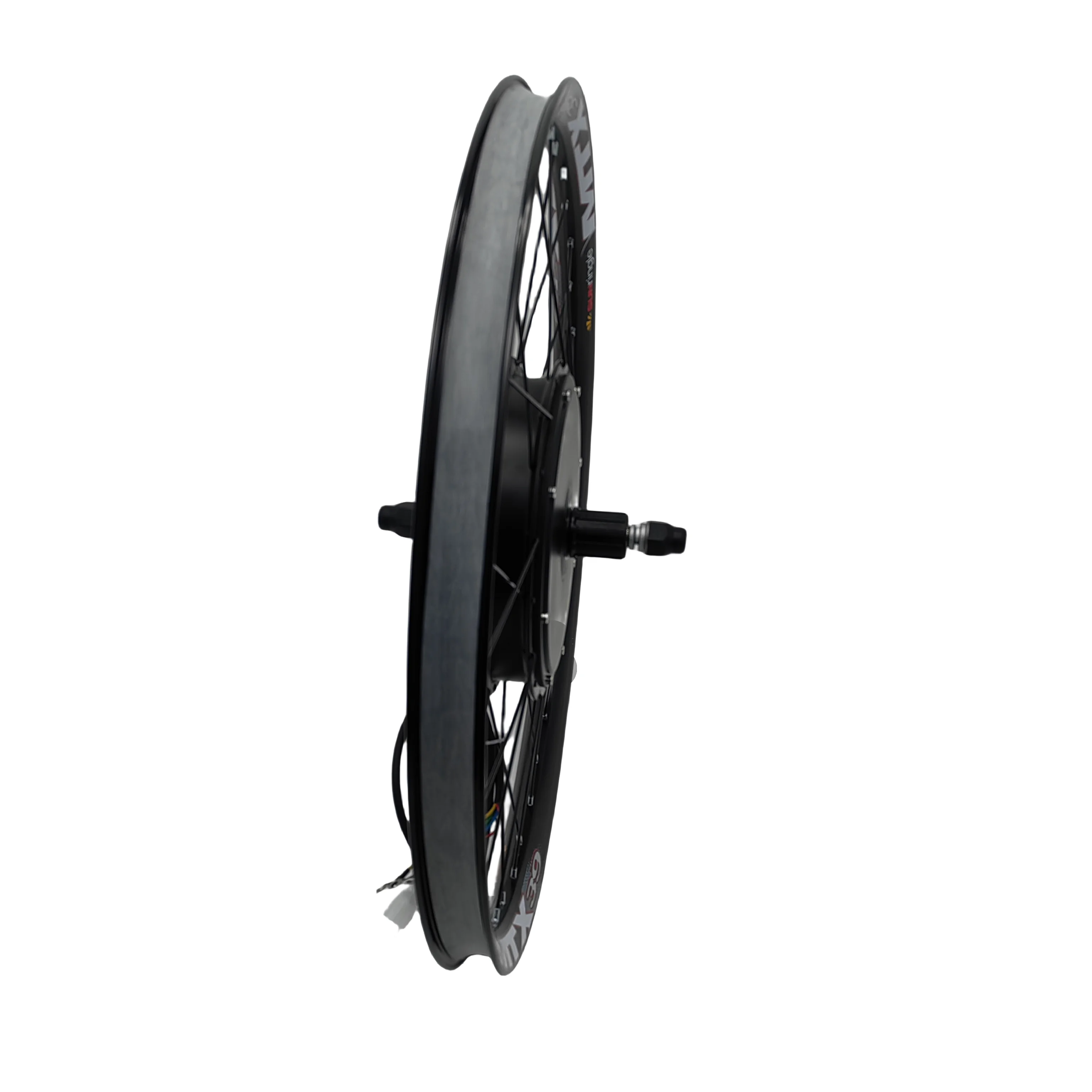

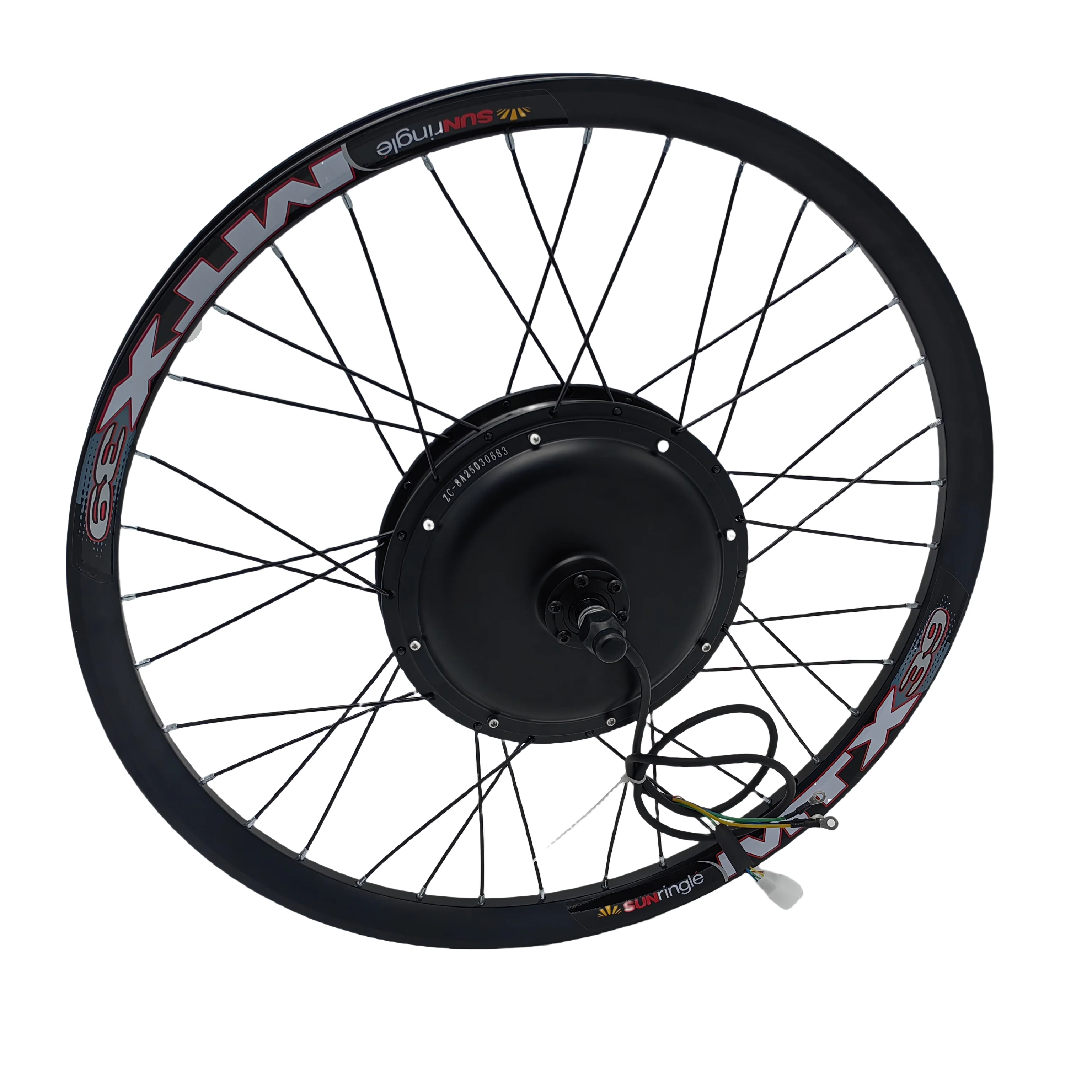

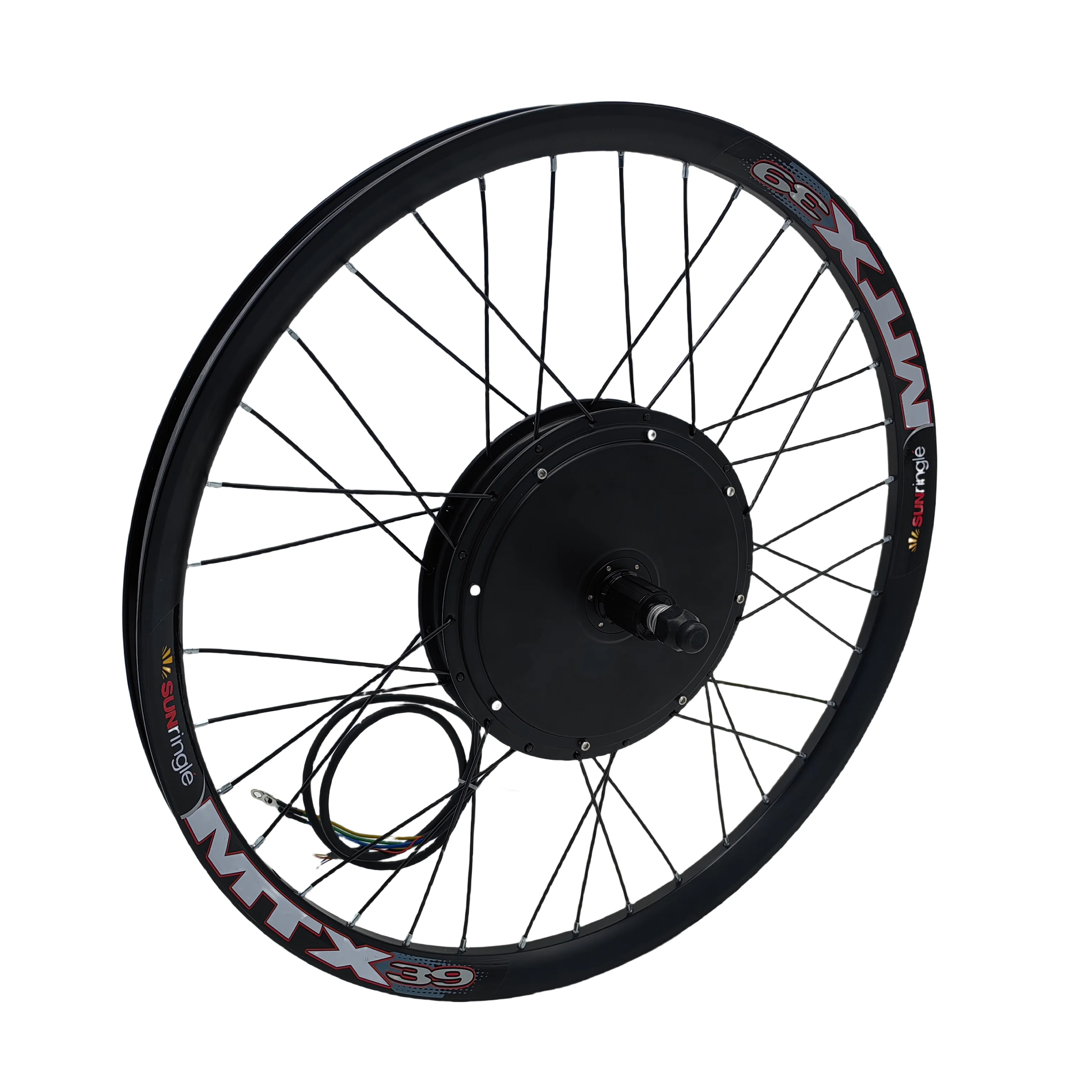

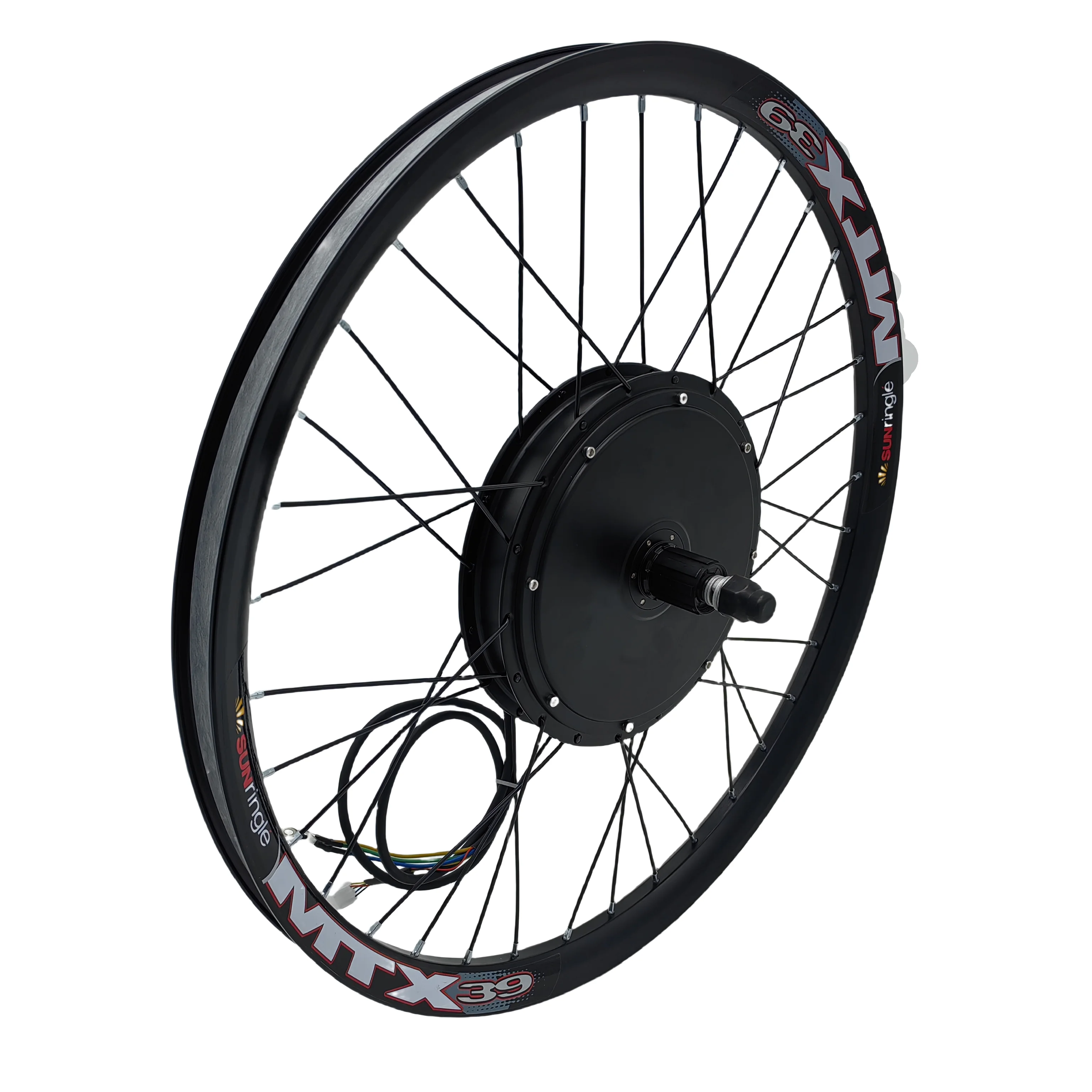

1. 72V 2000W Brushless Gearless Rear Hub Motor Wheel Dropout 142mm (without tire and tube)
(with thread-on 7-speed freewheel. Reinforced MTX39 double-layer aluminum alloy rim,12G reinforced black spokes)
2. 48V/52V/60V/72V 45A 3-mode sine wave controller (support both hall sensor motor and non hall sensor motor)

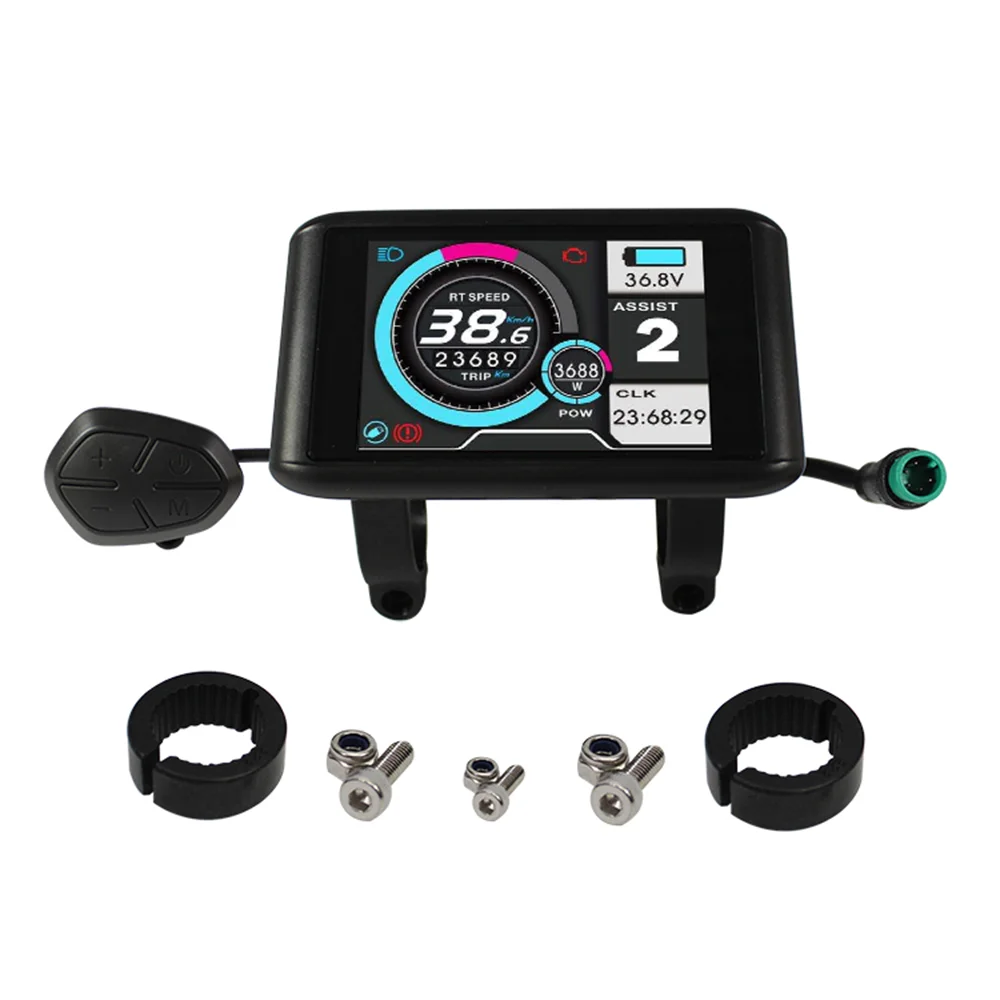

3. 36V/48V/52V/60V/72V TFT UKC1 Color display

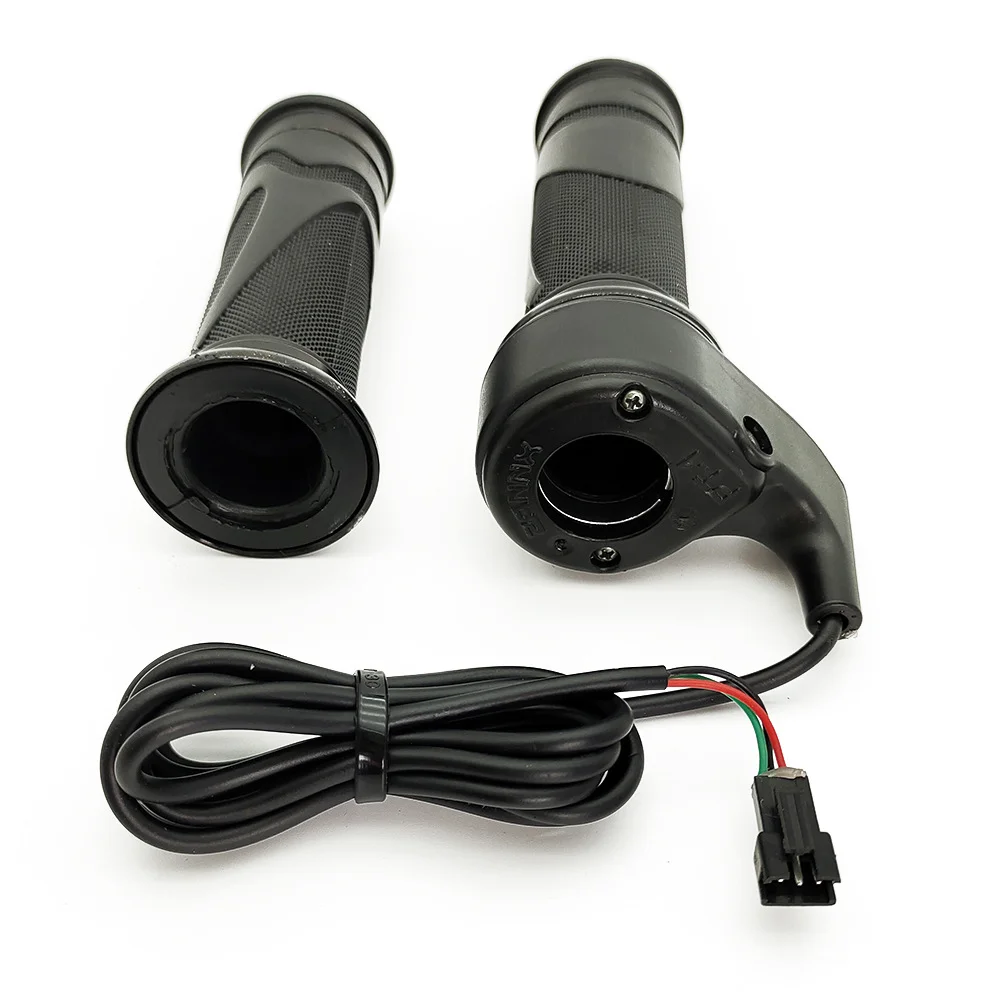

4. Full Bar Twist Throttle

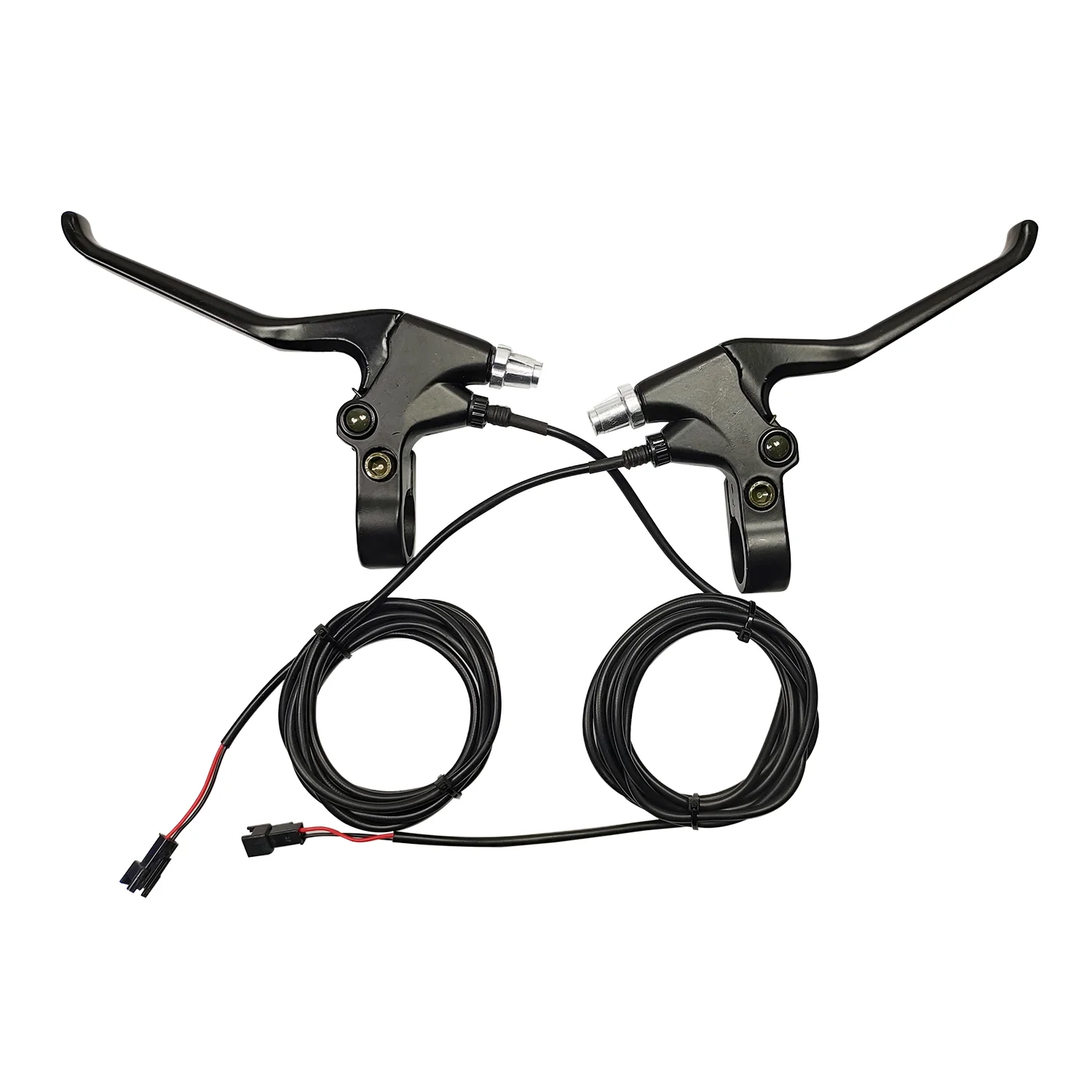

5. Brake Sensor only or 4-piston Hydraulic Disc Brakes

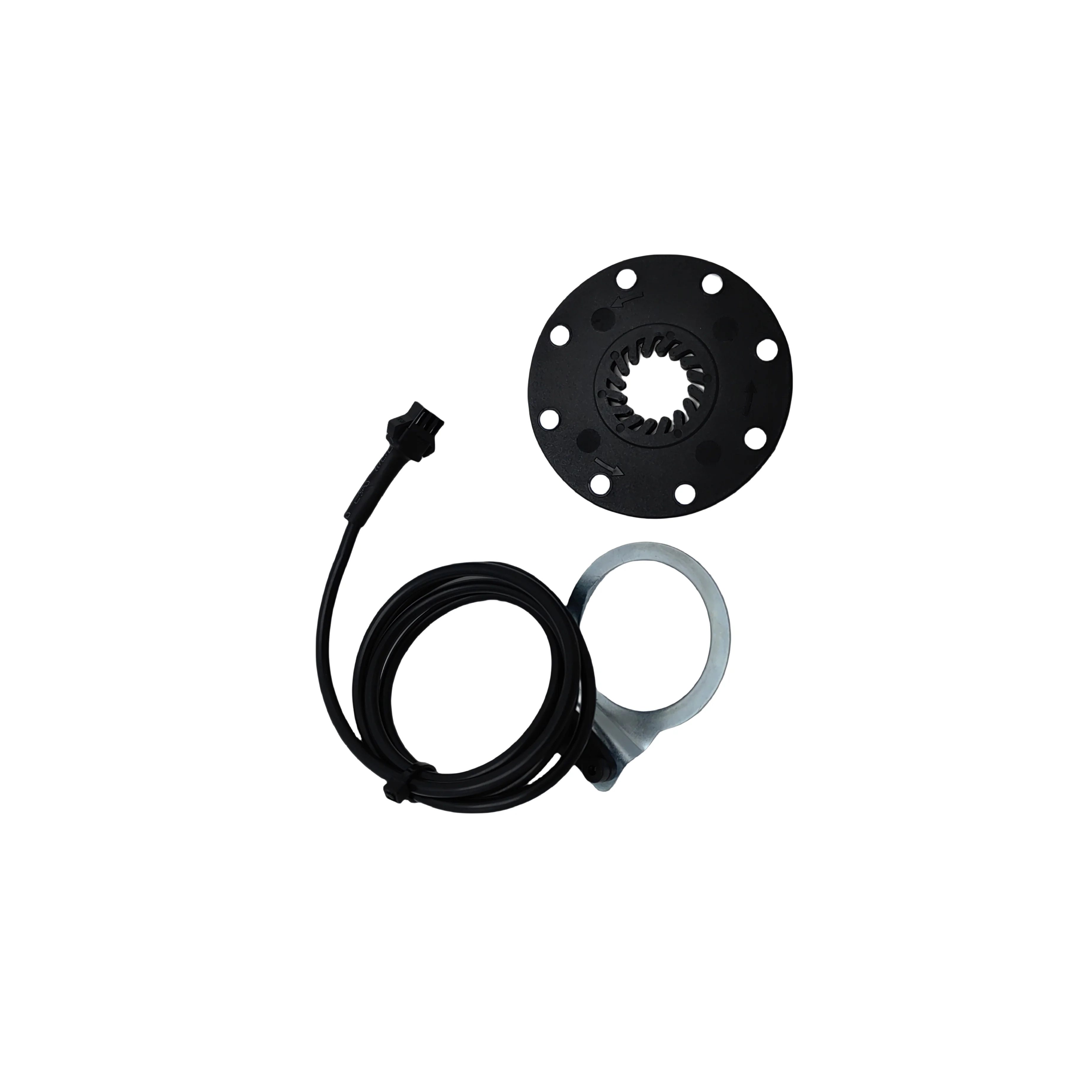

6. PAS

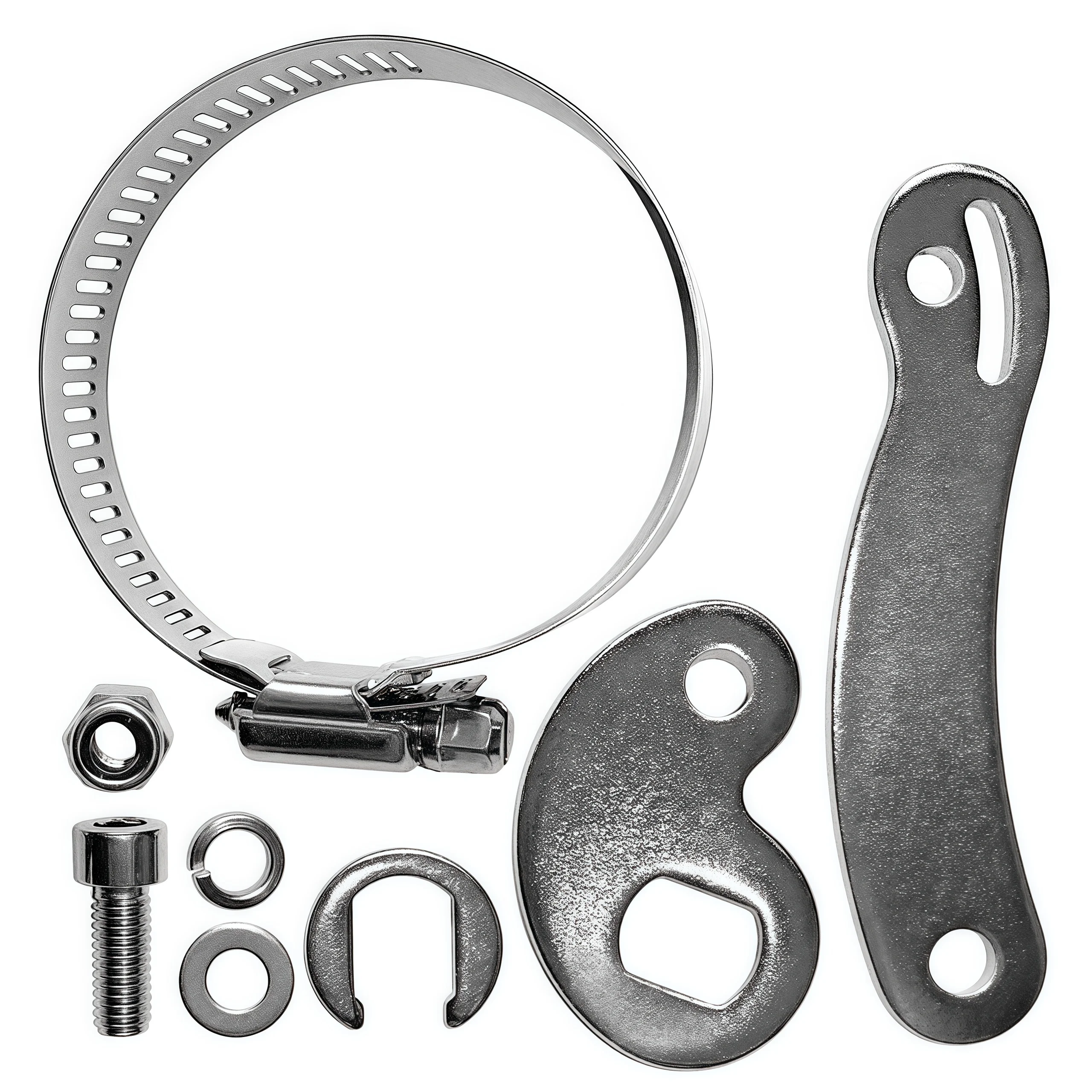

7. Torque Arm
8.controller bag

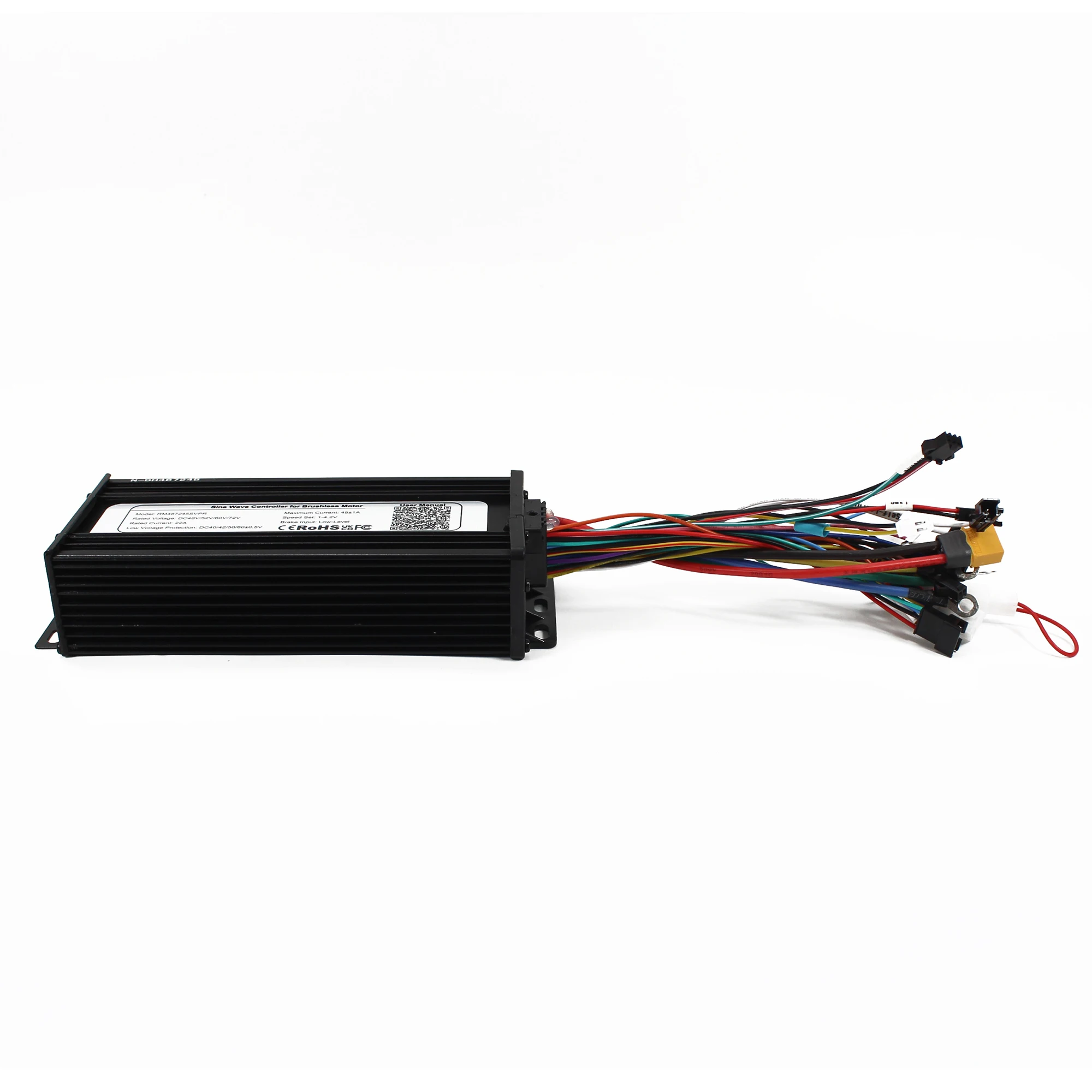

Controller Specification:
1) 48V/52V/60V/72V 45A 15 MOSFET 3-mode Sine Wave Controller
2) Rated Voltage: DC48-72V universal
3) Rated Current: 22A
4) Max Current: 45 +/- 1A
7) Speed set: 1-4.2V
8) Brake Input: Low Level
9) Low Voltage Protection: DC40V/43V/49V/60V +/- 0.5V
8) Compatible with our LCD Display or without Display (need to plug LCD jumper connector)
9) Size: 212x86.5x48.5mm
10) Weight: 0.61kg

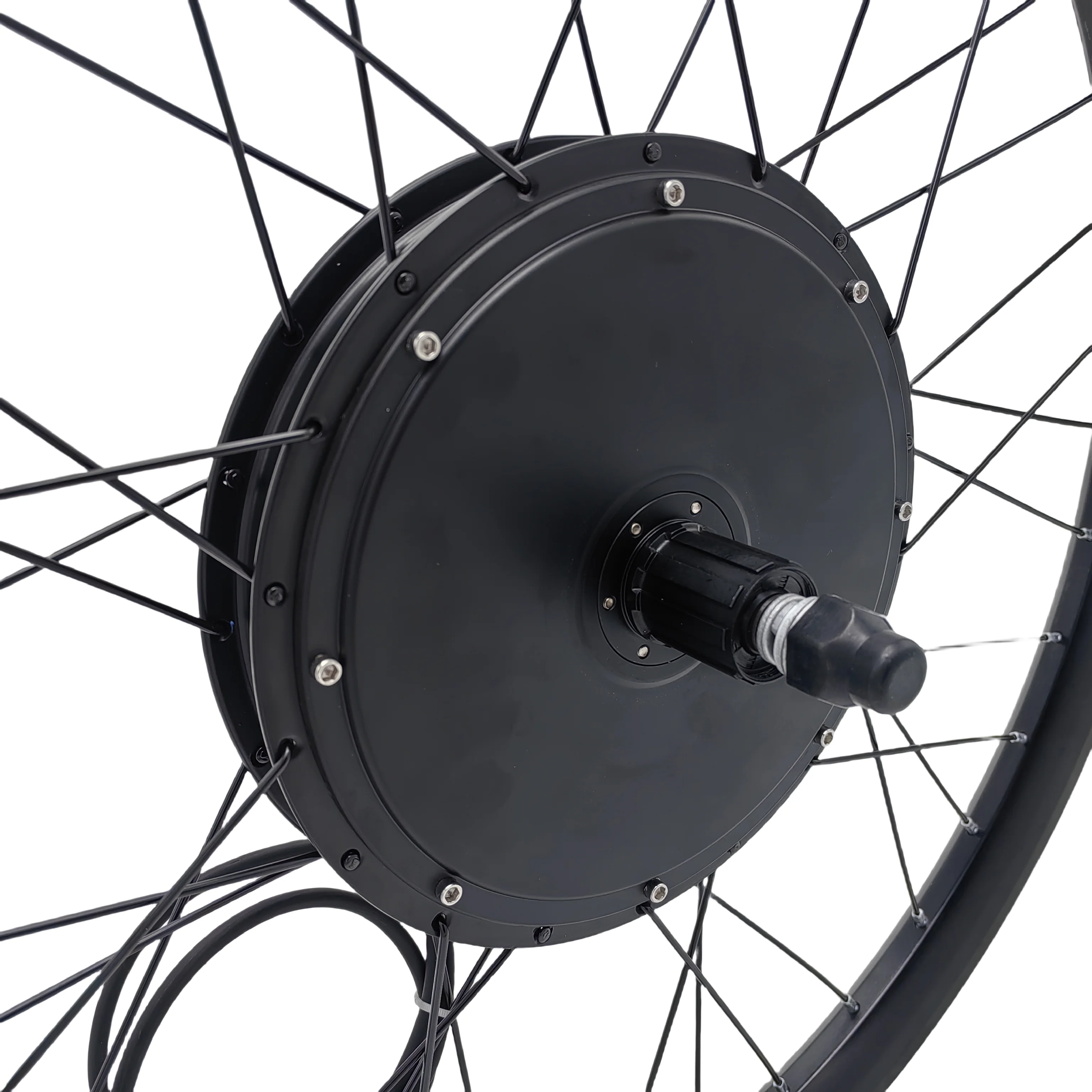

Motor Specification:
1) High Motor Efficiency: max 88% (Save Power)
2) Torque: max torque 50 N.m.
3) RPM: max 550
4) Max Speed: 58-60km/h (different road&weather condition and rider's weight will have different speed)
5) Hub Width (Frame dropout requirement for 7-speed): 142mm rear thread-on hub motor
6) Support standard 6-hole type disc brake
7) Rear Wheel with Shimano 7-speed freewheel
UKC1 Color display Specification:
1) 24V-72V universal
2) Function: max 5-speed level PAS, speed display, speed limit, Cruise, 5-speed level throttle, optional Regenerative braking function
3) With press key button: Up, Down, Power
4) Can be vertical or horizontal
5) 5V USB Output
Installation Guidance:
1) Unscrew the existing rear wheel screws, remove your rear wheel;
2) Install the motorized wheel and fasten screws;
3) Fix LCD, Brake lever and throttle;
4) Fix PAS at left side (If you don't need PAS, you can also don't install it).
5) Put Controller at suitable position and connect all wires.
6) Turn on battery, throttle key and LCD, set correct value from LCD
Correct wheel size setting: according to your wheel size
Correct max speed setting: set it at max value 75
Correct motor magnet pole quantity 46
Save all value and restart LCD display
