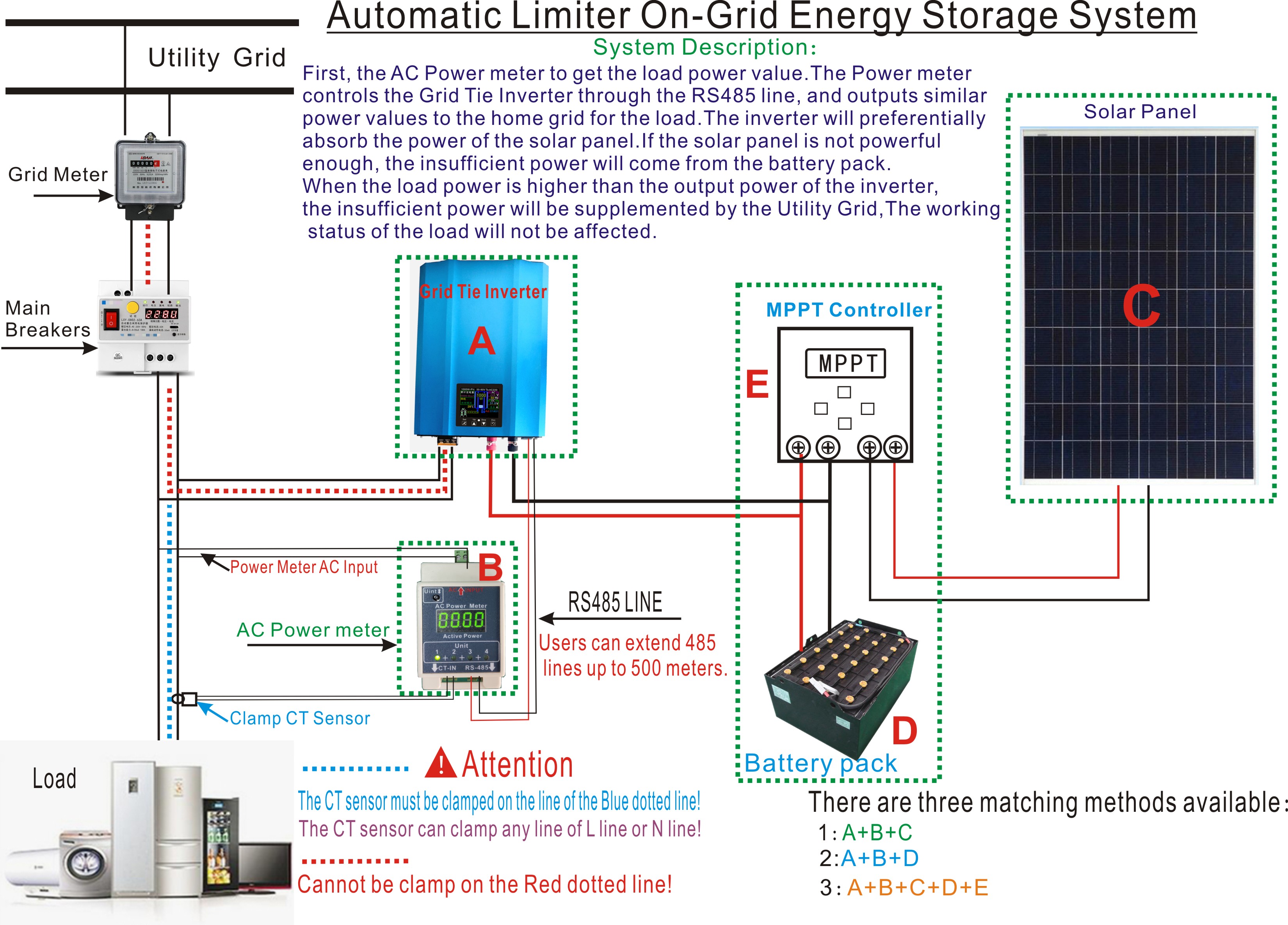

GTN-1000W Grid Tie inverter It delivers only the power needed by the load and prevents delivering excess power hence avoids excess power in going back to the Grid.

In addition to the PV power generation mode, we have a battery energy storage grid tie power generation mode. During the daytime solar panels generate electricity for household loads, and excess electricity is stored in batteries. The inverter can still work normally at night. And you can set the battery low voltage to stop working to better protect the battery life.

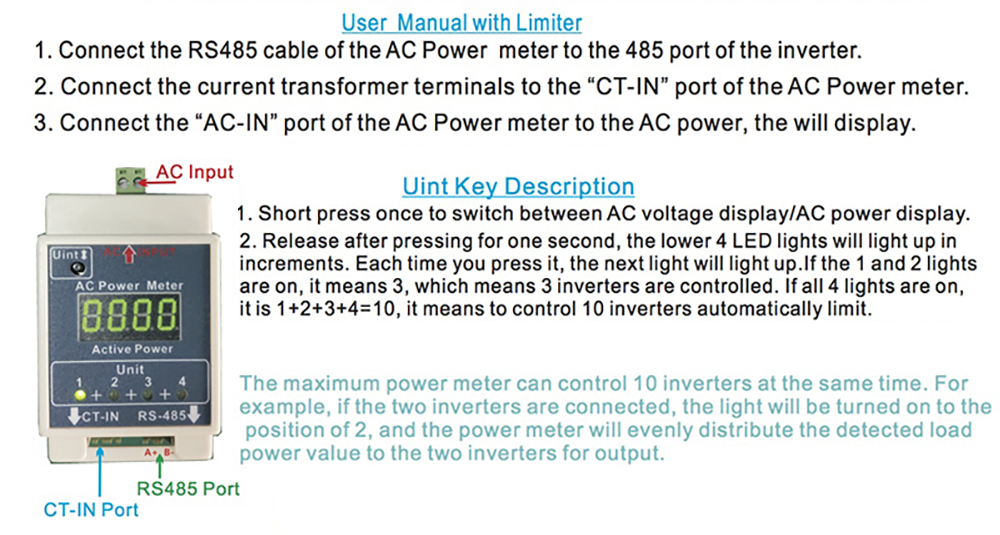

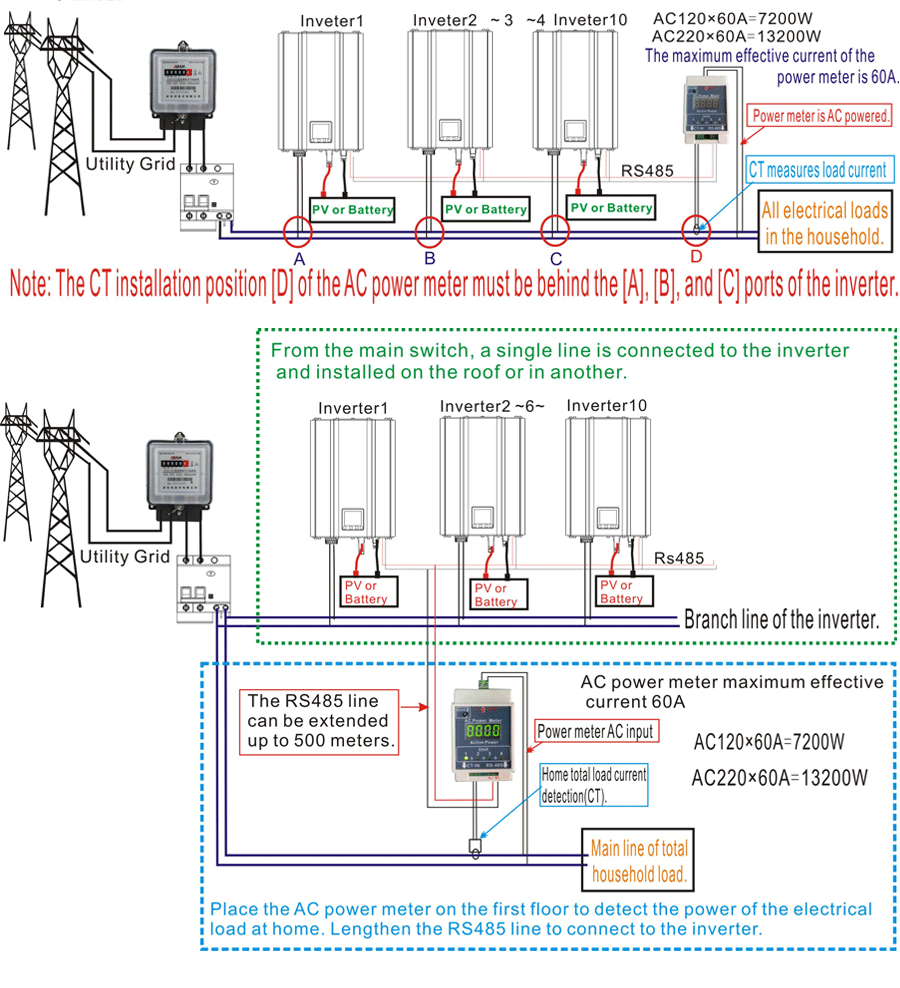

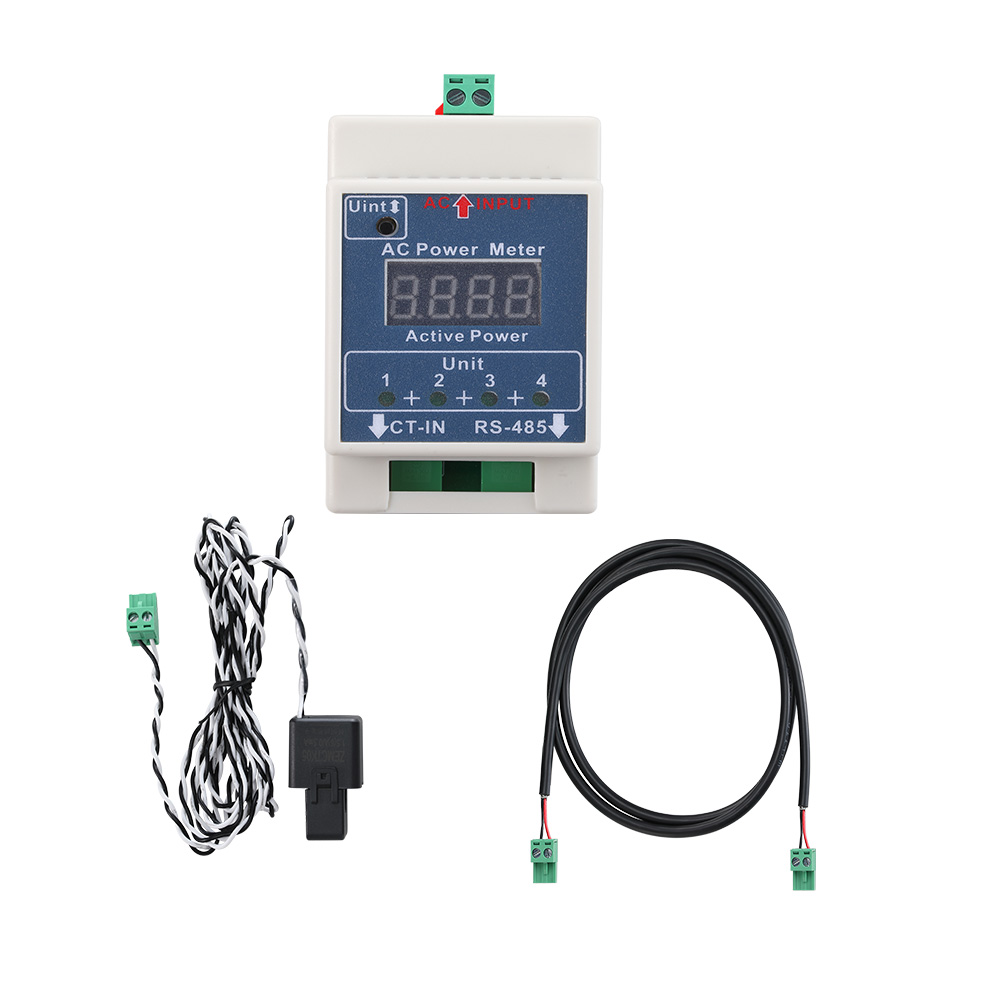

1. Grid Tie Inverter with Limiter Sensor.Delivers only the power needed by the load.

2. Vmp(of a solar panel) must be in the MPPT range to ensure the good output efficiency.fit for 24V, 30V Solar Panels:Vmp is 26-30V and Voc is 34-38V; 36V Solar Panels: Vmp is 35-39V and Voc is 42-46V.

3. The LCD displays the working status of the inverter, and can set the photovoltaic/battery mode. The fault working status information prompts.

4. The solar grid tie inverter is suitable for 24V battery and has the function of battery constant power output. The battery power output (80-650W) can be set according to the user's required household power output power. In addition, it has battery low voltage protection to avoid battery capacity exhaustion, thereby better prolonging battery life.

5. DC overvoltage/overcurrent protection, AC overvoltage/overcurrent/overfrequency protection, over temperature protection, islanding protection.

Inverter Parameter:

Model:GTN-1000W-24V-220V-L

PV no-load input voltage Voc:26V-50V

MPPT tracking range:21~31V

fit for 24V, 30V Solar Panels:Vmp is 26-30V and Voc is 34-38V;

fit for 36V Solar Panels: Vmp is 35-39V and Voc is 42-46V

Battery voltage:24V

Battery start voltage setting range:24-31V

Battery low voltage shutdown can be set range:22-30V

Maximum input protection current:40A

Rated AC output power:1000W

Battery mode constant power:80W-650W

Battery limit mode maximum output power:700W

AC Voltage:230V(180-260VAC）

AC Frequency:50HZ/60HZ

Package:40*26*17CM

Weight:4.5kg

Certification: CE
