This display is come with APT protocol, before you place the order, please confirm what is your controller protocol, the controller protocol must be same as the display protocol then they can use together.
Specification of UKC1 LCD Color Display:
1) 24V/36V/48V/52V/60V/72V input
2)Material: Durable and lightweight ABS plastic
3) Rated operating power : 1W
4) Max operating power : 5W
5) USB charging port : 5V 500mA
6) Off leakage current <1uA
7) Support current to controller : 100mA
8)Grip size: Φ22.2mm
9) Size:111.1*66.8*82.8mm
10)3.5 inch IPS screen
11) Waterproof grade:IP65
12) Operating temperature : -20~70℃
13)Storage temperature : -30~80℃
14)Display line length: SM connector, about 165cm/WP connector, about 20cm

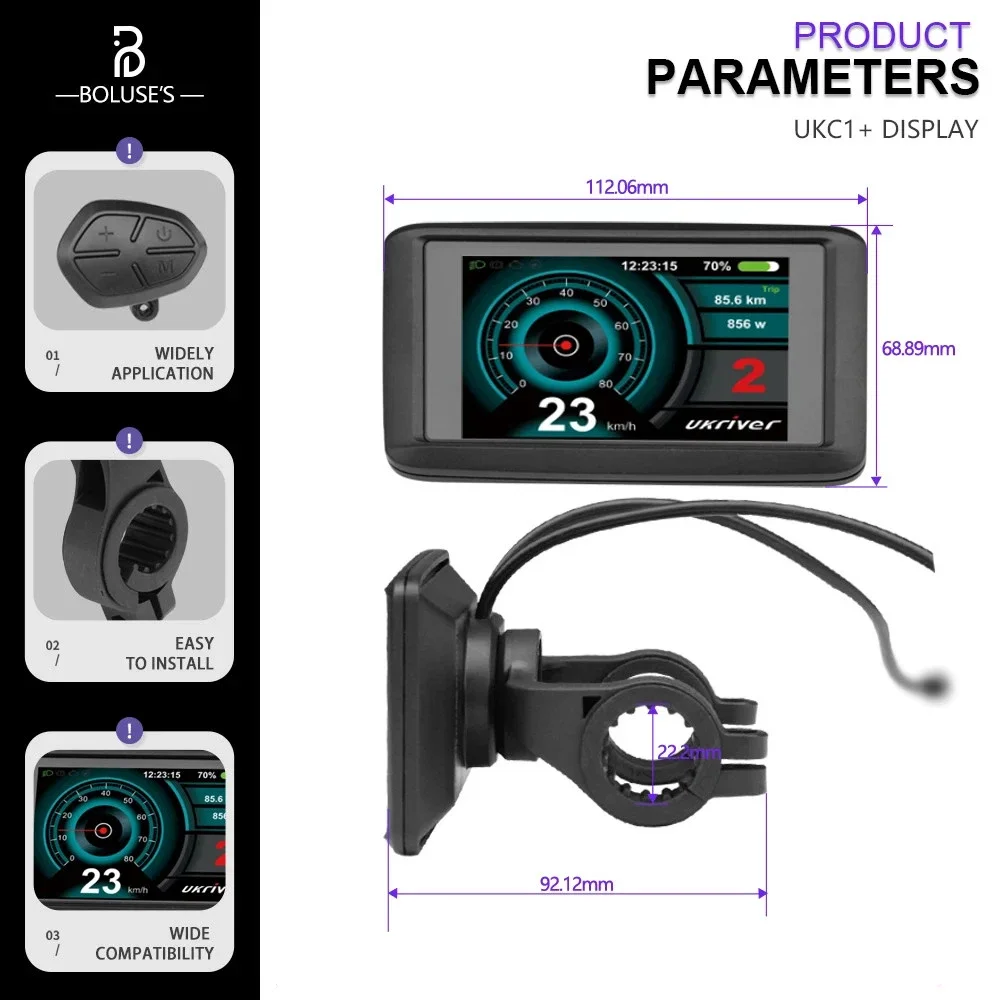

Specification of UKC1+ LCD Color Display:
1) Voltage Range: Suitable for 24V-72V electric bicycles
2)Material: Durable and lightweight ABS plastic
3) Rated operating power : 1W
4) Max operating power : 5W
5) USB charging port : 5V 500mA
6) Off leakage current <1uA
7) Support current to controller : 100mA
8)Grip size: Φ22.2mm
9) Size:111.1*66.8*82.8mm
10)3.5 inch IPS screen
11) Waterproof grade:IP65
12) Operating temperature : -20~70℃
13)Storage temperature : -30~80℃
14)Display line length: SM connector, about 165cm/WP connector, about 20cm
Function:
-
1. Display function
Speed display, gear display, battery indicator, fault prompt, total mileage, single mileage, current voltage, riding time
-
2. Control and setting functions
Power switch control, wheel diameter setting, idle automatic sleep time setting, backlight brightness setting, startup mode setting
Drive mode setting, voltage level setting, controller current limit setting
-
3. Communication protocol: APT
