48V-72V 3000-5000W Ebike 17" 18" 19" 21" Motorcycle Rear Wheel Conversion Kit with 3.5T /5T 155mm QS Hub Motor
Features of the Product:

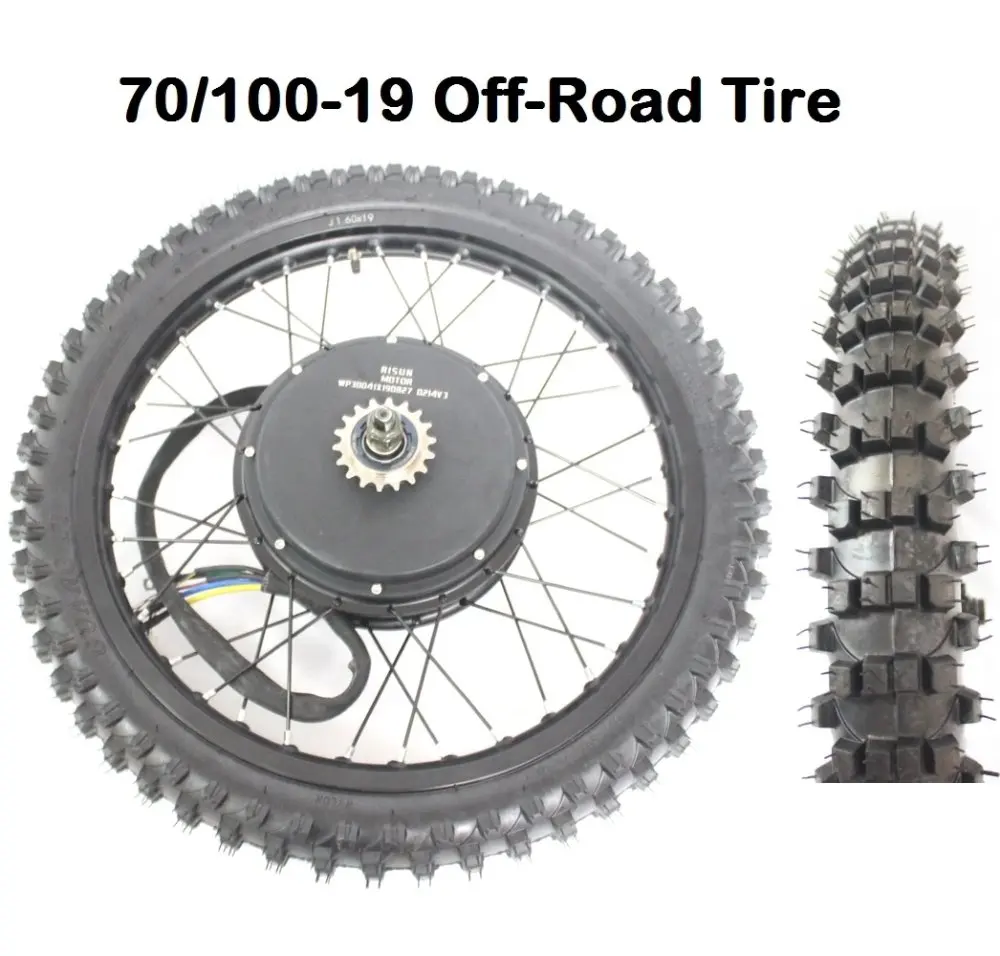

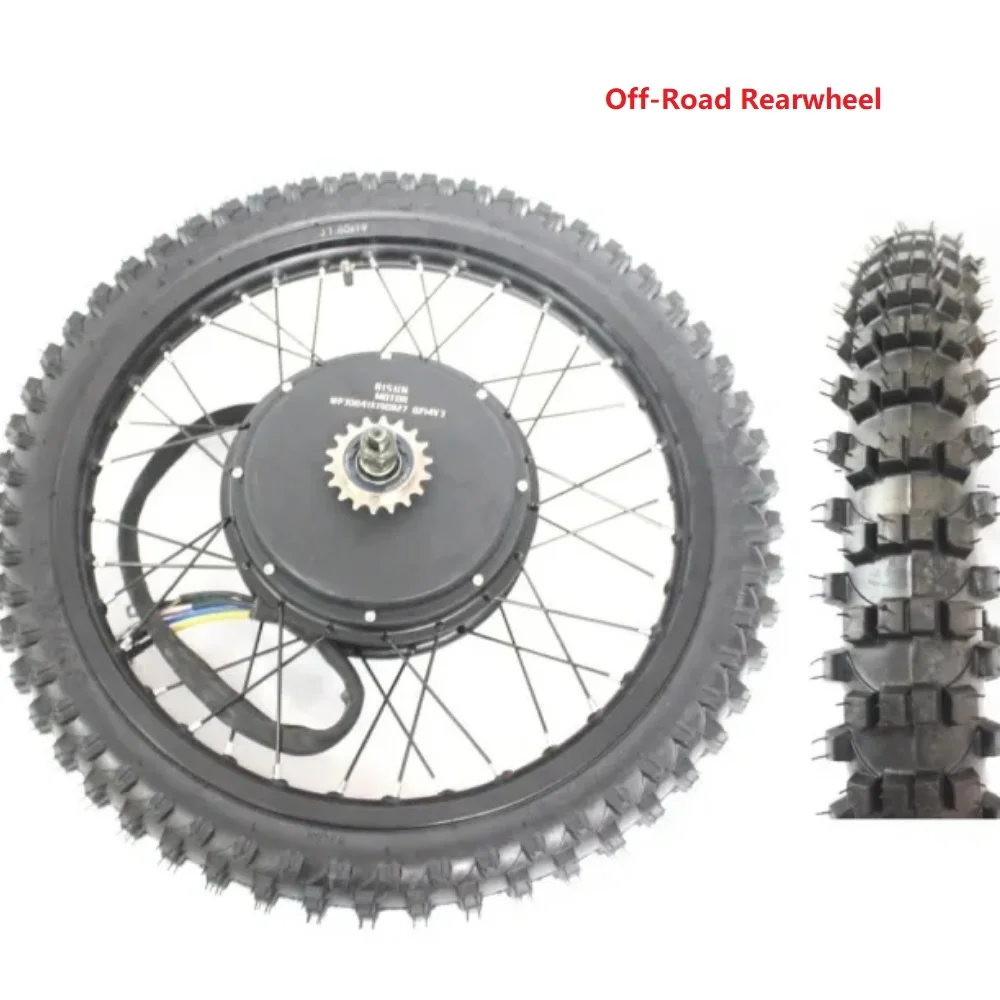

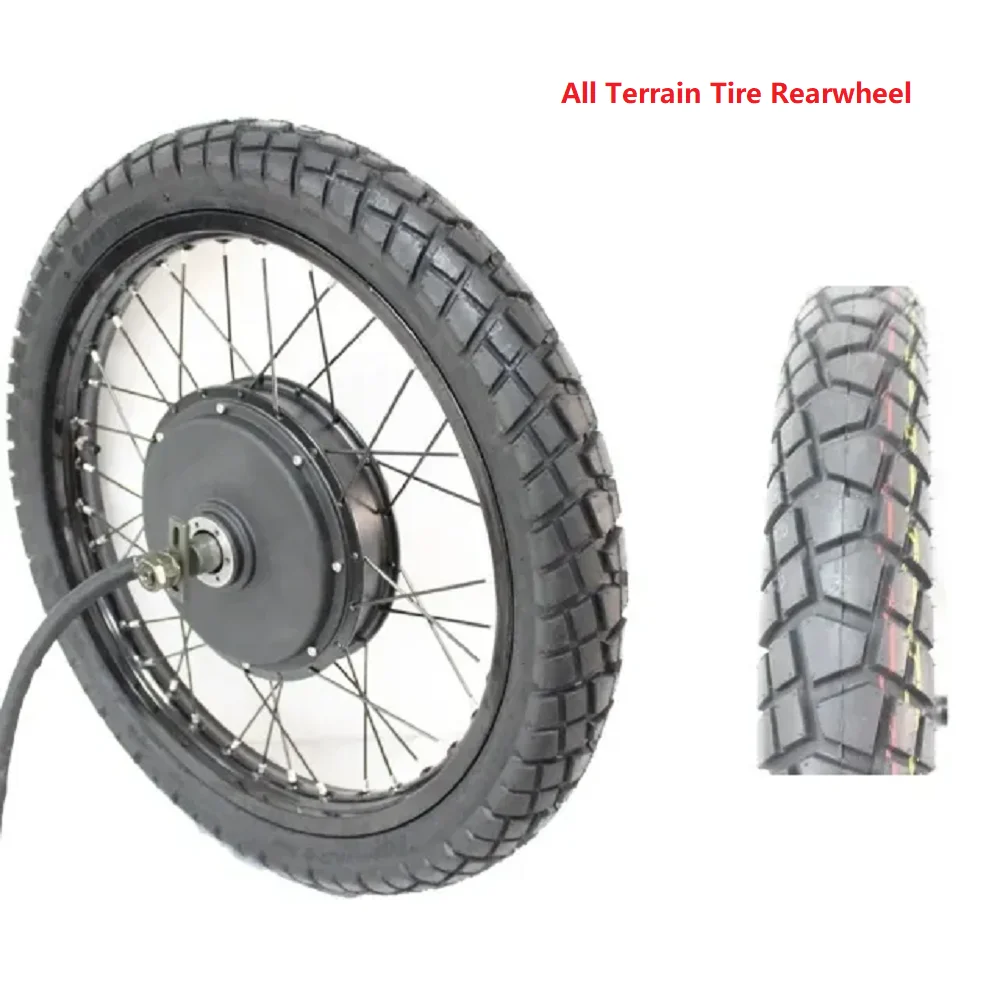

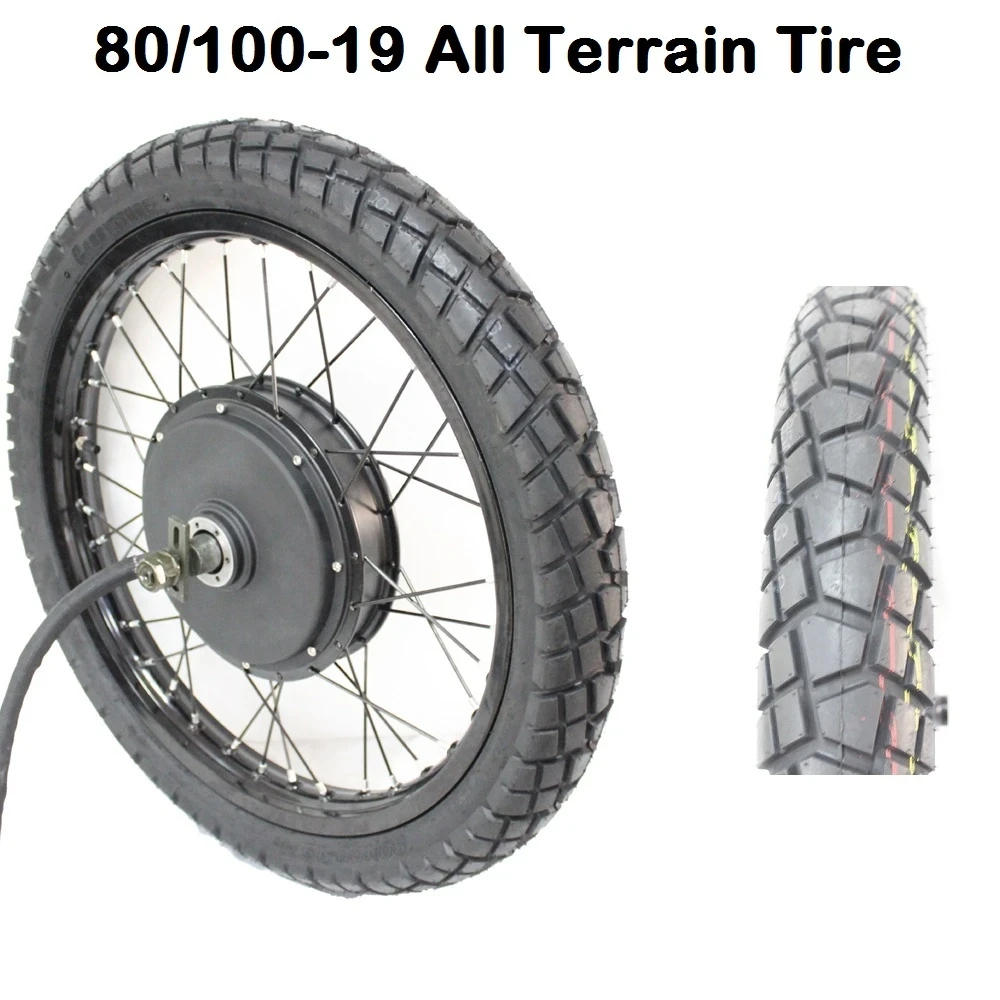

1. 48V,60V,72V 3000W-5000W Brushless Gearless 17" 19" 21" Rear Hub Motor Wheel with 18T Single Speed Freewheel (Includes Tire and tube),

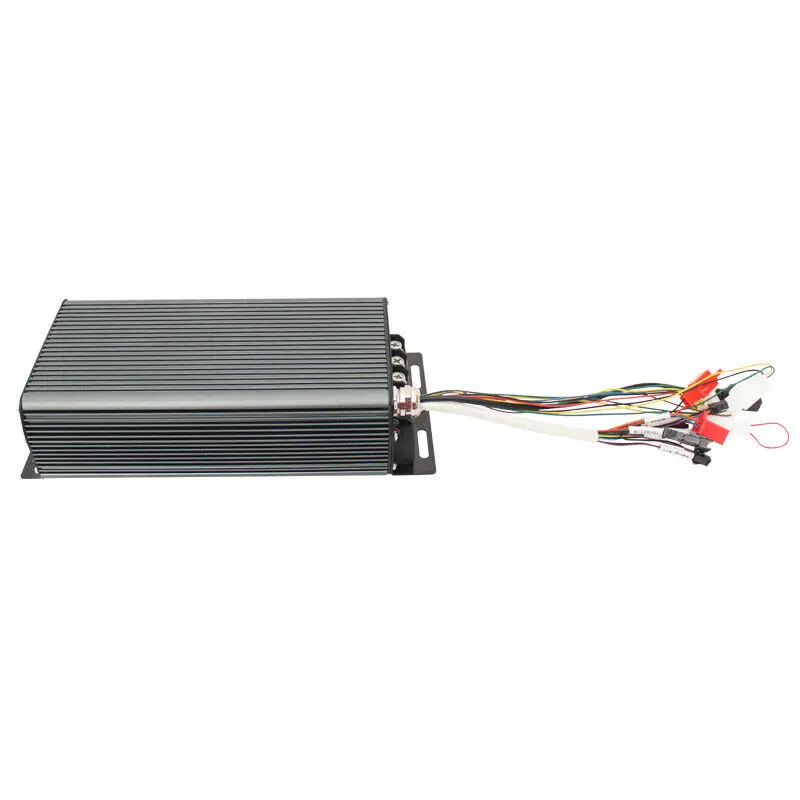

2. 48V/60V/72V Universal MQ sabvoton 150A Sine Wave Intelligent Programmable Controller
3. 48V, 60V, 72V Full color UKC1 Display
4. Hydraulic Disc Brake (Brake Levers and Calipers)
6. Pedelec Assistant Sensor/8 Magnetic PAS Drive
7. Alarm
8. Bluetooth module (to change setting via Mobile Phone)
9.Torque Arm
Specification:
High Quality 48,60,72V 3000-5000W Brushless Gearless Hub Motor Wheel

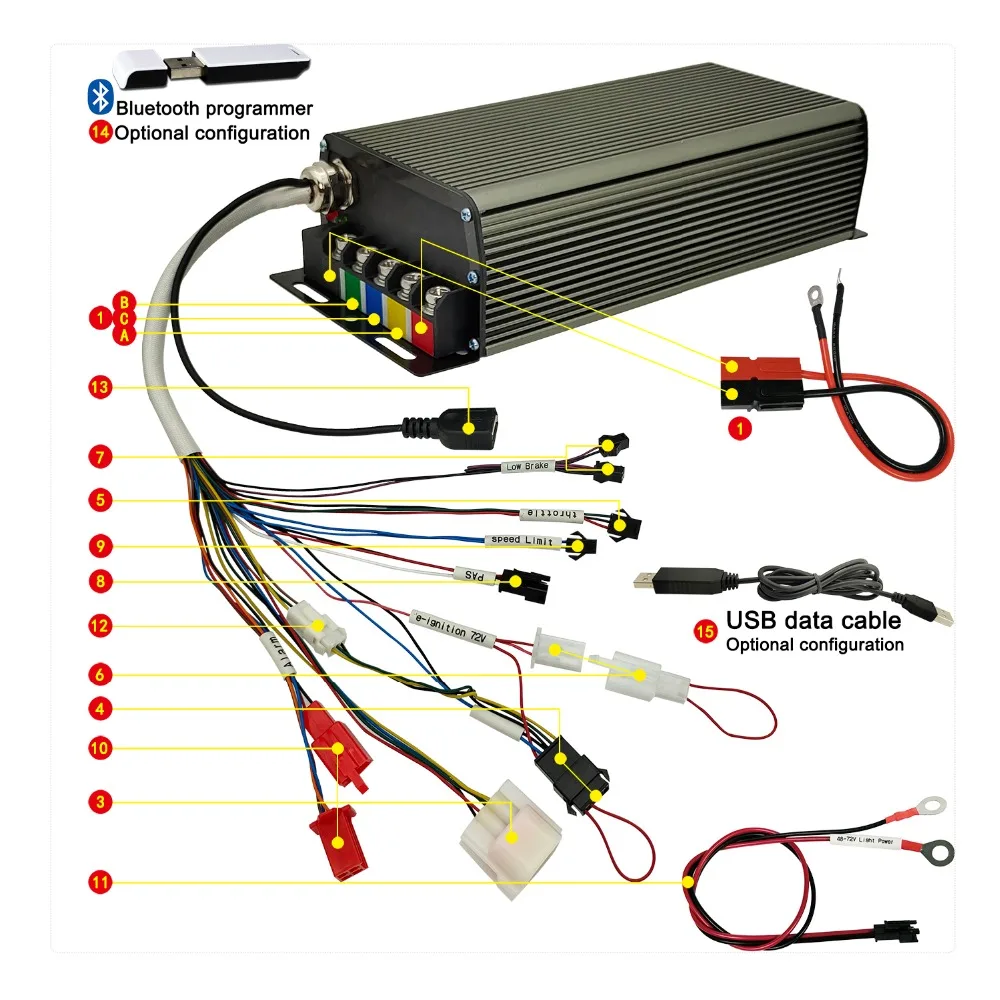

High Quality MQ sabvoton 24 MOSFET 150A 3000-5000W Sine Wave Controller, Voltage/Limit Current/Speed and so on can be set through Mobile APP

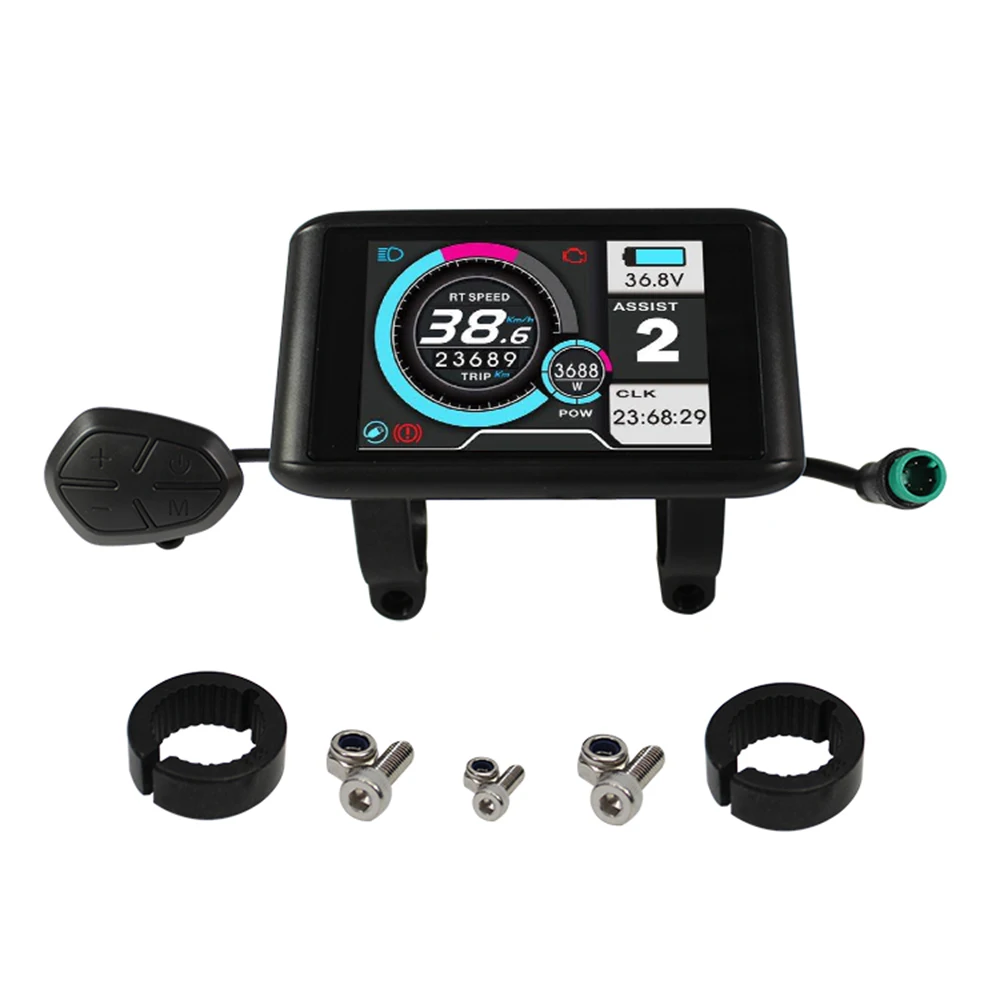

36V, 48V, 60V, 72V Full color UKC1 Display (with 5-level PAS, speed limit, speed display, Regenerative Function)/TFT RSM-750c
DNP High Quality High Torque eBike 18-teeth Freewheel.
Remote start + Alarm + Motor Lock
Applicable to E-Bike, E-Motorcycle, E-Tricycle and so on
Tile Magnet,low noise and long working life
Certificates: CE, EN60335-1:2012+A112014
High Motor Efficiency: >90%
Max Torque: >160 N.M.
Speed: About 90km/h-110km/h=
Hub dropout width: 155-160mm rear hub motor (Single-speed Gear) is required
Motor Types:
The 3.5T Motor is high speed version which is suitable for road riding. The maximum speed is about 110km/h with 100A Controller.
The 5T Motor is high torque version which is suitable for slope climbing riding. The maximum speed is about 80km/h with 100A controller.
Controller Advantage:
1.Programmable Sine Wave Controller which support big current and smart match with each motor through self-learning, works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control, give you best pedal experience
2.Motor torque ripple is reduced to minimum through FOC, more smooth and comfortable
3.Universal Input Voltage Range: 48V/60V/72V
4.Work with or without display
5.Parameter setting via Mobile Phone App or Computer
6.All protection make it long life and safe: over/under voltage, over current, over load, over heating, anti-runaway, locked-motor protection
7.Multi functions: Smart match with different motor, 5-speed level for throttle and PAS, Speed limit, reverse, anti-thief, Regenerative Braking, Electric Braking, Keyless start and etc.
8.Best heat sinking with thicker Heat sink Aluminium Plate
9.Anodized Aluminium Controller Case against scratch
10.Mobile phone App can communicate with the controller to modify parameter
RisunMotor programmable sine-wave motor controller works with high efficiency, less noise, and lower energy consumption, which makes your electric vehicles or electric motorcycles more comfortable and easier to control. Our designed friendly interface of the programmable motor controller makes you set the parameters, conduct the tests and obtain the diagnostic info easily and quickly.
1. FOC-180° sinusoidal drive controller applied to BLDCM or PMSM.
2. It takes only 2-3 minutes for the motor to be well matched on its best electronic angle at the first time.
3. The motor torque ripple will be reduced to the minimum, so as to ensure electric vehicle to run without any noise and vibration, smoothly, and comfortably.
4. The precise current ring can provide accurate torque input to meet the requirement of large torque output during vehicle starting and climbing.
5. The controller enjoys high efficiency due to space vector converter control algorithm which can effectively reduce the temperature rise of controller and extend battery life mileage
6. Built-in various protection: locked-rotor protection, over-current protection, overload protection, over-temperature protection, speed protection, over-voltage protection, under-voltage protection and so on, effectively ensuring the safety of electronic control system and vehicle.
7. System status and fault intelligent management system can effectively monitor the current system operating mode external input state, the case of system failure, and the LED flashes at the same time to facilitate the diagnosis and maintenance.
8. Multi peripheral interfaces: reverse, cruise, anti-theft electronic brake, etc.
9. Parameter modifications and settings are available through Mobile phone via Bluetooth
10. CAN BUS is optional to communicate with body instrument and BMS
