Alpine S-W10D4 S-Series 10" Subwoofer 600W w/ Ported Single Enclosure 4 Ohm
SKU:PV110:S-W10D4-NBX

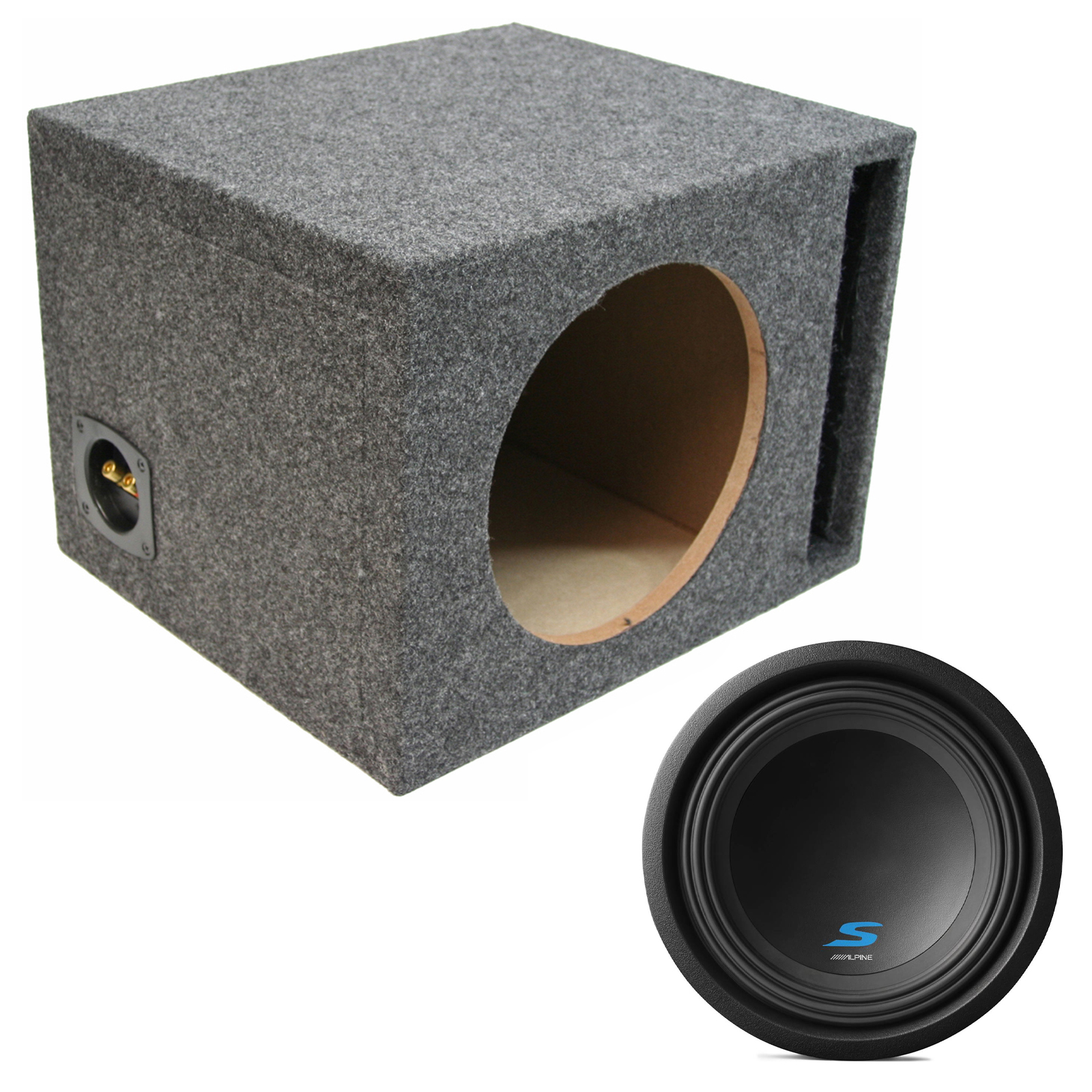

This Package includes the following:
- 1 x Car Audio Single 10" Vented Subwoofer Stereo Sub Box Ported Enclosure 3/4" MDF
- 1 x Alpine S-W10D4 Car Audio Type S Series Sub Dual 4 Ohm 1200W Peak 10" Subwoofer

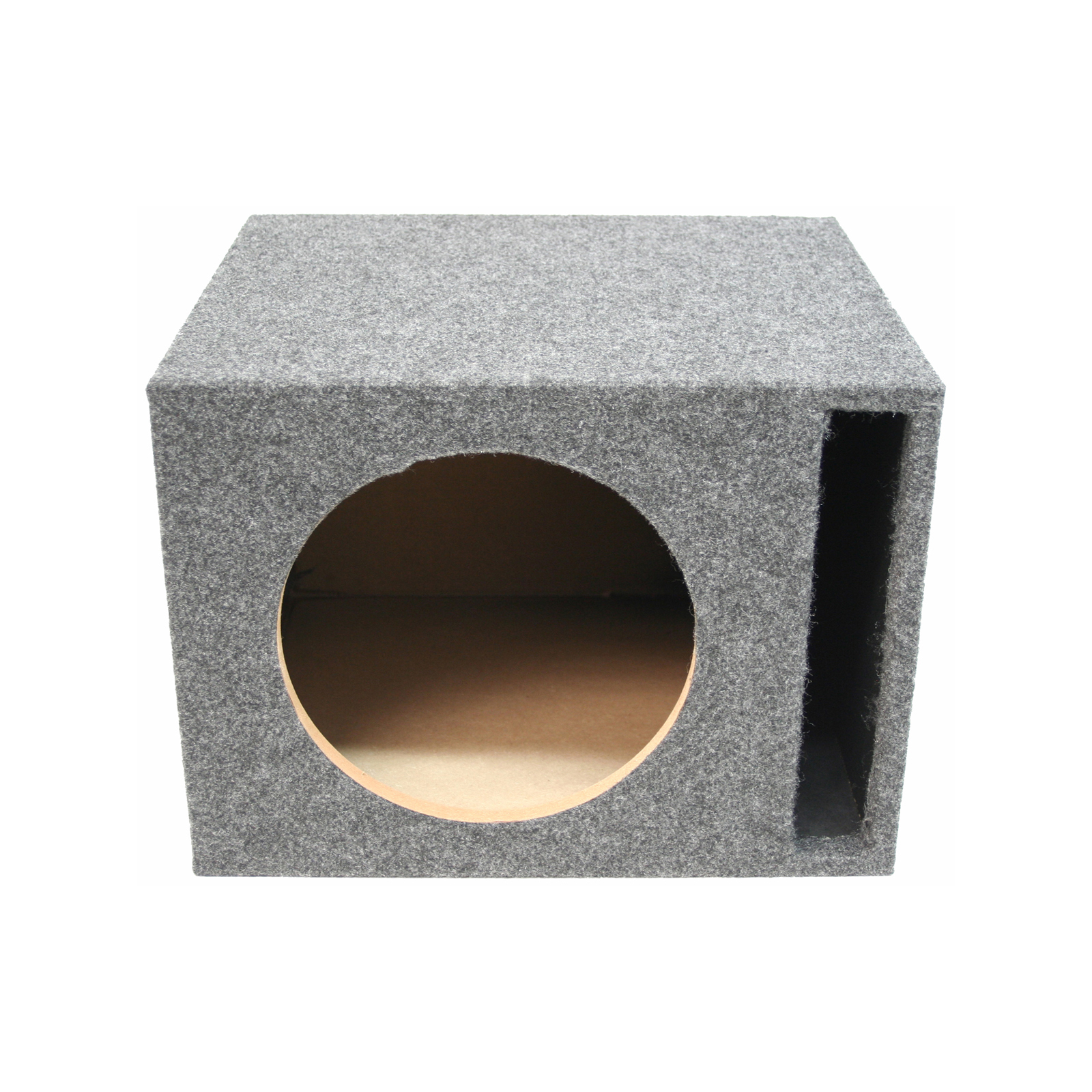

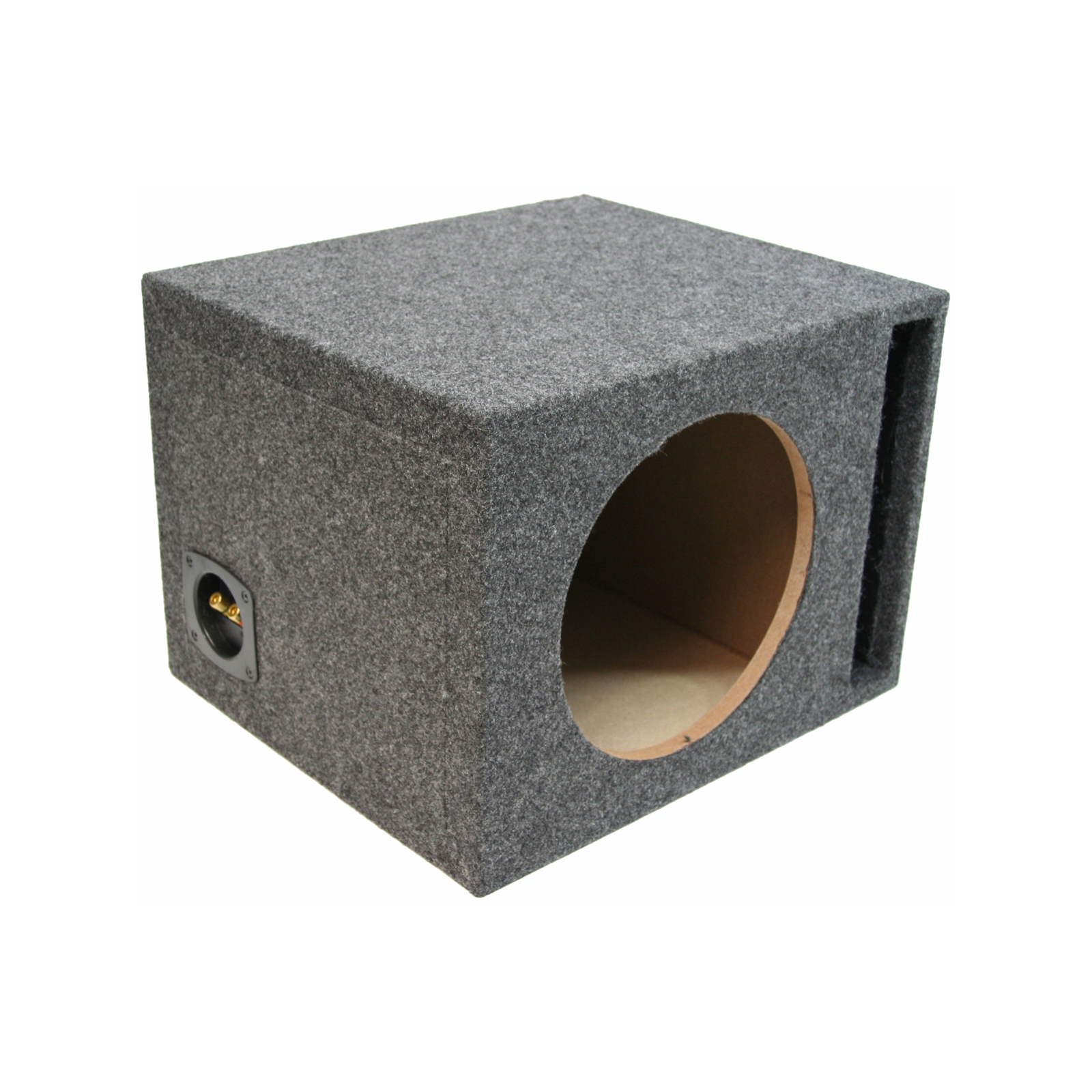

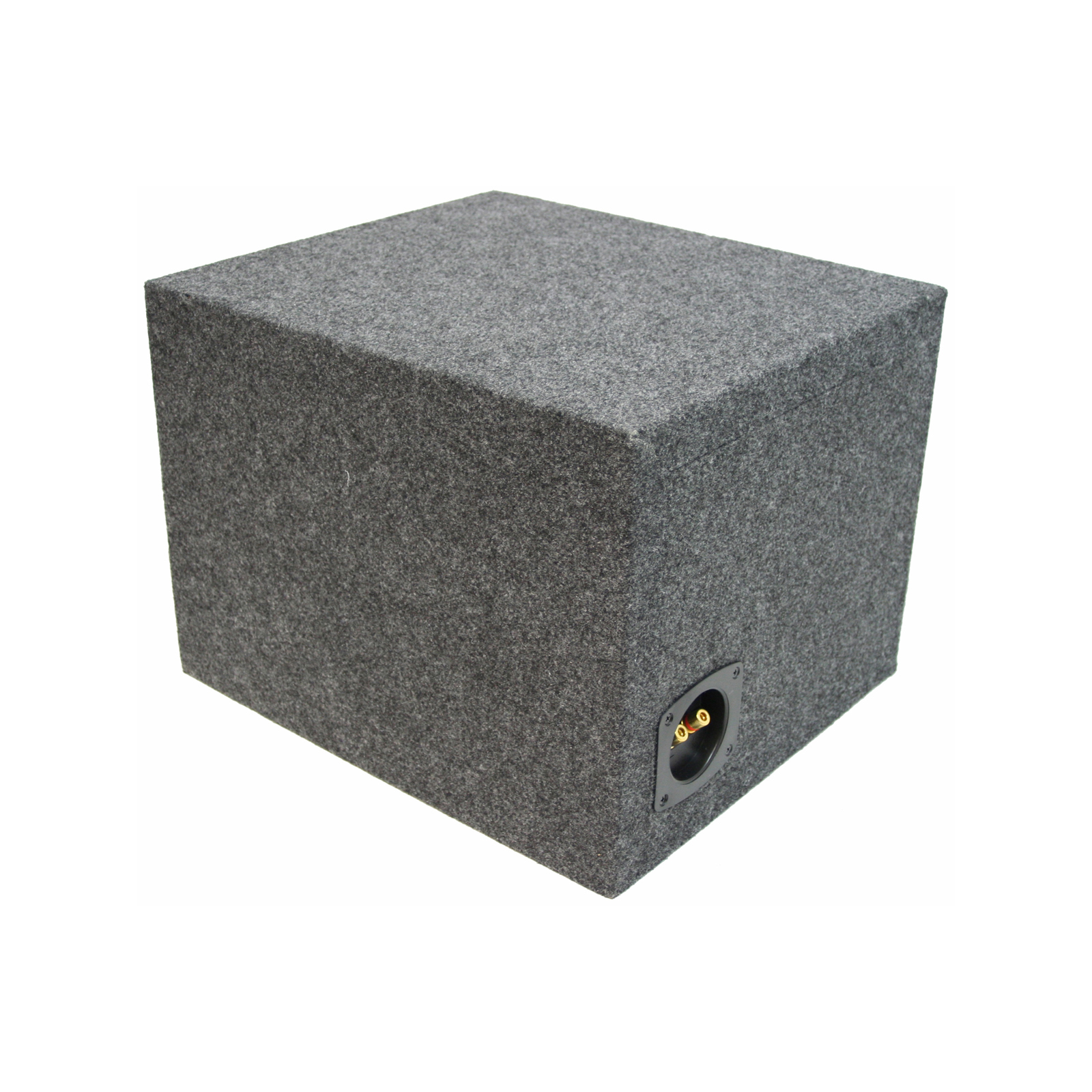

Car Audio Single 10" Vented Subwoofer Stereo Sub Box Ported Enclosure 3/4" MDF
Features:
- Single 10" Vented Sub Box
- Mounting Depth: 13-3/4"
- Air Space: 1.14 Cubic Feet
- Ported Enclosure
- Dimensions: Width 16-1/2" x Height 12-1/2" x Depth 14-1/2"
- Constructed with a 1" MDF Front & 3/4" Sides
- High Quality Binding Terminal Cup (Accepts Banana Terminal Plugs OR Bare Wire 'up to 10GA')
- High Quality Gray Carpet

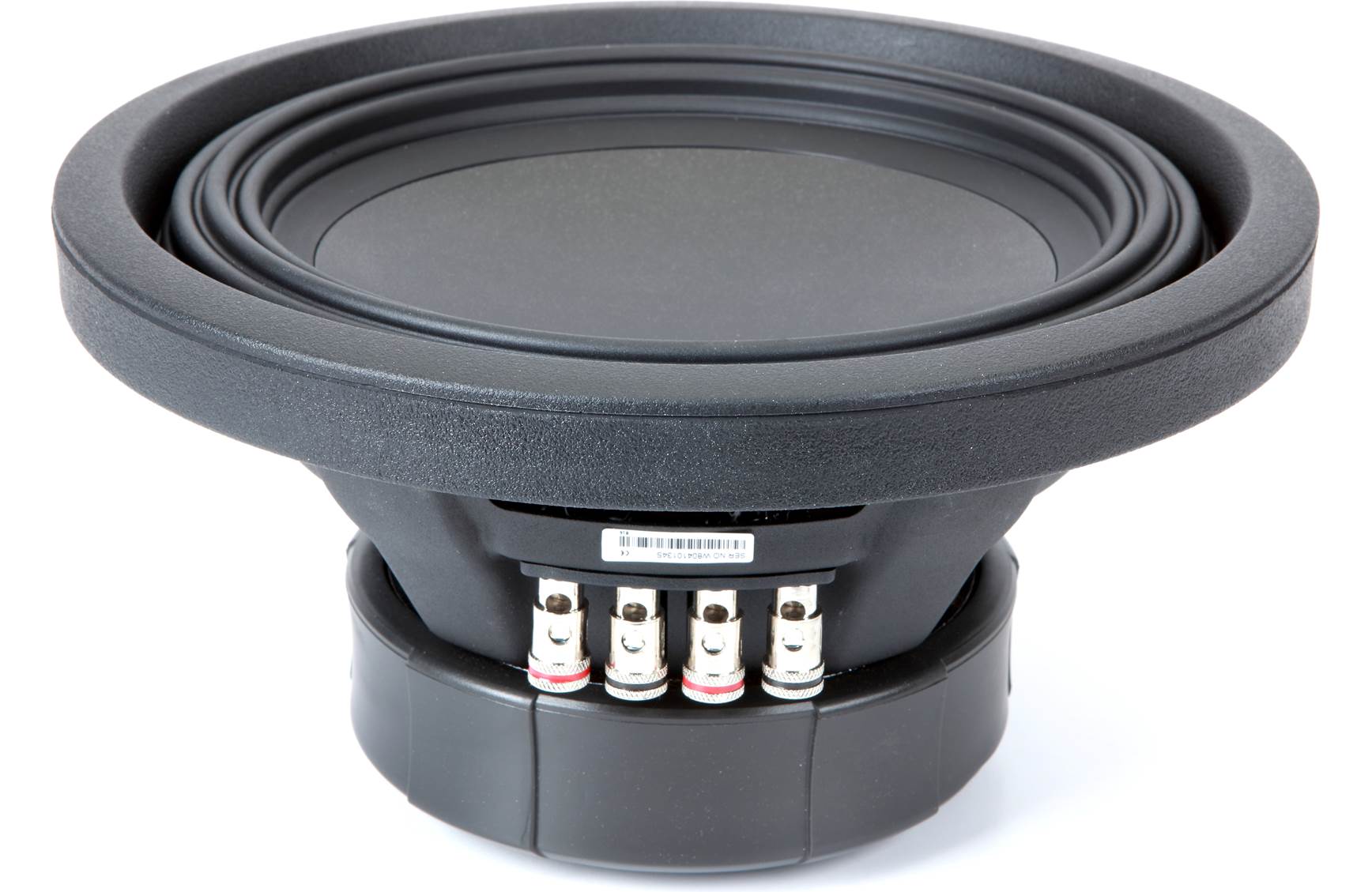

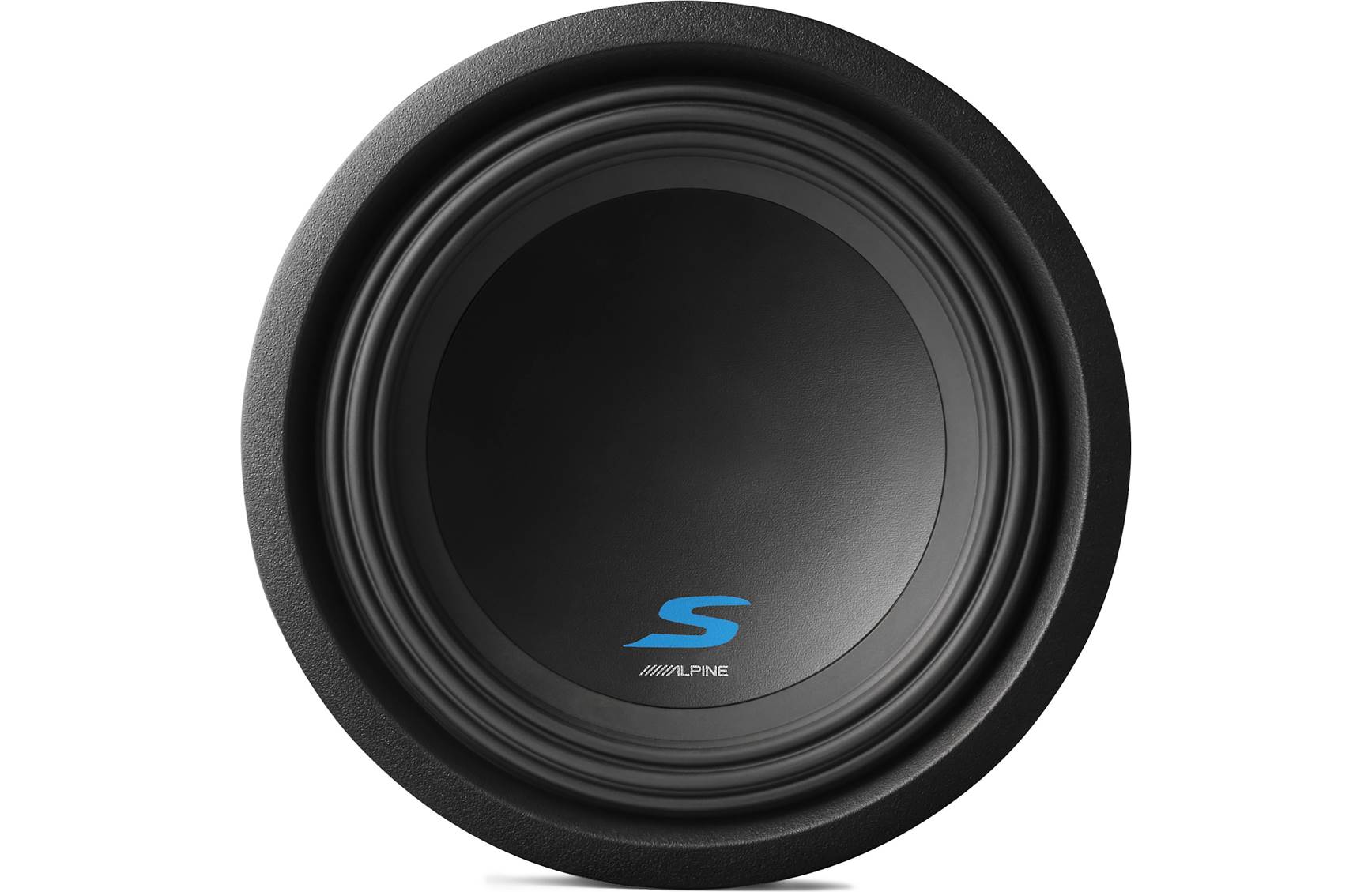

Alpine S-W10D4 Car Audio Type S Series Sub Dual 4 Ohm 1200W Peak 10" Subwoofer
General Features:
- 10" 4 ohm S-Series (Type-S) Subwoofer
- Power Handling:
- Peak: 1800 watts
- RMS: 600 watts
- Recommended power range: 250- 600W RMS
- Pulp/Kevlar Cone
- High Amplitude Multi-Roll (HAMR) Surround
- Progressive Spider with Reinforced Layer Tinsel Leads
- Airflow Optimized Dual Flare Pole Vent
- High Strength Steel Frame Basket
- 8 AWG Push Terminals with VC Configuration Jumpers
- Dual Voice Coil
- High Grade Strontium Ferrite Magnets
- Top-mount depth: 4-11/16"
- Cutout diameter: 8-13/16
- Frequency Response: 26- 200Hz
- Sensitivity: 86.4dB
- Resonance Frequency (Fs): 34 Hz
Subwoofer Specifications:
- Subwoofer Series: Type-S (Alpine)
- Subwoofer Size: 10"
- Peak Power Handling: 1800 watts
- RMS Power Handling: 600 watts
- Voice Coil(s): Dual
- Impedance (Per Voice Coil): 4 ohms
- Frequency Response: 26 - 200 Hz
- Sensitivity: 85.3 dB
- Xmax (millimeters): 15 mm
- Subwoofer Design: Round / Circle
- Main Cone Color: Dark Gray
- Woofer Composition: Kevlar Reinforced Pulp Paper
- Woofer Surround: HAMR
Upgrade your car audio system with the American Sound Connection Alpine Fits Universal Ported Single S-W10D4-NBX 10" 600W RMS Subwoofer Loaded Sub Box Enclosure Bundle, designed to deliver deep, powerful bass performance with impressive clarity. This high-output 10-inch subwoofer is built to enhance low-frequency response in cars, trucks, and SUVs. Engineered for universal compatibility, it integrates seamlessly into a wide range of aftermarket audio systems. Ideal for bass enthusiasts seeking reliable power handling and strong, impactful sound.
The S-W10D4-NBX subwoofer features a durable cone, high-temperature dual 4-ohm voice coils, and a robust motor structure for consistent performance. Designed to handle demanding bass output, it delivers clean, distortion-free low frequencies even at higher volumes. The dual voice coil configuration provides flexible wiring options to match various amplifier setups. This ensures efficient power delivery and optimized bass performance across multiple system designs.
This 10-inch car subwoofer is a great choice for sealed or ported enclosures, offering installation flexibility without the need for custom fabrication. Its compact size allows it to fit easily in most trunks or cargo areas while maintaining strong sound projection. Whether you are upgrading a daily driver or building a performance-focused system, the S-W10D4-NBX delivers dependable bass output and long-lasting durability. Experience powerful, hard-hitting bass with a subwoofer built for consistent car audio performance.
