Features:
This Remote Control Switch Adopts A 12V 10A Relay, Which Controls High Power And Makes The Control Performance More Stable
Learning Button Design Allows For Multiple Remote Controls And Switches To Be Paired With Any Switch,
Using Imported Chips And High-Quality Double-Sided PCB Circuit Boards, The Product Is More Durable And Compatible With Better Quality.
The Wireless Signal Program Learning Function Makes The Product Highly Anti-Interference, And Similar Products Will Not Have Any Interference Or Garbled Characters.

Specifications:
Frequency: 433mhz
Operating Voltage: 12V DC
Decode: Learning Code
Remote Control Battery: 1* 23A 12V Battery(Battery Included)
Transmitting Distance: 1000m

Learning Methods:

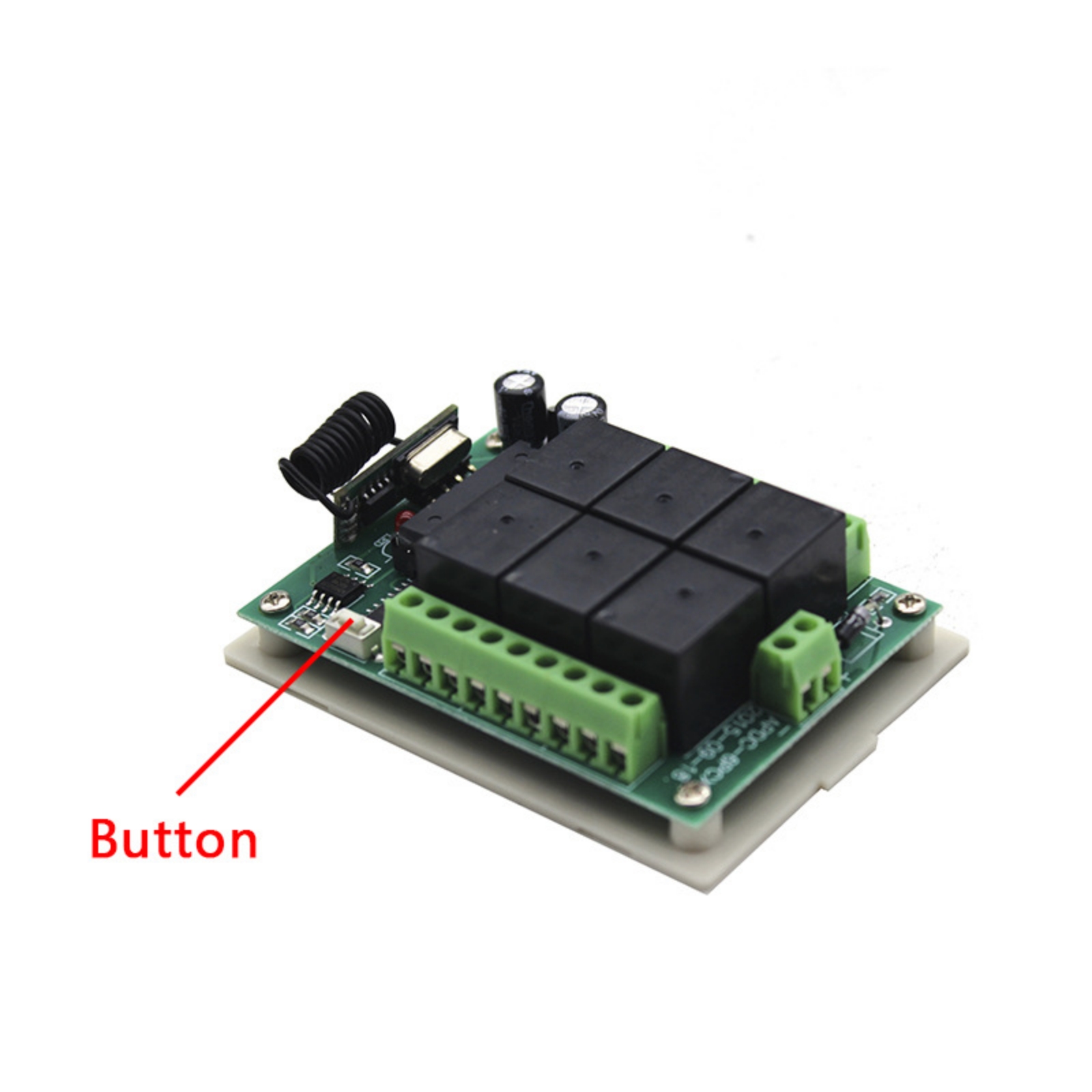

Press The Learning Button On The Receiver For About 2 Seconds, Then The Light Will Turn On And Release To Enter The Learning Mode; Press A Key On The Remote Control To Learn According To Your Desired Function. If The Receiver Receives A Signal And The Indicator Light Flashes About 4 Times, It Indicates Successful Learning.
Clearing Method:
Press And Hold The Learning Button On The Receiver For About 8 Seconds Until The Indicator Light Flashes Twice And Then Goes Out, Indicating Successful Clearing. This Receiver Can Store Approximately 30 Remote Controls With Different Codes

Working Modes:
1. Signal Self-Locking - Press The First Button On The Remote Control To Learn
2. Signal Interlock - Press The 2nd Button On The Remote Control To Learn
3. Coexistence Of 3 CH Self-Locking And 3 CH Jogging Signals - Press The 3rd Button On The Remote Control To Learn
4. Signal Jogging - Press The 4th Button On The Remote Control To Learn
5. Signal 1 CH Self-Locking And 5 CH Jogging Coexists - Press The 5th Button On The Remote Control To Learn
Output Modes: Signal Self-Locking, Signal Interlocking, Signal Jogging, Coexistence Of Signal Jogging And Self-Locking.
1. Signal Self-Locking: Press The First Button On The Remote Control To Learn
Press The 1 Key On The Remote Control, And The Relay Corresponding To The 1 Key Will Be Engaged And Held. Press The 1 Key Again, And The 1 Relay Will Be Disconnected; Press The 2 Key On The Remote Control, Which Corresponds To The Relay Being Engaged And Held. Press The 2 Key Again To Disconnect The Relay. Press The 3, 4, 5, And 6 Keys In This Cycle.
2. Signal Interlock: Press Button 2 On The Remote Control To Learn
Press The 1 Key On The Remote Control, And The Corresponding 1 Relay Will Be Engaged And Held. Press The 2 Key, And The 1 Relay Will Be Disconnected. The Relay Corresponding To The 2 Key Will Be Engaged And Held; 3. Press The 4, 5, And 6 Keys To Follow This Cycle.
3. Signal Jogging - Press The 4th Button On The Remote Control To Learn
Press The 1 Key On The Remote Control, And The Relay Corresponding To The 1 Key Will Be Engaged. After Releasing It, The Relay Will Be Disconnected. Press The 2 Key, And The Relay Corresponding To The 2 Key Will Be Engaged. After Releasing It, The 3, 4, 5, And 6 Keys Will Work In This Cycle.
4. Signal 1 CH Self-Locking And 5 CH Jogging Coexists - Press The 5th Button On The Remote Control To Learn
Among The 6 Relays Corresponding To The Remote Control, 1 Is Self-Locking, While 2, 3, 4, 5, And 6 Are Jogging.

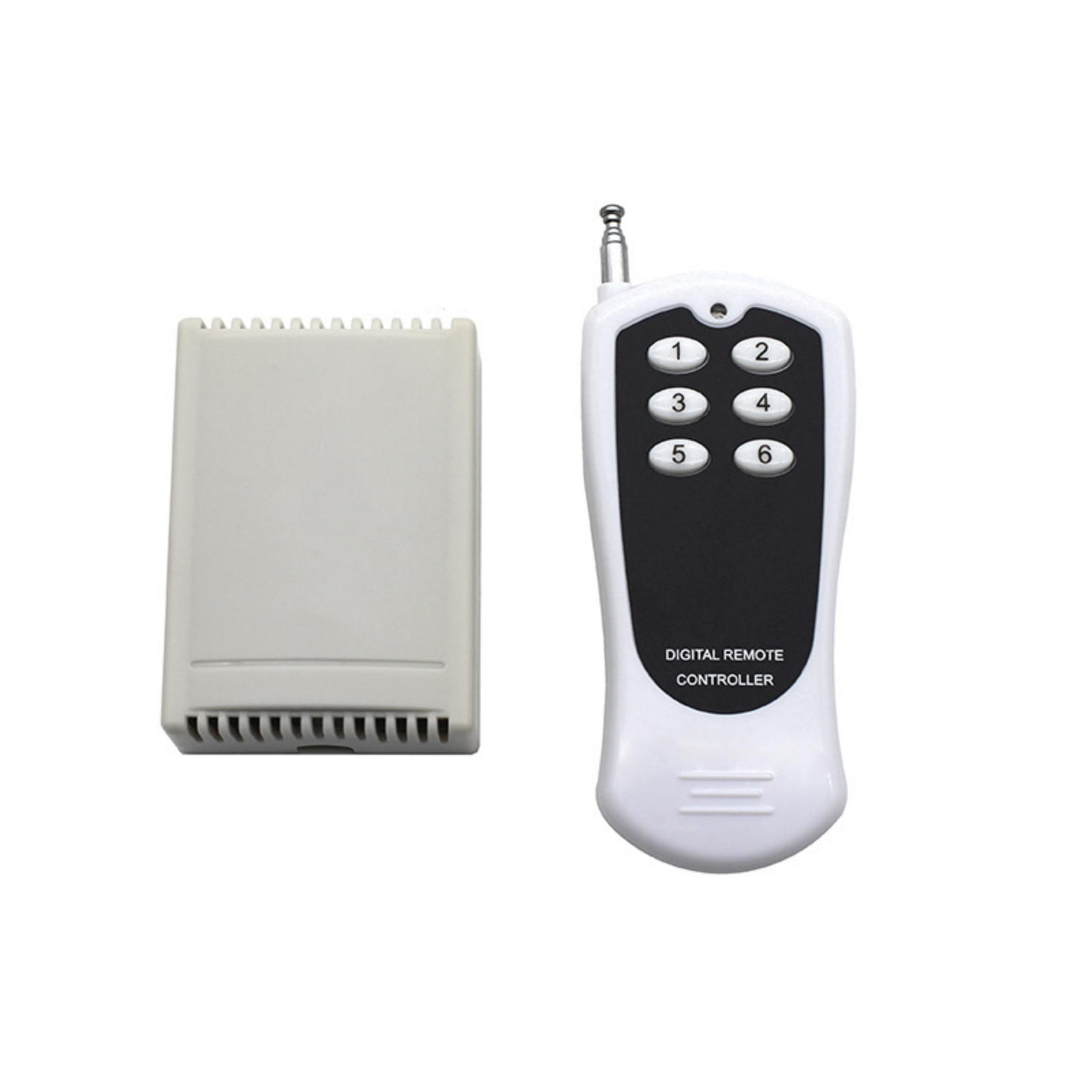

Package Including:

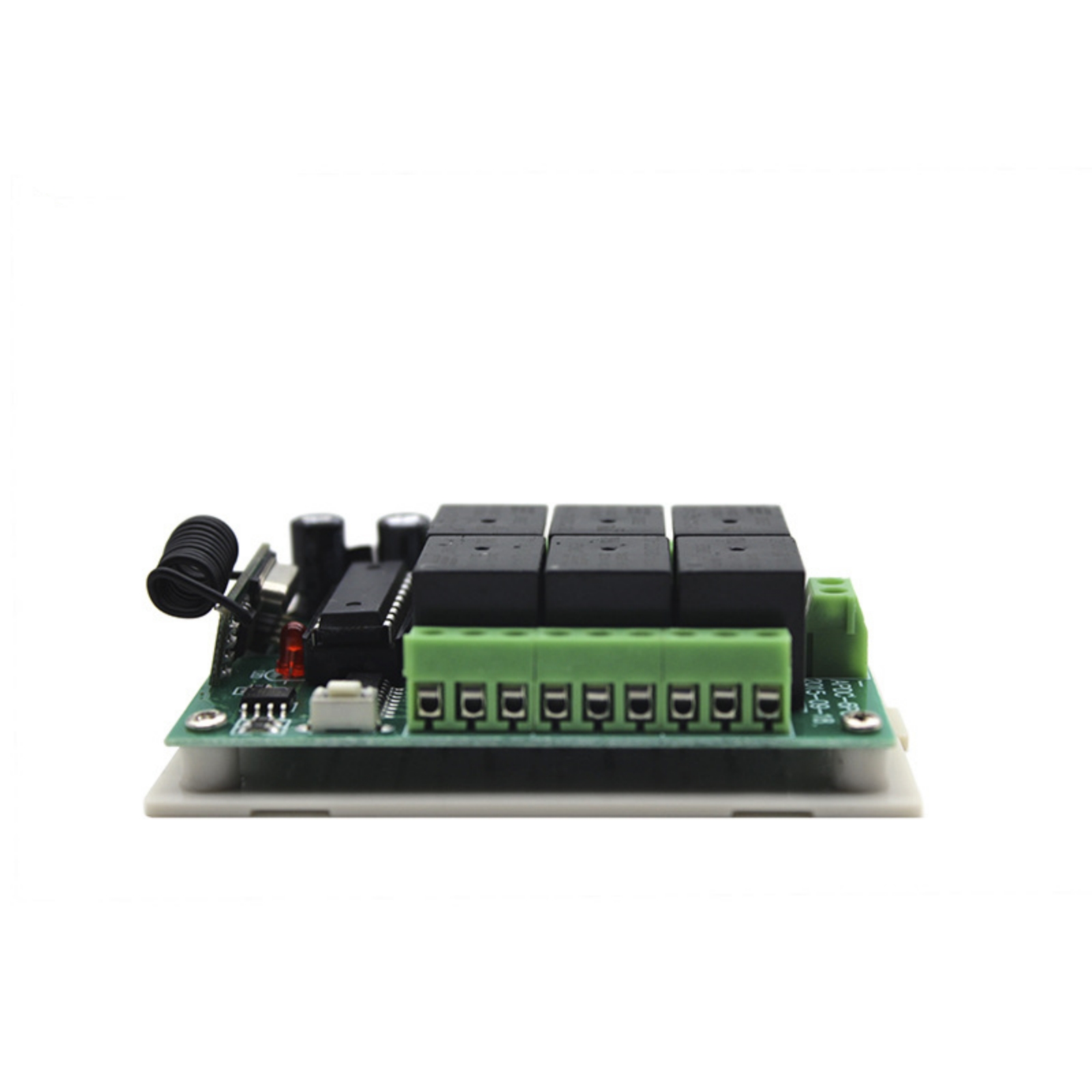

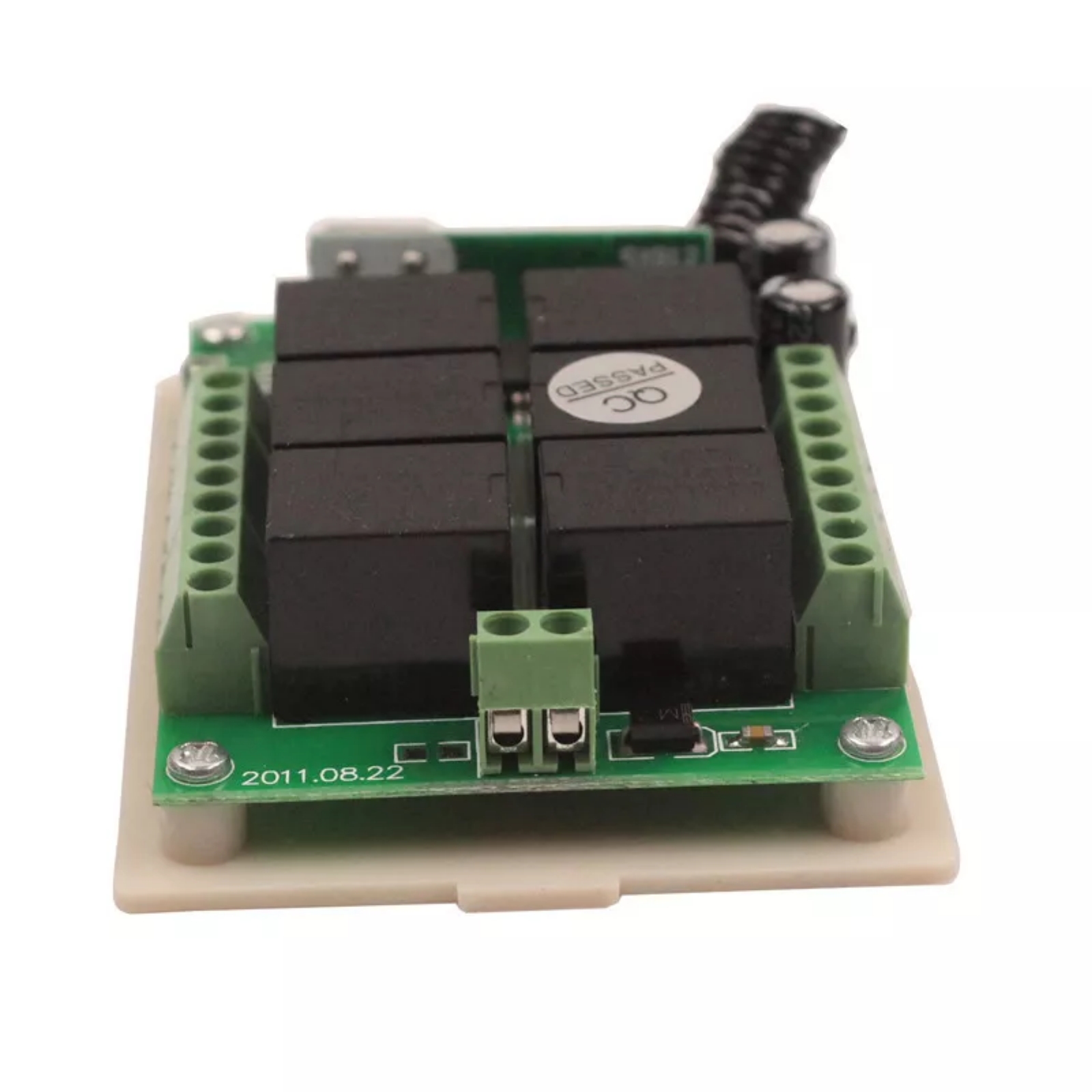

1* Receiver

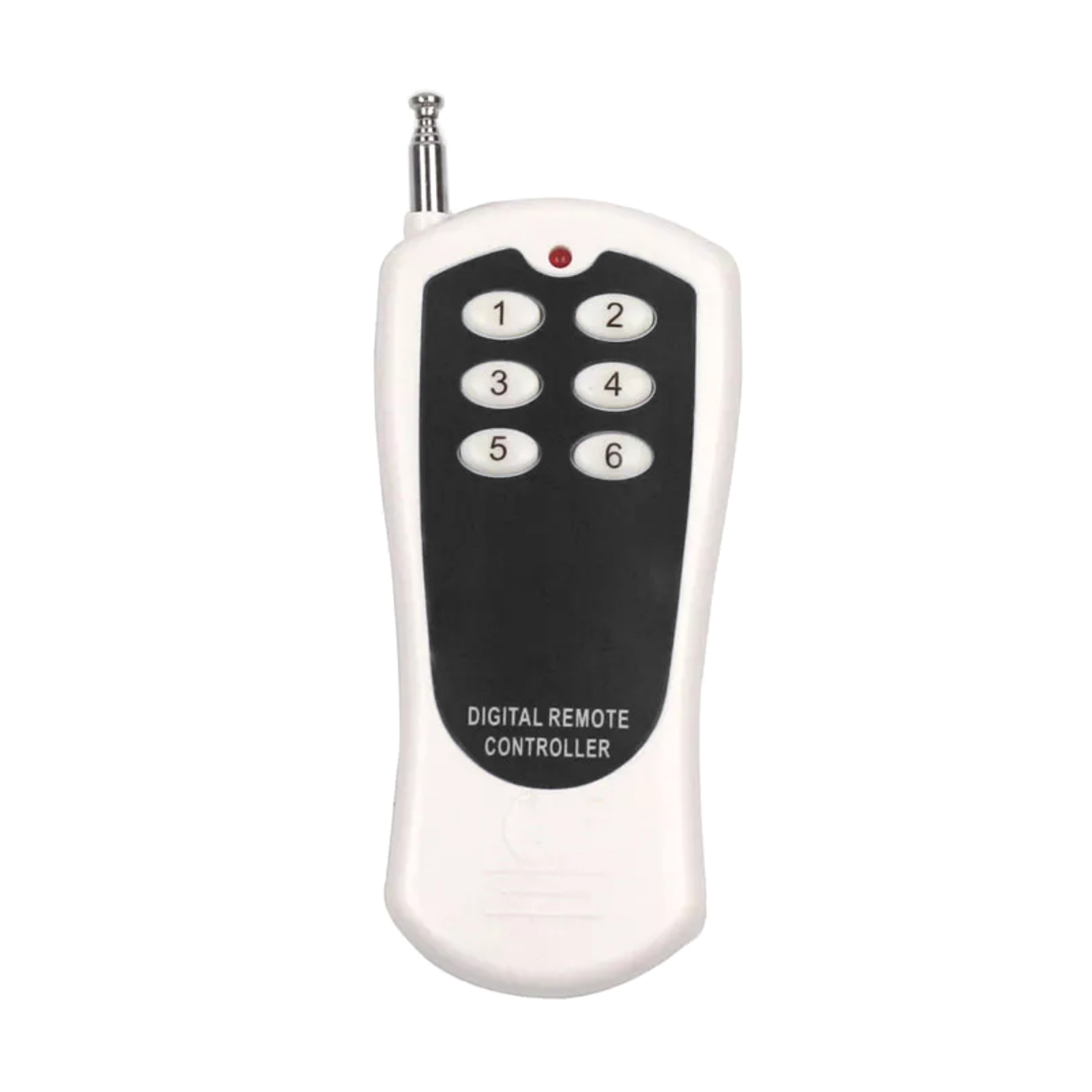

1* Transmitter
