This 4K x 2K HDTV audio extractor not only to meet the ideal image of the HDTV but also to meet the need for an extract audio from HDTV source.

It can extract the digital audio signal embedded in HDTV source and convert it through 3.5mm analog audio output and SPDIF output at the same time. The SPDIF output both can support 2CH audio or 5.1CH audio including Dolby Digitla 5.1CH and DTS 5.1CH.

Specification:
Input Port: 1 x HDTV IN, 1 x Micro USB Power Port

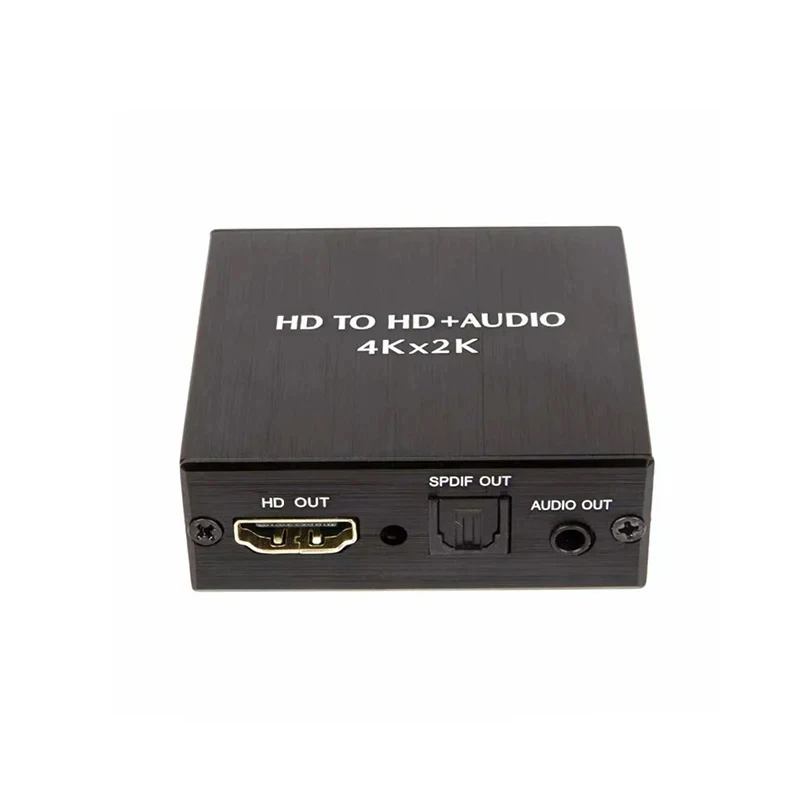

Output Port: 1 x HDTV OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDTV resolution :4K x 2K, 24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 225MHz
Max baud rate: 6.75Gbps
Max working current: 190mA

Kindly Note:
1.Not Support Dolby Digital Plus audio, it is support DTS Audio and Dolby digital audio.
2.USB POWER - For devices with low power HDTV ports, the power adapter(Not including) can use the phone adapter(5V/1A)
3.NOT SUPPORT copyright protected content.

Package include:

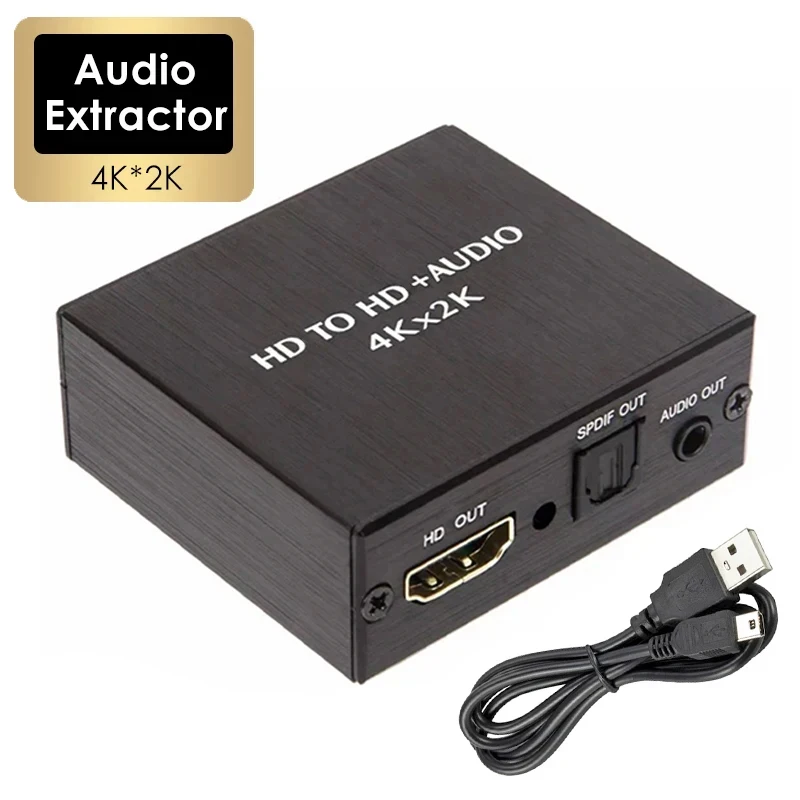

1 X HDTV Audio Extractor
1 x Micro USB cable
