2x1 8K USB C KVM Switch RJ45 100W PD Charge 2 In 1 Out Type C KVM Switch Switcher For 2 Computer 1 Monitor
Specifications:

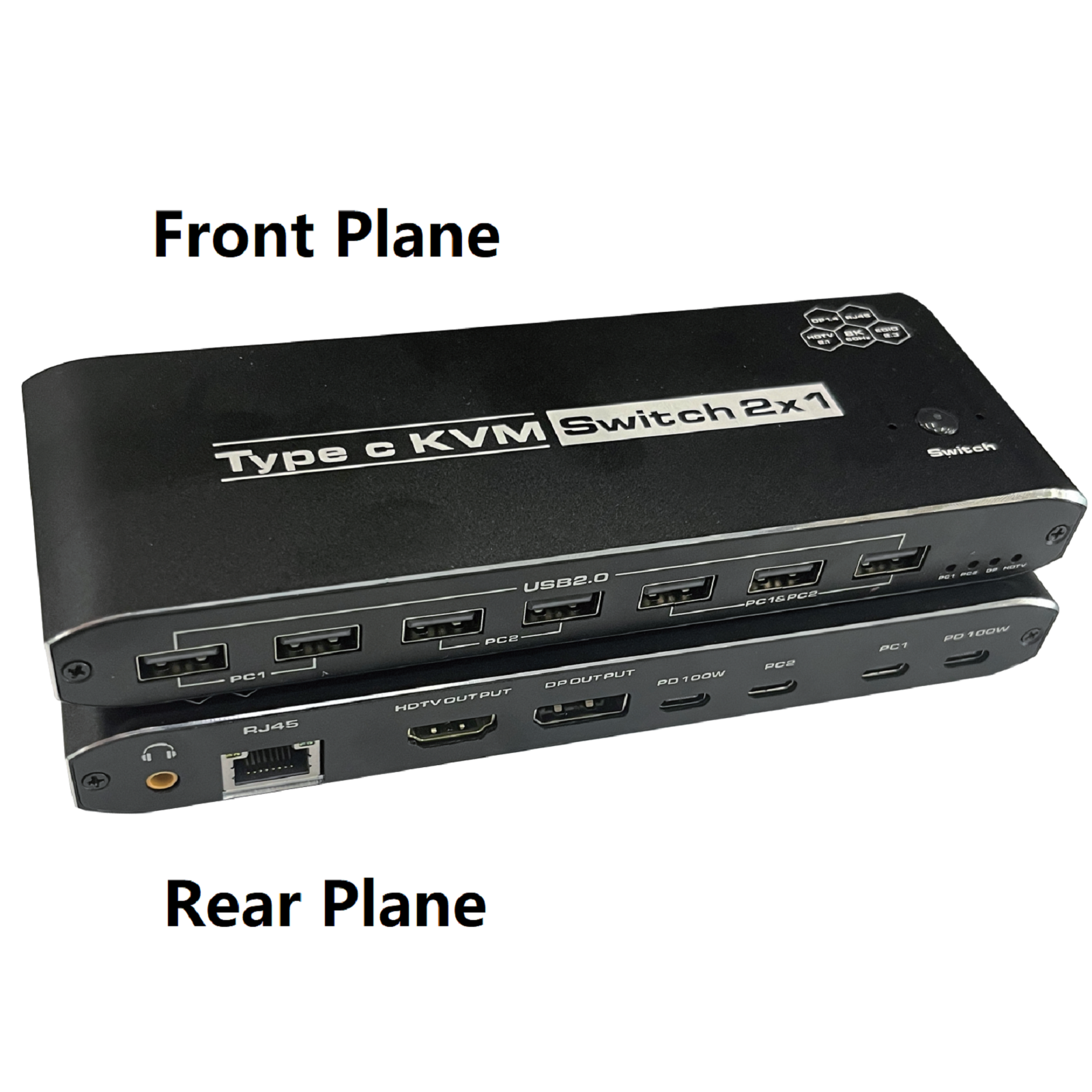

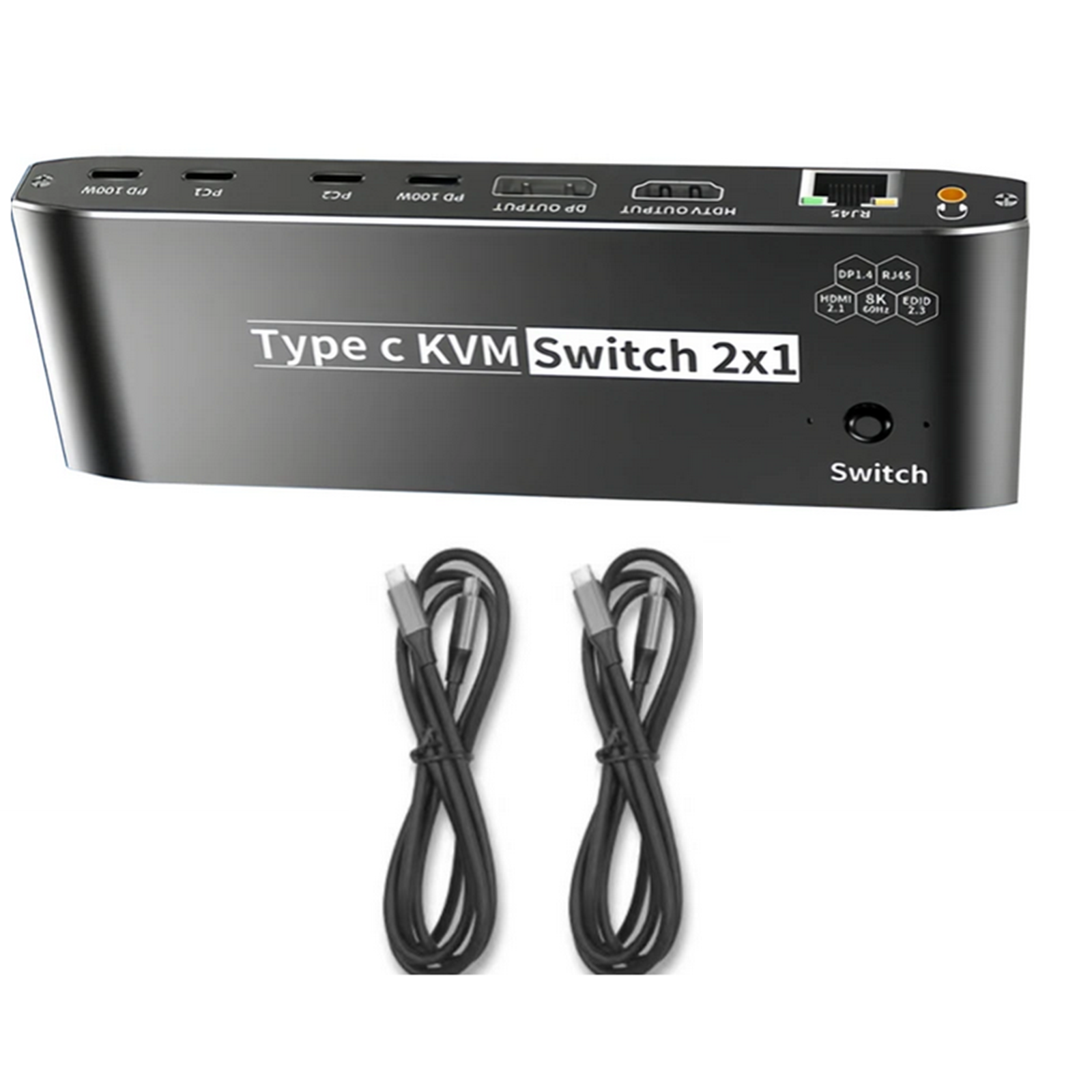

Input Port: 4x Type C Female Port
Output Port: 1x HDMI Female Port, 1x DP Female Port, 7x USB 2.0 A Female Port

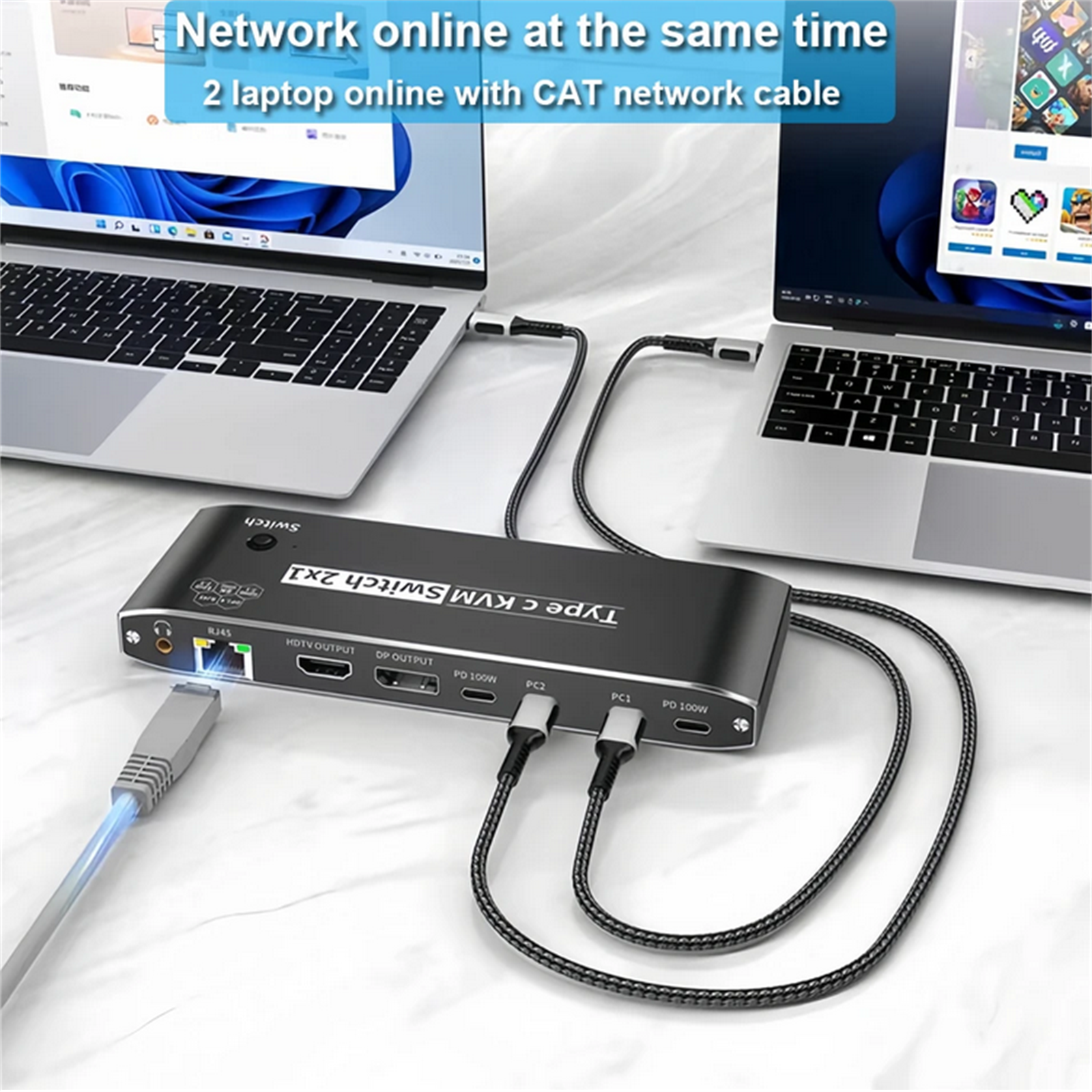

Bandwidth:HDMI 2.1: 48Gbps, DP 1.4: 32.4Gbps, USB 2.0: 480Mbps, RJ45: 100Mbps
HDMI Output Resolution: 1080P@60Hz/120Hz/165Hz, 4K@60/120Hz/144Hz(DSC), 8K@30, 8K@60Hz(DSC)
DP Output Resolution: 1080P@60Hz/120Hz/165Hz, 4K@60/120Hz/144Hz(DSC), 8K@30, 8K@60Hz(DSC)
DP Deep Color: 8bit/10bit/12bit
DP Chroma: 4:2:0/4:2:2/4:4:4
Cable Length: 2.0m Max(Standard 8K DP cable), 2.0m Max(Standard 8K HDMI cable)
Operating Temperature: -15℃~55℃ / 5°F~131°F
Material: Aluminium alloy Shell
Operating Systems: For Windows 7/8/10/11, For Mac OS X 9.0 etc
Features:

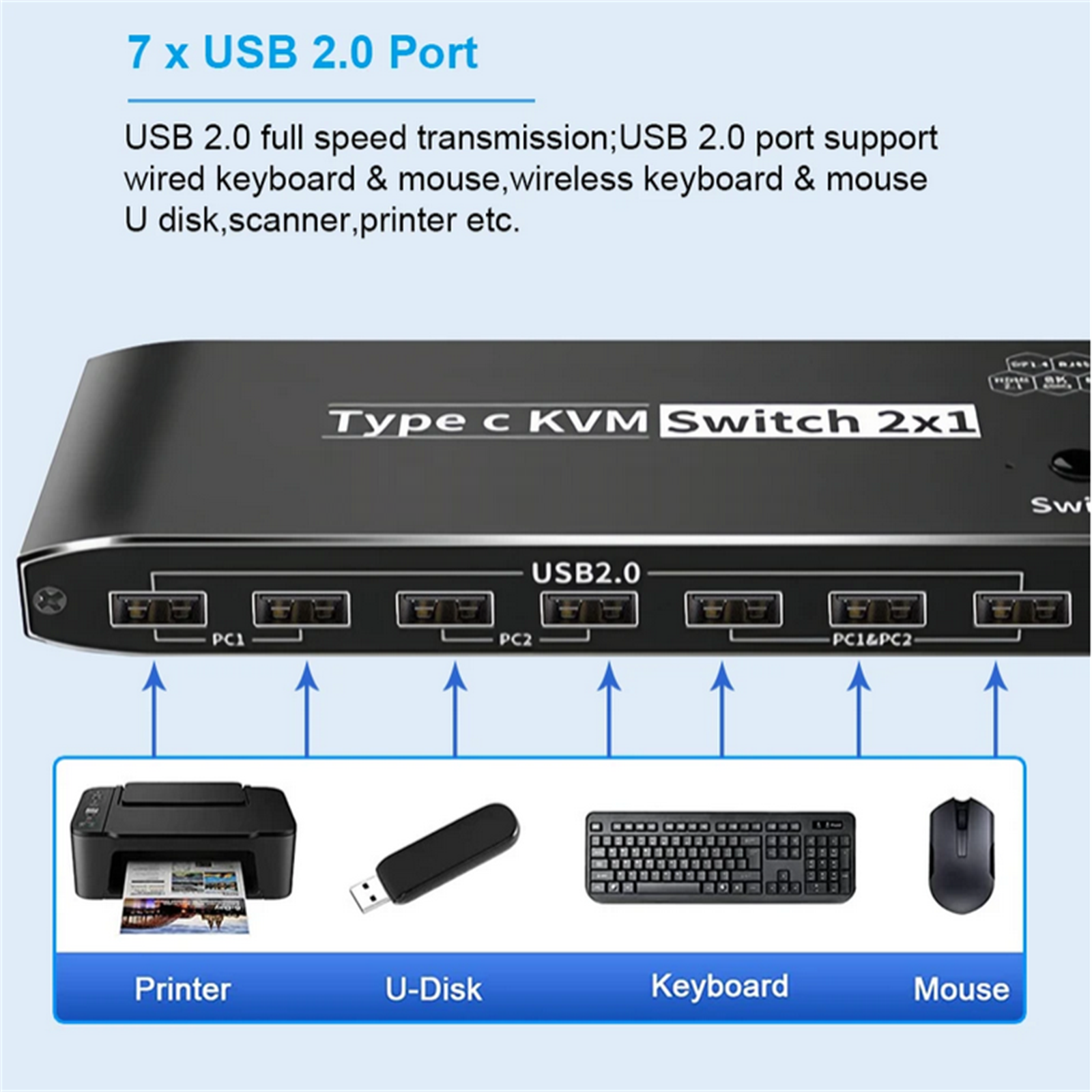

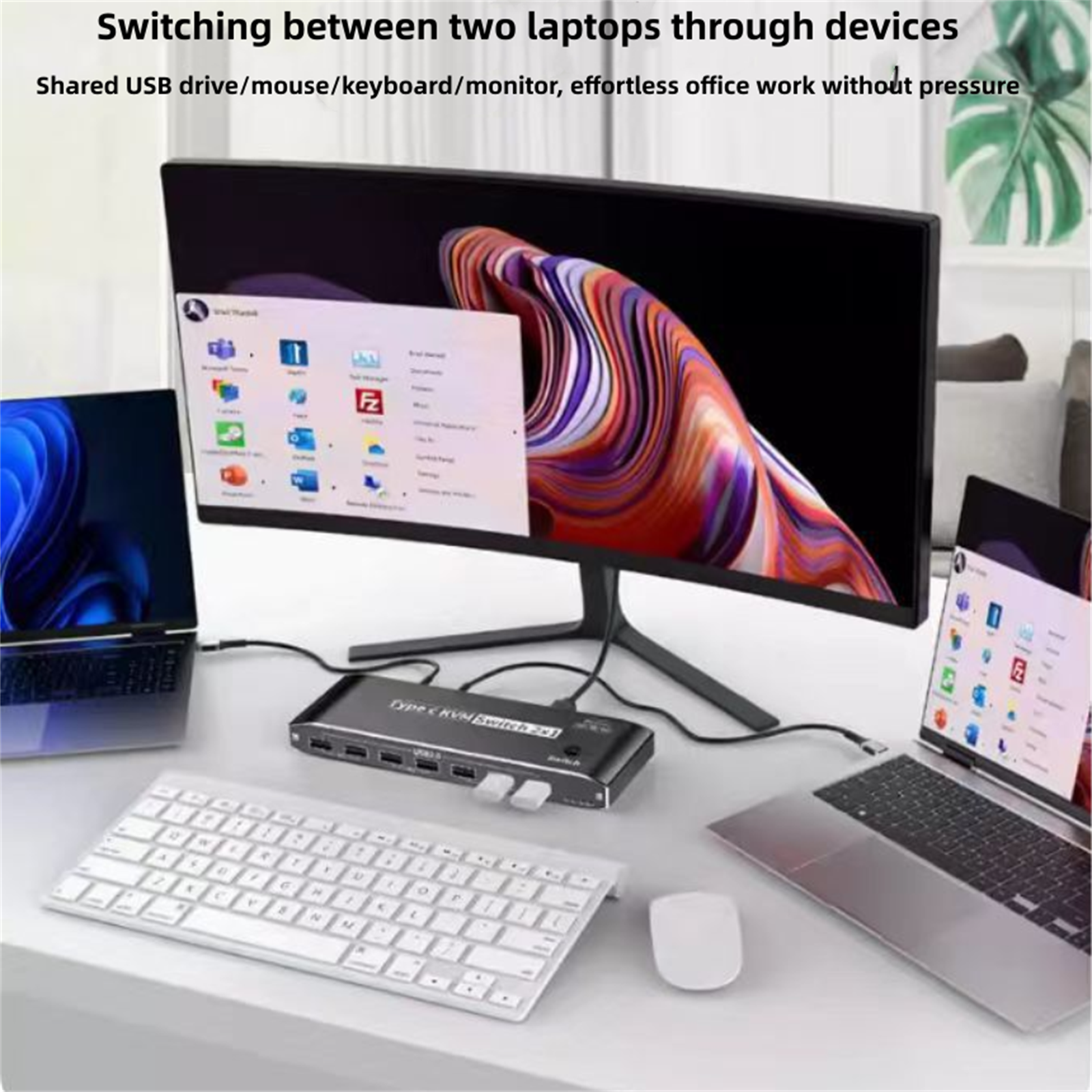

1.With 7 x USB 2.0 Output Port, two Computers share one set,you can connect 7 x USB2.0 Output to your USB Mouse, Keyboard, Printer, Disks, or other usb devices, while you switch from one PC to another PC, Your USB device will be synced to your external display without pluging and unpluging the related USB device repeatedly. The USB Port supports the USB 2.0 Specifications and the transfer rate is 480Mbps

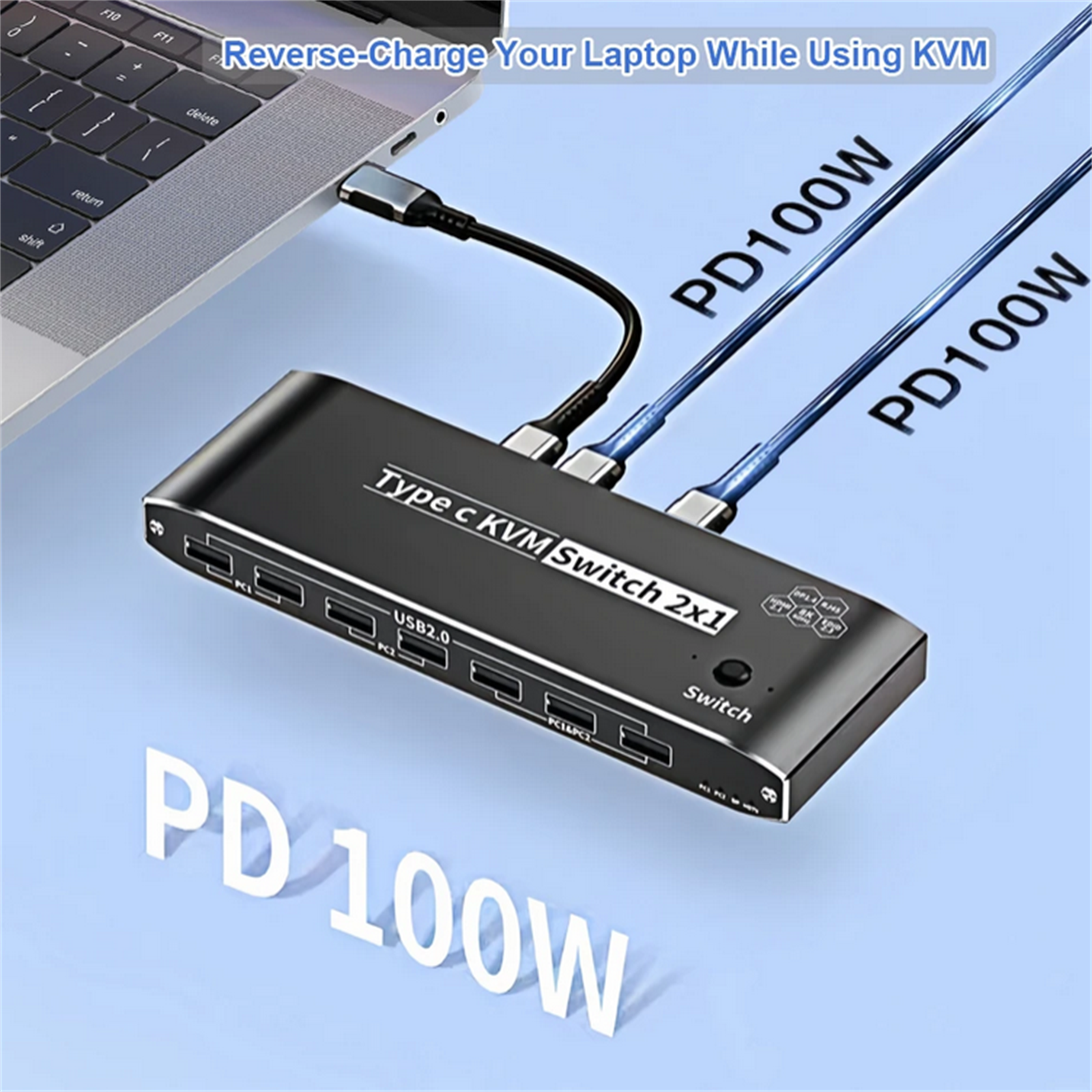

2. With 100W Power Delivery, it provides 100W power to charge the signal source, ensuring uninterrupted operation during long working hours

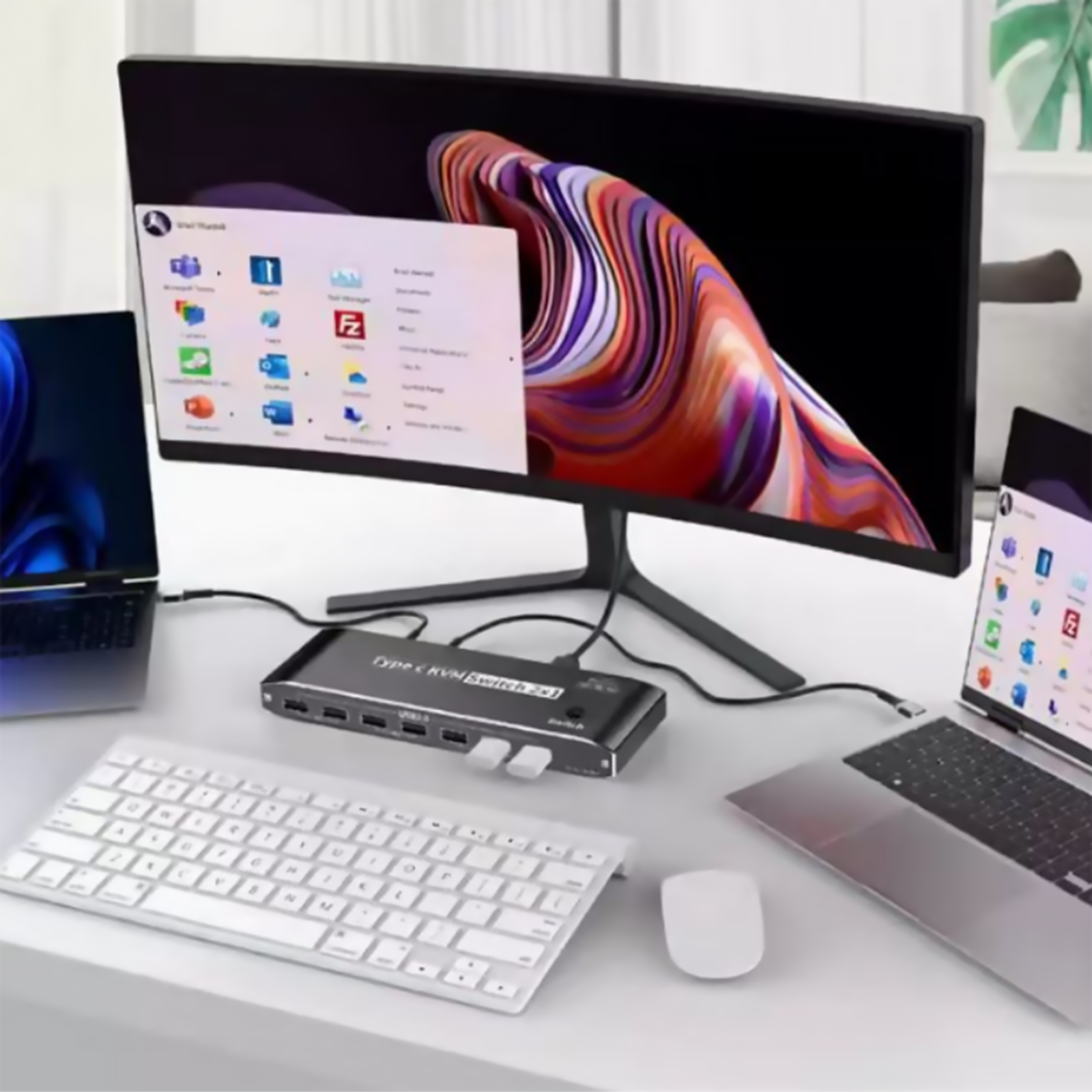

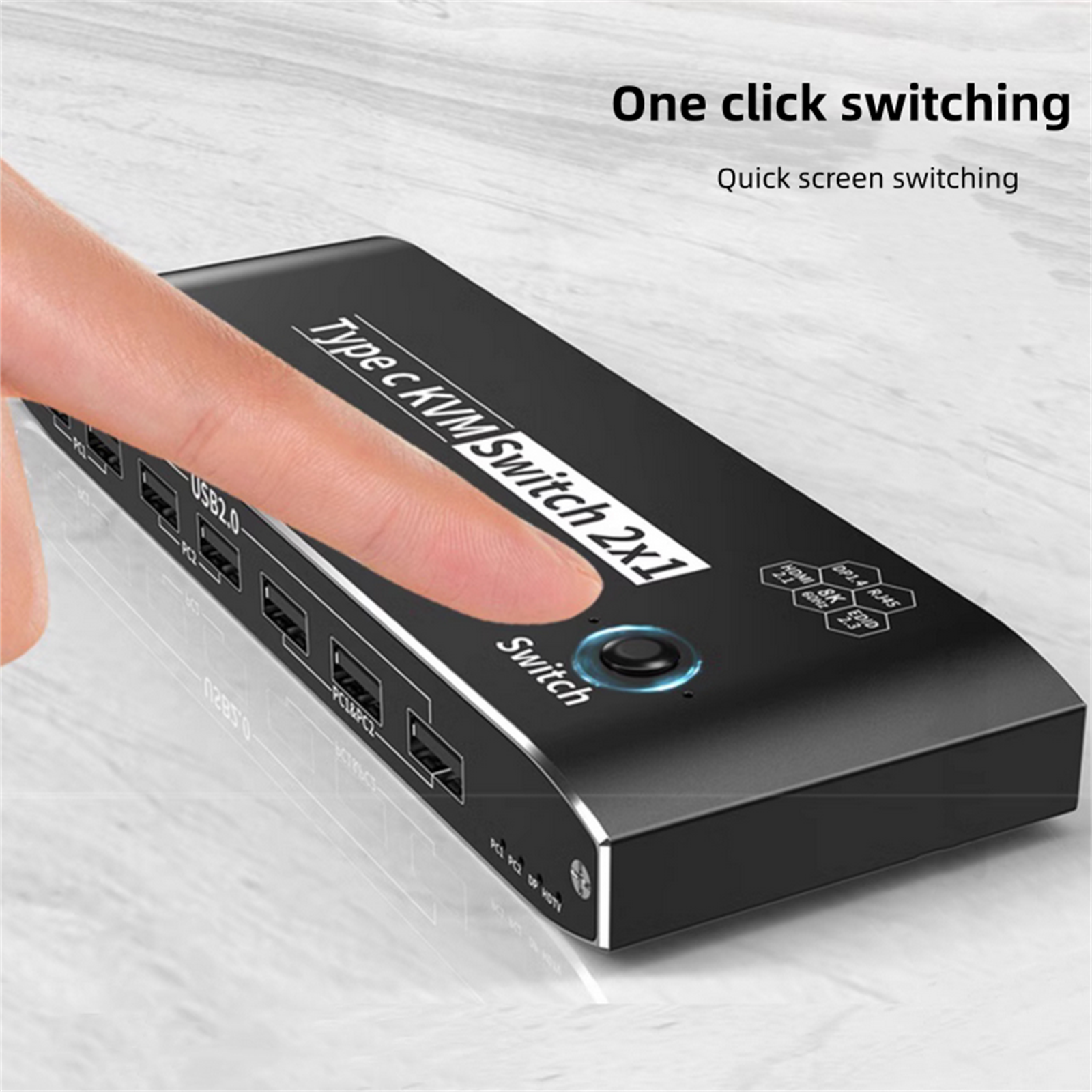

3. 2x USB-C 8K KVM Switch with one DisplayPort 1.4 or HDMI 2.1 Port for Video, with this 2 Port 8K KVM Switcher, you are able to connect from the switcher's two PC Input Port to your USB-C PC/Laptops via two standard USB-C Gen-2 Cable, then connect from the switcher's Standard DP 1.4 /HDMI 2.1 port to your Monitors via your own displayport 8K Standard Cable, you can press the "Switch"button to switch between two of your PC. (Note: You must plug our USB C to USB A cable to power the switcher while working)

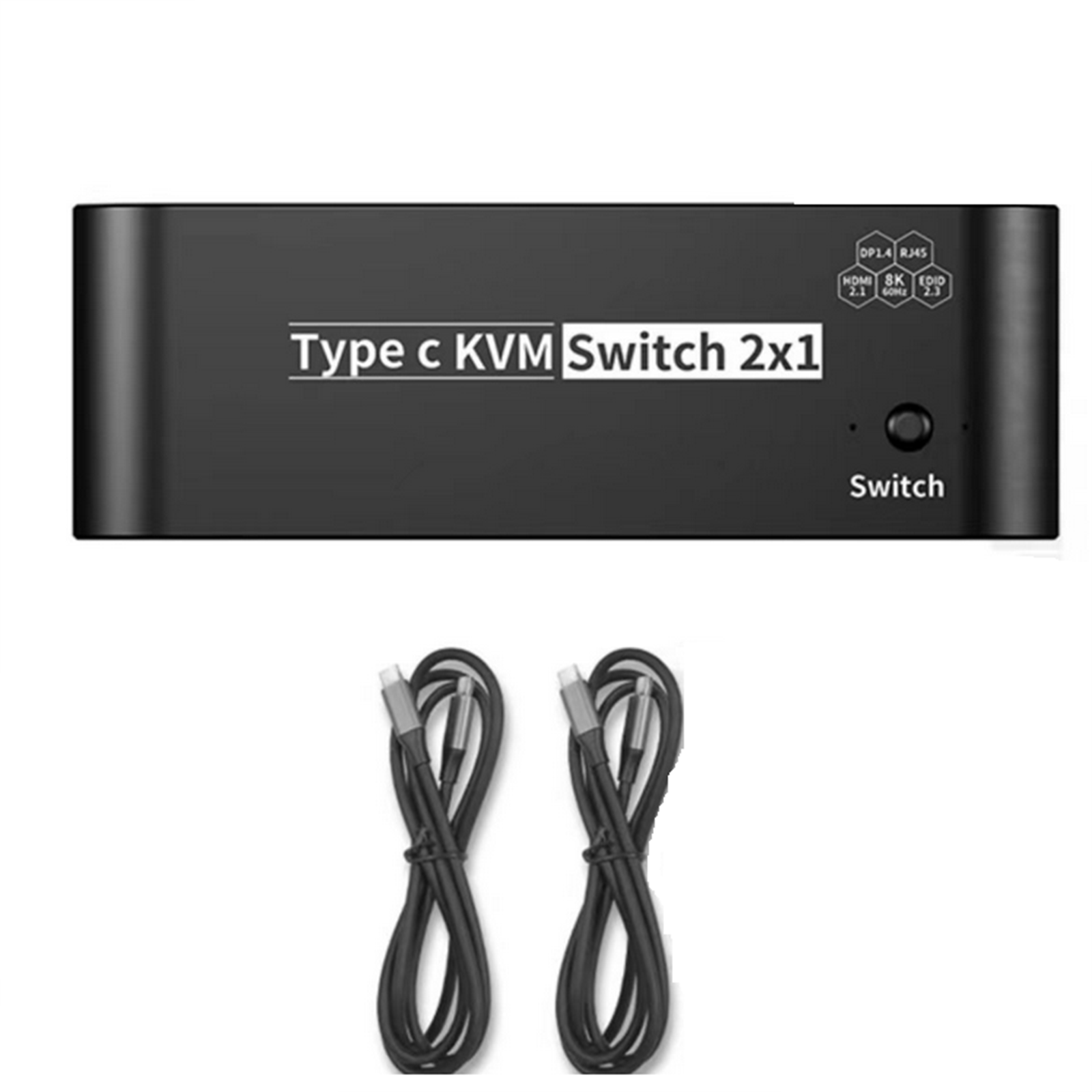

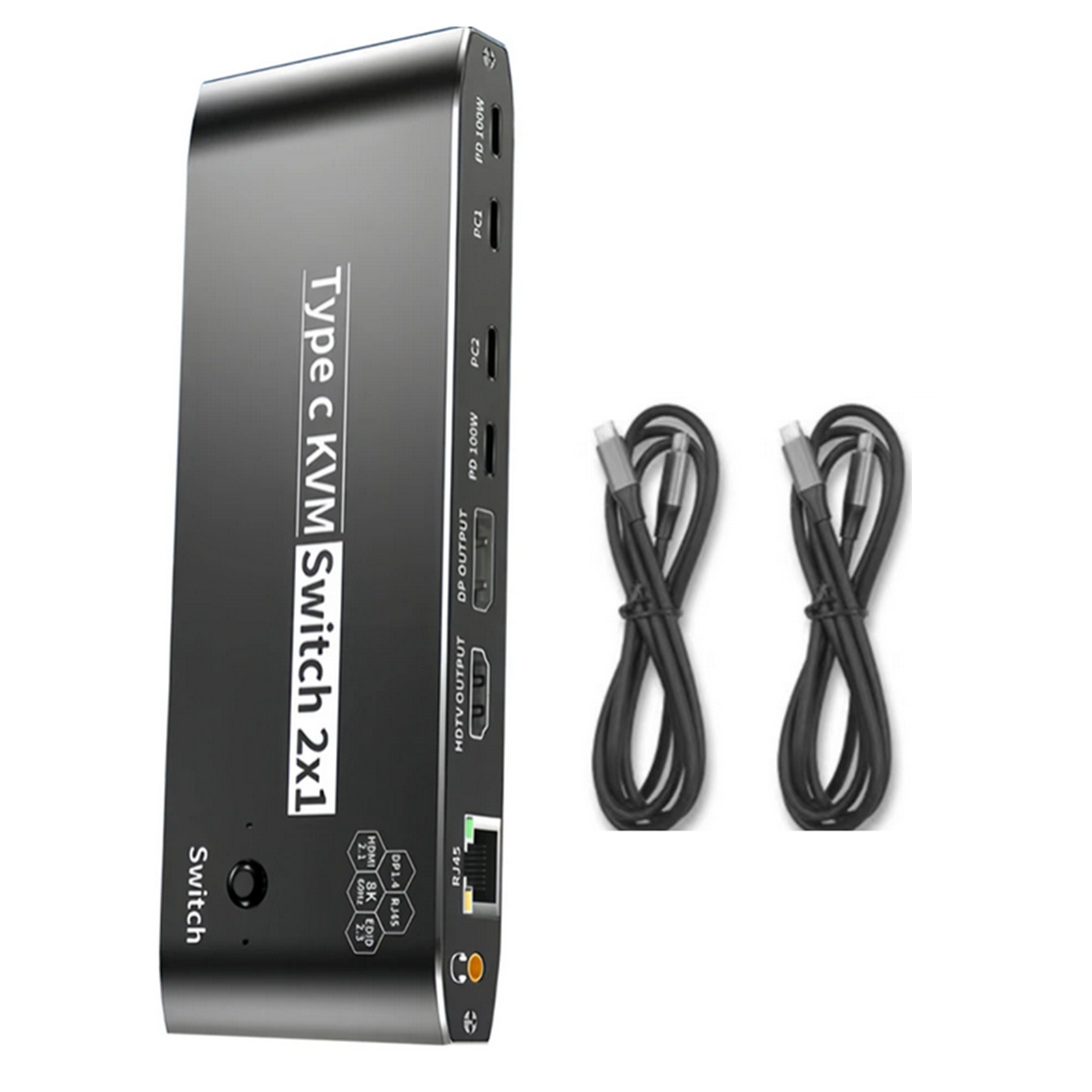

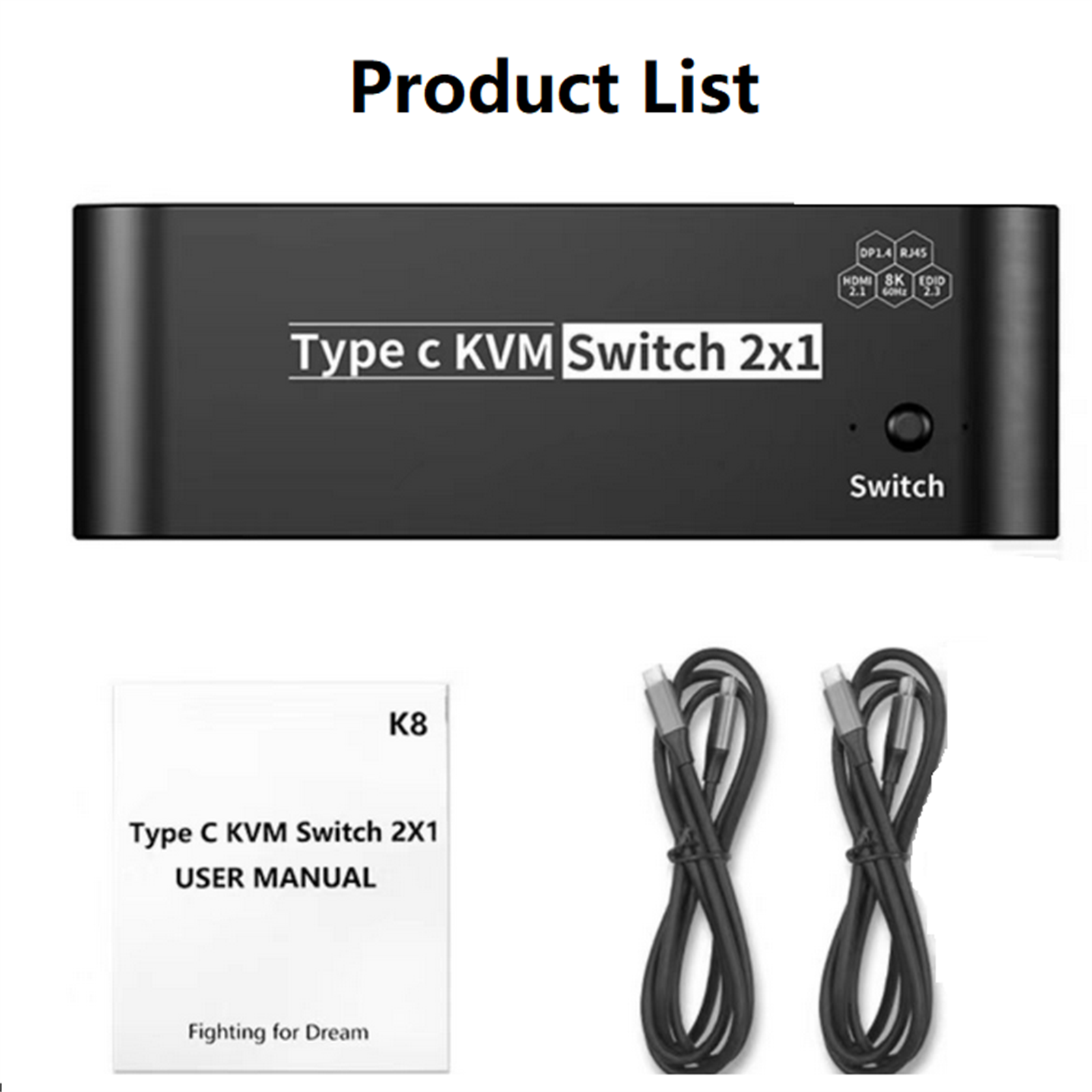

Product List:

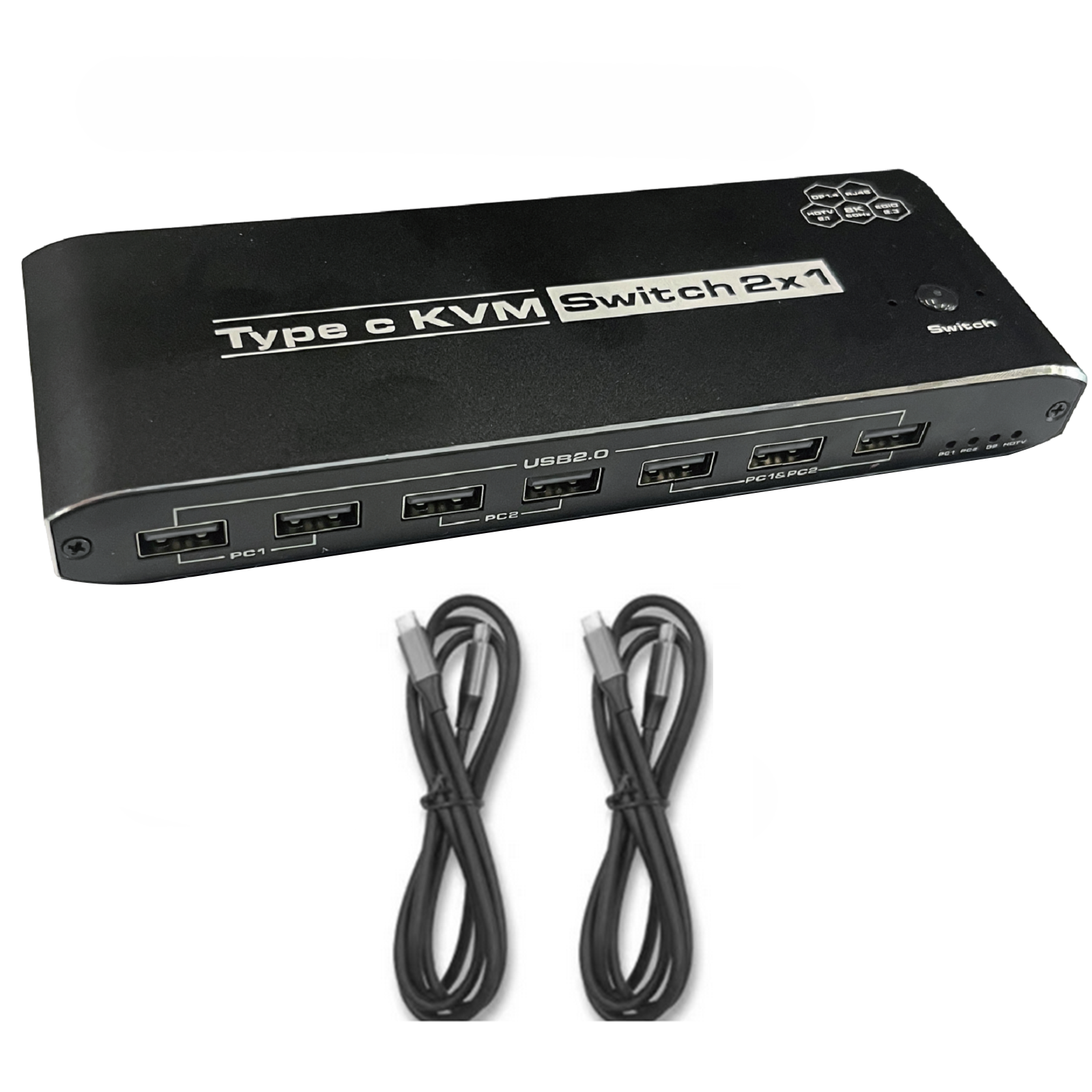

1x USB C KVM Switch
2x USB3.0 Gen 2 Cable(Type C to Type C)
1x User Manual
Note:

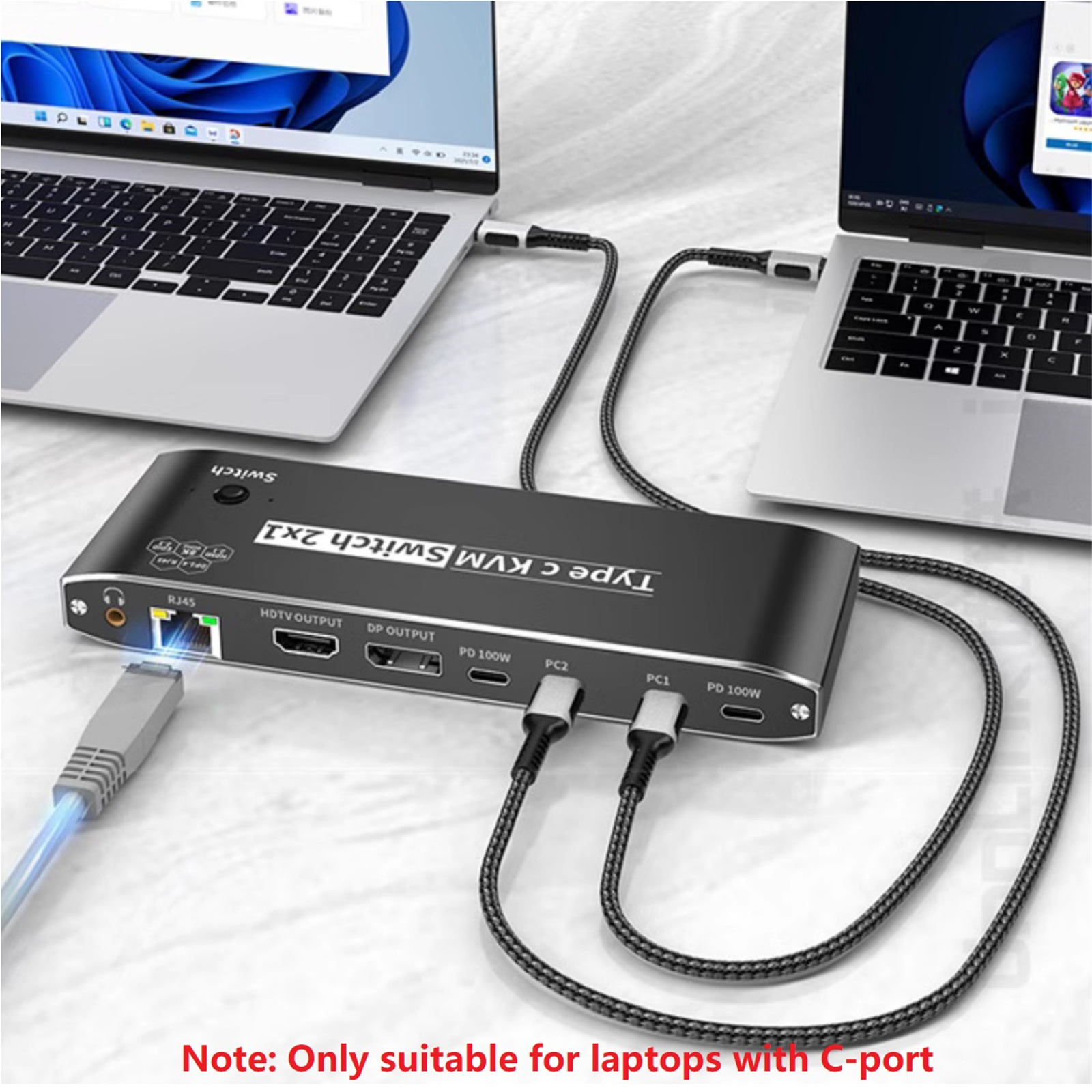

1. This product only supports laptops with Type-c Port

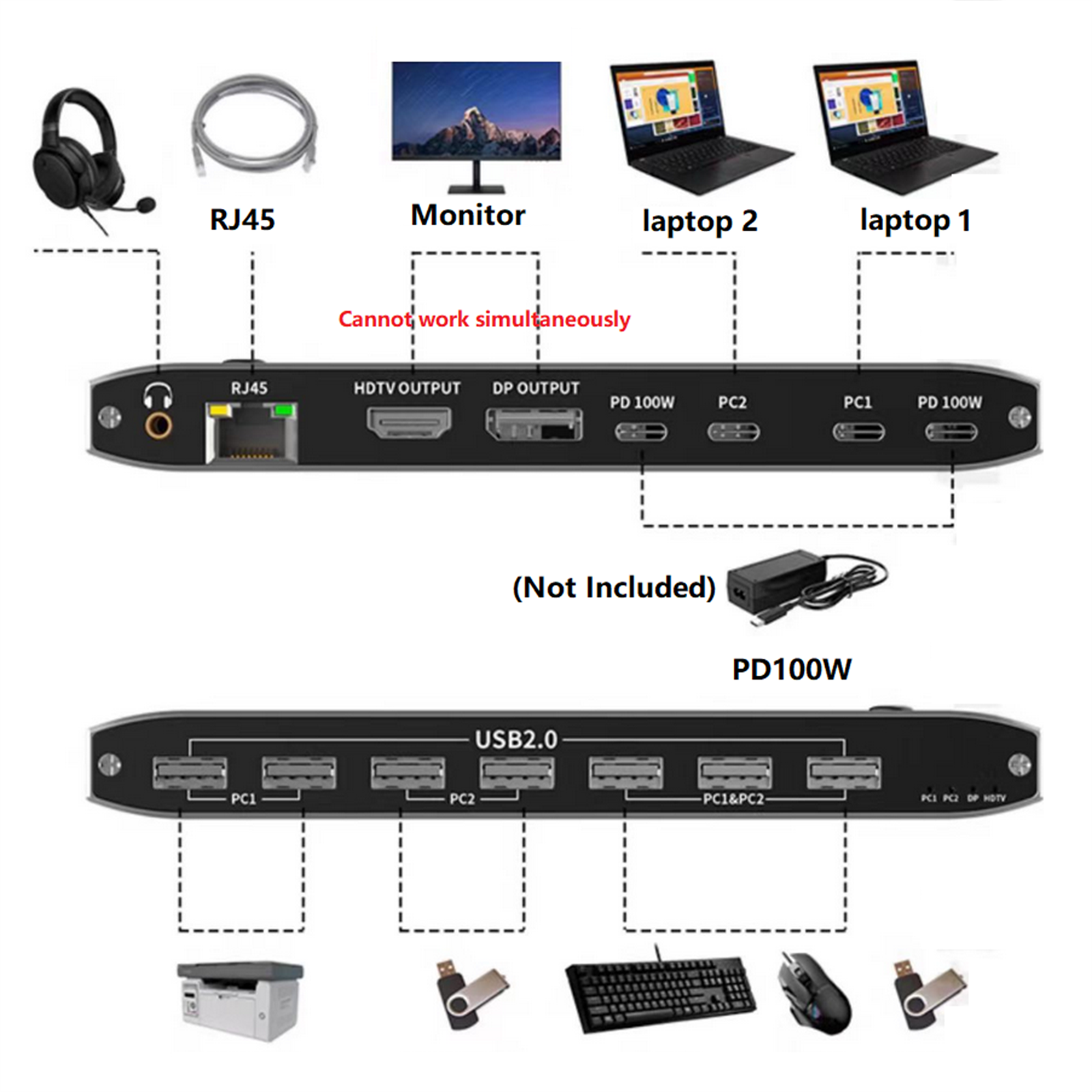

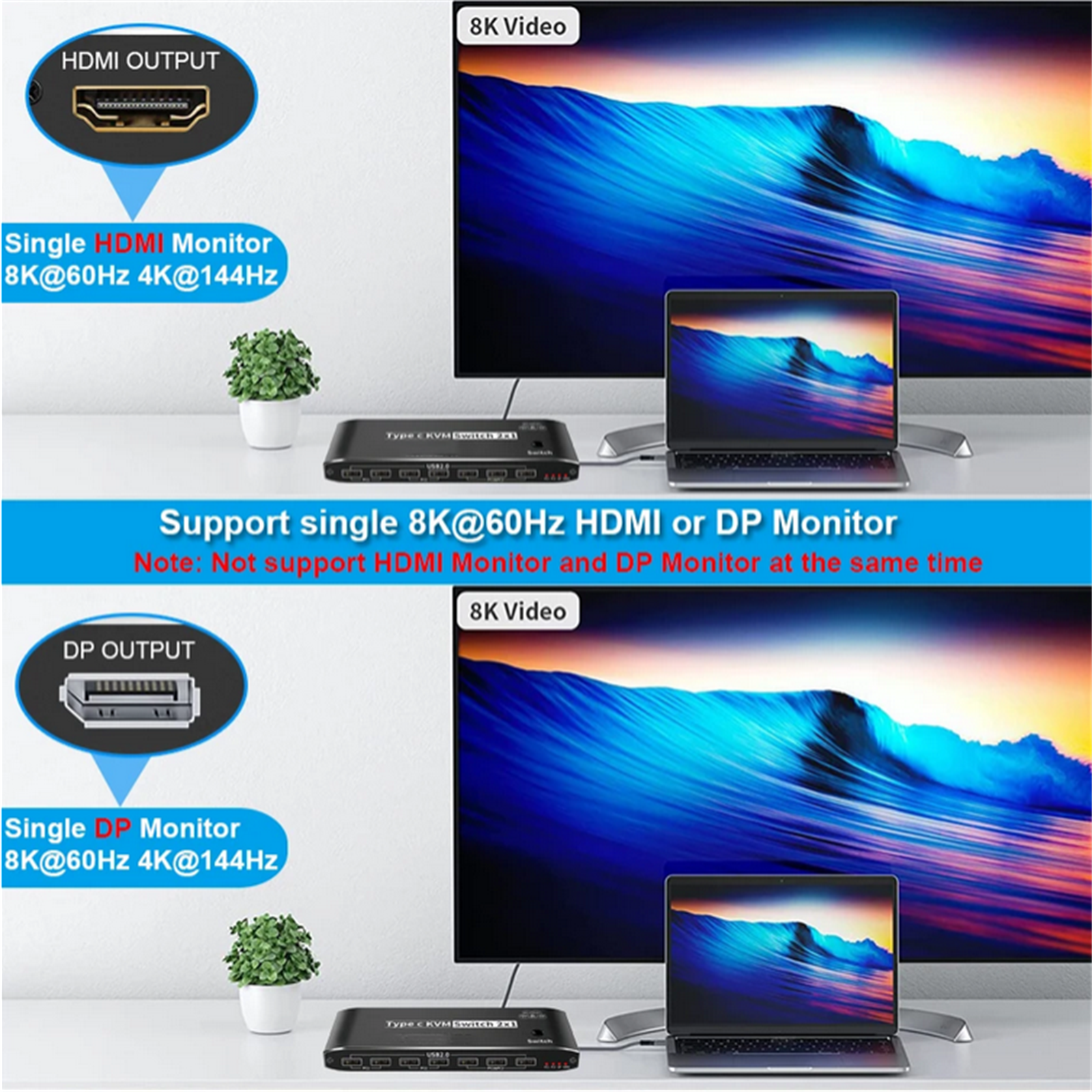

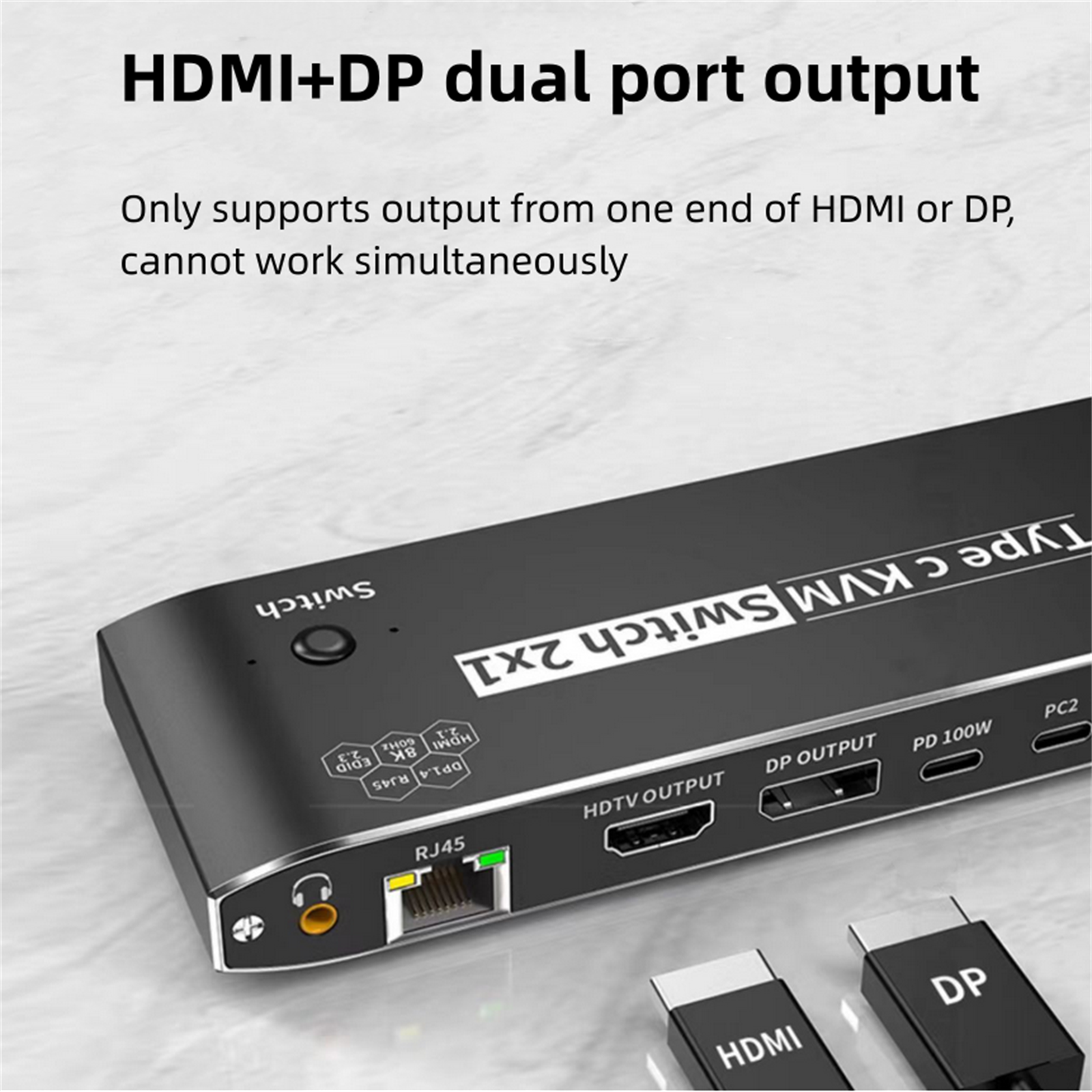

2. HDMI output and DP output cannot work simultaneously, you can choose another one as the output port
