This turbo is an universal application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.
Application
Perfect for all 4.0L-6.0L engine
Horse Power: Capable of Boost Horse Power up to 600+ BHP
Specification
Compressor
Compressor Trim: 50
Compressor Inducer Diameter: 69 mm
Compressor Exducer Diameter: 98 mm
Compressor A/R: 0.66
-High Quality Material, Cast Housing with Durable Steel
-Boost Engine Horsepower Significantly
-Increase Engine Power and Torque Outpout;
-Maintain Combustion Chamber Pressure and Fuel/Air Load
-Contructed with High Quality Material
-Built for Durability and Strength
OUR ADVANTAGE
K18 INCONEL WHEELS-The turbine shaft wheels made of special K418 alloy , high oxidation resistance and stability under high temperatures up to 900 degrees Celsius never use K13 Inconel alloy.
DUCTILE UCTILE IORN QT450-10-withstand temperatures up to 700 degrees Celsius
CAST ALUMINIUM IMPELLER-good gas tightness and corrosion resistance
100% BALANCING TEST
Bearing Type: Journal Bearing
This Turbocharger you will receive has been balanced using the VSR machine technology.
Through the comprehensive and high-precision static and dynamic balance detection technology, the use time and reliability.
TWIN SCROLL TURBINE housing options available-quicker response then single exhaust outlet
2 YEARS WARRANTY
Factory direct price, ship worldwide; Offering any turbo part leading 2 years warranty under normal use, unlimited mileage.
Notice
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
We have used the eBay compatibility list as a guide for buyers to use, but the eBay data system is not accurate and incomplete sometimes. Please make sure you have read through the whole listing and paid attention to “note” and “notice”. If there is any uncertain, please use the eBay message to check with our sales first.
How much does delivery cost and how long will it take?
You can check the delivery cost in the listing “Shipping and payments” section by selecting your country and entering your zip code. If it is not specified, please provide us your shipping address and zip code via eBay message. For CA domestic shipping, the delivery time is around 2-5 business days. The international shipment delivery time is around 4-7 business days.
What payment methods do you accept?
We currently only accept payment via PayPal. You can also use PayPal as a guest and pay using a debit or credit card.
When will my order be dispatched?
We will arrange the shipment in 1 business day after the payment is cleared. The tracking number will be updated on eBay in 24 hours after the shipment. Please notice that there is no shipment during weekend and holidays.
Can I amend my order?
Sorry no. Once the payment is cleared, we cannot amend any item(s), quantities, or add or remove items. We are also unable to change the delivery address. Therefore, please double check all the order information before making payment.But if any question , pls contact us via eBay.
What do I do if I have not received my order?
Please simply contact us via eBay messages, and then, we will get back to you as soon as possible with the update. Usually, we will follow up every shipment till customers get their order.
What do I do if my product is faulty?
Please simply contact us via eBay messages, and then, we will get back to you as soon as possible. It will speed up the process if you could provide us some pictures or video to illustrate the issue details.
We will ship your order in one business day once the payment is cleared.
Tracking number will be uploaded to eBay within 24 hours after shipment.
Import Tax: We do not cover any import Duty and Tax. Customer should be responsible for the Import tax.
We ship all our items either via UPS Standard or Canadapost Expedited . The estimated delivery time is around 2-4 working days to most area in Canada .
We accept 30 days return/refund guarantee
If the item you received is faulty, damaged or incorrect, or any further problems, please contact our customer service on eBay within 30 days from item received.
For damaged items on arrival, please contact us immediately, sending us an email with a photo is preferred. We will offer solutions to such cases. Full refund or replacement will be guaranteed.
WHY CHOOSE US

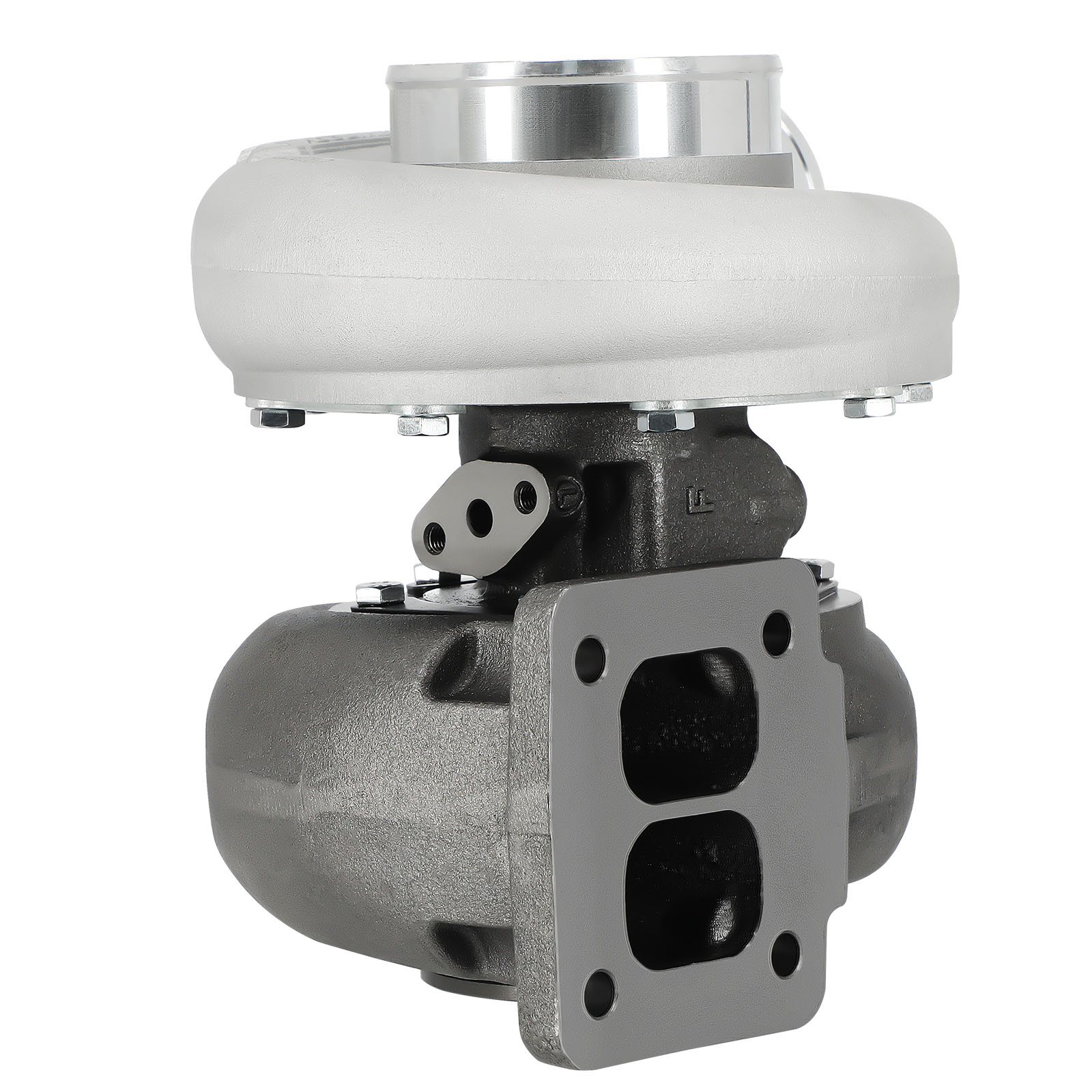

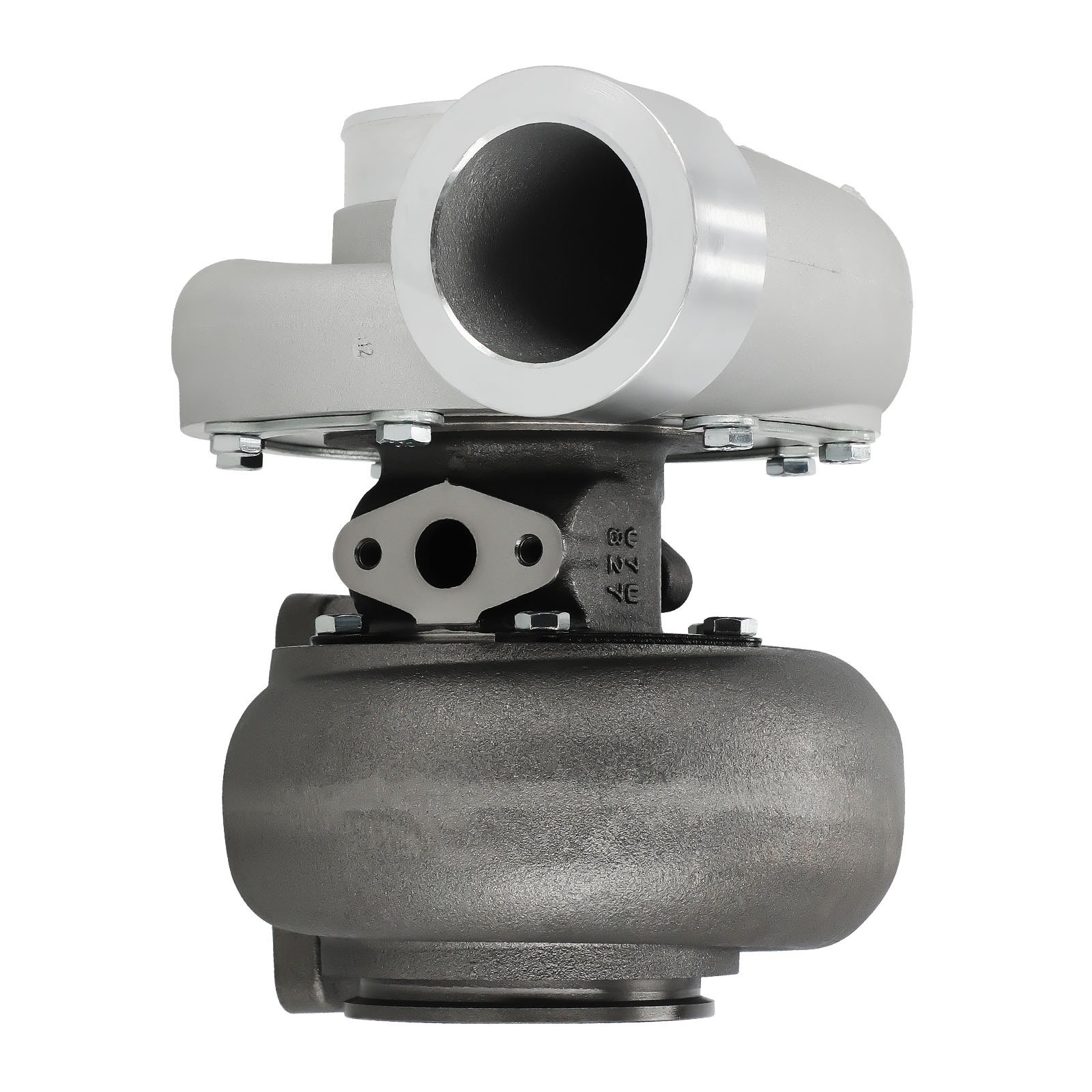

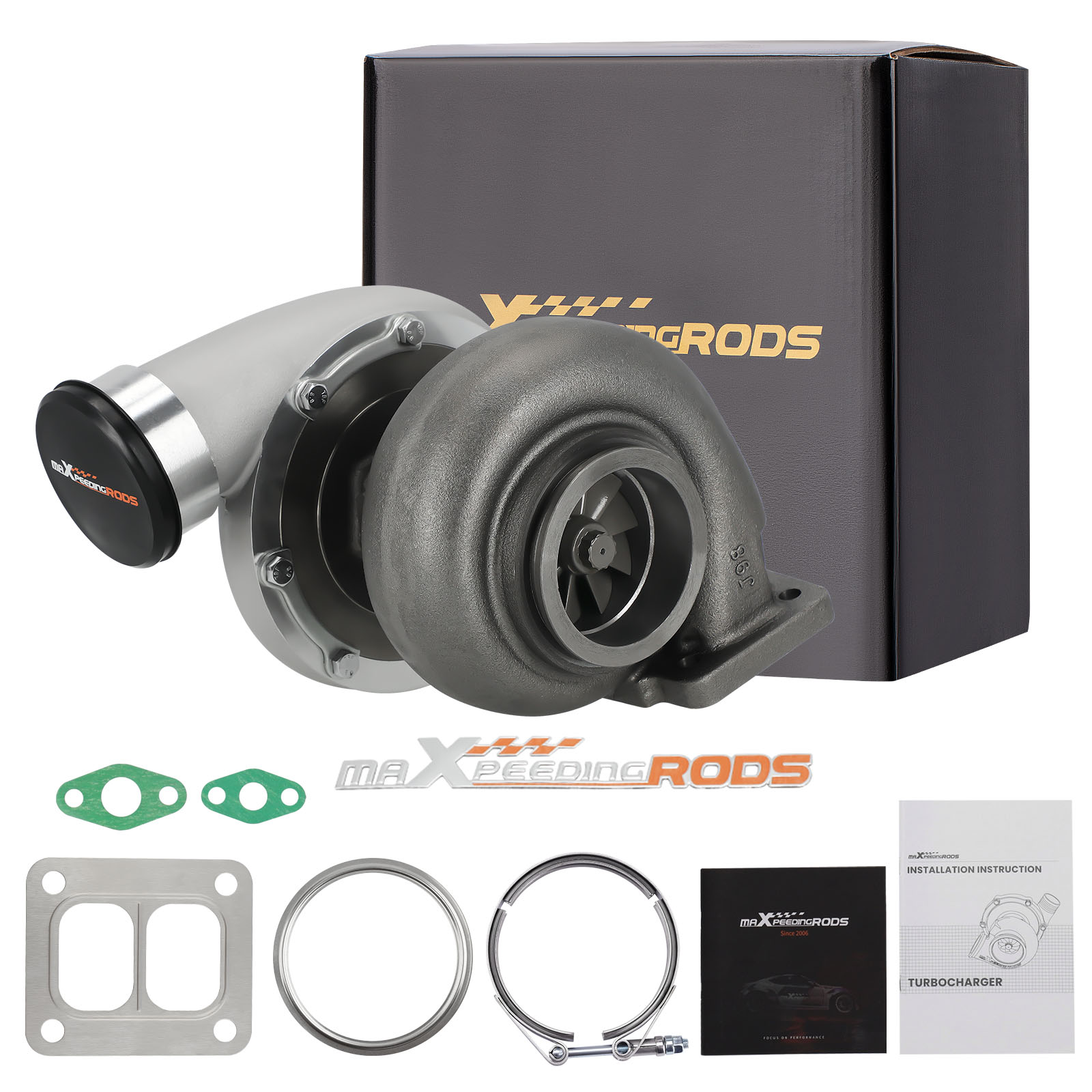

GT45 T4 Universal Turbo Turbocharger V-Band 1.05 0.66 A/R 600+HP for 4.0-6.0L
Turbocharger GT45 T4 V-Band 1.05 A/R 98mm Turbo
This turbo is an universal application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.
Application
Perfect for all 4.0L-6.0L engine
Horse Power: Capable of Boost Horse Power up to 600+ BHP
Specification
Compressor
Compressor Trim: 50
Compressor Inducer Diameter: 69 mm
Compressor Exducer Diameter: 98 mm
Compressor A/R: 0.66
Turbine
Exhaust Inlet (Turbo Manifold) Flange: T4 Twin Scroll Flange
Exhaust Outlet Flange: 3.25 " Inlet Flange 4.25" Clamp V-Band
Turbine Trim: 78
Turbine Inducer Diameter: 88 mm
Turbine Exducer Diameter: 77.5 mm
Turbine A/R: 1.05
Oil Inlet: M9 & 2*M8*1.25
Oil Outlet: M19 & 2*M8*1.25
Cooling Type: Oil Cooled
Bearing: Wet Float
Wastegate: w/o Wastegate
Turbo Height: 243cm
Turbo Width: 273cm
Features
-High Quality Material, Cast Housing with Durable Steel
-Boost Engine Horsepower Significantly
-Increase Engine Power and Torque Outpout;
-Maintain Combustion Chamber Pressure and Fuel/Air Load
-Contructed with High Quality Material
-Built for Durability and Strength
OUR ADVANTAGE
K18 INCONEL WHEELS-The turbine shaft wheels made of special K418 alloy , high oxidation resistance and stability under high temperatures up to 900 degrees Celsius never use K13 Inconel alloy.
DUCTILE UCTILE IORN QT450-10-withstand temperatures up to 700 degrees Celsius
CAST ALUMINIUM IMPELLER-good gas tightness and corrosion resistance
100% BALANCING TEST
Bearing Type: Journal Bearing
This Turbocharger you will receive has been balanced using the VSR machine technology.
Through the comprehensive and high-precision static and dynamic balance detection technology, the use time and reliability.
TWIN SCROLL TURBINE housing options available-quicker response then single exhaust outlet
2 YEARS WARRANTY
Factory direct price, ship worldwide; Offering any turbo part leading 2 years warranty under normal use, unlimited mileage.
Notice
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
