Specifications

• Rated Power: 2000 W
• Input Voltage: AC 220–240 V
• Frequency: 50 Hz
• Automatic Shutdown: 30 min
• Max Time Setting: 999 sec (16⅔ min)
• Max Temperature: 210 ℃
• Platen Area: 16 × 20 in (40 × 50 cm)
• Power Cord Length: 1.5 m
• Net Weight: 23.4 kg



---



Package List

• Heat Press Machine (with Protective Cover Sheet and Heat-Resistant Mat) ×1
• Control Box ×1
• Lower Handle (with 2 Phillips Bolts) ×1
• Phillips Screws ×6
• Phillips Screwdriver ×1

Not Included but Helpful:

• Heat-Resistant Gloves
• Heat Resistant Tape
• Goggles



---



                        HOW TO DO ?



Step 1 - Preparation

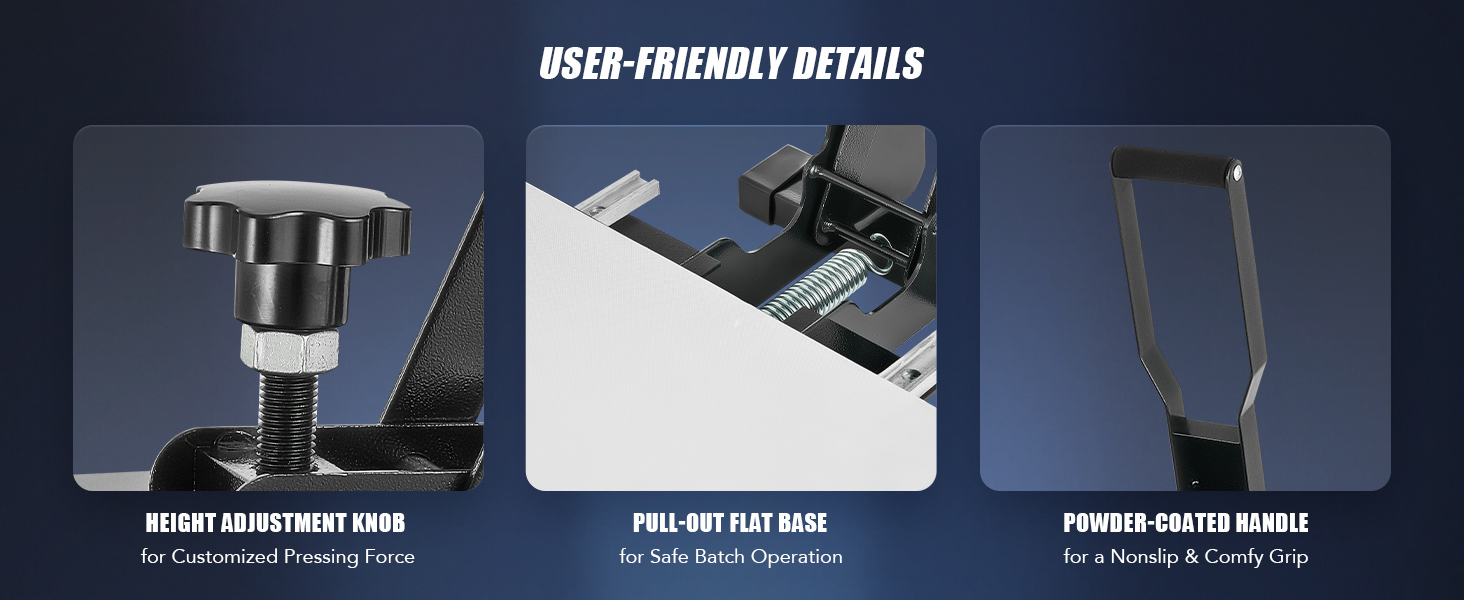

Slide out the flat base by pulling the lower handle, and place your design on the item to be heat pressed.



Step 2 - Setup

Flip the power switch on, set your desired time and temperature, and wait for the platen to heat.



Step 3 - Operation

Align the platen cover over your design, press it down using the handle, and then start the timer.



Step 4 - Completion

When your countdown has ended, carefully release the press, and turn it off.



---



Product Comparison

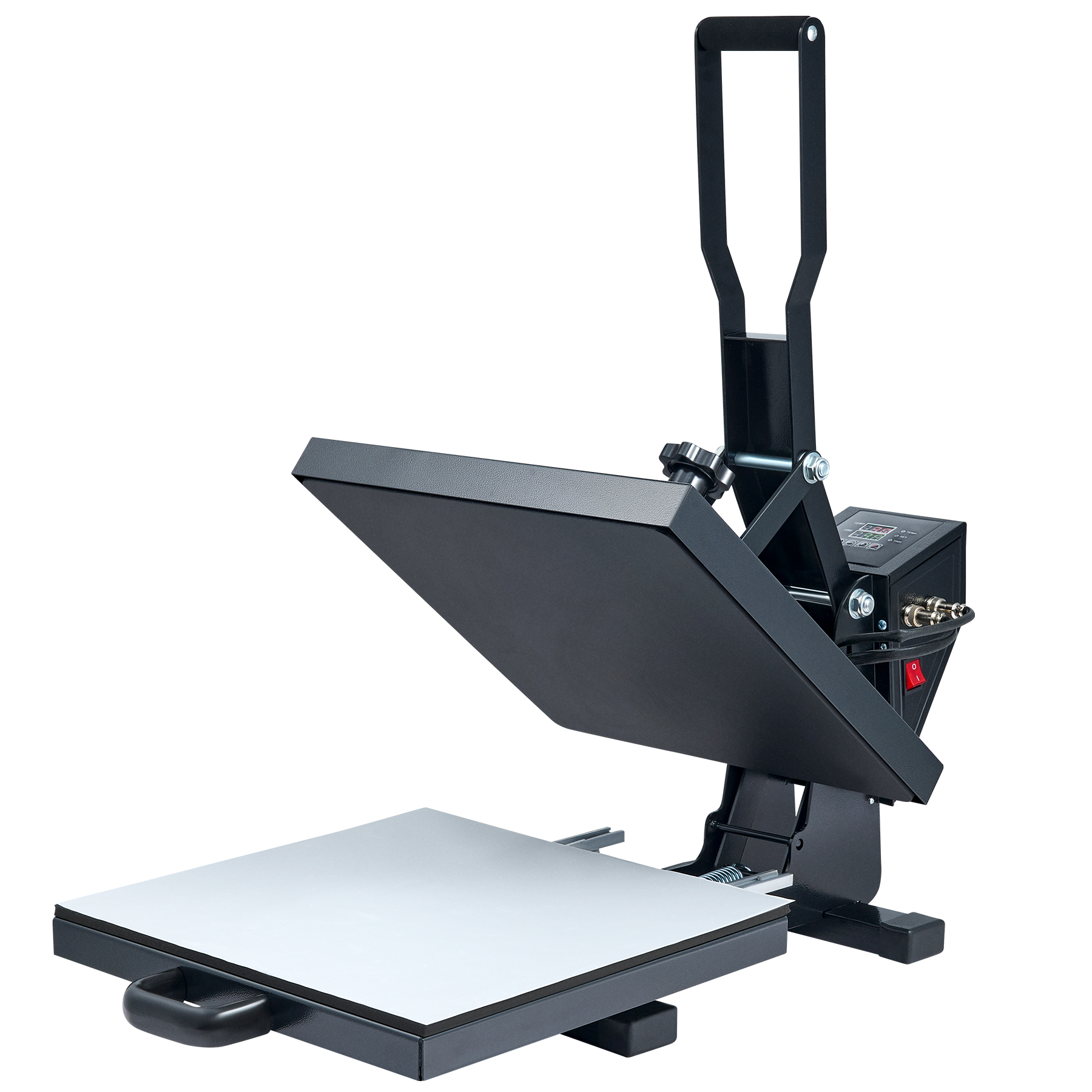

(The product on this page is BC3F)

	Basic		Semi-automatic	Automatic
Model	Basic-BC0F	Basic-BC3F	Semiauto-WB16	Auto-15WB
Rated Power	1400W	2000W	2200W	1600W
Platen Area	38×38cm	40×50cm	40×50cm	38×38cm
Attachments	- / -
Max. Time Setting	210 ℃	210 ℃	210 ℃	250 ℃
Max. Temperature	999 s	999 s	999 s	999 s
Net Weight	17 kg	23.4kg	36 kg	19.6 kg





	Advanced			Specialised for mugs
Model	Advanced-125Q	Advanced-128Q	Advanced-1211	Mugs-MC30
Platen Area	1250W	1250W	1250W	500W
Platen Area	30×38cm	30×38cm	30×38cm	Volume Range: 325.3–887.2 mL Outer Dia. Range: 6–15 cm Max. Height: 27 cm
Attachments	Hat Press  × 1 Mug Press (325 mL) × 1 Plate Press (12.7 cm dia.) × 1 Plate Press (15.2 cm dia.) × 1 Work Gloves × 1	Hat Press × 1 Mug Press (266, 325, 355, & 503 mL) each × 1 Plate Press (12.7 cm dia.) × 1 Plate Press (15.2 cm dia.) × 1 Work Gloves × 1	Hat Press × 1 Mug Press (266, 325, 355, & 503 mL) each × 1 Plate Press (12.7 & 15.2 cm dia.) each × 1 Pen Press × 1 Shoe Bracket × 1 Ball Bracket (Ideal for baseballs) × 1 Work Gloves × 1	NONE
Max. Time Setting	999 s	999 s	999 s	999 s
Max. Temperature	210 ℃	210 ℃	210 ℃	240 ℃
Net Weight (without Attachments)	11.5 kg	11.5 kg	11.5 kg	7.2 kg
