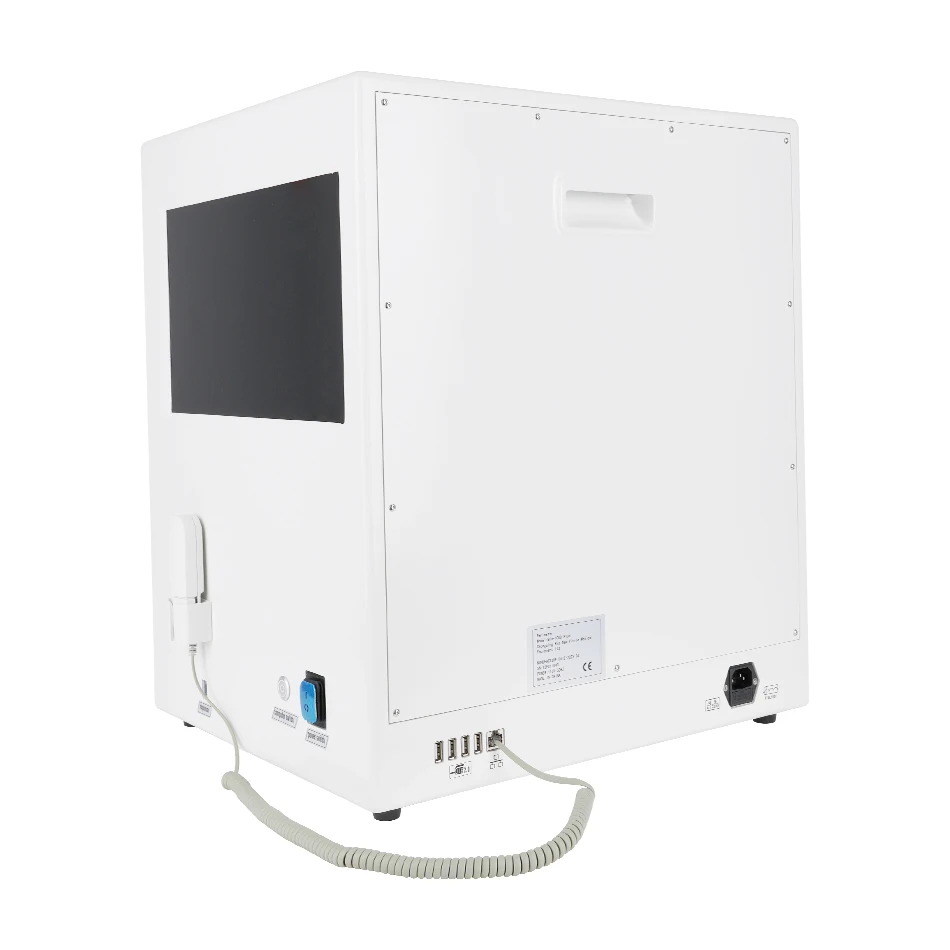

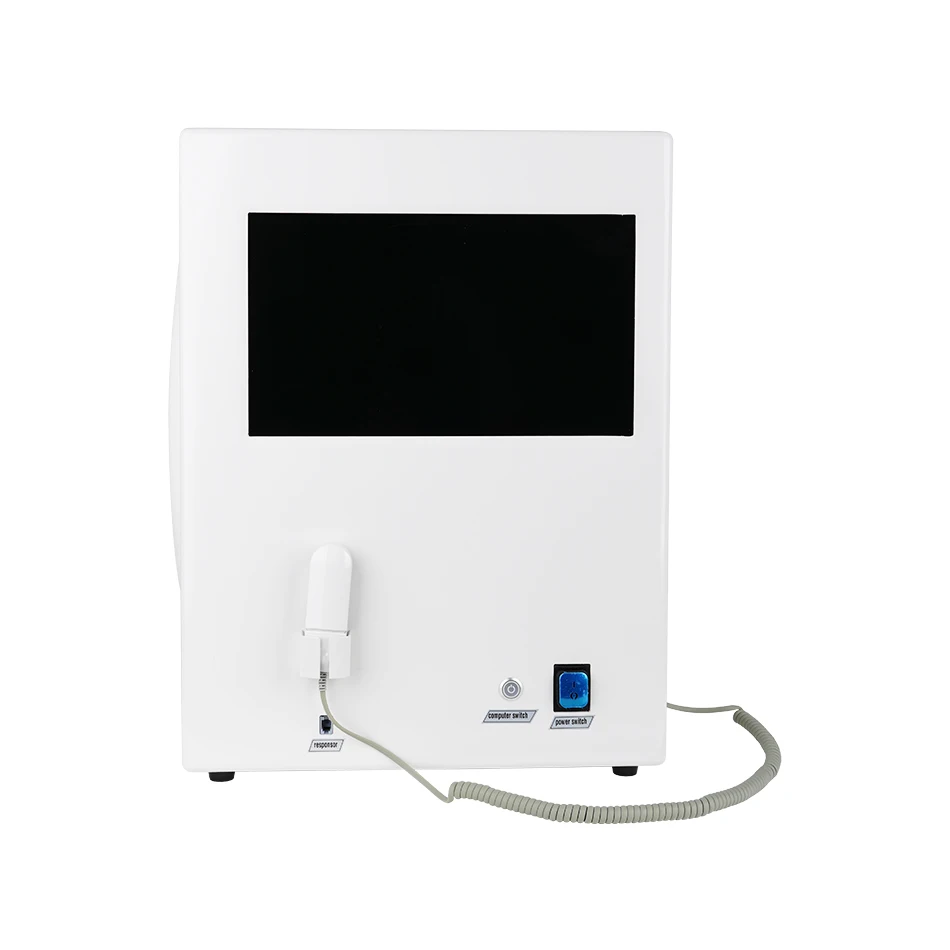

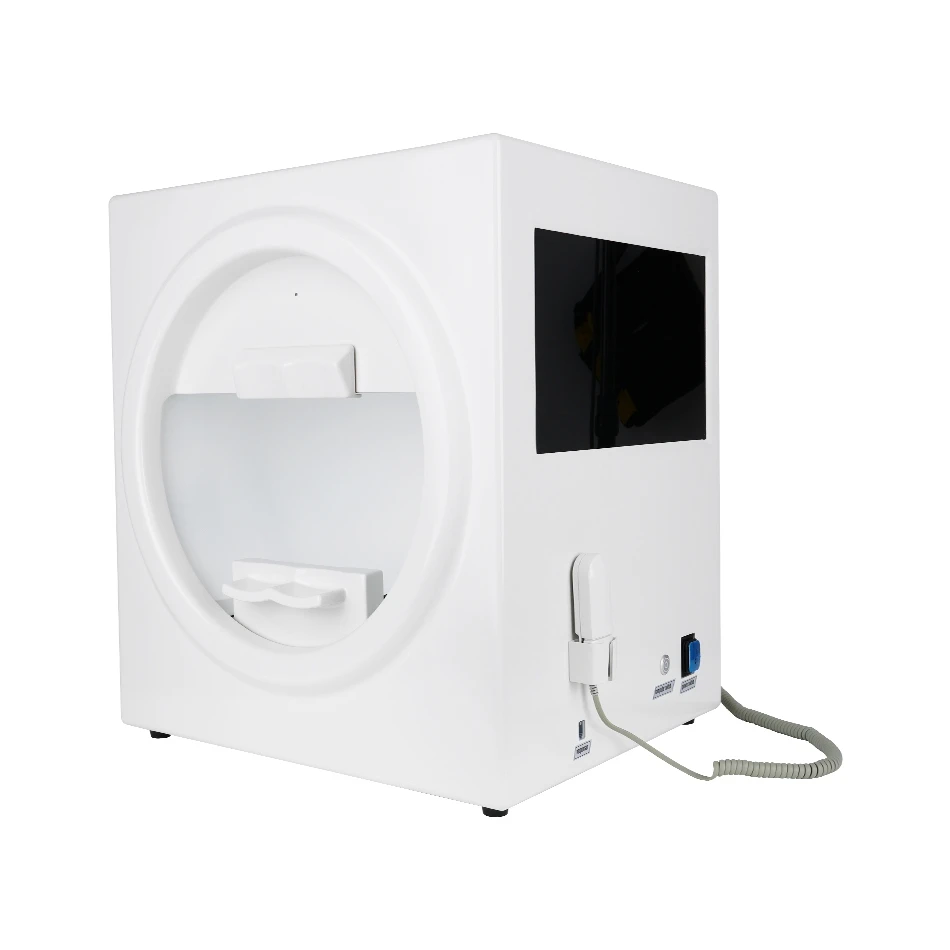

The Bio-1000 automated perimeter absorbs the advantages of international advanced perimetry devices. It comprises the highly integrated computer, optics, machinery and electronics systems. Incorporated with the advanced configuration, comprehensive software inspection categories, it provide international standard 6 analysis report of glaucoma, fundus disease, visual pathway injury and neurological diseases.
Technical Features
Comprehensive real-time monitoring,heiji-krakau physiological blind spot monitoring,gaze tracking/head position tracking, automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection.
Personalized design, accurate clinical analysis, accurate and rapid examination strategy.
A variety of classic test procedures, including international standard six report analysis .
.
.
.
.
|
Basic specification |
|
|
Inspection range |
90° |
|
Inspection distance |
30CM |
|
Background light brightness |
White 31.5asb |
|
Visual target brightness |
1asb---10000asb |
|
Visual target size |
GoldmannⅢ |
|
Visual target interval time |
200ms |
|
Visual target interval time |
Standard or adjustment according to patient reflection |
|
Threshold test model |
Center 5º-16,center10º-68,24-2,30-2,30º-60º,nasal step |
|
Upper Threshold test model |
30º-40 , 30º-76,P-60, 60º-81, 60º-120,1 90º-135 nasal side |
|
Special detection strategy |
Esterman monocular,Esterman binocular ,user-customized test, |
|
150º driver monocular fast detection,150º driver monocular standard detection ,upper 36°detection,blind spot detection, 150ºhorizontal straightness detection |
|
|
Pupil size test |
Automatic |
|
Fixation monitoring |
Blind spot monitoring ,eye position eye position deviation alarm,eye deviation curve |
|
Environment light detection |
Automatic |
|
Analysis software |
Reliability analysis,single vision report,triple visionreport,GPA half vision analysis, |
|
GPA glaucoma developing analysis ,VFI vision index analysis |
|
|
Operation system |
Win7 above |
|
Others |
|
|
Size |
412mm(length)* 497mm(width)* 513mm(height) |
|
Weight |
17kg |
|
Power |
100-240V ,50-60Hz |
