Compatible for 1.5L to 2.5L any 4/6 cylinder engine
HP:
Capable of Boosting Horse Power up to 420HP
Cooling Type:
Oil Cooled
Exhaust Inlet (Turbo Manifold) Flange:
T3 4 bolt Flange Patterns
Exhaust Outlet (downspout) Flange:
V-Band Flange
Compressor
Trim
48.1
Inducer Diameter
52.7mm
Exducer Diameter
76 mm
A/R
0.5
Turbine
Trim
74.2
Inducer Diameter
64.8 mm
Exducer Diameter
55.8mm
A/R
0.63
Additional Details:
Bearing:
Wet Float
Warranty:
1 Year
Internal Wastegate:
Yes
Accessories:
You will get exactly as shown in the picture above
Notes:
* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us: * This is universal application turbo, so modification might be required for some vehicles.
We have used the eBay compatibility list as a guide for buyers to use, but the eBay data system is not accurate and incomplete sometimes. Please make sure you have read through the whole listing and paid attention to “note” and “notice”. If there is any uncertain, please use the eBay message to check with our sales first.
How much does delivery cost and how long will it take?
You can check the delivery cost in the listing “Shipping and payments” section by selecting your country and entering your zip code. If it is not specified, please provide us your shipping address and zip code via eBay message. For CA domestic shipping, the delivery time is around 2-5 business days. The international shipment delivery time is around 4-7 business days.
What payment methods do you accept?
We currently only accept payment via PayPal. You can also use PayPal as a guest and pay using a debit or credit card.
When will my order be dispatched?
We will arrange the shipment in 1 business day after the payment is cleared. The tracking number will be updated on eBay in 24 hours after the shipment. Please notice that there is no shipment during weekend and holidays.
Can I amend my order?
Sorry no. Once the payment is cleared, we cannot amend any item(s), quantities, or add or remove items. We are also unable to change the delivery address. Therefore, please double check all the order information before making payment.But if any question , pls contact us via eBay.
What do I do if I have not received my order?
Please simply contact us via eBay messages, and then, we will get back to you as soon as possible with the update. Usually, we will follow up every shipment till customers get their order.
What do I do if my product is faulty?
Please simply contact us via eBay messages, and then, we will get back to you as soon as possible. It will speed up the process if you could provide us some pictures or video to illustrate the issue details.
We will ship your order in one business day once the payment is cleared.
Tracking number will be uploaded to eBay within 24 hours after shipment.
Import Tax: We do not cover any import Duty and Tax. Customer should be responsible for the Import tax.
We ship all our items either via UPS Standard or Canadapost Expedited . The estimated delivery time is around 2-4 working days to most area in Canada .
We accept 30 days return/refund guarantee
If the item you received is faulty, damaged or incorrect, or any further problems, please contact our customer service on eBay within 30 days from item received.
For damaged items on arrival, please contact us immediately, sending us an email with a photo is preferred. We will offer solutions to such cases. Full refund or replacement will be guaranteed.
WHY CHOOSE US

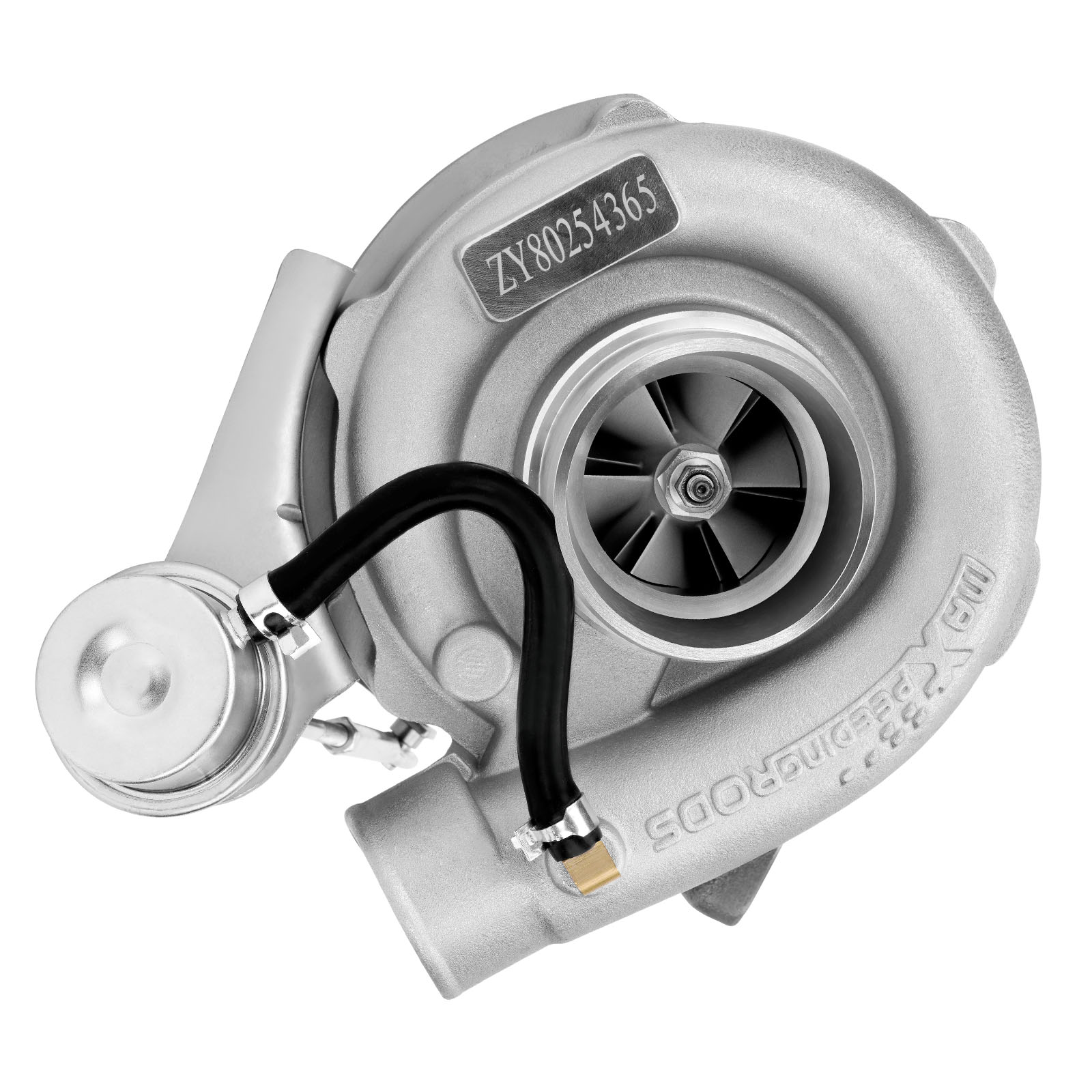

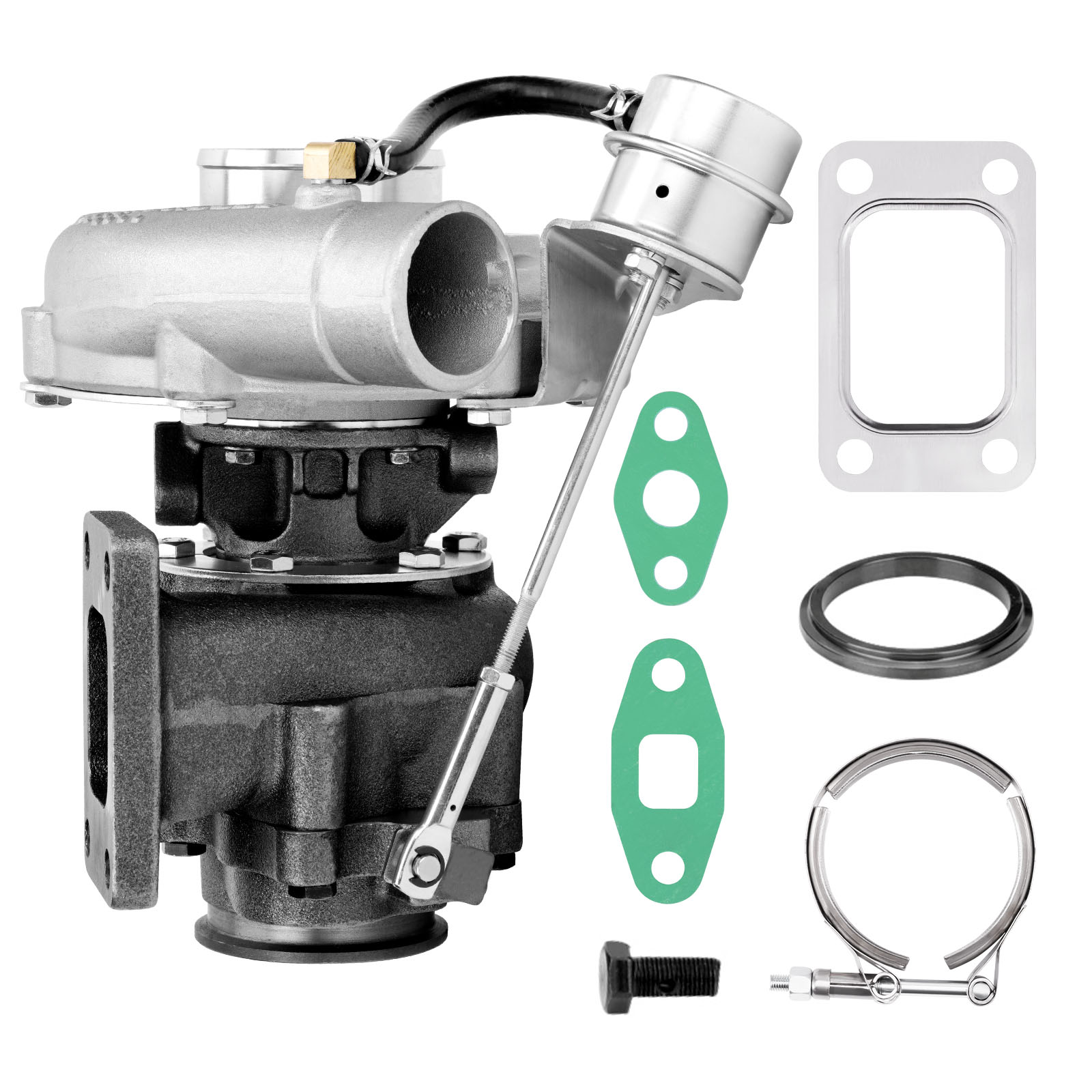

T3 T04E TurboCharger Kit 0.63 A/R V Band Universal Oil Feed & Return Lines
Notice:
Pick up service is not available.

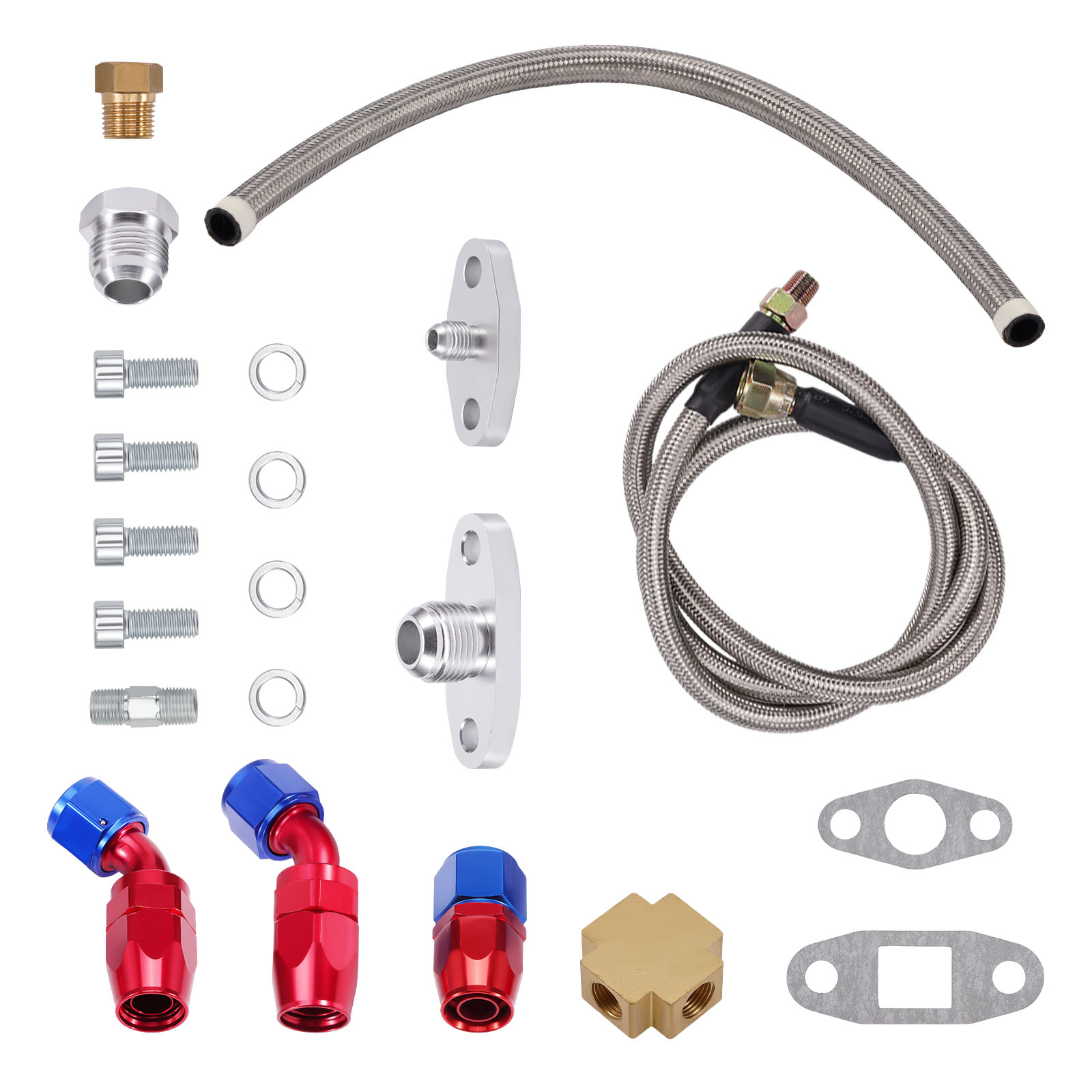

Turbo Oil Feed Line + Turbo Oil Feed Line:
* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm
T3 Turbocharger:
* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us:
* This is universal application turbo, so modification might be required for some vehicles.
Other items you might also like
24 Ways Adjustable Damper Coilover For BMW 3 (E36) Coupe & Roadster 1996-2002
Coilover Suspension Kit For Mazdaspeed 3 Mazda 3 BK 2004-2009 Mazda 3 BL 09-13
Street Coilover Suspension For BMW 3 E90 E91 316i 318i 320i 323i 325i 2004-2012
24 Ways Adjustable Damper Coilover For BMW E36 316i 318i 318tds 1994-1999
Coilover Lowering Kit For BMW 3 E90 E91 RWD 335d 330d 325d 320d 316d 335i 04-12
6x H-Beam Connecting Rods For BMW 3 5 7 Series 328i 528i E36 E46 M52B28 5.315"
Street Coilovers Suspension For BMW 3 E36 Convertible 320i,323i,325i,328i 93-99

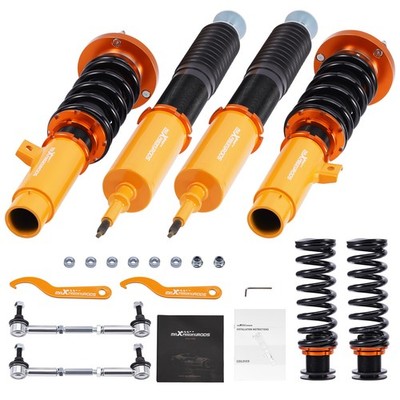

24 Damping Levels Coilover For BMW 3 Series Convertible Coupe E92 E93 2006-2013
