This turbo is an universal application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.
Application
Perfect for all 1.5L-2.0L engine , for all 4 cylinder
Horse Power: Capable of Boosting Horse Power up to 350BHP
Cooling Type: Water + Oil
Specification

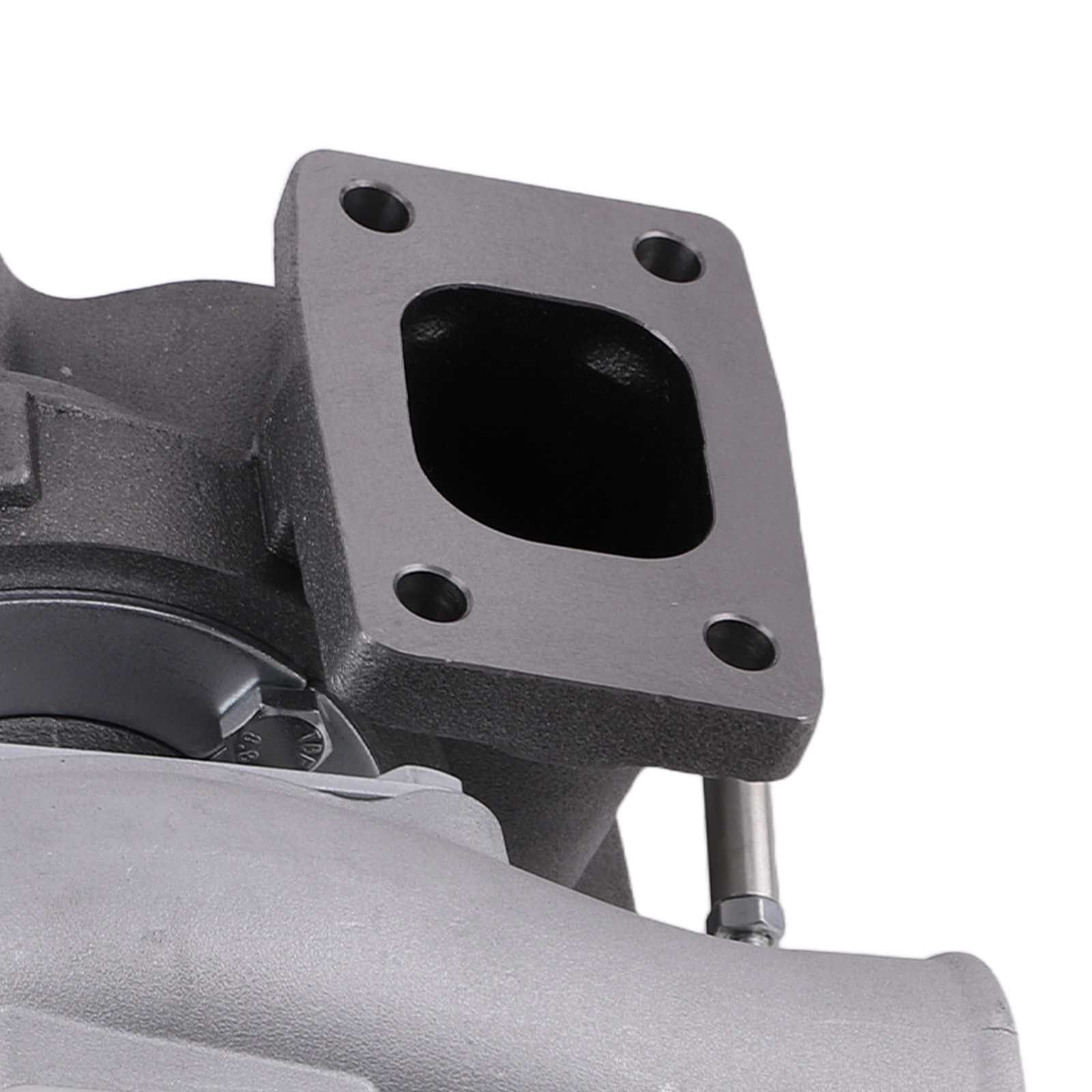

Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange
(T28 Flange can be converted to T25 Flange, Adrapter is needed).
Exhaust Outlet (downspout) Flange: 5-Bolt
Compressor Trim: 48
Compressor Inducer Diameter: 49.20 mm
Compressor Exducer Diameter: 71 mm
Compressor A/R: 0.6
Turbine Trim: 74
Turbine Inducer Diameter: 53.8mm
Turbine Exducer Diameter: 47mm
Turbine A/R: 0.64
Bearing: Wet Float
Warranty: 2 Year
Wastegate: with Wastegate
Oil Restrictor: Yes
Oil Restrictor size: inside diameter 2mm
Oil Feed Size: 12mm
Oil Inlet: M12*1.25
Oil Drain Size: 14mm
Oil Outlet: M14 & 2*M8*1.25
Oil Drain Thread Pitch: 40mm
Water Thread Size: M14*1.5

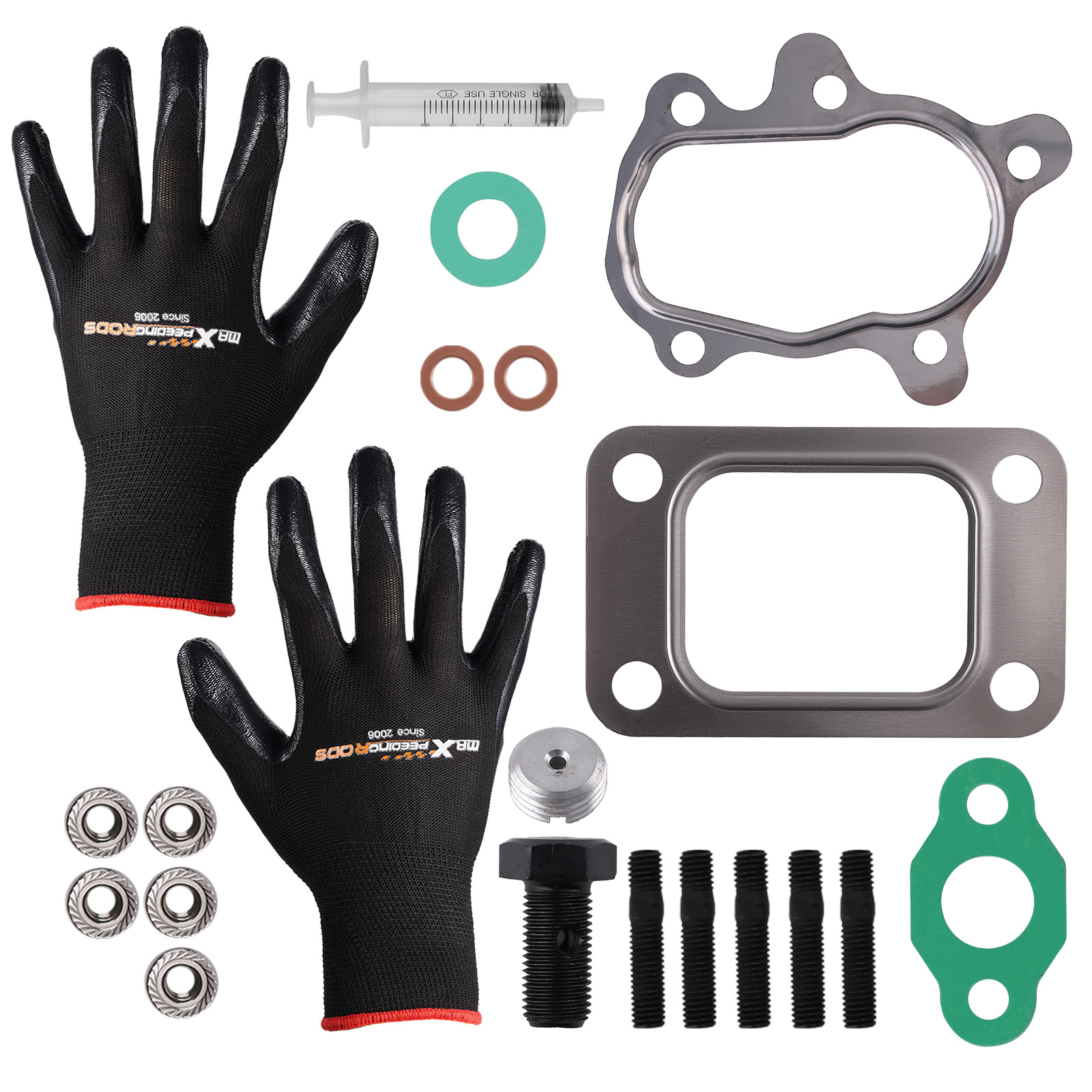

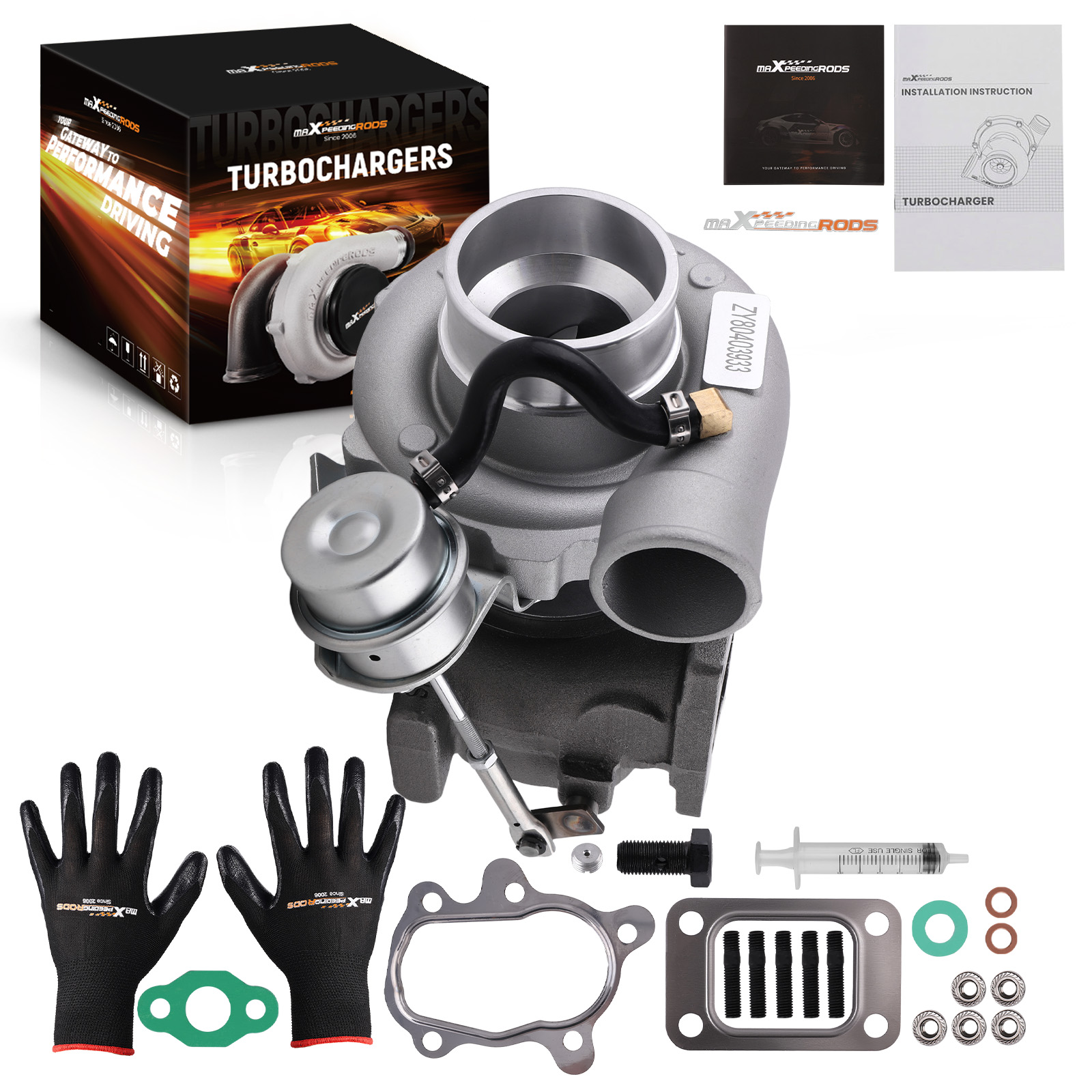

Accessories: You will get exactly as shown as picture above
Feature
Product Material
1. Turbine housing : Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius
2. Steel Turbine Wheel: Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius
3. compressor wheel/blades: Cast aluminium with good gas tightness and corrosion resistance
4. Capable of Boosting Horse Power up to 350 BHP.
===============================
*Product Features
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Notice
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
We have used the eBay compatibility list as a guide for buyers to use, but the eBay data system is not accurate and incomplete sometimes. Please make sure you have read through the whole listing and paid attention to “note” and “notice”. If there is any uncertain, please use the eBay message to check with our sales first.
How much does delivery cost and how long will it take?
You can check the delivery cost in the listing “Shipping and payments” section by selecting your country and entering your zip code. If it is not specified, please provide us your shipping address and zip code via eBay message. For CA domestic shipping, the delivery time is around 2-5 business days. The international shipment delivery time is around 4-7 business days.
What payment methods do you accept?
We currently only accept payment via PayPal. You can also use PayPal as a guest and pay using a debit or credit card.
When will my order be dispatched?
We will arrange the shipment in 1 business day after the payment is cleared. The tracking number will be updated on eBay in 24 hours after the shipment. Please notice that there is no shipment during weekend and holidays.
Can I amend my order?
Sorry no. Once the payment is cleared, we cannot amend any item(s), quantities, or add or remove items. We are also unable to change the delivery address. Therefore, please double check all the order information before making payment.But if any question , pls contact us via eBay.
What do I do if I have not received my order?
Please simply contact us via eBay messages, and then, we will get back to you as soon as possible with the update. Usually, we will follow up every shipment till customers get their order.
What do I do if my product is faulty?
Please simply contact us via eBay messages, and then, we will get back to you as soon as possible. It will speed up the process if you could provide us some pictures or video to illustrate the issue details.
We will ship your order in one business day once the payment is cleared.
Tracking number will be uploaded to eBay within 24 hours after shipment.
Import Tax: We do not cover any import Duty and Tax. Customer should be responsible for the Import tax.
We ship all our items either via UPS Standard or Canadapost Expedited . The estimated delivery time is around 2-4 working days to most area in Canada .
We accept 30 days return/refund guarantee
If the item you received is faulty, damaged or incorrect, or any further problems, please contact our customer service on eBay within 30 days from item received.
For damaged items on arrival, please contact us immediately, sending us an email with a photo is preferred. We will offer solutions to such cases. Full refund or replacement will be guaranteed.
