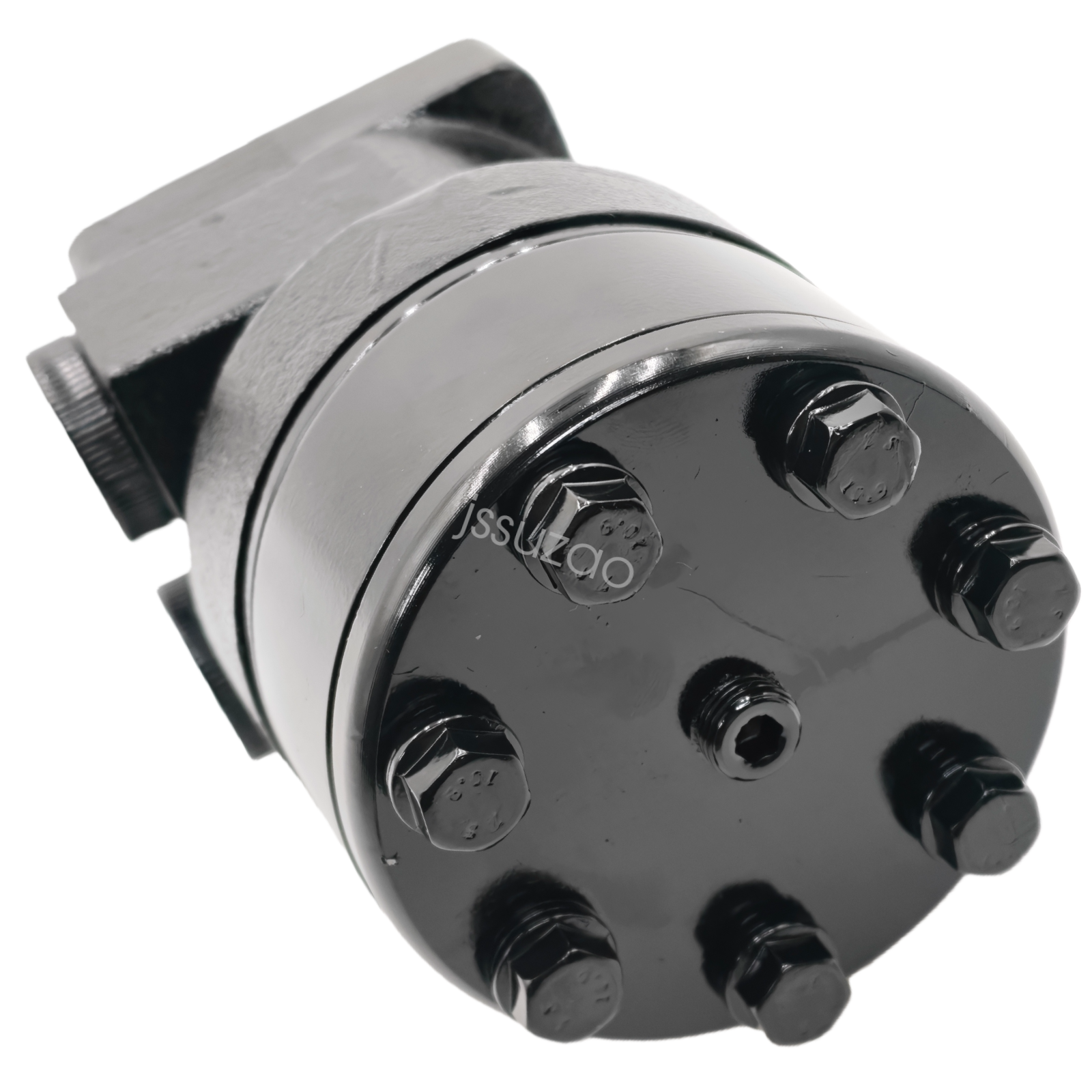

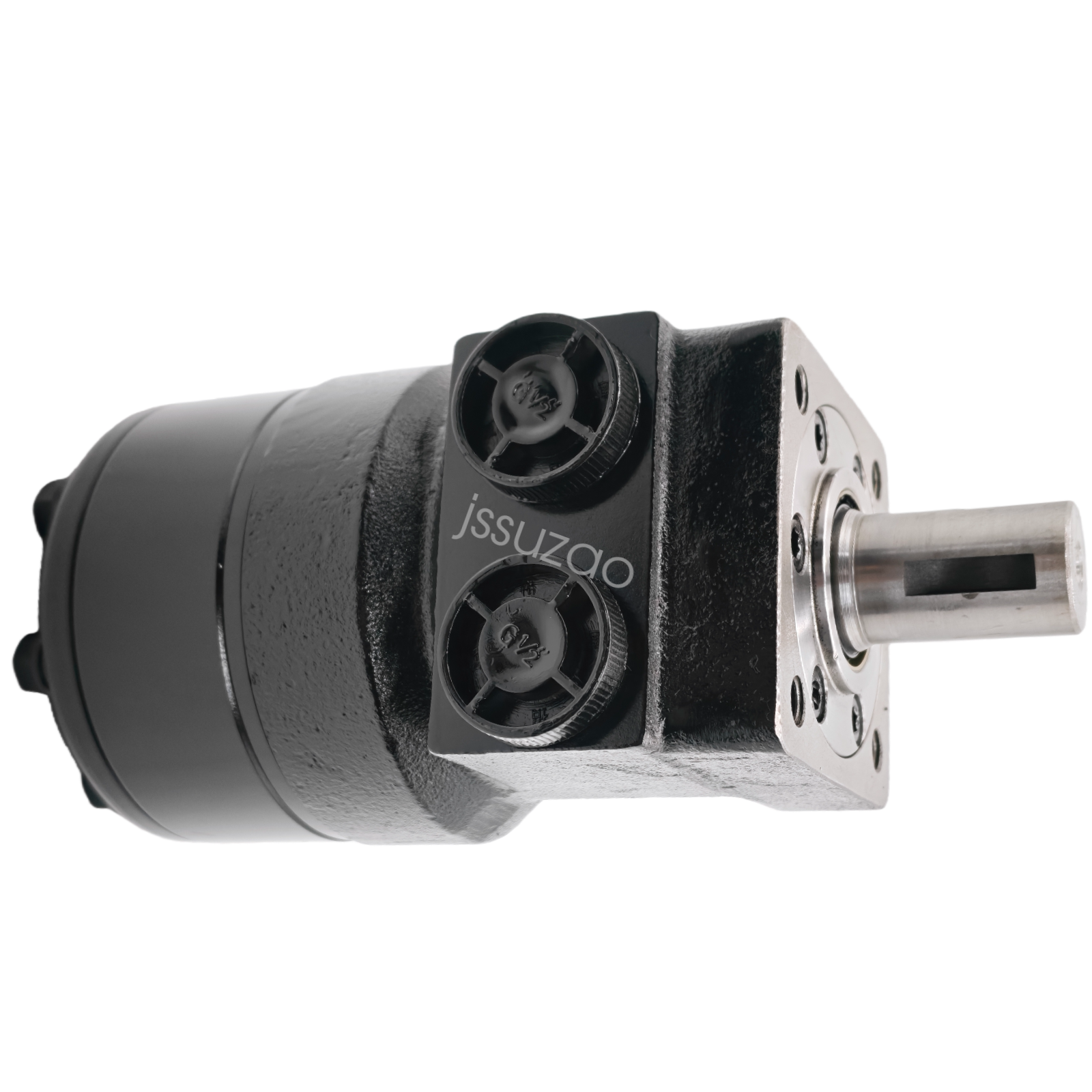

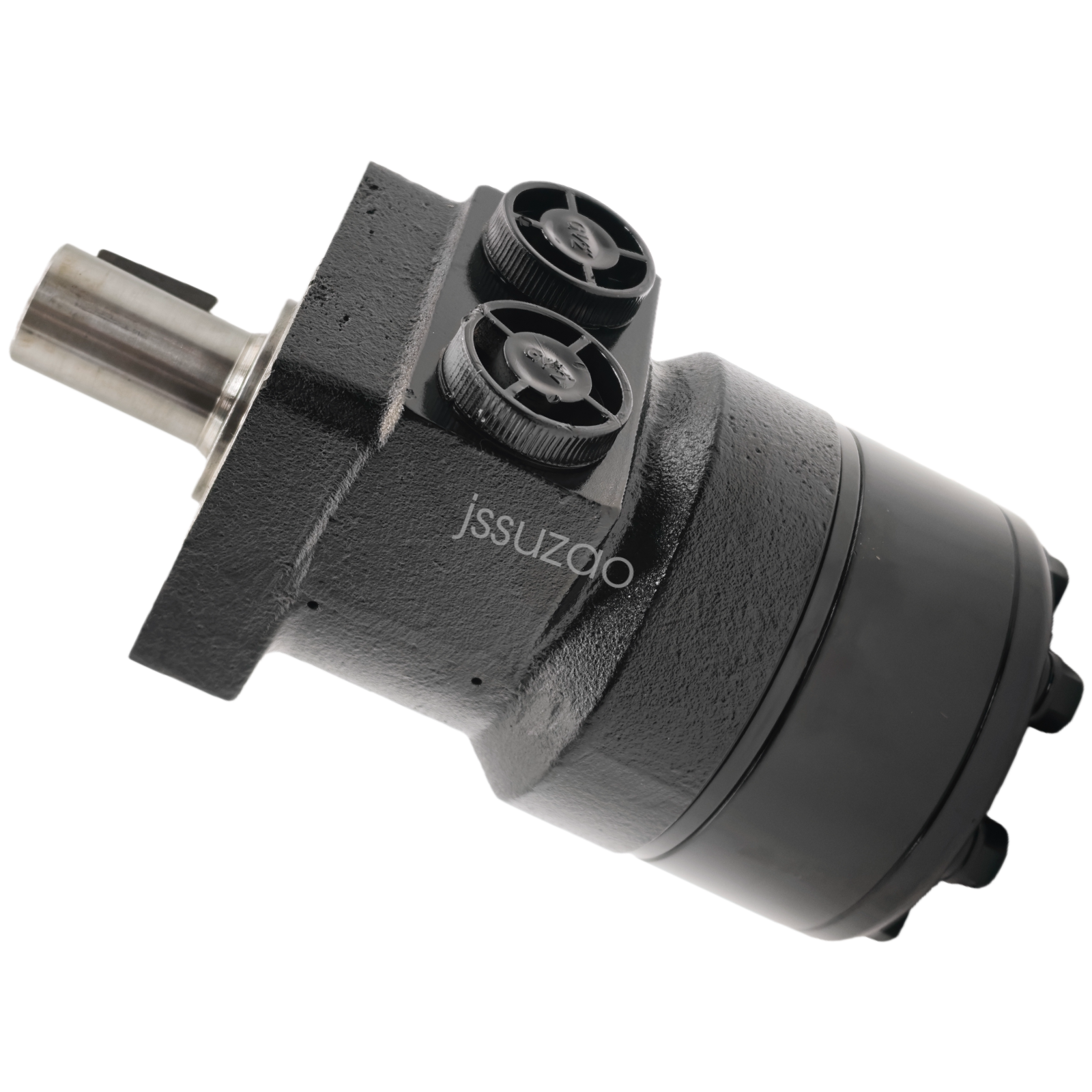

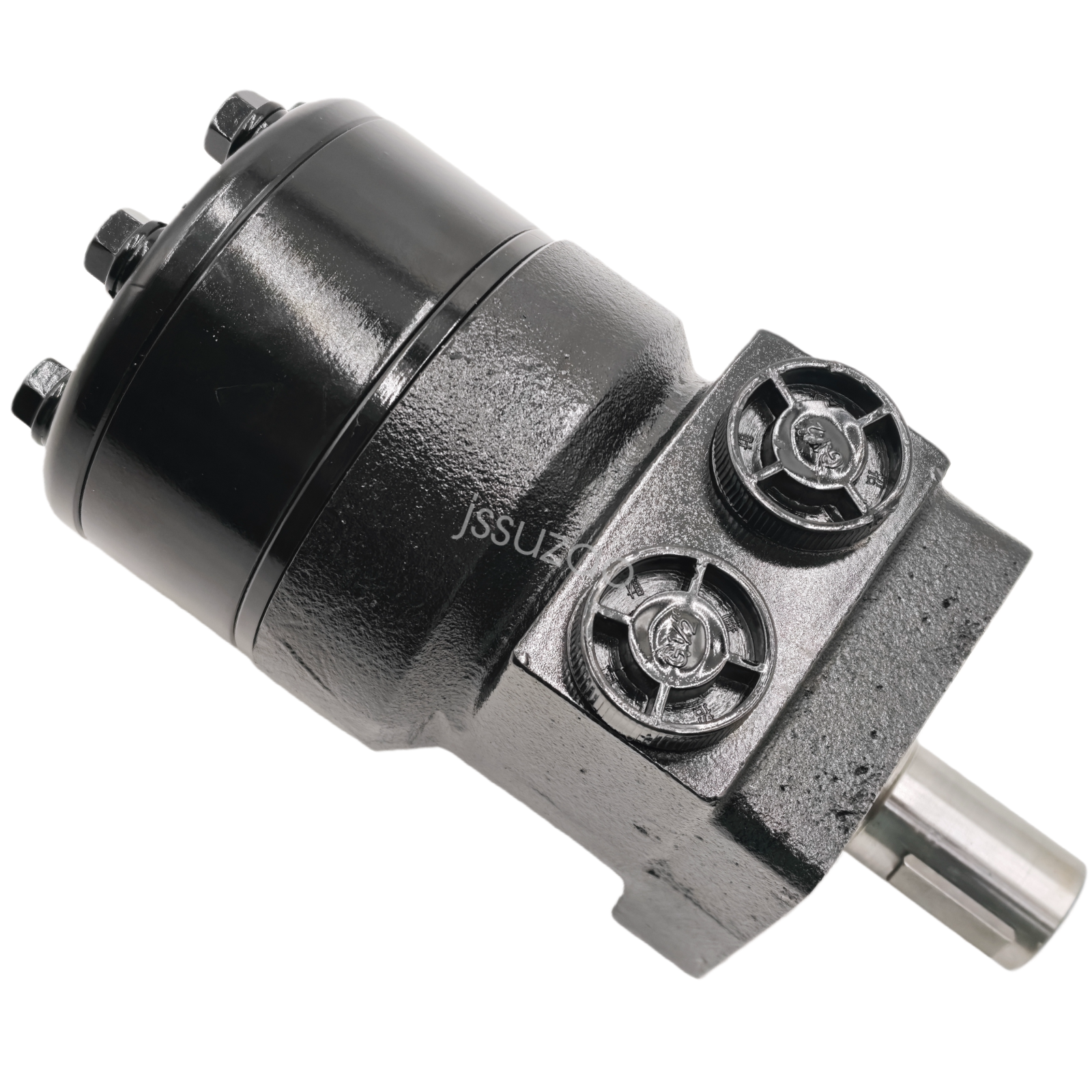

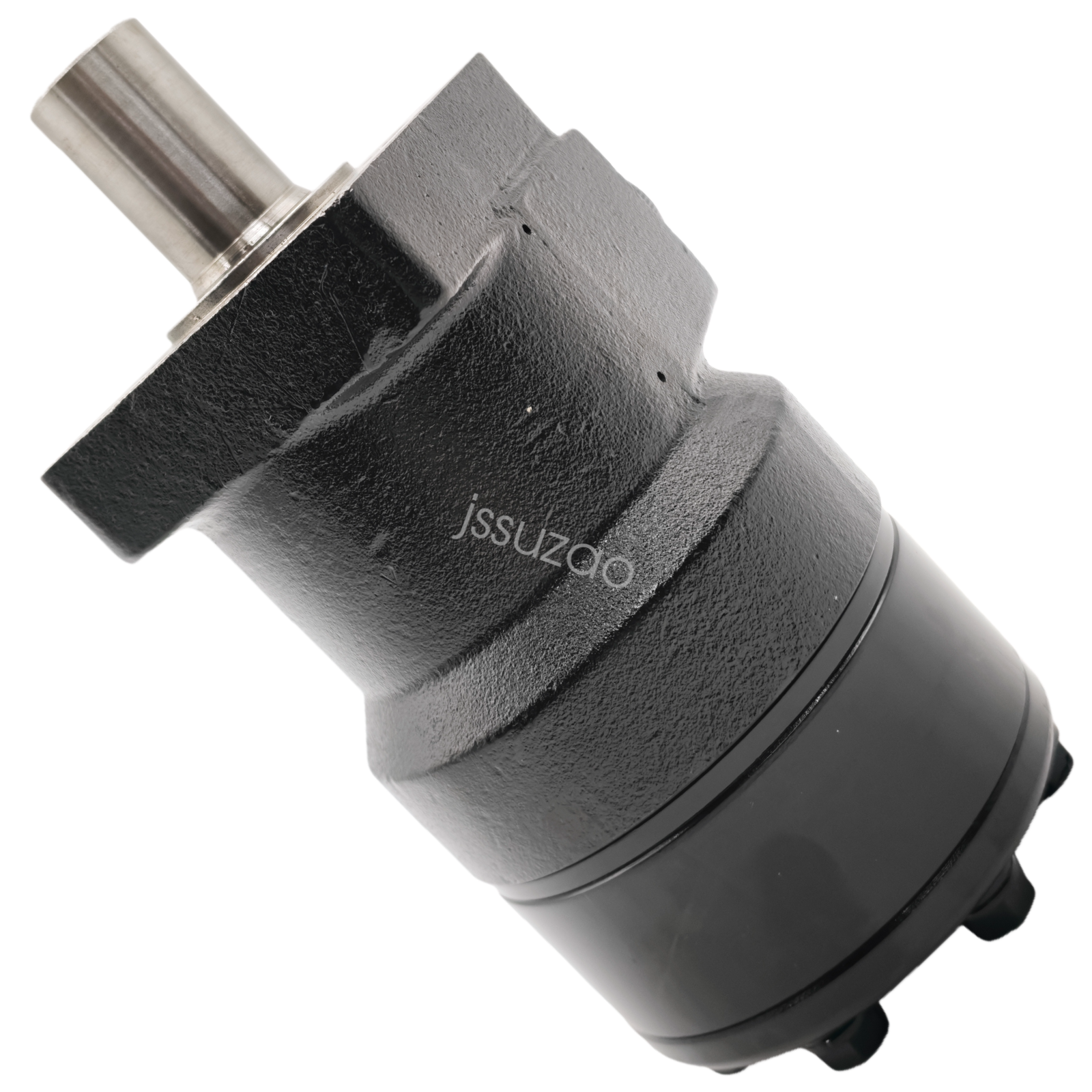

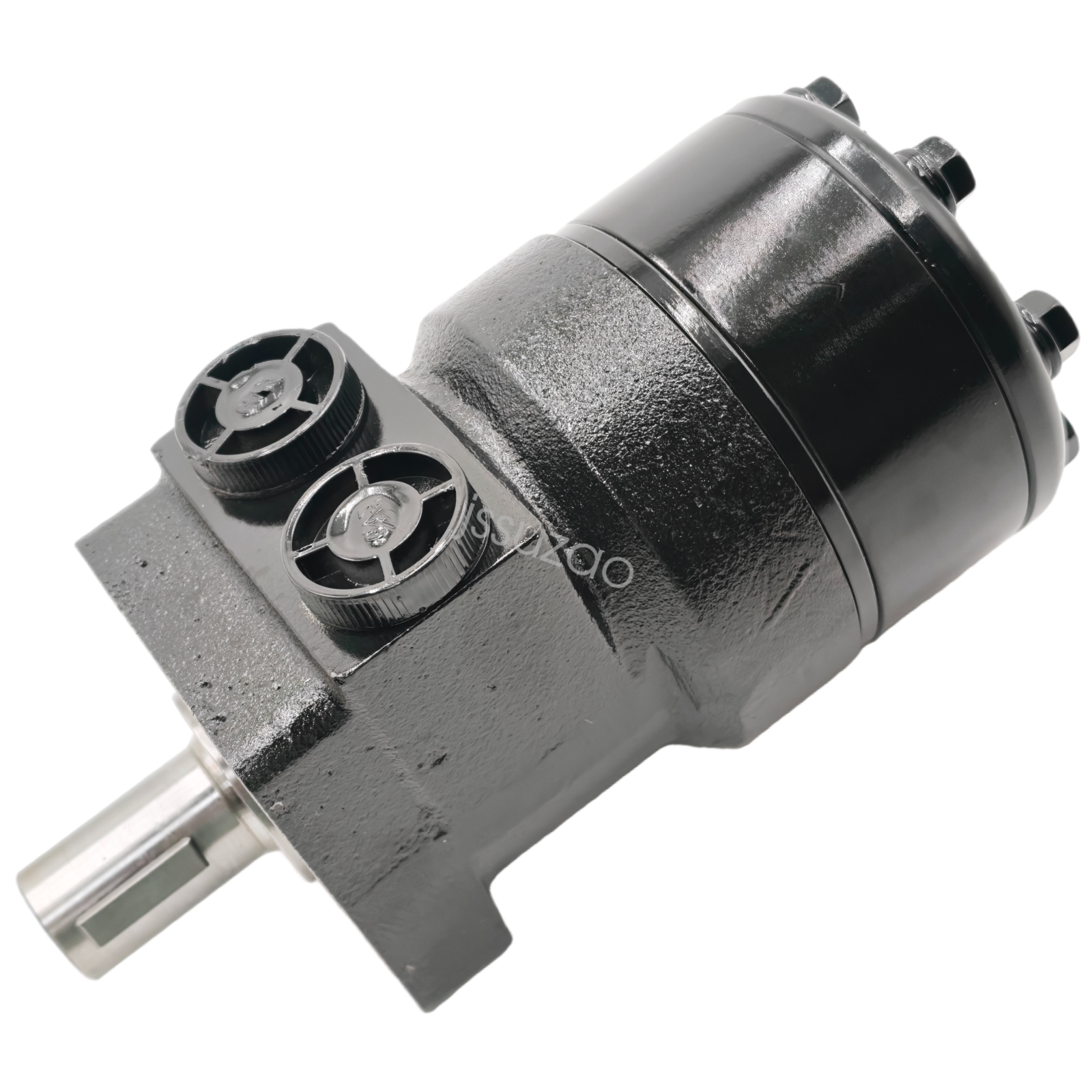

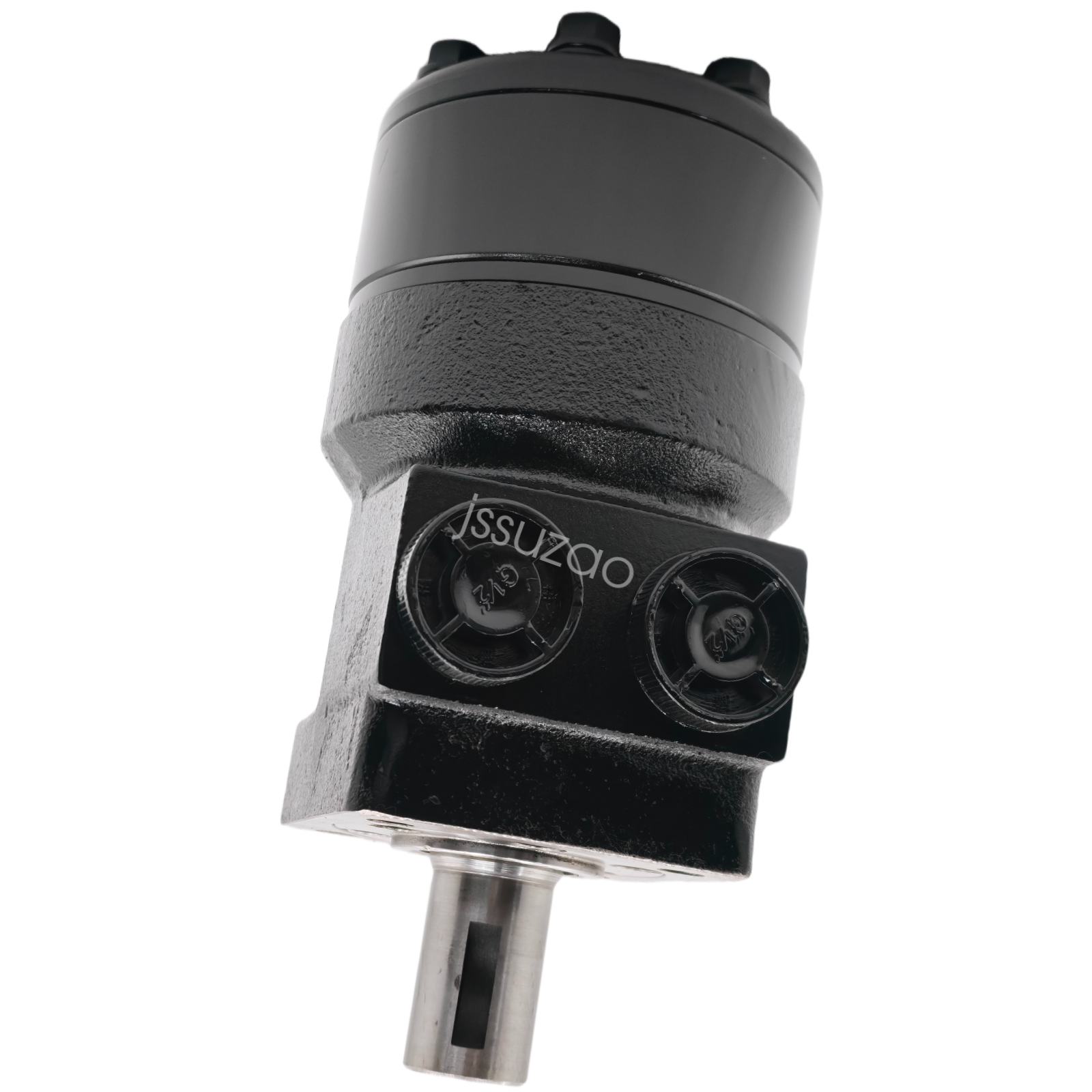

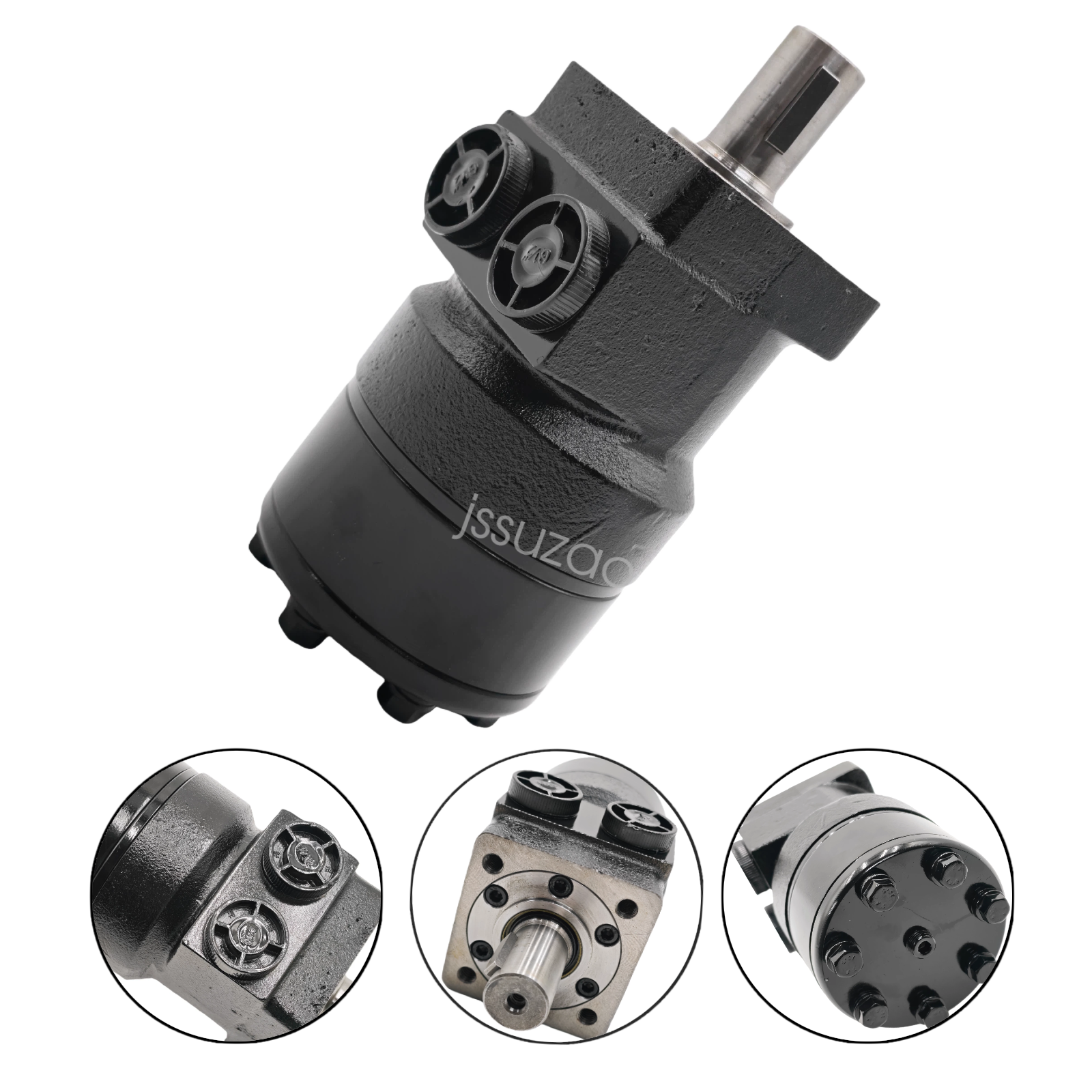

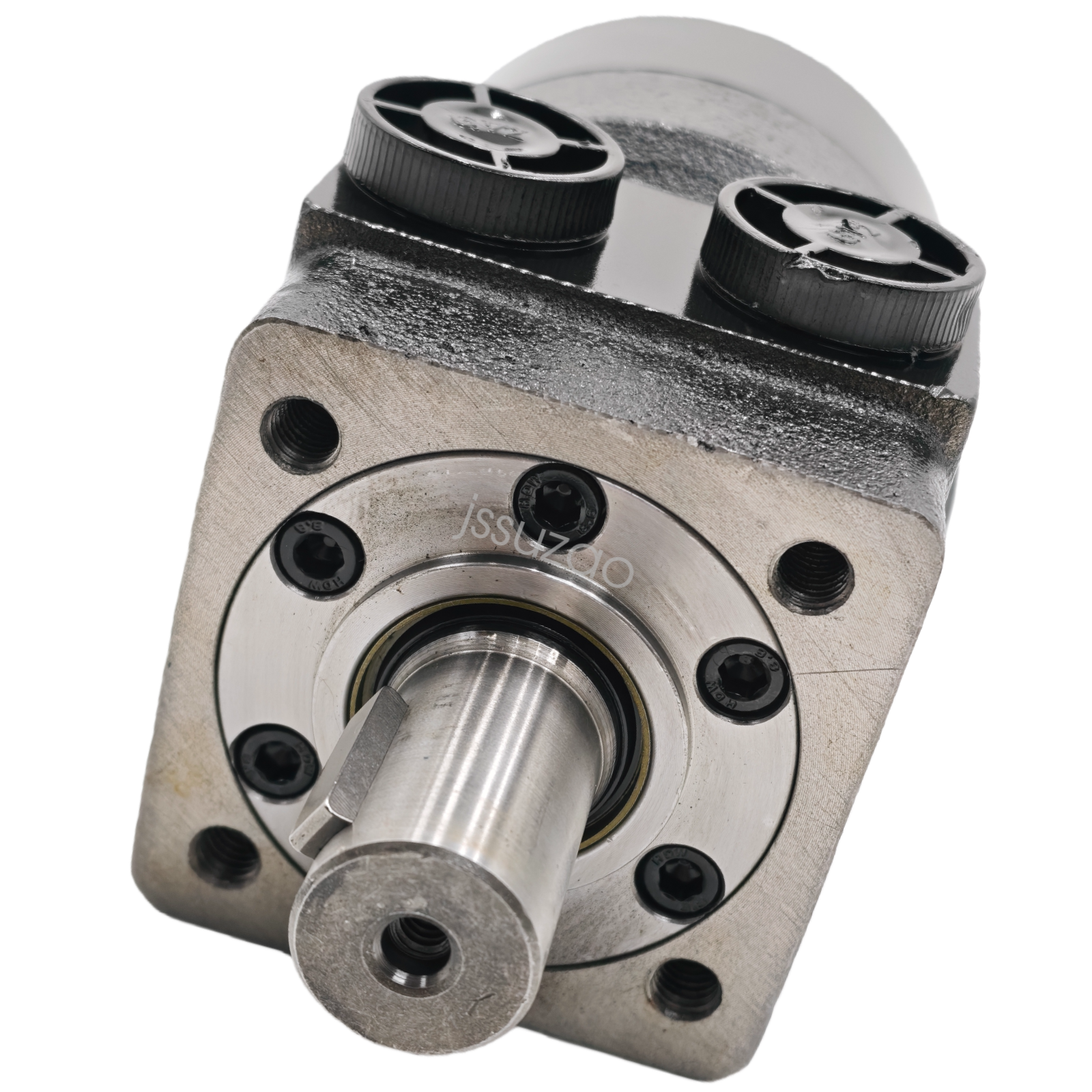

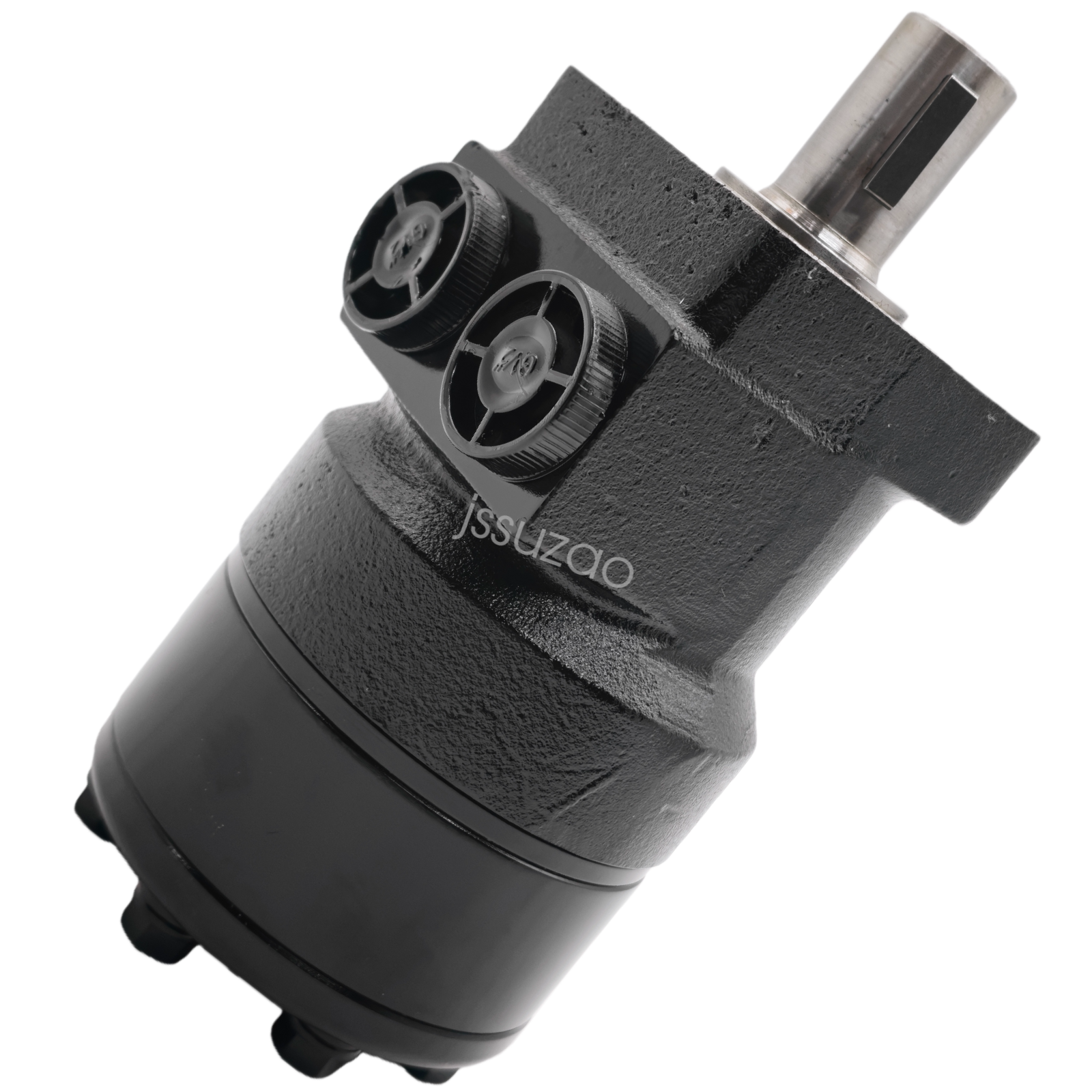

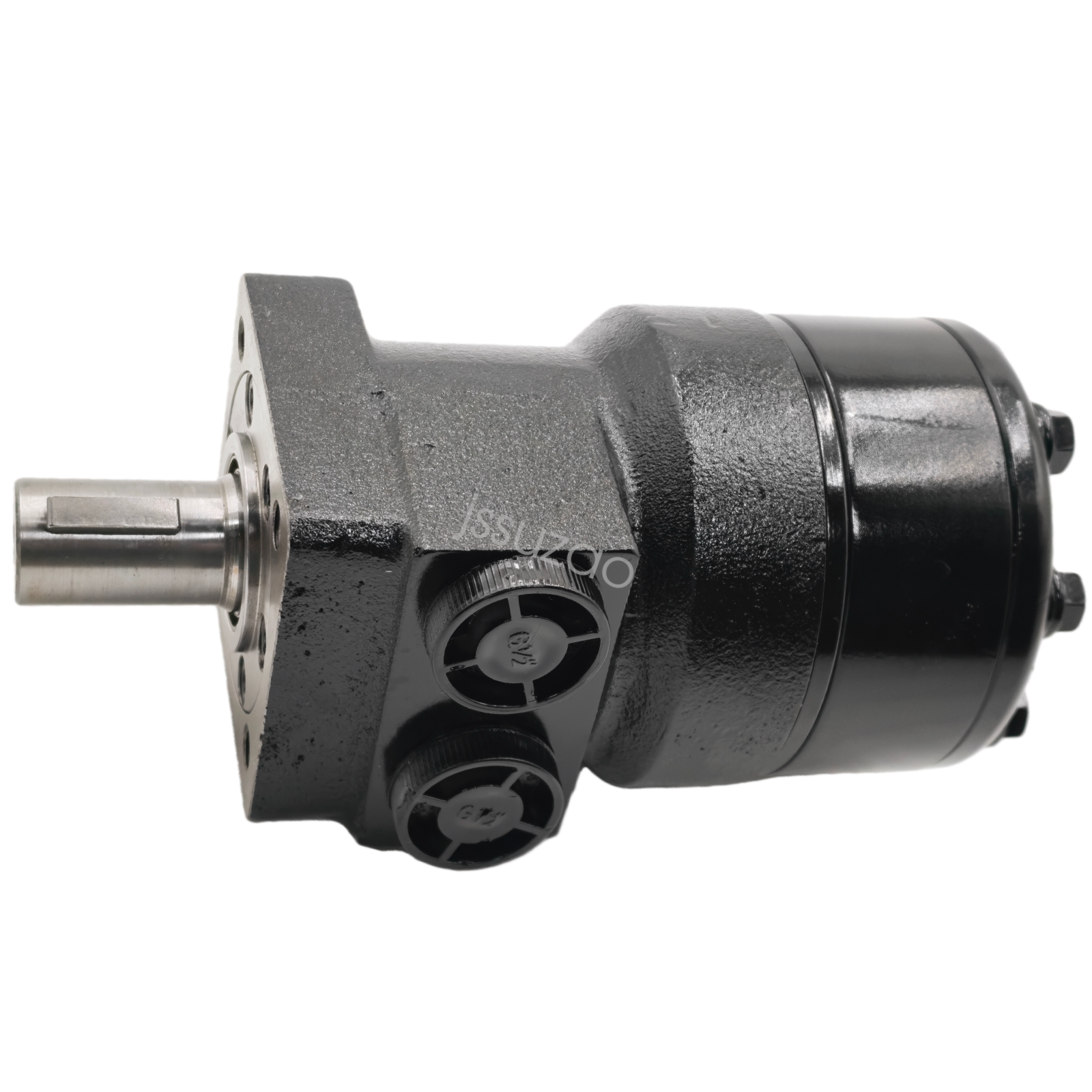

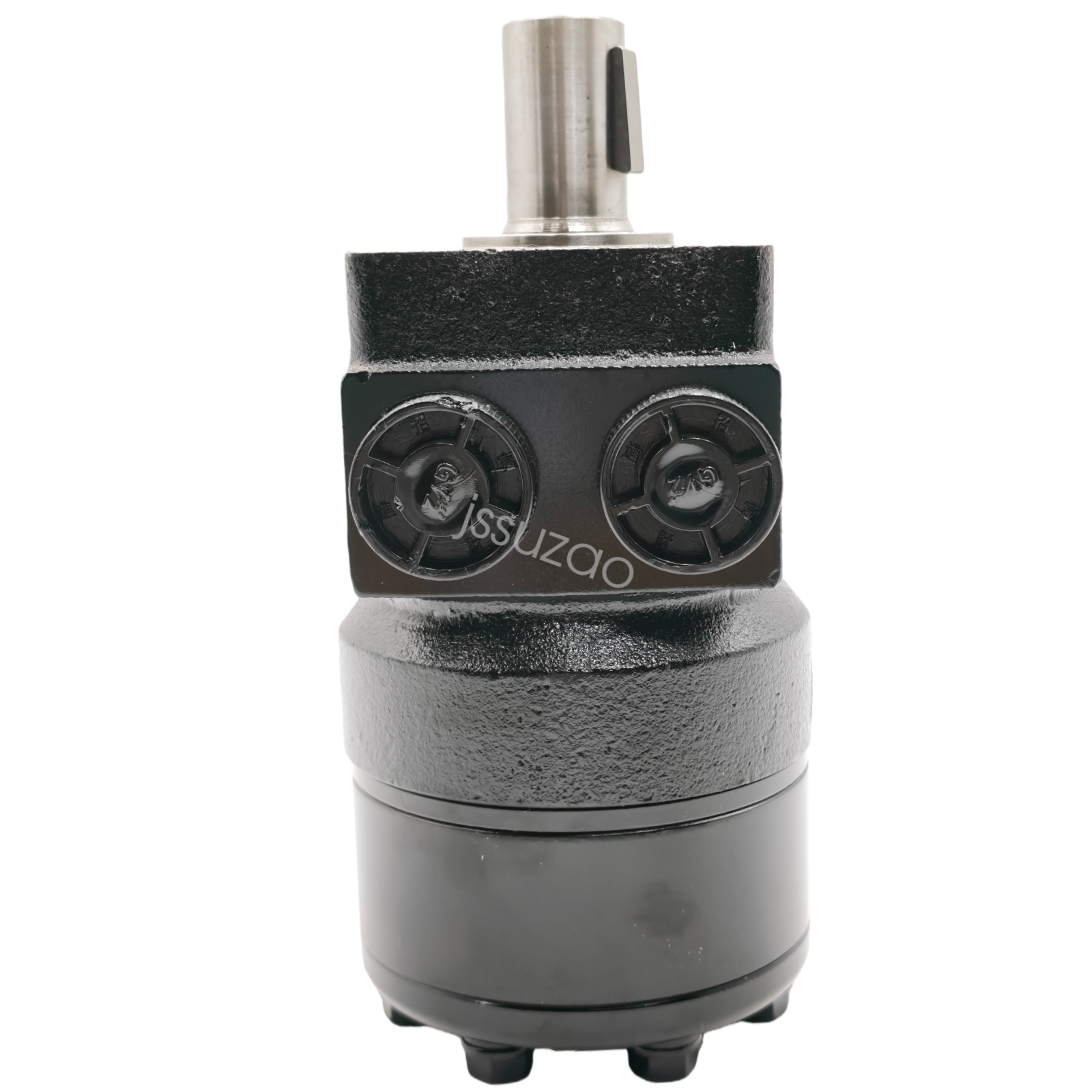

Applicable models:
For Eaton Char-Lynn H Series
• Agriculture: Mowers, small tractors, combine harvesters, seeders
• Industry: Conveyors, industrial sweepers, small mixers
• Forestry/Road: Branch cutters, small road rollers
• Farm work (harvesting, planting, weeding)
• Factory/warehouse material transport
• Outdoor cleaning & maintenance
Durable and Robust
Made with high-quality materials to reduce metal friction loss, and equipped with a sealed protective structure, it can operate for extended periods in harsh environments such as high temperatures and dusty conditions.
High Efficiency and Low Noise
Empowered by disc-type distribution technology, it boasts high mechanical efficiency, low vibration and noise during operation, reducing equipment energy consumption and wear and tear.
Easy Installation
It can directly replace damaged hydraulic motors from automobiles without adjustment. Its lightweight and compact design facilitates installation and maintenance.
Q1: What are the key requirements for the installation of the hydraulic motor?
A: The core installation requirements include: ① Ensure the coaxiality of the drive shaft connection; excessive eccentricity or runout will cause oil leakage and accelerated wear ② Keep the oil suction pipeline unobstructed and well-sealed, with a flow rate not exceeding 2.4 m/s ③ The drain port connection must be smooth; when the return oil pressure is greater than 1MPa, an independent drain pipe must be connected ④ The mounting bracket should have sufficient rigidity, and the mounting bolts should be tightened evenly.
Q2: How to correctly start the hydraulic motor for the first time?
A: The correct start-up procedure is: ① Fill the motor with clean hydraulic oil from the drain port or oil inlet to ensure initial lubrication ② Check that the direction of the drive source is consistent with the motor's specified direction ③ Loosen the system relief valve to avoid excessive initial pressure ④ Start at zero pressure and low speed (not exceeding 1500rpm), maintain at 0-15bar for at least 2 minutes, then increase the pressure by 20bar every 20-30 seconds until reaching the working pressure ⑤ Bleed the system at the highest position and run for 15 minutes to confirm normal operation.
Q3: What grade of hydraulic oil is recommended for this hydraulic motor?
A: Avoid using oil containing excessive water, alkaline substances, or mechanical impurities to prevent wear on internal components.
Q4: What maintenance measures are required for the hydraulic motor during long-term use?
A: Key maintenance measures: ① Regularly check the oil cleanliness and replace the filter element (recommended every 200-300 working hours) ② Inspect the seal for oil leakage and replace worn seals in time ③ Check the tightness of mounting bolts and drive shaft connections regularly ④ After long-term storage, drain the old oil and rinse before use to prevent internal parts from sticking.
