B2 Audio 15" Subwoofer 1000W RMS 3" Voice Coil Dual 2-Ohm RIOT
B2 Audio 15" 1000W RMS 3" Voice Coil Dual 2-Ohm Riot Subwoofer
This listing includes:

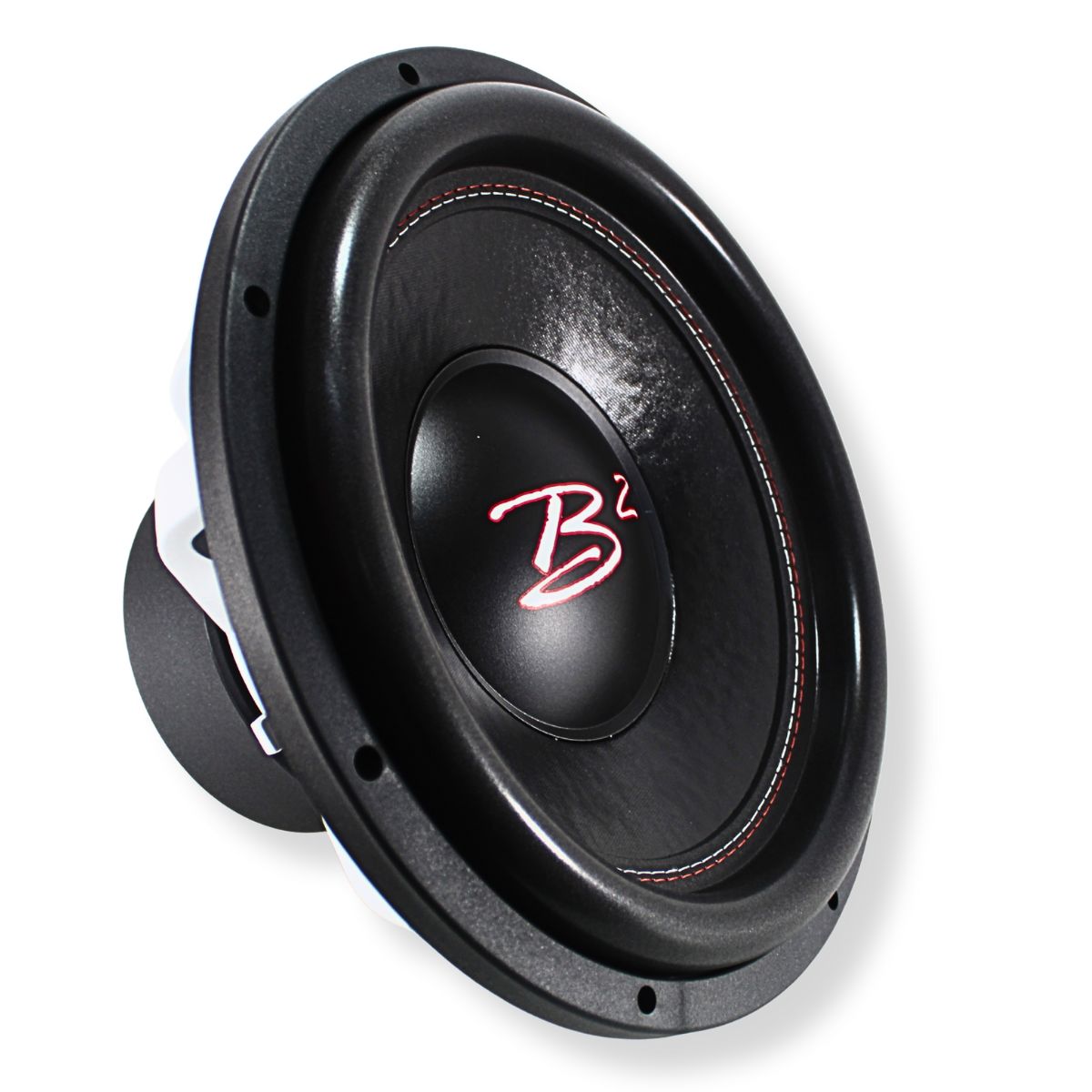

- (1) B2 Audio Riot 15" Subwoofer
When you're ready to step up to serious bass, the RIOT15-D2 delivers. This 15" sub features a beefy 3" coil, high-excursion 18mm XMAX, and optimized motor structure for full control at high output. With 1000W RMS handling and flexible 2-ohm dual voice coils, it's perfect for sealed, ported, or even bandpass enclosures.
Get ready for chest-thumping lows with a smooth curve that's designed to shake mirrors and hold power all day long.
Features:
- 1000W RMS / 3000W Peak Power - Capable and reliable for both daily and demo setups
- Dual 2 Ohm Voice Coil - Flexible wiring for 1 Ohm or 4 Ohm loads
- 3" High-Temp Voice Coil - Built to handle heat and SPL abuse
- 18mm XMAX - Deep excursion for low, controlled bass
- Sealed, Ported, or Bandpass Friendly - Tuned to perform in a variety of enclosures
Specifications:
- Sensitivity: 86 dB (1w/1m)
- Nominal Impedance: Dual 2 Ohm
- Power Handling: 1000W RMS / 3000W Peak
- Voice Coil Diameter: 3"
- XMAX one way (mm): 18
- Magnet: 240 oz
- VAS: 60.1 L
- FS: 30 Hz
- QES: 0.8
- QMS: 7.5
- QTS: 0.72
- CMS: 70 um/N
- MMS: 379 g
- BL^2/RE: 106.8
- Displacement: 7.4 L / 0.26 cu.ft
- Mounting Depth: 8.11" (206mm)
Recommended Enclosures
- Sealed: 63.5 L / 2.24 cu. ft, Qtc 0.72, Fb 42.8 Hz
- Ported Compact: 80 L / 2.83 cu. ft, Port area 20 sq. in L: 12.8", FB: 35 Hz
- Ported: 141 L / 5 cu. ft, Port area 20 sq. in, L: 9.1", FB: 30 Hz
- BP 4th: 3:1 Ratio
Dimensions
- Overall Diameter: 15.35" (390mm)
- Mounting Diameter: 14.76" (375mm)
- Cutout Diameter: 13.78" (350mm)
- Magnet Width: 7.40" (188mm)
- Mounting Depth: 8.11" (206mm)
- Overall Depth: 8.78" (223mm)
Product Details
| Brand | B2 Audio |
|---|---|
| Color | Black |
| Size | 15 Inch |
| Style | Riot |
| Manufacturer | B2 Audio |
| Product Type | Subwoofer |
| Mpn | B2-RIOT15-D2-V3 |
- 1000W RMS PERFORMANCE FOR SERIOUS BASS - Delivers 1000 Watts RMS and 3000 Watts Peak power handling with a high-efficiency motor designed for powerful daily listening and high-output SPL systems without sacrificing sound quality.
- DUAL 2 OHM VOICE COILS FOR FLEXIBLE WIRING - Dual 2-ohm configuration allows multiple wiring options, including a 1-ohm or 4-ohm final load, making it easy to match a wide range of mono amplifiers and custom car audio installations.
- 3" HIGH-TEMPERATURE VOICE COIL & 18MM XMAX - Features a large 3-inch high-temp voice coil and 18mm one-way XMAX for excellent thermal handling, deep excursion, low-frequency extension, and reliable performance under demanding conditions.
- DESIGNED FOR SEALED OR PORTED ENCLOSURES - Engineered to perform exceptionally well in sealed, ported, or 4th-order bandpass enclosures, allowing you to choose the enclosure style that best fits your desired balance of sound quality and output.
-
