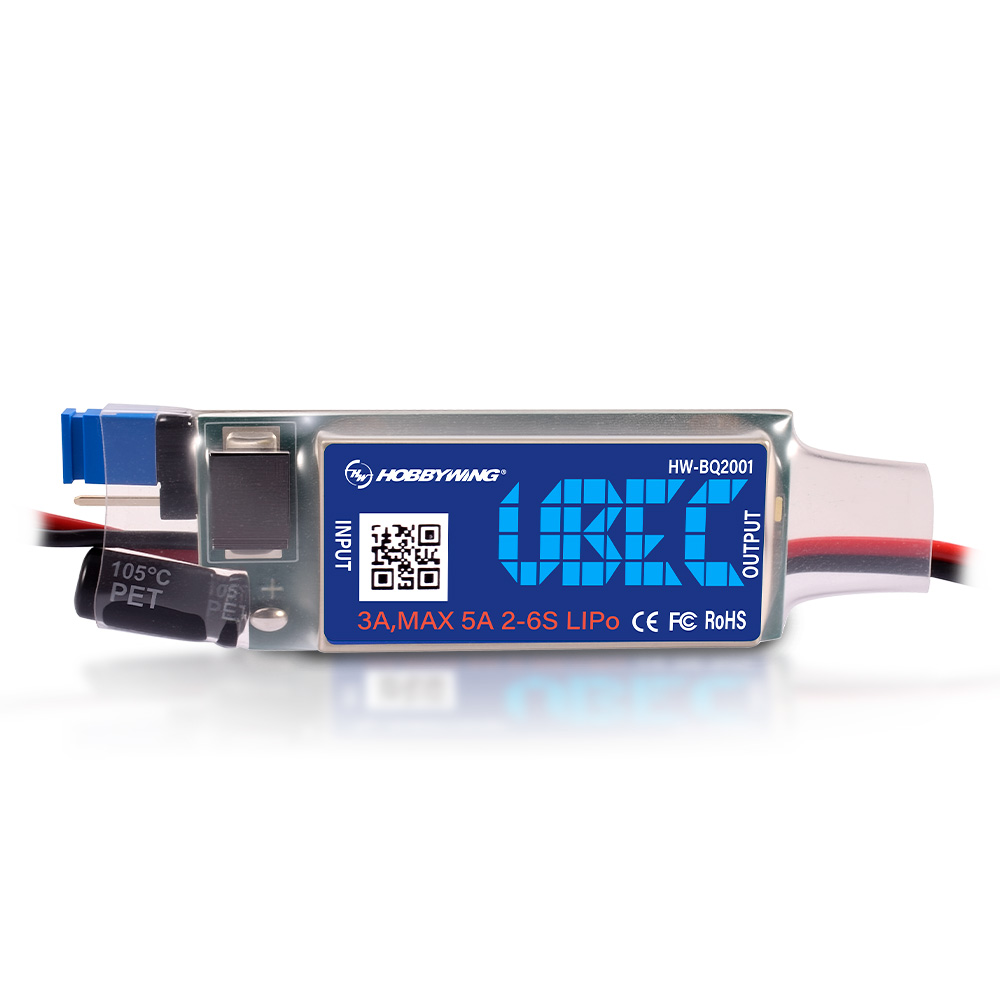

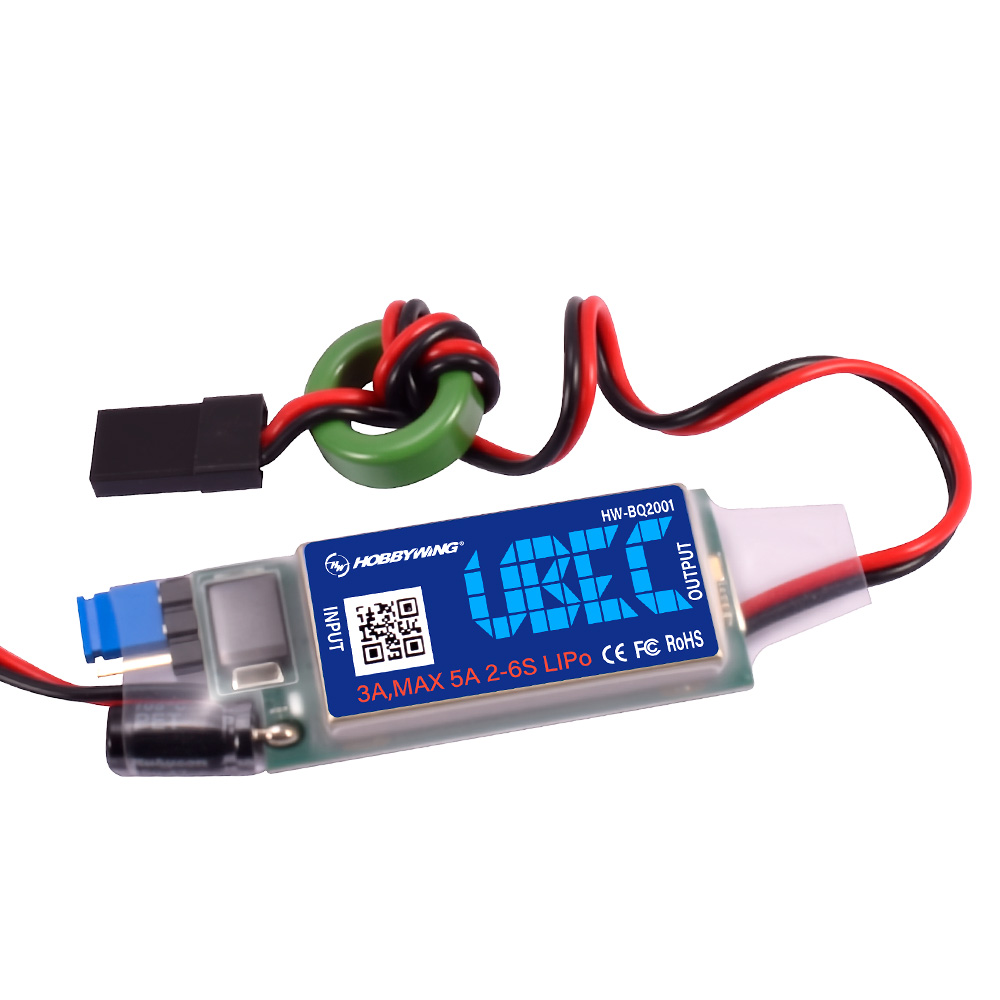

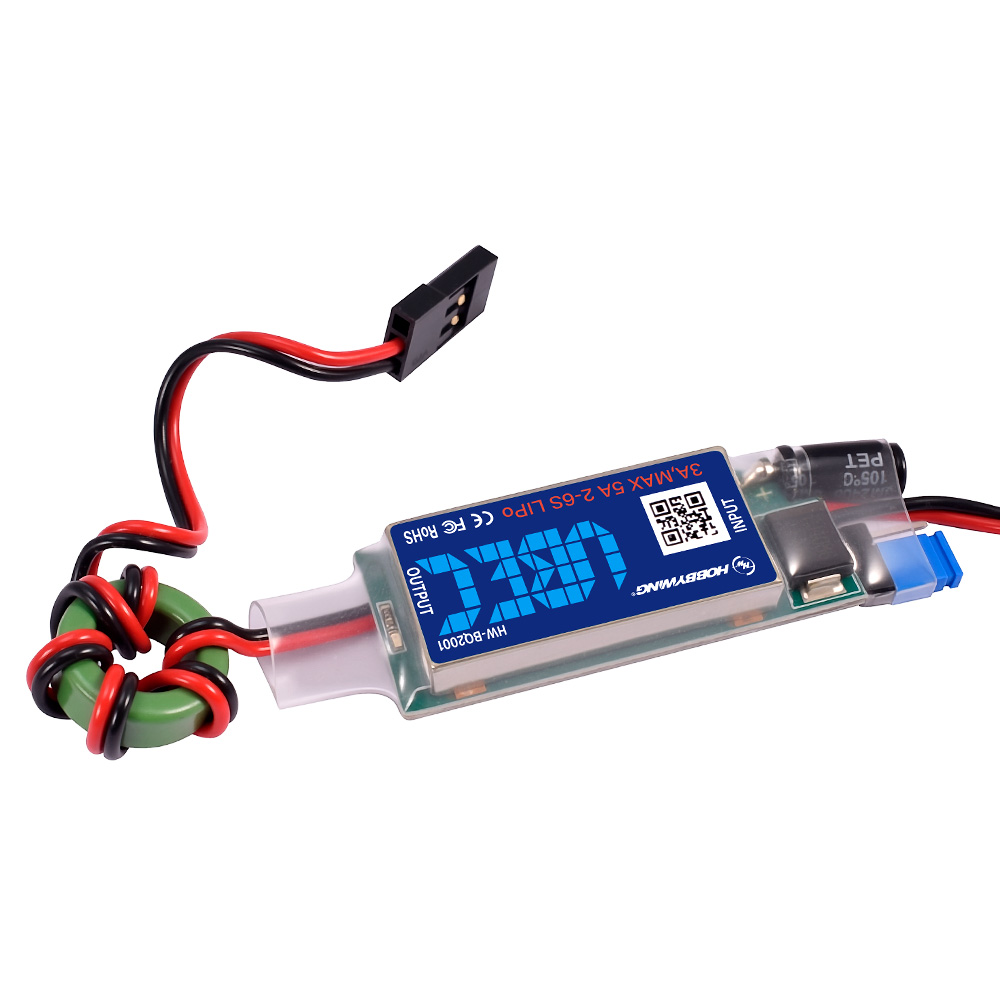

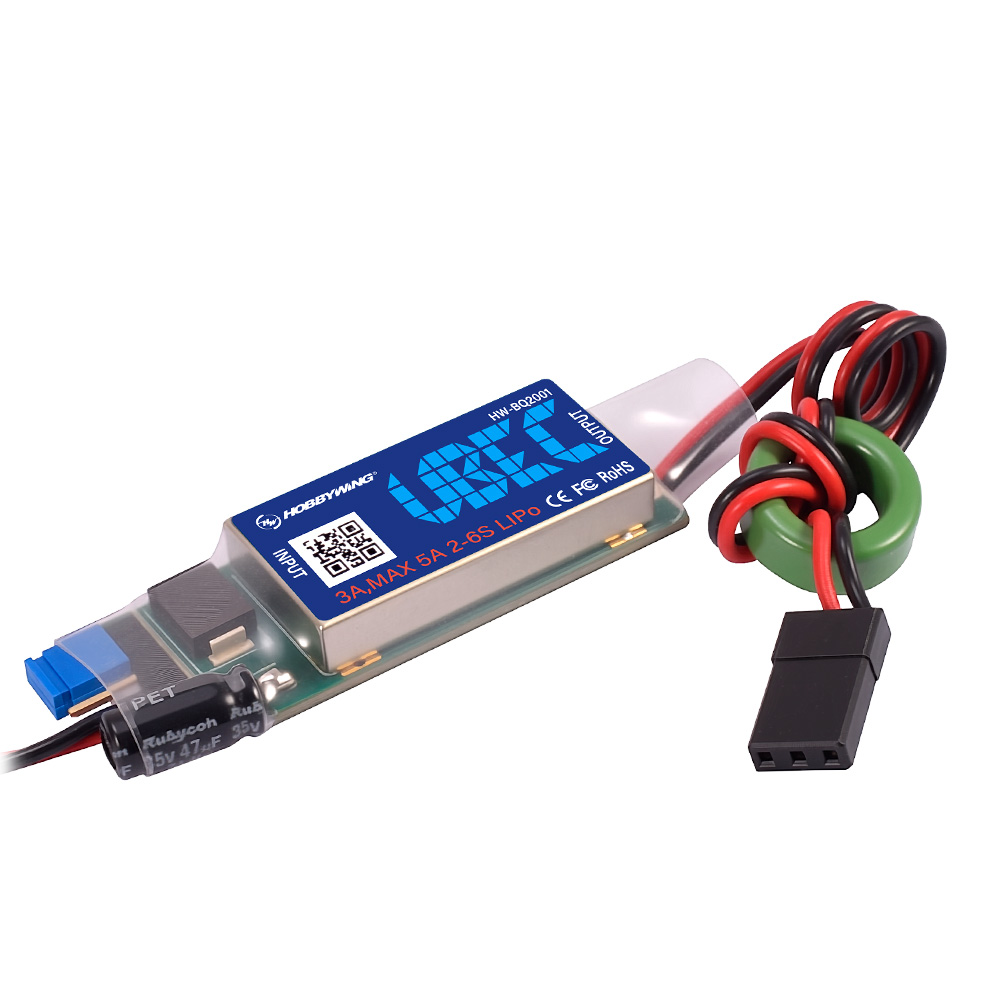

Hobbywing UBEC 3A (2-6S) 5.5-26V UBEC Power Stabilization Module 3A@5V/6V Adjustable For RC Helicopters Large Fixed Wing
Features:

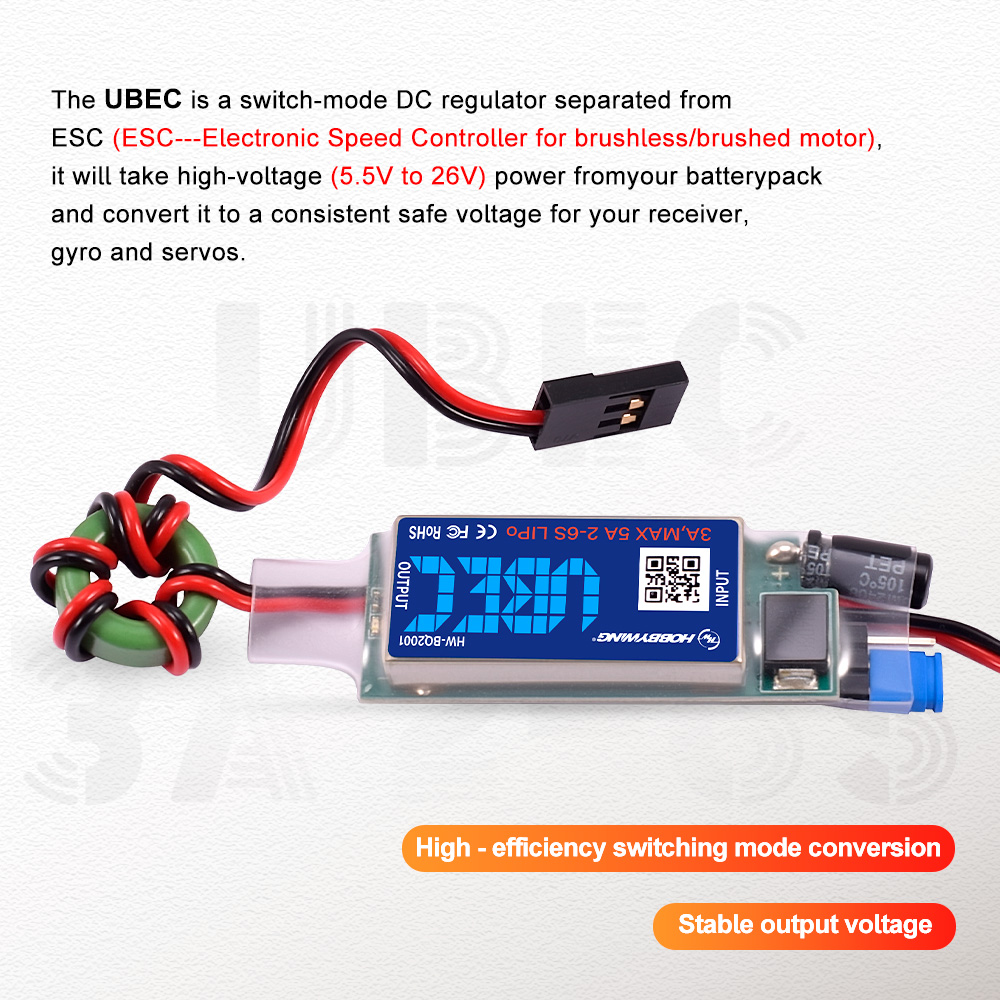

1. UBEC is an external DC voltage regulator that operates in the mode of a switch mode power supply
2. It is possible to obtain a DC voltage suitable for the operation of receivers and other devices from a 2-6S lipo battery pack, and provide a stable output current of 3A

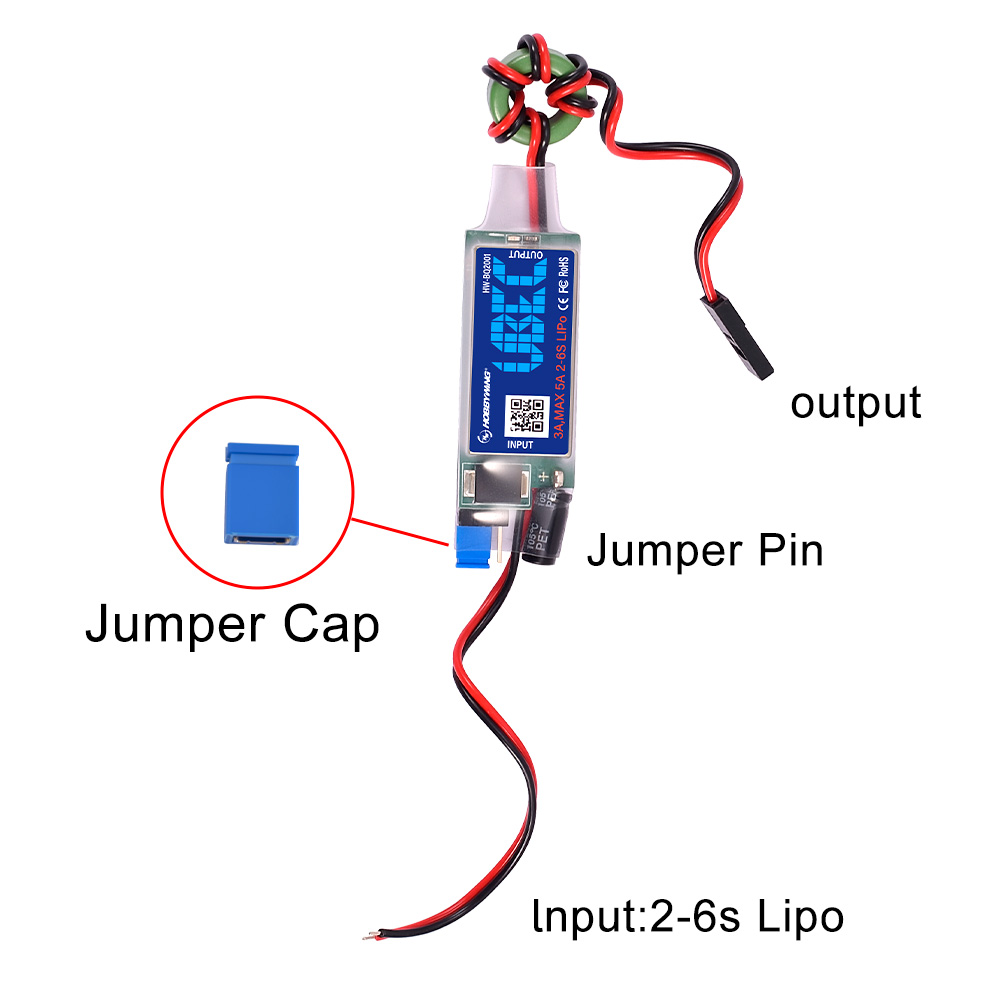

3. provide output 5V@3A or 6V@3A (switchable through jumper cap)
4. Compatible with 2-6 lipo battery / 5-18 Cells NiMH/NiCa battery
5. Suitable For remote-controlled model helicopters and large fixed wing aircraft.
Description:
The UBEC is an advanced switching regulator with over-current and over-heatprotection function, and the maximum effciency of the system is nearly 90%.The small size and the light weight make it very convenient to use.

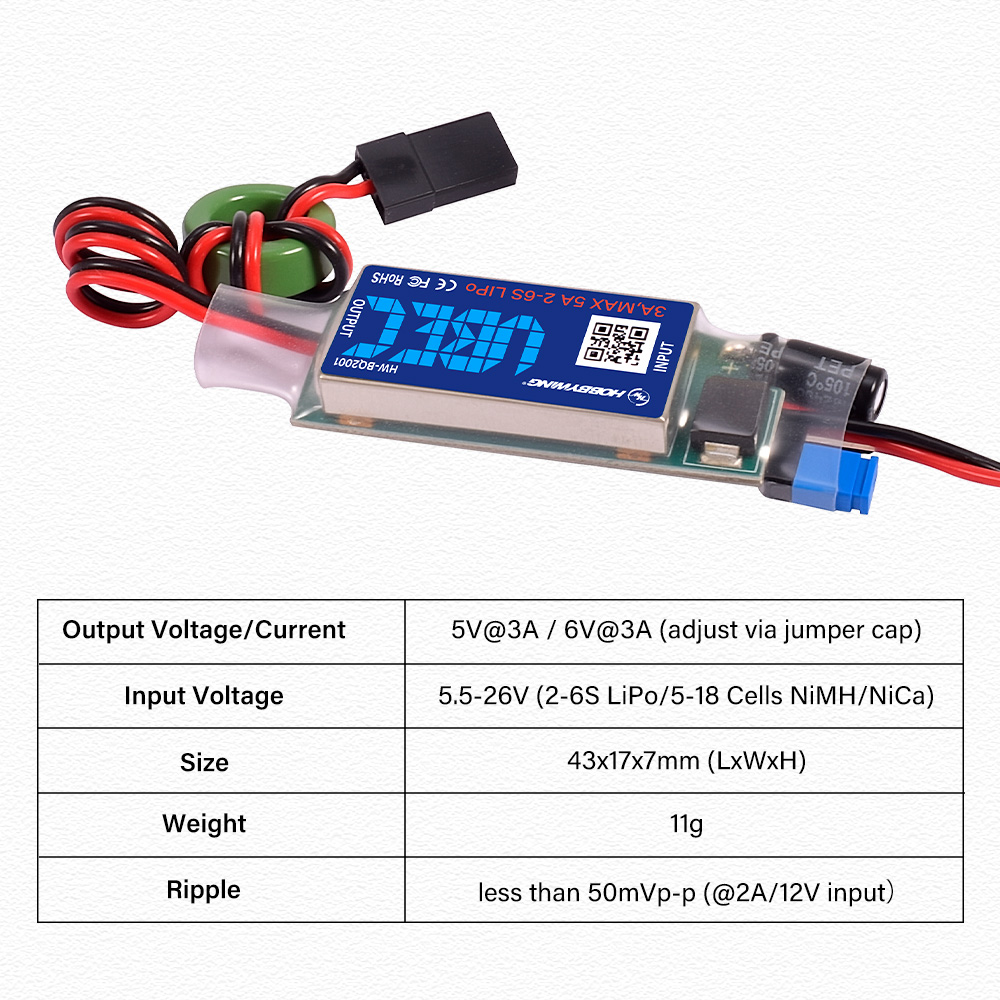

Specifications:
Name: UBEC 3A (2-6S)
Output Voltage/Current: 5V@3A / 6V@3A (adjust via jumper cap)
Input Voltage: 5.5-26V
Battery: 2-6S LiPo/5-18 Cells NiMH/NiCa

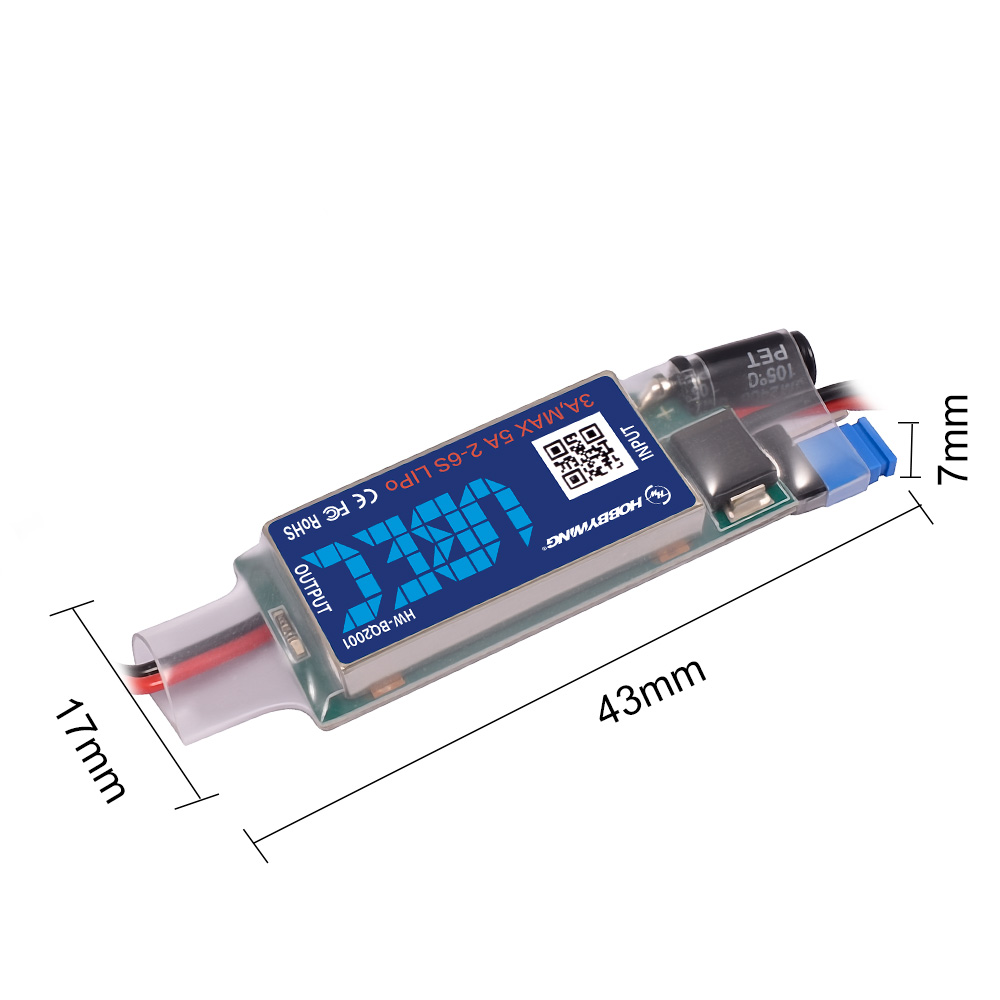

Size: 43x17x7mm (LxWxH)
Weight: 11g
Ripple: less than 50mVp-p (@2A/12V input）
Package contents:
1* UBEC 3A (2-6S)
1* Instruction Manual
