Manual PCB Screen Press Precise Stencil Solder Printing Machine High Precision

• Brief Introduciton:
  This machine is mainly designed for requirements of single or dounle-sided circuit board solder cream or red glue printing. The working platform is processed by cellular positioning hole with high-quality aluminum and its pedestal is welded by thick steel plate with steadiness and  durability. Its characteriastics are as follows:
  * Circuit board adopts positioning needle, fixed rod and fixed plate for positioning, which can ensure convenient positioning and accuracy of repeated  operation.

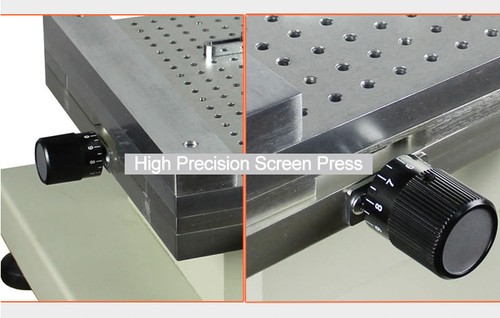

  * Makeready mode is made through stencil's movement and combined with fine adjustment and correction of X, Y axis in printing platform, which is convenient  and quick.
  * Stencil stent uses spiral bearing and height can be adjusted up and down, which is convenient to control PCB's thickness and volume or printing cream.
  * Printing plates are fixed by four rotary knobs whit platen and it is quick and strong.

• Parameter:

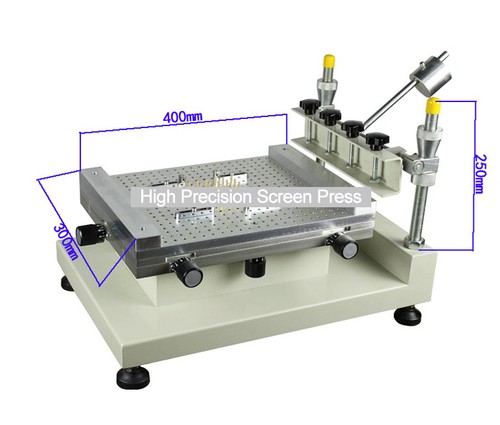

  Size for workbench: 300 * 400mm
  Max. printing size: 250 * 400mm
  Max. sreen frame dimension: 370 * 470mm
  Printing speed: manual control
  Thickness for printed matter: 0-80mm
  Vertical and horizontal adjustment volume of workbench: 10mm
  Height of printing platform: 220mm
  Repeatability precision: ± 0.01mm
  Location mode: shape or benchmark hole
  Boundary dimension: 540 * 370 * 380mm
  Weight: 23kg
