Height Adjustable Coilover For Toyota Celica GT GTS FWD ST18 1989.10- 1993.11

Introduction

MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles), which offer you a lowered stance, and improved performance for your daily use vehicle.

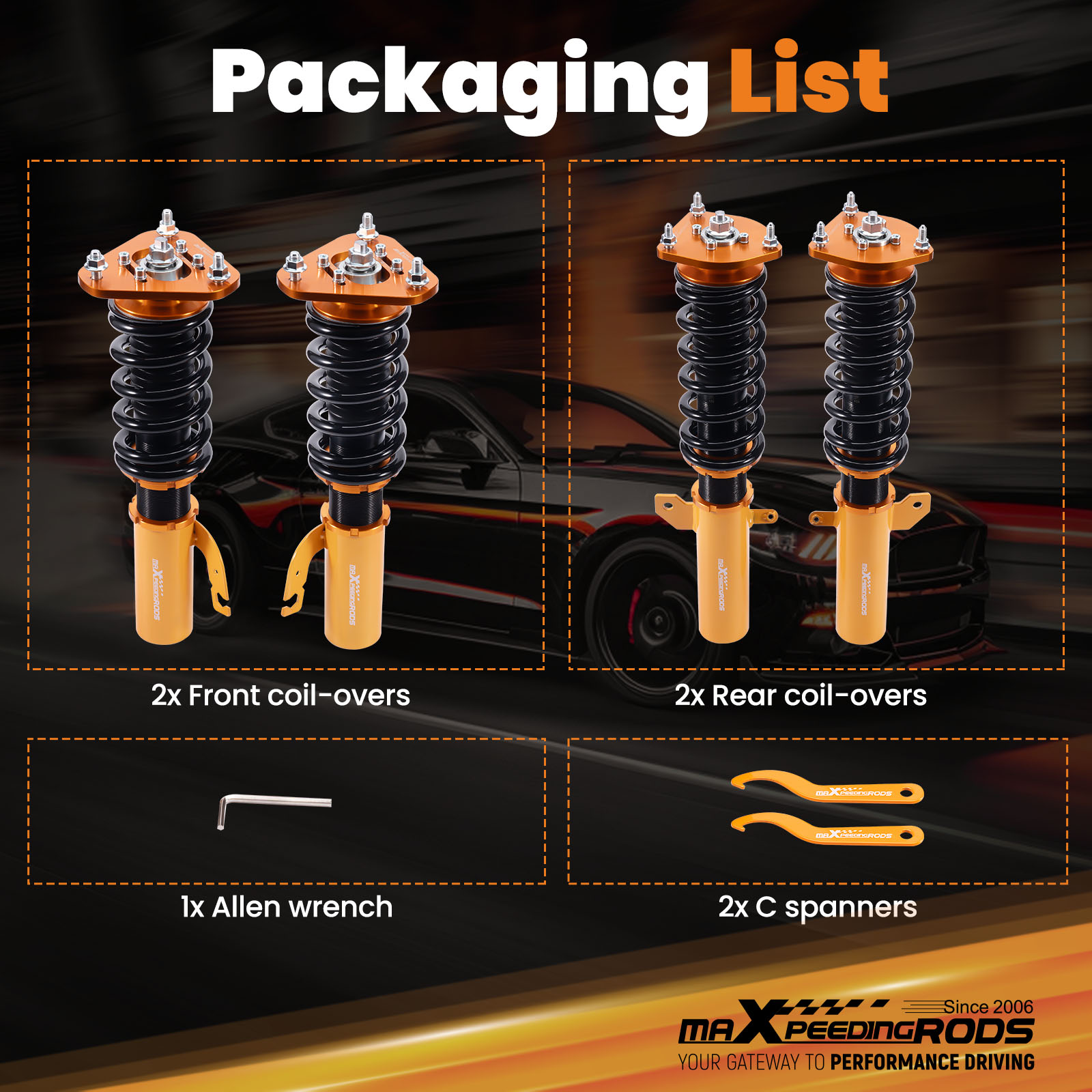

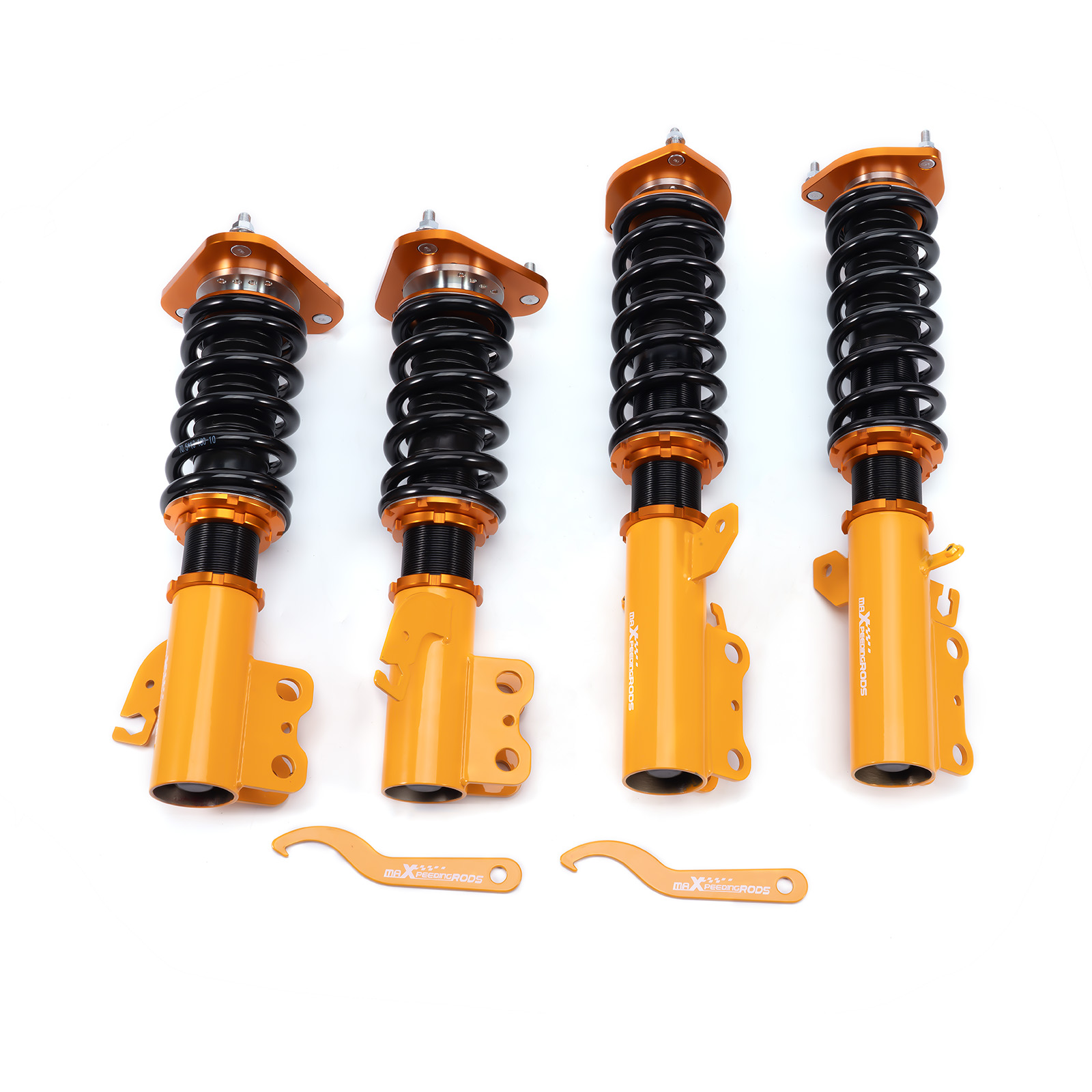

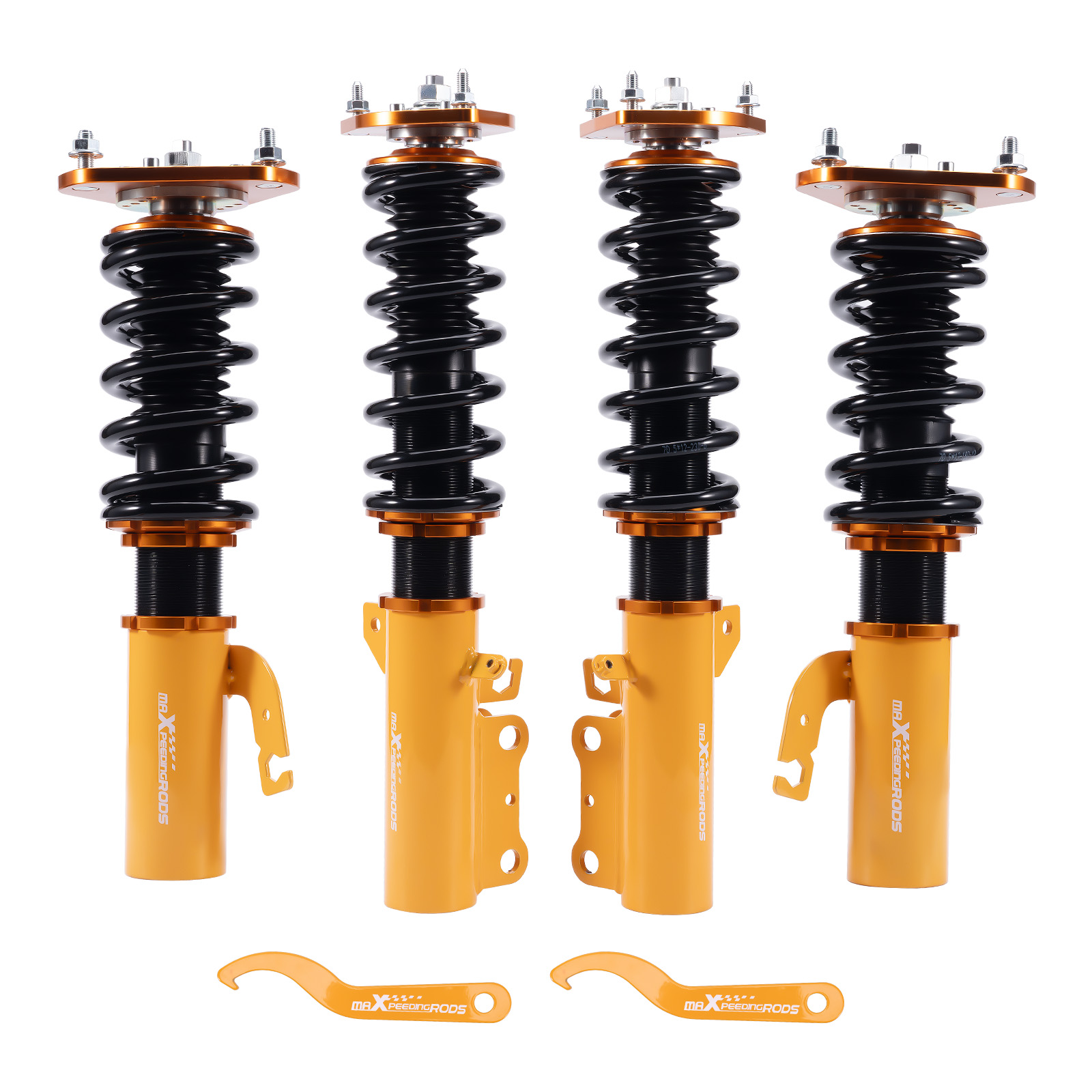

Package included

2x front coil-overs
2x rear coil-overs
1x Allen wrench
2x C spanners

Application

For Toyota Celica GT GTS FWD 1989.10- 1993.11 (ST18#)
For Toyota Celica FWD 11.1993.11-1999.08 (ST20#)

Notice:

The coilovers kit will "Lower your car" and does not keep to the original ride height.

Standard Technical Specifications

Front top mounts	Pillow ball with camber plate
Rear top mounts	Pillow ball
Damping adjustable	Not available
Height adjustable	Yes, lowering 25-75mm depending on the vehicle models

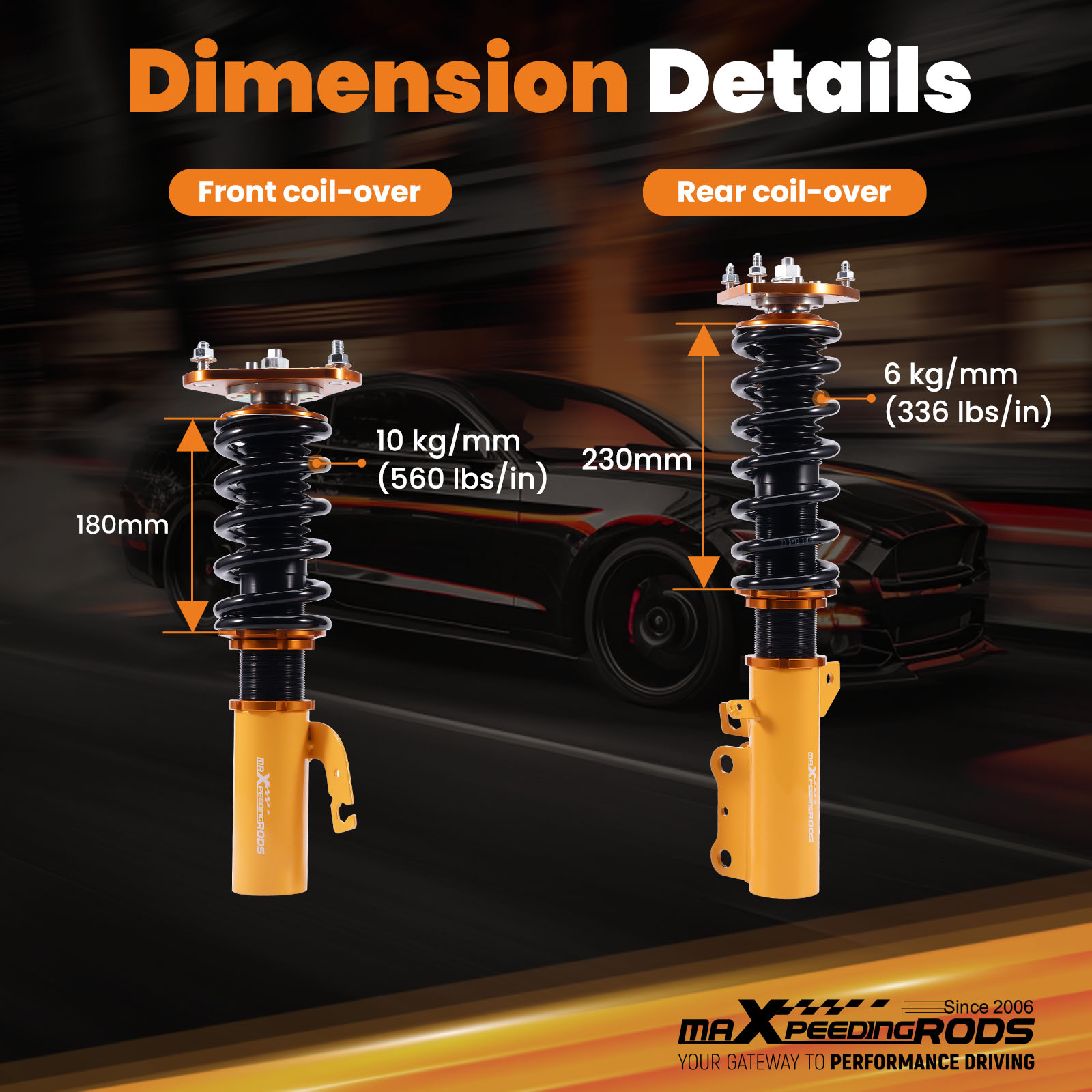

Spring rate Front	10 kg/mm (556 lbs/in)

Spring rate Rear	6 kg/mm (336 lbs/in)
Spring length Front	180 mm
Spring length Rear	230 mm
Spring Preload advised	7-10 mm

Details

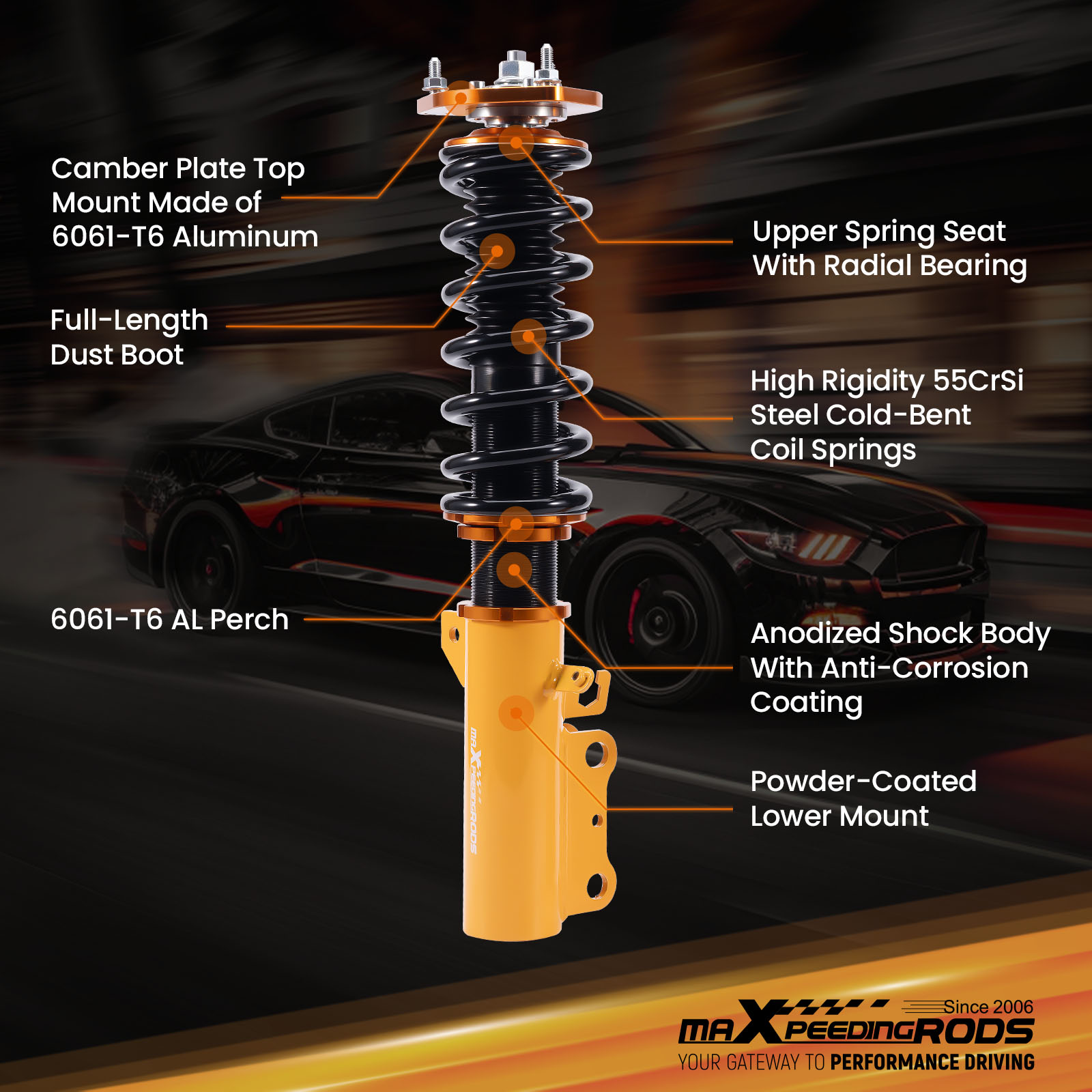

Feature

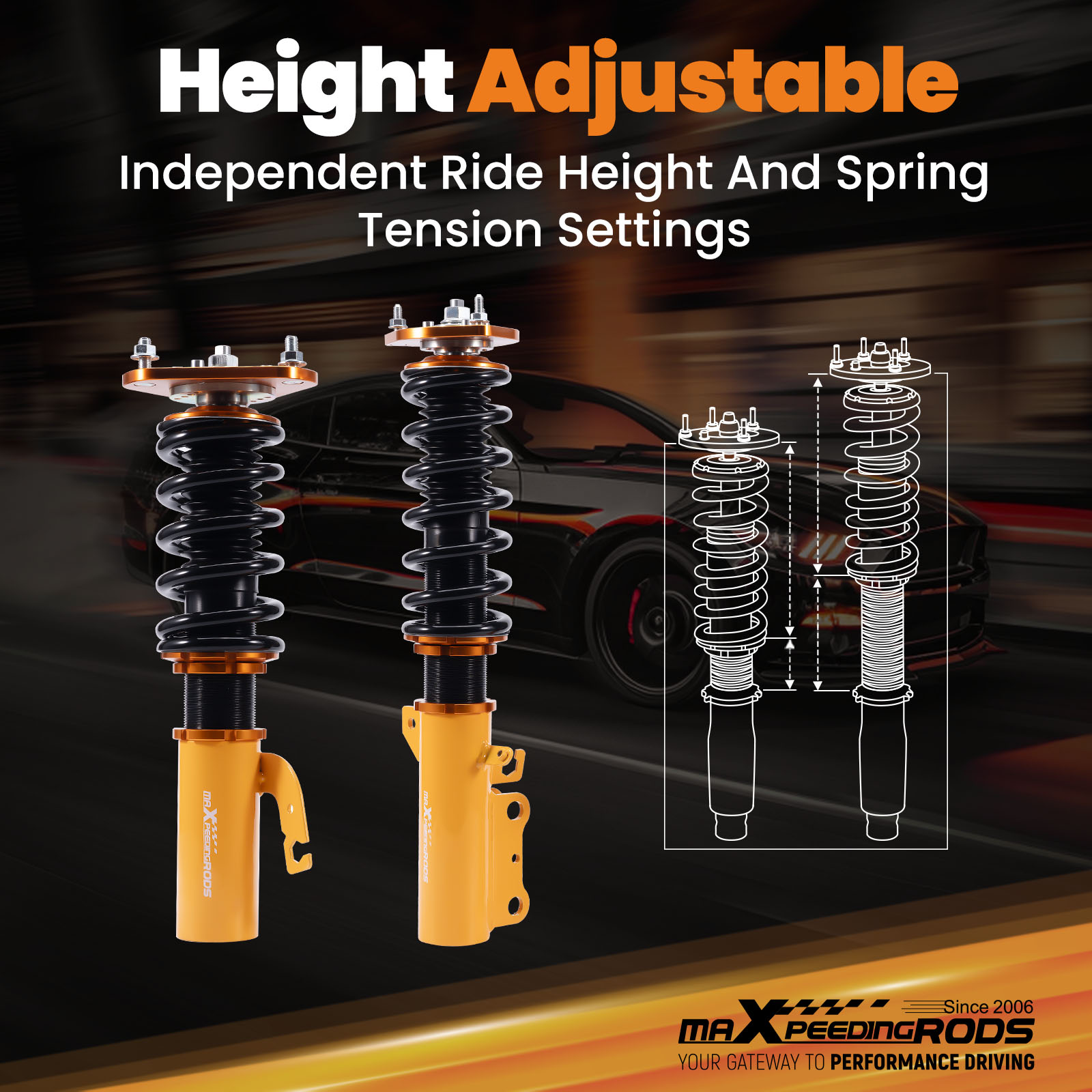

Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance
Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

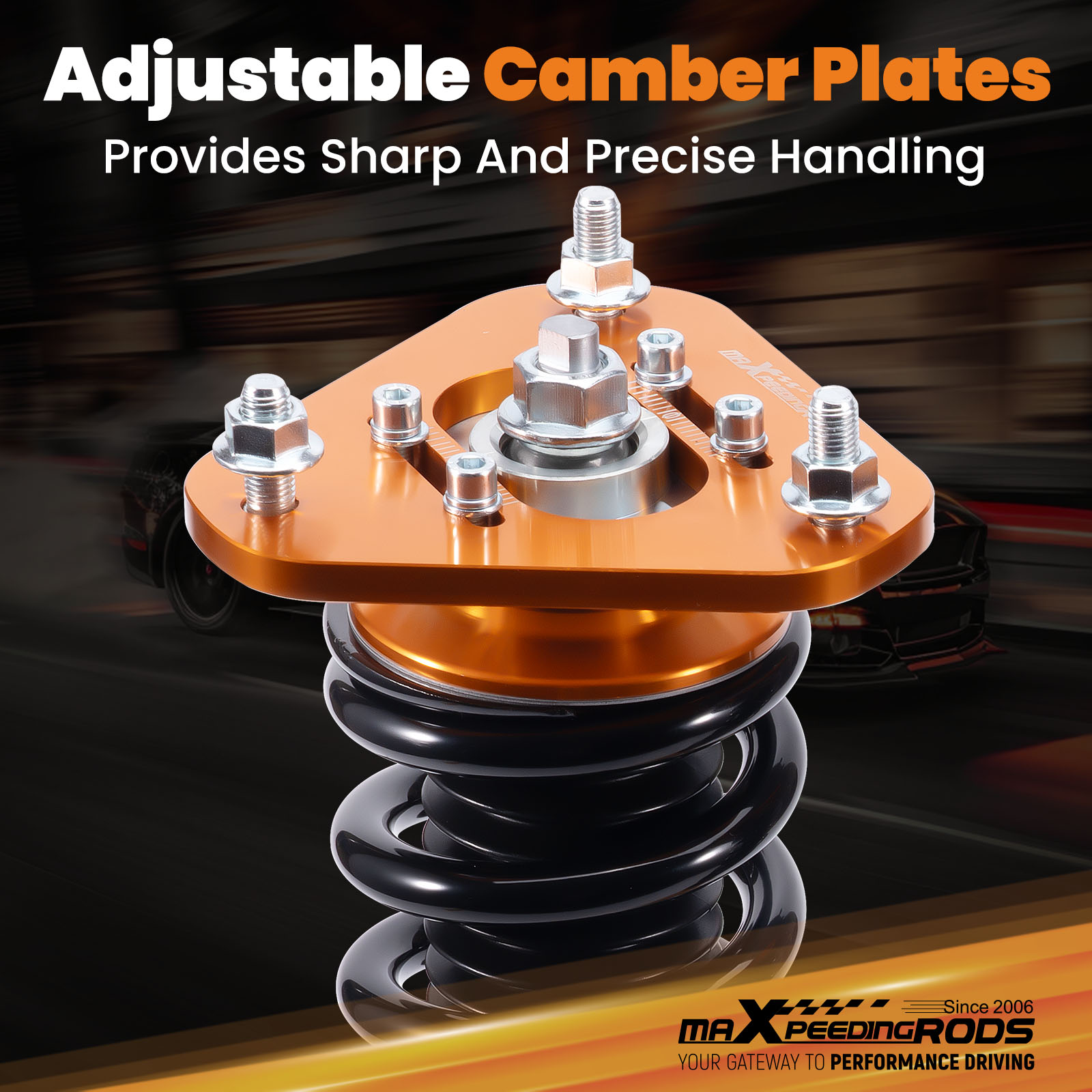

Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

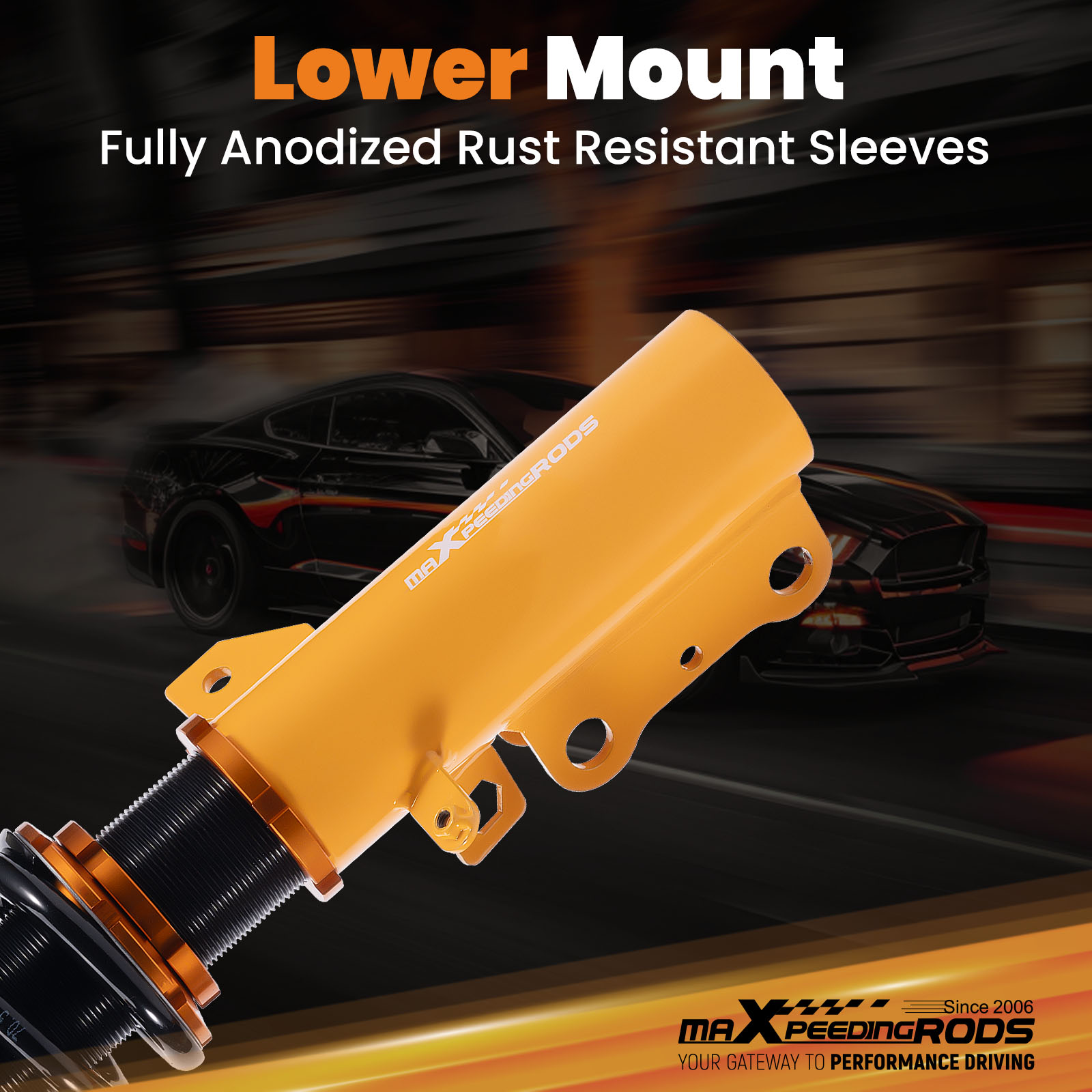

Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
High tensile spring--- 600,000 times continuously test to assure its high tensile strength.

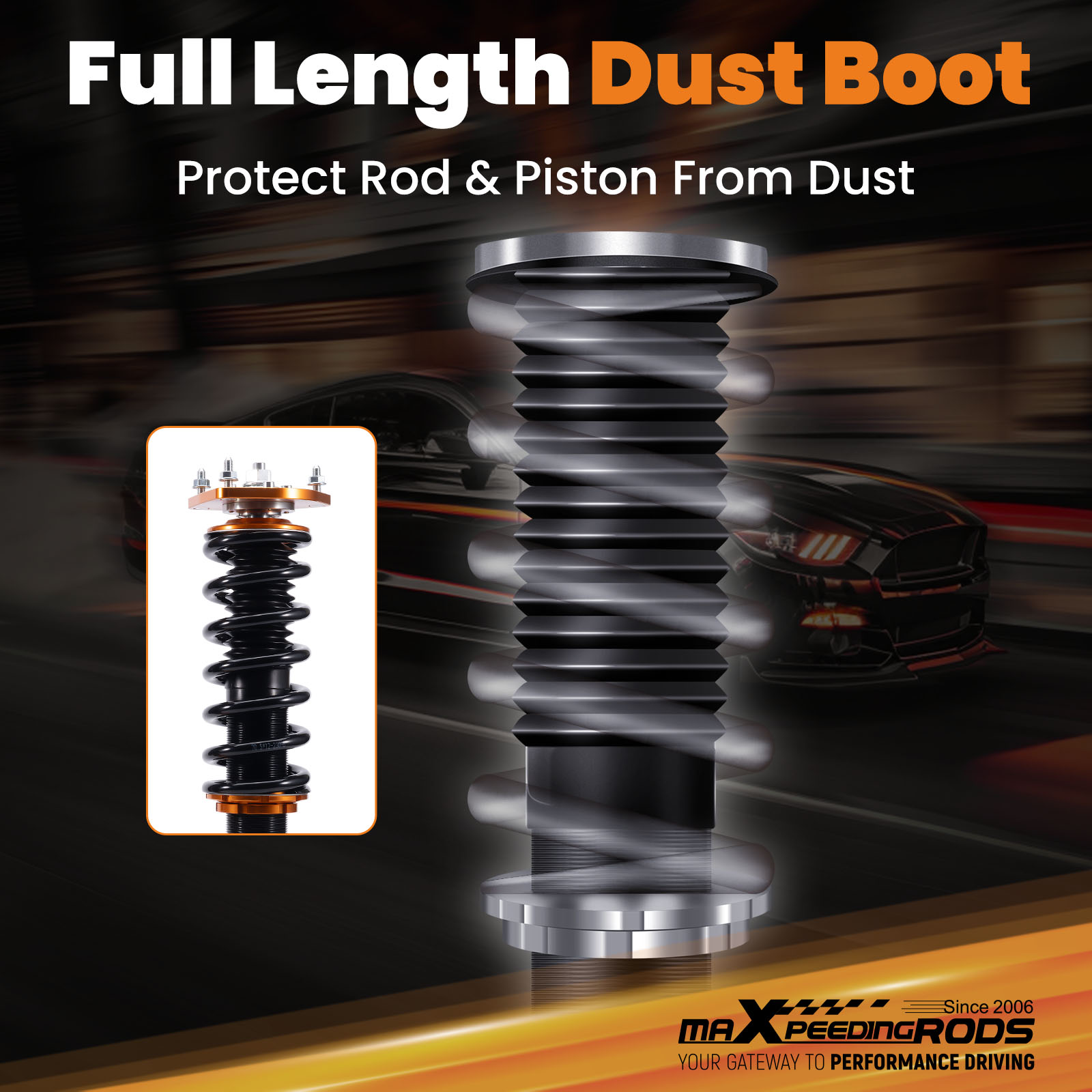

All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

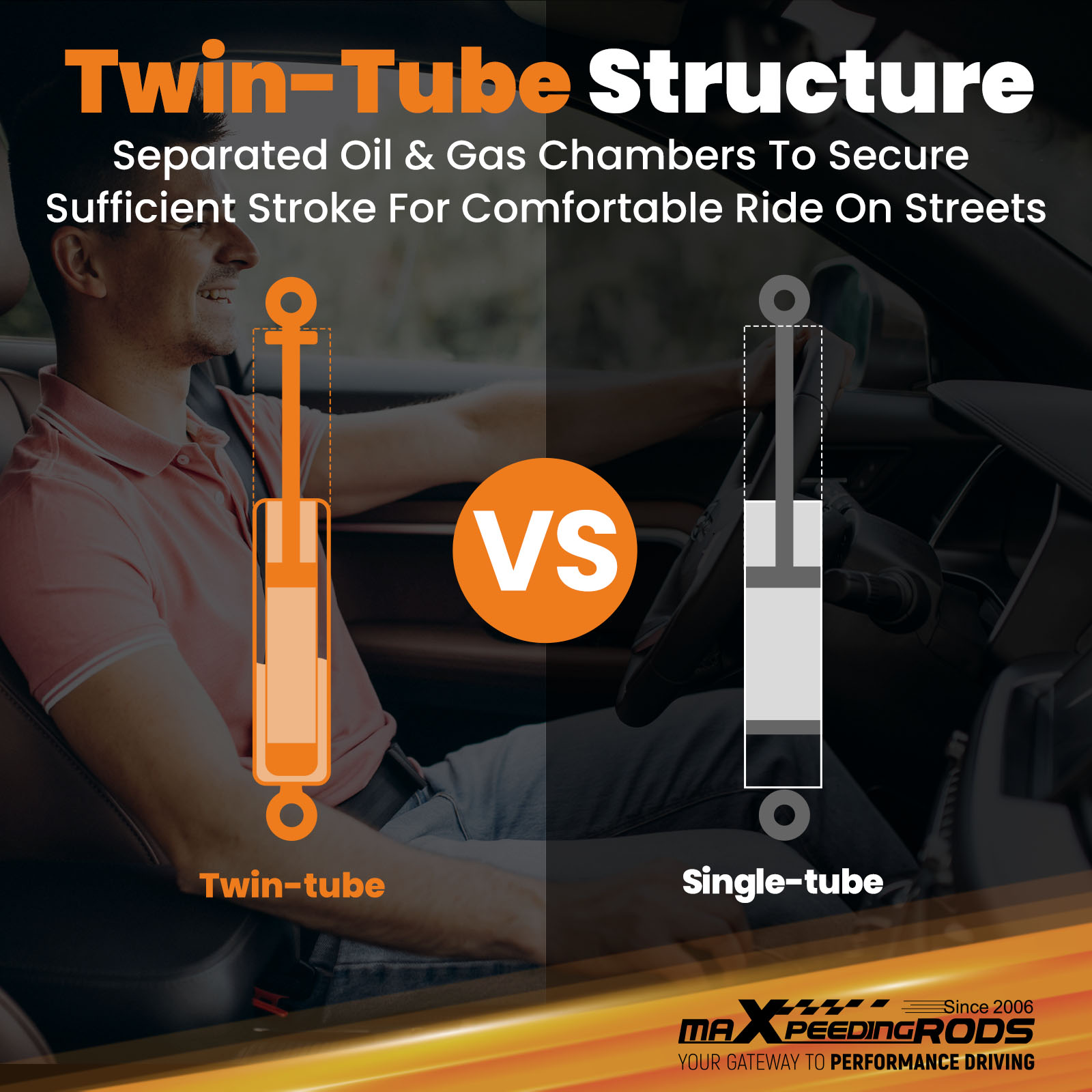

Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
