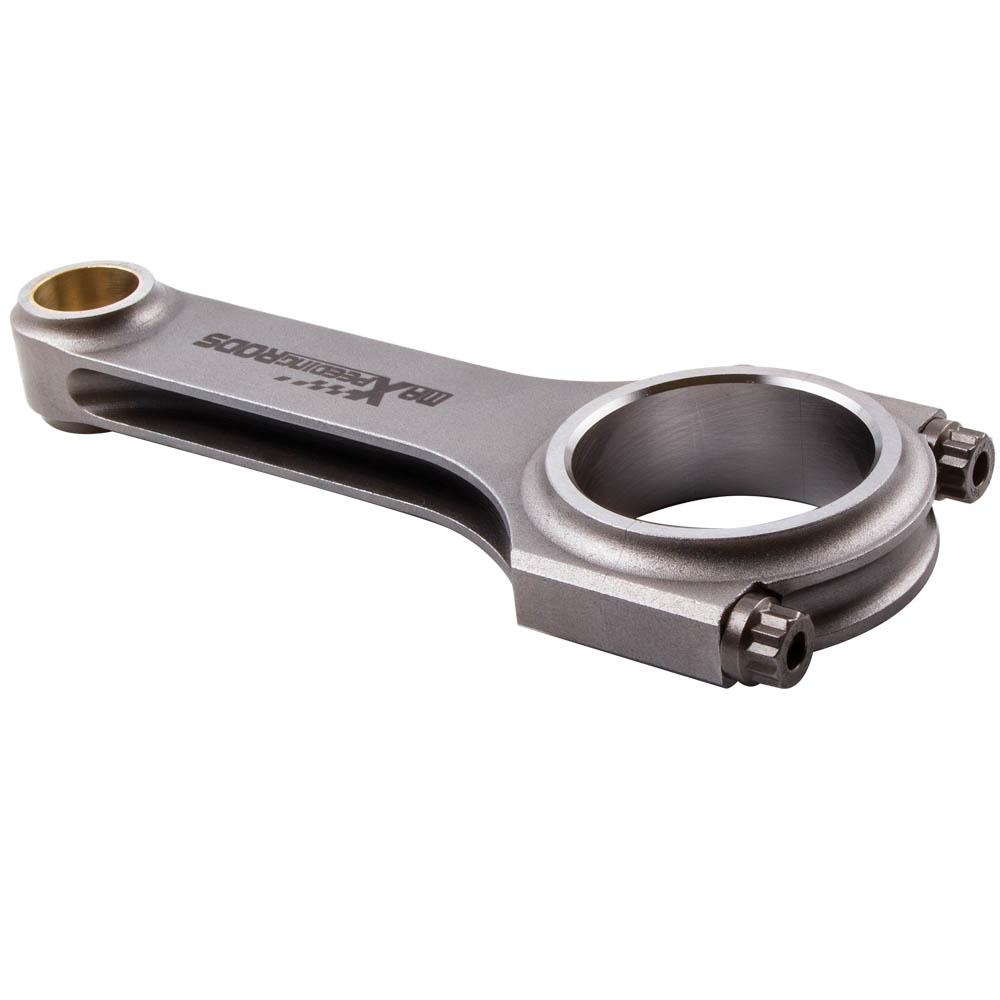

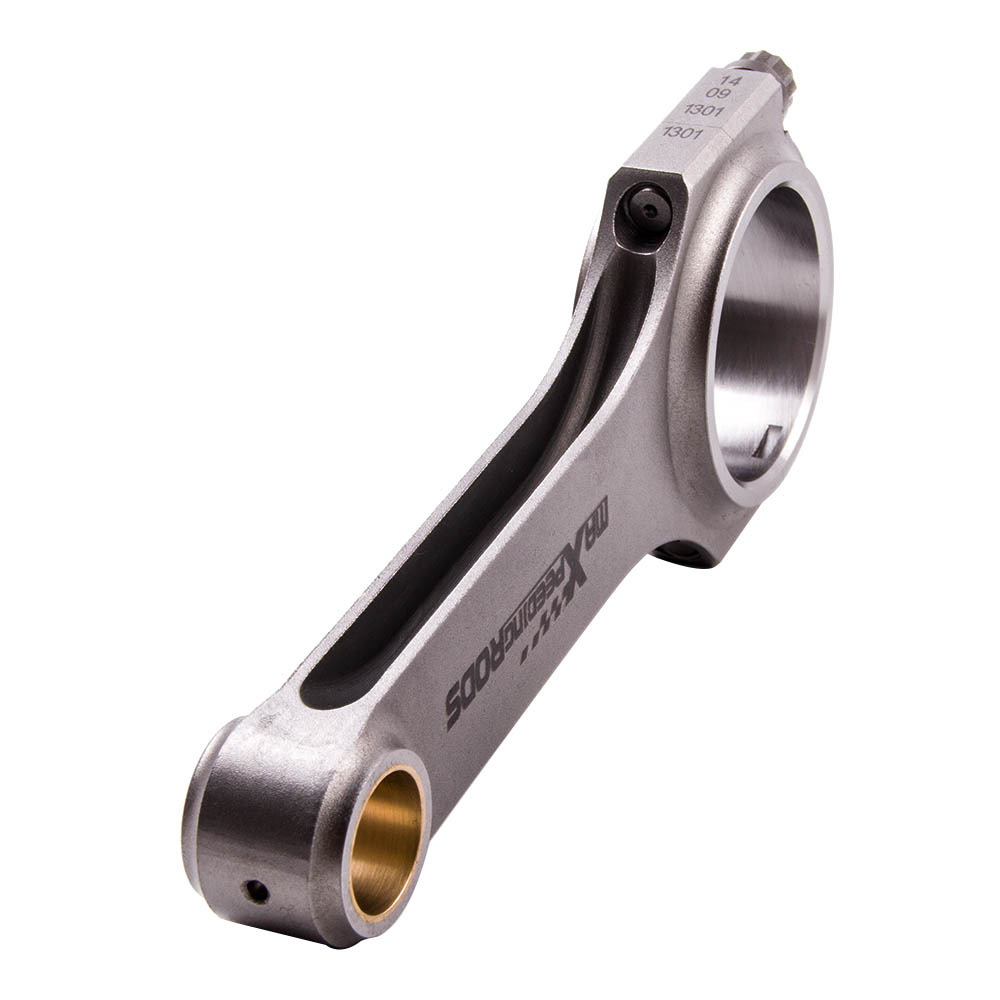

Racing Connecting Rod Rods For Honda Civic Si 1.6L B16A Engine ARP 2000 5.29"

Description





Application:

For Honda Civic B16A Engine
Compatible for Honda Civic Si 1.6L,99-00
Compatible for Honda Civic del Sol 1.6L,94-97



Pin Type: Floating Pin Piston





Specification:

*Type: Forged 4340 aircraft chrome moly quality steel for racing
*H-beam Conrods Quantity: 4 Pieces as showing in picture

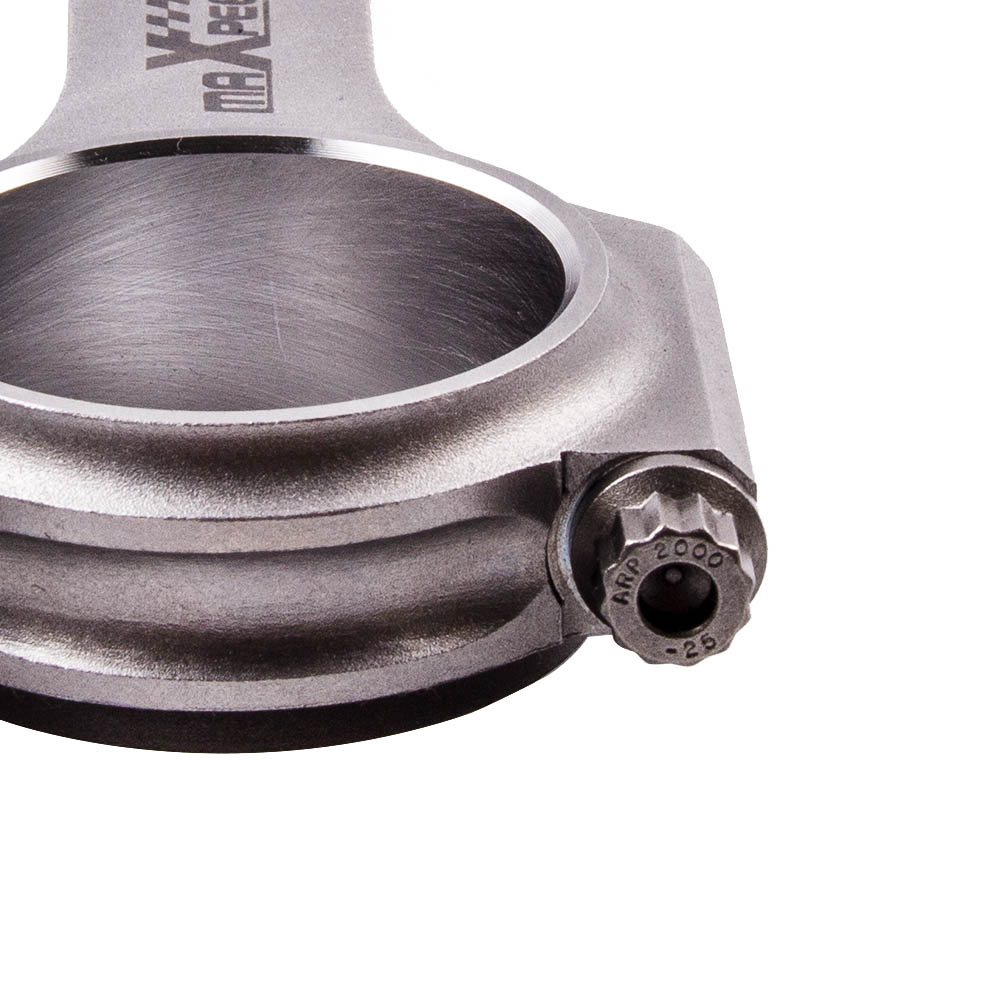

*Bolts: Including  ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size:28CM*21CM*10CM





Dimension:

Center to center length:134.36mm/5.29"
Big end diameter:48mm/1.89"
Small end diameter:21mm/0.827"
Big end width:23.75mm/0.935"
Small end width:21mm/0.827"





Feature:

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED;
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing;
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade;
4. H-Beam design reduces weight without compromising strength;
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers;
6.High precision CNC machined,Precision rod cap alignment dowels;
7.Bores finished to +/- .01 mm;
8.Balanced to within +/- 1 g per rod;
9. Each rod is magnetic particle tested to ensure free of flaws;
10.Use X-rayed, sonic tested;
11.Custom Service.







Note:

*Professional installation is highly recommended ;

*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
