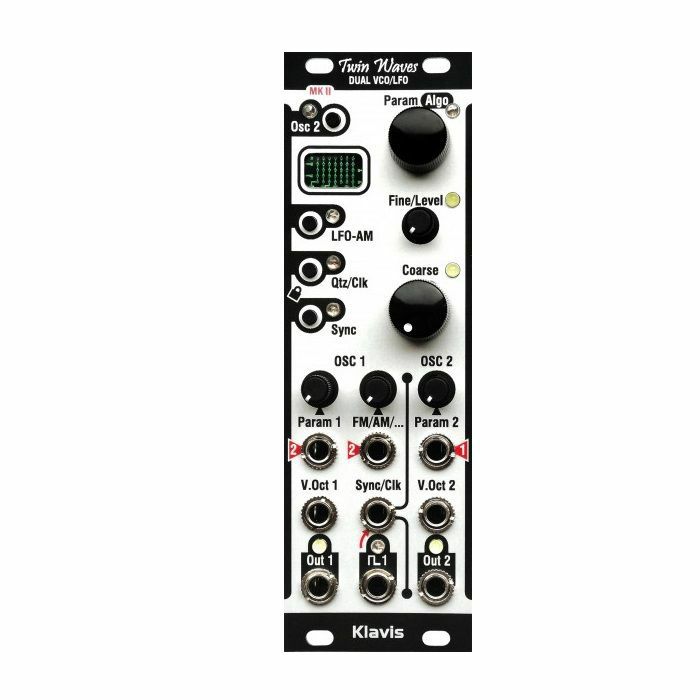

Klavis Twin Waves MK2 Voltage-Controlled Dual VCO/LFO/Random Module (silver)

Dual voltage controlled oscillator or low frequency oscillator

Voltage-controlled Dual VCO/LFO - two oscillators independently set as VCO or LFO.

Features in VCO mode:
V/Oct tracking over 10 octaves
Through zero and linear FM
Sub-octave output
Hard & soft synchronization
VCA control and CV algorithms selection
Quantizer with various scales
20 algorithm-based synthesis types among:
Wave shaping
Phase modulation
Phase positioning of multiple waves
Up to 5 stacked oscillators in tunable unison
Self-sync with phantom oscillator
Additive synthesis (7 waves)
Variable bit reduction (bit-crushing)
Ring modulator with its own 2nd oscillator
Noise with LPF, BPF, or resonant filter
Features in LFO mode:
Simultaneous signal and trigger outputs
External wave synchronization
Clock controlled rate with voltage controlled multiplier and divider
CV and knob control of output level
Algorithm based wave engine with a selection of:
Wave shaping
Phase modulation
Random levels and vectors (also Brownian)
Randomly spaced triggers and waves
Display with contextual icons and instant reminder help text
LEDs indicating potentiometer vs. value matching, switch settings and output levels
Automatically saved settings for instant recall at power on
Firmware update by playing an audio file via the front panel
Compact and skiff-friendly module

The driving idea behind the Twin waves voltage-controlled dual oscillator/LFO is to offer two interesting oscillators in a skiff-friendly and compact size. To achieve that challenge, Klavis built the product's architecture on the concept of pre-defined algorithms, where the most useful configurations and their matching parameter are ready to use.

This MKII evolution brings a redesigned layout, additional knobs for more hands-on fun and semi-modular cross-patching between sections.

All of the original features are present: a top selection of synthesis techniques, each with their key parameter directly at hand, enriched by a full set of complementary features.

More than ever, the Twin Waves is versatility at its best.

Dimensions:

(mm) Height: 128.40, Width: 40.40, Depth: 21.00
(Inches): Height: 5.06, Width: 1.59, Depth: 0.83
Eurorack: Height: 3HE, Width: 8HP
Depth behind panel (no supply cable inserted)- 21.00mm, 0.83 inches

Current draw
+12V: 46mA
-12V: 18mA
+5V: 0mA
