B2 Audio Subwoofer & Enclosure Combo RAGEXL12 D2 w/Tru Spec Elite XXL
B2 Audio RAGEXL 12" Dual 1-Ohm Subwoofer + Tru Spec Elite XXL Enclosure Combo

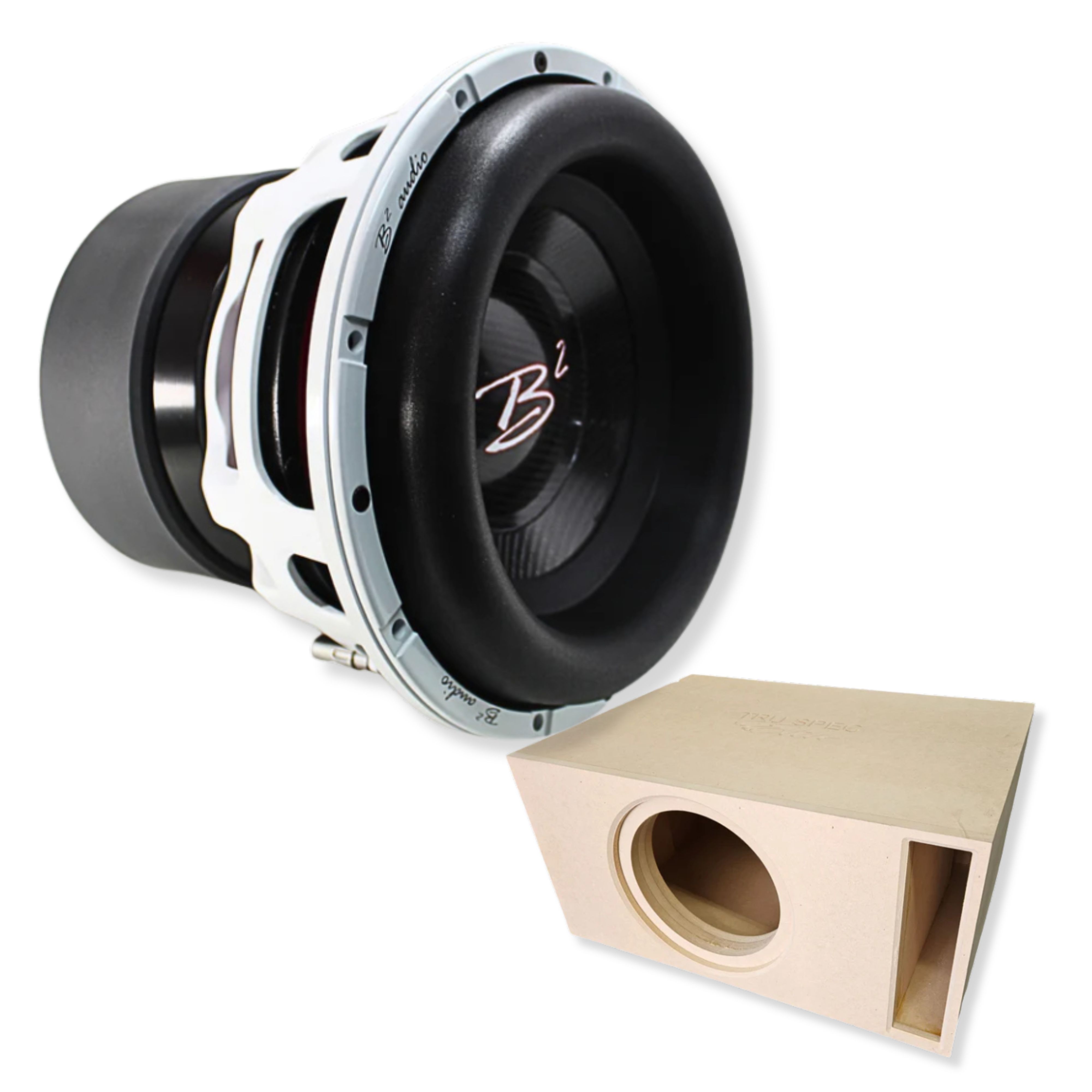

This Listing Includes:
- (1) B2 Audio RAGEXL Series 12" Dual 2-Ohm Subwoofer
- (1) Tru Spec Elite XXL 12" Subwoofer Enclosure (GP Car Audio)
Please note that these items will ship separately.
This combo pairs the B2 Audio RAGEXL 12" Dual 2-Ohm subwoofer with the Tru Spec Elite XXL enclosure, a cabinet designed specifically around the RAGEXL platform to deliver controlled, high-output low-frequency performance. Built for serious bass systems, this setup removes the guesswork by matching the subwoofer with proper airspace, port tuning, and structural support.
The RAGEXL 12 D2 is rated at 3500 watts RMS and features a massive motor structure, 3" voice coil, and long excursion design capable of moving large amounts of air with authority. Dual 2-ohm voice coils offer flexible wiring options, making it easier to integrate into a wide range of amplifier configurations while maintaining strong output and control.
The Tru Spec Elite XXL enclosure is constructed from 0.75" MDF and features a triple mounting baffle, quad flush baffle, and extensive internal bracing with 45-degree supports to reduce flex and vibration. With a net internal volume of 2.50 cubic feet and a 32 Hz tuning frequency, this enclosure is optimized to deliver deep bass extension and consistent output when paired with the RAGEXL 12.
This combo is ideal for users looking for a proven subwoofer and enclosure pairing designed to handle real power without compromising reliability.
Subwoofer Specifications - B2 Audio RAGEXL 12" Dual 2-Ohm
- RMS Power Handling: 3500 Watts
- Peak Dynamic Power: 10,000+ Watts
- Nominal Impedance: Dual 2 Ohm
- Voice Coil Diameter: 3"
- Frequency Response: 10 Hz – 500 Hz
- Sensitivity: 86 dB
- Magnet Weight: 850 oz
- Xmax: 23 mm
- Mounting Depth: 10.12"
Enclosure Specifications - Tru Spec Elite XXL 12"
- Material: 0.75" MDF
- Net Internal Volume: 2.50 ft
- Tuning Frequency: 32 Hz
- Port Area: 40.00 in
- Cutout Diameter: 11.20"
- External Dimensions (W x H x D): 30.00" x 15.00" x 21.21"
Recommended Wiring Configuration
- Dual 2-ohm voice coils allow wiring to 1 ohm or 4 ohms, depending on amplifier requirements
- Ensure amplifier output and vehicle electrical system are properly matched for high-power operation
- Proper gain setting and subsonic filtering are strongly recommended for long-term reliability
Product Details
| Brand | B2 Audio |
|---|---|
| Color | Multicolored |
| Size | 12 Inch |
| Manufacturer | B2 Audio |
| Mpn | COMBO-22 |
- Matched Subwoofer & Enclosure Pairing: Enclosure is built specifically for the B2 Audio RAGEXL 12 for correct airspace and tuning.
- High-Power Bass Capability: RAGEXL 12 handles 3500W RMS with long excursion and a heavy-duty motor structure.
- Optimized Low-End Performance: 32 Hz tuning delivers strong low-frequency extension with controlled response.
- Built for Abuse: Triple baffle construction, heavy internal bracing, and 0.75" MDF support high-output operation.
-
