1. Wide voltage compatibility (3-24V) with ultra-low standby power consumption of only 2μA
2. 10A high-current drive for stable control of high-power devices
3. Dual-mode operation (momentary/latch) for flexible adaptation to application needs
4. Non-metallic panel penetration sensing with precise recognition of glass/plastic surfaces
5. Industrial-grade MOSFET design for strong anti-interference capability and extended lifespan

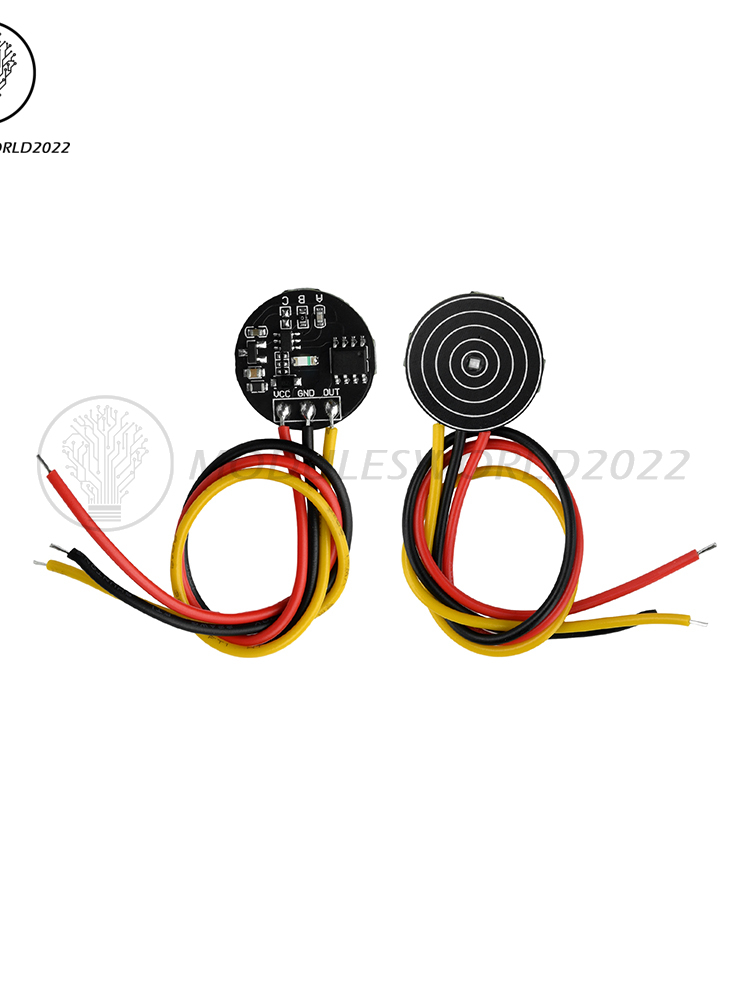

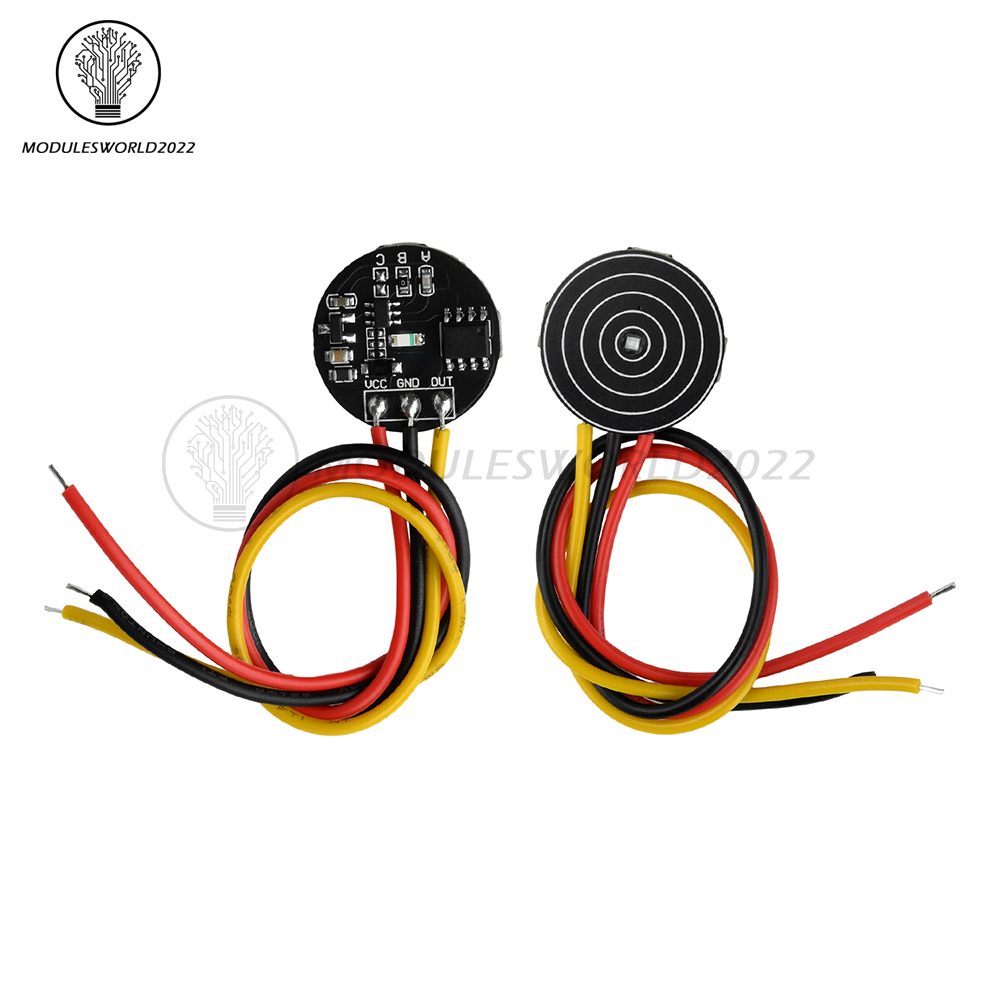

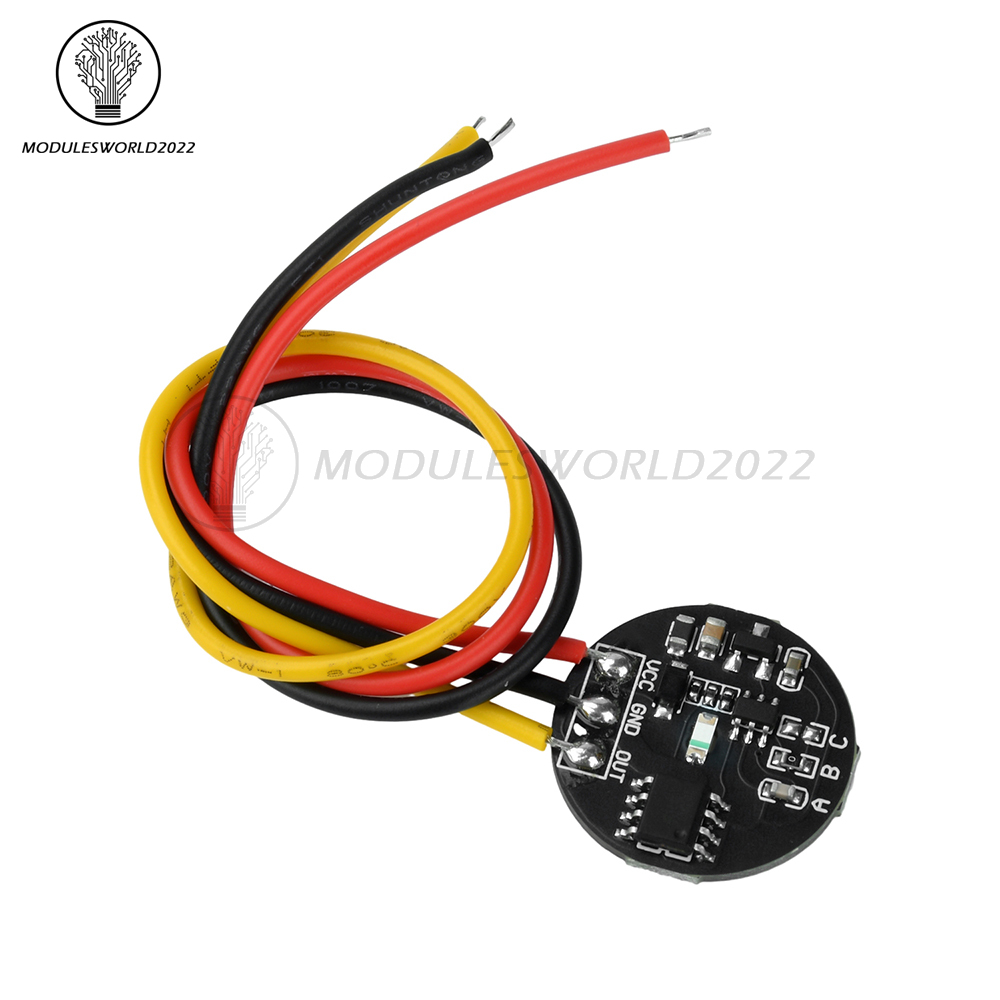

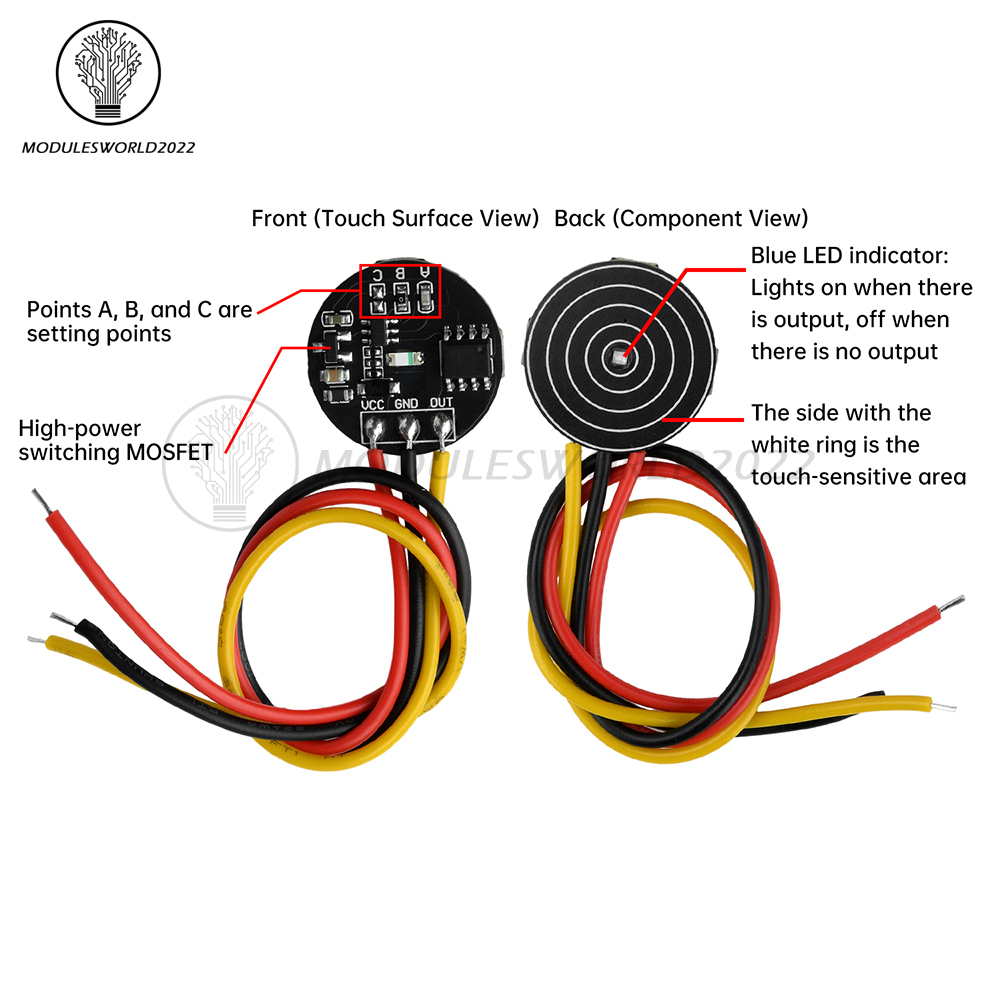

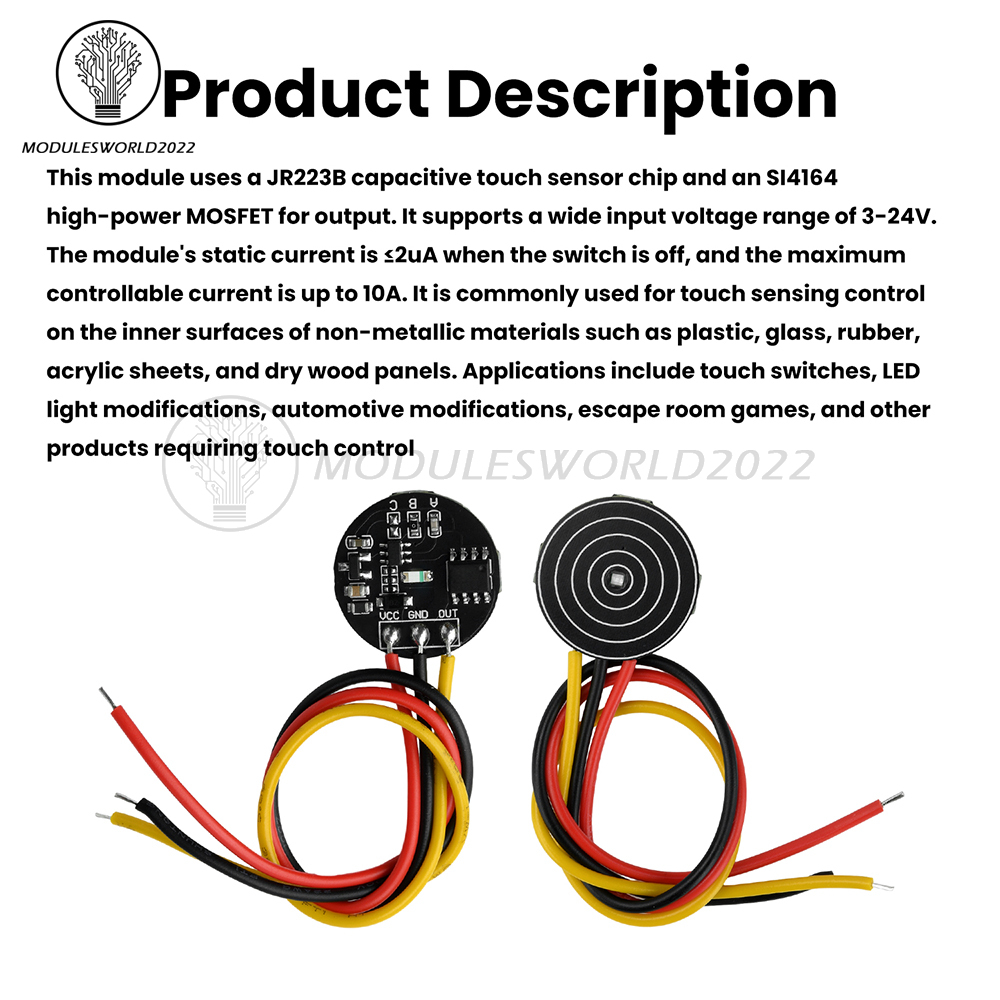

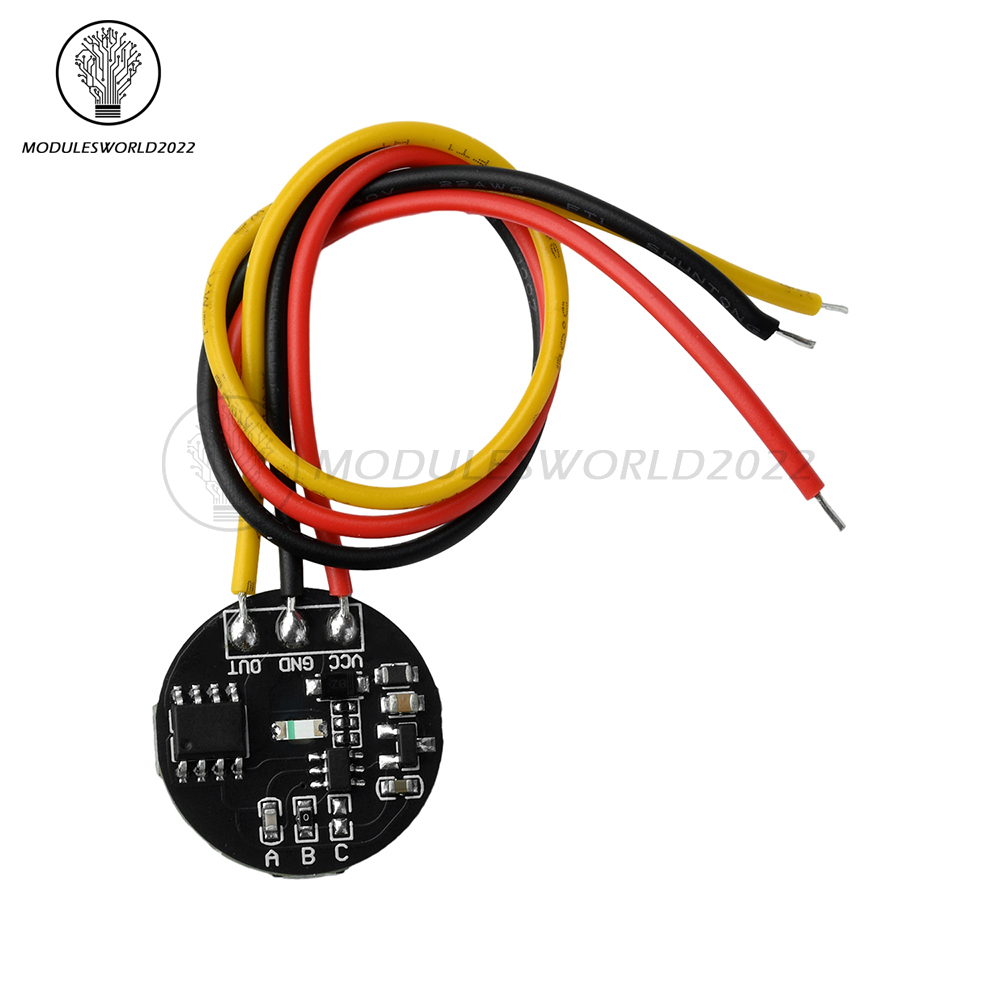

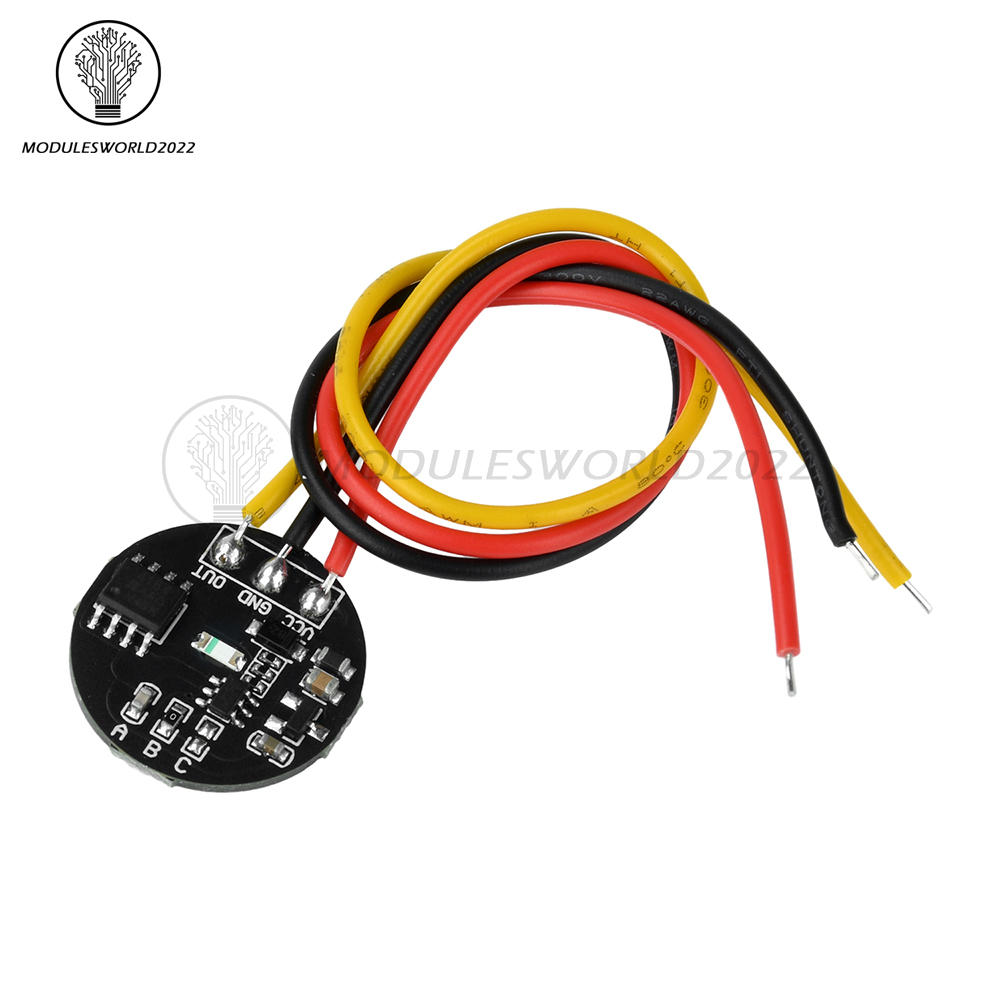

This module utilizes the JR223B capacitive touch sensor chip paired with SI4164 high-power MOSFET output. It supports 3-24V wide input voltage control, with static current ≤2μA when the switch is off. The switch can control a maximum current of 10A. Commonly used for touch sensing control on non-metallic materials like plastic, glass, rubber, acrylic panels, or dry wood surfaces. Applications include touch switches, LED light modifications, automotive upgrades, escape room games, and other touch-controlled products.

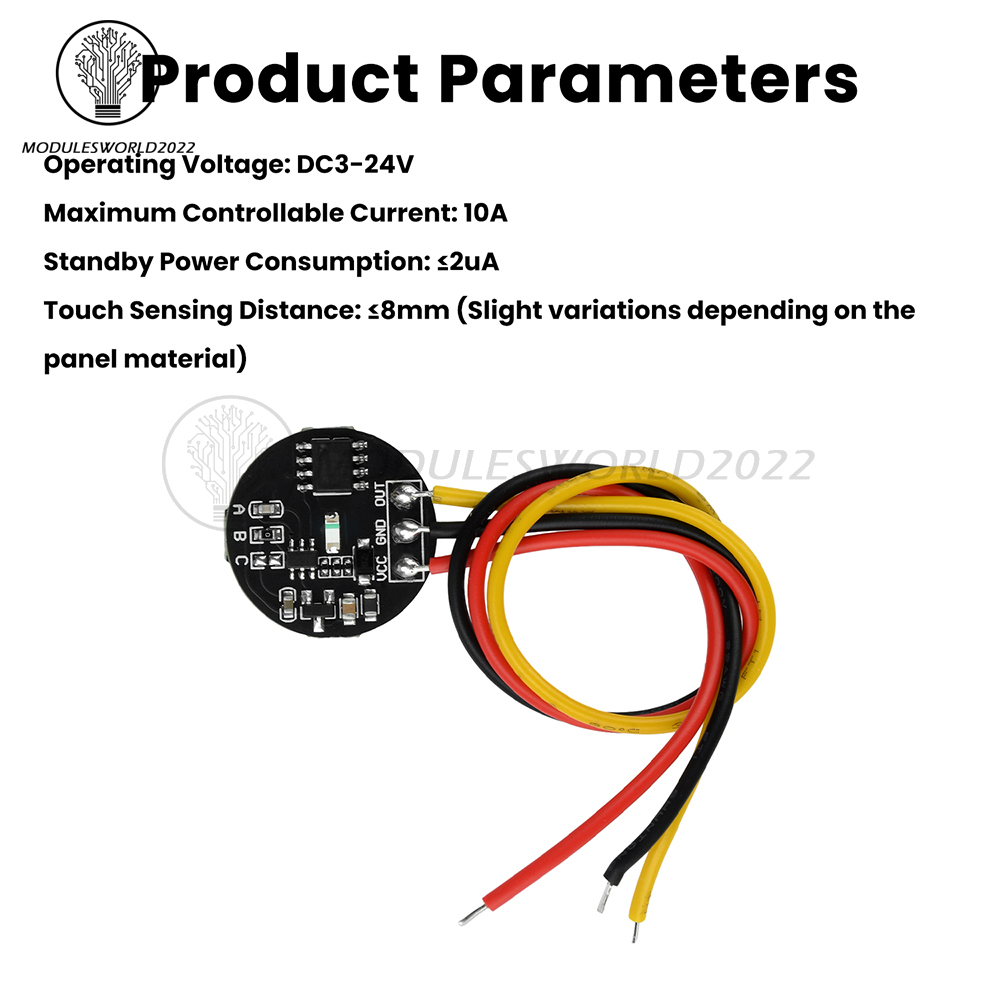

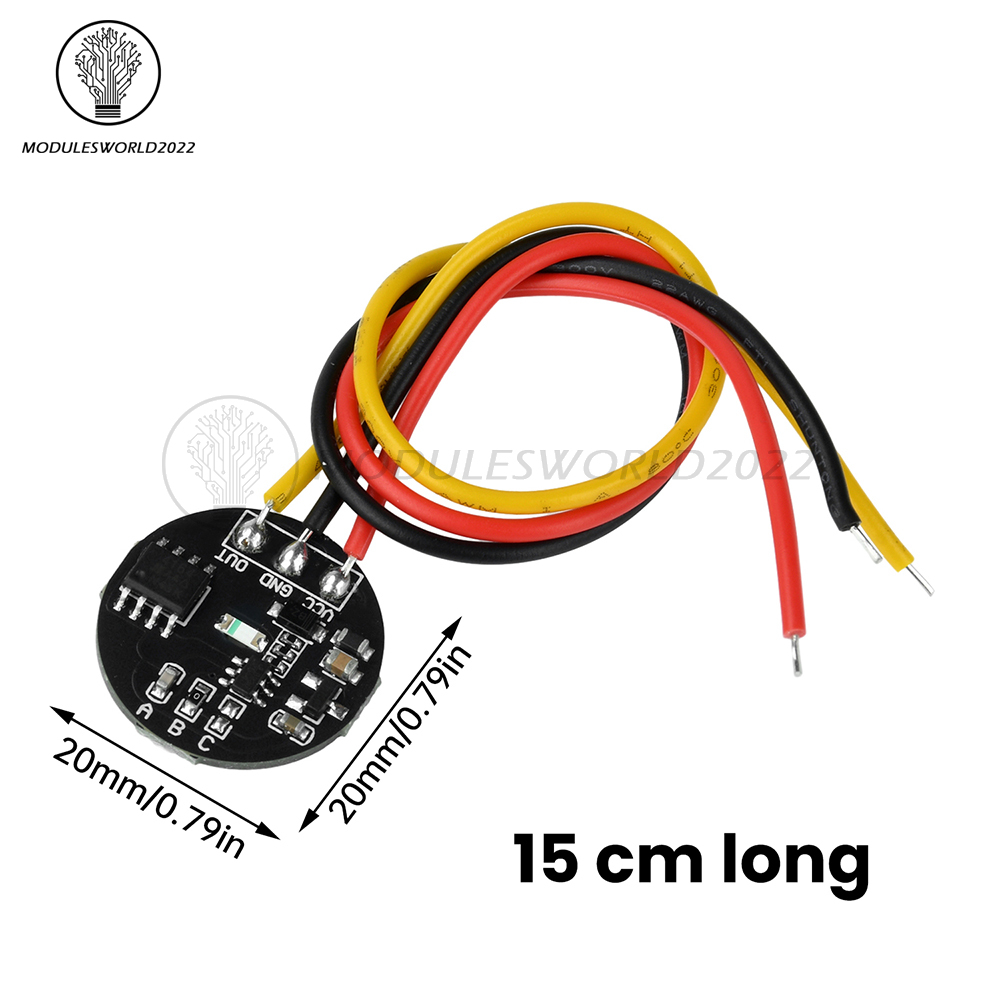

Operating Voltage: DC 3-24V
Maximum Controllable Current: 10A
Standby Power Consumption: ≤2μA
Touch Sensing Distance: ≤8mm (may vary slightly depending on panel material)

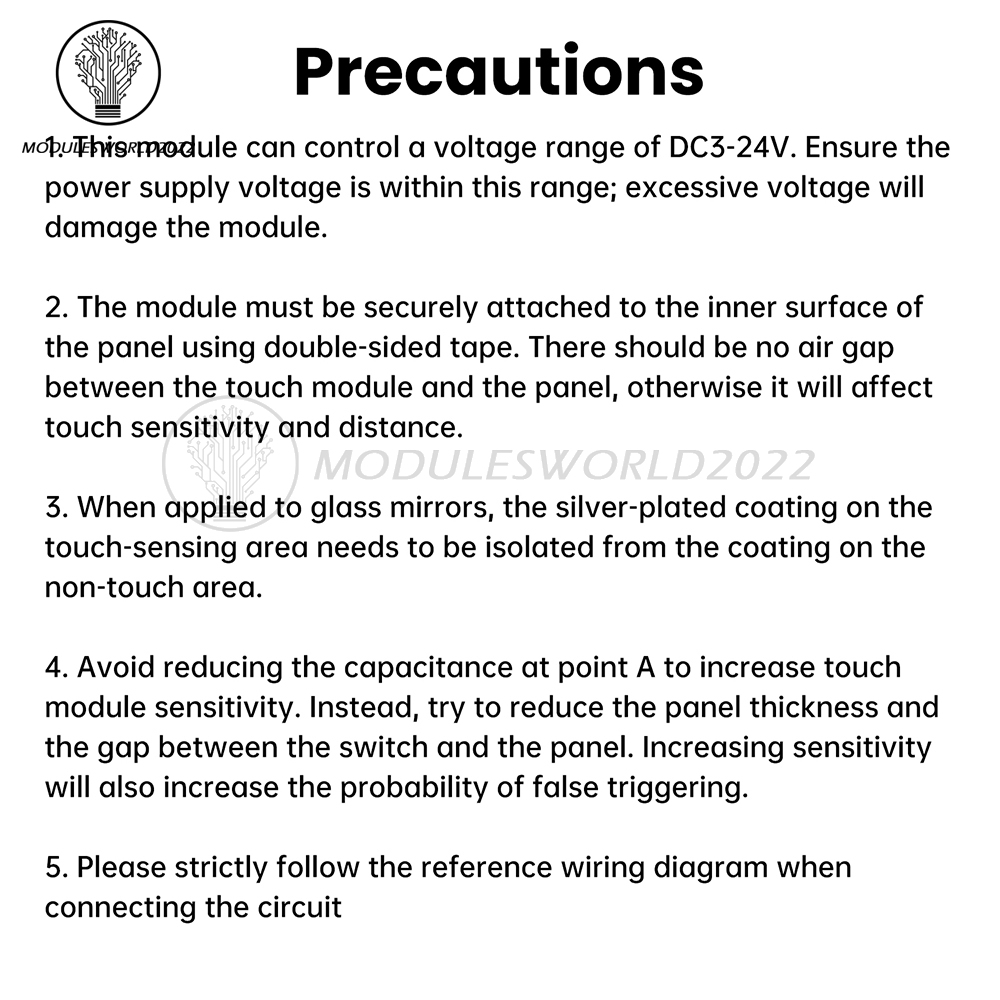

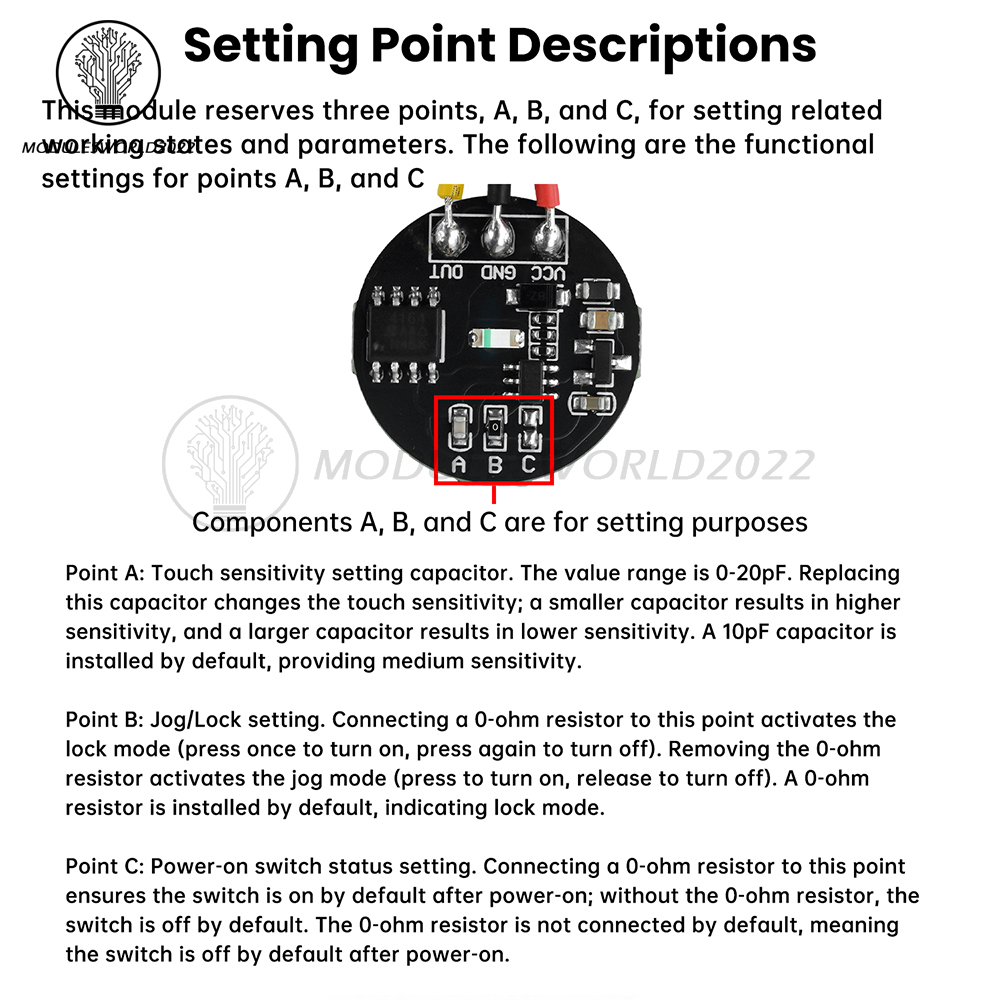

1. This module operates within a DC 3-24V voltage range. Ensure the supply voltage falls within this range; excessive voltage may damage the module.
2. Secure the module to the inner surface of the panel using double-sided tape. Ensure no air gap exists between the touch module and the panel, as this will impair touch sensitivity and detection distance.
3. When applied to glass mirrors, isolate the silver-coated touch-sensitive area from the non-touch coating on the mirror surface.
4. Avoid modifying capacitor A to increase touch module sensitivity. Instead, reduce panel thickness and the gap between the switch and panel. While this may enhance sensitivity, it also increases the probability of false triggers.

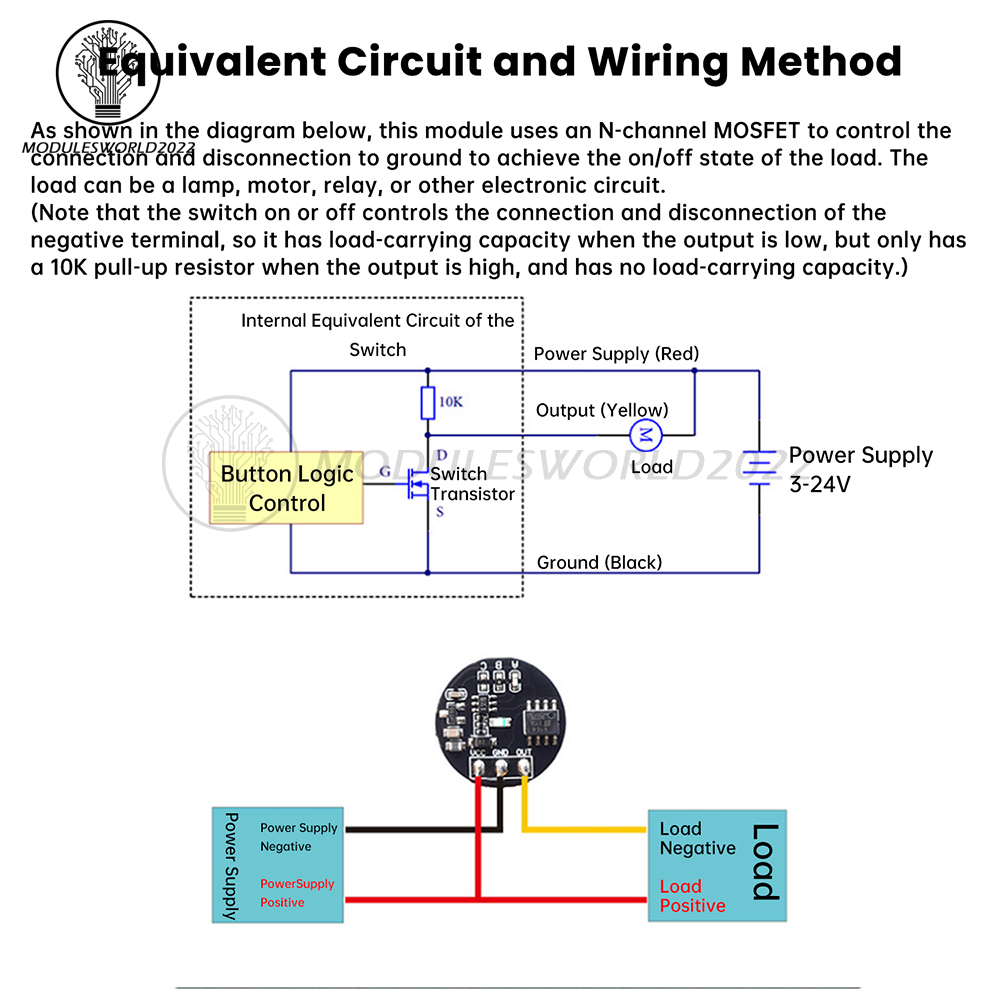

5. Strictly follow the reference circuit diagram for wiring connections.
Module*5/10
Double-sided tape*5/10
