Product features.
1. Current setting: enter the current setting page displaying 100A flashing short press the lower right button to switch the current parameters, select the current parameters, short press the upper right button to confirm save long press the upper right button for 3 seconds to return to the main page, the setting is complete.
2. Capacity setting: enter the capacity setting page displaying 100Ah flashing long press the lower right button to switch the bit, short press the lower right button to change the parameters, short press the upper right button to confirm save, long press the upper right button for 3 seconds to return to the main page, the setting is complete.
3. Low voltage alarm setting: Enter the setting page to display 00.0V flashing Long press the lower right key to switch the bit number, short press the lower right key to change the parameters, short press the upper right key to confirm and save Long press the upper right key for 3 seconds to return to the main page, the setting is complete.
4. Zero capacity voltage setting: enter the setting page to display 0AH 00.V flashing long press the lower right key to switch the bit number short press the lower right key to change the parameters, short press the upper right key to confirm save long press the upper right key for 3 seconds to return to the main page, the setting is complete.
5. Current and voltage calibration
6. Zero capacity AH setting
7. Full capacity AH setting
8. Current zeroing
9. Wide range of applications: various instruments, measuring equipment, medical equipment, sweepers, electric vehicles, RVs

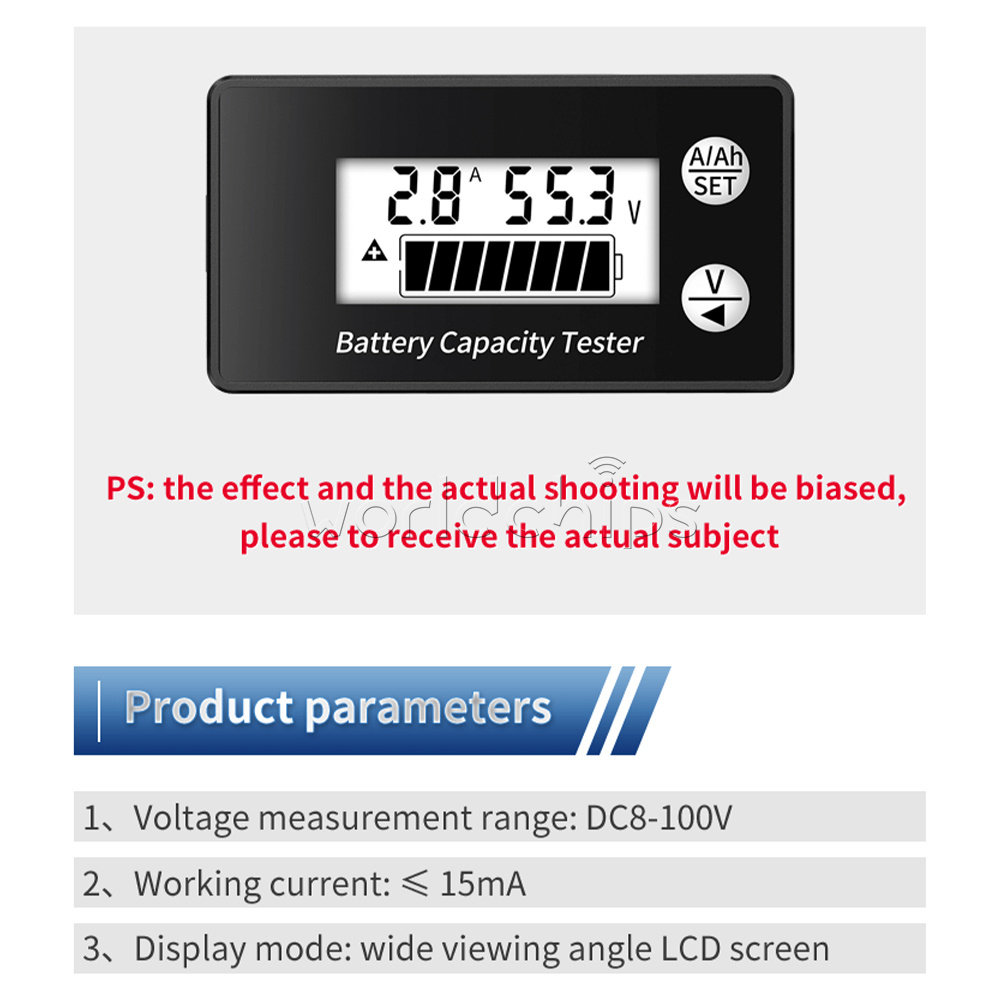

Product parameters.
Voltage measurement range:DC8-100V
Working current:≤15mA
Display mode: wide view LCD screen

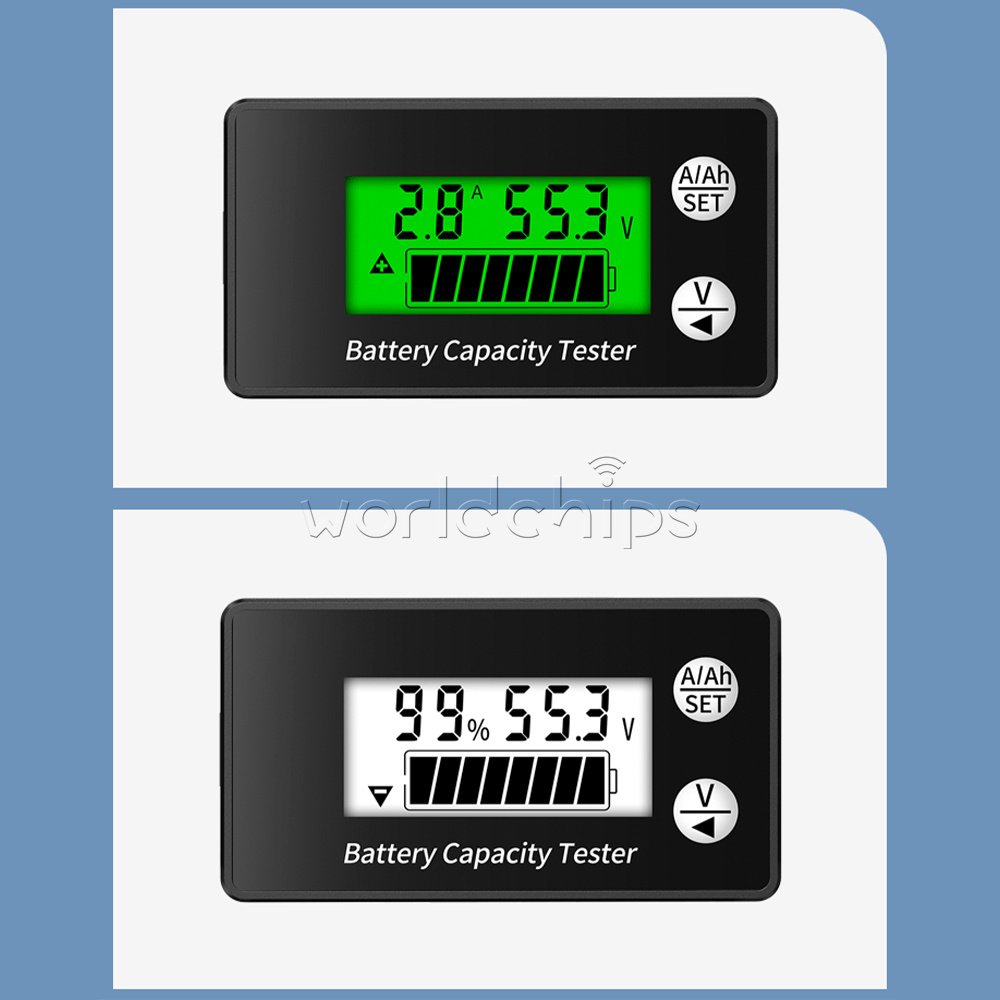

Display color:white/green (optional)
Optional specifications: 50A/100A/300A/500A
Shield wire length: 1.5m/ 59.05 inches
Package and list.

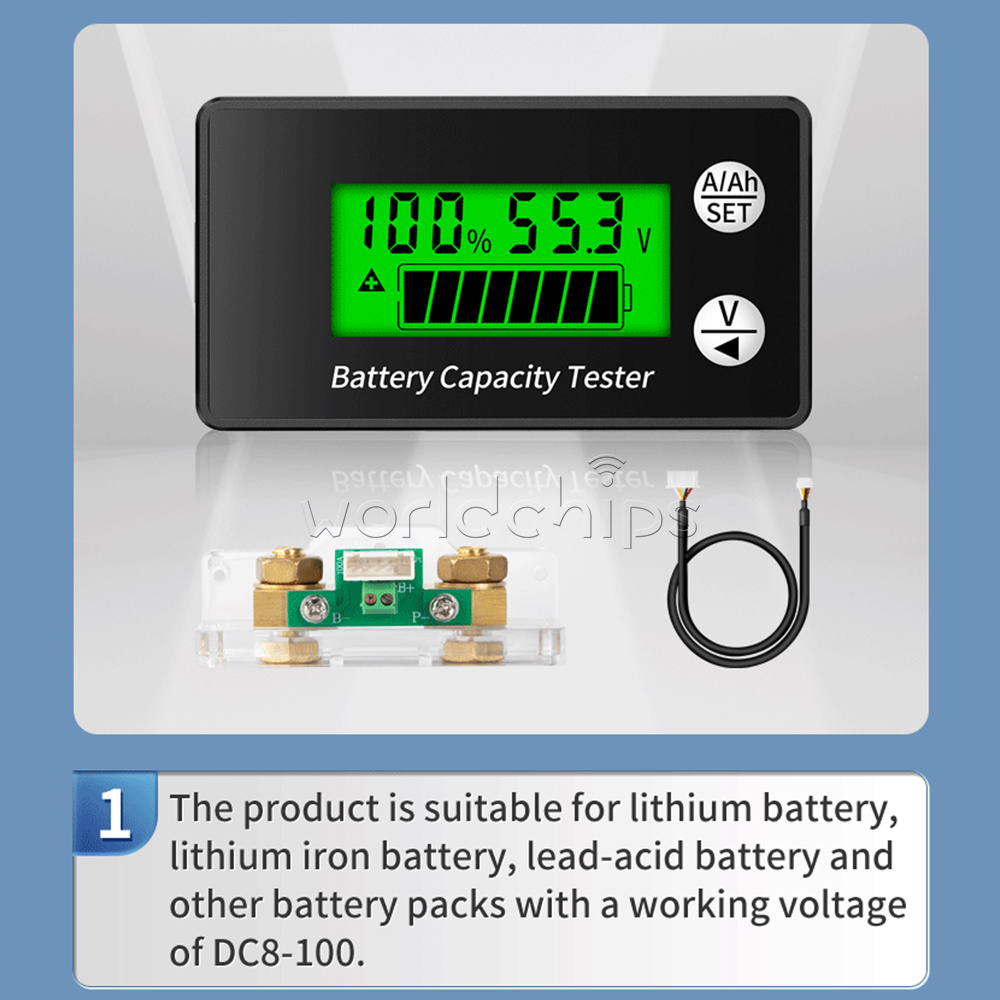

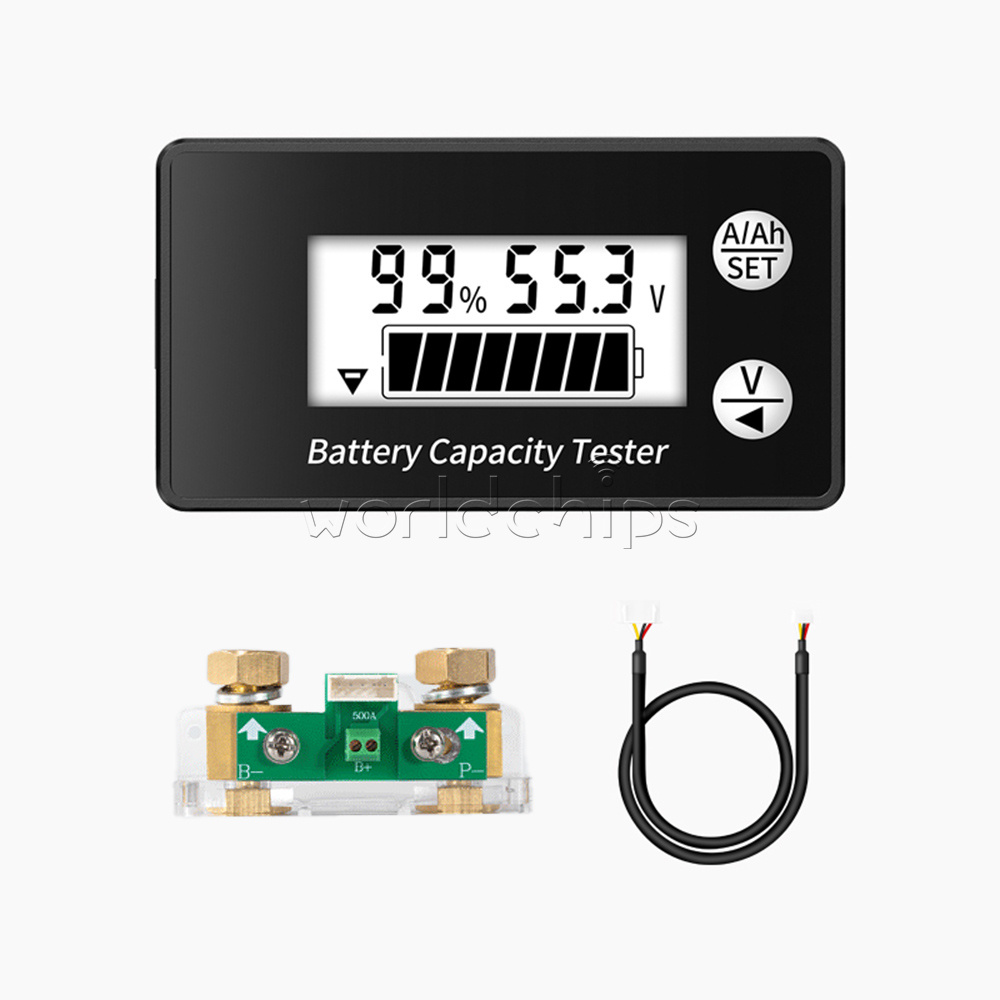

Coulomb meter + shunt + 1.5M shielded wire
